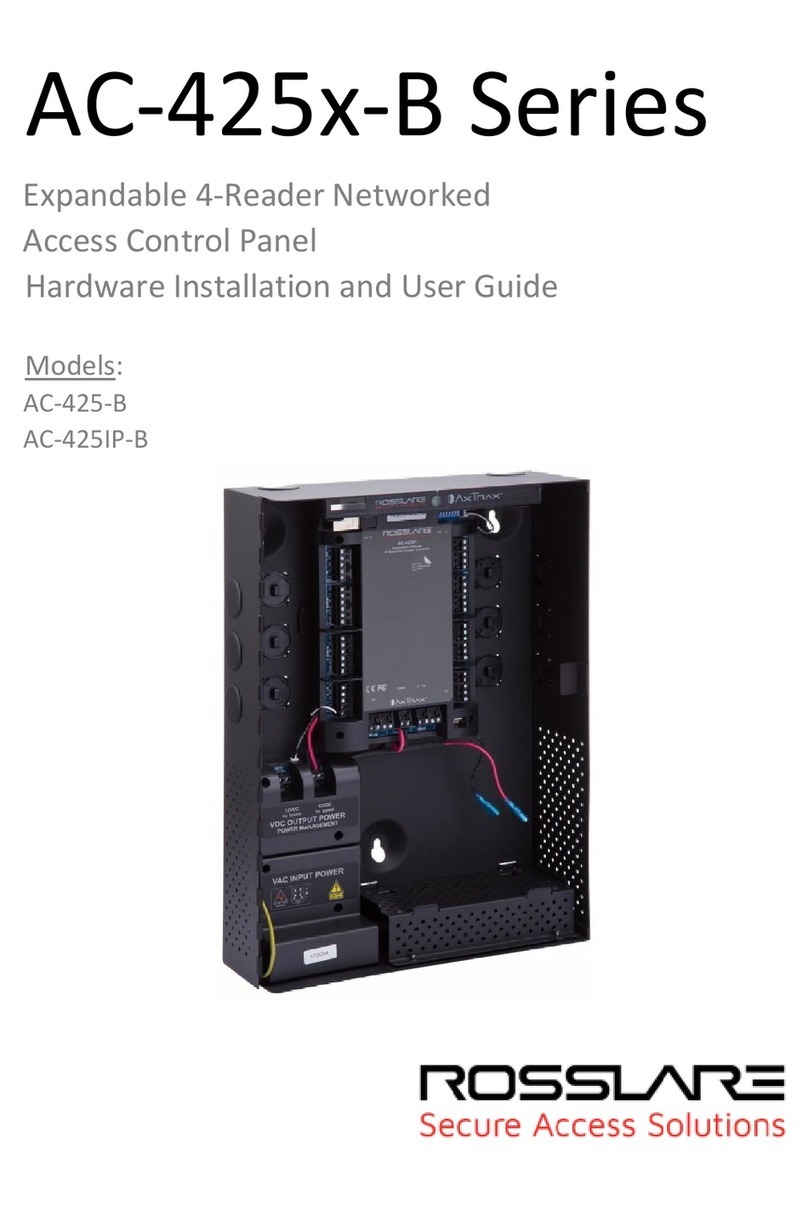

Rosslare AC-425x-B Series User manual

AC-425x-B Series
Expandable 4-Reader Networked
Access Control Panel
Hardware Installation and User Guide
Models:
AC-425-B
AC-425-DIN
AC-425IP-B
AC-425IP-DIN

Copyright © 2018 by Rosslare. All rights reserved.
This manual and the information contained herein are proprietary to ROSSLARE
ENTERPRISES LIMITED and/or its related companies and/or subsidiaries’ (hereafter:
"ROSSLARE"). Only ROSSLARE and its customers have the right to use the
information.
No part of this manual may be re-produced or transmitted in any form or by any
means, electronic or mechanical, for any purpose, without the express written
permission of ROSSLARE.
ROSSLARE owns patents and patent applications, trademarks, copyrights, or other
intellectual property rights covering the subject matter in this manual.
TEXTS, IMAGES, AND ILLUSTRATIONS INCLUDING THEIR ARRANGEMENT IN THIS
DOCUMENT ARE SUBJECT TO THE PROTECTION OF COPYRIGHT LAWS AND
OTHER LEGAL RIGHTS WORLDWIDE. THEIR USE, REPRODUCTION, AND
TRANSMITTAL TO THIRD PARTIES WITHOUT EXPRESS WRITTEN PERMISSION MAY
RESULT IN LEGAL PROCEEDINGS.
The furnishing of this manual to any party does not give that party or any third
party any license to these patents, trademarks, copyrights or other intellectual
property rights, except as expressly provided in any written agreement of
ROSSLARE.
ROSSLARE reserves the right to revise and change this document at any time,
without being obliged to announce such revisions or changes beforehand or after
the fact.

Table of Contents
AC-425x-B Hardware Installation and User Manual iii
Table of Contents
1. Introduction........................................................................................8
1.1 AxTraxNG ......................................................................................................................................................... 9
1.1.1 Client-Server Structure.......................................................................................................................................................10
1.1.2 Configurable Links ...............................................................................................................................................................10
1.1.3 Fingerprint Recognition.....................................................................................................................................................10
2. Technical Specifications.....................................................................11
2.1 AC-425x-DIN ................................................................................................................................................11
2.2 AC-425x-B Installed in ME-1015 ..........................................................................................................12
3. AC-425x-B Panel Setup..................................................................... 14
3.1 Inputs Wiring –Non-Supervised Inputs ...........................................................................................15
3.2 Inputs Wiring –Supervised Inputs......................................................................................................16
3.3 Outputs Wiring............................................................................................................................................16
3.4 Power Supply ...............................................................................................................................................17
3.5 AC-425x-B Wiring Communications ...................................................................................................19
3.6 Readers...........................................................................................................................................................19
3.7 MD-IO84B......................................................................................................................................................20
3.8 MD-D04B .......................................................................................................................................................20
4. Input and Output Connections ...........................................................21
4.1 Input Types ...................................................................................................................................................21
4.1.1 Normally Open Input Connection.................................................................................................................................21
4.1.2 Normally Closed Input Connection..............................................................................................................................22
4.1.3 Normally Open Supervised Single EOL Resistor Input Connection ...............................................................22
4.1.4 Normally Open Supervised Double EOL Resistor Input Connection.............................................................23
4.1.5 Normally Closed Supervised Single EOL Resistor Input Connection.............................................................24
4.1.6 Normally Closed Supervised Double EOL Resistor Input Connection ..........................................................24
4.2 Inputs Description......................................................................................................................................25

Table of Contents
iv AC-425x-B Hardware Installation and User Manual
4.2.1 Request-to-Exit Button (REX) Input..............................................................................................................................25
4.2.2 Door Monitor Input.............................................................................................................................................................26
4.2.3 General Purpose Inputs .....................................................................................................................................................26
4.3 Outputs...........................................................................................................................................................27
4.3.1 Door Lock ................................................................................................................................................................................27
4.4 Card Readers and Keypads ....................................................................................................................28
5. AC-425x-B Hardware Settings ...........................................................30
5.1 DIP Switch Configuration ........................................................................................................................30
5.2 AC-425x-B Panel Baud Rate...................................................................................................................31
5.3 AC-425x-B Panel Type..............................................................................................................................31
5.4 AC-425x-B Panel Address .......................................................................................................................34
6. Communications ...............................................................................37
6.1 Serial Network Connection.....................................................................................................................37
6.1.1 RS-232 Connection to the Computer..........................................................................................................................37
6.1.2 RS-485 Connection to the Computer..........................................................................................................................38
6.1.3 Daisy Chaining.......................................................................................................................................................................39
6.2 TCP/IP Network Connection ..................................................................................................................40
6.2.1 LAN and WAN Requirements .........................................................................................................................................40
6.2.2 LAN and WAN Requirements .........................................................................................................................................41
A. Declaration of Conformity..................................................................42
B. Radio Equipment Directive (RED) ........................................................43
C. RoHS Directive .................................................................................. 44
D. Limited Warranty ...............................................................................45

List of Figures
AC-425x-B Hardware Installation and User Manual v
List of Figures
Figure 1: AC-425x-B Panel Layout ........................................................................................................................... 9
Figure 2: Sample AC-425x-B Configuration.......................................................................................................14
Figure 3: Inputs Wiring –Non-supervised Inputs ...........................................................................................15
Figure 4: Door Lock –Failed Close .......................................................................................................................16
Figure 5: Door Lock –Failed Open .......................................................................................................................17
Figure 6: Wiring Between PM-10 and AC-425x-B...........................................................................................18
Figure 7: AC-425x-B Wiring Communications ..................................................................................................19
Figure 8: Reader Wiring .............................................................................................................................................20
Figure 9: Connector Location for MD-IO84B or MD-D04B Expansions.................................................20
Figure 10: Normally Open Input Connection....................................................................................................22
Figure 11: Normally Closed Input Connection .................................................................................................22
Figure 12: Normally Open Supervised Input (Single Resistor)...................................................................23
Figure 13: Normally Open Supervised Input (Double Resistor) ................................................................23
Figure 14: Normally Closed Supervised Input (Single Resistor) ................................................................24
Figure 15: Normally Closed Supervised Input (Double Resistor)..............................................................25
Figure 16: DIP Switches..............................................................................................................................................30
Figure 17: RS-232 Panel Connection to PC .......................................................................................................37
Figure 18: RS-485 Panel Connection to PC .......................................................................................................38
Figure 19: Daisy Chaining..........................................................................................................................................39
Figure 20: MD-N32 Configuration Connecting a Single Panel..................................................................40
Figure 21: Connecting a Single Control Panel with MD-N32 ....................................................................41
Figure 22: Connecting Multiple Access Control Panels with MD-N32...................................................41

List of Tables
vi AC-425x-B Hardware Installation and User Manual
List of Tables
Table 1: DIP Switches and Their Functions ........................................................................................................30
Table 2: Switch Baud Rates.......................................................................................................................................31
Table 3: Possible Hardware Settings.....................................................................................................................31
Table 4: Available Panel Addresses .......................................................................................................................35
Table 5: RS-232 Connection.....................................................................................................................................38

Notice and Disclaimer
AC-425x-B Hardware Installation and User Manual vii
Notice and Disclaimer
This manual’s sole purpose is to assist installers and/or users in the safe and efficient installation and usage of
the system and/or product, and/or software described herein.
BEFORE ATTEMPTING TO INSTALL AND/OR USE THE SYSTEM,THE INSTALLER AND THE USER MUST READ THIS
MANUAL AND BECOME FAMILIAR WITH ALL SAFETY REQUIREMENTS AND OPERATING PROCEDURES.
The system must not be used for purposes other than those for which it was designed.
The use of the software associated with the system and/or product, if applicable, is
subject to the terms of the license provided as part of the purchase documents.
ROSSLARE exclusive warranty and liability is limited to the warranty and liability
statement provided in an appendix at the end of this document.
This manual describes the maximum configuration of the system with the maximum
number of functions, including future options. Therefore, not all functions described in
this manual may be available in the specific system and/or product configuration you
purchased.
Incorrect operation or installation, or failure of the user to effectively maintain the
system, relieves the manufacturer (and seller) from all or any responsibility for
consequent non-compliance, damage, or injury.
The text, images and graphics contained in the manual are for the purpose of illustration
and reference only.
All data contained herein subject to change without prior notice.
In no event shall manufacturer be liable for any special, direct, indirect, incidental,
consequential, exemplary, or punitive damages (including, without limitation, any and all
damages from business interruption, loss of profits or revenue, cost of capital or loss of
use of any property or capital or injury).
All graphics in this manual are for reference only, some deviation between the image(s)
and the actual product may occur.
All wiring diagrams are intended for reference only, the photograph or graphic of the
PCB(s) are intended for clearer illustration and understanding of the product and may
differ from the actual PCB(s).

Introduction
8 AC-425x-B Hardware Installation and User Manual
1. Introduction
In this manual, unless otherwise stated, “AC-425x-B” refers to both the regular AC-425-B and the
AC-425IP-B moels.
The AC-425x-B access control panel is a state-of-the-art networked access controller,
employing the latest technology to meet the requirements of the market.
The state-of-the-art dual/quad door AC-425x-B networked access controller is the backbone
of medium scale security systems handling up to 30,000 users and 8184 doors.
Each AC-425x-B access control unit (ACU) supports four readers (In/Out) of various formats
including standard Wiegand 26-bit. Installations can also have one reader per door.
The AC-425x-B comes in two models:
AC-425-B –standard model
AC-425IP-B –supports TCP/IP connection
Driven by Rosslare’s powerful, flexible and easy-to-use AxTraxNG™ software, the system
provides an ideal, modular and expandable solution for commercial and institutional needs. It
provides seamless integration with Rosslare's range of RFID proximity, PIN, Proximity & PIN,
smartcard and biometric readers with Rosslare’s selection of RFID credentials.
The AC-425x-B is ready for installation with a mountable & lockable metal enclosure
integrated with transformer, power supply/charger, sounder and control board.
Using onboard RS-232/485, Ethernet TCP/IP (AC-425IP-B model only), multiple local or remote
sites, door sub-networks can connect to the AxTraxNG Client/Server PC software running on
Microsoft®Windows®98/ME & NT/2000/XP/7 operating systems.
The AC-425x-B consists of the following components:
AC-425x-B controller board
Panel enclosure
PM-10 management board
Power transformer
4 x 2.2 kΩand 4 x 8.2 kΩresistors for the supervised inputs

Introduction
AC-425x-B Hardware Installation and User Manual 9
Figure 1 shows the layout of the AC-425x-B panel.
Figure 1: AC-425x-B Panel Layout
1.1 AxTraxNG
The AxTraxNG software system is custom designed to set up, manage, and supervise all
aspects of an access panel network.
It offers the following capabilities:
Parameter
Value
Users capacity
30,000
Unauthorized users
30,000
Access groups
30,000
Number of panels in system
1023
Number of doors in system
8184
These options are software and firmware dependent, and may change in later releases or
revisions.

Introduction
10 AC-425x-B Hardware Installation and User Manual
1.1.1 Client-Server Structure
AxTraxNG operates through a dedicated AxTraxNG server computer, which communicates with
the access control panels and can serve an unlimited number of network clients.
The server also runs the system's SQL database, which contains settings and definitions for
access control across the entire facility. System users can define new cards holders and users,
and control access permissions. The system includes tools for database backup, input, and
export of previous configurations and automatic backup on a periodic basis.
AxTraxNG supports all panel types and offers scalability and flexibility in addition to a range of
advanced control features.
1.1.2 Configurable Links
The system's configurable links model makes it possible to trigger any chosen output
automatically or report a configurable alarm, based on a selected input. This allows easy
integration with other access systems such as intruder alarms, CCTV systems, and elevator
controls.
AxTraxNG can also define a selected set of operations, which are defined in configurable links,
when a panel registers a specified user or group of users. This can be useful, for example, in
elevator control systems. The system can assign users with counters, allowing a limited
number of entries to each panel.
1.1.3 Fingerprint Recognition
AxTraxNG can share user details with Rosslare's BioTrax software system. The BioTrax system
can then download all selected user information to an AYC-W6500 fingerprint reader.
Fingerprint recognition was not evaluated by UL.

Technical Specifications
AC-425x-B Hardware Installation and User Manual 11
2. Technical Specifications
2.1 AC-425x-DIN

Technical Specifications
12 AC-425x-B Hardware Installation and User Manual
Electrical Characteristics
Operating Voltage
12 VDC, 1.5 A from a regulated power supply
Maximum Input Current
AC-425
Standby: 80 mA
Maximum: 325 mA
AC-425IP
Standby: 120 mA
Maximum: 370 mA
General Inputs
4 supervised high impedance inputs
8 or 12 supervised inputs when using MD-D02B or MD-
IO84B expansion boards
Maximum voltage: 5 VDC
Relay Outputs
4 Form C 5 Amp relay outputs
8 outputs when using MD-D02B or MD-IO84B expansion
boards
Reader Ports
2 reader ports, 4 reader ports when using MD-D02B
Communication: Wiegand (D0, D1) or Clock & Data (C, D)
Output voltage to reader: 12 VDC
Max. current to reader: 245 mA
LED control output and Tamper Input
Visual Indicators
11 LEDs for outputs and communication status
Audio
Sounder output for use with compatible speakers provide
chime, bell and siren signals
Battery Standby Time
3 hours with a 12 V, 7 Ah lead acid battery
Communication Characteristics
RS-485 / RS-232
RS-485 or optional RS-232
RS-485 connection by terminal block or MD-14U connector
RS-232 connection by terminal block
RS-232
Terminal Block
RS-485
Molex and Terminal Block
TCP/IP
On-board RJ-45 connector
(functional on AC-425IP models only)
Selectable Communication Speed
9600, 19200, 57600, 115200 bps
Environmental Characteristics
Operating Temperature Range
0°C to 49°C (32°F to 120°F)
Operating Humidity Range
0 to 85% (non-condensing)
Dimensions
Height x Width x Depth
193 x 136.5 x 39 mm (7.6 x 5.4 x 1.5 in.)
Weight
0.36 kg (12.7 oz)
2.2 AC-425x-B Installed in ME-1015

Technical Specifications
AC-425x-B Hardware Installation and User Manual 13
Electrical Characteristics –Switch Mode Power Supply
Operating Voltage
90 ~ 265 VAC, 50 ~ 60 Hz from mains power
Maximum Input Current
1.5 A
Output Power
15 VDC, 4 A (60 Watts) to the power management board
Electrical Characteristics –Power Management Board (PM-10)
Input Power
15 VDC, 4 A to the power management board
Output Power
Two PTC fused outputs, each provides 13.8 VDC, 2 A
One output for controller and readers
One output for locks
Battery Charger
13.8 VDC, 300 mA for 12 VDC, 7 Ah Lead Acid Battery
Speaker
0.5 Watt, 8 Ohm
Light Bar
0.3 Watt for LED light
Environmental Characteristics
Operating Temperature Range
0°C to 49°C (32°F to 120°F)
Operating Humidity Range
0 to 85% (non-condensing)
Dimensions
Height x Width x Depth
365 x 264 x 97 mm (14.4 x 10.4 x 3.8 in.)
Weight
3.4 kg (7.5 lb)

AC-425x-B Panel Setup
14 AC-425x-B Hardware Installation and User Manual
3. AC-425x-B Panel Setup
Each AC-425x-B panel controls 2 or 4 doors (up to 8 doors with MD-D04B). The panels
connect together in a network and are controlled by a central server computer, running the
AxTraxNG software system.
Figure 2 shows an example setup for a network of AC-425x-B access control panels.
Figure 2: Sample AC-425x-B Configuration
Bushings are needed for any conductors leaving the enclosure through the provided openings.

AC-425x-B Panel Setup
AC-425x-B Hardware Installation and User Manual 15
3.1 Inputs Wiring –Non-Supervised Inputs
Figure 3 presents a detailed view of the non-supervised inputs and their connection options.
Figure 3: Inputs Wiring –Non-supervised Inputs

AC-425x-B Panel Setup
16 AC-425x-B Hardware Installation and User Manual
3.2 Inputs Wiring –Supervised Inputs
When wiring the AC-425x-B for supervised inputs, resistors should be placed on the input
switch and not on the terminal block.
For more details, refer to Chapter 4.
3.3 Outputs Wiring
Figure 4 and Figure 5 illustrate wiring for two main types of 12 VDC electrical release
mechanisms. Other electrical devices can be switched using the voltage free relay contacts.
Figure 4: Door Lock –Failed Close
AC-425 #3
JP7 RS-485

AC-425x-B Panel Setup
AC-425x-B Hardware Installation and User Manual 17
Figure 5: Door Lock –Failed Open
3.4 Power Supply
Figure 6 illustrates wiring between the PM-10 power management board and the AC-425x-B.
Make sure the connection polarity is correct, (+) to (+) and (-) to (-). Connect the power to
the input power terminals of the control panel. It is recommended to add a 12 VDC lead acid
backup battery (requires the ME-1015 Power Management Enclosure) to have uninterrupted
operation in case main power supply fails. A 12 V, 7 AH battery provides 3 hours of backup
operation.

AC-425x-B Panel Setup
18 AC-425x-B Hardware Installation and User Manual
Figure 6: Wiring Between PM-10 and AC-425x-B

AC-425x-B Panel Setup
AC-425x-B Hardware Installation and User Manual 19
3.5 AC-425x-B Wiring Communications
Figure 7 presents a detailed view of the access control panel with all it wiring communications.
Figure 7: AC-425x-B Wiring Communications
3.6 Readers
Proximity and keypad readers are supplied with a limited cable. The color of the cable cover
represents the cable’s function according to Wiegand standards (Figure 8).
When extending the cable distance, be careful with the color of the cable cover.
Refer to the reader specifications for the maximum cable length (typically 150 m with an 18
AWG cable).

AC-425x-B Panel Setup
20 AC-425x-B Hardware Installation and User Manual
Figure 8: Reader Wiring
3.7 MD-IO84B
The MD-IO84B is an optional I/O expansion board that adds 4 relay outputs and 8 supervised
inputs to the Access Control Panel. Attach the MD-IO84B to the AC-425x-B's expansion slot,
as marked in red in Figure 9).
Figure 9: Connector Location for MD-IO84B or MD-D04B Expansions
For more information, see the MD-IO84B Installation and User Guide .
3.8 MD-D04B
The MD-D04B is an optional reader expansion board that adds 4 readers, 4 relay outputs and
4 supervised inputs to the access control panel. Attach the MD-D04B to the AC-425x-B's
expansion slot, as marked in red in Figure 9.
For more information, see the MD-D04B Installation and User Guide .
