Rosslare BL-D40 User manual

INSTRUCTION MANUAL
BL-D40
EXTERNAL SOUNDER
07/04
www.rosslaresecurity.com
0706-0960054-00

Page 3 07/04
BL-D40
Page 2 07/04
Contents
Introduction & Key Features
Key Features 2
Technical Specifications 4
5
Mounting the BL-D40 External Sounder 5
Wiring the BL-D40 External Sounder 5
7
INTRODUCTION & KEY FEATURES
INSTALLATION
TECHNICAL SUPPORT 8
2
5
With a compatible Rosslare Controller
Using the BL-D40 as a stand alone Door Bell
The BL-D40 External Sounder is compatible with all Rosslare
Standalone Controllers. It is designed to operate indoors and
installed within the premises to be secured. The BL-D40 can be
powered by 12V to 24V DC from regulated power supply or 16V to
24V AC from a transformer.
The BL-D40 is capable of emitting four different types of alerts both
audible and visual; Bell, Door Chime, Siren, and Strobe Light.
The Bell always sounds when the controller's doorbell button
is pressed.
The Door Chime can be programmed to sound whenever the
controller unlocks the door (the Door Chime does not sound
when the REX button is used to open the door).
The Siren can be programmed to sound when the case of the
controller is opened or when the controller is removed from the
wall. The controller can also program the length of the Siren of
the BL-D40.
1)
2)
3)
BL-D40
4) The LED on the BL-D40 will turn ON when there is a Bell or Door
Chime. If there is a siren it will flash as long as the tamper switch
is activated / opened.
The controller communicates with the BL-D40 using a coded
proprietary Rosslare communications protocol. This provides a
more secure link between the Controller and the BL-D40. If the BL-
D40 receives any unrecognized codes on its communication line or
communication between the controller and the BL-D40 is severed,
the Strobe will flash repeatedly until the communication problem
has been resolved.

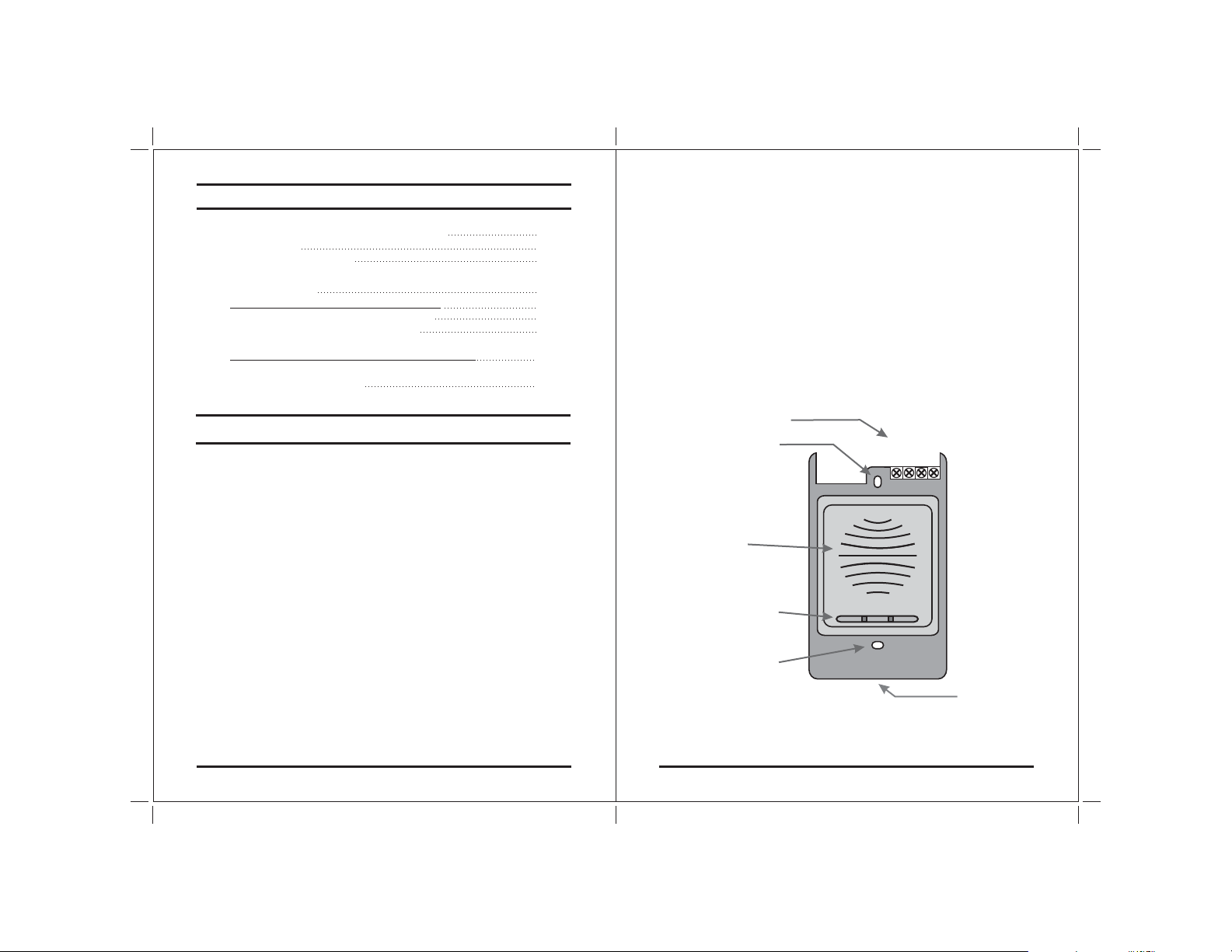

See the diagram below to become more familiar with BL-D40's
features.
Bezel Screw
Mounting Hole
Mounting Hole
Terminal Blocks
REX/BL
Lock
(-)
+)(
Speaker
Strobe (L.E.D)

Page 5 08/05
BL--D40
07/04
Technical Specifications
Electrical Characteristics
Environmental Characteristics
Mechanical Characteristics
Operating Voltage Range:
Maximum Input Current:
Audio Output
LED Strobe Output
Operating Temperature:
Operating Humidity:
Dimensions:
Weight:
16V to 24V AC From a transformer
12V to 24V DC From a Regulated Power Supply
(Linear type recommended)
(at 12 Volts)
Standby: 11mA Not including attached devices
Max: 100mA Not including attached devices
Three types of audible output
1) Bell
2) Door Chime
3) Siren
-25Fto145F(-31Cto63C)
0 to 95% (Non-Condensing)
4.80" (122mm) L x 2.95" (75mm) W x 0.94" (24mm) D
0.26 lbs (120g)
Page 4
BL-D40
Installation
Installing the BL-D40 with a Rosslare Controller
Mounting the BL-D40 External Sounder
Wiring the BL-D40 External Sounder
1)
2)
3)
4)
5)
The BL-D40 should be located nearby the door and controller
it is to be attached to, where it can be heard, and where the
strobe can be seen.
The BL-D40 is designed to be easily mounted to a US Gang
Box. Remove the Bezel Screw. (Use the diagram on Page 3
to help you locate the Bezel Screw)
Screw the BL-D40 onto a US Gang Box through the two
Mounting Holes provided. (See diagram on Page 3 to help
you locate the mounting holes)
Attach the wires to the BL-D40 terminal blocks as shown in
the wiring diagram on the next page.
Replace the BL-D40 bezel and replace the factory default
screw with the security screw that is provided in the
Installation Kit. A security screw tool is also provided in the
Installation Kit.
It is recommended that 22 Gage wire should be used between the
BL-D40 and the Controller.
See the next page for the wiring diagram.

Page 6 07/04
BL-D40
Wiring the BL-D40 External Sounder
(+)
(-)
REX/BL
(+)
(-)
REX/BL
(+)
(-)
BL-D40
ANY
COMPATIBLE
ROSSLARE
CONTROLLER
Page 7 07/04
BL-D40
Using the BL-D40 as a stand alone Door Bell
To use the BL-D40 as a Door Bell follow the instructions
below.
1)
2)
3)
4)
5)
The BL-D40 should be located nearby the door and where it
can be heard.
The BL-D40 is designed to be easily mounted to a US Gang
Box. Remove the Bezel Screw. (Use the diagram on Page 3
to help you locate the Bezel Screw)
Screw the BL-D40 onto a US Gang Box through the two
Mounting Holes provided. (See diagram on Page 3 to help
you locate the US Gang Box mounting holes)
Wire BL-D40 terminal blocks as shown in the wiring diagram
below.
Replace the BL-D40 bezel and replace the factory default
screw with the security screw that is provided in the
Installation Kit. A security screw tool is also provided in the
Installation Kit.
COMMON
POWER SUPPLY
16V - 24V AC or
12V - 24V DC
(+)
(-)
REX/BL
(+)
(-)
BL-D40
DOOR BELL BUTTON
(-) REX / BL
BELL
COMMON
POWER SUPPLY
16V - 24V AC or
12V - 24V DC

Page 9 07/04
BL-D40
Page 8 07/04
BL-D40
