Rotary GAR324 User manual

INSTRUCTION MANUAL
• For any further information please contact your local dealer.
GB TRANSLATION FROM THE
ORIGINAL INSTRUCTIONS
For spare parts drawings refer to the section “ LIST OF COMPONENTS” enclosed to this manual.
- Rev. n. 0 (09/2015)
GAR324
GAR325
1297-M020-0_V
1297-M020-0_V

GB
Page 2 of 33
INSTRUCTION, USE AND
MAINTENANCE MANUAL
CONTENTS
SYMBOLS USED IN THE MANUAL
AND ON THE MACHINE _________________ 4
1.0 GENERAL INTRODUCTION _________ 6
1.1 Introduction ___________________________6
2.0 INTENDED USE ____________________ 6
2.1 Staff training __________________________6
3.0 SAFETY DEVICES __________________ 7
3.1 Residual risks _________________________7
4.0 GENERAL SAFETY RULES _________ 7
5.0 PACKING AND MOBILIZATION
FOR TRANSPORT __________________ 8
6.0 UNPACKING ________________________ 8
7.0 MOBILIZATION_____________________ 9
8.0 WORKING ENVIRONMENT
CONDITIONS _______________________ 9
8.1 Working area __________________________9
8.2 Lighting _______________________________9
9.0 DEVICE ASSEMBLY _______________ 10
9.1 Fixtures contained in the packing ___ 10
9.2 Assembly procedures ________________ 10
9.3 Anchoring system ___________________ 12
9.3.1 Installation of the lifting device
without fastener_________________ 12
9.3.2 Installation of the lifting device
with fastening to the ground ____ 12
10.0 AIR CONNECTIONS _______________ 13
11.0 OPERATION _______________________ 14
11.1 Fitting the wheel on the mandrel ____ 14
11.2 Demounting the wheel from
the mandrel _________________________ 15
11.3 Fitting the wheel on the mandrel ____ 16
11.4 Demounting the wheel from
the mandrel _________________________ 17
12.0 TROUBLESHOOTING TABLE ______ 18
13.0 ROUTINE MAINTENANCE _________ 19
14.0 TECHNICAL DATA_________________ 20
14.1 Dimensions __________________________ 20
15.0 STORING__________________________ 21
16.0 SCRAPPING _______________________ 21
17.0 REGISTRATION PLATE DATA _____ 21
18.0 FUNCTIONAL DIAGRAMS _________ 21
Table A - Pneumatic connection diagram
(GAR324) _______________________ 22
Table B - Pneumatic connection diagram
(GAR325) _______________________ 23
Table C - List of components (GAR324) ____ 24
Table D - List of components (GAR325) ____ 27
Table E - List of components
(VS129793630 - GAR324) _______ 30
Table F - List of components
(VS129793640 - GAR325) _______ 32
1297-M020-0_V
GAR324 - GAR325

INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB Page 3 of 33
1
5
3
4
2
6
78
KEY

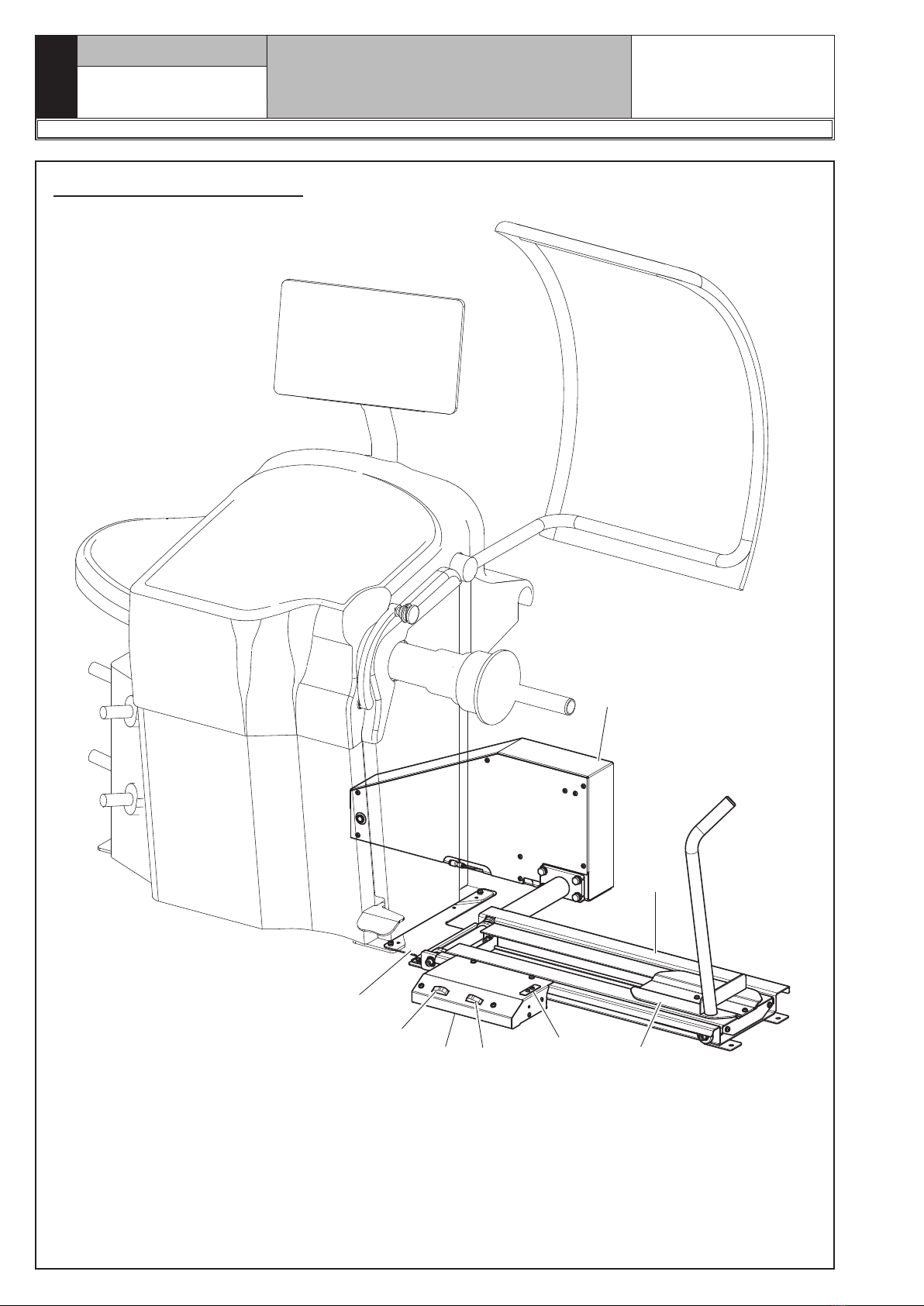

1 – Lifting mechanism unit
2 – Lifting motor unit
3 – Lifting pedal support unit
4 – Mounting template
5 – Wheel support
6 – Pedal for descent
7 – Pedal for rising
8 – Pedal for wheel weight memorization (only for GAR324)
Fig. 1 - GAR324 - GAR325
1297-M020-0_V
GAR324 - GAR325

GB
Page 4 of 33
INSTRUCTION, USE AND
MAINTENANCE MANUAL
SYMBOLS USED IN THE MANUAL AND ON THE MACHINE
Symbols Description
Mandatory. Operations or jobs to
be performed compulsorily. Danger! Be particularly careful.
Symbols Description
Warning. Be particularly careful
(possible material damages).
Note. Indication and/or useful
information.
VSB2167000
Wear work gloves.
Wear work shoes.
VSB2167000
Wear safety goggles.
GAR324 - GAR325
1297-M020-0_V

INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB Page 5 of 33
VSB1541000
VS999914700
VS999914700 VSB1541000
VSB1541000
VS999916880
●VS999916311
VSB1541000
VSB1541000
INFORMATION PLATE LOCATION TABLE
Code numbers of plates
VSB1541000 Danger plate
VS999914700 Bead depressing roll controls plate
VS999916880 Max. capacity load 80 Kg plate
VS999916311 Rubbish skip label
•Serial number plate
IF ONE OR MORE PLATES DISAPPEARS FROM THE MACHINE OR BECOMES DIFFICULT
TO READ. REPLACE IT AND QUOTE ITS/THEIR CODE NUIMBER/S WHEN REORDERING.
(only for GAR324)
1297-M020-0_V
GAR324 - GAR325

GB
Page 6 of 33
INSTRUCTION, USE AND
MAINTENANCE MANUAL
SOME OF THE PICTURES PRE-
SENT IN THIS MANUAL HAVE
BEEN OBTAINED FROM PICTURES
OF PROTOTYPES, THEREFORE
THE STANDARD PRODUCTION
MACHINES AND ACCESSORIES
CAN BE DIFFERENT IN SOME
COMPONENTS.
1.0 GENERAL INTRODUCTION
This manual is an integral part of the product and
must be retained for the whole operating life of the
machine.
Carefully study the warnings and instructions con-
tained in this manual. It contains important instruc-
tions regarding FUNCTIONING, SAFE USE and
MAINTENANCE.
KEEP THE MANUAL IN A KNOWN,
EASILY ACCESSIBLE PLACE FOR
ALL ACCESSORY OPERATORS
TO CONSULT IT WHENEVER IN
DOUBT.
THE MANUFACTURER DISCLAIMS
ALL RESPONSIBILITY FOR ANY
DAMAGE OCCURRED WHEN THE
INDICATIONS GIVEN IN THIS
MANUAL ARE NOT RESPECTED:
AS A MATTER OF FACT, THE NON-
COMPLIANCE WITH SUCH INDI-
CATIONS MIGHT LEAD TO EVEN
SERIOUS DANGERS.
1.1 Introduction
Thank you for preferring this device. We feel sure you
will not regret your decision.
This accessory has been designed for use in profes-
sional workshops and stands out for its reliability
and easy, safe and rapid operation: with a minimum
maintenance and care this device will operate for many
years without problems, thus satisfying Your needs.
2.0 INTENDED USE
The accessory GAR324 - GAR325 is a lateral lift-
ing device to be assembled as an option on the
wheel balancers of the new series except for models
VSB33X, and it is intended for use as an aid during
the positioning and removal of the wheel (max. 80
kg) from the chuck.
With GAR324 device the lifting device is equipped
with load balancing. The weight of the lifted wheel
can be "stored" by means of a pedal control: in this
way the effect of the weight is undone during the
centring operation on the wheel balancer shaft and
so the centring on the mandrel is improved during
the blocking.
DANGER: USING THESE DEVICES
OUTSIDE OF THE INTENDED USE
FOR WHICH THEY HAVE BEEN
DESIGNED (INDICATED IN THIS
MANUAL) IS INAPPROPRIATE AND
DANGEROUS.
THE MANUFACTURER CANNOT
BE HELD RESPONSIBLE FOR ANY
DAMAGE CAUSED BY IMPROPER,
ERRONEOUS, OR UNACCEPTABLE
USE.
AN INTENSIVE USE OF THE DE-
VICE IN INDUSTRIAL ENVIRON-
MENT IS NOT RECOMMENDED.
2.1 Staff training
The machine may be operated only by suitably
trained and authorized personnel.
Given the complexity of the operations necessary to
manage the device and carry out the operations safely
and efficiently, the personnel must be trained in such
a way that they learn all the information necessary to
operate the machine as intended by the manufacturer.
A CAREFUL READING OF THIS
INSTRUCTION MANUAL FOR
USE AND MAINTENANCE AND A
SHORT PERIOD OF TRAINING
WITH SKILLED PERSONNEL CAN
BE AN ENOUGH PREVENTIVE
PREPARATION.
1297-M020-0_V
GAR324 - GAR325

INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB Page 7 of 33
3.0 SAFETY DEVICES
3.1 Residual risks
The device was subjected to a complete analysis of
risks according to reference standard EN ISO 12100.
Risks are as reduced as possible in relation with tech-
nology and product functionality.
Possible residual risks have been emphasized through
pictorial representations and warnings which placing is
indicated in “ PLATE POSITIONING TABLE” at page 5.
4.0 GENERAL SAFETY RULES
• Any tampering with or modification to the device not
previously authorized by the manufacturer exempts
the latter from all responsibility for damage caused
by or derived from said actions.
• Removing of or tampering with the safety devices or
with the warning signals placed on the device leads
to serious dangers and represents a transgression
of European safety rules.
• Use of the device is only permitted in places free
from explosion or fire hazard and in dry and under
cover places.
• Original spare parts and accessories should be used.
THE MANUFACTURER DENIES
ANY RESPONSIBILITY IN CASE
OF DAMAGES CAUSED BY UNAU-
THORIZED MODIFICATIONS OR
BY THE USE OF NON ORIGINAL
COMPONENTS OR EQUIPMENT.
• Installation must be conducted only by qualified
personnel exactly according to the instructions that
are given below.
• Ensure that there are no dangerous situations dur-
ing the machine operating manoeuvres. Immediately
stop the device if it miss-functions and contact the
assistance service of an authorized dealer.
• Ensure that the work area around the machine is free
of potentially dangerous objects and that there is no
oil since this could damage the tyre. Oil on the floor
is also a potential danger for the operator.
OPERATORS MUST WEAR SUIT-
ABLE WORK CLOTHES, PROTEC-
TIVE GLASSES AND GLOVES,
AGAINST THE DANGER FROM
THE SPRAYING OF DANGEROUS
DUST, AND POSSIBLY LOWER
BACK SUPPORTS FOR THE LIFT-
ING OF HEAVY PARTS. DANGLING
OBJECTS LIKE BRACELETS MUST
NOT BE WORN, AND LONG HAIR
MUST BE TIED UP. FOOTWEAR
SHOULD BE ADEQUATE FOR THE
TYPE OF OPERATIONS TO BE CAR-
RIED OUT.
• The machine handles and operating grips must be
kept clean and free from oil.
• The workshop must be kept clean and dry. Make sure
that the working premises are properly lit.
The machine can be operated by a single operator.
Unauthorized personnel must remain outside the
working area, as shown in Fig. 3.
Avoid any hazardous situations. Do not use air-
operated equipment when the shop is damp or
the floor slippery and do not expose such tools to
atmospheric agents.
• When operating and servicing this device, carefully
follow all in force safety and accident-prevention
precautions.
The device must not be operated by professionally
unskilled persons.
1297-M020-0_V
GAR324 - GAR325

GB
Page 8 of 33
INSTRUCTION, USE AND
MAINTENANCE MANUAL
5.0 PACKING AND MOBILIZATION
FOR TRANSPORT
HAVE THE MACHINE HANDLED BY SKILLED
PERSONNEL ONLY.
THE LIFTING EQUIPMENT MUST WITHSTAND
A MINIMUM RATED LOAD EQUAL TO THE
WEIGHT OF THE PACKED ACCESSORY (SEE
PARAGRAPH “TECHNICAL SPECIFICATIONS”).
The fixture is supplied disassembled. The machine is
inside a carton box which size is mm 1600x950x1780.
Movement must be by pallet-lift or fork-lift trolley.
The fork lifting points are indicated on the packing.
Fig. 2
6.0 UNPACKING
DURING UNPACKING, ALWAYS
WEAR GLOVES TO PREVENT ANY
INJURY CAUSED BY CONTACT
WITH PACKAGING MATERIAL
(NAILS, ETC.).
The cardboard box is supported with plastic strapping.
Cut the strapping with suitable scissors. Use a small
knife to cut along the lateral axis of the box and open
it like a fan.
It is also possible to unnail the cardboard box from the
pallet it is fixed to. After removing the packing, check
that the device is complete and that there is no visibly
damaged parts.
If in doubt do not use the device and refer to profes-
sionally qualified personnel (to the seller).
The packing (plastic bags, expanded polystyrene, nails,
screws, timber, etc.) should not be left within reach of
children since it is potentially dangerous. These ma-
terials should be deposited in the relevant collection
points if they are pollutants or non biodegradable.
THE BOX CONTAINING THE FIX-
TURES IS CONTAINED IN THE
WRAPPING. DO NOT THROW IT
AWAY WITH THE PACKING.
1297-M020-0_V
GAR324 - GAR325

INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB Page 9 of 33
7.0 MOBILIZATION
THE LIFTING EQUIPMENT MUST WITHSTAND
A MINIMUM RATED LOAD EQUAL TO THE
WEIGHT OF THE ACCESSORY (SEE PARA-
GRAPH TECHNICAL SPECIFICATIONS). DO
NOT ALLOW THE LIFTED DEVICE TO SWING.
If the device has to be moved from its normal work
post, the movement must be conducted following the
instructions listed below.
• Protect the exposed corners with suitable material
(Pluribol/cardboard).
• Do not use metallic cables for lifting.
• Make sure that the device pneumatic supply is not
connected.
• Place again the device onto the original pallet with
whom it was delivered.
• Use transpallet or fork-lift for handling.
8.0 WORKING ENVIRONMENT CONDI-
TIONS
The device must be operated under proper conditions
as follows:
• temperature: 0° + 45° C
• relative humidity: 30 - 90% (dew-free)
• atmospheric pressure: 860 - 1060 hPa (mbar).
The use of the device in ambient conditions other than
those specified above is only allowed after prior agree-
ment with and approval of the manufacturer.

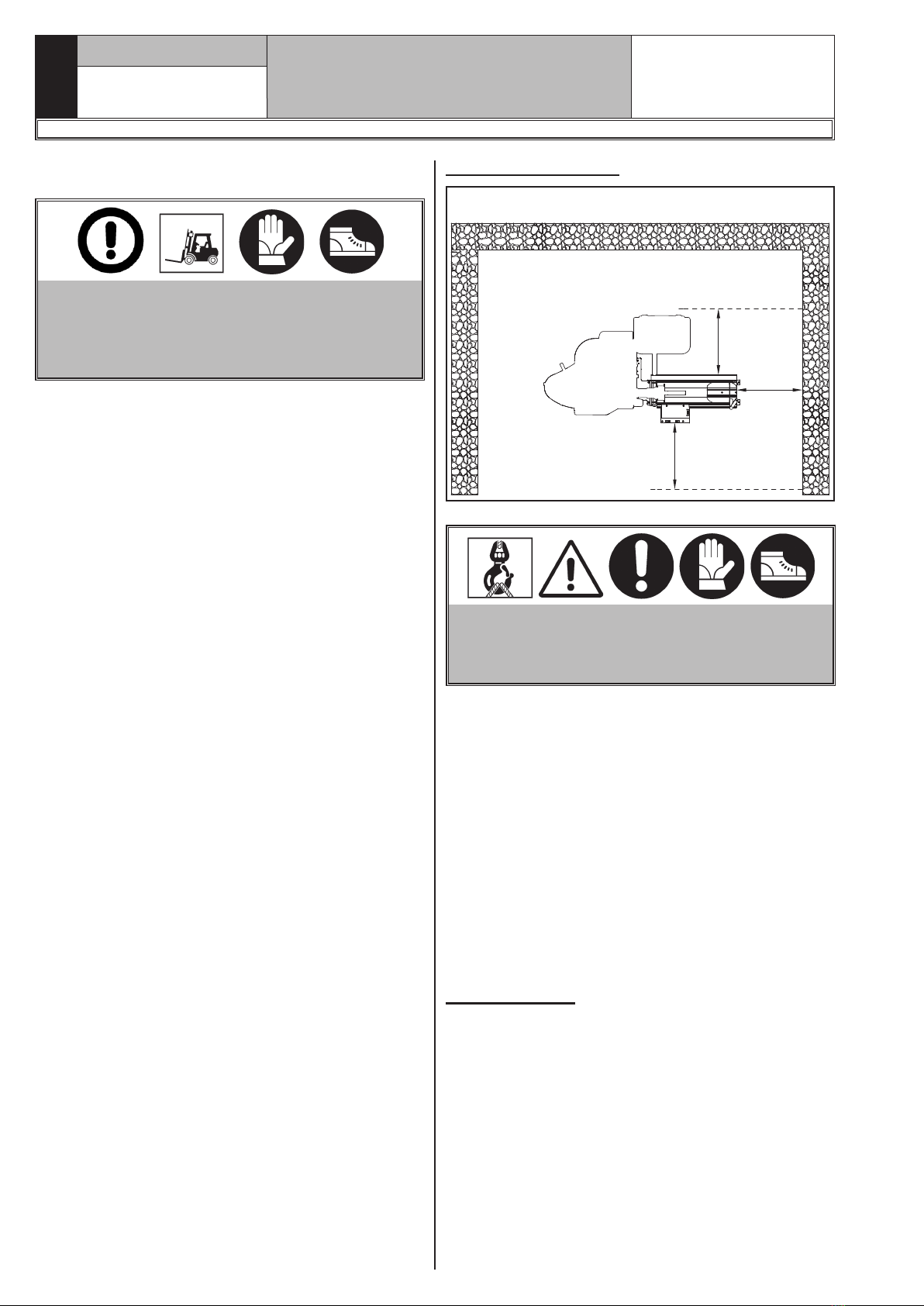

8.1 Working area
600
600
1000
Fig. 3
USE THE DEVICE INDOORS OR IN A ROOFED
AREA. PLACE OF INSTALLATION MUST BE
DRY, ADEQUATELY LIT AND IN COMPLIANCE
WITH APPLICABLE SAFETY REGULATIONS.
The location of the device requires a usable space as
indicated in Fig. 3. The positioning of the device must
be according to the distances shown. From the control
position the operator is able to observe all the machine
and surrounding area. He must prevent unauthorized
personnel or objects that could be dangerous from
entering the area.
The device must be fixed on a flat floor surface, pref-
erably of cement or tiled. Avoid yielding or irregular
surfaces.
The base floor must be able to support the loads trans-
mitted during operation.
This surface must have a strength of at least 500 kg/m².
The depth of the solid floor must be sufficient to guar-
antee that the anchoring bolts hold.
8.2 Lighting
The device does not require its own lighting for normal
working operations. However, it must be used in an
adequately lit environment.
In case of poor lighting use lamps having total power
800/1200 Watt.
1297-M020-0_V
GAR324 - GAR325

GB
Page 10 of 33
INSTRUCTION, USE AND
MAINTENANCE MANUAL
9.0 DEVICE ASSEMBLY
After having freed the various components from the
packing check that they are complete, and that there
are no anomalies, then comply with the following in-
structions for the assembly of the components making
use of the attached series of illustrations.
9.1 Fixtures contained in the packing
The packing case contains also the fixtures box.
Check that all the parts listed are there.
For all the models
Code Description N.
VS129793540 Lifting mechanism unit 1
VS129718780 Wheel support 1
VS129793850 Template 1
VS236004 Flat washer 6,4 4
VS236007 10,5x21x2 Flat washer 4
VS236043 Washer Fe 10,5x30x4 1
VS238007 Elastic washer 10,5 5
VS206193 VTCEI M10x30 1
VS266019 TBEI M6x16 screw 2
VS271012 TBEI M6x10 screw 2
VS203106 VTE M10x35 4
VS599095 Short clamp 2
VSB1949000 Long clamp 2
VS317007 Black rilsan pipe 8x6 L=500 1
For GAR324 model
Code Description N.
VS129793550 Lifting motor unit 1
For GAR325 model
Code Description N.
VS129793560 Lifting motor unit 1
9.2 Assembly procedures

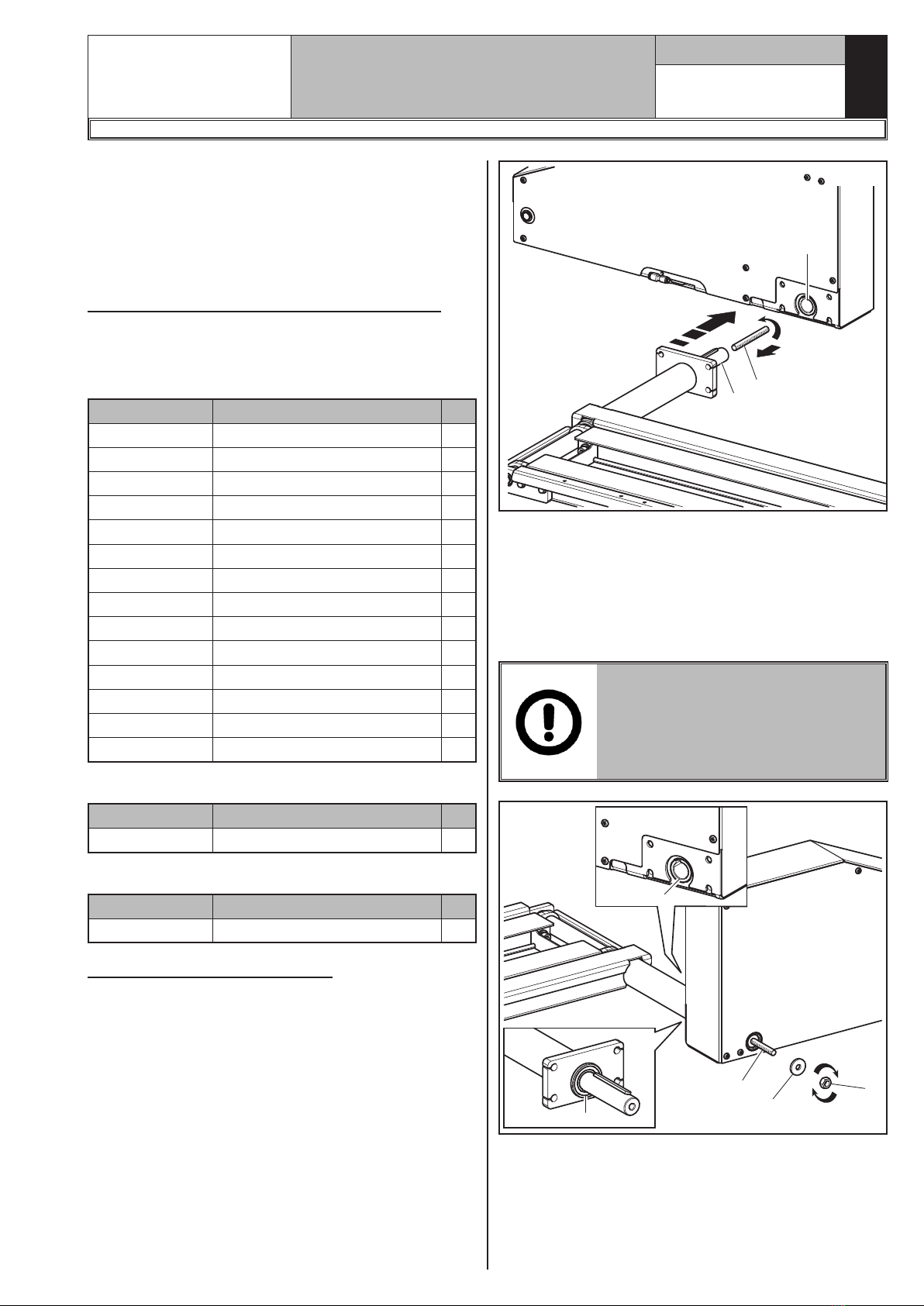

Clean the pin (Fig. 4 ref. 1) of the lifting device mecha-
nism and the hole (Fig. 4 ref. 2) of the motor unit,
without demounting anything.
Grease the pin (Fig. 4 ref. 1) and screw the threaded
rod M10x200 (Fig. 4 ref. 3) inside the pin hole, with-
out tightening too hard.
Insert the pin into the hole of the Motor unit.
1
3
2
Fig. 4
Insert the washer (Fig. 5 ref. 1) (# VS236043) onto
the threaded rod M10 (Fig. 5 ref. 2) and screw the
nut M10 (Fig. 5 ref. 3) until the hub (Fig. 5 ref. 4)
of the Motor unit touches the bearing (Fig. 5 ref. 5)
that is on the Lifting device mechanism unit.
Unscrew the nut (Fig. 5 ref. 3) and the washer (Fig. 5
ref. 1) from the the threaded rod M10 (Fig. 5 ref. 2).
IF THE THREADED ROD M10
(FIG. 5 REF. 2) IS STUCK IN THE
PIN OF THE LIFTING MECHANISM
UNIT, USE A SECOND NUT M10 AS
A COUNTER-NUT IN ORDER TO
UNLOCK IT.
2
1
3
5
4
Fig. 5
1297-M020-0_V
GAR324 - GAR325

INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB Page 11 of 33
Block the bearing (Fig. 6 ref. 1) of the Motor unit with
the washers (Fig. 6 ref. 2) (# VS236043), (Fig. 6
ref. 3) (# VS238007) and the screws (Fig. 6 ref. 4)
(# VS206193).
1
2
3
4
Fig. 6
Then fix the lifting mechanism unit (Fig. 7 ref. 1) to
the Motor unit (Fig. 7 ref. 2) with the screws (Fig. 7
ref. 3) (# VS203106), the washers (Fig. 7 ref. 4) (#
VS238007) and (Fig. 7 ref. 5) (# VS236007).
2
1
33
4
5
4
5
4
4
Fig. 7
THE MOTOR UNIT MUST NOT BE
LIFTED FROM THE GROUND.

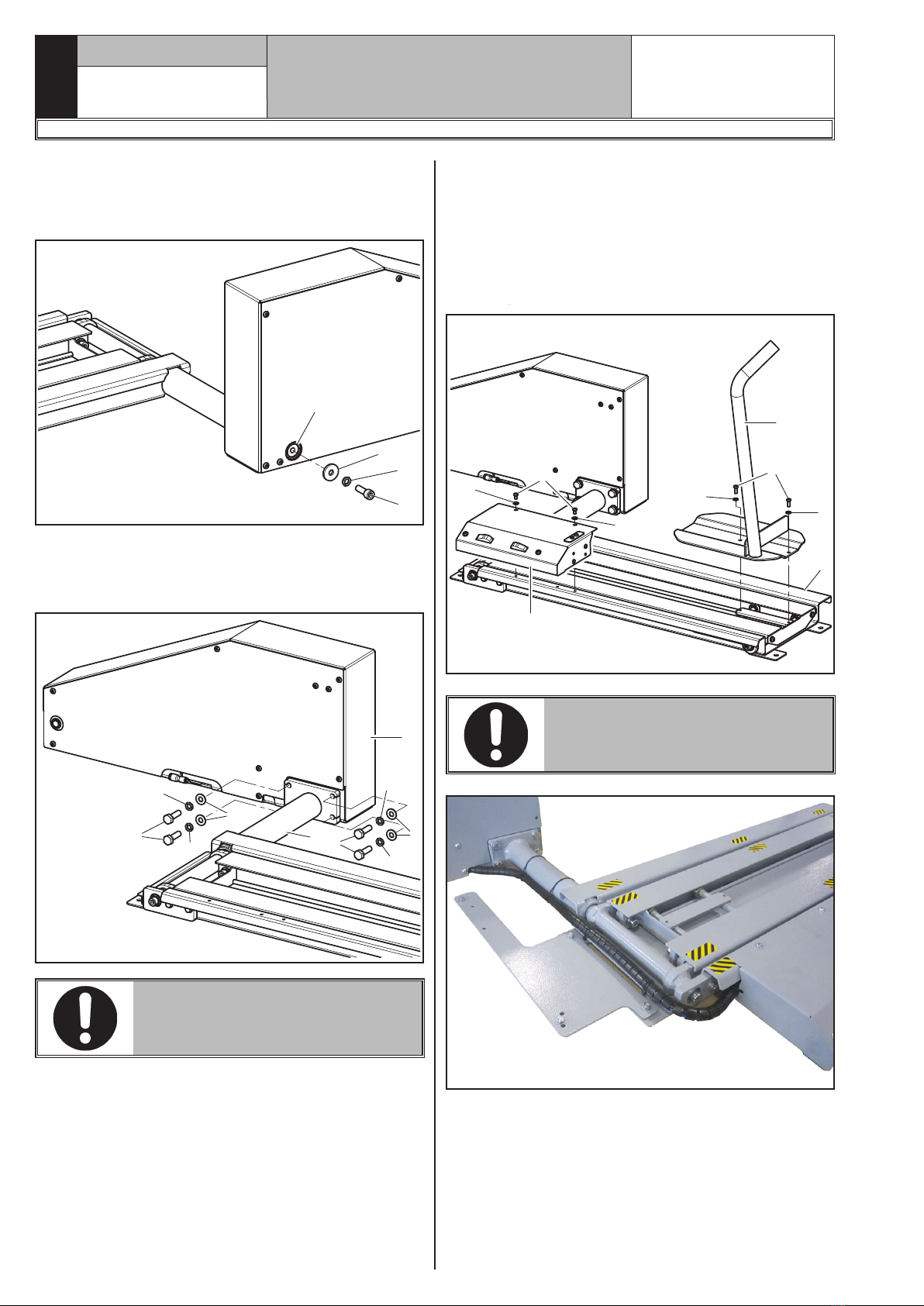

Fasten the pedal support (Fig. 8 ref. 1) (#
VS129793570 for GAR324 or VS129793560 per
GAR325) with the screws (Fig. 8 ref. 2) (# VS271012)
and the washers (Fig. 8 ref. 3) (# VS236004).
Mount the welded wheel support (Fig. 8 ref. 5) on
the the lifting mechanism unit (Fig. 8 ref. 4) (#
VS129718780) using the screws (Fig. 8 ref. 6) (#
VS266019) the washers (Fig. 8 ref. 7) (# VS236004).
1
2
3
3
4
5
6
7
7
Fig. 8
CLAMP THE PNEUMATIC PIPES
SHEATH, AS INDICATED IN FIG. 9.
Fig. 9
1297-M020-0_V
GAR324 - GAR325

GB
Page 12 of 33
INSTRUCTION, USE AND
MAINTENANCE MANUAL
9.3 Anchoring system
IN CASE OF WHEEL WEIGHING
MORE THAN 30 KG, IT IS COM-
PULSORY TO FIX TO THE GROUND
BY MEANS OF SCREW ANCHORS.
9.3.1 Installation of the lifting device without
fastener
In case the wheel balancer is not fastened to the ground
(wheels weight lower than 30 kg), the lifting device
takes place next to the wheel balancer using the tem-
plate on issue (Fig. 10 ref. 1). On the template the
screws, the washers and the nuts (Fig. 10 ref. 2, 3 e
4) must be inserted in couples (A-A, B-B of C-C) into
the Ø11 holes on the wheel balancer frame.
To carry out the fastening, proceed as described below:
- mount the template (Fig. 10 ref. 1) to the lifting
device (Fig. 10 ref. 5).
- place the whole assembly next to the wheel balancer
(Fig. 10 ref. 6), using the existing holes in the feet
of the wheel balancer.
AA
B
B
C
C
DD
1
3
2
4
2
3
4
2
3
4
5
6
6
5
Fig. 10
9.3.2 Installation of the lifting device with
fastening to the ground
In case the wheel balancer is fastened to the ground
(wheels weight higher than 30 kg), the template is
needed to mark out the position of the 2 small blocks
(excluded from supply) lifting device wheel balancer
side.
To carry out the fastening, proceed as described below:
- remove the screws, the washers and the nuts (Fig. 10
ref. 2, 3 and 4) from the template (Fig. 10 ref. 1);
- place the template (Fig. 10 ref. 1) next to the wheel
balancer small blocks, widening to Ø11 only the
couple of holes (A-A, B-B or C-C see Fig. 10) that
correspond to the small blocks;
- place the template (Fig. 11 ref. 1) on the wheel bal-
ancer (Fig. 11 ref. 2) and mark out the position of
the holes of the 2 small blocks (excluded from supply)
lifting device wheel balancer side (Fig. 11 ref. 3),
using the two D-D holes (see Fig. 10).
The decision rests on the discretion of the installer
whether to fix the lifting device (Fig. 11 ref. 3) using
the 2 small blocks (Fig. 11 X ref. 4) (excluded from
supply) or 4 small blocks (Fig. 11 X and Y ref. 4)
(excluded from supply).
Extract the template before carrying out the drilling.
The holes in the solid floor must be about 10 cm deep
with a diameter of 10 MA.
The bolts (Fig. 11 ref. 4) (excluded from supply) must
be inserted in the prearranged holes and fully tightened
(tightening torque: about 22 Nm) until reaching the
system full seal.
3
Y
200
910
200
X
X4
1
2
YX
Fig. 11
1297-M020-0_V
GAR324 - GAR325

INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB Page 13 of 33
Universal assembly
To carry out the device fastening, proceed as described
below.
- Place the lifting device (Fig. 12 ref. 1) referring to
the quoted dimensions indicated in Fig. 12.
1
±2 0
±2 0
694
328
61
527
130
616
400
200
180
636
910
50
126
50
434
309.5
Fig. 12
- Once the lifting device is placed, fix it to the ground
through the expansion small blocks (Fig. 11 ref. 4)
(excluded from supply).
The holes in the solid floor must be about 10 cm deep
with a diameter of 10 MA.
The bolts (Fig. 11 ref. 4) (excluded from supply) must
be inserted in the prearranged holes and fully tightened
(tightening torque: about 22 Nm) until reaching the
system full seal.
min.
min.
stroke
min.
10.0 AIR CONNECTIONS
IN CASE OF A CHANCE SUPPLY
FAILURE, AND/OR BEFORE ANY
POWER SUPPLY CONNECTIONS,
MOVE THE FOOTBOARD TO THE
GROUND AND DISCONNECT THE
MEMORY.
Connect the device to the filtered and lubricated com-
pressed air system of the plant, making sure that the
greaser reduction gear filter unit is upstream.
THE SUPPLY PRESSURE MUST BE
8 BAR MAX.
If the wheel balancer is pneumatic, the lifting device
must be connected to then greaser filter unit on the
machine.
In order to carry out the connection, before connect-
ing the D.8 air pipe, remove the existing plug (Fig. 13
ref. 1) from the T-union (Fig. 13 ref. 2).
THE WHEEL BALANCER SUPPLY
PRESSURE MUST NOT EXCEED
THE 8 BAR MAX.
1
2
Fig. 13
1297-M020-0_V
GAR324 - GAR325

GB
Page 14 of 33
INSTRUCTION, USE AND
MAINTENANCE MANUAL
11.0 OPERATION
For GAR324
11.1 Fitting the wheel on the mandrel
MAKE SURE THAT THE PEDAL
FOR WHEEL WEIGHT MEMORIZA-
TION (FIG. 14 REF. 1) IS IN THE
CLOSEST POSITION TO THE OP-
ERATOR (SEE FIG. 14).
1
1
Fig. 14

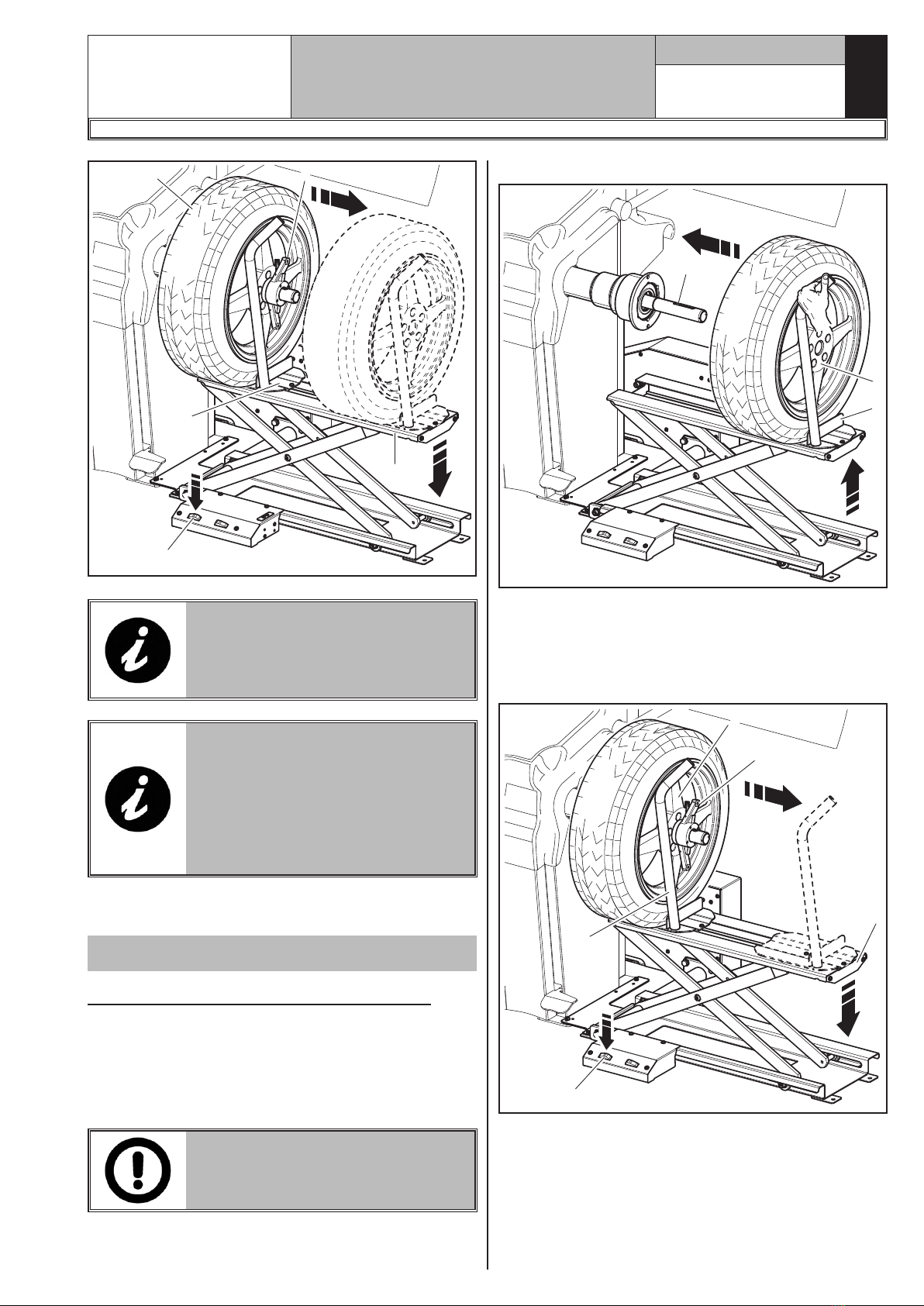

- Place the wheel (Fig. 15 ref. 1) on the wheel support
(Fig. 15 ref. 2).
1
2
3
Fig. 15
Perform the storage operation as follows:
- Press the pedal for rising (Fig. 15 ref. 3) to make
the wheel rise (Fig. 15 ref. 1) of a few centimetres.
ONCE THE WISHED HEIGHT HAS
BEEN REACHED, REMOVE THE
FOOT FROM THE PEDAL FOR
RISING.
- Wait for 1-2 seconds to let the possible footboard
oscillations end.
IN THIS PHASE THE WHEEL
(FIG. 15 REF. 1) AND THE
WHEEL SUPPORT (FIG. 15
REF. 2) MUST NOT BE TOUCHED.
- Press the pedal for wheel weight memorization
(Fig. 16 ref. 1) and push it forward for the of the
wheel weight.
1
1
Fig. 16
- The memorization procedure is over.
- Press the pedal for rising (Fig. 17 ref. 1) and,
by keeping it pressed, centre manually the wheel
(Fig. 17 ref. 2) on the mandrel (Fig. 17 ref. 3) with
a minimum effort, independently from the wheel
weight, moving the wheel support (Fig. 17 ref. 4)
in all directions.
ONCE THE WISHED HEIGHT HAS
BEEN REACHED, REMOVE THE
FOOT FROM THE PEDAL FOR
RISING.
1297-M020-0_V
GAR324 - GAR325

INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB Page 15 of 33
1
2
3
4
Fig. 17
- Block the rim (Fig. 18 ref. 2) on the mandrel with
special devices (Fig. 18 ref. 1).
- Press the descent pedal (Fig. 18 ref. 3), make the
footboard descend (Fig. 18 ref. 4) and move right-
wards the wheel bearing (Fig. 18 ref. 5).
3
2
4
1
5
Fig. 18
11.2 Demounting the wheel from the man-
drel
- Move leftwards the wheel support (Fig. 19 ref. 1)
and bring it into contact with the tyre (Fig. 19 ref. 2).
- Press the pedal for rising (Fig. 19 ref. 3) and lift
the footboard (Fig. 19 ref. 4) until the wheel bear-
ing (Fig. 19 ref. 5) comes in contact with the tyre
(Fig. 19 ref. 2).
- Keep the rising pedal pressed (Fig. 19 ref. 3) for a
few seconds in order to let the accessory compensate
the wheel weight.
4
1
3
2
5
Fig. 19
- Unlock the wheel (Fig. 20 ref. 1) engaged to the man-
drel, removing the locking devices (Fig. 20 ref. 2).
- Move rightwards the wheel support (Fig. 20 ref. 3)
together with the tyre that is leaning against it.
- Press the lowering pedal (Fig. 20 ref. 4) and then
lower the footboard (Fig. 20 ref. 5).
1297-M020-0_V
GAR324 - GAR325

GB
Page 16 of 33
INSTRUCTION, USE AND
MAINTENANCE MANUAL
4
2
5
1
3
Fig. 20
AT THIS POINT IT IS POSSIBLE
TO BALANCE THE WHEELS HAV-
ING THE SAME WEIGHT WITH-
OUT CARRYING OUT AGAIN THE
MEMORIZATION PROCESS.
IF THE SLOT BETWEEN THE
BALANCING OF A WHEEL AND
THE NEXT ONE IS HIGH, THE DE-
VICE COULD LOOSE THE MEMO-
RIZATION OF THE PNEUMATIC
WEIGHT. IN THIS CASE START
ANEW WITH THE WEIGHT MEMO-
RIZATION PROCEDURES.
- Remove the wheel from the lifting device.
For GAR325

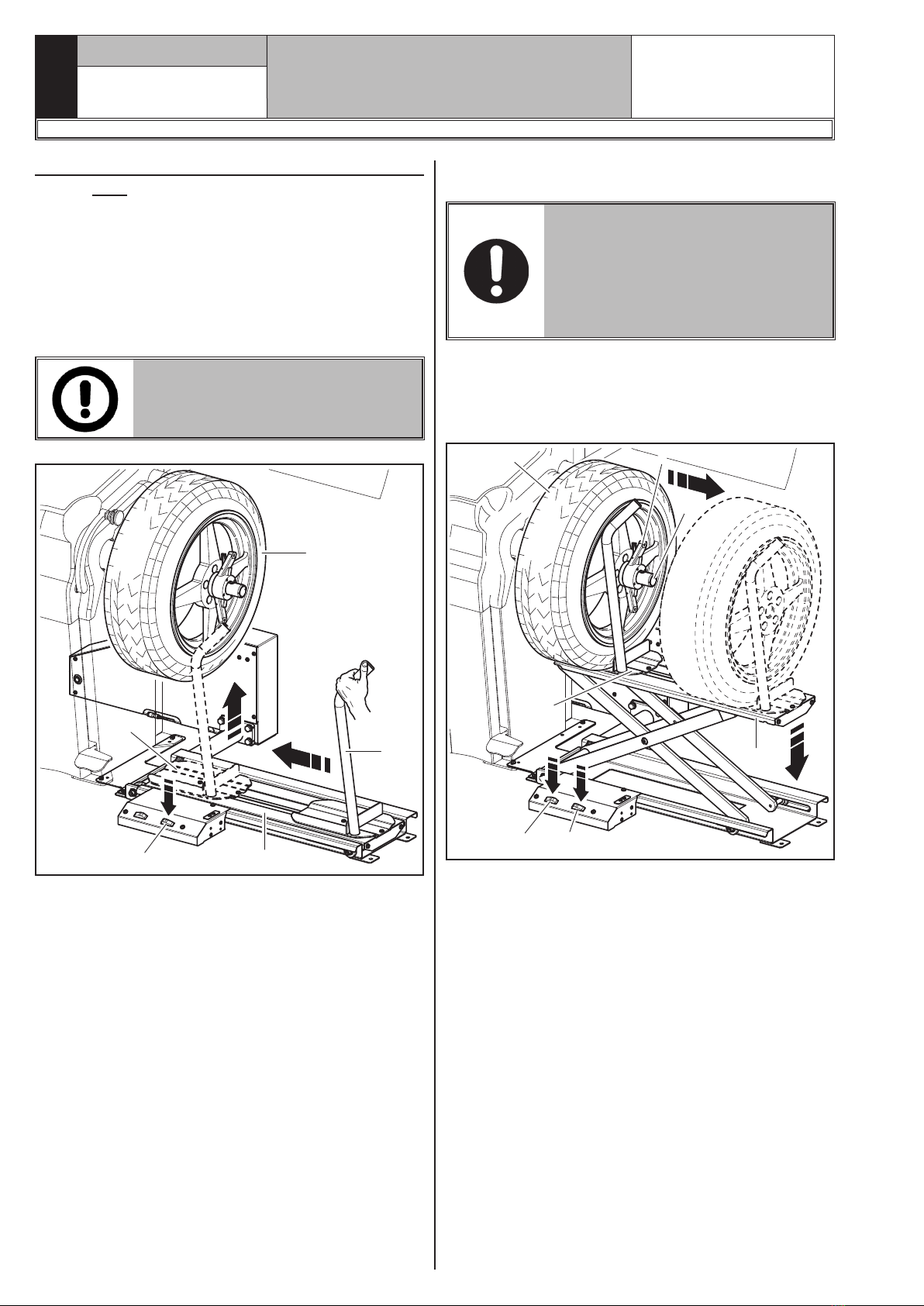

11.3 Fitting the wheel on the mandrel
- Place the wheel (Fig. 15 ref. 1) on the wheel support
(Fig. 15 ref. 2).
- Press the rising pedal (Fig. 15 ref. 3) to make the
new wheel rise until its axis matches that of the wheel
balancer mandrel.
ONCE THE WISHED HEIGHT HAS
BEEN REACHED, REMOVE THE
FOOT FROM THE PEDAL FOR
RISING.
- Translate manually the wheel support (Fig. 21 ref. 1)
until inserting the rim (Fig. 21 ref. 2) onto the wheel
balancer mandrel (Fig. 21 ref. 3).
2
3
1
Fig. 21
- Block the rim (Fig. 22 ref. 2) on the mandrel with
special devices (Fig. 22 ref. 1).
- Press the descent pedal (Fig. 22 ref. 3), make the
footboard descend (Fig. 22 ref. 4) and move right-
wards the wheel bearing (Fig. 22 ref. 5).
3
2
4
1
5
Fig. 22
1297-M020-0_V
GAR324 - GAR325

INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB Page 17 of 33
11.4 Demounting the wheel from the man-
drel
- Move leftwards the wheel support (Fig. 23 ref. 1)
until bringing it into contact with the tyre (Fig. 23
ref. 2).
- Press the pedal for rising (Fig. 23 ref. 3) and lift
the footboard (Fig. 23 ref. 4) until the wheel bear-
ing (Fig. 23 ref. 5) comes in contact with the tyre
(Fig. 23 ref. 2).
ONCE THE WISHED HEIGHT HAS
BEEN REACHED, REMOVE THE
FOOT FROM THE PEDAL FOR
RISING.
4
1
3
2
5
Fig. 23
- Unlock the wheel (Fig. 24 ref. 1) engaged to the man-
drel, removing the locking devices (Fig. 24 ref. 2).
IF THE WHEEL (FIG. 24 REF. 1)
DESCENDS OR RISES, PRESS
THE PEDAL FOR RISING (FIG. 24
REF. 3) OR DESCENDING (FIG. 24
REF. 4) UNTIL THE WHEEL IS
CENTRED ON THE MANDREL
(FIG. 24 REF. 5).
- Move rightwards the wheel support (Fig. 24 ref. 7)
together with the tyre that is leaning against it.
- Press the lowering pedal (Fig. 24 ref. 4) and then
lower the footboard (Fig. 24 ref. 6).
4
2
5
1
3
7
6
Fig. 24
- Remove the wheel from the lifting device.
1297-M020-0_V
GAR324 - GAR325

GB
Page 18 of 33
INSTRUCTION, USE AND
MAINTENANCE MANUAL
12.0 TROUBLESHOOTING TABLE
Possible troubles which might occur to the device are listed below. The manufacturer disclaims all responsi-
bility for damages to people, animals or objects due to improper operation by non-unauthorised personnel.
In case of trouble, call Technical Service Department for instructions on how to service and/or adjust the
machine in full safety to avoid any risk of damage to people, animals or objects.
In an emergency and before maintenance on device, set the wheel balancer main switch to “0” and lock it in
this position.
CONTACT AUTHORIZED TECHNICAL SERVICE
Do not try and service alone.
Problem Possible cause Remedy
The lifting device does not work. 1. No supply pressure.
2. The balancing valve was intro-
duced when the lifting device
footboard was completely low-
ered (only for GAR324).
1. Check if the lifting device is sup-
plied with compressed air.
2. Disconnect the memorization
valve (only for GAR324).
The lifting device cannot lift the
tyre until the mandrel height
(with disconnected memory, for
GAR324).
1. Compressed air supply pressure
below 6 Bar.
2. The footboard valves do not
work correctly.
1. Check supply pres-
sure.
2. Call for technical as-
sistance.
The manual lifting force is too high
(only for GAR324).
1. The memorization procedure
was not performed correctly.
2. The time between the insertion
of the memory and the lifting of
the wheel is excessive.
3. The balancing valve has lost its
settings.
1. Repeat the memoriza-
tion procedure.
2. Repeat the memoriza-
tion procedure.
3. Call for technical as-
sistance.
GAR324 - GAR325
1297-M020-0_V

INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB Page 19 of 33
13.0 ROUTINE MAINTENANCE
BEFORE CARRYING OUT ANY ROU-
TINE MAINTENANCE OR ADJUST-
MENT PROCEDURE, SET THE
WHEEL BALANCER MAIN SWITCH
TO “0”, DISCONNECT THE MA-
CHINE FROM THE ELECTRICITY
SUPPLY USING THE SOCKET/PLUG
COMBINATION AND CHECK THAT
ALL MOBILE PARTS ARE AT A
STANDSTILL.
BEFORE EXECUTING ANY MAIN-
TENANCE OPERATION, MAKE
SURE THERE ARE NO WHEELS
LOCKED ONTO THE MANDREL.
PNEUMATICALLY UNPLUG THE
MACHINE (ONLY FOR PNEUMATIC
MODEL).
To guarantee the efficiency and correct functioning of
the device, it is essential to carry out daily or weekly
cleaning and weekly routine maintenance, as described
below.
Cleaning and routine maintenance must be conducted
by authorized personnel and according to the instruc-
tions given below.
• Remove deposits of tyre powder and other waste
materials with a vacuum cleaner.
DO NOT BLOW IT WITH COMPRESSED AIR.
• Do not use solvents to clean the pressure regulator.
ANY DAMAGE TO THE MACHINE
DEVICES RESULTING FROM THE
USE OF LUBRICANTS OTHER
THAN THOSE RECOMMENDED
IN THIS MANUAL WILL RELEASE
THE MANUFACTURER FROM ANY
LIABILITY!!
1297-M020-0_V
GAR324 - GAR325

GB
Page 20 of 33
INSTRUCTION, USE AND
MAINTENANCE MANUAL
694
328
1489
61 466
527
641
1108
622,5
120
910
616
142
84
350
434
200
101
309,5
180
65 290
240* 453*
403
226
157 178
870

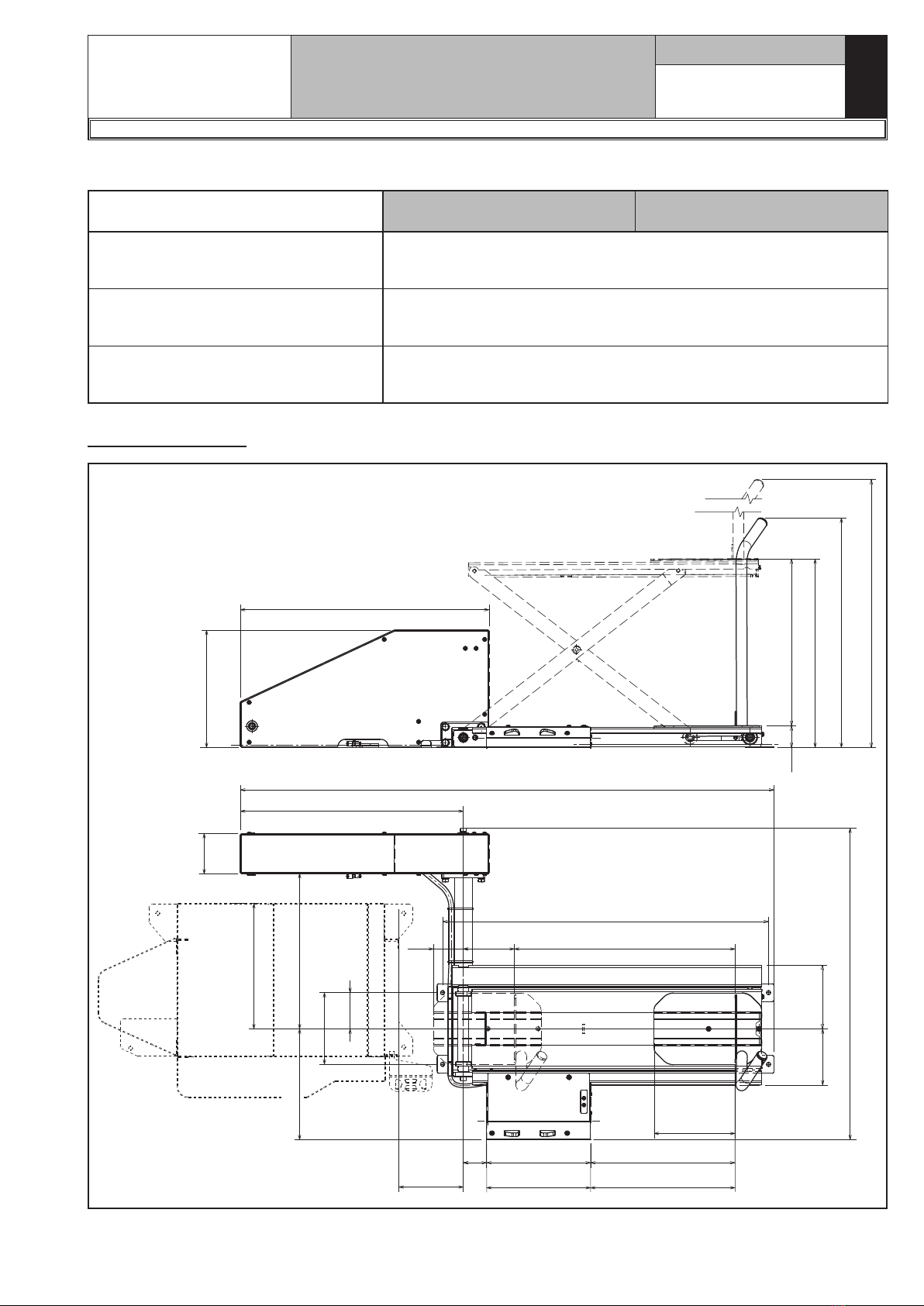

14.0 TECHNICAL DATA
GAR324 GAR325
Wheel max. weight (Kg) 80
Power supply (bar) 6 - 8 Max.
Weight (Kg) 63
14.1 Dimensions
Fig. 25
* For GAR325 model
stroke
stroke
GAR324 - GAR325
1297-M020-0_V
