Rotel RMB-1587MKII User manual

Owner’s Manual
Manuel d’utilisation
Bedienungsanleitung
Manual de Instrucciones
Manuale di istruzioni
Gebruiksaanwijzing
Instruktionsbok
Инструкция пользователя
RMB-1587MKII
Seven Channel Power Amplier
Amplicateur de puissance à sept canaux
Leistungsverstärker mit sieben Kanälen
Amplicador de potencia de siete canales
Amplicatore di potenza a sette canali
Zevenkanaals eindversterker
Sju kanals effektförstärkare
Семиканальный усилитель мощности

2RMB-1587MKII Seven Channel Power Amplier
Rotel products are designed to
comply with international directives
on the Restriction of Hazardous
Substances (RoHS) in electrical
and electronic equipment and the
disposal of Waste Electrical and
Electronic Equipment (WEEE).
The crossed wheelie bin symbol
indicates compliance and that the
products must be appropriately
recycled or processed in accordance
with these directives.
RMB-1587MKII
12
3
Pin Assignments
Balanced Audio (3 pole
XLR):
Pin 1: Ground / Screen
Pin 2: In phase / +ve / Hot
Pin 3: Out of phase / -ve
/ Cold
WARNING: There are no user serviceable parts
inside. Refer all servicing to qualified service
personnel.
WARNING: To reduce the risk of fire or electric
shock, do not expose the unit to moisture or
water. Do not expose the unit to dripping or
splashing. Do not place objects filled with
liquids, such as vases, on the unit. Do not allow
foreign objects to get into the enclosure. If the
unit is exposed to moisture, or a foreign object
gets into the enclosure, immediately disconnect
the power cord from the wall. Take the unit to
a qualified service person for inspection and
necessary repairs.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install
in accordance with the manufacturer’s
instructions.
Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than the
other. A grounding type plug has two blades
and a third grounding prong. The wide blade or
the third prong are provided for your safety. If
the provided plug does not fit into your outlet,
consult an electrician for replacement of the
obsolete outlet.
Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
Only use attachments/accessories specified
by the manufacturer.
Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used, use caution
when moving the cart/apparatus combination
to avoid injury from tip-over.
Unplug this apparatus during lightning storms
or when unused for long periods of time.
Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power
supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or
has been dropped.

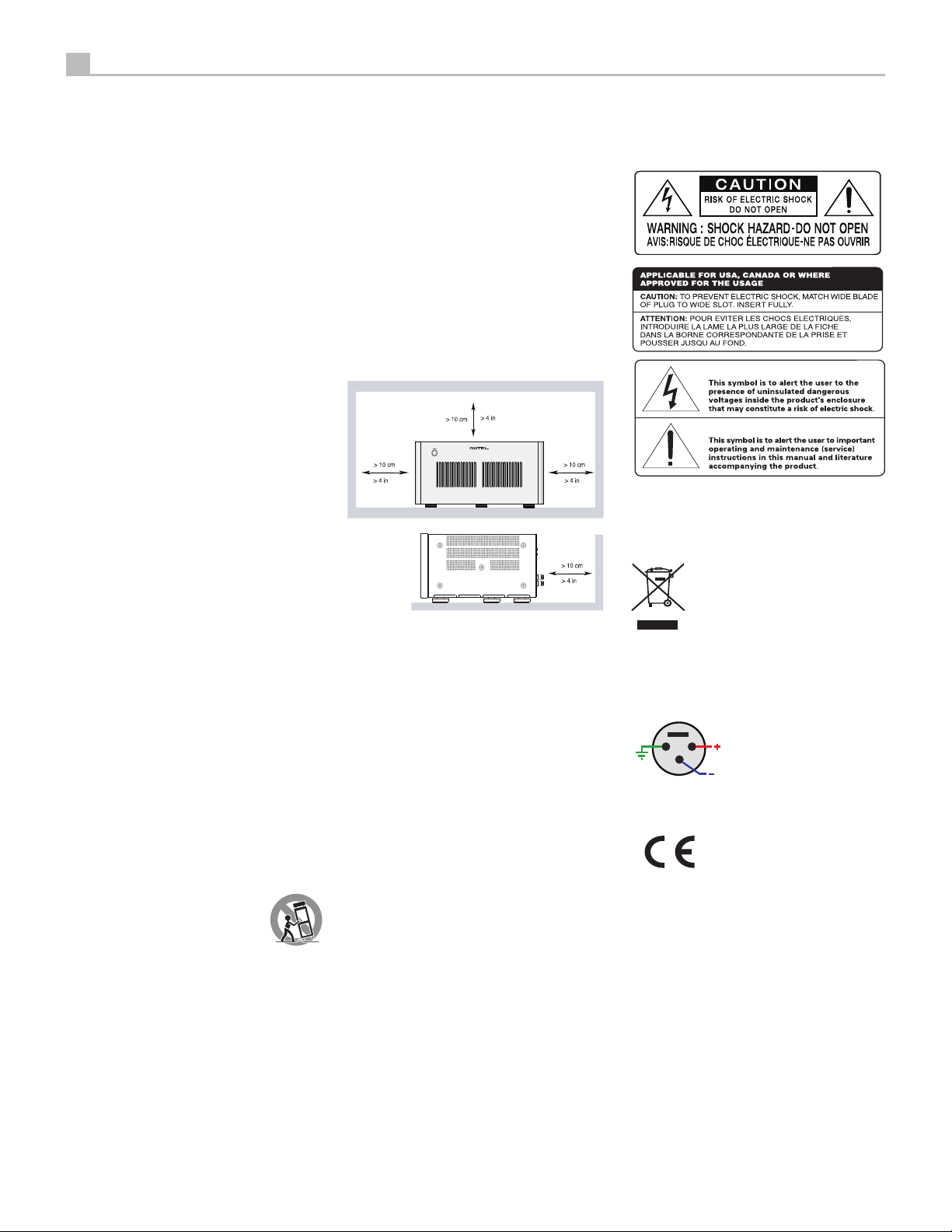

Important Safety Instructions
The apparatus should be used in non tropical
climate.
The ventilation should not be impeded by
covering the ventilation openings with items,
such as newspapers, table-cloths, curtains, etc.
No naked flame sources, such as lighted
candles, should be placed on the apparatus.
Touching uninsulated terminals or wiring may
result in an unpleasant sensation.
You must allow a minimum 10 cm or 4 inches
of unobstructed clearance around the unit.
WARNING: The rear panel power cord connector
is the mains power disconnect device. The
device must be located in an open area that
allows access to the cord connector.
The unit must be connected to a power supply
only of the type and voltage specified on the
rear panel. (USA: 120 V/60Hz, EC: 230V/50Hz)
Connect the component to the power outlet
only with the supplied power supply cable or
an exact equivalent. Do not modify the supplied
cable. Do not use extension cords.
The mains plug is the disconnect of the unit. In
order to completely disconnect the unit from
the supply mains, remove the main plug from
the unit and the AC power outlet. This is the
only way to completely remove mains power
from the unit.
Use Class 2 wiring for speaker connections to
ensure proper installation and minimize the
risk of electrical shock.
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following to
conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference
that may cause undesired operation.

3
Figure 1-1: Controls and Connections
Commandes et Branchements
Bedienelemente und Anschlüsse
Controles y Conexiones
RP-608A
UNBALANCED
BALANCED
INPUT 1
UNBALANCED
BALANCED
INPUT 2
UNBALANCED
BALANCED
INPUT 3
UNBALANCED
BALANCED
INPUT 4
UNBALANCED
BALANCED
INPUT 5
UNBALANCED
BALANCED
INPUT 6
UNBALANCED
BALANCED
INPUT 7
OUTPUT 1
IN OUT AUTO OFF
12V TRIG FAN SPEED
OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5 OUTPUT 6 OUTPUT 7
SPEAKER IMPEDANCE
8 OHMS NOMINAL
SEVEN CHANNEL POWER AMPLIFIER
MODEL NO. : RMB -1587MKII
POWER CONSUMPTION : 1400W
RMB-1587MKII
1
3
56
2
4
1:
Power Button and Power LED Indicator
Activate the unit or put it into standby mode.
Bedieningselementen en aansluitingen
Controlli e connessioni
Controlli e connessioni Kontroller och anslutningar
Органы управления и разъемы

4RMB-1587MKII Seven Channel Power Amplier
Figure 1-2: Controls and Connections
Commandes et Branchements
Bedienelemente und Anschlüsse
Controles y Conexiones
RP-608A
UNBALANCED
BALANCED
INPUT 1
UNBALANCED
BALANCED
INPUT 2
UNBALANCED
BALANCED
INPUT 3
UNBALANCED
BALANCED
INPUT 4
UNBALANCED
BALANCED
INPUT 5
UNBALANCED
BALANCED
INPUT 6
UNBALANCED
BALANCED
INPUT 7
OUTPUT 1
IN OUT AUTO OFF
12V TRIG FAN SPEED
OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5 OUTPUT 6 OUTPUT 7
SPEAKER IMPEDANCE
8 OHMS NOMINAL
SEVEN CHANNEL POWER AMPLIFIER
MODEL NO. : RMB -1587MKII
POWER CONSUMPTION : 1400W
RMB-1587MKII
1
3
56
2
4
2: 12 Volt Trigger Connections
Send or receive a 12V trigger signal.
3: Input Signal Connections
Include RCA input and Balanced input connectors.
4: Fan Switch
Include Fan Off and Fan Auto.
5: Speaker Connectors
6: AC Power Inlet
Bedieningselementen en aansluitingen
Controlli e connessioni
Controlli e connessioni Kontroller och anslutningar
Органы управления и разъемы

5
Figure 2: Analog Inputs and Speaker Output Connections
Branchements des entrées analogiques et sorties enceintes acoustiques
Anschlussdiagramm (analoge Eingangsanschlüsse, Ausgangsanschlüsse für die
Lautsprecher)
Conexiones de Entrada Analógicas y de Salida a las Cajas Acústicas
Analoge ingangen en luidsprekeruitgangen
Collegamenti ingressi analogici ed uscite diffusori
Anslutningar för högtalare och analoga ingångar
Подсоединение источников сигнала на аналоговые входы и акустических систем
RP-608A
UNBALANCED
BALANCED
INPUT 1
UNBALANCED
BALANCED
INPUT 2
UNBALANCED
BALANCED
INPUT 3
UNBALANCED
BALANCED
INPUT 4
UNBALANCED
BALANCED
INPUT 5
UNBALANCED
BALANCED
INPUT 6
UNBALANCED
BALANCED
INPUT 7
OUTPUT 1
IN OUT AUTO OFF
12V TRIG FAN SPEED
OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5 OUTPUT 6 OUTPUT 7
SPEAKER IMPEDANCE
8 OHMS NOMINAL
SEVEN CHANNEL POWER AMPLIFIER
MODEL NO. : RMB -1587MKII
POWER CONSUMPTION : 1400W
RMB-1587MKII
+ -
MULTICHANNEL ANALOG OUTPUTS

6RMB-1587MKII Seven Channel Power Amplier

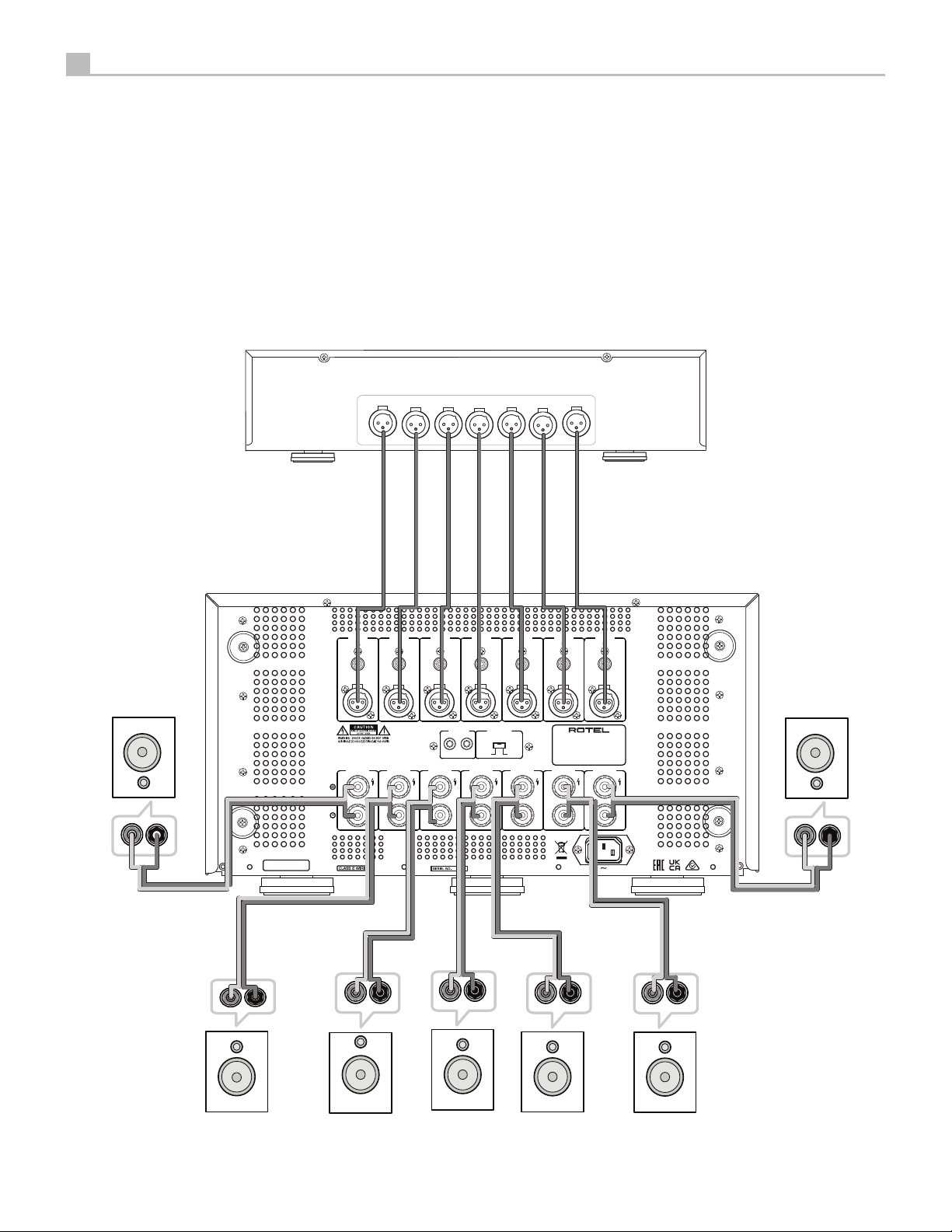

Figure 3: Balanced (XLR) Inputs
Entrées symétriques (XLR
Anschlussdiagramm (symmetrische
(XLR-) Eingänge)
Entradas Balanceadas (XLR)
RP-608A
UNBALANCED
BALANCED
INPUT 1
UNBALANCED
BALANCED
INPUT 2
UNBALANCED
BALANCED
INPUT 3
UNBALANCED
BALANCED
INPUT 4
UNBALANCED
BALANCED
INPUT 5
UNBALANCED
BALANCED
INPUT 6
UNBALANCED
BALANCED
INPUT 7
OUTPUT 1
IN OUT AUTO OFF
12V TRIG FAN SPEED
OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5 OUTPUT 6 OUTPUT 7
SPEAKER IMPEDANCE
8 OHMS NOMINAL
SEVEN CHANNEL POWER AMPLIFIER
MODEL NO. : RMB -1587MKII
POWER CONSUMPTION : 1400W
RMB-1587MKII
MULTICHANNEL ANALOG OUTPUTS
+ -
Gebalanceerde ingangen (XLR)
Collegamenti ingressi bilanciati (XLR
Balanserade anslutningar (XLR)
Балансные (XLR) входы

7
Important Notes
When making connections be sure to:
4Turn off all the components in the system before hooking up any components, including loudspeakers.
4Turn off all components in the system before changing any of the connections to the system.
It is also recommended that you:
4Turn the volume control of the amplier all the way down before the amplier is turned on or off.
Remarques importantes
Pendant les branchements, assurez-vous que :
4Tous les maillons sont éteints avant leur branchement, quels qu’ils soient, y compris les enceintes acoustiques.
4Éteignez tous les maillons avant de modier quoi que ce soit au niveau de leurs branchements, quels qu’ils soient.
Il est également recommandé de :
4Toujours baissez le niveau sonore via le contrôle de volume, avant d’allumer ou d’éteindre l’amplicateur.
Wichtige Hinweise
Achten Sie beim Herstellen der Verbindungen auf Folgendes:
4Schalten Sie alle Komponenten im System ab, bevor Sie Geräte (einschließlich Lautsprecher) anschließen.
4Schalten Sie alle Komponenten im System ab, bevor Sie Anschlüsse im System verändern.
Ferner empfehlen wir, dass
4Sie die Lautstärke herunterdrehen, bevor Sie die Endstufe ein- oder abschalten.
Notas Importantes
Cuando realice las conexiones, asegúrese de que:
4Desactiva todos los componentes del equipo, cajas acústicas incluidas, antes de conectar cualquier nuevo componente en el mismo.
4Desactiva todos los componentes del equipo antes de cambiar cualquier conexión del mismo.
También le recomendamos que
4Reduzca el nivel de volumen de su amplicador a cero antes de activarlo o desactivarlo.
Héél belangrijk
Bij het maken van de verbindingen:
4Zorg dat niet alleen de RMB-1587MKII, maar de gehele installatie uitstaat, als nog niet alle verbindingen gemaakt zijn.
4Zorg dat niet alleen de RMB-1587MKII, maar de gehele installatie ook uitstaat, als u verbindingen gaat wijzigen.
Wij raden u ook aan om
4de volumeregelaar van de voorversterker geheel dicht te draaien (volkomen naar links) wanneer u uw eindversterker aan- of uitzet.
Note importanti
Quando effettuate i collegamenti assicuratevi di:
4Spegnere tutti i componenti del sistema prima di collegare qualsiasi componente, inclusi i diffusori.
4Spegnere tutti i componenti del sistema prima di modicare qualsiasi connessione nel sistema.
Vi raccomandiamo inoltre di:
4Portare il volume a zero prima di accendere o spegnere l’amplicatore.
Viktigt
Tänk på följande när du gör anslutningar:
4Stäng av alla komponenter i anläggningen innan du ansluter nya komponenter, inklusive högtalare.
4Stäng av alla komponenter i anläggningen innan du ändrar någon anslutning i anläggningen.
Vi rekommenderar också föjlande:
4Vrid ner volymen på förstärkaren helt och hållet innan förstärkaren slås på eller av.
Важные замечания
Перед подсоединением:
4Выключите все компоненты, включая колонки.
4Выключите все компоненты в вашей системе, прежде чем что-то в ней менять.
Рекомендуется также:
4Вывести громкость усилителя на минимум, перед тем как включать или выключать его.

8RMB-1587MKII Seven Channel Power Amplier
About Rotel
Our story began over 60 years ago. Over the decades, we have received
hundreds of awards for our products and satised hundreds of thousands
of people who take their entertainment seriously - like you!
Rotel was founded by a family whose passionate interest in music led
them to manufacture high-delity components of uncompromising
quality. Through the years, that passion has remained undiminished
and the family goal of providing exceptional value for audiophiles and
music lovers, regardless of their budget, is shared by all Rotel employees.
Rotel’s engineers work as a close team, listening to, and ne tuning, each
new product until it reaches their exacting musical standards. They are
free to choose components from around the world in order to make
that product the best they can. You are likely to nd capacitors from
the United Kingdom and Germany, semiconductors from Japan or the
United States, while toroidal power transformers are manufactured in
Rotel’s own factory.
We all have concerns about our environment. And, as more and more
electronics are produced it is especially important for a manufacturer
to do all it can to engineer products that have a minimum impact on
the environment.
At Rotel, we are proud to do our part. We have reduced the lead content
in our products by using special lead-free ROHS solder and components.
Our engineers continually strive to improve power supply efciency
without compromise to quality. When in standby mode Rotel products use
minimal power to meet global Standby Power Consumption requirements.
The Rotel factory is also doing their part to help the environment through
constant improvements to product assembly methods for a cleaner and
greener manufacturing processes.
All of us at Rotel thank you for buying this product. We are sure it will
bring you many years of enjoyment.
Contents
Important Safety Instructions ...................................2
Figure 1-1: RMB-1587MKII Controls and Connections 3
Figure 1-2: RMB-1587MKII Controls and Connections 4
Figure 2: Analog Inputs and Speaker Output Connections 5
Figure 3: Balanced (XLR) Inputs 6
Important Notes 7
About Rotel ....................................................8
A Word About Watts............................................9
Getting Started.................................................9
A Few Precautions 9
Placement 9
AC Power and Control ..........................................9
AC Power Input 669
Power Switch and Power Indicator 1110
12 Volt Trigger Input and Output 2210
Protection Circuitry 1110
Input Signal Connection 33.........................................10
Speaker Conncection .........................................10
Speaker Selection 10
Speaker Wire Selection 10
Polarity and Phasing 10
Speaker Connection 5510
Cooling Fans .................................................. 11
Troubleshooting............................................... 11
Power Indicator Is Not Illuminated 11
Fuse Replacement 11
No Sound 11
Preoctection Indicator 11
Specications .................................................12

9
A Word About Watts
The RMB-1587MKII power output is quoted as 250 watts for each channel
into 4 ohms, when seven channels are operating together at full power.
Rotel has chosen to specify the power output in this way because, in
Rotel’s experience, it gives the truest value of the receiver or amplier’s
power capability.
When comparing specications for different products, you should be
aware that power output is often specied in other ways, so you may
not be comparing like with like.For example, the power output may be
quoted with only one channel operating, giving a higher maximum gure.
A loudspeaker’s impedance rating indicates the electrical resistance or
load it offers when connected to the amplier, usually 8 ohms or 4 ohms.
The lower the impedance, the more power the speaker will need. In effect,
a 4 ohm speaker will require twice as much power as an 8 ohm speaker.
However, Rotel ampliers are designed to work into any speaker impedance
between 8 and 4 ohms, and with all the channels working up to their full
power. Because the Rotel design is optimized for use with all channels
operating together, Rotel is able to specify the true power output for
both channels.
This can be important for your enjoyment, too. When watching movies,
it’s nice to have the amplier able to reproduce full power into all the
channels at the same time, especially in the case of a volcano exploding!
Getting Started
Thank you for purchasing the Rotel RMB-1587MKII Seven Channel Power
Amplier. When used in a high-quality music or home theater system,
your Rotel product will provide years of musical enjoyment.
The RMB-1587MKII is high-power amplier, providing the highest level
of audio performance. Discrete output devices, a massive power supply,
premium components, and Rotel’s Balanced Design ensure superb
sound quality. High current capability allow the RMB-1587MKII to drive
the most demanding loudspeakers.
Be aware that the RMB-1587MKII is capable of high power levels, in excess
of 250 watts respectively per channel. Make sure that your speakers can
handle the power of the amplier. If in doubt about your speakers, ask
your local Rotel audio dealer for advice.
The amplier is straightforward in the installation and operation. If you
have experience with other stereo power ampliers, you shouldn’t nd
anything perplexing. Simply plug in the associated components and enjoy.
A Few Precautions
WARNING: To avoid potential damage to your system, turn off ALL
the components in the system when connecting or disconnecting the
loudspeakers or any associated components. Do not turn the system
components back on until you are sure all the connections are correct
and secure. Pay particular attention to the speaker wires. There must
be no loose strands that could contact the other speaker wires, or the
chassis of the amplifier.
Please read this manual carefully. In addition to installation and operating
instructions, it provides valuable information on various system congurations
as well as general information that will help you get optimum performance
from your system. Please contact your authorized Rotel dealer for answers
to any questions you might have. In addition, all of us at Rotel welcome
your questions and comments.
Save the shipping carton and all enclosed packing material for future
use. Shipping or moving the amplier in anything other than the original
packing material may result in severe damage that is not covered by
the warranty.
If included in the box please ll out and send in the owner`s registration
card. Also be sure to keep the original sales receipt. It is your best record
of the date of purchase, which you will need in the event warranty service
is required.
Placement
The RMB-1587MKII generate heat as part of its normal operation. The
heat sinks and ventilation openings in the amplier are designed to
dissipate this heat. The ventilation holes in the top cover must be open.
There should be 10 cm (4 inches) of clearance around the chassis, and
reasonable airflow through the installation location, to prevent the
amplier from overheating.
Remember the weight of the amplier when you select an installation
location. Make sure that the shelf or cabinet can support it. We recommend
installing the unit in furniture designed to house audio components.
Such furniture is designed to reduce or suppress vibration which can
adversely affect sound quality. Ask your authorized Rotel dealer for advice
about component furniture and proper installation of audio components.
AC Power and Control
AC Power Input 66
Your amplier is congured at the factory for the proper AC voltage in
the country where you purchased it, either 120 volts or 230 volts. The AC
line conguration is noted on a decal on the back panel.
NOTE: Should you move your amplifier to another country, it may be
possible to reconfigure it for use on a different line voltage. Do not
attempt to perform this conversion yourself. Opening the enclosure of
the amplifier exposes you to dangerous voltages. Consult a qualified
service person or the Rotel factory service department for information.
NOTE: Some products are intended for sale in more than one country
and as such are supplied with more than one AC cord. Please use only
the cord appropriate for your country/region.
Because of its high power rating, the amplier can draw considerable
current. Therefore, it should be plugged directly into a wall outlet. The
RMB-1587MKII must be plugged into a 3-pin polarized outlet. Do not use
an extension cord. A heavy duty multi-tap power outlet strip may be used
if it (and the wall outlet) is rated to handle the current demanded by the
amplier and all the other components connected to it.
Be sure the POWER SWITCH 11on the front panel of the amplier is turned
off (in the “out” position). Then, connect the supplied power cord to the
Power Connector 66 on the rear of the unit and the AC power outlet.

10 RMB-1587MKII Seven Channel Power Amplier
NOTE: To prevent loud potentially damaging noises, make sure the
amplifier is turned off when you make any changes to the input signal
configuration.
Select high quality audio interconnect cables. Connect each of the
outputs from the preamplier or signal processor to the corresponding
input of the amplier.
Speaker Connection
Speaker Selection
We recommend using loudspeakers with a nominal impedance of 4 ohms
or higher with the RMB-1587MKII. You should exercise some caution in
driving multiple pairs of speakers in parallel conguration, because the
effective impedance the amplier sees is cut in half. For example, when
driving two pair of 8 ohm speakers, the amplier sees a 4 ohm load.
When driving multiple speakers in parallel, it is recommended that you
select speakers with a nominal impedance of 8 ohms or higher. Speaker
impedance ratings are less than precise. In practice, very few loudspeakers
will present any problems for the RMB-1587MKII. See your authorized
Rotel dealer if you have any questions.
Speaker Wire Selection
Use insulated two-conductor stranded wire to connect the amplier to
the speakers. The size and quality of the wire can have an audible effect
on the performance of the system. Standard speaker wire will work,
but can result in lower output or diminished bass response, particularly
over longer distances. In general, heavier wire will improve the sound.
For best performance, you may want to consider special high-quality
speaker cables. Your authorized Rotel dealer can help in the selection of
cables for your system.
Polarity and Phasing
The polarity – the positive/negative orientation of the connections – for
every speaker and amplier connection must be consistent so all the
speakers will be in phase. If the polarity of one connection is reversed,
bass output will be very weak and stereo imaging degraded. All wire is
marked so you can identify the two conductors. There may be ribs or
a stripe on the insulation of one conductor. The wire may have clear
insulation with different color conductors (copper and silver). There may
be polarity indications printed on the insulation. Identify the positive and
negative conductors and be consistent with every speaker and amplier
connection.
Speaker Connections 55
NOTE: The following text describes both binding post and plug-in
connections. DO NOT use both connection methods in combination
to connect multiple speakers.
Turn off all the components in the system before connecting the speakers.
The RMB-1587MKII have two color coded binding posts, two for each
channel. These connectors accept bare wire, connector lugs, or dual
banana type connectors (except in the European Community countries
where their use is not permitted).
Route the wire from the amplier to the speakers. Give yourself enough
slack so you can move the components to allow access to the speaker
connectors.
If you are going to be away from home for an extended period of time
such as a month-long vacation, it is a sensible precaution to unplug your
amplier (as well as other audio and video components) while you are away.
Power Switch and Power Indicator 11
The power switch is located on the front panel of your amplier. To turn
the amplier on, push the switch in. The ring around the switch will light
up, indicating that the amplier is turned on. To turn the amplier off,
push the button again and return it to the “out” position.
NOTE: Place the self adhesive ring over the light surrounding the Power
switch if the blue light is too bright.
12 Volt Trigger Input and Output 22
The jack labeled IN is for connecting the 3.5mm MONO Plug/Cable
carrying a +12 volt trigger signal to turn the amplier on and off. When
the trigger is connected to the IN the amplier automatically uses the
12V trigger power control function. This input accepts any control signal
(AC or DC) ranging from 3 volts to 30 volts.
The jack labeled OUT is for connecting another 3.5mm MONO plug/cable
to provide a 12V trigger signal to other components. The 12V output signal
is available whenever a +12 volt trigger signal is applied to the IN connector.
Protection Circuitry 11
The RMB-1587MKII feature thermal and over-current protection circuits
that protect against potential damage in the event of extreme or faulty
operating conditions. Unlike many designs, these protection circuits are
independent of the audio signal and have no impact on sonic performance.
Instead, the protection circuits monitors the temperature of the output
devices and the current they are handling and shuts down the amplier
if operating conditions exceed safe limits.
Most likely, you will never see this protection circuitry in action. However,
should a faulty condition arise, the amplier will stop playing and the
Power Indicator on the front panel will blink.
If this happens, turn the amplier off, let it cool down for several minutes,
and attempt to identify and correct the problem. When you turn the
amplier back on, the protection circuit will automatically reset and the
Power Indicator should light up, indicating that the amplier is turned
on normal.
In most cases, the protection circuitry activates because of a fault condition
such as shorted speaker wires, or inadequate ventilation leading to an
overheating condition. In very rare cases, highly reactive or extremely low
impedance speaker loads could cause the protection circuit to engage.
If the protection circuitry triggers repeatedly and you are unable to isolate
and correct the faulty condition, contact your authorized Rotel dealer for
assistance in troubleshooting.
Input Signal Connections 3
The RMB-1587MKII have conventional RCA type input connectors, the type
found on nearly all audio equipment. The RMB-1587MKII also includes
Balanced input connectors. Only one set of inputs should be connected.
Never connected both Balanced and RCA inputs at the same time.

11
If you are using dual banana plugs, connect them to the wires and then
plug into the backs of the binding posts. The thumbscrews of the binding
posts should be screwed in all the way (clockwise).
If you are using terminal lugs, connect them to the wires. If you are
attaching bare wires directly to the binding posts, separate the wire
conductors and strip the insulation from the end of each conductor. Be
careful not to cut into the wire strands. Unscrew (turn counterclockwise)
the binding post. Place the connector lug or wire around the binding
post shaft. Turn the binding post clockwise to clamp the connector lug
or wire rmly in place.
NOTE: Be sure there are no loose wire strands that could touch
adjacent wires or connectors.
Cooling Fans
The Rotel RMB-1587MKII amplier is equipped with four cooling fans
to help ventilate the internal components. The rear panel of the RMB-
1587MKII includes a 2 position fan selection switch including Fan OffFan Off and
Fan AutoFan Auto. Please select the fan selection that best suits the installation
and cooling requirements.
NOTE: The RMB-1587MKII produces significant power and associated
heat - even with the cooling fans in use. Appropriate installation and
ventilation is required to ensure proper operation.
Troubleshooting
Most difculties in audio systems are the result of incorrect connections,
or improper control settings. If you encounter problems, isolate the area
of the difculty, check the control settings, determine the cause of the
fault and make the necessary changes. If you are unable to get sound
from the amplier, refer to the suggestions for the following conditions:
Power Indicator Is Not Illuminated
No main power to the amplier. Check the front panel power switch.
Make sure that it is set to the on position. Check AC power connections
at the amplier and the AC outlet.
Fuse Replacement
If another electrical device works when plugged into the power outlet,
but the Power Indicator of the unit does not light when plugged into
the same outlet and the Power Switch is pushed in, it indicates that the
internal power fuse may have blown. If you believe this has happened,
contact your authorized Rotel dealer to get the fuse replaced.
No Sound
If the amplier is getting AC power, but is producing no sound, check the
Protection indicator on the front panel. If it is lit, see below. If not, check
all of your connections and control settings on associated components.
Protection Indicator
The front panel POWER indicator is blinking when the amplier protection
circuits have shut off the amplier. Typically, this occurs only when the
ventilation openings are blocked, when there is faulty speaker wiring,
or after a period of extreme use. Turn off the system and wait for the
amplier to cool. Then push the front panel power switch in and out to
reset the protection devices. If the problem is not corrected or reoccurs,
there is a problem with the system or the amplier itself.

12 RMB-1587MKII Seven Channel Power Amplier
Specications
Power OutputPower Output (7ch driven, 8 ohms) 155 watts / channel
Power OutputPower Output (7ch driven, 4 ohms) 250 watts / channel
Power OutputPower Output (2ch driven, 4 ohms) 335 watts / channel
Total Harmonic DistortionTotal Harmonic Distortion < 0.03%
Intermodulation DistortionIntermodulation Distortion
(60 Hz : 7 kHz, 4:1) < 0.03%
Frequency ResponseFrequency Response (+0dB, –0.3dB) 10Hz - 100kHz
Damping FactorDamping Factor (1 kHz, 8 ohms) 330
Input Impedance/SensitivityInput Impedance/Sensitivity
Unbalanced 12k Ohms / 1.61 volt
Balanced 50k Ohms / 3.4 volt
GainGain 26.6 dB
Signal to Noise RatioSignal to Noise Ratio (A Weighting) 111 dB
Crosstalk/SeparationCrosstalk/Separation > 55 db
Power RequirementPower Requirement
USA 120 Volts, 60Hz
EC 230 Volts, 50Hz
Power ConsumptionPower Consumption 1400 Watts
BTUBTU (4 ohms, 1/8 power)(4 ohms, 1/8 power) 4016 BTU / h4016 BTU / h
DimensionsDimensions (W X H X D) 431 x 237 x 456 mm
17 x 9 1/3 x 18 ins
Front Panel Height Front Panel Height 5U / 221mm / 8 3/4ins
WeightWeight (net) 37.6 kg / 82.9 lbs
All specications are accurate at the time of printing.
Rotel reserves the right to make improvements without notice.
The Rotel logo is a registered trademark of The Rotel Co., Ltd. Tokyo,
Japan.

RMB-1587MKII Owner’s Manual Ver A 090523 English
The Rotel Co. Ltd.
Tachikawa Bldg. 1F.,
2-11-4, Nakane, Meguro-ku,
Tokyo, 152-0031
Japan
Email: [e-mail]
Rotel USA
11763 95th Avenue North
Maple Grove, MN 55369
USA
Phone: [phone]
Rotel Canada
Kevro International
902 McKay Rd. Suite 4
Pickering, ON L1W 3X8
Canada
Phone: [phone]
www.rotel.com
