Roto-Mix Roto-Spread 532-16B Guide

Page
532-16B MANURE SPREADER
TRAILER UNIT
OPERATION AND PARTS MANUAL
ROTO-MIX LLC
2205 E. Wyatt Earp
PO Box 1724
Dodge City, Kansas 67801
[phone]
©Roto-Mix 2006
441938 11-2018Printed in U.S.A.

Page 2
Congratulations on the purchase of your new
spreader from Roto-Mix. With proper operation and
preventative maintenance it will last for years.
This SAFETY ALERT SYMBOL indicates
important safety messages in the manual. When you
see this symbol, be alert to the possibility of
PERSONAL INJURY and carefully read the message
that follows.
NEVER OPERATE WITHOUT
ALL COVERS, SHIELDS AND GUARDS IN PLACE.
KEEP HANDS, FEET AND CLOTHING AWAY
FROM MOVING PARTS.
Some covers and guards have been removed for
illustrative/photographic purposes only in this
manual. However, equipment should never be
operated in this condition. Keep all shields in place. If
shield removal becomes necessary for repairs,
replace the shield prior to use.
The Guarantee appears in the front of this book
along with the Registration and Inspection
Certificate.
For information on ordering repair parts, refer to the
Repair Parts section at the back of this book.
The serial number plate is located on the drivers side
lower front of the main frame. This number should be
recorded on the Registration and Inspection
Certificate for your reference and for proper
identification of your spreader by Roto-Mix.
You are urged to study this manual and follow the
instructions carefully. Your efforts will be repaid in
better operation and service as well as a savings in
time and repair expense.
Failure to read and understand the machine or the
system could lead to serious injury.
If you do not understand the instructions in this
manual contact either your dealer or Roto-Mix at
Dodge City, Kansas 67801.
This supersedes all previous published instructions.
INTRODUCTION

Warranty Statement WS-0716
ROTO-MIX LL C warrants to the original purchaser all products manufactured by it to be free from defects in material and workmanship under normal use and
service.
ROTO-MIX’s obligation under this warranty is limited to repairing or replacing, as the company may elect, free of charge and without charge for installation, at
the place of business of a dealer or distributor authorized to handle the equipment covered by this warranty or at a ROTO-MIX facility, any parts that prove, in
the company’s judgment, to be defective in material or workmanship within one (1) year after delivery to the original purchaser, and still owned by the original
purchaser. This warranty shall in no way make ROTO-MIX liable to anyone for personal injuries or damages, loss of time, or expense of any kind either direct or
indirect resulting from part failure or defect. This warranty is subject to acts of God, fire and existing conditions of supply and demand, or production, or ability
or inability to deliver, or for any other valid reason beyond the reasonable control of ROTO-MIX, to obtain materials, manufactured replacement parts, or make
delivery thereof. No distributor, dealer, agent, or ROTO-MIX employee (other than the CEO or President in writing) is authorized to extend any other or further
express or implied warranty or incur any additional obligation on ROTO-MIX’s behalf in connection with the sale of this product.
If ROTO─MIX, or its duly authorized representative, shall find that such returned part or parts are defective and such defects, or defect, are included in and
covered by said warranty, then such defective part or parts shall promptly be replaced without charge to the purchaser, F.O.B. the ROTO─MIX plant.
Product Registration - It is a condition of this warranty that the original purchaser must fill out the warranty card furnished by ROTO-MIX and that it be returned
to ROTO-MIX within 10 days of purchase and be recorded in ROTO-MIX’s owner file for this warranty to be valid. In the event an owner’s card is not on file at the
ROTO-MIX office, the warranty period will extend only from date equipment was picked up or shipped from the ROTO-MIX plant.
Maintenance - It is the customer’s responsibility to maintain their equipment in accordance with the instructions provided in the Operator’s Manual. ROTO-MIX
recommends that you keep records and receipts; you may be asked to prove that maintenance instructions have been followed.
Operation –It is the customer’s responsibility to operate the equipment only for the purpose for which it was designed and in accordance with all safety and
operational recommendations contained in the Operators Manual. If a defect in materials or workmanship occurs, it is the customer’s responsibility to cease
operating the equipment until authorized repairs are made. Damage, which occurs from continued operation, may not be covered by this warranty.
What this Warranty Covers
This warranty covers failures caused by defects in materials or workmanship only.
This Warranty does not cover failures caused by:
This Warranty does not cover replacement of Wear or Maintenance Items including, but not limited to.
This Warranty does not cover:
-Pickup and delivery of the equipment
-Service Calls or Travel Time to and from sites
-Rental of replacement equipment during repair period
-Products that have been declared a total loss and subsequently salvaged
-Overtime labor charges
-ROTO-MIX is not responsible and will not be liable for damage caused to persons or property, commercial loss, loss of time or production, loss of use by reason
of the installation or use of ROTO-MIX products or their mechanical failure.
Right to Make Changes
ROTO-MIX reserves the right to make any changes to a ROTO-MIX product at any time without incurring any obligation with respect to any product previously
ordered, sold or shipped, with or without notice.
Parts Warranty
ROTO-MIX warranties replacement parts against defects in materials or workmanship for a period of 90 days or the remainder of the product warranty,
whichever is longer. Remedy for defective replacement parts for units that are beyond the original product warranty, will be limited to replacement of the failed
part. Failures that are due to damage, improper installation, lack of maintenance or improper operation will not be covered.
ROTO-MIX 2205 East Wyatt Earp Blvd., Dodge City, KS 67801 [phone] Fax: [phone]
 Improper operation
 Natural calamities
 Unauthorized modifications
 Unauthorized repairs
 Use of Non ROTO-MIX parts
 Neglected maintenance
 The use of PTO Shaft Adaptors
 Usage contrary to the intended purpose of
the product
 lubricants
 Filters
 Hoses
 Tires
 Augers
 Wipers
 Chains
 Idlers
 Batteries
 Blades
 Belts
Page 3

Page 4
DESCRIPTION PAGE NO.
Introduction ................................................................................................................ 2
Warranty .................................................................................................................... 3
Table Of Contents ...................................................................................................... 4
Safety-Spreader ......................................................................................................... 5
Safety Decals ............................................................................................................. 6
Spreader Safety ......................................................................................................... 7
Safety Decal Care ............................................................................................... 10
Specifications ............................................................................................................ 11
Dimensional Data ................................................................................................. 11
Tractor Hydraulic System Recommendations ...................................................... 12
Features ............................................................................................................... 12
Optional Equipment.............................................................................................. 12
Principle of Operation ..............................................................................................12-13
Pre Operation Check List .......................................................................................... 14
Highway and Transport Operation ........................................................................... 14
Operation .................................................................................................................. 15
Loading ................................................................................................................ 16
Unloading ............................................................................................................ 17
Storage and Cleaning .......................................................................................... 17
Maintenance ............................................................................................................. 19
Lubrication ........................................................................................................... 19
Bearings .............................................................................................................. 19
Drive Chain Planetary Gearbox ........................................................................... 19
Hydraulic System ................................................................................................ 20
Adjustments ......................................................................................................... 20
Sliding Gate Scrapers ......................................................................................... 20
Rear Gate Scrapers ............................................................................................ 21
Rear Gate Scrapers ............................................................................................ 21
Drive Chain Slack................................................................................................. 21
Adjust Spread Pattern ......................................................................................... 22
Repair Parts .............................................................................................................. 23
TABLE OF CONTENTS

Page 5
NOTE: Complete decal kit part number for 532-16B is 630042.
A brief definition of signal words that may be used in this manual:
SAFETY - SPREADER
Indicates a potentially hazardous
situation that, if not avoided may result in minor or
moderate injury.
Indicates an imminently hazardous
situation that, if not avoided, will result in death or
serious injury.
Indicates a potentially hazardous
situation that, if not avoided could result in death or
serious injury, and includes hazards that are
READ ALL SIGNS ON THE MACHINE AND IN THIS MANUAL. REPLACE ANY LOST
OR DAMAGED SIGN BY ORDERING THE PART NUMBERS SHOWN ON THE SAFETY DECAL PAGE.
Decal A. 440827 Decal C. 440801 Decal D. 441657
A (Both Sides)
B (Front)
D (Both Sides)
D (Both Sides)
B (Both Sides)
Decal B. 440833

Page 6
Do not operate your spreader until you have read this Owner's Manual, the Tractor Owner's Manual, and
understand the danger associated with its operation.
This spreader is comprised of rotating drive shafts and rotating beaters. Any exposure to these spreader
components can result in serious personal injury or death.
Study the safety decal page and understand where the danger points are.
THERE ARE INHERENT HAZARDS ASSOCIATED WITH THE OPERATION OF YOUR
SPREADER.
FOR YOUR SAFETY:
 Do not operate, service, inspect or otherwise handle this equipment unless you have read the owner’s
manual and have been properly trained in its intended usage.
 Do not attempt to operate this equipment under the influence of drugs or alcohol.
 Do not allow personnel other than the qualified operator near the machine.
 Require all personnel who will operate this machinery or perform service, to read and understand the
safe operating practices and safety precautions in this manual.
 Before starting tractor engine, be sure pto shields turn freely.
 Do not operate until all shields, covers and guards are in place.
 Do not allow children or inexperienced persons to operate this machine.
 Keep hands, feet and clothing away from power take-off shaft.
 Loose or floppy clothing should not be worn by the operator. Wear close fitting clothing.
 Stop the engine and be sure pto drive line is stopped before making adjustments, connections, or
cleaning out pto driven equipment.
 Do not climb on or enter machine while in operation.
 Do not allow riders on the spreader.
 Rotating parts can crush or dismember causing personal injury or death.
 Rotating parts can entangle or strike people, resulting in personal injury or death.
 Operate the spreader from the operator’s seat only.
 Clear the area before equipment start up.
 Do not go near the spreader beaters while machine is operating.
 Stay clear of rotating drive lines.
SPREADER SAFETY

Page 7
 Entanglement in rotating drive line can cause serious injury or death.
 Make sure rotating shields turn freely.
 Do not exceed load capacity of the spreader (see specifications).
 Always use a tractor large enough to provide sufficient braking assistance when towing a loaded
spreader.
 Do not load the spreader unless it is hitched to the tractor.
 Do not unhitch a loaded spreader from the tractor leaving it supported by only the jack.
 Reduce speed when turning or traveling on rough terrain. Avoid traveling over loose fill, rocks, ditches or
holes.
 Do not operate on steep slopes as overturn may result. Operate up and down (not across) intermediate
slopes. Avoid sudden starts and stops. Pick the most level possible route when transporting across
fields. Avoid the edges of ditches or gullies and steep hillsides.
 Use caution when traveling over uneven terrain and when approaching stops.
 Keep transmission in gear when traveling downhill.
 Keep tractor master shield and drive line shields in place at all times.
 Avoid overhead wires or other obstacles. Contact with overhead lines could cause serious injury or
death.
 Highway travel is not to exceed 20 mph. The tires supplied are for farm use only and are not designed
for use above this speed.
 Use adequate safety chains when towing the spreader.
 The use of a slow moving vehicle sign is required on all public roads. Obey all applicable highway safety
laws and rules.
 As a precaution, always recheck the hardware on spreader following every 100 hours of operation. Cor-
rect all problems. Follow the maintenance safety procedures.
FAILURE TO HEED MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH.
SPREADER SAFETY

Page 8
THERE ARE ADDITIONAL HAZARDS ASSOCIATED WITH THE SERVICE AND MAINTENANCE OF
YOUR SPREADER.
FOR YOUR SAFETY:
 Always wear eye protection when operating or servicing spreader.
 Disengage power take-off and remove keys from tractor or truck before servicing spreader.
 Do not attempt to clean, oil or adjust spreader while it is in motion.
 Stop the engine and be sure pto drive line is stopped before making adjustments, connections, or
cleaning out pto driven equipment. Disconnect pto shaft.
 Make sure there is plenty of ventilation. Never operate the engine of the towing vehicle in a closed
building. The exhaust fumes may cause asphyxiation.
 Before working on the spreader, stop the towing vehicle, set the brakes, disengage the pto and all power
drives, shut off the engine and remove the ignition keys.
 Inspect when first delivered and regularly thereafter; that all connections and bolts are tight and secure
before operating.
 Retighten all wheel bolts after the first hour of towing. Check periodically thereafter. See maintenance,
wheels.
 Maintain proper tire air pressure at all times. 700/40-22.5 heavy duty floation tires should be inflated to
85 PSI.
 Be certain all moving parts on attachments have come to a complete stop before attempting to perform
maintenance.
 Before entering mixing chamber or servicing spreader, disconnect main power source and lock the dis-
connect device in off position to prevent accidental start-up.
 Do not work under a spreader without supporting with suitable support stands. Always use a safety
support and block the wheels. Never use a jack to support the machine.
 Do not work under a spreader without blocking the wheels to prevent rolling.
 A fire extinguisher and first aid kit should be kept readily accessible while performing Maintenance On
This Spreader.
 Escaping hydraulic fluid under pressure can penetrate the skin causing serious injury or death.
 Avoid hydraulic hazard by relieving hydraulic pressure before disconnecting hydraulic or other lines.
Tighten all connections before applying pressure.
 Search for hydraulic leaks with a piece of cardboard. Protect hands and body from high pressure fluids.
Never use your hands to locate hydraulic leaks on attachments.
 Replace all shields and guards after servicing and before moving.
 Never replace hex bolts with less than grade five (#5) bolts unless otherwise specified.
SPREADER SAFETY

Page 9
FAILURE TO HEED MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH.
REMEMBER:
Your best assurance against accidents is a careful and responsible operator. If there is any portion of this
manual or function you do not understand, contact your dealer or the ROTO-MIX plant.
Safety Decal Care
1. Keep safety decals and signs clean and legible at all times.
2. Replace safety decals and signs that are missing or have become illegible.
3. Replaced parts that displayed a safety sign should also display the current sign.
4. Safety decals or signs are available from your dealer or the ROTO-MIX manufacturing plant.
5. How to Install Safety Decals:
A. Be sure that the installation area is clean and dry.
B. Decide on the exact position before you remove the backing paper.
C. Remove the smallest portion of the split backing paper.
D. Align the decal over the specified area and carefully press the small portion with the exposed
sticky backing in place.
E. Slowly peel back the remaining paper and carefully smooth the remaining portion of the decal in
place.
F. Small air pockets can be pierced with a pin and smoothed out using the piece of decal backing
paper.
FAILURE TO HEED MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH.
SPREADER SAFETY
PRACTICE FIRE PREVENTION
Keep fire extinguishers accessible at all times. Use the extinguisher recommended for the material being
processed. It should be rated safe for use on electrical fires.
Never smoke close to combustible material.
Clean the area before welding or other activities which may make sparks.
Keep all components that generate excessive heat clear of oil and other combustible materials.

Page 10
SPECIFICATIONS
All Dimensions & Specifications are Approximate and Subject to Change Without Notice.
Roto-Spread 532-16B TRAILER
Capacity (Heaped) 530 Cubic Foot
Struck Level 385 Cubic Foot or 2,880 Gallon
Spreader Weight (Empty) 13,800 Lbs
Load Capacity (Net) 34,000 Lbs
Tongue Weight 900 Lbs Empty, 4,500 Lbs Loaded
Inside Dimensions 48” High, 71 1/2” Wide, 192” Long
Overall Width 110”
Overall Length 353”
Overall Height (Gate Lowered) 139”
Overall Height (Gate Raised) 163 1/2”
Unload Speed/Time Variable
Discharge Height 55-1/2”
Spread Coverage 12’ to 30’
Recommended PTO HP 150 (Minimum)
Beater Drive PTO Driven Double Pump Driving 2 High Torque Motors.
Belt Drive/Rear Gate Uses Tractor PTO Hydraulics. Belt Drive Speed Regulated by an
Adjustable Flow Control Valve.
Beaters Two 35” Diameter High Speed Vertical Beaters with Spinners, and
Double Flighting, 300 RPM @ 1000 PTO RPM
Belt Material & Chain 5/16” 350 PSI PVC Belt & WH124 H.D. Combination Chain for Belt
and Retention Gate Drive System
Floor, Gate & Side Walls High Density Polyethylene on Floor, Side Walls and End Gate
Tire Size 24 x 22.5 Wheel With 700/40-22.5 H.D. Floatation Tire

353" (OVERALL)
139"
(OVERALL)
114 1/2"
(SIDES)
40" (HYD MOTOR)
17 1/2" - 24 1/4" (HITCH)
129"
(SLIDING
GATE)
139"
(SCREEN)
55 1/2"
(DISCHARGE)
89"
15"
79"
110" (OVERALL)
SPECIFICATIONS
532-16B TRAILER DIMENSIONAL DATA
All Dimensions & Specifications are Approximate and Subject to Change Without Notice.
Page 11

Page 12
PRINCIPLE OF OPERATION
Two vertical spinning beaters at the rear of the spreader expel manure in a uniform spread pattern. Each
beater is driven by a hydraulic motor. A PTO driven hydraulic power supply on the spreader provides power
to the beaters. The hydraulic pump is two stage thereby supplying independent power to each beater motor.
A wide heavy duty belt covers the box floor. At the front of the spreader, this belt is attached to a sliding
gate. At the rear, this belt goes around a winged idler pulley and on the lower side is connected to a drive
chain. At the front of the spreader, this chain is driven by a hydraulic motor driving a planetary gear box and
sprocket that is powered by the tractor hydraulic system. Driving the belt toward the rear of the spreader
pulls the sliding gate rearward to move the load toward the beaters. A manually adjustable flow control in the
drive chain motor circuit regulates the speed the gate moves.
An end gate at the rear of the spreader is raised and lowered by two hydraulic cylinders, powered by the
tractor hydraulic system. This gate must be lowered during loading to prevent packing of the material into
the beaters and to help prevent leakage during transport.

Page 13
the warning horn to sound.
Start with a slow rate and then increase as
required. Once adjusted, the unloading rate will
remain constant for the same type of material.
Further application rate adjustment can be obtained
by regulating the tractor ground speed. The
application rate is not affected by engine RPM.
Spread Pattern
The spread pattern is affected by the speed of the
rotating beaters. The two beater hydraulic motors
are powered independently by a two stage
hydraulic pump on the spreader. This pump is
powered by the tractor PTO. The spreader is
designed to give a uniform spread pattern when the
tractor engine is operated at 1000 PTO RPM for
typical materials. Adjustment of the beater speed
and spread pattern is regulated by the engine
speed.
PRE OPERATION
UNDERSTAND THE CONTROLS
Rear Gate
The rear gate cylinders are hydraulically controlled
by a tractor spool valve. It is recommended that the
hoses be connected to the tractor so pulling the
spool valve lever back raises the gate and pushing
the valve lever forward closes it. Make it a habit to
connect the hoses the same so the Operator is
familiar with this operation.
Sliding Gate
The unloading belt which moves the sliding gate is
powered by a hydraulic motor and planetary
gearbox. This motor is powered from the tractor
hydraulic system and started and stopped by the
tractor spool valve for the port to which this motor is
connected. It is recommended that the hoses be
connected to the tractor so pulling the spool valve
lever back starts the gate rearward and pushing the
valve lever forward returns the gate to the front.
The gate can be stopped by moving the spool valve
lever to the neutral detent. Make it a habit to
connect the hoses the same so the Operator is
familiar with this operation.
NOTE: Set the tractor hydraulic selective control
valve to 8 - 12 gallons per minute. To much
hydraulic flow will cause the floor belt and sliding
gate to stop and not move, to little flow will cause
the belt and sliding gate to move to slowly.
When the sliding gate reaches the rear of the
spreader it will bear against mechanical stops. The
tractor hydraulic system will sense increased
hydraulic pressure and return the spool valve to the
neutral OFF position. The same process occurs
when returning the gate to the front.
Rate Of Application
The rate of application is determined by how fast
the sliding gate and belt (floor) progresses toward
the rear of the spreader. This is regulated by a
remote adjusted flow control valve in the tractor.
See figure 1.
The remote flow control knob is turned CW to
increase the rate and CCW to decrease the rate.
Completely CCW is OFF.
NOTE: If the belt speed is too fast the material will
overload the beaters and cause them to stall and
FIGURE 1. FLOW CONTROL
REMOTE FLOW CONTROL
(located in tractor cab)

Page 14
TRACTOR DRAWBAR
Set tractor drawbar as shown in figure 2.
Spreaders are available for 1000 RPM drive line
only. Match tractor PTO with the spreader drive line.
IMPORTANT: To prevent drive line damage,
adjust tractor drawbar to recommended setting.
Disengage tractor PTO before turning.
Adjust Trailer Hitch
Spreader should be approximately level when
attached to tractor.
Trailer hitch has 4 positions.
FAILURE TO SET DRAWBAR
PROPERLY MAY CAUSE SHAFT TO OVER
EXTEND AND SEPARATE OR BEND WHEN
CORNERING OR TRANSPORTING RESULTING
IN DEATH OR PERSONAL INJURY.
PRE OPERATION CHECKLIST
1. Carefully study and understand this manual.
2. Do not wear loose-fitting clothing, which may
catch in moving parts.
3. Always wear protective clothing and substantial
shoes.
4. Keep wheel lug nuts or bolts tightened to 450
FT/LBS, dry threads.
5. Assure that agricultural implement tires are
inflated evenly and at proper pressure.
6. Give the unit a visual inspection for any loose
bolts, worn parts or cracked welds, and make
necessary repairs. Follow the maintenance
safety instructions included in this manual.
7. Check to see that no obstructions are present
in the spreader prior to start up.
8. Be sure that there are no tools lying on or in the
spreader.
9. Do not use the unit until you are sure that the
area is clear, especially children and animals.
10. The ball valve in the suction line must be open
prior to engaging PTO (handle parallel with
valve housing).
11. Because it is possible that this spreader may be
used in dry areas or the presence of
combustibles, special precautions should be
taken to prevent fires and fire fighting
equipment should be readily available.
12. Don’t hurry the learning process or take the unit
for granted. Ease into it and become familiar
with your new spreader.
13. Practice operation of your spreader and its
attachments. Completely familiarize yourself
and other operators with its operation before
using.
14. Securely attach to towing unit. Use a high
strength, appropriately sized hitch pin with a
mechanical retainer.
15. Do not allow anyone to stand between the
tongue or hitch and the towing vehicle when
backing up to the spreader.

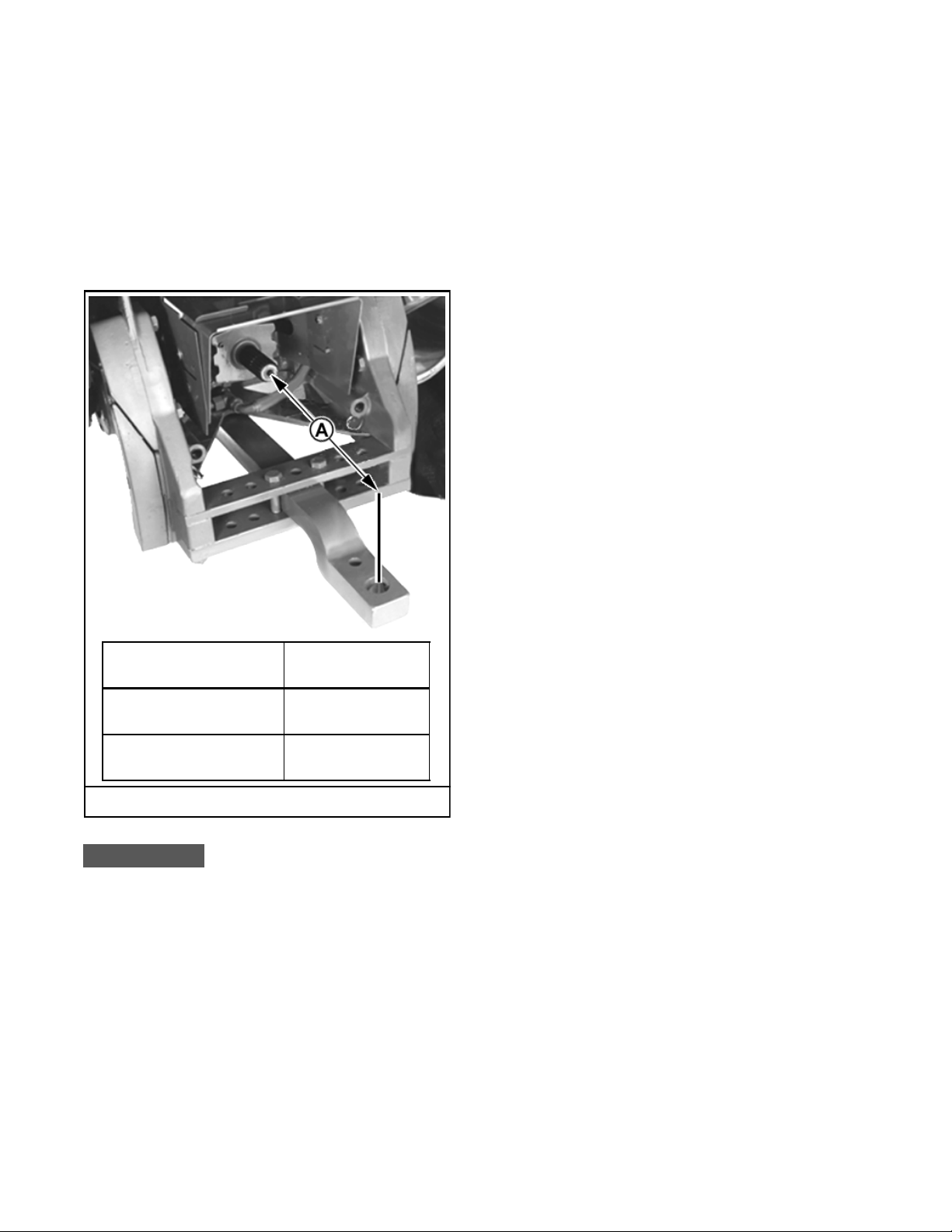

FIGURE 2. TRACTOR DRAWBAR
PTO SHAFT PTO Shaft End to
Hitch Pin Hole (A)
1000 RPM
1-3/8”, 21 Spline 14”
1000 RPM
1-3/4”, 20 Spline 20.9”

Page 15
weight of the spreader when making turns,
stopping the unit, etc.

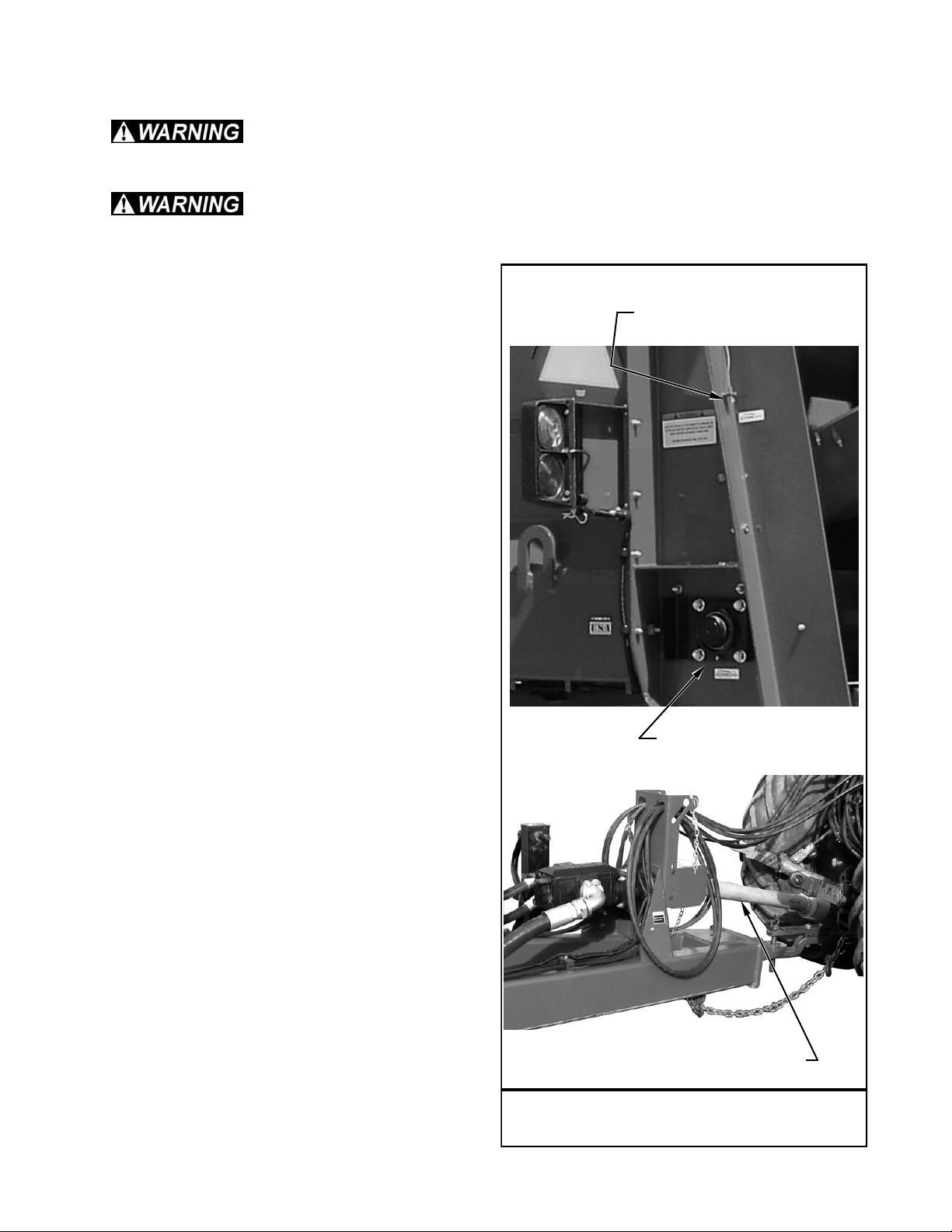

18. Install safety chains as illustrated on figure 3.
This is a requirement for travel on public
roadways. They are installed to retain the
connection between tractor (or other towing
vehicle) and spreader whenever traveling on
public roads.
LIGHTING & MARKING
Hazard lights are standard equipment on the
spreader, When towing on roads extend the hazard
light brackets to the out position.
HIGHWAY AND
TRANSPORT OPERATION
1. Adopt safe driving practices:
2. Always drive at a safe speed relative to local
conditions and ensure that your speed is low
enough for an emergency stop to be safe and
secure. Keep speed to a minimum.
3. Reduce speed prior to turns to avoid the risk of
overturning.
4. Avoid sudden uphill turns on steep slopes.
5. Always keep the tractor in gear to provide
engine braking when going downhill. Do not
coast.
6. Do not drink and drive.
7. Comply with state and local laws governing
highway safety and movement of farm
machinery on public roads.
8. Use approved accessory lighting flags and
necessary warning devices to protect operators
of other vehicles on the highway during daylight
and night time transport.
9. The use of flashing amber lights is acceptable
in most localities. However, some localities
prohibit their use. Local laws should be
checked for all highway lighting and marking
requirements.
10. The spreader does not have brakes. Towing
the spreader must be done safely. The ASAE
(American Society of Agricultural Engineers)
specifies that the towing vehicle should weigh
at least 2/3 as much as the loaded implement
to be reasonably safe towing at speeds up to
20 mph. This (20 mph) is also the maximum
recommended towing speed for the spreader.
11. When driving the tractor and spreader on the
road or highway at night or during the day, use
flashing amber warning lights and a slow
moving vehicle (SMV) identification emblem.
12. Be sure the slow moving vehicle sign is
installed on the rear of the spreader for
transporting on roadways.
13. Plan your route to avoid heavy traffic.
14. Be a safe courteous driver. Always yield to
oncoming traffic in all situations, including
narrow bridges, intersections, etc.
15. Be observant of bridge loading ratings. Do not
cross bridges rated lower than the gross weight
at which you are operating.
16. Watch for obstructions overhead and to the
side while transporting.
17. Make allowances for increased length and
FIGURE 3.
SAFETY CHAIN ILLUSTRATION
SAFETY CHAIN INSTALLATION

Page 16
storage bracket and connect the ends to a
tractor port. See Understand The Controls on
page 12 for recommended connection.
6. Remove the pair of hydraulic hoses coming
from the spreader rear gate hydraulic cylinders
from their storage bracket and connect the
ends to a tractor port. See Understand The
Controls on page 12 for recommended
connection.
7. Unhook the PTO storage chain from the slotted
storage bracket and slide the PTO drive shaft
yoke onto the splined tractor PTO shaft. Be
sure the yoke securely snaps onto the retention
groove of the tractor shaft.
8. Connect the PTO Guard anchor chain to the
anchor loop on the spreader hitch.
9. Place the PTO storage chain back in the slotted
storage bracket so it does not dangle.
10. Remove wheel chocks.
LOADING
1. Park the spreader for loading. Put the tractor in
PARK or NEUTRAL and apply the parking
brake.
2. Close the hydraulic rear gate before loading.
3. It is unlawful to allow any manure spillage to
occur on public roadways. Be sure rear gate is
fully closed and sliding gate scrapers are
adjusted so no liquid leakage occurs. Do not
heap load such that manure is allowed to fall off
spreader during transporting on roadways.
4. Load the spreader. The moisture content will
determine how full it can be loaded. See
SPECIFICATIONS for capacity. Solid manure
can generally be loaded level to slightly
heaped. High moisture slurries are heavier and
loading may be limited.
TRACTOR HOOKUP
See figure 4.
1. Back tractor so draw bar aligns with spreader
hitch. Put tractor in PARK, set park brake and
turn off engine before dismounting.
2. Connect the spreader hitch to the tractor
drawbar with a 1-1/4” hitch pin. The hitch pin
must have a security clip or retainer to prevent
it from accidentally coming out of the hitch.
3. Install safety chain around tractor drawbar
support and secure with safety latched grab
hook. See figure 3.
4. Crank the spreader jack completely up.
5. Remove the pair of hydraulic hoses coming
from the spreader hydraulic pump from their
OPERATION
DO NOT CLIMB ON OR
ENTER THE SPREADER WHILE IN OPERATION.
CLEAR THE AREA OF ALL
PERSONS BEFORE BEGINNING OPERATION.
NEVER OPERATE
SPREADER WITH ANY GUARDS OR SHIELDS
REMOVED. FAILURE TO HEED MAY RESULT IN
SERIOUS PERSONAL INJURY OR DEATH.
SPREADER MUST BE
HITCHED TO TRACTOR FOR LOADING. THE
JACK CAN NOT SUPPORT THE LOADED
SPREADER WEIGHT AND/OR UNEXPECTED “TIP
UP” OF THE SPREADER CAN RESULT.
FIGURE 4. TRACTOR HOOKUP
SAFETY CHAIN
JACK PTO STORAGE CHAIN
HITCH PIN (1-1/4”)
PTO GUARD
ANCHOR CHAIN
HOSE END STORAGE SLOT

Page 17
UNLOADING
1. Engage the tractor PTO to start the beaters and
increase engine speed to 1000 PTO RPM.
2. Raise the hydraulic rear gate completely up.
See figure 5.
3. Start the sliding gate.
4. When material begins discharging from the
beaters, begin forward motion.
5. Plan application onto the field so that you do
not travel over previously spread manure which
is slippery. Travel cautiously on hills and
slopes. Proceed up and down slopes instead of
along them.
SHUT DOWN
1. When the load has been discharged, the
hydraulic control to the sliding gate will return to
neutral, OFF. Allow the beaters to operate for a
few seconds to clear out any remaining material
and then stop the PTO.
2. Start the sliding gate to return to the front of the
spreader. When it reaches the front the hydraulic
control to the sliding gate will return to neutral,
OFF.
3. Once the sliding gate moves forward enough to
clear the rear gate, completely close the rear
gate.
UNHOOK THE TRACTOR
1. Park the spreader on level ground. Put the
tractor in PARK, set the park brake, and turn the
engine off before dismounting.
2. Place wheel chocks in front and in back of two
spreader wheels on opposite sides to prevent
the spreader from rolling after the tractor is
unhooked.
3. Remove the PTO drive shaft yoke from the
splined tractor PTO shaft. Unhook the PTO
storage chain from the slotted storage bracket
and pivot the PTO drive shaft up and into the
storage bracket. Reconnect the storage chain in
the slotted storage bracket to secure the PTO
shaft.
4. Remove the hydraulic hose ends from the tractor
hydraulic ports and store the hose ends in the
slotted hose storage brackets to keep them from
dragging on the ground. See figure 4.
5. Crank the spreader jack down until the spreader
hitch lifts off the tractor draw bar.
6. Remove the hitch pin.
7. Unhook safety chain from tractor drawbar
support. See figure 4.
8. Slowly drive the tractor away from the spreader.
STORAGE AND CLEANING
KEEP AWAY AND KEEP
OTHERS AWAY FROM THE ROTATING BEATERS.
BEATERS CAN CRUSH, DISMEMBER OR KILL.
CLEAR THE AREA OF ALL
PERSONS BEFORE BEGINNING OPERATION.
NOTE: Performing the preceding steps while
moving forward will minimize heavy discharge onto
the field during startup.
FIGURE 5. HYDRAULIC REAR
GATE AND SLIDING GATE
REAR GATE CYLINDER,
1 ON EACH SIDE
HYDRAULIC REAR GATE
IN RAISED POSITION

Page 18
DISCONNECT PTO DRIVE SHAFT AND
HYDRAULIC HOSES BEFORE CLEANING,
ADJUSTING, LUBRICATING, OR SERVICING
THIS MACHINE.
1. The spreader must be thoroughly cleaned
periodically, especially if stored for extended
periods. Manure is acidic and will
damage paint and cause rusting of metal
components.
2. Allow the spreader to completely unload.
3. Return the sliding gate to the front of the
spreader.
4. To clean the spreader, raise the rear gate.
5. Hose off manure from the outside and inside of
the spreader. Completely clean manure from
moving mechanisms such as the beaters,
winged pulley, sliding gate, chain drive and rear
gate. Remove accumulation in confined areas
or pockets that trap manure.
6. Avoid directing high pressure spray directly on
bearings, seals and flow control valve.
7. Keep high pressure spray moving on painted
surfaces. Sustained spray on cracks or
scratches in paint can result in paint peeling.
8. Allow machine to dry.
9. Lower rear gate completely down before storing
spreader.
10. Inspect the spreader for loose connections,
damaged hydraulic hoses or connections and
for other damaged components. Repair if
necessary so the spreader is ready for future
operation.
TURN OFF ALL POWER
DURING CLEANING AND INSPECTION. DO NOT
USE POWER TO MOVE ANY COMPONENTS OR
TO DISCHARGE MATERIAL WHILE CLEANING OR
INSPECTING.

Page 19
READ THE FOLLOWING BEFORE
WELDING ON THIS MACHINE
1. When welding on your spreader, do not allow
the current to flow through the ball bearings or
the roller chains. Ground directly to the item
being welded.
2. The alternator should always be disconnected if
the spreader is not disconnected from the
towing vehicle.
LUBRICATION
Bearings
Grease 2 lower beater bearings and 2 belt pulley
bearings every 100 hours of operation with 2
pumps of grease. See figure 6.
PTO DRIVE SHAFT
1. The PTO drive shaft yoke cross bearings must
be greased, both ends of assembly. Grease
every 8 hrs of operation with one pump. See
figure 6.
2. There is also a zerk at the center of the shaft
assembly to grease the telescoping shafts. It is
accessible through a slot in the guard. Grease
every 8 hrs of operation with 4 pumps. See
figure 6.
PUT THE TRACTOR IN PARK, APPLY THE PARKING BRAKE, TURN OFF ENGINE
AND REMOVE IGNITION KEY BEFORE CLEANING, ADJUSTING, LUBRICATING OR SERVICING THIS
MACHINE. FAILURE TO HEED MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH.
MAINTENANCE
DISCONNECT PTO DRIVE SHAFT AND HYDRAULIC HOSES BEFORE CLEANING,
ADJUSTING, LUBRICATING, OR SERVICING THIS MACHINE.
FIGURE 6. BEARING AND PTO
DRIVE SHAFT LUBRICATION
BELT PULLEY BEARING
(1 EACH SIDE)
PTO DRIVE LINE - GREASE 3 PLACES
UPPER BEATER BEARING
GREASE ZERK (1 EACH SIDE)

Page 20
should be maintained 1” from the top level on
the sight gauge.
5. Oil is added through a filter screen inside the
filler neck. Before filling, remove the screen,
inspect and clean if required.
6. Carefully clean dirt from the return filter head
and element. Replace the filter element every
500 hrs of operation.
7. Drain reservoir and refill with new oil every
2000 hrs or annually, whichever occurs first. If
the oil becomes contaminated and appears
milky colored, replace immediately.
8. Every 100 hrs of operation, inspect all hydraulic
hoses, hose connections, pump seals and
motor seals for leakage. Tighten loose
connections and replace damaged
components.
9. A ball valve is provided at the bottom of the
reservoir where the suction hose is connected.
Turn this valve off to service hydraulic
components. This prevents draining of the
reservoir, however it is necessary to catch the
oil that drains from disconnected hoses into a
suitable container for proper disposal. Always
check and refill the reservoir as required when
servicing is completed.
REAR GATE FLASHING
(See figure 9)
1. Swinging gate flashing strips are clamped to
both vertical ends of the rear gate frame. These
strips must bear against the vertical box sides
to minimize leakage.
DRIVE CHAIN PLANETARY
GEARBOX
(See figure 7)
Oil Specification: (Mobil Delvac Synthetic Gear Oil
75W-90) .
There is a check plug half way up on the gearbox.
Maintain the oil level to this check plug. Fill plug is
located on the top of the gearbox.
WHEEL HUBS
Check oil lever in wheel hubs every 8 hours of
operation. Bring up to full line if they are low, use
90w gear lube.
HYDRAULIC SYSTEM
(See figure 8)
1. Oil Specification: (CITGO TRANSGARD
TRACTOR HYDRAULIC FLUID) - Material
Code 633310001) .
2. Capacity: 40 gallon
3. Maximum allowable operating temperature
240º F.
4. Check the oil level in the reservoir daily. It
FIGURE 8. PLANETARY GEARBOX
BALL VALVE
SUCTION SCREEN
FILLER CAP W/SCREEN
RESERVOIR
FIGURE 7. PLANETARY GEARBOX
CHECK LEVEL PLUG
FILL PLUG
ON TOP
PLANETARY GEARBOX
HYDRAULIC MOTOR
