Royal Sovereign ARP-9009TL User manual

Royal Centurian Inc.
PORTABLE AIR CONDITIONER
ACONDICIONADOR DE AIRE PORTÁTIL
CONDITIONNEUR D'AIR PORTABLE
Read and retain these instructions for future reference
For any Customer Support needs, please choose
the Support tab on
www.royalsovereign.com
ARP-9009TL / 9011TL
OWNER’S MANUAL
ARP-9009TL / 9011TL
PORTABLE AIR CONDITIONER
Página en Español 17
Page en Français 33

PORTABLE AIR CONDITIONER
Model ARP-9009TL / 9011TL
INTRODUCTION
Thank you for choosing Royal Sovereign to provide you and your family with all of the “Home Comfort” requirements for your home, apartment,
or office. This Portable Air Conditioner can be set-up in just minutes and can be easily moved from room to room. It is a multi-functional room
air comfort system that offers you Air Conditioning, Dehumidification and Air Circulation modes. This manual will provide you with valuable
information necessary for the proper care and maintenance for your new appliance. Please take a few moments and read the instructions
thoroughly. If properly maintained, your appliance will give you many years of troublefree operation.

Page
Precautions for use 4
Notes on operation and identification of parts 5
Installation instructions 6~7
Operation 8~10
Remote control 11
Maintenance 12
Specifications 13
Warranty 14
Contact information 15
Page en Français 17
CONTENTS

4
PRECAUTIONS FOR USE
IMPORTANT SAFETY INSTRUCTIONS
This equipment must not be used in an area where combustible material are stored. Never operate or store gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
PRECAUTIONS
To reduce the risk of fire, electrical shock, or injury to persons when using your air conditioner, follow basic precaution, including the following:


in removing, storing or reinstalling this unit.




conventional rooms.


ELECTRICAL INFORMATION
The complete electrical rating of your new room air conditioner is stated on the nameplate. Refer to the rating when checking the electrical requirements.





breaker, please contact qualified electrician to install the proper power outlet.



ARP-9009TL / 9011TL
5
IDENTIFICATION OF PARTS
1. Display Panel
2. Air Outlet


5. Air Filters
6. Rear Casters
7. Front Casters
8. Water Tank
9. Water Tank Hanger

11. Drain
12. Power Cord

6
INSTALLATION


Please visit our website www.royalsovereign.com and click on the “Support” tab.
ACCESSORIES INCLUDE





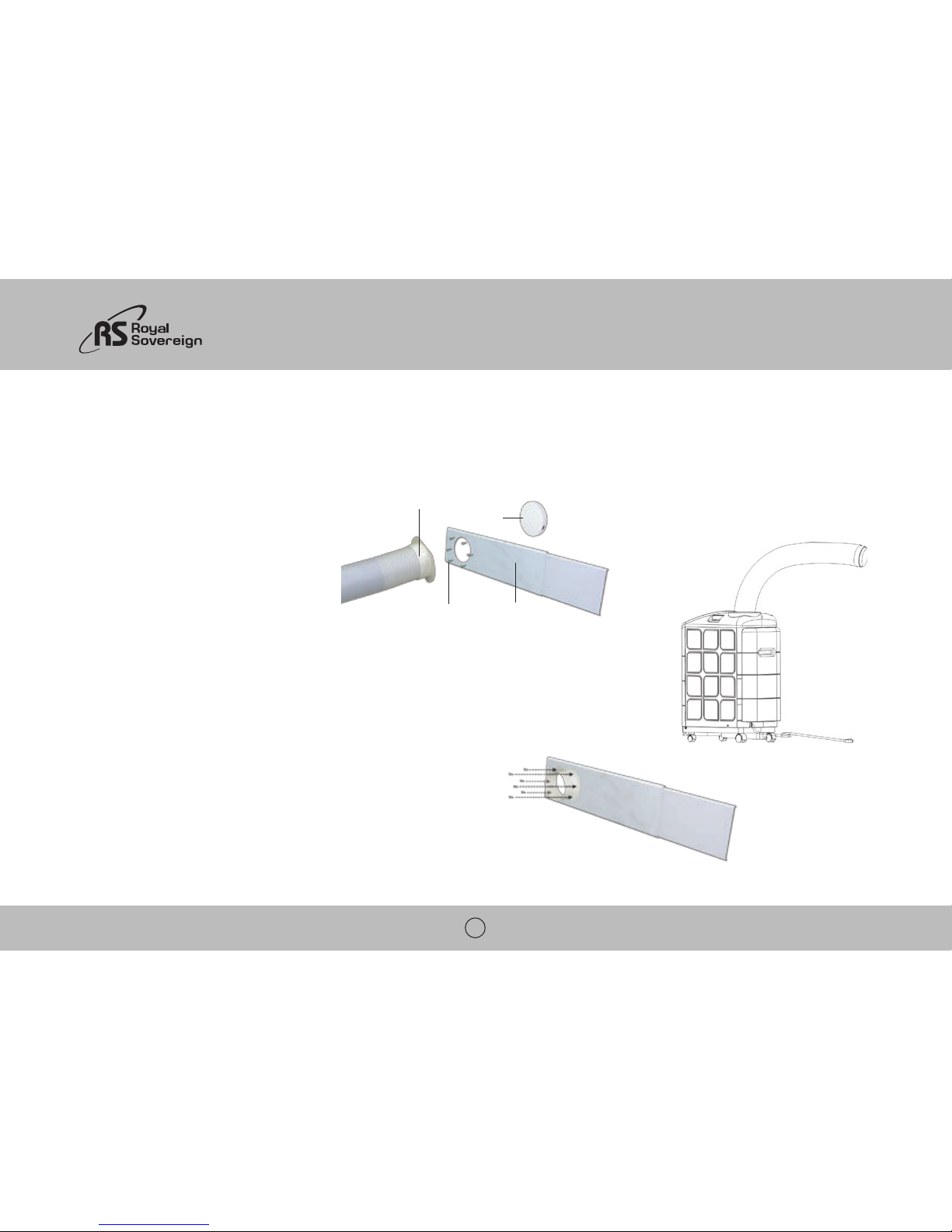

A. Remove cover and pull out exhaust hose: Fig 1
B. Attach Hose Fixture : Fig 2.


Fig 2.
Fig 1.
➀
➃
➁
➂

ARP-9009TL / 9011TL
7

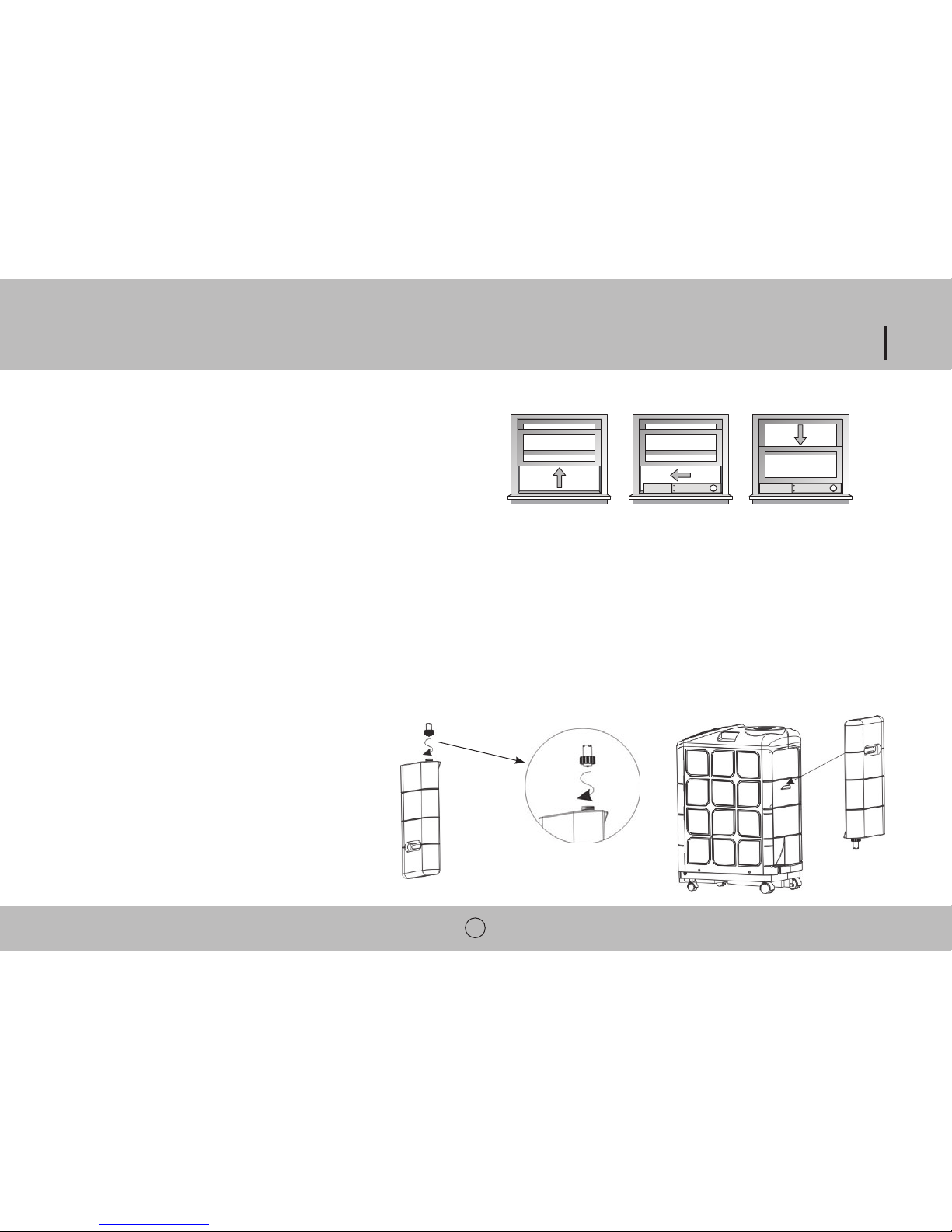

C. Install the Window Slider Kit : Fig 3.
1. Open the window and place the Window Slider Kit on the inside edge of the window.
2. Adjust the Window Slider by adjusting it to the width of the window.
3. Close the window to secure.
4. Tighten the two screws to lock the window slider in place.
FUNCTION OF THE WATER TANK
This Portable Air Conditioner can run with or without water tank.


low, this tank will assist the unit in cooling effectively.

NOTE: This feature will not add humidity back into the room.
Step 1: Lift up and pull to remove the tank



Step 4: Place the tank back into place by lining up the tank
with the tab on the back of the air conditioner
Fig 3.

8
OPERATING INSTRUCTIONS
Read the Important safety instructions before operating this appliance.
(To prevent electrical hazards, do not use an extension cord or an adapter plug.)
1.Plug in the air conditioner.


4.Press the“ON/OFF”button to turn on the unit.
NOTE:
Failure to follow these instructions may cause inefficient operation.
CONTROL PANEL
1. Auto
2. Air Conditioning
3. Dehumidifier
4. Fan
5. Timer Indicator
6. Sleep
7. Low Fan
8. High Fan
6 85 7
4 3 2 1

ARP-9009TL / 9011TL
9
ON /OFF
The power control button turns the unit on and off. When you press the button, the unit begins to operate.
MODE


AUTO (Automatic functioning key)
 is shown on the display and the
indicator light will come on. The fan speed will be determined by the machine.
COOL
Press the Mode Control button to select Cool mode. The light will show on the display.
The unit displays “present room temperature.” The temperature range settings are between 64~88 °F
In Cool mode, use the < or > button to adjust and set the desired temperature for the room. After 3 seconds the display will return back to the present room temperature.
NOTE: 

DRY
 light will show on the display.
When the Dehumidify mode is on, the temperature buttons do not function. The fan speed can be adjusted only if the temperature in the room is higher then 77 ° F. If it is below


NOTE :
FAN
Press the Mode Control button to select Fan mode. The light will show on the display. The air is circulated throughout the room with no cooling.
NOTE:
SPEED


10
TIMER

before the unit turns ON.
When the air conditioner is turned off, you can choose to turn it on in one hour intervals.


hours, press the button until you see 8 on the display.
3. The unit will turn on when the set time elapses.
When the air conditioner is turned on, you can choose to turn it off in one hour intervals.


hours, press the button until you see 8 on the display.
3. The unit will turn off when the set time elapses.
SLEEP
Sleep Mode is used to keep the room comfortable while saving energy. When the Sleep Mode button is pressed, the set temperature will increase by 2 °F in the first hour and
increase another 2° the second hour. It will then remain at that temperature for the remainder of the night.
TANK FULL

empty the internal water tank manually. If this happens, an alarm will beep for 15 times and the unit will stop running. The appliance can be restarted after draining the
condensate water through drain port located at the bottom of the back of the PAC.
AUTOMATIC RESTART
In the event of a power failure: The settings will return to the previously set operating modes once the power is restored.

ARP-9009TL / 9011TL
11

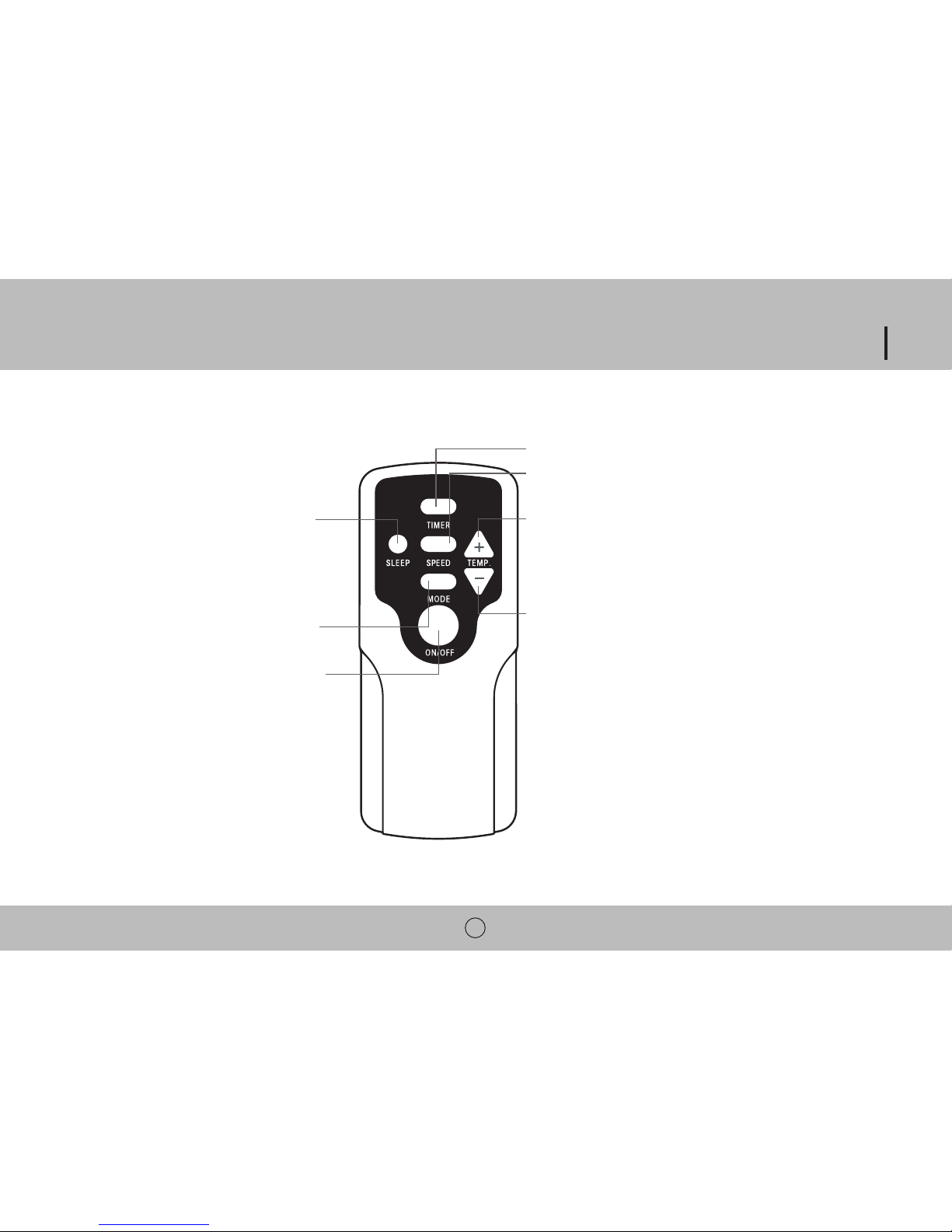

REMOTE CONTROL FUNCTION
All functions can be accessed from the remote control.
Sleep mode
Mode button
Power control
Timer button

Temperature DOWN button
Fan speed control

12
CARE AND CLEANING

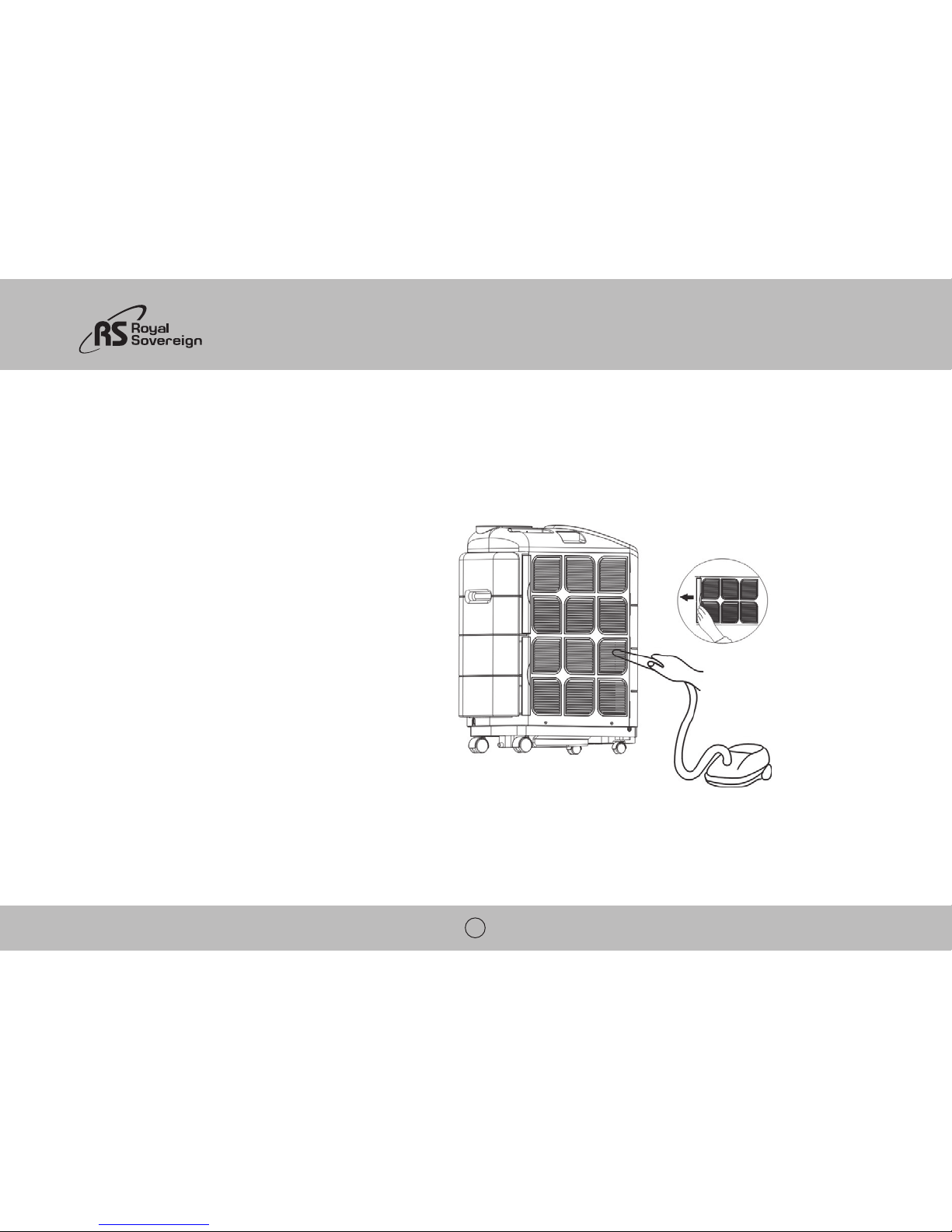

Every two weeks: Clean the filter



NOTE : Failure to keep air filter clean will result in poor air circulation.
DO NOT operate without filter. This can render the unit inoperative.
Storage:
1. Remove water from drain port
2. Cover it with plastic or return it to the original carton.

ARP-9009TL / 9011TL
13
SPECIFICATIONS
- Figures noted in the contents are for reference only; variation may result due to the application in different countries or regions, and shall be based on practical operation.
“Electrical waste products should not be disposed of with household waste.

Description of product ARP-9009TL ARP-9011TL
  
  
 900W
EER A
 320M3 / Hr
NOISE LEVEL  
 1.8L / h
 64~88°F 64~88°F
 R 410 R 410
 2.8 MPA
 51 lbs

14
FULL ONE YEAR WARRANTY
Royal Sovereign warrants each Portable Air Conditioner to be free from defects in material and workmanship. Our obligation under this warranty is limited to the repair or

in effect to the original purchaser, for a period of one year from the date of purchase and is not transferable. This warranty shall apply only if the air conditioner is used on

To request servies, please go to www.royalsovereign.com - Customer Support to submit a request or call 1-800-397-1025
LIMITED FIVE YEAR WARRANTY (COMPRESSOR)
For a period of five years from the date of purchase, when this Royal Sovereign Portable Air Conditioner is operated and maintained according to the instruction manual provided


unit to our factory or service center. If shipping is required, be sure to pack the unit properly to avoid shipping damages, as we will not be responsible for such damages.
EXCLUSIONS




rights which vary from state to state.
SERVCIES CONTACT and FAQ'S


ROYAL SOVEREIGN INTERNATIONAL, INC.


ROYAL SOVEREIGN INC.


RS INTERNATIONAL AUSTRALIA PTY. LTD.

 
RS CANADA INC.
1025 Wesport Cresc. Mississauga ON L5T 1E8
 
RS Holland B.V.
Industrieweg 6K, 4104AR, Culemborg, The Netherlands

Royal Sovereign Mexico, S.A. de C.V.



Royal Centurian Inc.
ACONDICIONADOR DE AIRE PORTÁTIL
Lea y guarde estas instrucciones para referencia en el futuro.
Para Servicio al Cliente por favor diríjase a nuestra página web HYPERLINK
“http://www.royalsovereign.com” www.royalsovereign.com y seleccione “Support Tab”
ARP-9009TL / 9011TL
MANUAL DEL PROPIETARIO
ARP-9009TL / 9011TL
