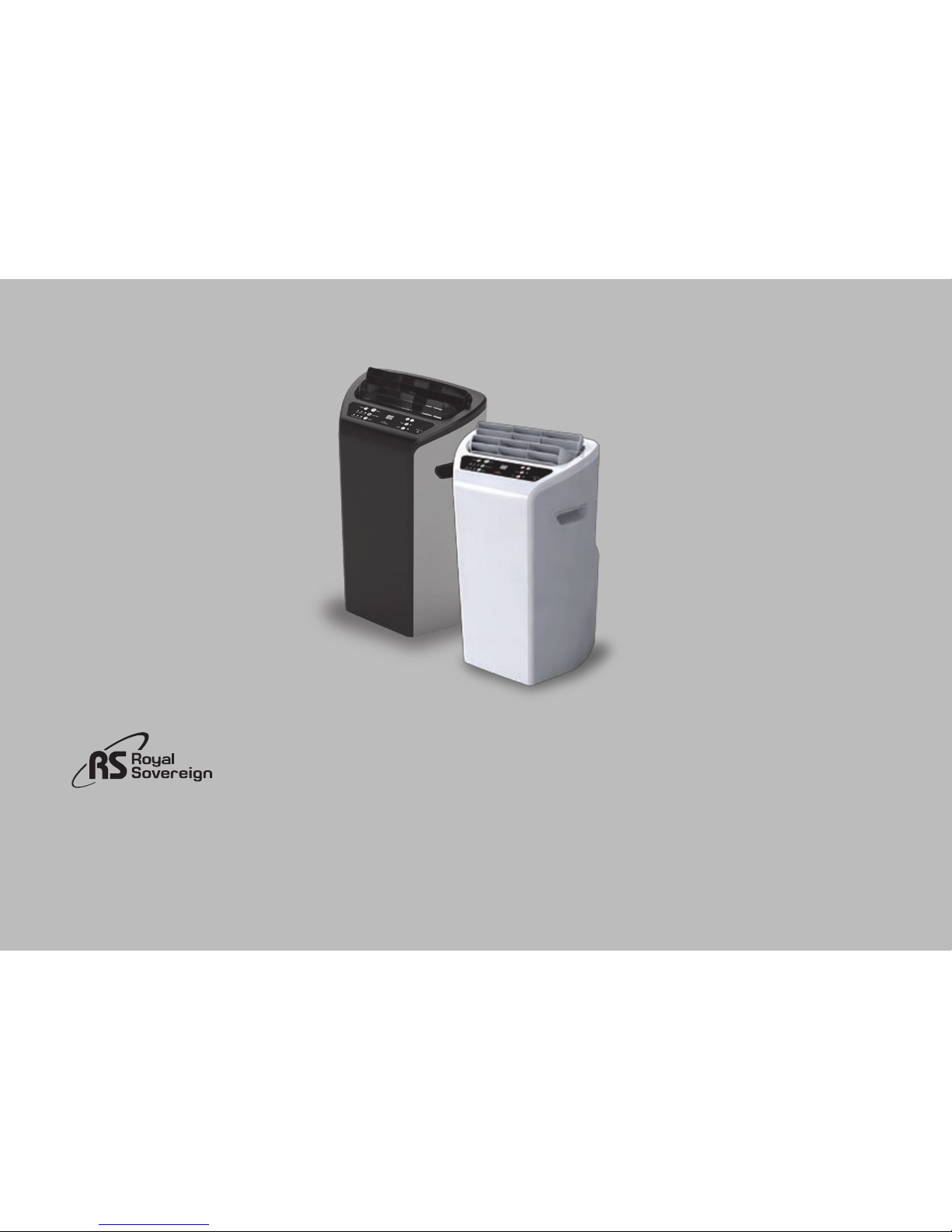

Royal Sovereign ARP-1400BLS User manual

Royal Centurian Inc.
PORTABLE AIR CONDITIONER
ACONDICIONADOR DE AIRE PORTÁTIL
Página en Español 17
Page en Français 33
Read and retain these instructions for future reference
For any Customer Support needs, please choose
the Support tab on www.royalsovereign.com
ARP- 1400BLS, 1400WW
OWNER’S MANUAL
ARP-1400BLS, 1400WW
PORTABLE AIR CONDITIONER

PORTABLE AIR CONDITIONER
Model ARP-1400BLS, 1400WW
INTRODUCTION
Thank you for choosing Royal Sovereign to provide you and your family with all of the “Home Comfort” requirements for your home, apartment,
or office. This Portable Air Conditioner can be set-up in just minutes and can be easily moved from room to room. It is a multi-functional room
air comfort system that offers you Air Conditioning, Dehumidification and Air Circulation modes. This manual will provide you with valuable
information necessary for the proper care and maintenance for your new appliance. Please take a few moments and read the instructions
thoroughly. If properly maintained, your appliance will give you many years of troublefree operation.

Page
Precautions for use 4
Notes on operation and identification of parts 5
Installation instructions 6~7
Operation 8~9
Remote control 10~11
Maintenance 12
Troubleshooting 13
Specifications 14
Warranty 15
Contact information 16
Página en Español 17
Page en Français 33
CONTENTS

4
PRECAUTIONS FOR USE
Electrical Specifications and Power Cord
Check to ensure that the electrical service being used is adequate for the model you’ve chosen. The electrical rating of your new air conditioner is
defined on the serial plate of the unit. Please refer to the rating when checking electrical requirements to ensure they meet the electrical codes of
your location.






qualified electrician install the proper outlet.





General Use







ARP-1400BLS, 1400WW
5
NOTES ON OPERATION
If you turn the air conditioner off and immediately restart it, allow 3 minutes for the compressor to restart cooling. In the event of a power failure, wait 3 minutes before restarting
unit.
IDENTIFICATION OF PARTS
1. Air outlet
2. Display panel

4. Air inlet hose
5. Air filter

7. Water outlet drain
8. Caster
9. Power supply cord
➀
➁
➂
➃➅
➄
➇
➈
➆

6
INSTALLATION
Unpack your New Portable Air Conditioner and let the machine stand upright for 2 hours before starting.
Unpack all parts listed below. If any parts are missing do not return this product to the place of purchase.
Please visit our website www.royalsovereign.com and click on the “Support” tab .
Accessories Include
1. Window slider kit3 Set
2 Piece
3. Screws8 Pieces
4 Pieces
2 Piece
6. Cover2 Piece
➃
➀
➁
➂
➃➅
➄


2. Repeat for other end.



Fig 1.
Fig 2.

ARP-1400BLS, 1400WW
7

1. Open the window and place the window slider kit on the inside edge of the window.
2. Adjust the window slider by adjusting it to the width of the window.
3. Close the window to secure.
4. Tighten the four screws to lock the window slider in place.

1. Connect the hose connector to the air outlet by aligning the tabs on the hose to the PAC and snap it into place.
2. Repeat for other hose.

1. Move the Portable Air Conditioner within 4 feet of the window.



Fig 3.
Fig 4.
Fig 5.

8
Power Control
The power control turns the unit on and off. When you press the control, the unit begins to operate.
Warning Light
Condensed water may accumulate in the unit. If the internal tank fills, the Warning Light will shine and the unit will not operate until the unit has been drained.
Mode Control
The Mode Control has 3 settings:
The settings are adjusted with the Mode Control button. The green light will indicate which setting is currently being used.
Fan Mode
When the fan mode is selected, the indicator light will shine green. The Air is circulated throughout the room with no cooling.
Swing Mode
The oscillation feature moves the air louvers from left to right to allow the air to reach more areas in the room. Press the SWING button to start this feature.
Sleep Mode
By pressing sleep button, the set temperature will increase 2°F/1°C in the first hour, anther 2°F/1°C in the second hour and then remains at that temperature.
Dehumidify / Dry Mode
Press the Mode button to select dehumidify mode. When the dehumidify mode is on, the temperature buttons and fan speed buttons do not function and the fan will operate on
medium speed. The dehumidify indicator light will illuminate and stay solid while unit is dehumidifying.
Operation
Control Panel
Cool Dehumidify
Fan
Display
Power
Timer set control
Mode control
Fan speed control
Swing mode
Timer/ Temperature set control
Sleep mode
Warning Light

ARP-1400BLS, 1400WW
9
Cool Mode
When in Cool mode the indicator light will shine green.
1. During operating, the unit displays “present room temperature.”
2. When setting the temperature, the unit will display the temperature set. Temperature range is 61°F to 89°F
3. In Cool mode, use the “+” or “-“button to adjust and set the desired temperature for the room. After 5 seconds the display will revert back to the current room temperature.
Temperature can only be adjusted in Cool mode. The time is adjustable between 1~24 hours.
Fan Speed Control
The Fan speed has 3 settings: High, Medium, and Low
Changing Temperature Reading from Celsius to Fahrenheit
Press the Timer and Temperature set buttons at the same time to display the temperature reading you would like to use.
Timer
There are 2 different timer programs. You can set the number of hours before the air conditioner automatically turns OFF or you can set the number of hours that will elapse
before the unit turns ON.
When the air conditioner is turned off, you can choose to turn it on in one hour intervals.
1. Press the button on the remote to turn on the timer function
2. Press the + or - button on the remote to set the desired hour.
3. The unit will turn on when the set time elapses.
When the air conditioner is turned on, you can choose to turn it off in one hour intervals.
1. Press the button on the remote to turn on the timer function
2. Press the + or - button on the remote to set the desired hour.
3. The unit will turn off when the set time elapses.

In the event of a power failure: The settings will return to the previously set operating modes once the power is restored.
Power Plug Check
1. Press the RESET button.
2. Insert the power plug into the electrical outlet.
3. Press the TEST button. If the circuit breaker is working you’ll hear a click.
4. Press the RESET button until you hear another click. The circuit breaker in the plug is now activated.
5. Do not use the air conditioner if the above procedure cannot be successfully performed.


10
Remote Control
The functions of the remote work the same as your air conditioner’s touch controls.
Timer Program
There are 2 different timer programs. You can set the number of hours before the
air conditioner automatically turns OFF or you can set the number of hours that will
elapse before the unit turns ON.
When the air conditioner is turned off, you can choose to turn it on in one hour
intervals.
1. Press the button on the remote to turn on the timer function.
2. Press the or button on the remote to set the desired hour.
3. The unit will turn on when the set time elapses.
When the air conditioner is turned on, you can choose to turn it off in one hour
intervals.
1. Press the button on the remote to turn on the timer function.
2. Press the or button on the remote to set the desired hour.
3. The unit will turn off when the set time elapses.
Oscillating Mode

to right and right to left.
Dehumidification Mode
Press the Mode button to select dehumidify mode. When the dehumidify mode is on,
the temperature buttons and fan speed buttons do not function and the fan will
operate on medium speed. The dehumidify indicator light will illuminate and stay solid
while unit is dehumidifying.
Fahrenheit/ Celsius selector
Press the Fahrenheit/ Celsius selector button to display temperature reading you
would like to use.
LCD Screen
Timer / Temperature
control set button
Sleep mode button
Power On/Off



Fahrenheit/ Celsius selector
Timer / Temperature mode selection button

ARP-1400BLS, 1400WW
11
Remote Control Operation

- Remove the battery cover on back of the remote.

- Replace the battery cover.

-When replacing batteries, always change both batteries at the same time.
-Remove the batteries if the remote control is not used for a month or longer.
-Do not dispose of batteries in a fire.
Battery replacement

Battery compartmentBattery compartment lid

12
MAINTENANCE
Drainage
Occasionally, you may need to drain the unit.
1. Drain the unit if the Warning Light on the display panel of the air conditioner is on.
2. Turn off the power to the unit and unplug.
3. Place a shallow dish under the drainage plug to collect water.
4. Remove the drainage plug.
5. Replace the plug, when drainage water stops flowing.
Cleaning the filter
The filter should be cleaned every 2 weeks or 100 hours of use in order to maintain proper airflow.
1. Remove the filter. Gently pull the filter assembly from the back of the unit and then remove the filter from the assembly.
2. Clean the filter by vacuuming or a soft cloth. If the filter is very dirty, it can be easily washed with a mild detergent and rinsed thoroughly with clean water. Dry the filter before
replacement.
3. Reinstall the filter in the filter assembly.
4. Replace the filter assembly on the back of the machine.
Note : Never operate the air conditioner without the filter in place. This may damage the unit.
Cleaning and maintaining the air conditioner
Turn the air conditioner off and remove the electrical plug. Wipe with a soft, dry, or damp cloth. A mild detergent can be used. Be sure to remove any residue and dry completely.

Storing the air conditioner
If the unit will not be used for a long time, be sure to drain the air conditioner, clean the air filter, pull out the power supply plug, and remove the batteries from the remote control
before storage. After draining, keep the air conditioner running on FAN mode for at least 8 hours to dry the unit completely to prevent mold.

ARP-1400BLS, 1400WW
13

Problem Possible Reasons
Air Conditioner does not operate
- Check and reset the power plug. Wait 3 minutes and try to run the unit again.
- The batteries in the remote may need to be replaced. Replace the batteries and try to run the unit again.
- Make sure the plug is properly plugged into the outlet.
- The set temperature may be too close to room temperature. Lower the set temperature.
- The air outlet may be blocked. Check the air outlet and remove any items that may be found.
Air Conditioner runs but does not cool
- Check the room for open doors or windows and close them.
- There may be another appliance in the room giving off heat. Check the room and turn off the appliance.
- The air filter may be dirty. Check the filter and clean if necessary.

- The set temperature may be too high. Check the set temperature and reduce it if necessary.
Air Conditioner does not run
and water full indicator is lit 

14
SPECIFICATIONS
- Figures noted in the contents are for reference only; variation may result due to the application in different countries or regions, and shall be based on practical operation.
“Electrical waste products should not be disposed of with household waste.

Description of product Air Conditioner
Model ARP-1400BLS, 1400WW
 
Input power 1700W
Current 15A
Cooling Capacity 13,500BTU/hr
Dehumidifying Capacity 100.8 pints/day
Coolant R-22
Timer 24 hour
 
Weight 77lbs

ARP-1400BLS, 1400WW
15
FULL ONE YEAR WARRANTY
Royal Sovereign warrants each Portable Air Conditioner to be free from defects in material and workmanship. Our obligation under this warranty is limited to the repair or

in effect to the original purchaser, for a period of one year from the date of purchase and is not transferable. This warranty shall apply only if the air conditioner is used on

LIMITED FIVE YEAR WARRANTY (COMPRESSOR)
For a period of five years from the date of purchase, when this Royal Sovereign Portable Air Conditioner is operated and maintained according to the instruction manual provided

material. If repair becomes necessary, please contact our customer service center. You will be responsible for all freight, insurance, and any other transportation charges to get the
unit to our factory or service center. If shipping is required, be sure to pack the unit properly to avoid shipping damages, as we will not be responsible for such damages.
EXCLUSIONS

centers, mishandling, improper installation, modification or unreasonable use including incorrect voltage, acts of God, or failure to provide reasonable and necessary maintenance.


rights which vary from state to state.

ROYAL SOVEREIGN INTERNATIONAL, INC.


ROYAL SOVEREIGN INC.
1001, World Meridian II, 426-5, Gasan-dong, Geumcheon-gu, Seoul, 153-759, KOREA

RS INTERNATIONAL AUSTRALIA PTY. LTD.
30 Prime Drive, Seven Hills, NSW 2147, AUSTRALIA
 
RS CANADA INC.
1025 Wesport Cresc. Mississauga ON L5T 1E8
 

Industrieweg 6K, 4104AR, Culemborg, The Netherlands





Royal Centurian Inc.
ACONDICIONADOR DE AIRE PORTÁTIL
Lea y guarde estas instrucciones para referencia en el futuro.
Para Servicio al Cliente por favor diríjase a nuestra página web
www.royalsovereign.com y seleccione “Support Tab”
ARP- 1400BLS, 1400WW
MANUAL DEL PROPIETARIO
ARP-1400BLS, 1400WW
ACONDICIONADOR DE AIRE PORTÁTIL
Español

ACONDICIONADOR DE AIRE PORTÁTIL
Modelo ARP-1400BLS, 1400WW
INTRODUCCIÓN
Gracias por escoger Royal Sovereign para proveerle a usted y a su familia lo requerido para tener esa “Comodidad de Hogar” en su casa,
departamento u oficina. Este acondicionador de aire portátil puede ser instalado en sólo minutos y fácilmente transportado de habitación a
habitación. Es un sistema de cómoda ventilación multi-funcional que le ofrece modos de Aire Acondicionado, Deshumedecedor y Circulación de
Aire. Este manual le proveerá con la información valuable y necesaria para el cuidado apropiado y mantenimiento de su nuevo electrodoméstico.
Por favor, tome un momento y lea las instrucciones por completo. Si se mantiene apropiadamente, su electrodoméstico le dará muchos años de
operación libre de problemas.

Página
Precauciones de Uso  20
Notas Sobre el Funcionamiento e Identificación de las Partes 21
Instrucciones para la Instalación 22~23
Funcionamiento 24~25
Control Remoto  26~27
Mantenimiento  28
Identificación y Solución de Problemas  29
Especificaciones 30
Garantía 31
Contactos 32
CONTENIDO

20
PRECAUCIONES DE USO
Especificaciones Eléctricas y Cable de Electricidad

descrito en la placa de serie de la unidad. Por favor, revise el voltaje eléctrico cuando verifique los requerimientos eléctricos para asegurarse de
que correspondan a los códigos de electricidad de su localidad.






contactar a un electricista calificado para instalar el tomacorriente correcto.





Uso General






