Royal 980X Quick start guide

ROYAL®
Consumer Business Products
A DIVISION OF OLIVETTI OFFICE USA
765 U.S.Highway 202
Bridgewater, NJ 08807
980XIM0402HFrev5
ROYAL®
980x crosscut shredder
980x crosscut shredder
OPERATIONAL
MANUAL
ROYAL
power

12
Locking
Tabs
ROYAL
power
ROYAL980X PAPER SHREDDER
Setup:
1. Remove the wastebasket from the shredder cabinet.

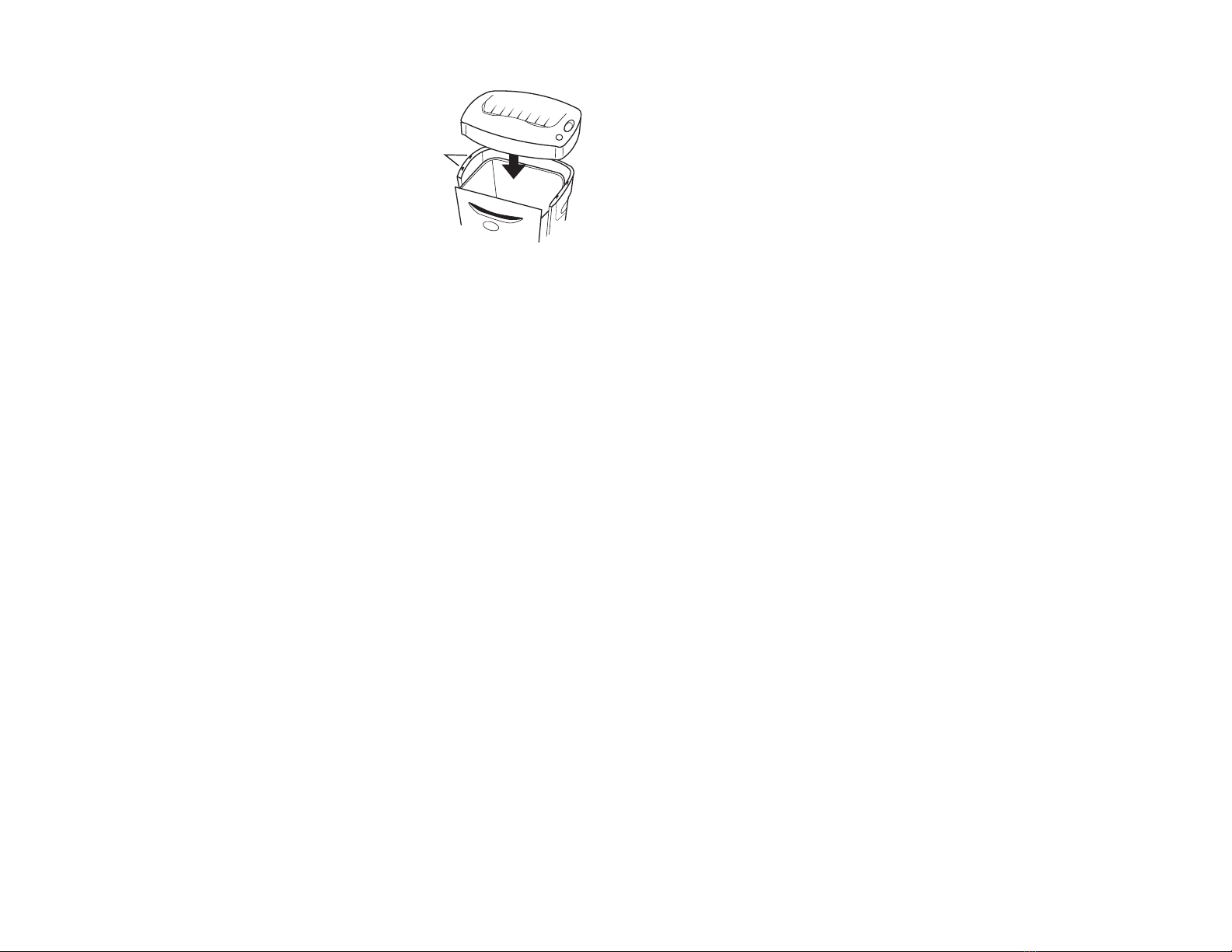

2. Carefully remove the shredder head from the
wastebasket and place it securely on top of the shredder
cabinet. The shredder head should snap securely in place
by means of the locking tabs located directly on top on the
shredder cabinet.
3. Slide the wastebasket back inside the shredder cabinet until
the front of the basket fits flush with the front of the cabinet.
4. Four casters, 2 locking casters for the front and 2 free wheeling casters for the rear,
have been included for your convenience. To install the casters, carefully lie the
shredder on its back and firmly push the post of the caster into the hole located on
the bottom of each corner until you hear and feel it snap securely in place. Follow
this procedure until all four casters have been evenly inserted into place.
5. Carefully upright the shredder and make sure that the casters are set evenly and that
the shredder does not rock back and forth. The 2 front casters can be locked to
prevent the shredder from rolling.
6. Plug the power cord into any standard 115-volt AC outlet.
7. Depress the Power Button. The Power LED should light up. If the Power LED
does not light up, make sure that the wastebasket is securely in place and the power
cord is plugged in correctly.
Operating the shredder:
With the electrical cord plugged in, the Power Button depressed, the shredder properly
placed on top of the cabinet and the wastebasket properly in place, the Power Button
LED should light up. This means that the shredder is now ready for operation. When
the paper is inserted into the feed opening, the shredding process will start automatically
and stop when the paper has completed its travel through the feed opening.
The Royal 980X Power Button is located on the top of the shredder. Also located on
top of the shredder are two function buttons. Their purposes are:
1. When the FWD Button is depressed, the shredding process will start. However,
the forward shred cycle last 2 seconds. This will allow the feed opening to be
cleared in the event excess paper is left in the shredder.
2. The REV Button is used to assist in the removal of a paper jam, which reverses the
shredding process prior to a completed forward cycle, thus clearing the cutters.
The reverse cycle will last for 2 seconds. This should be enough time to remove
any excess paper from the cutters and limit any paper from the wastebasket being
fed back into the shredder cutters.
3. The Power Button is used to terminate the AC power to the shredder. It is
recommended to turn the shredder off when the shredder is not being used for a
prolonged period of time.
When manually changing the direction of the cutters, pause long enough for the motor
to stop to avoid any damage to the motor.
ROYAL980X PAPER SHREDDER
Shredder capacity:
The Royal 980X will shred up to nine (9) sheets of 20-lb. bond paper and will accept
paper widths up to 8 3/4". When shredding small material like envelopes or credit card
receipts, insert them in the middle of the feed opening. The shredder will emit an
audible beep when the wastebasket is full. The beep will continue until the basket has
been emptied. The shredder will not function until the beeping has stopped.
Cautions:
1. Keep all loose articles of clothing, ties, jewelry, hair or other small items away from
the feed opening to prevent injury.
2. Keep the shredder turned off or unplugged when not in use for prolonged periods
of time.
3. Remove all paper clips and staples from paper before shredding. The Royal 980X
will cut staples and small paper clips however, to prolong the life of the shredder
it is not recommended.
4. Do not place hands or fingers into the shredder throat as serious injury could result.
5. When manually changing feed direction, pause long enough for the motor to stop.
6. Continuous shredding of computer paper should not exceed 20 minutes. If continuous
use is required at the maximum sheet capacity (9 sheets), it is recommend that
shredding time should be 20 minutes on and 25 minutes off to allow for proper
cooling of the motor.
7. Always turn off or unplug the shredder prior to moving, cleaning or emptying the
wastebasket.
8. Empty wastebasket frequently.
Paper jams and motor overload situations:
The Royal 980X is equipped with an automatic motor reversal device and a motor
overload protection circuit. The duty cycle for the 980X is rated for continuous shredding.
The manufacturers suggested running time at maximum capacity is 20 minutes on and
25 minutes off. The 980X will automatically reverse the paper out of the shredder throat
or the power may terminate automatically in case of the following abnormal situations:
1. Operating the shredder at the maximum 9-sheet capacity continuously for a prolonged
period of time, eg. More than 20 minutes without stopping.
2. Exceeding the shredding capacity, eg. Inserting more than nine (9) sheets of 20-lbs.
paper in one pass, or if the paper is not fed squarely into the feed opening.
Both abnormal operations may result in the activation of the automatic reversal of the
paper or the thermal motor overload protection, which terminates the power to the
shredder. A minor paper jam may cause the paper to feed in the opposite direction and
be ejected from the feed opening. In this case the Power LED will go from white to
red. When the paper is removed from the feed opening and the paper sensor has been
cleared the Power LED will return to white and normal shredding can resume. A
major paper jam could cause the thermal motor overload protection to terminate AC
power to the motor and in this case the Power LED will go from white to red. The
Power LED will remain red for approximately 25 minutes until the motor has had a
chance to cool down to its normal operating temperature. Never allow the shredder to
remain in a jammed condition with the AC power turned on. If this occurs you should:

3
ROYAL980X PAPER SHREDDER
This warranty does not include adjustments, parts and repair by circumstances beyond the control
of Royal, including but not limited to, fire, or other casualty, accident, neglect, abuse, abnormal
use or battery leakage damage.
THERE ARE NO OTHER EXPRESSED WARRANTIES EXCEPT AS STATED HEREIN.
AFTER THE PERIOD OF EXPRESSED WARRANTY SET FORTH HEREIN, THERE ARE
NO EXPRESSED OR IMPLIED WARRANTIESAND THOSE EXCLUDED INCLUDE THOSE
OF MERCHANTABILITYAND FITNESS FOR PARTICULAR PURPOSE. Royal shall NOT
be held liable for
CONSEQUENTIAL DAMAGES resulting from any failure, defect or malfunction of this product.
Some States do not allow limitations on how long an implied warranty lasts and some States do
not allow the exclusion or limitation of incidental or consequential damages, so the above
limitations may not apply to you.
WARRANTY PROCEDURES
Royal has taken great care to insure the product you have purchased will provide years of trouble-
free service. Should the product require service within the first 30 days after purchase, Royal
strongly recommends you return the product to the
place of purchase for replacement. Please note this 30-day replacement period may be subject
to the limitations of the return policy that has been established by your retailer, may not be
available at your retailer, or may be for a different period
of time as established by your retailer. Your retailer may allow exchanges past this 30-day period.
Should this be the case, Royal strongly recommends you return the product to the place of
purchase for replacement.
TO OBTAIN SERVICE UNDER THE TERMS OF THIS WARRANTY:
In the event you are unable to obtain a replacement product from your retailer,
please do the following:
1. Send a copy of your original sales receipt showing original purchase date along with your
mailing address and a note describing the nature of the problem to:
Royal Consumer Warranty Processing
PO Box 161
Jaminson, PA 18929-0161
DO NOT RETURN THE PRODUCT TO THIS ADDRESS!
2. You will receive a return authorization number within 7-10 business days from the date your
return request is received if it is determined that there is a basis for a replacement product.
The return authorization form you receive will list the return procedures, applicable charges,
if any, and the correct shipping address for the returned product.
PRODUCT SUPPORT HOTLINE:
For questions on use of this product call 908-429-4357 Monday through Friday between the
hours of 8:30AM and 5:00PM EST. You can also email Royal at [email protected]. Allow two
to three weeks for email response.
4
ROYAL 980X PAPER SHREDDER
In case of a minor paper jam:
1. The automatic paper reverse feature should eject the minor paper jam from the feed
opening. Remove the remaining portion of paper from the top of the shredder and
clear any excess paper shreds from the feed opening. The Power LED should go
from red to white and normal shredding can resume.
In case of a major paper jam:
1. Turn off or unplug the power cord from the AC outlet and wait at least 25 minutes
for the motor overload protection circuit to reset. If the shredder is not unplugged
or turned off the Power LED will remain red until the circuit has reset.
2. Plug in the AC power cord and depress the Power Button. If paper was left
inside the feed opening prior to the overload, grasp the excess paper from the top
and pull it out as you depress the Rev Button. Be careful not to place your fingers
near the feed opening or serious harm could result.
3. You are now ready to resume normal shredding.
Specifications:
Shred Type: Cross-Cut
Shred Width: 9/64" (3.5mm) x 1 1/2"( 38mm)
Shredding Capacity: 9 Sheets
Feed Opening: 8 15/16" (226mm)
Dimension: 14.8" (376mm)W x 10.8" (275mm)D x 22.2" (564mm)H
Weight: 18.5lbs. (8.39 kgs.)
Input:115 volt AC, 60 hz, 3 amp.
WARRANTY, REGISTRATION & TECHNICAL SUPPORT
PLEASE FILL OUT AND RETURN THE WARRANTY CARD INCLUDED WITH YOUR
NEW ROYAL PRODUCT OR FILL OUT THE WARRANTY REGISTRATION FORM ON
THE ROYAL WEB PAGE AT WWW.ROYAL.COM. IT ENTITLES YOU TO PRODUCT
WARRANTYAND TECHNICAL SUPPORT UNDER THE TERMS AND CONDITIONS
DESCRIBED HEREIN.
BE SURE TO KEEPACOPY OFYOUR SALES RECEIPT!
STANDARD WARRANTY
ROYAL CONSUMER INFORMATION PRODUCTS ("Royal")
379 CAMPUS DRIVE, SOMERSET, NJ, 08837 WARRANTS that your NEW Royal product is
free of defects of workmanship and materials. If there is a defect or malfunction of this product,
Royal will repair it free of charge as follows:
PARTS: New or comparable rebuilt parts in exchange for defective parts for ONE YEAR from
date of customer purchase.
LABOR: Royal provides labor warranty for 1year from date of end-user purchase. Product must
be sent postage prepaid and insured to Royal. At completion of the repair, the consumer will be
responsible for return shipping charges from Royal, and for any parts or services no longer
covered under warranty. This warranty does not apply to persons who purchased this product
second hand or used.
