Runpotec Runpocam RC2 User manual

Product information / User manual
RUNPOCAM
NEW CABLE PULLING SYSTEMS
Compatible with all RUNPOTEC products
with RTG Ø 6 mm thread.
Multifunction-
inspection-camera
EXTRA
LARGE
DISPLAY
3.5“ LCD
RC 2
Operation up to 6 hours
Choice of lengths available:
20 m - 10 m - 5 m - 1 m - 0,8 m
Pipe inspection
Cavity inspection
Evidence gathering
Recording function:
Photo, video (HD) and audio

CABLE PULLING SPECIALIST WWW.RUNPOTEC.COM
2 CONTENTS / DESCRIPTION
DESCRIPTION
9
23
5
6
7
4
10
8
11 12
13
1
A
B
C
D
EF
G
I
H
K
J
L
M
N
O
P
A Monitor (3.5“ TFT LCD 16M color)
B RUNPOGLIDER with front thread
C Function-glider
D High-performance 320-lumen rechargeable LED lamp
E Camera probe with cable
F USB / Micro-USB charging cable 3 m
G Micro memory card 8 GB / adapter
H Blind cap, inside and outside connection thread,
swivel joint
I Flexible attachment 12 cm
JMagnet fi shing-set
KStainless steel fi shing hook
L 2-fach USB charging adapter 12 V
M 2-fach USB charging adapter 230 V
N USB / Micro-USB charging cable 1 m
O Fiberglass rod 1,7 m
P Carry case ( L/W/H): 45,3 cm / 32,5 cm / 13 cm
1Camera connection socket
2 Microphone
3 LED battery charge monitoring
4 Monitor (3.5“ TFT LCD 16M color)
5 Reset button
6 Micro USB exit
7 Slot - micro memory card 8 GB
8 On/Off button
9 Rotate image 180° / LED camera light / navigate
10 Menu
11 Record photo/video
12 OK / play
13 Li-Ion battery 18650 (operation up to 6 hours)
14 Belt clip
CONTENTS
14

CABLE PULLING SPECIALIST WWW.RUNPOTEC.COM
RUNPOTEC GmbH - Irlachstrasse 31 - 5303 Thalgau / Austria
phone: [phone] - fax: [phone] - [email protected]
IHR KABELEINZIEHSPEZIALIST
IHRE QUALITÄTSGARANTIE

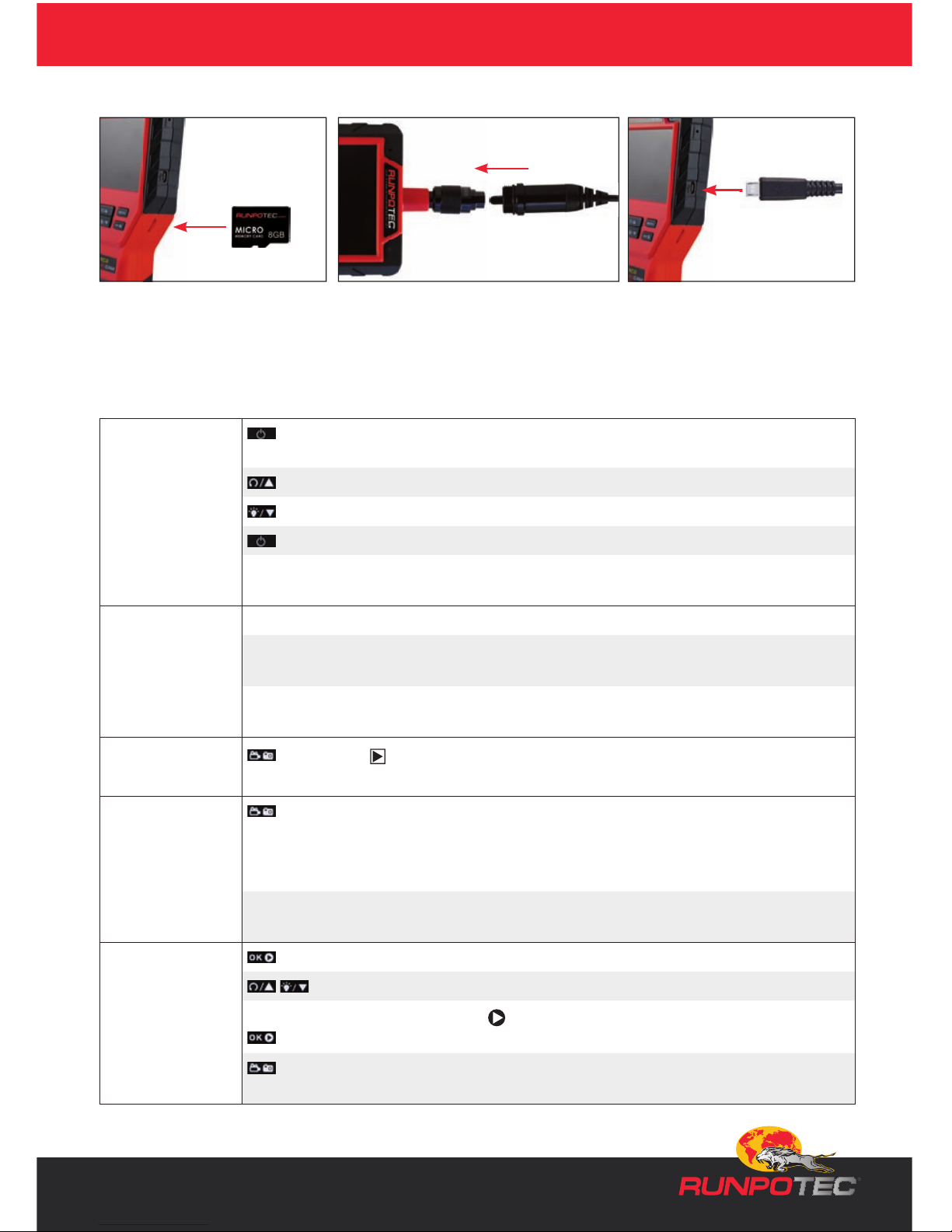

2 CONTENTS / DESCRIPTION
FIRST-TIME USE / OPERATING INSTRUCTIONS 3
OPERATING INSTRUCTIONS
FIRST-TIME USE
Insert Micro Memory Card
in the slot at the side.
If necessary, format the card,
see operating instructions.
1
The Li-Ion battery is loaded!
Monitor can be used
immediately. Recharge the
battery with Micro-USB cable
and charging adapter.
3
Connect camera probe
cable to monitor.
2
A Monitor (3.5“ TFT LCD 16M color)
B RUNPOGLIDER with front thread
C Function-glider
D High-performance 320-lumen rechargeable LED lamp
E Camera probe with cable
F USB / Micro-USB charging cable 3 m
G Micro memory card 8 GB / adapter
H Blind cap, inside and outside connection thread,
swivel joint
I Flexible attachment 12 cm
JMagnet fi shing-set
KStainless steel fi shing hook
L 2-fach USB charging adapter 12 V
M 2-fach USB charging adapter 230 V
N USB / Micro-USB charging cable 1 m
O Fiberglass rod 1,7 m
P Carry case ( L/W/H): 45,3 cm / 32,5 cm / 13 cm
1Camera connection socket
2 Microphone
3 LED battery charge monitoring
4 Monitor (3.5“ TFT LCD 16M color)
5 Reset button
6 Micro USB exit
7 Slot - micro memory card 8 GB
8 On/Off button
9 Rotate image 180° / LED camera light / navigate
10 Menu
11 Record photo/video
12 OK / play
13 Li-Ion battery 18650 (operation up to 6 hours)
14 Belt clip
General
information
Press and hold for 2 seconds to switch on and off.
LED light turns on automatically.
Press to rotate the monitor image by 180 °.
Press to turn the camera LED light on and off.
Press to adjust the monitor brightness in 3 steps.
To display the monitor picture, press any button.
(Will be darkened after 5 seconds)!
Screen display Icon top left – photo/video mode.
Icon top right – LED light off/on, memory card,
time, battery status.
Icon lower left – time stamp, date/time
(timestamp can be switched off and on in the menu).
Photo mode Press, fl ashes short, a recording has been made and
stored in the archive.
Video mode Press to start the video recording.
The recording time is displayed in red in the upper left corner.
Press again to stop recording.
Video is stored in the archive.
After stopping the recording, the remaining recording time
appears in white on the upper left corner.
Photo/video
archive
Press to view photos/videos.
Select photo/video.
Image with play sign is a video.
Play and stop recording.
Press and hold 2 seconds to exit photo/video archive and
return to camera live view.

CABLE PULLING SPECIALIST WWW.RUNPOTEC.COM
4 OPERATING INSTRUCTIONS / TECHNICAL DATA
MONITOR 3.5“ TFT LCD monitor 16 M color
CAMERA PROBE 100.000 Pixel (320 x 240)
PROTECTION RATING IP 67 (camera probe/cable)
VIDEO/PHOTO Video: AVI / Photo: JPG
FIELD OF VIEW 60°
FOCUSSING DISTANCE 30 mm – 80 mm
ILLUMINATION 2 x LED
POWER SUPPLY 230 V or (rechargeable) battery operation (battery not included)
LANGUAGES German, English, French, Italian, Spanish, Norwegian,
Czech, Polish, Dutch
TECHNICAL DATA
SAFETY INFORMATION
Before use, read the safety information provided at www.runpotec.com.
The RUNPOCAM RC2 is intended exclusively for investigating and inspecting inaccessible parts
of a building such as pipes, cavitie walls, ventilation systems, etc. ...
No liability whatsoever will be accepted for any other kind of use.
Delete
photo/video
in the archive
Select photo/video.
Press to delete photos/videos.
Select – delete tracks (single photo/video) or delete all.
Press button.
Select – cancel/confi rm.
To confi rm.
Return to the photo/video archive.
Menu settings Press to display the menu.
Scroll up and down.
Select and return to the menu.
Press to exit the menu.
Recording time: Select between off / 1 min. / 2 min. / 3 min.
Time stamp: Choose OFF /ON 
Date/time:
Change Settings.
Press 2 seconds to switch to the next setting.
To save.
Power off: Select between on / 1 min. / 2 min. / 3 min.
Language: 9 languages selectable.
Formatting:
Format the memory card.
Select – cancel/confi rm.
All data on the SD card will be deleted!
Factory setting: Reset to basic setting.
Version: Version number

CABLE PULLING SPECIALIST WWW.RUNPOTEC.COM
RUNPOTEC GmbH - Irlachstrasse 31 - 5303 Thalgau / Austria
phone: [phone] - fax: [phone] - [email protected]
4 OPERATING INSTRUCTIONS / TECHNICAL DATA

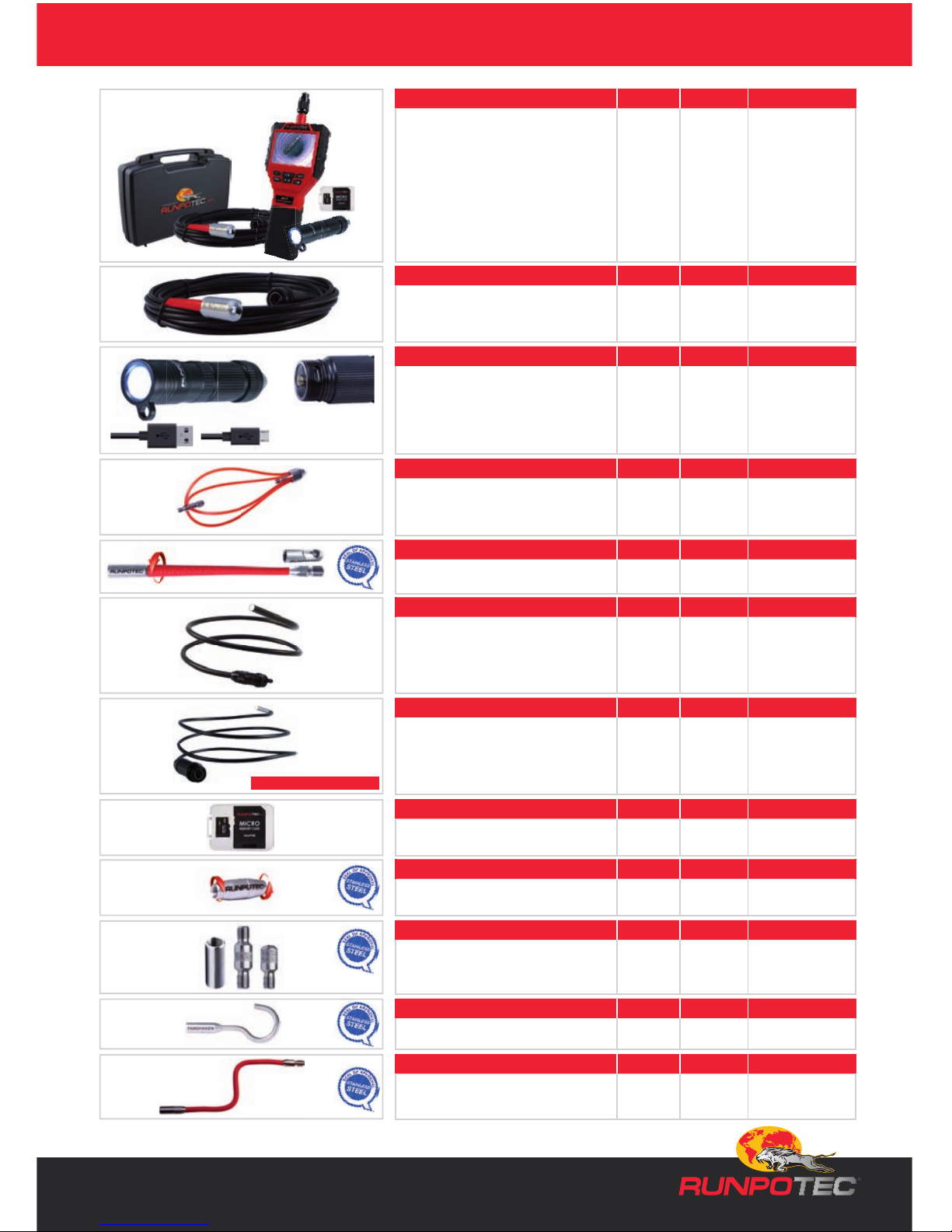

PRODUCT / ACCESSORIES / SPARE PARTS 5
Flexible camera probe, 0.8 m Length Item no. Rec. retail price
Ø 9 mm for RUNPOCAM RC2
300.000 pixels (720 x 576)
Field of view 64° , IP 67
4 LEDs (dimmable)
0,8 m 20481 58,00 e
Flexible camera probe, 1 m Length Item no. Rec. retail price
Ø 3.9 mm for RUNPOCAM RC2
100.000 pixels (320 x 240)
Field of view 54° , IP 67
2 LEDs (dimmable)
1 m 20488 115,00 e
Micro memory card 8 GB Item no. Rec. retail price
incl. card adapter 20483 4,00 e
Function glider Item no. Rec. retail price
RUNPOTEC RTG Ø 6 mm thread 20468 17,00 e
RUNPOCAM RC2 Length Item no. Rec. retail price
Multifunction-inspection-camera
(incl. accessories: camera probe
with cable, monitor, carry case,
high-performance 320-lumen
LED lamp, RUNPOGLIDER w. front
thread, function-glider, fl exible
attachment, micro memory card
8 GB/adapter, connection thread-
set, 2 x USB-cable, 2 x USB-charging
adapter, fi berglass rod)
5 m
10 m
20 m
10124
10125
10126
398,00 e
405,00 e
419,00 e
RUNPOGLIDER with front thread Item no. Rec. retail price
RUNPOTEC RTG Ø 6 mm thread 20460 29,00 e
Threaded connector set Item no. Rec. retail price
RUNPOTEC RTG Ø 6 mm thread
(set of 3 = 1 internal, 1 external,
1 blind cap)
20484 7,90 e
Swivel joint Item no. Rec. retail price
Stainless steel,
RUNPOTEC RTG Ø 6 mm thread
20251 19,50 e
Stainless fishing hook Item no. Rec. retail price
RUNPOTEC RTG Ø 6 mm thread 20261 5,50 e
Flexible attachment 12 cm Item no. Rec. retail price
Stainless steel,
RUNPOTEC RTG Ø 6 mm thread
20509 6,50 e
IHR KABELEINZIEHSPEZIALIST
IHRE QUALITÄTSGARANTIE
Camera probe with cable Item no. Rec. retail price
Ø 13 mm / L 30 mm
2 x RUNPOTEC RTG Ø 6 mm thread
and connector
5 m
10 m
20 m
20478
20479
20480
143,00 e
152,00 e
159,00 e
Rechargeable LED lamp Item no. Rec. retail price
High-performance 320-lumen
rechargeable LED lamp
2 x RUNPOTEC RTG Ø 6 mm thread
(1vertical and 1 horizontal) micro
USB charging socket for battery
20485 39,00 e
All prices are ex-works Thalgau near Salzburg - plus statutory taxes and duties. All price information represents non-binding price recommendations. Prices as at 2017.
EXTRA SLIM Ø 3.9 MM
Detail:
Micro-USB
charging socket

CABLE PULLING SPECIALIST WWW.RUNPOTEC.COM
6 RUNPOCAM APPLICATION EXAMPLES
SUSPENDED CEILINGS
above high ceiling framing
CAVITY WALL INSPECTION
Locating and capturing
PIPE INSPECTION
for pipe-Ø from 20 mm
VENTILATION INSPECTION
AND SERVICING
SHAFTS AND
UNDERFLOOR DUCTING
PIPE INSPECTION
for large pipe diameters

CABLE PULLING SPECIALIST WWW.RUNPOTEC.COM
RUNPOTEC GmbH - Irlachstrasse 31 - 5303 Thalgau / Austria
phone: [phone] - fax: [phone] - [email protected]
IHR KABELEINZIEHSPEZIALIST
IHRE QUALITÄTSGARANTIE
6 RUNPOCAM APPLICATION EXAMPLES
COMPATIBLE WITH THE FOLLOWING RUNPOTEC PRODUCTS 7
Due to its RTG Ø 12 mm to RTG Ø 6 mm thread adaptor,
the RUNPOCAM RC2 is also compatible with Ø 7.5 mm, Ø 9 mm
and Ø 11 mm fi berglass rods.
The full range of fi breglass rods can be found in the RUNPOTEC
Product Catalogue or online at www.runpotec.com.
POWER REX Length Item no. Rec. retail price
Fiberglass rod Ø 3 mm
complete set incl.
RUNPOGLIDER with swivel
RTG Ø 6 mm thread
20 m
30 m
40 m
50 m
10087
10088
10089
10090
€86.00
€98.00
€108.00
€119.90
Fiberglass rod - Profi-Set Length Item no. Rec. retail price
Fibreglass rod, Ø 4.5 mm
incl. steel cage
RTG Ø 6 mm thread
(also available as Standard-
Set)
30 m
40 m
50 m
60 m
80 m
10052
10055
10057
10047
10050
€212.50
€235.50
€256.50
€278.00
€322.50
Fibreglass rod Ø 6 mm
incl. steel cage
RTG Ø 6 mm thread
(also available as Standard-Set)
40 m
50 m
60 m
80 m
10059
10061
10063
10065
€263.00
€285.00
€311.00
€365.50
About fiberglass rods with Ø 7.5 mm, Ø9 mm and Ø11 mm
RUNPO 1 Length Item no. Rec. retail price
Special plastic tape
Ø 4 mm
tension load 170 kg
Trailing end RTG Ø 6 mm
thread
5 m
10 m
15 m
20 m
25 m
30 m
30027
30028
30029
30030
30042
30043
€13.90
€14.90
€17.90
€20.90
€24.90
€28.90
RUNPOSTICKS Comfort Length Item no. Rec. retail price
(19-parts)
2 x 1 m (Ø 4.5 mm)
3 x 1 m (Ø 5.5 mm)
5 x 1 m (Ø 7.5 mm)
10 m 10020 €119.00
+
PROFI SET
SYMBOLFOTO
All prices are ex-works Thalgau near Salzburg - plus statutory taxes and duties. All price information represents non-binding price recommendations. Prices as at 2017.
Combination version – Compatible with all RUNPOTEC products with RTG Ø 6 mm thread.
Fishing hook
RTG Ø 6 mm
Connection thread
2 x RTG Ø 6 mm
RUNPOCAM
2 x RTG Ø 6 mm
RUNPOGLIDER
with front thread
2 x RTG Ø 6 mm
Cable feed systems
RTG Ø 6 mm thread:
RUNPOSTICKS, POWER REX,
RUNPO 1, all fi berglass rods
Camera cable lengths available: 5 m, 10 m or 20 m.
Ø 13 mm 30 mm
SYMBOLFOTO

8 RUNPOCAM COMBINATION EXAMPLES
CABLE PULLING SPECIALIST WWW.RUNPOTEC.COM
RUNPOCAM – RUNPOGLIDER with front thread.
For inspecting Ø 20 mm, Ø 25 mm and Ø 32 mm
pipes.
Fishing hook – RUNPOCAM – rechargeable LED lamp –
RUNPOTEC cable feed systems with RTG Ø 6 mm
thread. With or without LED lamp.
Sliding hook – RUNPOCAM – rechargeable LED lamp –
RUNPOTEC cable feed systems with RTG Ø 6 mm
thread. Sliding hook overcomes ceiling framing.
Function-glider (inside RUNPOCAM with
rechargeable LED lamp) – RUNPOTEC cable feed
systems with RTG Ø 6 mm thread.
RUNPOCAM – rechargeable LED lamp – right-angle
connection to RUNPOTEC cable feed systems with
RTG Ø 6 mm thread. For 360° inspection.
Fishing hook – function-glider (inside RUNPOCAM with
rechargeable LED lamp) – RUNPOTEC cable feed
systems with RTG Ø 6 mm thread.
Fishing hook – function glider (inside RUNPOCAM with
swivel joint) – RUNPOTEC cable feed systems with RTG
Ø 6 mm thread. To inspect droped ceilings.
Camera lens with LED
Camera probe with
RTG Ø 6 mm thread
at both ends
For pipe inspection. Fiberglass rods with Ø 3 mm,
Ø 4.5 mm, Ø 6 mm or Ø 7.5 mm, Ø 9 mm, Ø 11 mm
and Ø 15 mm with RUNPOCAM combinations.
For pipe diameters
from 20 mm
For pipe diameters
from 50 mm
