Runva HWP20000 Series Quick reference guide

HYDRAULIC WINCH
HWP/X20000 SERIES
Assembly & Operating Instructions

CONTENTS
INTRODUCTION.....................................................................................1
SAFETY WARNINGS AND PRECAUTIONS..........................................1
WINCH WARNINGS AND PRECAUTIONS............................................3
UNPACKING...........................................................................................4
INSTALLATION......................................................................................4
OPERATION...........................................................................................9
WINCH ACCESSORIES YOU WILL NEED..........................................11
RIGGING TECHNIQUES ......................................................................11
LUBRICATION...................................................................................... 12
CABLE ASSEMBLY REPLACEMENT .................................................12
TROUBLE SHOOTING.........................................................................13

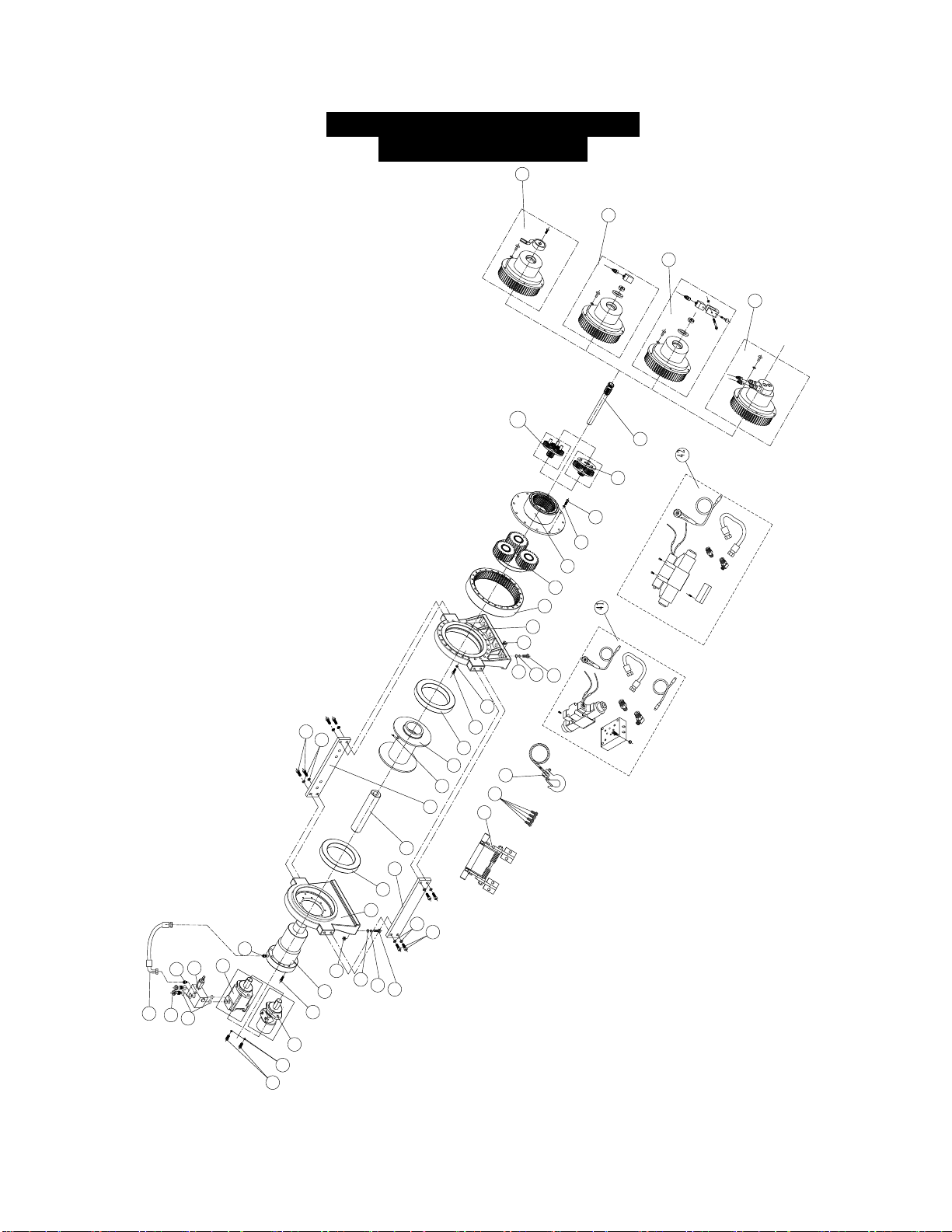

WINCH ASSEMBLY DRAWING HWP20000 SERIES..........................14
WINCH PARTS LIST HWP20000 SERIES ...........................................15
WINCH ASSEMBLY DRAWING HWX20000 SERIES.......................... 16
WINCH PARTS LIST HWX20000 SERIES ...........................................17
OUTLINE DIMENSIONAL DRAWING ..................................................18
SPECIFICATION（HWP20000U/A、U3/A3）......................................20
SPECIFICATION（HWP20000U1/A1、U2/A2）..................................21
SPECIFICATION（HWP20000YP/Y3P）.............................................22
SPECIFICATION（HWP20000Y1P/Y2P）...........................................23
SPECIFICATION（HWP20000YD/Y3D）.............................................24
SPECIFICATION（HWP20000Y1D/Y2D）...........................................25
SPECIFICATION（HWX20000YP）.....................................................26
SPECIFICATION（HWX20000YD）.....................................................27

1
INTRODUCTION
20000lb series winches are Runva totally new products up to the present
in the world; each one owns several invention patents of Runva;
Congratulations on your purchase of a highest class advanced powerful
two speed winch. We design and build winches to strict specifications
and with proper use and maintenance should bring you years of satisfying
service.
WARNING - Read, study and follow all instructions before
operating this device. Failure to heed these instructions may result
in personal injury and/or property damage.
Your winch can develop tremendous pulling forces and if used unsafely or
improperly could result in property damage, serious injury or death.
Throughout this manual you will find the following symbols for caution,
warning and danger. Pay particular attention to the notes preceded by
these symbols as they are written for your safety. Ultimately, safe
operation of this device rests with you, the operator.
This indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury. This notation is also used to
alert you against unsafe practices.
This indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
SAFETY WARNINGS AND PRECAUTIONS
WARNING: When using the tool, basic safety precautions should always be
followed to reduce the risk of personal injury and damage to the equipment. Read all
this instructions before using this tool!
WARNING –Do not use winch to lift (vertically).
WARNING –Keep children away. Children must never be allowed in the work
area Do not let them handle machines, tools, or extension cords.
CAUTION
WARNING

2
WARNING –Store idle equipment. When not in use, tools must be stored in a
dry location to inhibit rust. Always lock up tools and keep out of reach of children.
WARNING –Dress properly. Do not wear loose clothing or jewelry as they can
be caught in moving parts. Protective, electrically non-conductive clothes and non-skid
footwear are recommended when working. Wear restrictive hair covering to contain
long hair.
WARNING –Use eye and ear protection. Always wear impact safety goggles.
Wear a full face shield if you are producing metal filings or wood chips. Wear a dust
mask or respirator when working around metal, wood, and chemical dusts and mists.
WARNING –Maintain tools with care. Keep tools sharp and clean for better and
safer performance. Follow instructions for lubricating and changing accessories.
Inspect tool cords periodically and, if damaged, have them repaired by an authorized
technician. The handles must be kept clean, dry, and free from oil and grease at all
times.
WARNING –Disconnect switch. Unplug switch when not in use.
WARNING –Stay alert. Watch what you are doing, use common sense. Do not
operate any tool when you are tired.
WARNING –Check for damaged parts. Before using any tool, any part that
appears damaged should be carefully checked to determine that it will operate
properly and perform its intended function. Check for alignment and binding of moving
parts; any broken parts or mounting fixtures; and any other condition that may affect
proper operation. Any part that is damaged should be properly repaired or replaced by
a qualified technician. Do not use the tool if any switch does not turn “On”and “Off”
properly.
WARNING –Replacement parts and accessories. When servicing, use only
identical replacement parts. Use of any other parts will void the warranty. Only use
accessories intended for use this tool.
WARNING –Do not operate tool if under the influence of alcohol or drugs.
Read warning labels on prescription to determine if your judgment or reflexes are
impaired while taking drugs. If there is any doubt, do not operate the tool.

3
WINCH WARNINGS AND PRECAUTIONS
WARNING –Keep hands and body away from Fairlead (cable intake slot) when
operating.
WARNING –Secure vehicle in position before using winch.
WARNING –Be certain winch is properly bolted to a structure (or vehicle) that can
hold the winch load.
WARNING –Do not use inappropriate attachments to extend the length of the
winch cable.
WARNING –Never lift people or hoist loads over people.
WARNING –Never come in between the winch and the load when operating.
WARNING –Do not apply load to winch when cable is fully extended. Keep at
least 5 full turns of cable on the spool.
WARNING –After moving an item with the winch, secure the item. Do not rely on
the winch to hold it for an extended period.
WARNING –Examine winch before using. Components may be affected by
exposure to chemicals, salts, and rust.
WARNING –Never operate winch if cable shows any signs of weakening, such
as knotting or kinking.
WARNING –Do not cross over or under cable when the winch is under load.
WARNING –Do not move your vehicle with the cable extended and attached to
the load. You could easily exceed the winch rating and snap the cable.
WARNING –Use gloves while handling cable.
WARNING –When the vehicle is parked on an incline you should use wheel
chocks.
WARNING –Re-spool cable properly avoiding cable misalignment.
WARNING –The winch cable must be wound onto the drum under a load of at
least 10% of the rated line pull or the outer wraps will draw into inner wraps and
damage winch cable

4
WARNING –Before operating the winch under load you should check proper
function of the winch by engaging and disengaging the clutch, by operating the
directional controls, and operating the speed controls. This will ensure that the winch
is working properly and will help prevent unintended damage and injury. Cycling the
winch prior to loading will also ensure the gears are properly aligned.
UNPACKING
When unpacking, check to make sure all parts are included. Refer to Assembly
Drawings and Parts List (both with the like item numbers) at the end of this manual.
INSTALLATION
1. Your 20000lb winch is designed with a bolt pattern that is standard in this class of
winch. Many winch mounting kits are available that utilize this bolt pattern for the
most popular vehicle and mounting channels. If you cannot find a kit locally, contact
us and we will provide you with the name of a dealer near you. If you will utilize the
mounting channel you must ensure that it is mounted on a flat surface so that the
three major sections (motor, drum and gear housing) are properly aligned. Proper
alignment of the winch will allow even distribution of the full rated load.
2. Start by connecting the roller fairlead to the mounting channel using 2 each of the
cap screw, flat washer, lock washer and securing with nut. (Make sure the screw is
placed through the mounting channel and roller fairlead from inside the channel.
This will allow enough clearance for the winch to be placed in the channel without
obstruction.)
3. Mount winch to the vehicle using high strength cap screw. It should be aligned and
secured to a solid part of the vehicle (front or rear) where the the full rated load will
be evenly distributed.
4. Connect the two-color (positive) battery cable from the directional valve to screw-
down positive (+) terminal to the 12/24 volt battery.
5. Please refer to installation illustration.
Mounting The Balance Valve:

5
The balance valve supplied is simply connected to motor. Be sure the balance valve’s
installing direction meets hydraulic principle chart. Otherwise, the winch will not reach
the rated line pull, and it is also dangerous for winch to power off the cable with heavy
load. If this symptom happens, simply disconnect the balance valve: exchange the oil
hole between hydraulic motor and balance valve, while your winch is working in
different direction ,change A→C1,B→C2 into A→C2,B→C1.And reconnect it. If your
order demand the balance valve should be supplied, it will have been connected with
the motor at the factory.
Plumbing Connections:
Keep all hoses away from any areas where heat may be considered too extreme such
as an exhaust manifold or turbo. Lines should not be allowed to rub on any abrasive
or vibrating surfaces. In some applications, 90°fittings on the directional valve and
motor or balance valve are necessary to make hose mounting more flexible. After
plumbing has been laid out on vehicle, install o-ring fittings supplied to valve. Torque
tight. Do not over tighten any fittings. Install o-ring fittings on Winch Motor. Torque
tight. Connect any hose port A on motor or port V1 on balance valve to port A on
directional valve, port B on motor or port V2 on balance valve to port B on directional
valve, port P on directional valve to pump’s high pressure port, port T on valve to
reservoir, if necessary Connect any hose port S on valve to steering box. Attach any
o-ring or seal from vehicles original tube fitting to tube fitting.
Working hydraulic principle chart and installation illustration（U/A
series）:

6
U type A type
IN
OUT
The mounting drawing of U type
OUT
IN
The mounting drawing of A type
IN
OUT

7

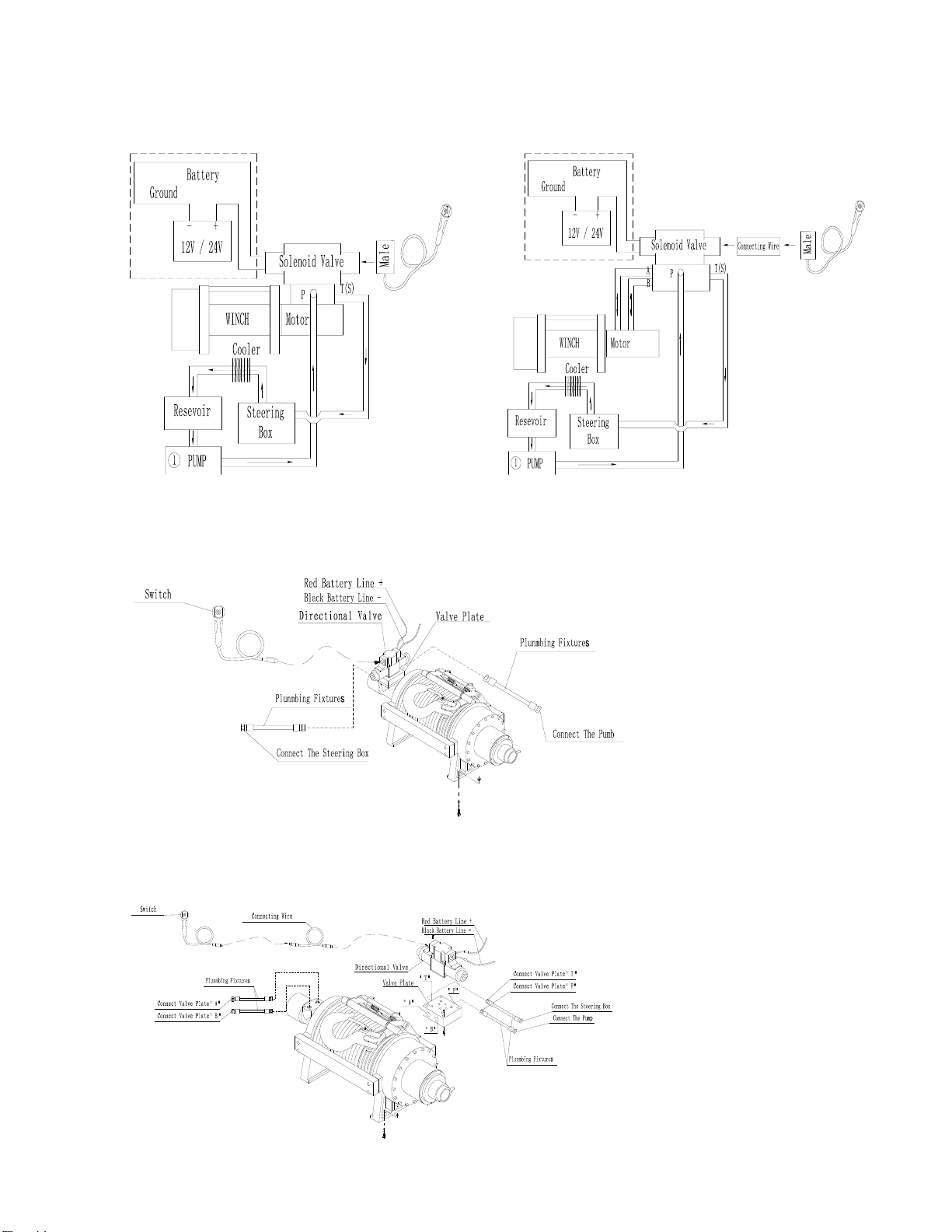

Working hydraulic principle chart and installation illustration:

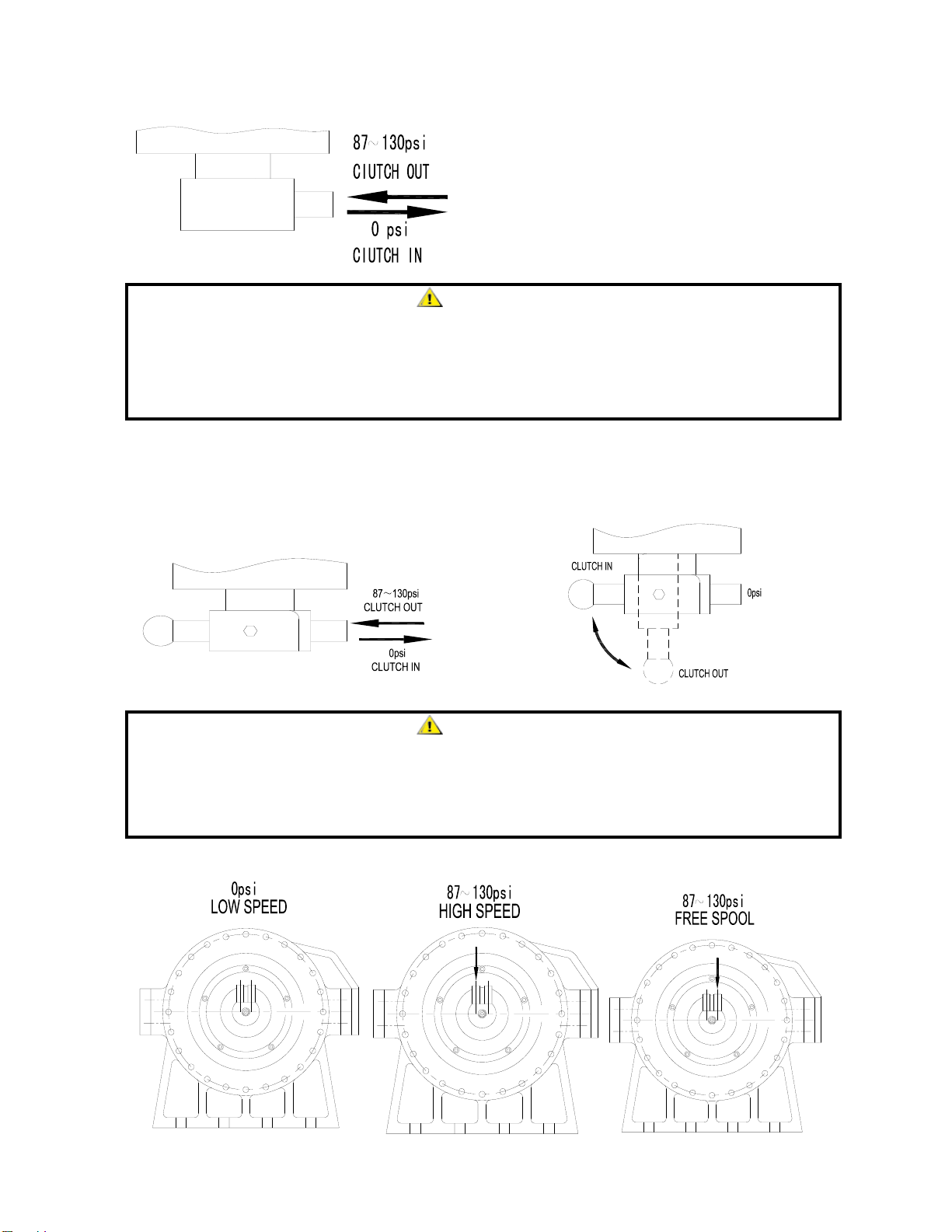

Air actions clutch installation illustration:
•Air clutch for Free spool •Air clutch for free spool and two speed
HWP20000U/A/YP/YD--------Manual clutch operation of two speed
HWP20000U1/A1/Y1P/Y1D-------Air clutch operation of single speed

8
WARNING
1.Clutch in all the time, when clutch out, need pressure 87~130psi into winch
。
2.Pressure should not below 87psi。
3.When winch is loaded and working, Do not clutch out。
HWP20000U2U/A2Y2P /Y2D-------Air and manual mixed clutch operation of
single speed
WARNING
1 Pressure should not below 87psi.
2 When winch is loaded and working. Do not clutch out.
3 Clutch must be fully engaged before winching.
HWP20000U3/A3/Y3P/Y3D-------Air clutch and air actions operation of two speed

9
WARNING
1 Pressure should not below 87psi.
2 When winch is loaded and working. Do not clutch out.
3 Clutch must be fully engaged before winching.
Caution:
The hydraulic system needs a relief valve to ensure the system safety. The absence
of such a valve could cause serious injury and damage the winch.
Winch battery cables should be placed so that there is a small amount of slack in the
cable.
If you are using a heat exchanger with your application to cool the hydraulic fluid you
should refer to the illustration about mounting.
You should check the hydraulic fluid level and replace any that may have seeped out.
The hydraulic system should be purged at this time. Listed below are the directions on
how to purge the hydraulic system.
1) Start the engine.
2) Power the winch to draw out about 5 feet of cable.
3) Shut down the engine.
4) Check the fluid level and fill as needed.
5) Repeat steps 1 through 4 as necessary.
6) Start the engine.
7) Move the cable into the desired position.
8) Turn the wheels on the vehicle from the right lock to the left lock positions five
times to help bleed the hydraulic system.
9) If the hand control unit is working backwards, simple exchange the brown and
the white wire connections within the valve.
Test the winch for proper operation. Refer to the section below.
OPERATION
WARNING
1 Make sure clutch is totally engaged before starting any winch operation;
2 Stay clear and away from raised loads;
3 Stay clear of cable while pulling do not try to guide cable;
4 A min. of 5 wraps of cable around the drum barrel.
General information:

10
The Winch’s standard equipments contain gear reducer、drum、hydraulic motor、
solenoid valve、switch assembly、female connector and plumbing fittings. The winch
obtains its pressure from the vehicle’s existing power steering pump or other hydraulic
power. The winch is totally sealed, can be used underwater.
There are several other ways to supply power to the winch. The first way is to use
an individual pump for engineering use. The second way is to provide the winch’s
hydraulic pressure is with the vehicle’s exiting power steering pump (See Installation
Instructions).
①Use a suitable individual pump, which doesn’t have an oil pressure relief valve.
It will supply pressure for both the steering box and the winch.
②Use a combined pump with an integrated oil valve. The oil valve will supply two
kinds of flow based on the difference in demand. One type of flow will be constant and
should be used with the steering system. The other will provide higher pressure and
is for engineering use.
Caution:
Hydraulic system needs an relief valve to make sure the system is safe; If there is not
relief valve in the system; it would be serious danger and the system can’t operation. If
your winch drived by an existing hydraulic power system, the relief valve is also
existing.
Winch working demonstration:
1. Disengage the clutch by turning the clutch to the “Free Spool”position.
2. Grab the cable assembly and pull the cable to the desired length, then attach to
item being pulled.
Caution: Always leave at least five turns of cable on the drum; Review Winch Safety
Warnings and Precautions on page 2、3 before continuing.
3. Reengage the clutch by turning the clutch assembly to the “High Speed”or “Low
Speed”position as needed.
4. Insert the switch assembly connector onto the directional valve

11
5. Test-run winch in both directions. Turn the winch in each direction for about one or
two seconds meantime make the clutch totally engaged automatically.
6. While standing aside of the tow path, hold and operate the switch assembly
supplied by your choice. Wait until the motor stops before reversing directions.
7. When the towing is finished, remove the switch assembly from the female
connector of the directional valve and replace the female connector cover.
MaintenanceseWINCH ACCESSORIES YOU WILL NEED
NOT INCLUDED WITH YOUR WINCH
Gloves –For handling the wire rope and hook strap.
Anchor Strap/Chain –Tree saver anchor straps are made of high quality nylon with
high tensile strengths up to 15000lbs.
Heavy Blanket –place on the cable to absorb energy should the wire rope break.
RIGGING TECHNIQUES
Self-Recovery
Locate a suitable anchor such as a strong tree trunk or boulder.
Always use a sling as an anchor point. CAUTION Do not attach
the clevis hook back onto the cable as this could cause damage to
the cable. As shown in Fig 3.1
CAUTION Do not winch from an acute angle as the wire rope
will pile up on one side of the drum causing damage to wire rope
and the winch. Fig 3.2
Short pulls from an angle can be used to straighten the vehicle.
Long pulls should be done with the wire rope at a 90° angle to the
winch/vehicle.
When pulling a heavy load, place a blanket or jacket over the wire
rope five or six feet from the hook. In the event of a broken cable it
will dampen the snap back. For additional protection open the
hood of the vehicle as shown in Fig 3.3
Fig 3.1
Fig 3.2
Fig 3.3

12
For pulls over 70% rated line pull, we recommend the use of the
snatch block/pulley block to double line the wire rope. Fig 3.4
This reduces the load on the winch and the strain on the rope by up
to 50% depending on the included angle.
WARNING - Never use your winch for overhead hoisting or for
lifting people or moving people.
LUBRICATION
1. All moving parts within the Winch having been Lubricated using high temperature
lithium grease at the factory. No internal lubrication is required.
2. Lubricate Cable Assembly periodically using a light penetrating oil.
CABLE ASSEMBLY REPLACEMENT
If the wire rope has become worn or is beginning to show signs of strands breaking, it
must be replaced before being used again.
1. Turning clutch to the “Free Spool”position.
2. Extend cable assembly to its full length. Note how the existing cable is
connected to the drum.
3. Remove old cable assembly and attach new one as the ld cable connected to
the drum. Insert the end of the new rope and secure the screw being tightly
screwed
4. Turning clutch to the “High Speed”position.
5. Retract cable assembly onto drum, first five wraps being careful not to allow
kinking, then winch cable must be wound onto the drum under a load of at
least 10% rated line pull.
WARNING - Only replace the wire rope with the identical replacement part
recommended by the manufacturer.
Fig 3.4
Fig 3.5

13
TROUBLE SHOOTING
SYMPTOM
POSSIBLE CAUSE
SUGGESTED ACTION
Winch does not
turn .
-Insufficiently hydraulic
system pressure.
-Improper connections
of hydraulic system,
no oil into motor.
-Check relief valve regulate pressure.
-Check all the plumbing fixtures
according to the working principle chart.
-Defective directional control valve.
Motor runs but
Cable drum does
not turn
- The clutch is Not
engaged
-Turn the clutch to the high or lows peed
position. If problem still persists, a
qualified technician needed to check and
repair.
Winch drum runs
slowly or without
normal power.
-Insufficient pressure
or oil flow
-Insufficient fluid in the
system
- Wrong winch working
direction.
-Bump is not suitable or defective.
Change a new one or a suitable one
-Check fluid level. Add fluid until full.
-Change the connection of balance valve
and motor.
Winch brake not
working normally.
-Hydraulic pressure
remnants in brake
while winch stop.
-Wrong winch working
direction.
-Use bigger back oil pipe.
-Change the connection of balance valve
and motor.
Winch cannot
spool off wire
rope with load
smoothly.
-Wrong winch working
direction.
-Change the connection of balance valve
and motor.

14
WINCH ASSEMBLY DRAWING
HWP20000 SERIES
2
3
1
4
5
6
12
13
15
10
11 16
17
18
13
19
20
21
22
23
24
25
26
27
7
8
914
28
38
39
40
33
34
35
36
35
11
10
6
7
8
9
37
29
30
31
32
27'
3'

15
WINCH PARTS LIST
HWP20000 SERIES
No.
Part #
Qty
Description
Remark
1
HP2000001
2
Screw M12 x 35
Used in YP series
4
Used in YD series
2
HP2000002
2
Lock Washer Φ12
Used in YP series
4
Used in YD series
3
HP2000100-1
1
Hydraulic Motor
Used in YP series
HP2000100-2
1
Used in YD series
3'
HP2000100-3
1
Hydraulic Motor
Used in U/A series
4
HP2000003
8
Screw M8 x 30
Used in U/A/YP series
5
HP2000200
1
Break / Shaft Assembly
Used in U/A/YP series
6
HP2000004
8
Hex Flange Nut M14
7
HP2000005
8
Think Flat Washer Φ14
8
HP2000006
8
Lock Washer Φ14
9
HP2000007
8
Cap Screw M14 x 50
10
HP2000008
4
Lock Washer Φ10
11
HP2000009
4
Screw M10 x 30
12
HP2000010
1
Front Bearing
13
HP2000011
2
Roller Bearing
14
HP2000012-1
1
Frontal Mounting Plata
Used in YP/YD series
HP2000012-2
1
Frontal Mounting Plata
Used in U/A series
15
HP2000013-1
1
Coupling
Used in YP/YD series
HP2000013-2
1
Coupling
Used in U/A series
16
HP2000014-1
1
Back Mounting Plata
Used in YP/YD series
HP2000014-2
1
Back Mounting Plata
Used in U/A series
17
HP2000015
1
Screw M8 x 10
18
HP2000300-1
1
Drum Assembly
Used in YP/YD series
HP2000300-2
1
Drum Assembly
Used in U/A series
19
HP2000016
24
Screw M8 x 35
20
HP2000017
24
Lock Washer Φ8
21
HP2000018
1
End Bearing
22
HP2000019
1
Gear-Ring
23
HP2000400
1
Gear Carrier Assembly (Output)
24
HP2000500
1
Cam Gear (Input)
25
HP2000017
12
Lock Washer Φ8
26
HP2000020
12
Screw M8 x 20
27
HP2000600-1
1
Gear Carrier Assembly （Input）
Used in Y1P/Y2P /U1/U2/A/1A2
27'
HP2000600-2
1
Gear Carrier Assembly （Input）
Used in YP/Y3P/YD /U/U3/A/A3
28
HP2000021
1
Transmission Shaft
29
HP2000700
1
Clutch Assembly
Used in YP/YD/U/A
30
HP2000800
1
Clutch Assembly
Used in Y1P/U1/A1
31
HP2000900
1
Clutch Assembly
Used in Y2P/U2/A2
32
HP2001000
1
Clutch Assembly
Used in Y3P/U3/A3
33
HP2000032
2
Screw
Used in YP series
34
HP2000033
4
Seal Ring
Used in YP series
35
HP2001100
2
Tube Fittings Assembly
Used in YP series
36
HP2001200
1
Balanced Valve Assembly
Used in YP series
37
HP2001300
1
Plumbing Fixtures
Used in YP series
38
HP2001400
1
Tensioned Of Steel Wire Supplied Assembly
39
HP2000031
4
Screw M10 x 25
40
HP2001500
1
Cable Assembly
41
HP2001600
1
Control Section
Used in U series
42
HP2001700
1
Control Section
Used in A series

16
WINCH ASSEMBLY DRAWING
HWX20000 SERIES
2
3
1
4
5
6
12
13
15
10
11 16
17
18
13
19
20
21
22
23
24
25
26
28
7
8
914
29
34
35
36
11
10
6
7
8
9
31
32
30
37
38
39
40
39
41
33
27

17
WINCH PARTS LIST
HWX20000 SERIES
No.
Part #
Qty
Description
Remark
1
HX2000001
2
Screw M12 x 35
Used in YP series
4
Used in YD series
2
HX2000002
2
Lock Washer Φ12
Used in YP series
4
Used in YD series
3
HX2000100-1
1
Hydraulic Motor
Used in YP series
HX2000100-2
1
Used in YD series
4
HX2000003
8
Screw M8 x 30
5
HX2000200
1
Break / Shaft Assembly
Used in YP series
6
HX2000004
8
Hex Flange Nut M14
7
HX2000005
8
Think Flat Washer Φ14
8
HX2000006
8
Lock Washer Φ14
9
HX2000007
8
Cap Screw M14 x 50
10
HX2000008
4
Lock Washer Φ10
11
HX2000009
4
Screw M10 x 30
12
HX2000010
1
Front Bearing
13
HX2000011
2
Roller Bearing
14
HX2000012-1
1
Frontal Mounting Plata
Used in YP series
HX2000012-2
1
Frontal Mounting Plata
Used in YD series
15
HX2000013-1
1
Coupling
Used in YP series
HX2000013-2
1
Coupling
Used in YD series
16
HX2000014-1
1
Back Mounting Plata
Used in YP series
HX2000014-2
1
Back Mounting Plata
Used in YD series
17
HX2000015
1
Screw M8 x 10
18
HX2000300-1
1
Drum Assembly
Used in YP series
HX2000300-2
1
Drum Assembly
Used in YD series
19
HX2000016
24
Screw M8 x 35
20
HX2000017
24
Lock Washer Φ8
21
HX2000018
1
End Bearing
22
HX2000019
1
Gear-Ring
23
HX2000400
1
Gear Carrier Assembly (Output)
24
HX2000500
1
Cam Gear (Input)
25
HX2000017
12
Lock Washer Φ8
26
HX2000020
12
Screw M8 x 20
27
HX2000021
1
Gear-Ring
28
HX2000600
1
Gear Carrier Assembly （Input）
29
HX2000022
1
Transmission Shaft
30
HX2000023
1
Cover-Gear Housing
31
HX2000024
5
Lock Washer Φ4
32
HX2000025
5
Screw M4 x 15
33
HX2000700
1
Clutch Assembly
34
HX2000800
1
Tensioned Of Steel Wire Supplied Assembly
35
HX2000026
4
Screw M10 x 25
36
HX2000900
1
Cable Assembly
Used in YP series
37
HX2000027
2
Screw
Used in YP series
38
HX2000028
4
Seal Ring
Used in YP series
39
HX2001000
2
Tube Fittings Assembly
Used in YP series
40
HX2001100
1
Balanced Valve Assembly
Used in YP series
41
HX2001200
1
Plumbing Fixtures
Used in YP series

18
OUTLINE DIMENSIONAL DRAWING
HWP20000U
HWP20000A
HWP20000YP
