Ryobi RG-10KVA Operation manual

RG-10KVA
RG-10KVA
Ratedvoltage ............................................................. 230V
Ratedfrequency.......................................................... 50Hz
RatedPower .. ..................................................................... 10kW
RatedPower Factor ....................................................... 1.0
AltitudeRating ......................................................... 1000m
RatedCurrent ........................................................... 43.5A
PerformanceClass ........................................................ G1
Mass .........................................................................160kgs
YEAR2018
Automaticvoltage regulator
SerialNo.
SINGLE PHASE 4 STROKE
PETROL GENERATOR SET
RG-10KVA

RG-10KVA
Ratedvoltage ............................................................. 230V
Ratedfrequency.......................................................... 50Hz
RatedPower .. ..................................................................... 10kW
RatedPower Factor ....................................................... 1.0
AltitudeRating ......................................................... 1000m
RatedCurrent ........................................................... 43.5A
PerformanceClass ........................................................ G1
Mass .........................................................................160kgs
YEAR2018
Automaticvoltage regulator
SerialNo.
SINGLE PHASE 4 STROKE
PETROL GENERATOR SET
RG-10KVA
1
16
4
10
8
123
5
9
13
15
14

2
1
3
54
2
6
7
6

3
7
8
9 10
9
12

11
4
13 14
11 12
15 16
17 18
11
12
13

5
21
19 20
23 24
22

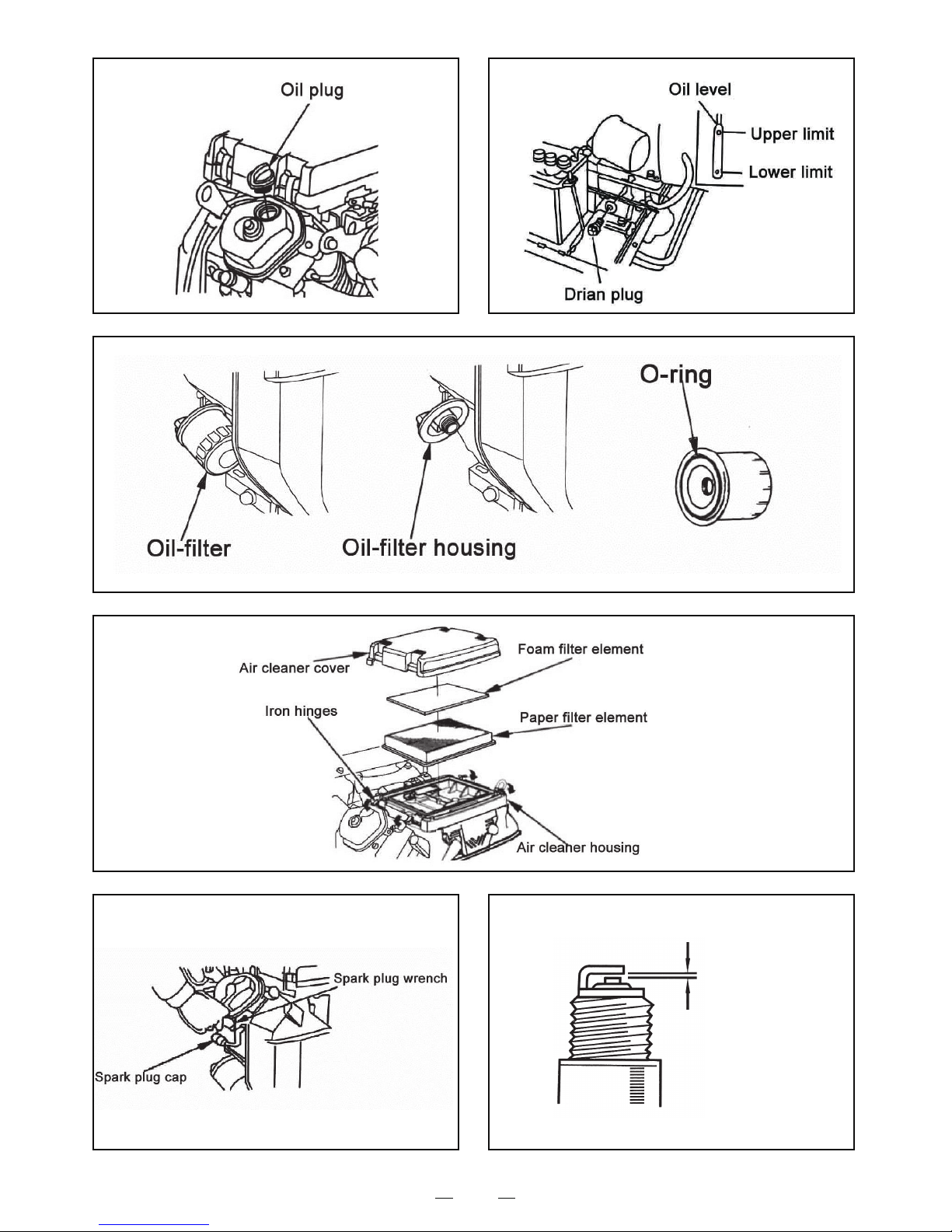

0.7-0.8mm

6
27 28
25 26
31 32
29 30
16
1616

THANK YOU FOR BUYING A RYOBI PRODUCT.
To ensure your safety and satisfaction, carefully read
through this OWNER’S MANUAL before using the product.
7
General Safety Rules
SAVE THESE INSTRUCTIONS
WARNING! Read all instructions and warning labels carefully
before use. Failure to follow all instructions listed below may
result in electric shock, fire and/or serious injury. The term
“power tool” in all of the warnings listed below refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
1) Work area
a) Keep work area clean and well lit. Cluttered and dark
areas invite accidents.
b) Do not operate power tools in explosive atmospheres,
such as in the presence of flammable liquids, gases
or dust. Power tools create sparks which may ignite the
dust or fumes.
c) Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
d) The power of generator will be changed with different
temperatures, altitude and conditions. Only under
rated ambient condition the rated power of generator
could be loaded up.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs
with earthed (grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces
such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is
earthed or grounded.
c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
d) Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep cord away
from heat, oil, sharp edges or moving parts. Damaged
or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
f ) Check electrical equipment (cables, cords and plug
connections etc) and make sure they are not defective
before use. Only tough rubber-sheathed flexible cable
can be used.
g) Do not connect the generator to other power sources.
If the generator need to be connected as a stand-by
connection in special cases, it only can be operated by a
competent person.
h) When replace the circuit breaker the substitute part must
has identical ratings and performance characteristics.
3) Personal safety
a) Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a
power tool while you are tired or under the influence
of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in
serious personal injury.
b) Use safety equipment. Always wear eye protection.
Safety equipment such as dust mask, non-skid safety
shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
c) Avoid accidental starting. Ensure the switch is in the
off-position before plugging in. Carrying power tools
with your finger on the switch or plugging in power tools
that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power tool
in unexpected situations.
f ) Dress properly. Do not wear loose clothing or jewellery.
Keep your hair, clothing and gloves awayfrom moving
parts. Loose clothes, jewellery or long hair can be caught
in moving parts.
g) If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of these devices can
reduce dust-related hazards.
h) Please make sure you have fully understand the
knowlage of functions and positions of the controls
and indicators or meters.
4) Power tool use and care
a) Do not force the power tool. Use the correct power
tool for your application. The correct power tool will do the
job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source before
making any adjustments, changing accessories, or
storing power tools. Such preventive safety measures
reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and
do not allow persons unfamiliar with the power tool
or these instructions to operate the power tool. Power
tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tools
operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained
cutting tools with sharp cutting edges are less likely to
bind and are easier to control.
g) Use the power tool, accessories and tool bits etc., in
accordance with these instructions and in the manner
intended for the particular type of power tool, taking
into account the working conditions and the work to
be performed. Use of the power tool for operations
different from intended could result in a hazardous situation.
h) If use manual start please open the oil tap and close
the valve before use the start system.
5) Service
a) Have your power tool serviced by a qualified repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.

8
SPECIFIC SAFETY RULES FOR GENERATOR SPECIFICATIONS
BATTERY CONNECTION(electric-start type)
(Fig. 1)
CONTROL CONNECTION OF REMOTE
DISTANCE (OPTION)
DESCRIPTION
ACCESSORIES
1. Exhaust fumes are poisonous. Never operate engine
indoors.
2. Fuel is highly flammable. Stop engine when Refuling
and never near naked flames.
3. No smoking when refueling.
4. Take care not to spill fuel when refueling.
5. Never operate in rain, snow or any wet weather.
6. Avoid placing flammables in the vicinity of the
engine. Keep more than 1 meter away.
7. After starting the generator, some parts of engines
and exhaust (such as muffler, pipe, cylinder head and
etc) will be very hot, do pay attention to the warnings
on the generator, don’t touch them when generator
being operated or 10 minutes after the closed.
1. Fuel tank
2. Fuel tank cap
3. Fuel gauge
4. AC Socket
5. Muffler
6. Positive connection terminal
7. Negative connection terminal
8. “AC” Switch
9. Oil tank cap
10. 3-in-1 digital meter
11. Engine switch
12. Fuel cock
13. Recoil starter
14. Air filter cover
15. Spark plug
16. Display mode change button
①. Wheel axle x 1 + Cotter pin x 2
②. Wheel x 2
③. Bush x 2 + Washer for wheels x 5
④. Foot + Nut sets x 2
⑤. Plug spanner for plug x 1
8. Never touch the generator with wet hands.
9. Do not cover the generator with a cloth. The machine
needs a free flow of air to operate.
10. Always ground (earth) the generator.
11. Do not connect the generator to commercial power
outlet.
12. Do not connect the gnerator with another generator.
13. Do not fill above fuel filter top.
14. Fuel is easily evaporated . After refuel please screw
the tank cover tightly ,please use unleaded gasoline
#93 or more .
Machine oil requirement — 4-stroke oil
Fuel requirement — unleaded petrol
Place generator on level ground, keep balance.NOTE:
WARNING!
Engine type:
Rated power:
Max. output:
Voltage:
Frequency:
Displacement:
Fuel tank capacity:
Run time per tank:
Net weight:
4-stroke, air cooled
10kW
11kW
230V
50Hz
614cc
25L
9Hrs
160 kgs
In the case that the specifications of the battery are 12V
and more than 45A.h, connect its positive lead to the
electromagnetic coil while connect its negative lead to
engine mount strew, base screw or any place capable of
grounding with the engine well.
Make sure the battery leads are connected tightly and no
corrosion. If any, eliminate it.
Throttle and choke levers are designed with holes for
optional cable accessories.
1. The diagram shows the installation method of single
strand cable and woven cable.
a) Remote-controlled choke valve and Remote-con-
trolled throttle valve. (Fig. 2, 3)
● The battery may give off explosive gas, keep sparks,
flames and cigarettes away. Charge or use it in an area
with good ventilation.
● The battery contains sulfuric acid (electrolyte). Contact
with skin or eyes may cause severe burns. Wear
protective clothing and a face shield. If electrolyte gets in
your skin, flush with water; if gets in your eyes, flush with
water for at least 15 minutes and call a physician at once.
● Electrolyte is poisonous. If swallowed, drink large
quantities of water or milk, and follow with milk of
magnesia or vegetable oil and call a physician.
● Keep out of reach of children.
CAUTION!
● Do not add tap water to the battery instead of distilled
water, or the battery life will be shortened.
● Do not add distilled water over electrolyte upper level
mark, or electrolyte will spill out to corrupt the engine
parts. If so, be sure to wash them away with water.
● Make sure not to connect the battery leads in reverse
order, or short-circuit or breaker’s cutting may occur.

9
PRE-OPERATE INSPECTION
Engine oil
STARTING THE ENGINE
Air cleaner
● Engine oil is a key factor in deciding the engine’s
performance. Do not use engine oil with additives or
2-stroke gasoline engine oil, as they haven’t enough
lubrication, which may shorten the engines service life.
● Check the engine when it on a level ground.
Recommended engine oil: SAE10W-30
As viscosity varies with regions and temperatures, so the
lubricant has to be selected in accordance with our
recommendation. (Fig. 6)
Use cleanser-free oil or two-stroke engine oil will shorten
the machine’s life.
Check steps：
1）Ensure that the engine is stops on a level ground.
2）Remove the dipstick and clean it. (Fig.7)
3）Reinsert the dipstick into the oil filler without screwing it,
and check oil height.
4）if the oil level is too low, fill the recommended oil to the
upper level mark.
5）Reinstall oil plug and dipstick.
1. Push the fuel cock to “ ON ”. (Fig.9)
2. Push the choke lever to “ CLOSE ”. (Fig.10)
3. Push the throttle to “FAST” slowly. (Fig.11)
4. Start the engine as follows:
a). Hand-operated kick-starter
Pull slightly the starting rope handle up until feeling
anti-action, and then make a rapid pull.
CAUTION!
Releasing the handle suddenly may make it hitting the
engine. Release the handle slowly conforming with its
recoiling force.
b) Electric starter
Push the engine switch to “START” and keep 5 seconds to
make it start. (Fig.13)
CAUTION!
Use the engine switch not than 5 minutes each time to
avoid damage of the engine. Try again 10 seconds later
after last attempt failures. Once engine starts, push the
engine switch to “ON”.
Dismantle the air cleaner cover, and check its filter element,
make sure it clean and intact. Otherwise clean or replace it.
(Fig. 8)
CAUTION!
1. Do not allow the engine in operation without air
cleaner, or it will speedup its abrasion.
2. Keep dust and fragment out of the air cleaner
housing.
Fuel and fuel tank
The engine must apply unleaded gasoline with an octane
number over 86.
Using unleaded gasoline will decrease the possibility of
producing carbon deposit and will prolong the engine’s
service life.
Never apply used or polluted gasoline or a mixture of
gasoline with engine oil. Make sure the fuel is free of dirt
and water.
b) Remotely –controlled throttle valve and Manually-con-
trolled choke valve (Fig. 4)
c) Manually-controlled throttle valve and Manually-con-
trolled choke valve
2. Put the levers of both the choke and throttle on the
controlled pedestal.
CAUTION!
1. Run with insufficient engine oil may severe damage the
engine.
2. Please stop the engine and check it on ground level.
CAUTION!
CAUTION!
CAUTION!
PPE devices (ear protection, gloves) should be used
before start the engine.
RUNNING THE ENGINE
1. If the engine stars when the choke knob “CLOSE”,
please push it to “ON” immediately after the engine runs
smoothly. (Fig.14)
2. Set the throttle lever in proper position to ensure the
engine runs at required velocity. (Fig.15)
Engine oil alarm
The engine oil alarm is designed to function when the
engine oil in the crankcase is insufficient. Lack of engine oil
may damage the engine. Once oil level in the crankcase is
too low, the engine oil alarm will stop the engine
automatically to make it free of damage while the engine
switch is still at “ON ”.
CAUTION!
If cannot restart the engine, check the engine oil level
first before go to other check items.
CAUTION!
This generator offers two 230-volt power outlets, each of
which could supply power up to 16A/3680W, please pay
attention to your appliance or tool power before usage.
NOTE: The generator shall only be loaded up to the rated
power under the rated standard ambient condition , if the
condition do not conform the refrence standard condition or
cooling of the engine or alterator is impaired ,it is necessary
to reduce the power of generator.
Below is the refrence standard condition:
a) Ambient air temperature: 25℃
b) Ambient air pressure: 100 kpa
c) Relative humidity: 30%

10
3-IN-1 DIGITAL METER USING INSTRUCTION
MAINTENANCE
1. After the generator started, the meter indicates voltage.
(Fig. 29)
2. Press the display mode change button (16) once, the
meter indicates frequency .(Fig.30)
3. Press the display mode change button (16) again , the
meter indicates accumulated running time. (Fig.31 )
4. Press the display mode change button (16) once again,
the meter indicates current running time as HH:MM. (Fig.32)
STOP
In an emergency, push the engine switch to “OFF” to stall
the engine. Normally, stop it in the following steps:
1. Push the throttle lever to (SLOW) slowly. (Fig. 16)
2. Push the engine switch to “ OFF ”. (Fig. 17)
3. Set the fuel cock to “ OFF ”. (Fig. 18)
CAUTION!
Never sudden stopping at high speed with heavy load
is, otherwise it will damage the engine.
EXHAUST CONTROL SYSTEM
When the engine running, carbon monoxide, oxide of
nitrogen and hydrocarbon will produce, and in certain
conditions, oxide of nitrogen and hydrocarbon will react
chemically each other to make smoke while carbon
monoxide is toxic, so exhaust control of them is very
important. The company decreases the exhaust emissions
by introducing poor-fuel carburetors and other devices into
the engine to solve the problem.
To meet the exhaust with in the standard exhaust emission,
pay attention to the following:
1. Maintenance
Maintain the engine periodically in accordance with the
maintenance schedule in the manual. The maintenance
schedule is made out on the base of normal use in normal
conditions, if using under heavy load, dusty or wet
circumstances or in high temperature, service of the engine
should be done more often.
2. Replacement of parts
We recommend that you should choose the parts which are
manufactured by our company or equivalent to these in
quality as replacement ones. Replacement without so high
quality as the original may impair the exhaust control
system in effectiveness.
3. Modifying
Modifying the exhaust control system may make actual
exhaust emissions exceeding statutory limit values. Illegal
modification as such:
1）Dismantle or modify any part of air intake or exhaust
system.
2）Modify or take off speed – adjusting connection device
or speed adjustment device to result in the engines running
beyond the set parameters。
4. Problems affecting exhaust emissions
1) Starting or stopping difficult.
2) Unstable idling.
3) Give off back smoke or consume too much fuel.
4) Under the condition of load, poor ignition sparks or
sparks returned
5) Ignite too early.
Once you find any of above problem, contact your dealer
for help.
Maintenance schedule
In order to keep the engine under the good condition, you
must take maintain and adjust for it periodly. Please use
following schedule to maintain and check.
Breaker
The breaker which protect the charging circuit of the battery
will cut off automatically in the case that short circuit or
incorrect connection of the battery poles occurs.
The green indicator in the breaker will jump out with the
circuit cutting off. After finding troubles and troubleshooting,
depress the breaker button to turn the breaker on.
Operating on highlands
On highlands, the standard mixture ratio is relatively too big
so the engine performance may be impaired while the fuel
consumption may increase, besides, too big mixture ratio
will pollute the spark plug and result in starting the engine
difficultly. This problem can be solved by amending the
carburetor technological status. If always using on
highlands with at 1800 meters above sea level, ask your
dealer for help.
However, the engine power will decrease by about 3.5%
with every 305 meters up in height.
CAUTION!
Amended engine applicable to highlands may be damaged
seriously in area below altitude of 1800 meters for
overheating, because its mixture ratio is too small for
operation in low altitude area. In the case, ask your dealer
to recover the engine to its normal technical status.
When a cord extension set is connected to the generating
set, the following should be considered:
Cross sectional
of cord (mm²）
1.0
1.5
2.5
2.5
4
4
10 ≤ 25
10
10
16
10
16
≤ 35
≤ 65
≤ 45
≤ 100
≤ 65
Maximum
current (A)
Length of
cable (m)

11
CAUTION!
1. Please stop the engine before serving.
2. In order to prevent engine from the suddenly start,
please turn off the ignite switch and put down the spark
plug cap.
CAUTION!
Use only parts from the company or equivalents in quality;
otherwise engine damage may result.
①More often than that in the schedule if in dusty
circumstances.
②Should be done by your dealer unless you are specially
trained and is well equipped with tools.
Maintenance method
1. Replacement of engine oil
Let the oil to flow out of gasoline engine when it under the
hot condition, and make sure that the flow is fast and
complete.
1) Turn off the oil filler cap (Fig.19) and drain plug (Fig.20)
to drain engine oil thoroughly. Reinstall the drain plug and
screw securely.
2) Fill the specified engine oil up to the upper level mark.
3) Reinstall the oil filler cap.
Engine oil capacity in the reduction gearbox is 0.3 liters,
engine oil capacity in the crankcase is 1.1 liters.
NOTE:
Do not throw oil containers or discarded engine oil into
rubbish boxes or onto the ground. For the sake of
environmental protection, we suggest you throw the
discarded engine oil into a closed container and bring to
local recycling station.
2．Replacement of oil-filter
1）Exhaust engine oil.
2）Use the spanner to disassembly the oil-filter to exhaust
the remained oil.
3）Clean the oil-filter housing.
4）To put a layer of clean engine oil on the “O” shaped
seal ring, then fix it on the seat of oil-filter.
5）Daub a lay of clean oil on the surface of “O” ring and
install it on air cleaner housing.
6）Oil-filter should be fixed by the tensional spanner which
followed by specified angle or torque. (Fig.21)
3. Maintenance of air cleaner
A dirty air cleaner will limit the air into the carburetor. To
keep the carburetor in good working conditions, please
Maintenance the air cleaner periodically. If operating the
engine in extremely dusty area, the job should be done
more often.
WARNING！
Never clean the foam and paper filter element with in
gasoline or low flash-point detergents, or explosion may
happen.
CAUTION！
Never run the engine without an air cleaner, or dirt and dust
may enter the engine so speed the engine’s wear.
1）Loosen the four iron hinges, dismantle the air cleaner
cover (Fig.22), and check carefully if the two filter element
are damaged, if the are, please change a new.
2）If you want to use them again, please clean the filter
element.
Foam filter element:
clean it with home detergents and warm water (or
non-flammable or high flash-point cleansing solvents) and
dry up, then soak in clean engine oil until saturated.
Squeeze out excess oil, otherwise, the engine will
discharge smoke in starting stage.
Paper filter element:
knock it on a solid ground to get rid of accumulated dust or
blow out dust from inside to outside with highpressure air
flow (not more than 30 psi). Never clean with a brush, as
brushing may force the dust into the core fiber. If the core is
extremely filthy, replace with a new one.
Each
time
First
month or
20 hrs
Each
season or
50 hrs
Every 6
month or
100 hrs
Each year or
300 hrs
Engine oil
Oil level check
√
Replace
√
√
Air cleaner
Check
√
Clean
√①
Replace
√
Spark plug
Clean, adjust
√
Replace
√
Spark eliminator
Clean
√
Idling
Check-adjust
√②
Valve clearance
Check-adjust
√②
Oil-filter
Replace
√②或 200 hrs
fuel filter
Clean
√②
Fuel supply line
Check
Every two years (do a replacement if necessary)
Frequency
Item

12
3）Clean the dust in the air cleaner cover avoid it enter the
air-intake of the carburetor.
4）Reinstall the filter element and air cleaner housing and
fix the iron hinges.
4．The maintenance of spark plug
Spark plug type:：BPR6ES（NGK）or NHSP LD F7RTC
CAUTION！
Never use the spark plug with unusual heat range.
Proper spark plug clearance ensures the engine’s normal
running under no deposit around the spark plug.
1）Remove the spark plug cap，Dismantle the spark plug
with a spark plug wrench.（Fig. 23）
WARNING!
If the engine operates all the time, muffler will be very hot,
so please don’t touch the muffler.
2）Check spark plug carefully, if there is distinct corrosion,
or crack or cast in the insulator, this spark plug should be
rejected. If this spark plug will be used again, use steel
brush to clean it.
3）Measure the spark plug clearance with a feeler, The
clearance should be 0.7~0.8mm. If adjustment is
necessary, bend
the side electrode carefully.（Fig.24）。
4）Please check if the spark plug mat is in good condition,
screw it by hand.
5）When the spark plug is in place, revolve it by spark plug
wrench, and impact gasket (Fig. 25）.
CAUTION！
If a new spark plug is used, twist 1/2 more turns after
impacting the gasket,
If reinstall the original one, just twist 1/8-1/4 more turns.
CAUTION！
The spark plug must be tightened securely, or it may
become very hot to damage the engine.
Use the recommended spark plug or the equivalent.
Incorrect heat range of the spark plug may damage the
engine.
5. Spark eliminator (option)
The spark eliminator should be serviced at least once every
100 hour’s operation so as to keep it in a sound condition.
WARNING!
The muffler is very hot during running the engine and even
a long time after stopping. Never touch it, or you may get
burned. Service after the engine cools down.
1）Screw off the special screw from muffler and remover
the sparkle suppressor. (Fig.26)
2）Clear away carbon deposit from the spark eliminator
mesh with a brush. (Fig.26)
CAUTION！
Be careful and do not damage of the spark eliminator
mesh.
NOTE:
Sparkle eliminator can never be damaged, otherwise
please use a new one.
3）Install sparkle eliminator and muffler in term of the order
of disassembly.
6. Change the fuse
When the fuse is fusing, it means the turnoff of circuitry or
over loading. Please contact with the dealer about repair.
Rated current：25A
1．Screw off M6 special bolt from the cover of switch box
and remove the cover.(Fig.27)
2．Pull out broken fuse from pedestal by hand and the
insert new fuse.
NOTE:
Don’t use the fuse different form rate specification. Or
it will make the circuitry seriously mangled or cause a
fire.
Before checking or changing a fuse, sever ignition switch
and pull out the key in order to prevent short circuit.
TRANSPORT, STORAGE AND REMOVAL
FROM STORAGE
Transport
Transport with the fuel cock turned off. Transport or store
the engine when it is cool so as to avoid getting burns or
fire.
CAUTION:
Do not incline the engine so as to avoid fuel’s spill. Spilled
fuel or fuel vapor may ignite to cause fire.
Storage
If the engine is not use for a long time, be sure to store it
properly.
1. Make sure the storage area is dry and free of dust.
2. When using it again, please maintain it as following.

13
STORAGE TIME In order to avoid hard starting, maintain procedure suggestion
Non
Drain out original fuel of the fuel tank and refuel
Drain out original fuel of the fuel tank and refuel;
Drain out fuel in the carburetor①; Empty the deposit cup②
Drain out original fuel of the fuel tank and refuel;
Drain out fuel in the carburetor①; Empty the deposit cup②
Move the engine from the storage place, fill it with fuel, then start up it.
Within one month
One ~ two months
Two month ~one year Drain
Above one year
①Screw off the drain plug(Fig.28) and drain out fuel in the carburetor. Please drain the fuel to profitable container,
screw down the drain bolt.
②Turn off the engine switch first, disconnect the deposit cup and empty it, Reinstall the deposit cup and screw
down.
WARNING!
Fuel is extremely flammable and explosive under certain
conditions. Keep cigarette, open flames and sparks away
from operating site.
3. Replace engine oil.
4. Disconnect the spark plug. Fill about a spoon of fresh
engine oil from the spark plug mount hole onto the
cylinder. Crank the engine up to distribute engine oil
evenly. Reinstall the spark plug.
5. Electric start type: disconnect the battery and store in dry
and cool area. Charge one time every month.
6. Cover the engine to keep dust away.

14
NOTE
