Ryobi RY43200 User manual

OPERATOR’S MANUAL
MANUEL D’UTILISATION
MANUAL DEL OPERADOR
8 in. ELECTRIC LOPPER
ÉBRANCHEUR ÉLECTRIQUE
DE 203,2 mm (8 po)
TIJERAS DE PODAR ELÉCTRICAS
DE 203,2 mm (8 pulg.)
RY43200
ALL VERSIONS
TOUTES LES VERSIONS
TODAS LAS VERSIONES
Cette ébrancheur électrique a été conçu et fabriqué conformément
à nos strictes normes de fiabilité, simplicité d’emploi et sécurité
d’utilisation. Correctement entretenu, cet outil vous donnera des
années de fonctionnement robuste et sans problème.
AVERTISSEMENT : Pour réduire les risques de
blessures, l’utilisateur doit lire et veiller à bien comprendre le
manuel d’utilisation avant d’employer ce produit.
Votre tijeras de podar eléctricas ha sido diseñado y fabricado de
conformidad con nuestras estrictas normas para brindar fiabilidad,
facilidad de uso y seguridad para el operador. Con el debido cuidado,
le brindará muchos años de sólido funcionamiento y sin problemas.
ADVERTENCIA: Para reducir el riesgo de lesiones,
el usuario debe leer y comprender el manual del operador antes
de usar este producto.
CONSERVER CE MANUEL POUR
FUTURE RÉFÉRENCE GUARDE ESTE MANUAL PARA
FUTURAS CONSULTAS
SAVE THIS MANUAL FOR FUTURE REFERENCE
Your electric lopper has been engineered and manufactured to our high standard for dependability, ease of operation, and
operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING: To reduce the risk of injury, the user must read and understand the operator’s manual before using
this product.

Page 2
Introduction .......................................................................................................................................2
Introduction / Introducción
Important Safety Instructions........................................................................................................ 3-4
Instructions importantes concernant la sécurité / Instrucciones de seguridad importantes
Specific Safety Rules .................................................................................................................... 4-5
Règles de sécurité particulières / Reglas de seguridad específicas
Symbols ........................................................................................................................................ 6-7
Symboles / Símbolos
Electrical............................................................................................................................................8
Caractéristiques électriques / Aspectos eléctricos

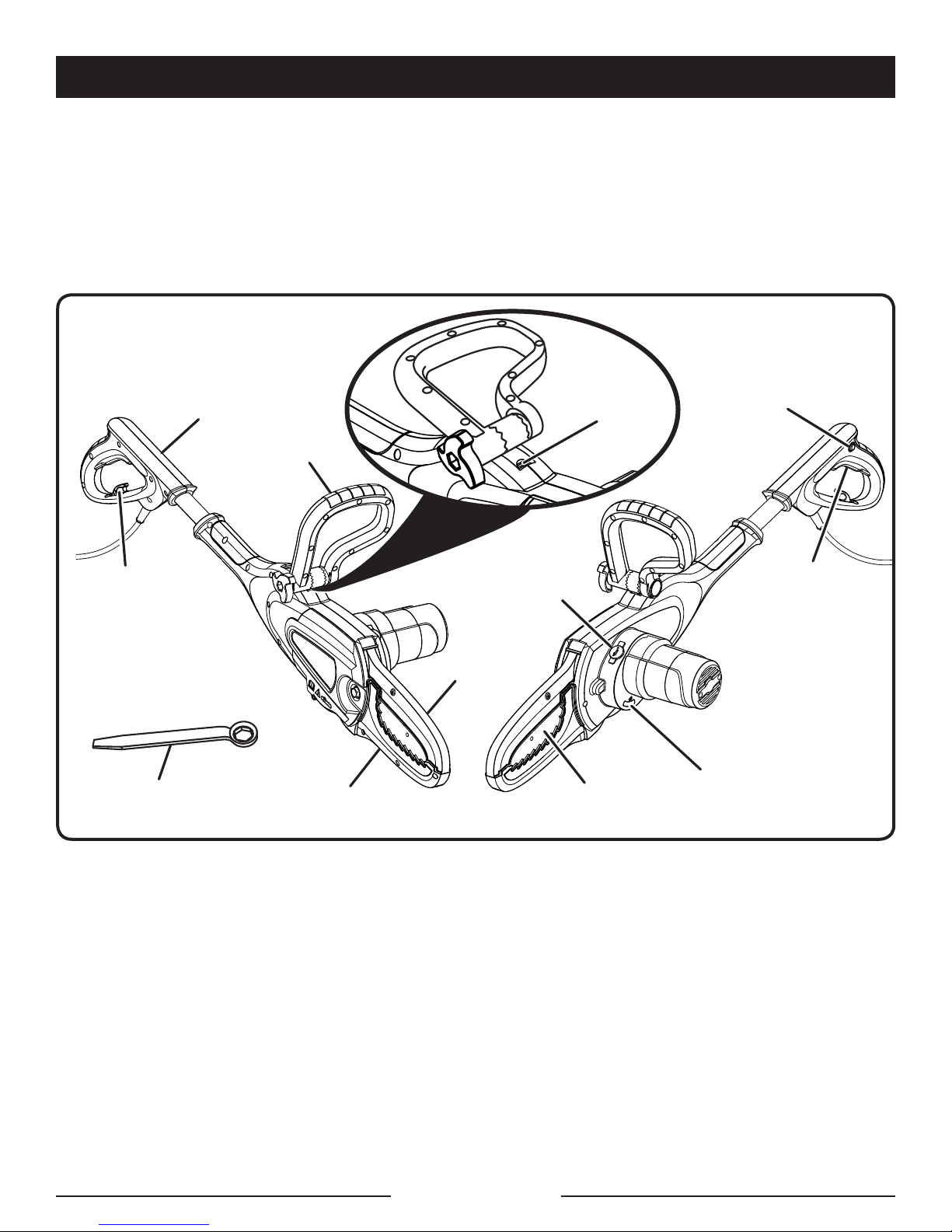

Features....................................................................................................................................... 9-10
Caractéristiques / Características
Assembly................................................................................................................................... 10-11
Assemblage / Armado
Operation................................................................................................................................... 12-15
Utilisation / Funcionamiento
Maintenance.............................................................................................................................. 16-22
Entretien / Mantenimiento
Troubleshooting...............................................................................................................................22
Dépannage / Corrección de problemas
Warranty ..........................................................................................................................................23
Garantie / Garantía
Parts Ordering and Service............................................................................................... Back Page
Commande de pièces et réparation / Pedidos de piezas y servicio ......................................................... Page arrière / Pág. posterior
TABLE OF CONTENTS
TABLE DES MATIÈRES / ÍNDICE DE CONTENIDO
INTRODUCTION
INTRODUCTION / INTRODUCCIÓN
This product has many features for making its use more pleasant and enjoyable. Safety, performance,
and dependability have been given top priority in the design of this product making it easy to maintain
and operate.
* * *
Ce produit offre de nombreuses fonctions destinées à rendre son utilisation plus plaisante et satisfaisante.
Lors de la conception de ce produit, l’accent a été mis sur la sécurité, les performances et la fiabilité,
afin d’en faire un outil facile à utiliser et à entretenir.
* * *
Este producto ofrece numerosas características para hacer más agradable y placentero su uso. En el
diseño de este producto se ha conferido prioridad a la seguridad, el desempeño y la fiabilidad, por lo
cual se facilita su manejo y mantenimiento.

Page 3 — English
WARNING:
Read and understand all instructions. Failure
to follow all instructions listed below may result
in electric shock, fire, and/or serious personal
injury.
READ ALL INSTRUCTIONS
For safe operation, read and understand all
instructions before using this product. Be
familiar with all controls and proper use of the
machine. Follow all safety instructions. Failure
to follow all safety instructions listed below, can
result in serious personal injury.
Keep Children Away — All visitors should be
kept at a distance from work area.
Do not allow children or untrained individuals
to use this unit.
Thoroughly inspect the area where the equipment
is to be used and remove all foreign objects.
Use Safety Glasses — Always use face or dust
mask if operation is dusty.
Always wear eye protection with side shields
marked to comply with ANSI Z87.1, along with
head protection.
Dress properly. Wear heavy long pants, long
sleeves, boots, and gloves. Do not wear loose
fitting clothing, short pants, sandals, or go
barefoot. Do not wear jewelry of any kind. They
can be caught in moving parts.
Secure long hair above shoulder level to prevent
entanglement in moving parts.
Keep all bystanders, children, and pets at least
50 ft. away.
Stay Alert — Watch what you are doing; use
common sense. Do not operate this unit when
you are tired, ill, or under the influence of
alcohol, drugs, or medication.
Do not operate in poor lighting.
Keep firm footing and balance. Do not overreach.
Overreaching can result in loss of balance or
exposure to hot surfaces.
Keep all parts of your body away from any
moving part.
Inspectthe unitbeforeeach useforloose fasteners,
etc. Replace any damaged parts before use.
When not in use, product should be stored
indoors in a dry, locked up place—out of the
reach of children.
Use only original manufacturer’s replacement
parts. Failure to do so may cause poor
performance, possible injury, and will void your
warranty.
Do not, under any circumstance, use any
attachment or accessory on this product which
was not provided with the product or identified
as appropriate for use with this product in the
operator’s manual.
Avoid dangerous environments. Do not use the
product in damp or wet locations. Do not use
in rain.
Use the right appliance. Do not use the product
for any job except that for which it is intended.
Do not operate from steps, a ladder, rooftop,
tree, or unstable support. Stable footing on
a solid surface enables better control of the
product in unexpected situations.
Do not force the product. It will do the job better
and with less likelihood of a risk of injury at the
rate for which it was designed.
DANGER — Keep hands away from cutting
area. Keep both hands on handles when power
is on.
CAUTION — Blade coasts after being turned off.
To reduce the risk of electric shock, this product
has a polarized plug (one blade is wider than
the other) and will require the use of a polarized
extension cord. The plug will fit into a polarized
extension cord only one way. If the plug does
not fit fully into the extension cord, reverse the
plug. If the plug still does not fit, obtain a correct
polarized extension cord. A polarized extension
cord will require the use of a polarized wall
outlet. This plug will fit into the polarized wall
outlet only one way. If the plug does not fit fully
into the wall outlet, reverse the plug. If the plug
still does not fit, contact a qualified electrician
to install the proper wall outlet. Do not change
the equipment plug, extension cord receptacle,
or extension cord plug in any way.
IMPORTANT SAFETY INSTRUCTIONS

Page 4 — English
Do not abuse the cord. Never use the cord to
carry the product or to disconnect the plug from
an outlet. Keep cord away from heat, oil, sharp
edges, or moving parts. Replace damaged
cords immediately. Damaged cords increase
the risk of electric shock.

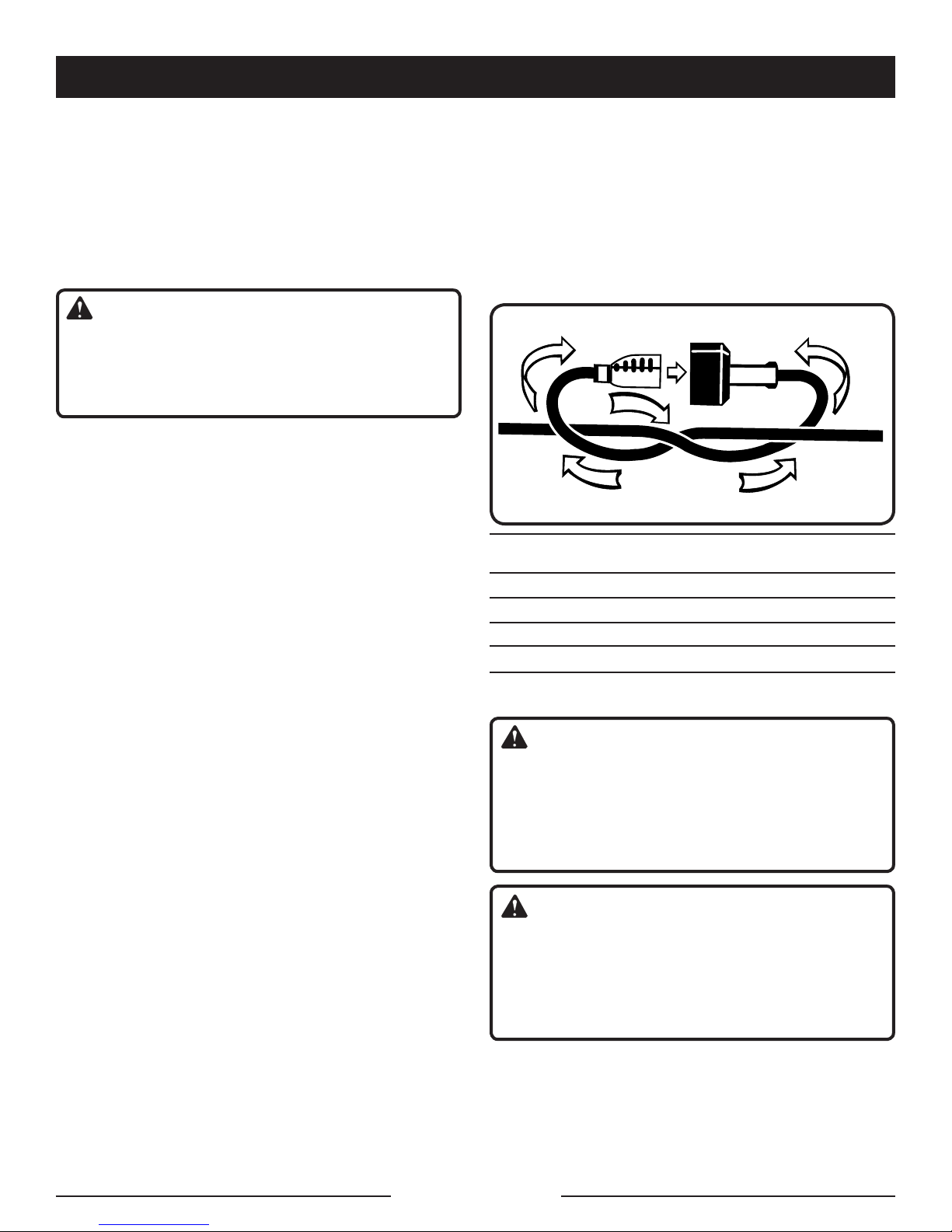

Make sure your extension cord is in good
condition. When using an extension cord, be
sure to use one heavy enough to carry the
current your product will draw. A wire gauge
size (A.W.G.) of at least 16 is recommended for
an extension cord 50 feet or less in length. If in
doubt, use the next heavier gauge. The smaller
the gauge number, the heavier the cord. An
undersized cord will cause a drop in line voltage
resulting in loss of power and overheating.
 WARNING: Use outdoor extension cords marked
SW-A, SOW-A, STW-A, STOW-A, SJW-A,
SJTW-A, or SJTOW-A. These cords are rated for
outdoor use and reduce the risk of electric shock.
Ground Fault Circuit Interrupter (GFCI) protection
should be provided on the circuit(s) or outlet(s)
to be used for the product. Receptacles are
available having built-in GFCI protection and
may be used for this measure of safety.
DANGER — Keep hands away from blade.
Contact with blade will result in serious personal
injury.
Kickback is a dangerous reaction that can lead
to serious injury. Kickback may occur when the
moving chain contacts an object at the upper
portion of the tip of the guide bar or when the
wood closes in and pinches the chain in the
cut. Contact at the upper portion of the tip of
the guide bar can cause the chain to dig into
the object and stop the chain for an instant.
The result is a lightning-fast, reverse reaction
which kicks the guide bar up and back toward
the operator. If the chain is pinched along the
top of the guide bar, the guide bar can be driven
rapidly back toward the operator, which can
cause loss of control and may result in serious
injury. Do not rely exclusively upon the safety
devices built into the product.
With a basic understanding of kickback, you
can reduce or eliminate the element of surprise.
Sudden surprise contributes to accidents.
Use lopper for cutting wood only. Do not use
for cutting non-wood items.
Make sure that the area in which you are cutting
is free from obstructions. Do not let the nose of
the guide bar contact a log, branch, fence, or
any other obstruction while you are operating
the unit. Have a planned retreat path.
Do not grasp the exposed cutting blades or
cutting edges when picking up or holding the
product.
Cut only when visibility and light are adequate
for you to see clearly.
To protect yourself from electrocution, do not
operate within 50 feet of overhead electrical
lines.
Before starting the motor, make sure the chain
is not contacting any object.
Do not operate the lopper if either the upper or
lower guards are broken, cracked, missing, or
damaged in any way.
To protect yourself from falling branches, do not
stand directly under the branch or limb being
cut. This unit should not be held at an angle over
60° from ground level.
Keep unit clean of clippings and other materials.
They may become lodged between the jaw and
blade.
Turn off the motor and make sure cutting
attachment has stopped before setting unit
down.

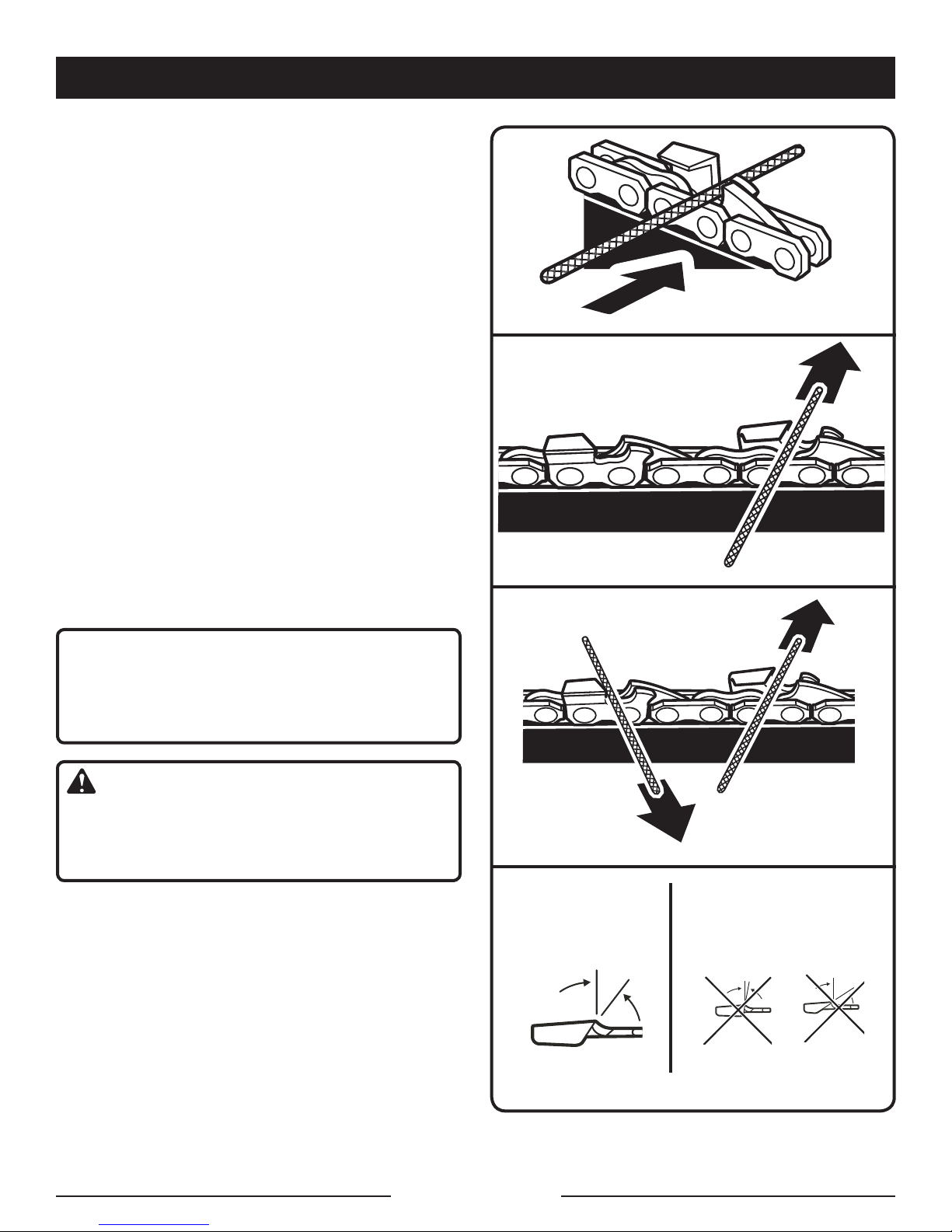

Follow the sharpening and maintenance
instructions for the saw chain.
Use only the replacement guide bars and low
kickback chains specified for the unit.
IMPORTANT SAFETY INSTRUCTIONS
SPECIFIC SAFETY RULES

Page 5 — English
SPECIFIC SAFETY RULES

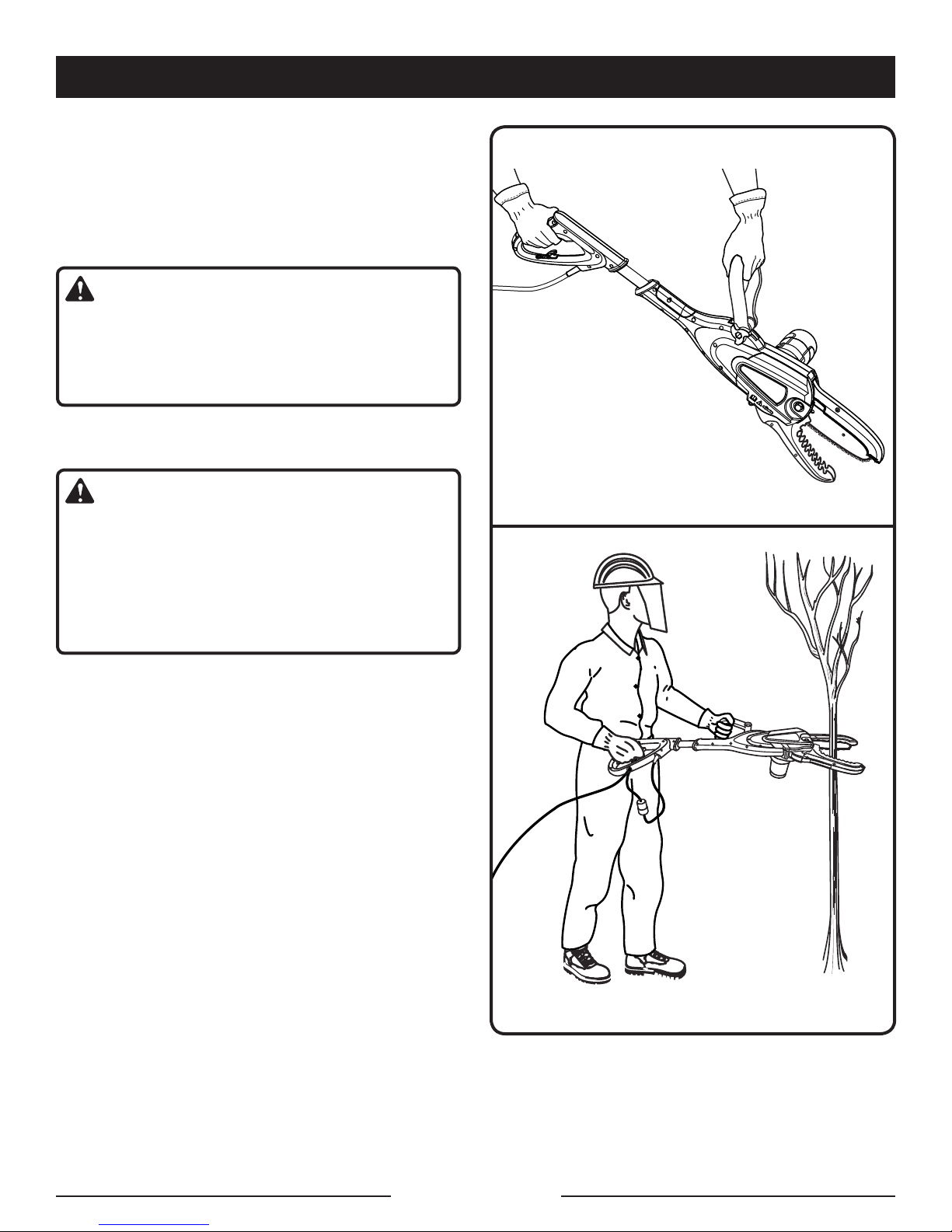

Do not operate the saw with one hand! Serious
injury to the operator, helpers, bystanders, or
any combination of these persons may results
from one hand operation. This saw is intended
for two-handed use.
Use extreme caution when cutting small-sized
brush and saplings because slender material
may catch the saw chain and be whipped
toward you or pull you off balance.
When cutting a limb that is under tension, be
alert for spring back so that you will not be struck
when the tension in the wood fibers is released.
To avoid accidental starting, never carry plugged
in product with finger on switch. Be sure switch
is off when plugging in.
Maintain product with care. Keep cutting edge
sharp and clean for best performance and to
reduce the risk of injury. Follow instructions
for lubricating and changing accessories.
Inspect cord periodically and, if damaged, have
it repaired by an authorized service facility.
Inspect extension cords periodically and replace
if damaged. Keep handles dry, clean, and free
from oil and grease.
Check damaged parts. Before further use of the
product, a guard or other part that is damaged
should be carefully checked to determine that
it will operate properly and perform its intended
function. Check for alignment of moving parts,
binding of moving parts, breakage of parts,
mounting, and any other condition that may
affect its operation. A guard or other part that
is damaged should be properly repaired or
replaced by an authorized service center unless
indicated elsewhere in this manual.
Disconnect the plug from power source when
not in use, before servicing, and when changing
accessories.
Service on the product must be performed
by qualified repair personnel only. Service
or maintenance performed by unqualified
personnel could result in injury to the user or
damage to the product.
If the power supply cord is damaged, it must
be replaced only by the manufacturer or by an
authorized service center to avoid risk.
Save these instructions. Refer to them frequently
and use them to instruct others who may use
this product. If you loan someone this product,
loan them these instructions also to prevent
misuse of the product and possible injury.
SPECIFIC SAFETY RULES

Page 6 — English
SYMBOLS
The following signal words and meanings are intended to explain the levels of risk associated with
this product.
SYMBOL SIGNAL MEANING
DANGER: Indicates an imminently hazardous situation, which, if not avoided,
will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation, which, if not avoided,
could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation, which, if not avoided,
may result in minor or moderate injury.
NOTICE:(Without Safety Alert Symbol) Indicates important information not
related to an injury hazard, such as a situation that may result in
property damage.
Some of the following symbols may be used on this product. Please study them and learn their
meaning. Proper interpretation of these symbols will allow you to operate the product better and safer.
SYMBOL NAME EXPLANATION
Safety Alert Symbol Indicates a potential personal injury hazard.
Read Operator’s Manual
To reduce the risk of injury, user must read and
understand operator’s manual before using this
product.
Wear Eye and Head
Protection
Always wear eye protection with side shields
marked to comply with ANSI Z87.1, along with
head protection.
Keep Tool Away from Electri-
cal Lines/Keep Bystanders
Away
DANGER! Risk of electrocution! Keep tool 50 feet
away from electrical lines. Keep all bystanders at
least 50 ft. away.
Wet Conditions Alert Do not expose to rain or use in damp locations.
Bar Nose Contact Avoid bar nose contact.
No Hands Symbol Failure to keep your hands away from the blade will
result in serious personal injury.
Operate With Two Hands Hold and operate the lopper properly with both
hands.

Page 7 — English
Some of the following symbols may be used on this product. Please study them and learn their meaning.
Proper interpretation of these symbols will allow you to operate the product better and safer.
SYMBOL NAME EXPLANATION
Gloves Wear non-slip, heavy-duty protective gloves when
handling the lopper and the blade.
Safety Footwear Wear non-slip safety footwear when using this
equipment.
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
hrs Hours Time
n
o
No Load Speed Rotational speed, at no load
Class II Construction Double-insulated construction
.../min Per Minute Revolutions, strokes, surface speed, orbits etc.,
per minute
SYMBOLS

Page 8 — English
A proper extension cord is available at an authorized
service center.
It is possible to tie the extension cord and power cord
in a knot to prevent them from becoming disconnected
during use. Make the knot as shown in figure 1, then
connect the plug end of the power cord into the recep-
tacle end of the extension cord. This method can also
be used to tie two extension cords together.
DOUBLE INSULATION
Double insulation is a concept in safety in electric
power tools, which eliminates the need for the usual
three-wire grounded power cord. All exposed metal
parts are isolated from the internal metal motor com-
ponents with protecting insulation. Double insulated
tools do not need to be grounded.
WARNING:
The double insulated system is intended to protect
the user from shock resulting from a break in the
tool’s internal insulation. Observe all normal safety
precautions to avoid electrical shock.
NOTE: Servicing of a product with double insulation
requires extreme care and knowledge of the system
and should be performed only by a qualified service
technician. For service, we suggest you return the
product to your nearest authorized service center for
repair. Always use original factory replacement parts
when servicing.
ELECTRICAL CONNECTION
This product has a precision-built electric motor. It
should be connected to a power supply that is 120
volts, AC only (normal household current), 60 Hz.
Do not operate this product on direct current (DC). A
substantial voltage drop will cause a loss of power
and the motor will overheat. If the product does not
operate when plugged into an outlet, double-check
the power supply.
EXTENSION CORDS
See Figure 1.
When using a power tool at a considerable distance
from a power source, be sure to use an extension cord
that has the capacity to handle the current the product
will draw. An undersized cord will cause a drop in line
voltage, resulting in overheating and loss of power. Use
the chart to determine the minimum wire size required
in an extension cord. Only round jacketed cords listed
by Underwriter’s Laboratories (UL) should be used.
When working outdoors with a product, use an
extension cord that is designed for outside use. This
type of cord is designated with “W-A” or “W” on the
cord’s jacket.
Before using any extension cord, inspect it for loose or
exposed wires and cut or worn insulation.
**Ampere rating (on product data plate)
0-2.0 2.1-3.4 3.5-5.0 5.1-7.0 7.1-12.0 12.1-16.0
Cord Length Wire Size (A.W.G.)
25' 16 16 16 16 14 14
50' 16 16 16 14 14 12
100' 16 16 14 12 10 —
**Used on 12 gauge - 20 amp circuit.
NOTE: AWG = American Wire Gauge
WARNING:
Keep the extension cord clear of the working area.
Position the cord so that it will not get caught on
lumber, tools, or other obstructions while you are
working with a power tool. Failure to do so can result
in serious personal injury.
WARNING:
Check extension cords before each use. If dam-
aged replace immediately. Never use the product
with a damaged cord since touching the damaged
area could cause electrical shock resulting in seri-
ous injury.
Fig. 1
ELECTRICAL

Page 9 — English
PRODUCT SPECIFICATIONS
Chain Lubricant Tank Capacity ....................2 oz.
Bar Length.....................................................8 in.
Cutting Capacity............................................4 in.
Chain Pitch.................................................3/8 in.
Chain Gauge............................................ .043 in.
Fig. 2
LOCK-OUT
BUTTON
SWITCH
TRIGGER
OIL CAP
UPPER JAW
FEATURES
LOWER JAW SAW
BLADE
FRONT
HANDLE
KNOW YOUR ELECTRIC LOPPER
See Figure 2.
The safe use of this product requires an under-
standing of the information on the product and
in this operator’s manual as well as a knowledge
of the project you are attempting. Before use of
this product, familiarize yourself with all operating
features and safety rules.
CORD RETAINER
A convenient cord retainer helps keep the extension
cord connection secure during tool operation.
FRONT HANDLE
The front handle is used to activate the lopper
jaws. The handle assembly can also be adjusted
for ease of operation and to help prevent loss of
control.
LOCK-OUT BUTTON
To help prevent accidental starting, the lock-out
button must be depressed along with the switch
trigger to activate the tool.
QUICK VIEW
OIL INDICATOR
Chain Type... Low Profile Skip Tooth Narrow Kerf
Drive Sprocket..........................................6-tooth
Input ....................120 V, AC only, 60 Hz, 5 Amps
Weight ......................................................8.5 lbs.
CORD
RETAINER
REAR
HANDLE
COMBINATION
WRENCH
LOWER JAW
LOCK BUTTON

Page 10 — English
UNPACKING
This product requires assembly.
Carefully remove the product and any acces-
sories from the box. Make sure that all items
listed in the packing list are included.
WARNING:
Do not use this product if any parts in the
Packing List are already assembled to your
product when you unpack it. Parts on this
list are not assembled to the product by the
manufacturer and require customer installation.
Use of a product that may have been improperly
assembled could result in serious personal
injury.
Inspect the product carefully to make sure no
breakage or damage occurred during shipping.
Do not discard the packing material until you
have carefully inspected and satisfactorily
operated the product.
If any parts are damaged or missing, please call
1-800-860-4050 for assistance.
PACKING LIST
Electric Lopper
Front Handle
Combination Wrench
Operator’s Manual
WARNING:
If any parts are damaged or missing, do not
operate this product until the parts are replaced.
Use of this product with damaged or missing
parts could result in serious personal injury.
WARNING:
Do not attempt to modify this product or create
accessories not recommended for use with this
product. Any such alteration or modification is
misuse and could result in a hazardous condition
leading to possible serious personal injury.
WARNING:
Do not connect to power supply until assembly
is complete. Failure to comply could result
in accidental starting and possible serious
personal injury.
ASSEMBLY
FEATURES
LOWER JAW LOCK BUTTON
The lower jaw lock button allows the lower jaw to
be locked open to perform maintenance on the
bar and chain. This button is exposed when the
front handle is pulled all the way back. The motor
for the lopper will be disabled when this button is
engaged.
QUICK-VIEW OIL INDICATOR
Semi-transparent bar lube reservoir that allows
user to see when to add lubricant.

Page 11 — English
ASSEMBLY
INSTALLING FRONT HANDLE
See Figures 3 - 4.
Install the front handle so that the short side of the
handle is on the same side as the motor.
Disconnect the lopper from the power supply.
Rotate the front handle knob counterclockwise
to remove. Set knob and washer aside.
Remove the bolt cover and bolt.
With the jaws of the lopper closed, install the
front handle in the vertical upright position.
WARNING:
Never position the front handle so that it is for-
ward of the vertical upright position. Positioning
the handle in this forward area could cause the
operator to lose control of the lopper and result
in serious personal injury.
Reinstall the bolt and bolt cover.
Reinstall the washer and front handle knob;
rotate knob clockwise to tighten securely.
Fig. 3
FRONT
HANDLE
KNOB
FRONT
HANDLE
BOLT
WASHER
DO NOT POSITION HANDLE FORWARD
OF THE VERTICAL UPRIGHT POSITION
Fig. 4
SHORT
SIDE
MOTOR
BOLT
COVER

Page 12 — English
CHAIN
LUBRICANT
Fig. 5
OIL
RESERVOIR
CAP
QUICK VIEW
OIL INDICATOR
DANGER:
Never cut near power lines, electric cords, or
other electric sources. If bar and chain jams
on any electrical cord or line, DO NOT TOUCH
THE BAR OR CHAIN! THEY CAN BECOME
ELECTRICALLY LIVE AND VERY DANGEROUS.
Continue to hold the lopper by the insulated rear
handle or lay it down and away from you in a
safe manner. Disconnect the electrical service
to the damaged line or cord before attempting
to free the bar and chain from the line or cord.
Contact with the bar, chain, other conductive
parts of the lopper, or live electric cords or lines
will result in death by electrocution, electric
shock, or serious personal injury.
WARNING:
Do not operate the lopper if the upper or lower
guard is broken, cracked, missing, or damaged
in any way. Operating the lopper with missing
or damaged guards could result in accidental
contact with the moving chain and cause seri-
ous personal injury.
WARNING:
Do not allow familiarity with this product to make
you careless. Remember that a careless fraction
of a second is sufficient to inflict serious injury.
WARNING:
Always wear eye protection with side shields
marked to comply with ANSI Z87.1, along with
head protection. Failure to do so could result in
objects being thrown into your eyes and other
possible serious injuries.
WARNING:
Do not use any attachments or accessories not
recommended by the manufacturer of this product.
The use of attachments or accessories not recom-
mended can result in serious personal injury.
WARNING:
Never position the front handle so that it is for-
ward of the vertical upright position. Positioning
the handle in this forward area could cause the
operator to lose control of the lopper and result
in serious personal injury.
APPLICATIONS
You may use this product for the purposes listed
below:
Limbing
Pruning

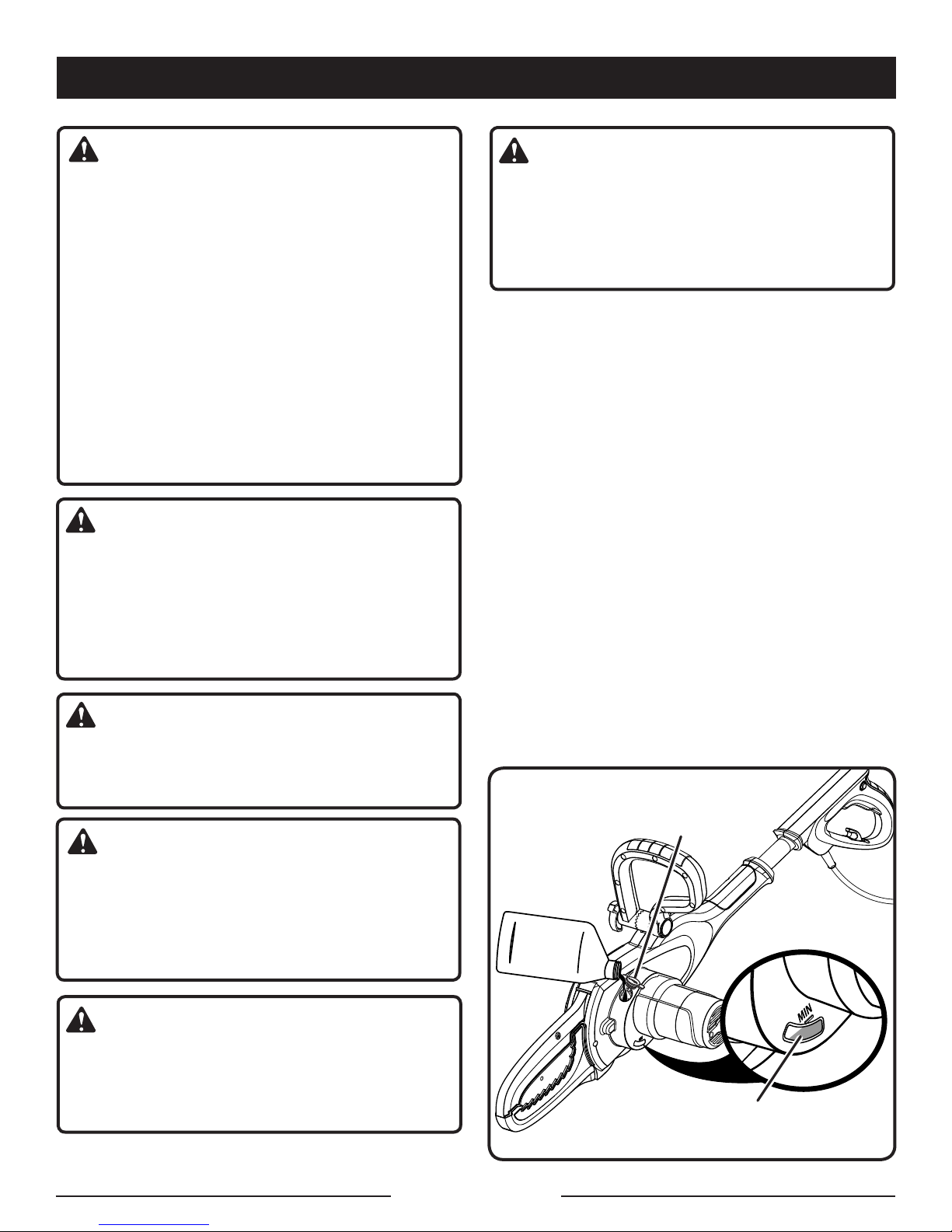

ADDING BAR AND CHAIN LUBRICANT
See Figure 5.
Use Premium Bar and Chain Lubricant. It is de-
signed for chains and chain oilers, and is formu-
lated to perform over a wide temperature range
with no dilution required.
NOTE: Lopper comes from the factory with no
bar and chain oil added. Level should also be
checked after every 20 minutes of use and refilled
as needed.
Disconnect the lopper from the power supply.
Remove oil reservoir cap.
Carefully pour the bar and chain lubricant into
the tank.
OPERATION

Page 13 — English
Wipe off excess lubricant.
Check and fill the oil tank when quick view oil
indicator is below the MIN indicator line.
Repeat as needed.
NOTE: Do not use dirty, used, or otherwise
contaminated lubricants. Damage may occur
to the bar or chain.
NOTE: It is normal for oil to seep from the saw
when not in use. To prevent seepage, empty the
oil tank after each use then run for one minute.
When storing the unit for a long period of time
(three months or longer) be sure the chain is lightly
lubricated; this will prevent rust on the chain and
bar sprocket.

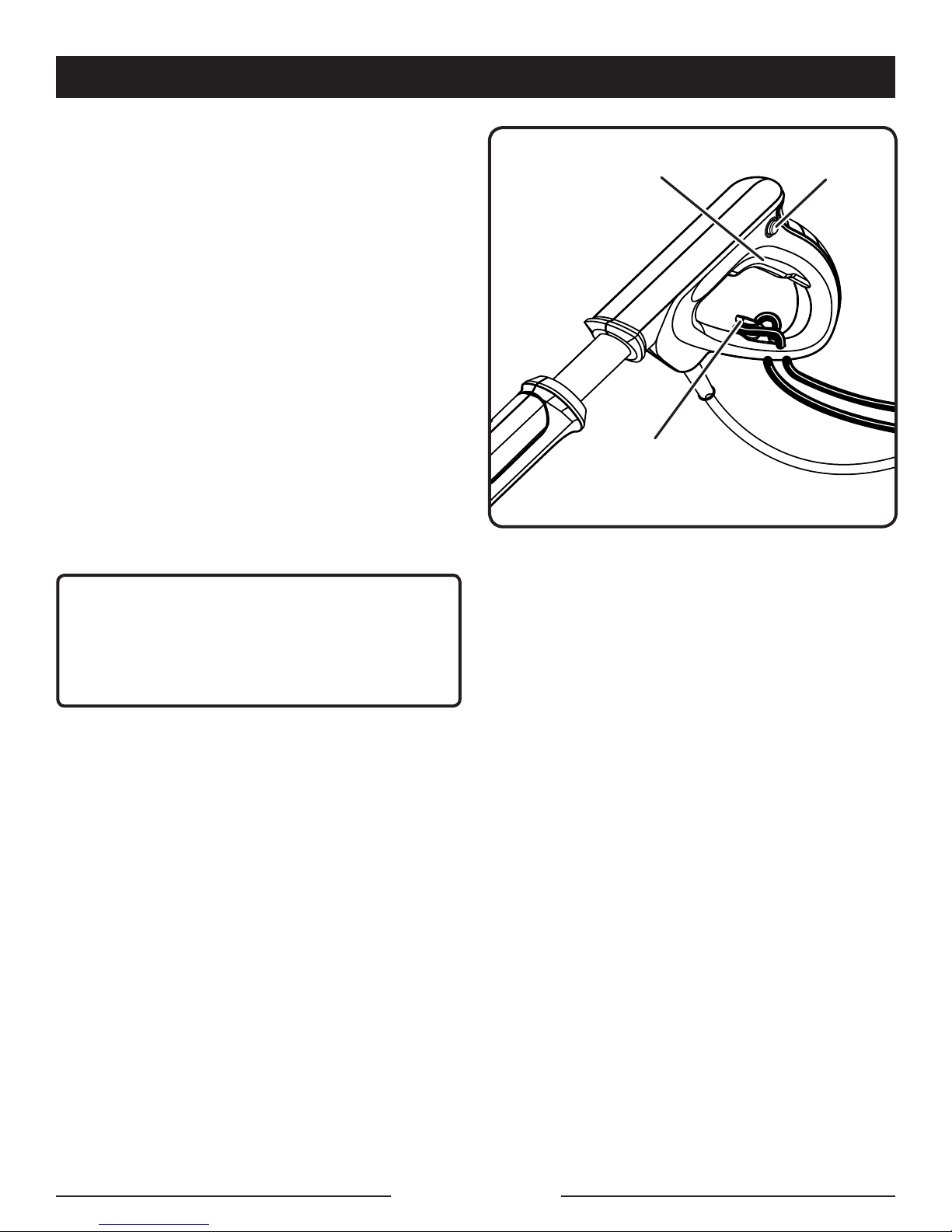

CONNECTING TO POWER SUPPLY
See Figure 6.
This product is designed with a cord retainer that
prevents the extension cord from being pulled
loose while using.
NOTICE:
Always use cord retainer to properly attach
extension cord to lopper. Failure to use cord
retainer may result in damage to lopper and/or
extension cord.
Form a loop with the end of the extension cord.
Insert loop portion of extension cord through
opening in the bottom of the rear handle and
place over cord retainer.
Slowly pull loop against cord retainer until the
slack is removed.
LOCK-OUT
BUTTON
SWITCH TRIGGER
CORD RETAINER
OPERATION
Plug product into extension cord.
NOTE: Failure to remove all excess cord slack
from extension cord retainer could result in plug
loosening from receptacle.
STARTING AND STOPPING
See Figure 6.
To start the motor:
Connect the lopper to power supply.
Use your thumb to depress the lock-out button
and fully depress the switch trigger.
To stop the motor:
Release the switch trigger.
Fig. 6

Page 14 — English
HOLDING THE LOPPER
See Figure 7.
The unit has both a front and rear handle. With the
blade directed away from you, hold the unit by both
handles and wear non-slip gloves for maximum
grip and protection.
WARNING:
Always keep both hands on the handles. Never
hold limbs with one hand and operate the lopper
with the other. Improper operation of the lopper
could result in serious injury.
CUTTING TIPS
See Figures 8 - 10.
WARNING:
If bar and chain become jammed, stop the mo-
tor, allow the chain to stop, and disconnect the
plug from the power source before attempting
to remove the obstruction. Failure to follow
these steps could result in accidental starting
of the lopper and cause serious personal injury.
This unit is designed for felling small trees no
taller than yourself and trimming small branches
and limbs up to 4 in. in diameter. For best results,
observe the following precautions.
To prevent electrocution, do not operate within
50 ft. of overhead electrical lines.
Keep bystanders and pets at least 50 ft. away.
When felling, do not attempt to fell a tree that
has a diameter larger than 4 in., or that is taller
than you are.
Plan the cut carefully. Be aware of the direction
in which the tree or branch will fall.
Branches may fall in unexpected directions. Do
not stand directly under the branch being cut.
Remove long branches in several stages.
Cut lower branches first to allow higher branch-
es more room to fall.
Fig. 8
OPERATION
Fig. 7
PROPER OPERATING POSITION

Page 15 — English
Do not cut from a ladder, rooftop, or other
unstable support; this is extremely dangerous.
Leave larger cutting operations for profession-
als.
When cutting branches that are lying on the
ground, make sure the location is clear of other
objects, electric wires, cables, etc., before cut-
ting. Also be aware of the position of your feet
before cutting items on the ground.
Make sure the tool is running at full speed before
attempting to cut.
Allow chain to cut for you; exert only light down-
ward pressure. If you force the cut, damage to
the bar, chain, or motor can result.
Release the trigger as soon as the cut is com-
pleted.
Failure to follow proper cutting procedures can
result in the bar and chain binding and becom-
ing pinched or trapped in the limb. If this should
happen:
Stop the motor and disconnect from power
supply.
If the limb can be reached from the ground,
lift the limb while holding the saw. This should
release the “pinch” and free the saw.
If the saw is still trapped, call a professional for
assistance.
OPERATION
Fig. 9
Fig. 10

Page 16 — English
WARNING:
When servicing, use only identical replacement
parts. Use of any other parts could create a
hazard or cause product damage.
WARNING:
Always wear eye protection with side shields
marked to comply with ANSI Z87.1, along with
head protection. Failure to do so could result in
objects being thrown into your eyes and other
possible serious injuries.
WARNING:
Before inspecting, cleaning or servicing the unit,
stop the motor, wait for all moving parts to stop,
and disconnect from power supply. Failure to
follow these instructions can result in serious
personal injury or property damage.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts.
Most plastics are susceptible to damage from
various types of commercial solvents and may be
damaged by their use. Use clean cloths to remove
dirt, dust, oil, grease, etc.
WARNING:
Do not at any time let brake fluids, gasoline,
petroleum-based products, penetrating oils, etc.,
come in contact with plastic parts. Chemicals can
damage, weaken, or destroy plastic, which could
result in serious personal injury.
Only the parts shown on the parts list are intended
to be repaired or replaced by the customer. All
other parts should be replaced at an Authorized
Service Center.
CHAIN TENSION
See Figures 11 - 13.
WARNING:
To avoid possible serious injury, never touch or
adjust the chain while the motor is running. The
saw chain is very sharp; always wear protec-
tive gloves when performing maintenance to
the chain.
Stop the motor and disconnect from power
supply.
Pull the front handle all the way back and de-
press the lower jaw lock button. Keep the button
depressed while releasing the handle to lock the
lower jaw in the open position.
Loosen the chain cover bolt to finger tight using
the combination wrench provided, then turn the
chain tensioning screw clockwise to tension the
chain. Refer to Replacing the Bar and Chain
for additional information.
NOTE: A cold chain is correctly tensioned when
there is no slack on the underside of the guide
bar, the chain is snug, but it can be turned by
hand without binding.
MAINTENANCE
Fig. 11
FRONT
HANDLE
LOWER
JAW LOCK
BUTTON
CHAIN
COVER
BOLT
CHAIN
TENSIONING
SCREW
LOWER
JAW

Page 17 — English

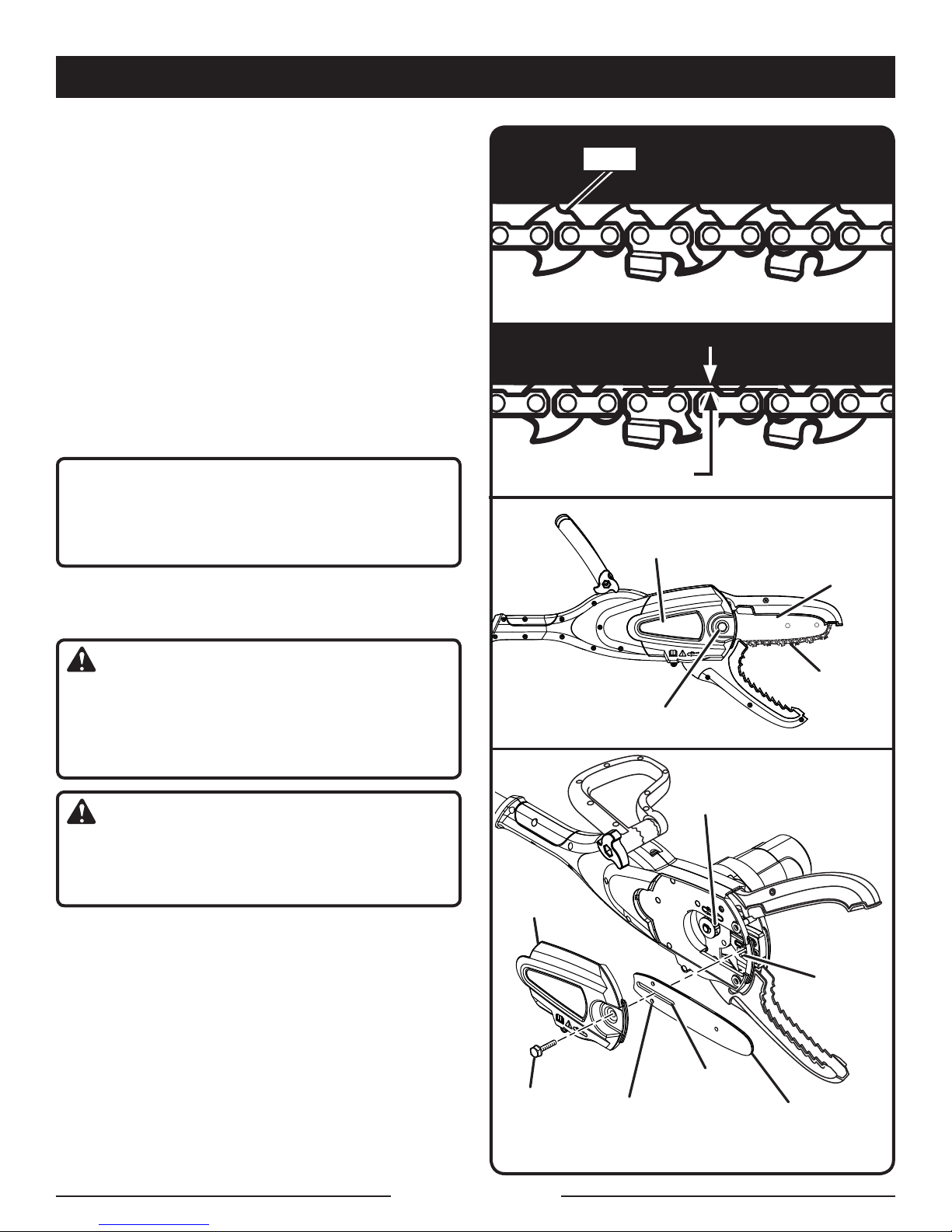

MAINTENANCE
Chain must be re-tensioned whenever the flats on
the drive links hang out of the bar groove as
shown in fig. 12.
During normal operation, the temperature of the
chain will increase. The drive links of a correctly
tensioned warm chain will hang approximately
.050 in. out of the bar groove, as shown in
fig. 13.
Retighten the chain cover bolt securely.
Return the lower jaw to the closed position by
pulling back on the front handle and allowing the
handle to move all the way forward.
NOTE: New chain tends to stretch; check chain
tension frequently and tension as required.
NOTICE:
Chain tensioned while warm, can be too tight
upon cooling. Check the “cold tension” before
next use.
REPLACING THE BAR AND CHAIN
See Figures 11 - 17.
WARNING:
To avoid possible serious injury, stop the mo-
tor and disconnect from power supply before
replacing the bar, chain, or performing any
maintenance operation.
CAUTION:
Always wear gloves when handling the bar and
chain; these components are sharp and may
contain burrs.
Pull the front handle all the way back and de-
press the lower jaw lock button. Keep the button
depressed while releasing the handle to lock the
lower jaw in the open position.
Remove the chain cover bolt using the combina-
tion wrench provided. Remove the chain cover
and set aside.
Rotate the chain tensioning screw counterclock-
wise as needed to release the chain tension.
Remove the bar and chain from the mounting
surface.
FLATS
APPROX .050 in. Fig. 13
Fig. 12
BAR
CHAIN
COVER
CHAIN COVER BOLT
CHAIN
Fig. 14
Fig. 15
CHAIN
TENSIONING
PIN
BAR STUD
SLOT
BOLT CHAIN
TENSIONING
PIN HOLE
BAR
SPROCKET
CHAIN
COVER

Page 18 — English
MAINTENANCE
Remove the old chain from the bar.
Lay out the new saw chain in a loop and
straighten any kinks. The cutters should face
in the direction of chain rotation. If they face
backwards, turn the loop over.
Place the chain drive links into the bar groove as
shown.
NOTE: Make certain of direction of chain.
Position the chain so there is a loop at the back
of the bar.
While holding the chain in position on the bar,
reinsert the bar and chain through the opening
between the jaws and place the loop around
the sprocket.
Fit the bar flush against the mounting surface
so that the bar stud is in the long slot of the bar.
WARNING:
When placing the bar on the bar studs, ensure
that the chain tensioning pin is in the chain ten-
sion pin hole. Failure to properly place the chain
tensioning pin in the chain tensioning pin hole
could cause the chain to come loose, resulting
in serious personal injury.
Remove all slack from chain by turning the chain
tensioning screw clockwise, assuring that the
chain seats into the bar groove during tension-
ing.
Lift the tip of the bar up to check for sag. Re-
lease the tip of the bar, and turn the chain ten-
sioning screw 1/2 turn clockwise. Repeat this
process until sag does not exist.
 Chain is correctly tensioned when there is no slack
on the underside of the bar, the chain is snug, but
it can be turned by hand without binding.
Replace the chain cover. Reinstall the chain
cover bolt and tighten securely.
BAR
GROOVE
CHAIN DRIVE
LINKS
Fig. 16
CHAIN
TENSIONING
SCREW
CHAIN
ROTATION
CHAIN
SPROCKET
Fig. 17
NOTE: If chain is too tight, it will not rotate.
Loosen the chain cover bolt slightly and turn chain
tensioning screw 1/4 turn counterclockwise. Lift
the tip of the bar up and retighten bolt. Ensure that
the chain will rotate without binding.
Return the lower jaw to the closed position by
pulling back on the front handle and allowing the
handle to move all the way forward.

Page 19 — English
CHAIN OILER
See Figure 18.
Use Premium Bar and Chain Lubricant. It is de-
signed for chains and chain oilers and is formu-
lated to perform over a wide temperature range
with no dilution required.
Stop the motor and disconnect from power
supply.
Remove the oil reservoir cap and carefully pour
approximately 2 oz. of bar and chain lubricant
into the tank.
Replace the cap and tighten securely.
Check and refill the tank every time the lopper
is used.
NOTE: Do not use dirty, used, or otherwise con-
taminated lubricants. Damage may occur to the
oil pump, bar, or chain.
CHAIN MAINTENANCE
See Figure 19 - 20.
Use only low-kickback chain on this saw. This
fast-cutting chain will provide kickback reduction
when properly maintained.
For smooth and fast cutting, chain needs to be
maintained properly. The chain requires sharpen-
ing when the wood chips are small and powdery,
the chain must be forced through the wood dur-
ing cutting, or the chain cuts to one side. During
maintenance of your chain, consider the following:
Improper filing angle of the side plate can in-
crease the risk of a severe kickback.
Raker (depth gauge) clearance.
Too low increases the potential for kickback.
Not low enough decreases cutting ability.
If cutter teeth have hit hard objects such as nails
and stones, or have been abraded by mud or sand
on the wood, have service dealer sharpen chain.
NOTE: Inspect the drive sprocket for wear or dam-
age when replacing the chain. If signs of wear or
damage are present in the areas indicated, have the
drive sprocket replaced by a Ryobi service dealer.
MAINTENANCE
Fig. 18
Fig. 19
RAKER (DEPTH GAUGE)
CLEARANCE
.025 in.
CUTTING
CORNER
SIDE PLATE
DEPTH GAUGE
TOE
GULLET
HEEL
RIVET HOLE
TOP
PLATE
PARTS OF A CUTTER
Fig. 20
OIL
RESERVOIR
CAP
QUICK VIEW
OIL INDICATOR

Page 20 — English
MAINTENANCE
HOW TO SHARPEN THE CUTTERS
See Figures 20 - 23.
Be careful to file all cutters to the specified angles
and to the same length, as fast cutting can be
obtained only when all cutters are uniform.
Stop the motor and disconnect from power
supply.
Tighten the chain tension enough that the chain
does not wobble. Do all of your filing at the mid-
point of the bar. Wear gloves for protection.
Use a 5/32 in. diameter round file and holder.
Keep the file level with the top plate of the tooth.
Do not let the file dip or rock.
Using light but firm pressure, stroke towards
the front corner of the tooth. Lift file away from
the steel on each return stroke.
Put a few firm strokes on every tooth. File all left
hand cutters in one direction. Then move to the
other side and file the right hand cutters in the
opposite direction. Occasionally remove filings
from the file with a wire brush.
NOTICE:
Dull or improperly sharpened chain can cause
excessive motor speed during cutting which
may result in severe motor damage.
WARNING:
Improper chain sharpening increases the po-
tential of kickback. Failure to replace or repair
damaged chain can cause serious injury.
TOP PLATE FILING ANGLE
See Figure 24.
CORRECT 30° - File holders are marked with
guide marks to align file properly to produce
correct top plate angle.
LESS THAN 30° - For Cross Cutting.
MORE THAN 30° - Feathered Edge Dulls Quickly.
Fig. 22
LEFT HAND
CUTTERS
RIGHT HAND
CUTTERS
Fig. 23
Fig. 21
INCORRECT TOP PLATE
FILING ANGLE
MORE
THAN 30°
LESS
THAN 30°
Fig. 24
30°
CORRECT TOP PLATE
FILING ANGLE
