Ryobi RACPW140 User manual

FRONT PAGE
RACPW140

2
Original Instructions
IMPORTANT!
It is essential that you read the instructions
in this manual before assembling, operating,
and maintaining the product.
Subject to technical modication.
Safety, performance, and dependability have
been given top priority in the design of your
electric high pressure cleaner.
INTENDED USE
The electric high pressure cleaner is intended
only for outdoor use. For safety reasons, the
product must be adequately controlled by a
two-handed operation.
The product is designed for home or domestic
use. It is intended to clean machines, vehicles,
buildings, oors, tools, facades, terraces,
oors, and concrete walkways by removal of
stubborn dirt using clean water with or without
cleaning detergent.
The product should be used in well-illuminated
conditions.
Do not use the product for any other purpose.
WARNING! The product is designed for
use with a neutral cleaning agent supplied or
recommended by the manufacturer. The use
of other cleaning agents or chemicals may
adversely a󰀨ect the safety of the product.
GENERAL SAFETY WARNINGS
WARNING! Read all safety warnings and
all instructions. Failure to follow the warnings
and instructions may result in electric shock,
re, and/or serious injury.
■The product is not intended for use by
children or persons with reduced physical,
sensory, or mental capabilities, or lack of
experience and knowledge. Children should
be adequately supervised to ensure they do
not play with the product.
■Wear a complete personal protective
equipment when operating the product,
such as boots, safety gloves, safety helmets
with visor, and hearing protection. Use
high-impact visors only with liquid splash
protection.
WARNING! Do not use the product when
people are within range unless they wear
protective clothing.
■To reduce the risk of injury, keep children
and visitors away. All visitors should wear
safety glasses and be kept at a safe
distance from the work area.
■Ensure that the safety devices are in good
working condition. Make sure that all safety
devices are operating properly before each
use.
■Do not use the product if important parts
such as safety devices, high-pressure
hoses, or trigger gun are damaged.
■Exercise caution when opening the trigger.
Hold the trigger handle firmly with two hands
to avoid injury when the trigger handle kicks
back.
WARNING! During use of high pressure
cleaners, aerosols may be formed. Inhalation
of aerosols can be hazardous to health.
Depending on the application, shielded nozzles
can be used for high pressure cleaning, which
will reduce the emission of hydrous aerosols.
However, not all applications allow the use
of such a device. If shielded nozzles are not
applicable for the protection against aerosols,
a respiratory mask of class FFP 2 or equivalent
may be needed, depending on the cleaning
environment.
■Always stop the product when you leave it
unattended.
■High pressure jets can be dangerous if
misused. Do not direct the jet to people, live
electrical equipment, or the product itself.
■To avoid a risk of explosion, do not spray
flammable liquids.
■Do not direct the jet against yourself or
others to clean clothes or footwear.
■Do not use the product to clean electronic
devices, clothes, or footwear.
■High pressure hoses, ttings, and couplings
are important for the safety of the product.
Use only hoses, ttings, and couplings
recommended by the manufacturer.
■Injuries may be caused, or aggravated, by
prolonged use of a tool. When using any
tool for prolonged periods, ensure to take
regular breaks.
CAUTION! The product must not be used
on the drinking water supply without a backow
preventer. Water owing through a backow
preventer is considered non-drinkable. Always
observe the regulations of your local water
utility company when connecting the product
to a water supply line.

3
Original Instructions
ELECTRICAL SAFETY WARNINGS
■The plug must match the outlet. Never
modify the plug in any way. Unmodified
plugs and matching outlets reduces the risk
of electric shock.
■Do not use the product if the power cord
or other important parts, such as safety
devices, are damaged.
■Check the power cord and the extension cord
for damage before each use. If the power
cord or the extension cord is damaged, it
must be replaced by the manufacturer, its
service agent, or similarly qualified persons
in order to avoid a hazard.
■Before every use, examine the supply cord
for damage. If there are signs of damage,
it must be replaced by a qualified person
at an authorised service centre to avoid a
hazard.
■Keep the power cord away from heat, oil,
and sharp edges.
■Never touch the mains plug and the socket
with wet hands.
■Inadequate extension cords can be
dangerous. If an extension cord is used,
it shall be suitable for outdoor use, and
the connection has to be kept dry and off
the ground. Use a cord wheel to keep the
socket at least 60 mm above the ground.
■The electric supply connection shall
be made by a qualified electrician. It is
recommended that the electric supply to
this product should include either a residual
current device that will interrupt the supply
if the leakage current to earth exceeds 30
mA for 30 ms or a device that will prove the
earth circuit.
ADDITIONAL SAFETY WARNINGS
■Some regions have regulations that restrict
the use of the product in some operations.
Check with your local authority for advice.
■Before each use, check the product for
damage. A damaged high-pressure hose
must be replaced immediately. Ensure that
all connections, such as high-pressure hose
and nozzle, are secure. Unwind the hose
properly so that they may not get twisted or
kinked.
■Do not allow children or untrained individuals
to use the product.
■Before starting any cleaning operation,
close doors and windows. Clear the area to
be cleaned of debris, toys, outdoor furniture,
or other objects that could create a hazard.
■Never pick up or carry the product while the
motor is running.
■Do not use the product in temperatures
below 0°C.
■Do not use acids, alkalines, solvents,
flammable material, bleaches, or industrial
grade solutions in the product. These
products can cause physical injuries to the
operator and irreversible damage to the
product.

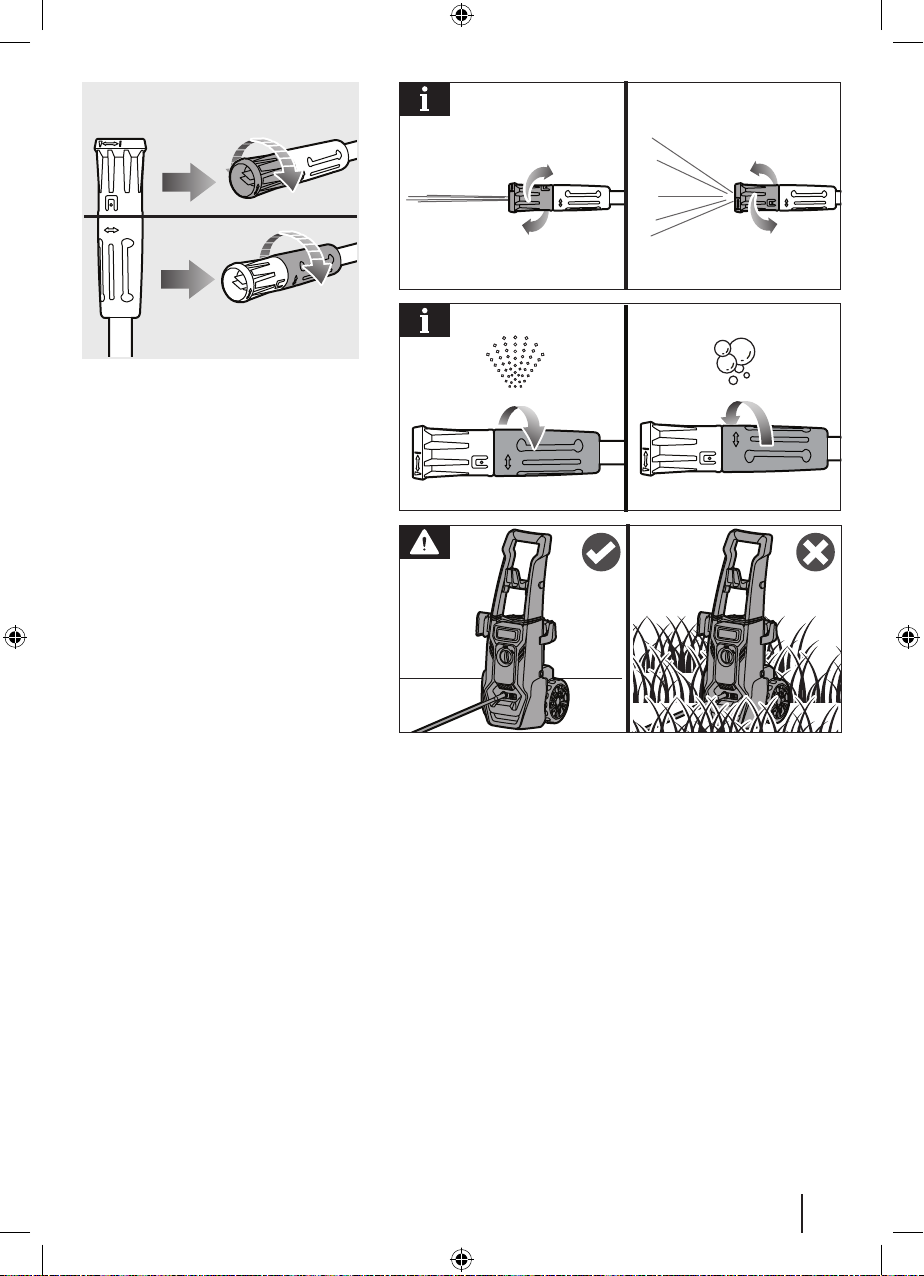

■Always operate the product on a level
surface.
WARNING! High pressure jet can be
dangerous if subject to misuse. The jet must
not be directed to people, animals, electrical
devices, or the product itself.
■Hold the trigger handle securely with both
hands. Expect the trigger handle to move
when the trigger is pulled due to reaction
forces. Failure to do so could cause loss of
control and injury to yourself and others.
■Make sure that the air in the hose and pump
is released before you turn on the product.
To remove the air in the hose and pump,
connect the water supply to the pump using
a garden hose, connect the trigger handle
to the pump using the high-pressure hose,
disengage the trigger handle lock, and
press the trigger until there is a steady flow.
■Exercise caution to avoid slipping or falling.
■Keep firm footing and balance. Do not
overreach. Overreaching can result in loss
of balance.
■Use only accessories that are recommended
by the manufacturer. The use of improper
accessories may cause injury.
■Never leave the product running unattended.
Turn off the product. Do not leave the
product until it comes to a complete stop.
■Be familiar with the controls. Know how to
turn off the product and bleed the pressure
quickly.
■Stay alert, and exercise control. Watch what
you are doing, and use common sense.
■Do not use the product while tired, ill, or
under the influence of drugs, alcohol, or
medication. A moment of inattention while
operating the product may result in serious
personal injury.
■Do not use the product if the switch does not
turn it on and off. Any product that cannot

4
Original Instructions
be controlled with a switch is dangerous
and must be repaired.
■Keep a minimum distance of 30 cm when
cleaning vehicles. The high pressure jet
may damage or burst vehicle tires and/or
tire valves.
■Use a garden hose with a maximum length
of 15m and compatible with 12mm hose
connector.
■Before each use, ensure that the accessory
is securely attached to the trigger gun.
OVERLOAD PROTECTION
The product has an overload protection device
that is activated when overheating or when a
current spike occurs, automatically shutting
down the power within the product. To resume
operation, disconnect the product from the
power supply, wait for about 15 minutes, and
reconnect the product to the power supply.

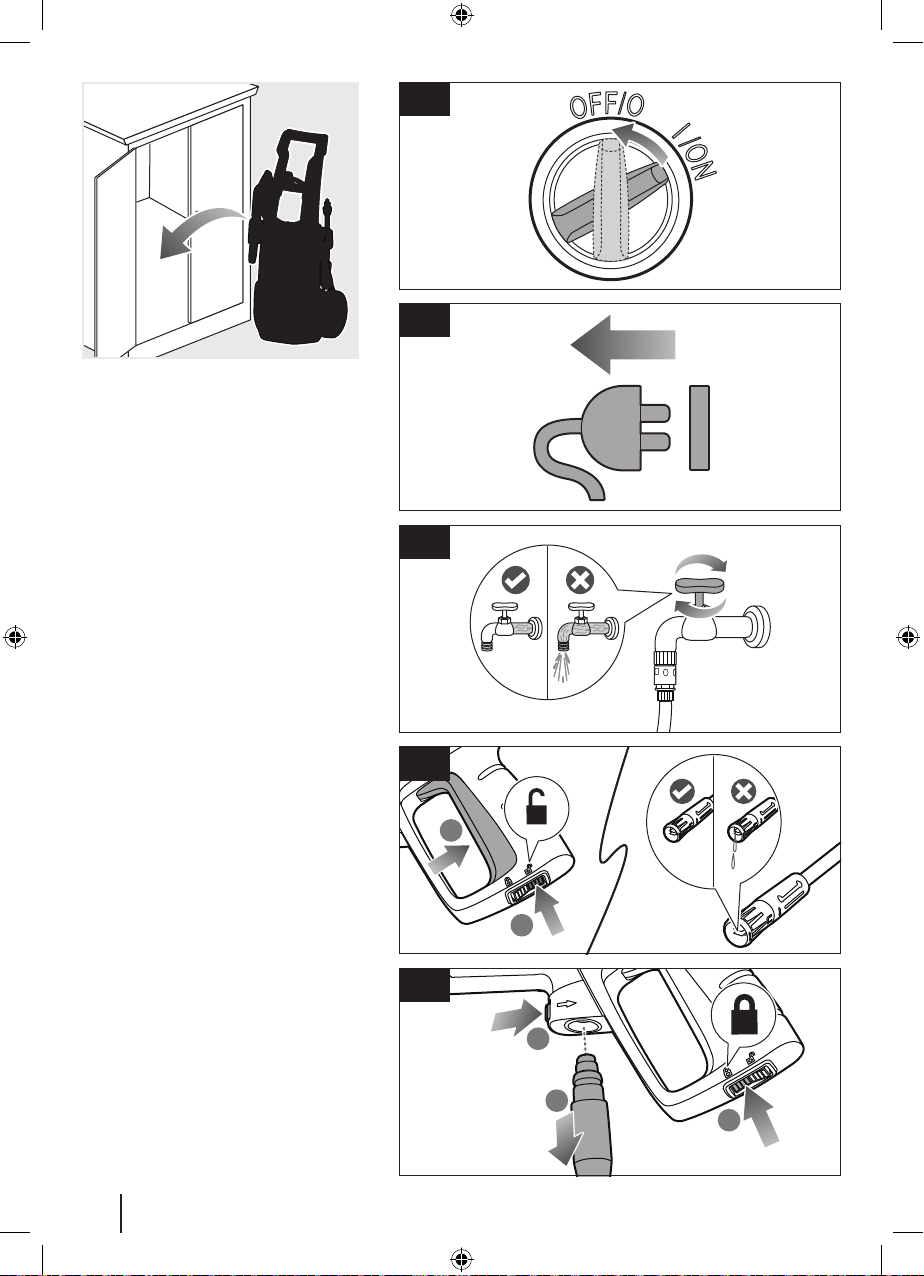

TRANSPORTATION AND STORAGE
CAUTION! Mind the weight of the product
when selecting the storage location and during
transportation to prevent accidents or injuries.
■Stop the product, disconnect from the power
supply, and allow the product to cool down.
Disconnect the product from the water
supply before storing or transporting. Never
place the product in any position other than
upright.
■Clean all foreign materials from the
product. Storing the product in an area
with temperature below 0°C will damage
the product Store it in a cool, dry, and
well-ventilated place that is inaccessible
to children. Keep the product away from
corrosive agents such as garden chemicals
and de-icing salts. Store the product indoors
only.
■Remove water from all hoses and the pump,
and empty the detergent tank before storing
the product.
■For transportation in a vehicle, secure the
product against movement or falling to
prevent injury to persons or damage to the
product.
■Store the product indoor only. Storing the
product in an area with temperature below
0°C will damage the product.
MAINTENANCE
■Use only original manufacturer’s
replacement parts, accessories, and
attachments. Failure to do so can cause
possible injury, can contribute to poor
performance, and may void your warranty.
■Servicing requires extreme care and
knowledge and should be performed only
by a qualified service technician. Have the
product serviced by an authorised service
centre only.
■Turn off the product, disconnect from the
power supply, and allow the product to cool
down. Make sure that all moving parts have
come to a complete stop:
●before cleaning the product
●before maintaining the product
●before replacing spare parts
■You may make adjustments or repairs
described in this manual. For other repairs,
have the product serviced by an authorised
service centre only.
■Regularly inspect and maintain the product
for safe operation. RYOBI recommends
inspecting the product every 6 months.
■Check all nuts, bolts, and screws at frequent
intervals for proper tightness to ensure that
the product is in safe working condition. Any
part that is damaged should be properly
repaired or replaced by an authorised
service centre.
SAFETY DEVICES
■On/off switch
–The on/off switch prevents unintentional
operation of the product.
■Trigger handle lock
–The trigger handle lock locks the trigger
and prevents unintentional opening of
the high-pressure jet.
■Pressure switch
–The overflow valve prevents the
permissible working pressure from being
exceeded. If the lever on the trigger gun
is released, the pressure switch turns
off the pump and the high-pressure jet
stops. If the lever is pulled, the pump
turns on again.
■Overload protection
–A thermal sensor protects the product
from overloading. The product will
automatically shut the power down while

5
Original Instructions
overheating.

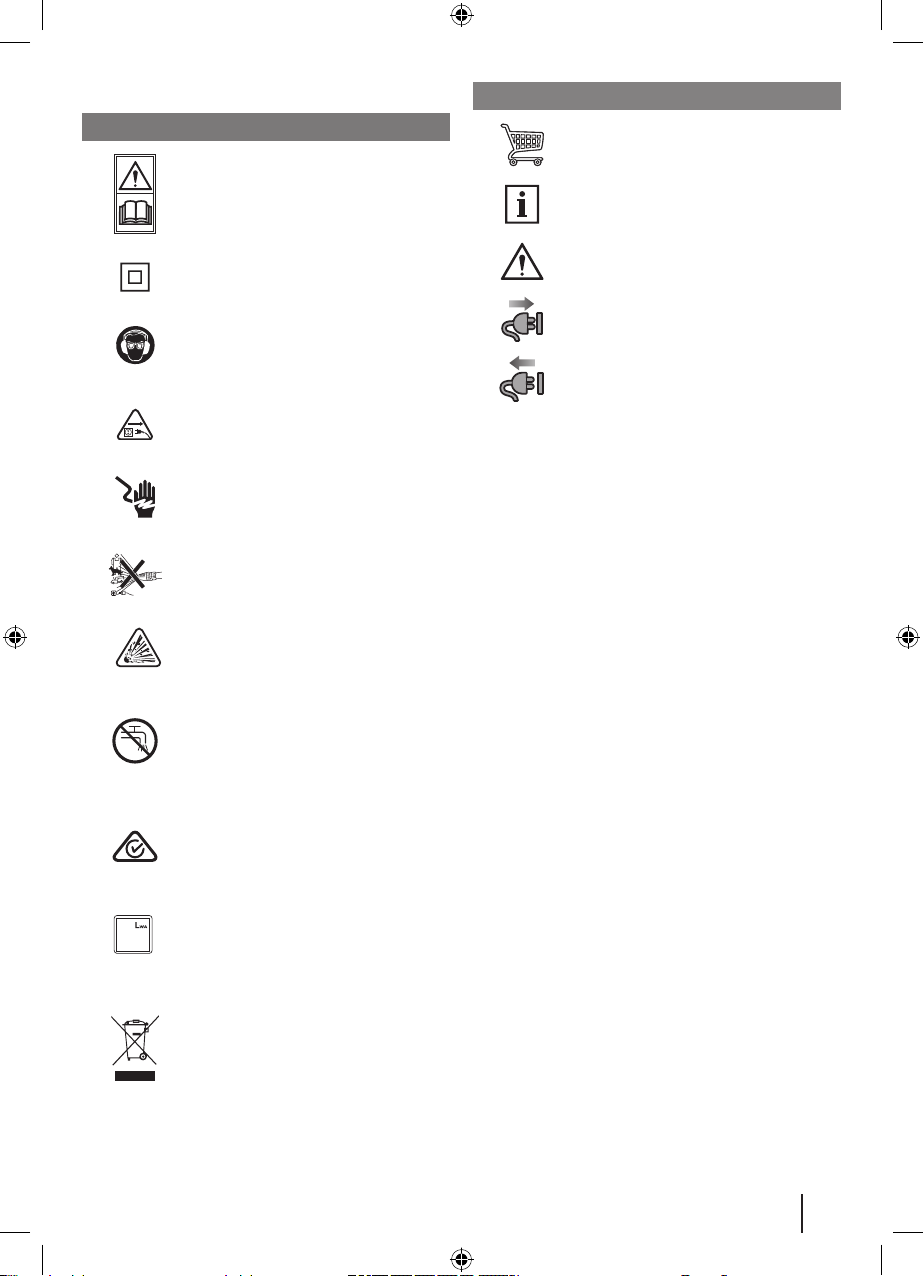

SYMBOLS ON THE PRODUCT
Read and understand all
instructions before operating
the product. Follow all warnings
and safety instructions.
Class II tool, double insulation
Wear eye and hearing
protection.
Remove the plug from the
power outlet immediately if the
cable is damaged or cut.
Electrical shock hazard
Never point the gun to
human, animals, the product,
power supply, or any electric
appliances
Burst hazard
The product is not suitable
for connection to the drinking
water supply without backow
preventer.
Regulatory Compliance
Mark (RCM). Product
meets applicable regulatory
requirements.
91 Guaranteed sound power level
Waste electrical products
should not be disposed of with
household waste. Recycle
where facilities exist. Check
with your local authority or
retailer for recycling advice.
SYMBOLS IN THIS MANUAL
Parts or accessories sold
separately
Note
Warning
Connect to power outlet.
Disconnect from power outlet.

6
Original Instructions

7

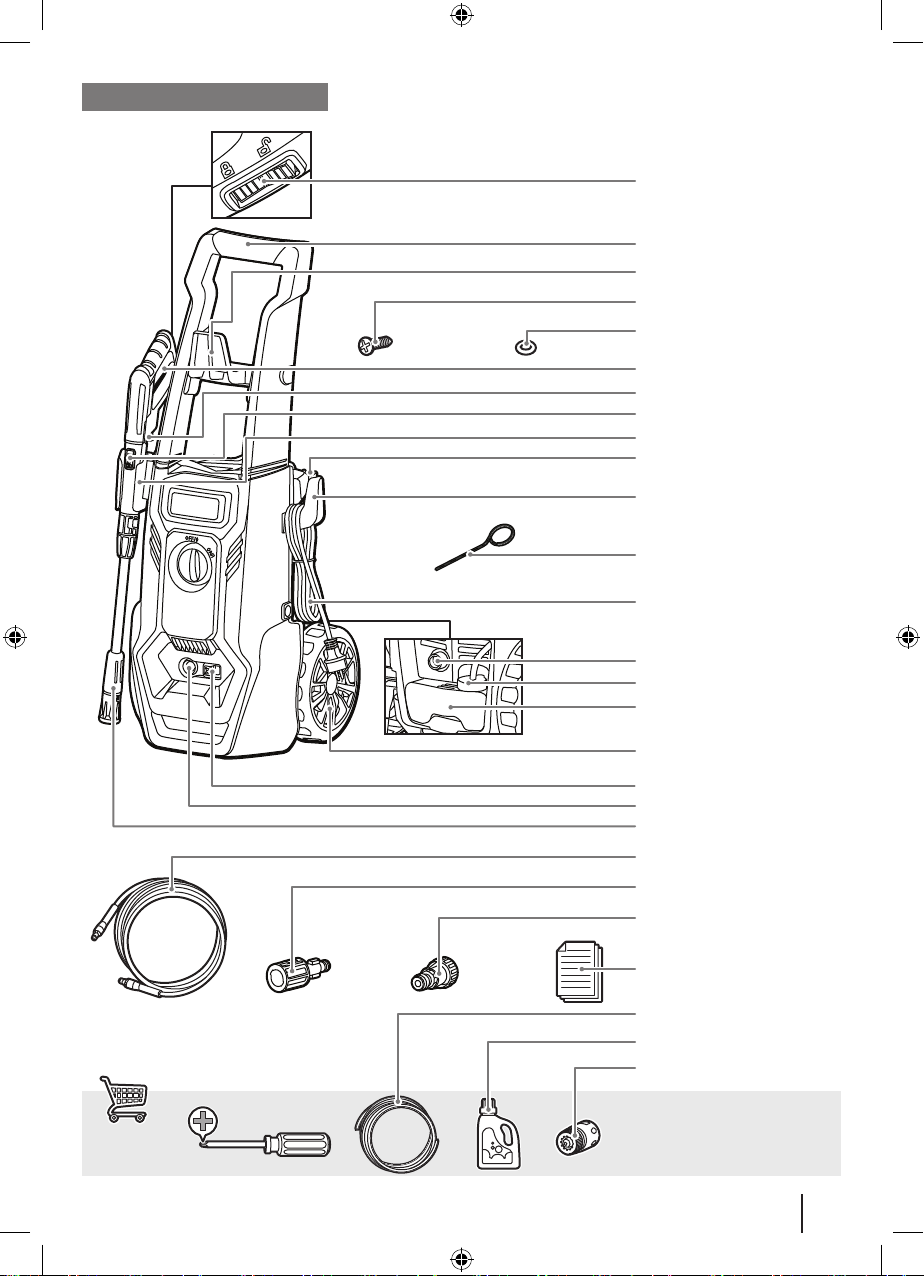

Know your product
RACPW140
x 6 x 3
Carry handle
Hose hanger
Water inlet filter
Handle screws
Power cord holder
Lance hook
Nozzle cleaning tool
Power cord
Water inlet port
Detergent tank cap
Detergent tank
Wheel
Hose release button
Water outlet port
Trigger handle lock
High pressure hose
Vario lance
Operator’s manualv
RACPW to RPWA series adapter
Garden hose
Detergent
Garden hose connector
O-rings
Hose lock button
Trigger
Release switch
Trigger handle holder

8
Getting started
1
2
1 2 3
1
2
1
2
7 8
13
1
2
2
1
11 12
Connect one end of the garden hose to the
inlet coupler and the other end to the garden
tap. Turn on the water source to allow water to
flow into the product.
Set the trigger handle lock to the unlock
position. Squeeze the trigger to release the
existing air pressure within the product.
Insert the vario lance into the trigger handle. Turn the lance or extension until it clicks into
place.
Push the hose lock button, and insert the high
pressure hose.
NOTE: The hose lock button automatically
slides out when the hose is inserted.
Wear full eye and ear protection, protective
gloves, substantial footwear, and long
trousers at all times while operating the
product. Do not operate the product when
barefoot or wearing open sandals.
Push down the trigger handle holder until the
buttons click, securing the handle in place.
Push down the power cord holder until the
buttons click, securing the handle in place.
Attach the carry handle onto the product.
Connect and turn the water inlet filter
clockwise to secure it to the water inlet port.
Avoid cross-threading the filter and port to
avoid water leaks.

9
Getting Started
1
2
4 5
7
30 sec
1
1
2
3
2
43
12
1
2
910
14 15
6
11
Insert the high pressure hose into the water
outlet port.
NOTE:The hose release button automatically
slides outward when the hose is inserted.
Install and secure a hose coupler on each end of the garden hose. Connect one end of the
garden hose to the water source.
Squeeze the trigger to operate the product.Connect the product to a power outlet. Turn
the on/off switch to the on position.
NOTE: Continue to squeeze the trigger until
water flows normally. Always remove the
existing air pressure within the product before
operation.
Secure the carry handle in place using two
handle screws. Turn the handle screws
clockwise to tighten.
Attach the hose hanger onto the carry handle. Secure the hose hanger using two handle
screws. Turn the handle screws clockwise to
tighten.

10

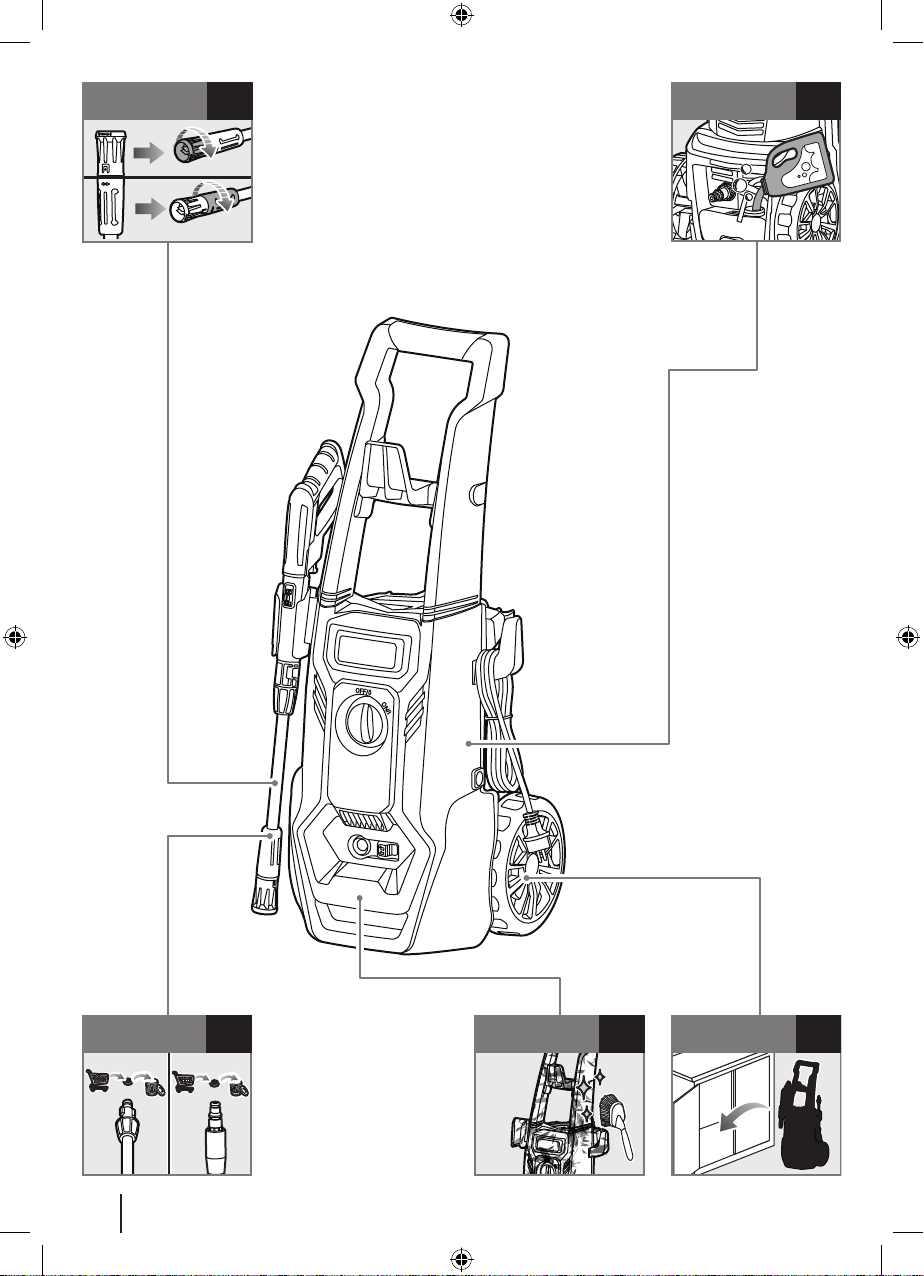

p.12
p.15p.14 p.16
p.11
Using the vario
lance Using the detergent
Storing the productCleaning the
product
Replacing the
o-ring

11
Operation

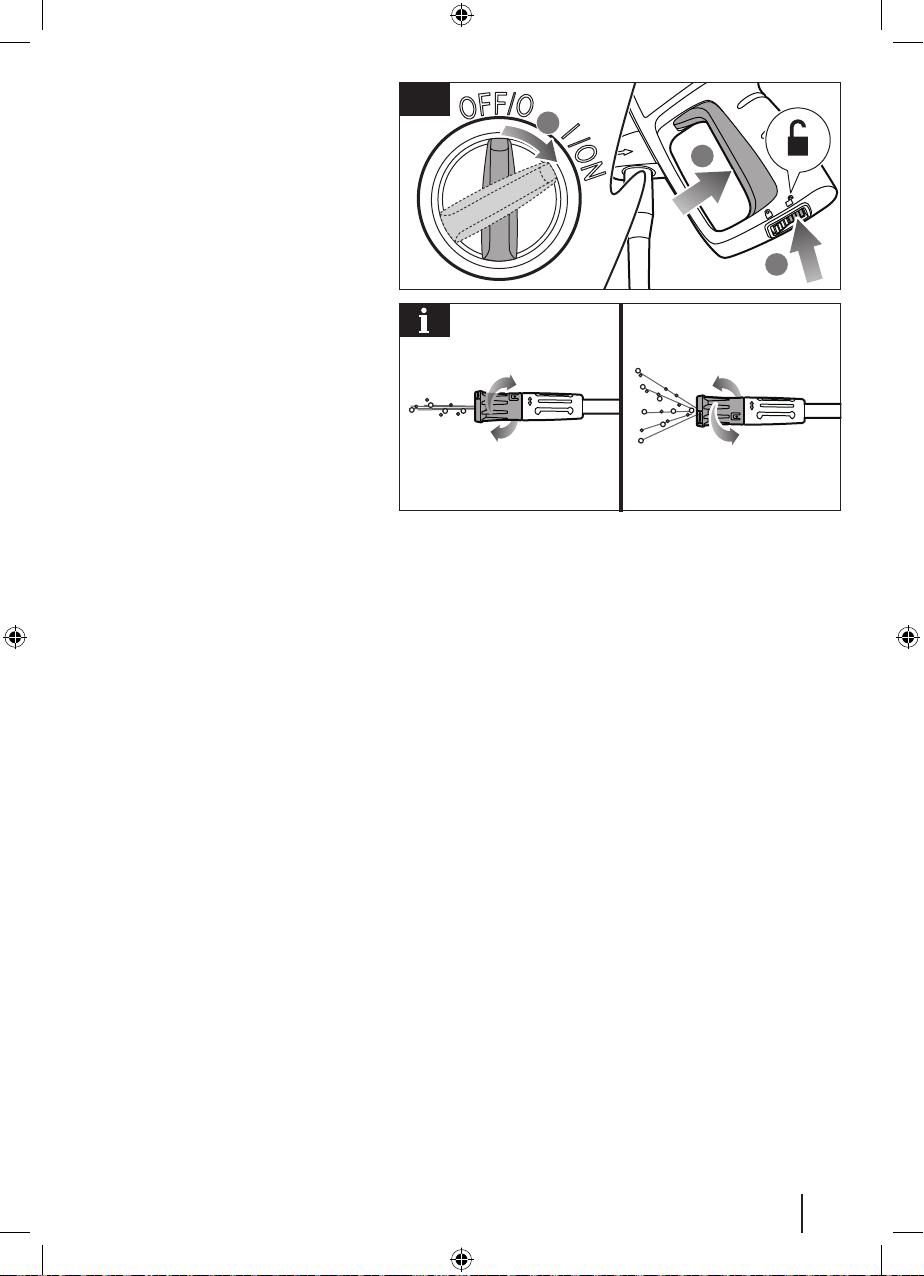

USING THE VARIO LANCE
NOTE: Turn the front end of the nozzle
tip clockwise for a focused stream. Turn
counterclockwise for a wider spray pattern.
NOTE: Turn the rear end of the nozzle tip
counterclockwise or clockwise to increase
or decrease water pressure. Use low
water pressure for soaping applications.
WARNING: Check the work area before
each use. Remove all objects, such as rocks,
broken glass, nails, wire, or string, which
can be thrown or become entangled in the
product.

12
Operation
USING THE DETERGENT
WARNING: Do not point the lance towards
people, animals, live electrical equipment, or
the product.
1. Turn the on/off switch to the off position.
Remove the cap from the detergent tank.
2. Fill the tank with detergent solution.
3. Close the tank with the cap.
4. Insert the vario lance into the trigger
handle. Turn the lance until it clicks into
place.
5. Turn the rear end of the nozzle tip
counterclockwise to decrease the water
pressure.
1
2
1
2
3
1
2
4
5

13
Operation
6. Turn the on/off switch to the on position.
Set the trigger lock to the unlock position.
Squeeze the trigger to operate the
product.
NOTE: Turn the front end of the nozzle
tip clockwise or counterclockwise to get a
focused or spray water pattern.
1
2
1
2
3
6

REPLACING THE O-RING
1. Remove any damaged or cracked o-ring
from the nozzle wand end or hose end
NOTE: Check nozzle wand end or hose
end for stretched, cracked or split o-ring.
2. Dispose of the damaged o-ring properly.
Contact your local distributor for the
suitable replacement o-ring.
3. Place the o-ring into the intended groove
of the nozzle wand end or hose end.
1
2
3
14
Maintenance

CLEANING THE PRODUCT
1. Turn the on/off switch to the off position.
Disconnect the product from the power
outlet.
2. Clean the product using a brush.
WARNING: Avoid using solvents when
cleaning plastic parts. Most plastics are
susceptible to damage from various types
of commercial solvents. Use clean cloths to
remove dirt, dust, oil, grease, etc.
1
2
1
2
15
Maintenance

2
1
2
3
4
1
1
2
3
5
STORING THE PRODUCT
1. Turn the on/off switch to the off position.
2. Disconnect the product from the power
outlet.
3. Turn off the water supply.
4. Set the trigger handle lock to the unlock
position. Squeeze the trigger until no
more water flows out of the product.
5. Set the trigger handle lock to the lock
position. Push the hose release button
towards the outlet port, and disconnect
the hose.
16
Storage

20211029v1
1
2
6
2
1
7
1
2
3
8
6. Disconnect the garden hose from the
water inlet port and garden tap.
7. Set the trigger handle lock to the lock
position. Push the hose lock button, and
disconnect the hose.
NOTE: If the product is pulsating intermittently
or water is not exiting the nozzle smoothly,
the nozzle may be blocked. Use the nozzle
cleaning tool to remove blockages and clean
the nozzle. Insert the cleaning tool into the
nozzle, and turn it to remove the blockages.
NOTE: Make sure to return the parts in their
designated storage compartments.
8. Store the product in a cool, dry, and
well-ventilated place that is inaccessible to
children. Keep it away from corrosive agents
such as garden chemicals and de-icing salts.
Do not store the product outdoors.
17
Storage

PRODUCT SPECIFICATIONS
Electric high pressure cleaner
Model
RACPW140
Rated voltage
220 - 240 V a.c.
Frequency 50 Hz
Power 1800 W
Maximum pressure 140 bar (2030 psi)
Rated pressure 100 bar (1450 psi)
Degree of protection IPX5
Rated ow 6 L/min
Max. ow 7 L/min
Max. inlet water pressure 1.2 MPa
Detergent tank 0.9 L
Power cord length 5 m
Sound pressure level (LPA) (in accordance with EN 60335-2-79)
73.5 dB(A)
Uncertainty 3 dB
Sound power level (LWA) (in accordance with EN 60335-2-79)
87.5 dB(A)
Uncertainty 3 dB
Vibration value (in
accordance with EN 60335-
2-79)
<2.5 m/s2
Maximum garden hose
length 15 m
Garden hose connection 12 mm
ACCESSORIES
RPW1 Patio cleaner
RPW2 Detergent bottle
RPW3 Turbo lance
RPW4 Fixed brush
RPW5 Rotary brush
RPW6 8 m hose replacement
RPW7 Adapter
WARNING! The declared vibration total
values and the declared noise emission values
given in this instruction manual have been
measured in accordance with a standardised
test and may be used to compare one tool with
another. They may be used for a preliminary
assessment of exposure.
The declared vibration and noise emission
values represent the main applications of the
tool. However, if the tool is used for di󰀨erent
applications, used with di󰀨erent accessories,
or poorly maintained, the vibration and noise
emission may di󰀨er. These conditions may
signicantly increase the exposure levels over
the total working period.
An estimation of the level of exposure to
vibration and noise should take into account
the times when the tool is turned o󰀨 or when
it is running idle. These conditions may
signicantly reduce the exposure level over
the total working period.
Identify additional safety measures to protect
the operator from the e󰀨ects of vibration and
noise, such as maintaining the tool and the
accessories, keeping the hands warm (in case
of vibration), and organising work patterns..

BACK PAGE
Imported by:
Techtronic Industries Australia Pty Ltd
31 Gilby Road, Mount Waverley, VIC 3149
Melbourne, Australia
Techtronic Industries N.Z. Limited
Unit C, 70 Business Parade South,
Highbrook, Auckland 2013, New Zealand
BACK PAGE
Imported by:
Techtronic Industries Australia Pty Ltd
31 Gilby Road, Mount Waverley, VIC 3149
Melbourne, Australia
Techtronic Industries N.Z. Limited
Unit C, 70 Business Parade South,
Highbrook, Auckland 2013, New Zealand
RYOBI is a trade mark of Ryobi Limited, and is used under license.
099903065001-01
