Ryobi RY140PWA User manual

FRONT PAGE
RY140PWA-P

2
Original Instructions
IMPORTANT!
It is essential that you read the instructions
in this manual before assembling, operating,
and maintaining the product.
Subject to technical modication.
Safety, performance, and dependability have
been given top priority in the design of your
electric high pressure cleaner.
INTENDED USE
The electric high pressure cleaner is intended
only for outdoor use. For safety reasons, the
product must be adequately controlled by a
two-handed operation.
The product is designed for home or domestic
use. It is intended to clean machines, vehicles,
buildings, oors, tools, facades, terraces,
oors, and concrete walkways by removal of
stubborn dirt using clean water with or without
cleaning detergent.
The product should be used in well-illuminated
conditions.
Do not use the product for any other purpose.
WARNING! The product is designed for
use with a neutral cleaning agent supplied or
recommended by the manufacturer. The use
of other cleaning agents or chemicals may
adversely a󰀨ect the safety of the product.
GENERAL SAFETY WARNINGS
WARNING! Read all safety warnings and
all instructions. Failure to follow the warnings
and instructions may result in electric shock,
re, and/or serious injury.
■The product is not intended for use by
children or persons with reduced physical,
sensory, or mental capabilities, or lack of
experience and knowledge. Children should
be adequately supervised to ensure they do
not play with the product.
■Wear complete personal protective
equipment when operating the product,
such as boots, safety gloves, safety helmets
with visor, and hearing protection. Use
high-impact visors only with liquid splash
protection.
WARNING! Do not use the product when
people are within range, unless they wear
protective clothing.
■To reduce the risk of injury, keep children
and visitors away. All visitors should wear
safety glasses and be kept at a safe
distance from the work area.
■Ensure that the safety devices are in good
working condition. Make sure that all safety
devices are operating properly before each
use.
■Do not use the product if the power cord
or other important parts, such as safety
devices, high-pressure hoses, or trigger
gun, are damaged.
■Exercise caution when opening the trigger.
Hold the trigger handle firmly with two hands
to avoid injury when the trigger handle kicks
back.
WARNING! During use of high pressure
cleaners, aerosols may be formed. Inhalation
of aerosols can be hazardous to health.
Depending on the application, shielded nozzles
can be used for high pressure cleaning, which
will reduce the emission of hydrous aerosols.
However, not all applications allow the use
of such a device. If shielded nozzles are not
applicable for the protection against aerosols,
a respiratory mask of class FFP 2 or equivalent
may be needed, depending on the cleaning
environment.
■Always stop the product when you leave it
unattended.
■High pressure jet is dangerous if misused.
Do not direct the jet to people, live electrical
equipment, or the product itself.
■To avoid a risk of explosion, do not spray
flammable liquids.
■Do not direct the jet against yourself or
others to clean clothes or footwear.
■Do not use the product to clean electronic
devices, clothes, or footwear.
■High pressure hoses, fittings, and couplings
are important for the safety of the product.
Use only hoses, fittings, and couplings that
are recommended by the manufacturer.
■Injuries may be caused, or aggravated, by
prolonged use of a tool. When using any
tool for prolonged periods, ensure you take
regular breaks.
CAUTION The product must not be used
on a drinking water supply without a backow
preventer that corresponds to EN 12729 Type
BA. Water that has owed through a backow
preventer is considered non-drinkable. Always

3
Original Instructions
observe the regulations of your local water
utility company when connecting the product
to a water supply line.
ELECTRICAL SAFETY WARNINGS
■The plug must match the outlet. Never
modify the plug in any way. Unmodified
plugs and matching outlets reduce the risk
of electric shock.
■Do not use the product if the power cord
or other important parts, such as safety
devices, are damaged.
■Check the power cord and the extension cord
for damage before each use. If the power
cord or the extension cord is damaged, it
must be replaced by the manufacturer, its
service agent, or similarly qualified persons
in order to avoid a hazard.
■Before every use, examine the supply cord
for damage. If there are signs of damage,
it must be replaced by a qualified person
at an authorised service centre to avoid a
hazard.
■Keep the power cord away from heat, oil,
and sharp edges.
■Never touch the mains plug and the socket
with wet hands.
■Inadequate extension cords can be
dangerous. If an extension cord is used,
it shall be suitable for outdoor use, and
the connection has to be kept dry and off
the ground. Use a cord wheel to keep the
socket at least 60 mm above the ground.
■The electric supply connection shall be
made by a qualified electrician and comply
with IEC 60364-1. It is recommended that
the electric supply to this product should
include either a residual current device
that will interrupt the supply if the leakage
current to earth exceeds 30 mA for 30 ms
or a device that will prove the earth circuit.
ADDITIONAL SAFETY WARNINGS
■Some regions have regulations that restrict
the use of the product in some operations.
Check with your local authority for advice.
■Before each use, check the product
for damage. A damaged high-pressure
hose must be replaced. Ensure that all
connections, such as high-pressure hose
and nozzle, are secure. Unwind the hose
properly so they may not get twisted or
kinked.
■Do not allow children or untrained individuals
to use the product.
■Before starting any cleaning operation,
close doors and windows. Clear the area to
be cleaned of debris, toys, outdoor furniture,
or other objects that could create a hazard.
■Never pick up or carry the product while the
motor is running.
■Do not use the product in temperatures
below 0°C.
■Do not use acids, alkalines, solvents,
flammable material, bleaches, or industrial
grade solutions in the product. These
products can cause physical injuries to the
operator and irreversible damage to the
product.
■Always operate the product on a level
surface.
WARNING! High pressure jet can be
dangerous if subjected to misuse. The jet must
not be directed to people, animals, electrical
devices, or the product itself.
■Hold the trigger handle securely with both
hands. Expect the trigger handle to move
when the trigger is pulled due to reaction
forces. Failure to do so could cause loss of
control and injury to yourself and others.
■Make sure that the air in the hose and pump
is released before you turn on the product.
To remove the air in the hose and pump,
connect the water supply to the pump using
a garden hose, connect the trigger handle
to the pump using the high-pressure hose,
disengage the trigger handle lock, and
press the trigger until there is a steady flow.
■Exercise caution to avoid slipping or falling.
■Keep firm footing and balance. Do not
overreach. Overreaching can result in loss
of balance.
■Use only accessories that are recommended
by the manufacturer. The use of improper
accessories may cause injury.
■Never leave the product running
unattended. Turn off the product. Do not
leave the product if it has not come to a
complete stop.
■Be familiar with the controls. Know how to
stop the product and bleed the pressure
quickly.
■Stay alert and exercise control. Watch what
you are doing and use common sense.

4
Original Instructions
■Do not use the product while tired, ill, or
under the influence of drugs, alcohol, or
medication. A moment of inattention while
operating the product may result in serious
personal injury.
■Do not use the product if the switch does not
turn it on and off. Any product that cannot
be controlled with a switch is dangerous
and must be repaired.
■Keep a minimum distance of 30 cm when
cleaning vehicles. The high pressure jet
may damage or burst vehicle tires and/or
tire valves.
■Use a garden hose with a maximum length
of 15 m and minimum diameter of 18 mm
(3/4 in).
■Before each use, ensure that the accessory
is securely attached to the trigger gun.
OVERLOAD PROTECTION
The product has an overload protection device
that is activated when overheating or when a
current spike occurs, automatically shutting
down the power within the product. To resume
operation, disconnect the product from the
power supply, wait for about 15 minutes, and
reconnect the product to the power supply.
TRANSPORTATION AND STORAGE
CAUTION! Mind the weight of the product
when selecting the storage location and during
transportation to prevent accidents or injuries.
■Stop the product, disconnect from the power
supply, and allow the product to cool down.
Disconnect the product from the water
supply before storing or transporting. Never
place the product in any position other than
upright.
■Clean all foreign materials from the product.
Store it in a cool, dry, and well-ventilated
place that is inaccessible to children. Keep
the product away from corrosive agents
such as garden chemicals and de-icing
salts. Do not store the product outdoors.
■Remove water from all hoses and the pump,
and empty the detergent tank before storing
the product.
■For transportation in a vehicle, secure the
product against movement or falling to
prevent injury to persons or damage to the
product.
■Store the product indoors only. Storing the
product in an area with temperature below
0°C will damage the product.
MAINTENANCE
■Use only original manufacturer’s
replacement parts, accessories, and
attachments. Failure to do so can cause
possible injury, can contribute to poor
performance, and may void your warranty.
■Servicing requires extreme care and
knowledge and should be performed only
by a qualified service technician. Have the
product serviced by an authorised service
centre only.
■Turn off the product, and disconnect the
plug from the power outlet. Disconnect the
product from the water supply. Allow the
product to cool down:
●before servicing
●before clearing a blockage
●before checking, cleaning, or working on
the product
■You may make adjustments or repairs
described in this manual. For other repairs,
contact an authorised service centre.
■Regularly inspect and maintain the high
pressure cleaner for safe operation. RYOBI
recommends inspecting the product every
6 months.
■Check all nuts, bolts, and screws at frequent
intervals for proper tightness to ensure that
the product is in safe working condition. Any
part that is damaged should be properly
repaired or replaced by an authorised
service centre.

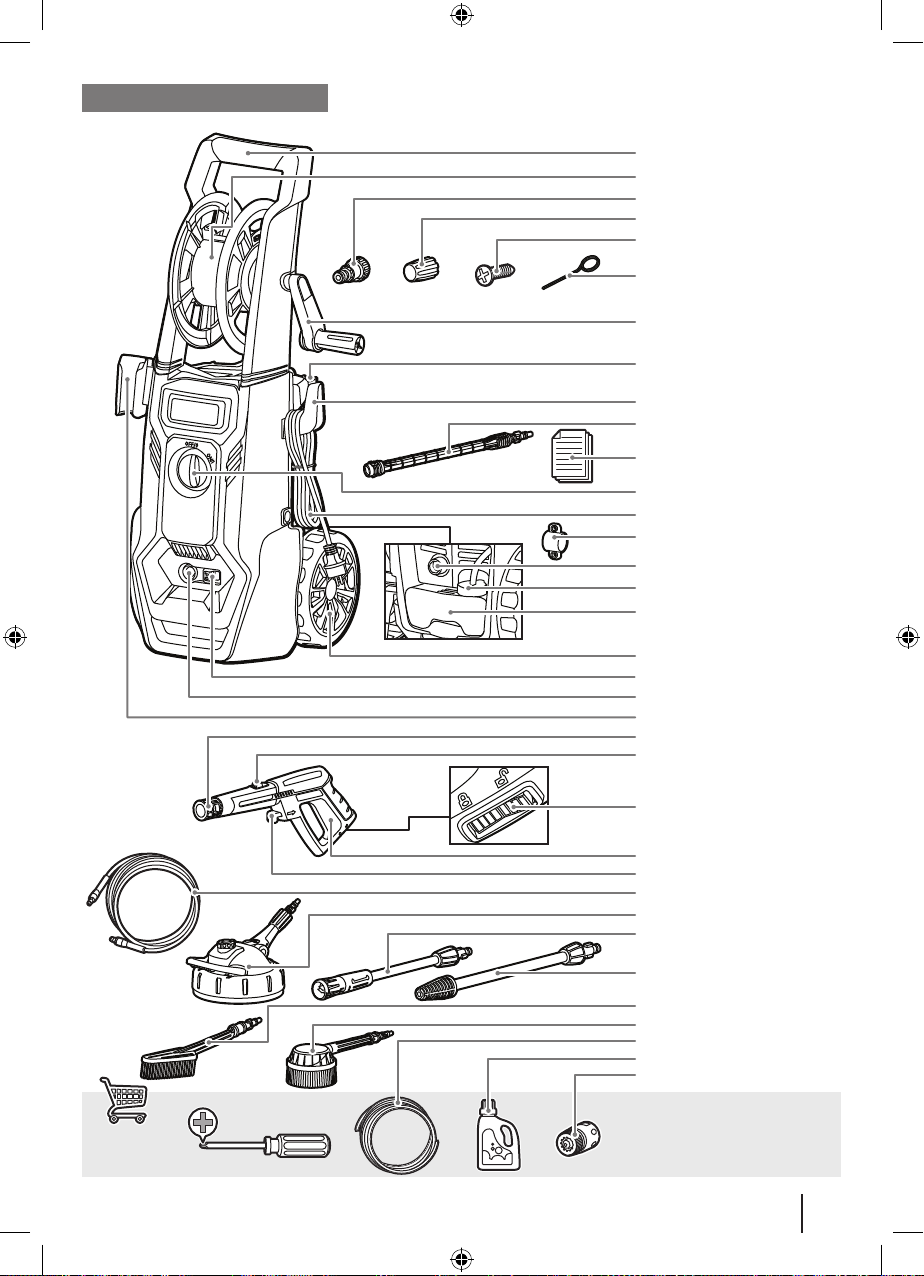

KNOW YOUR PRODUCT
See page 7.
1. Carry handle
2. Hose reel
3. Water inlet filter
4. Surface cleaner connector
5. Handle screws
6. Nozzle cleaning tool
7. Hose reel handle
8. Lance hook
9. Power cord holder
10. Surface cleaner extension
11. Operator’s manual
12. On/off switch
13. Power cord
14. Reel holder

5
Original Instructions
Class II tool, double insulation
Wear eye and hearing
protection.
Power
The product is not suitable
for connection to the drinking
water mains without backow
preventer.
Never point the spray wand to
people, animals, the body of
the product, power supply, or
any electric appliances.
Maximum pressure
Turn the bottom portion of the
nozzle all the way to the right
to activate low pressure mode
for foaming/detergent.
European Conformity Mark
British Conformity Mark
EurAsian Conformity Mark
Ukraine Conformity Mark
91
Guaranteed sound power level
15. Water inlet port
16. Detergent tank cap
17. Detergent tank
18. Wheel
19. Hose release button
20. Water outlet port
21. Trigger gun holder
22. Spray angle
23. Spray angle lock button
24. Trigger handle lock
25. Trigger
26. Hose lock button
27. High-pressure hose
28. Surface cleaner
29. Vario lance
30. Turbo lance
31. Fixed brush
32. Rotary brush
33. Garden hose
34. RYOBI detergent
35. Garden hose connector
NOTE: If using a detergent, refer to the Material
Safety Data Sheet of the detergent.
SAFETY DEVICES
■On/Off switch
–The on/off switch prevents unintentional
operation of the product.
■Trigger handle lock
–The trigger handle lock locks the trigger
and prevents unintentional opening of
the high-pressure jet.
■Overflow valve with pressure switch
–The overflow valve prevents the
permissible working pressure from being
exceeded. If the lever on the trigger gun
is released, the pressure switch turns
off the pump and the high-pressure jet
stops. If the lever is pulled, the pump
turns on again.
■Overload protection
–A thermal sensor protects the product
from overloading. The product will
automatically shut the power down while
overheating.
SYMBOLS ON THE PRODUCT
Read and understand all
instructions before operating
the product. Follow all warnings
and safety instructions.

6
Original Instructions
Do not dispose of waste
electrical and electronic
equipment as unsorted
municipal waste. Waste
electrical and electronic
equipment must be collected
separately. Waste light sources
have to be removed from the
equipment. Check with your
local authority or retailer for
recycling advice and collection
point. According to local
regulations, retailers may have
an obligation to take back
waste electrical and electronic
equipment free of charge. Your
contribution to the reuse and
recycling of waste electrical
and electronic equipment helps
to reduce the demand of raw
materials. Waste electrical
and electronic equipment
contain valuable and recyclable
materials, which can adversely
impact the environment and the
human health if not disposed
of in an environmentally
compatible manner. Delete
personal data from waste
equipment, if any.
SYMBOLS IN THIS MANUAL
Wear non-slip, heavy-duty,
protective gloves when handling.
Parts or accessories sold
separately
Connect to power outlet.
Disconnect from power outlet.
Note
Warning

7
RY140PWA-P
x 6
x 2
x 2
x 2
1
2
3
5
6
7
8
9
10
11
12
13
15
14
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
4

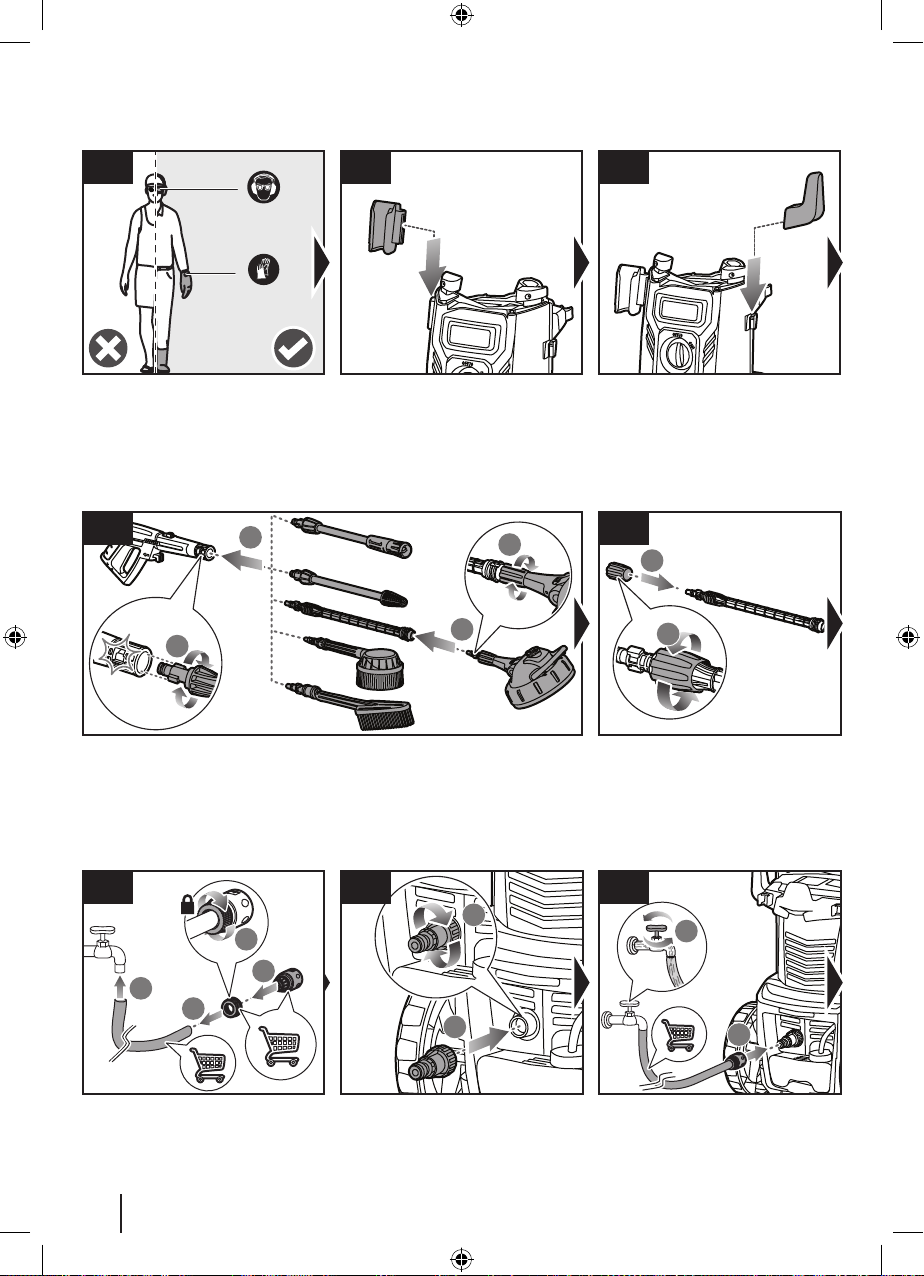

8
1 2 3
4
3
1
2
1
2
1
2
2
1
5
9
6a
10
2
1
4
3
8

9
3
1
24
5
6
6
4
5
1
23
4
6b
5
1
2
30 sec
1
2
1
2
3
11
7
12
8

10
p.14p.12
p.18
p.13
p.16 p.19
p.11

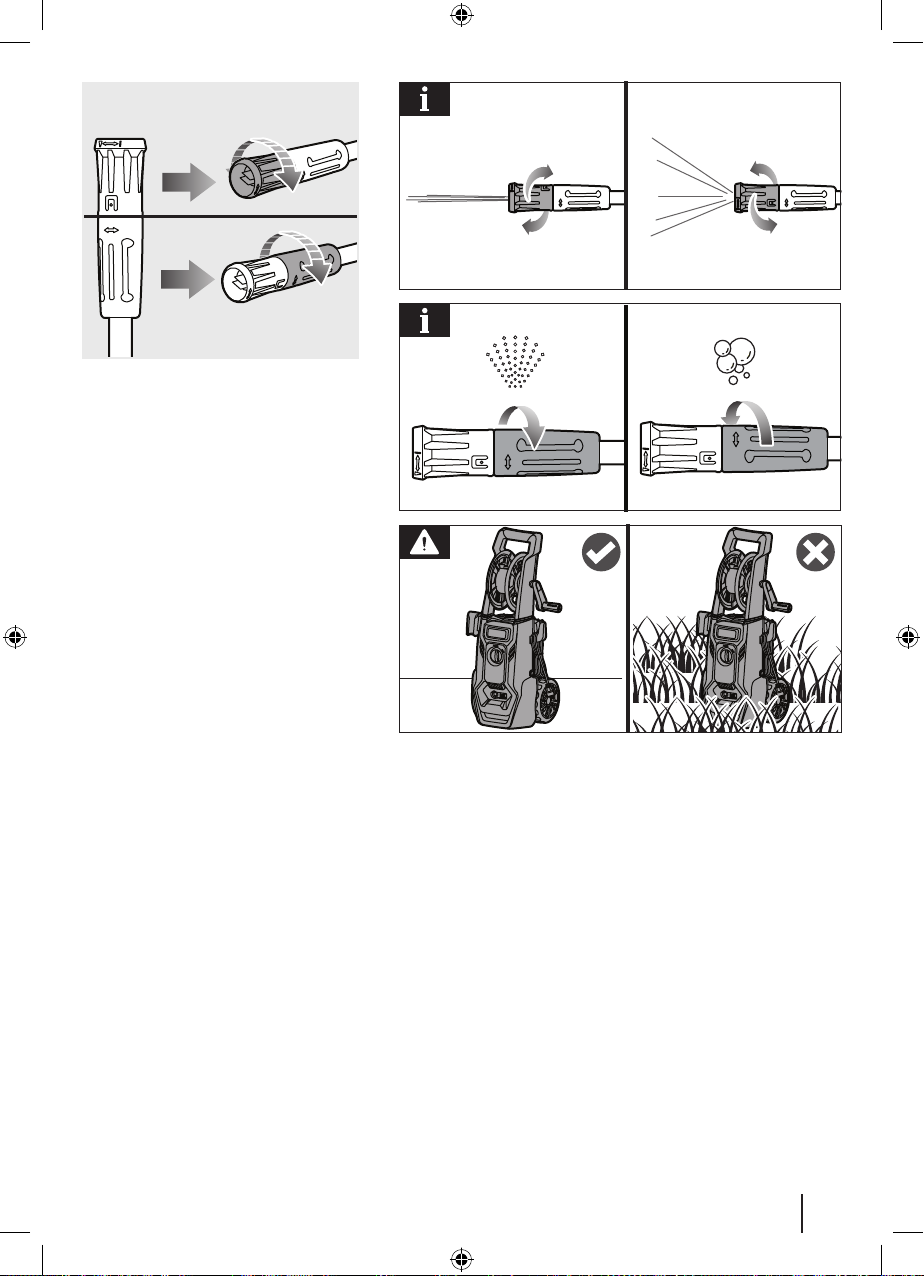

11

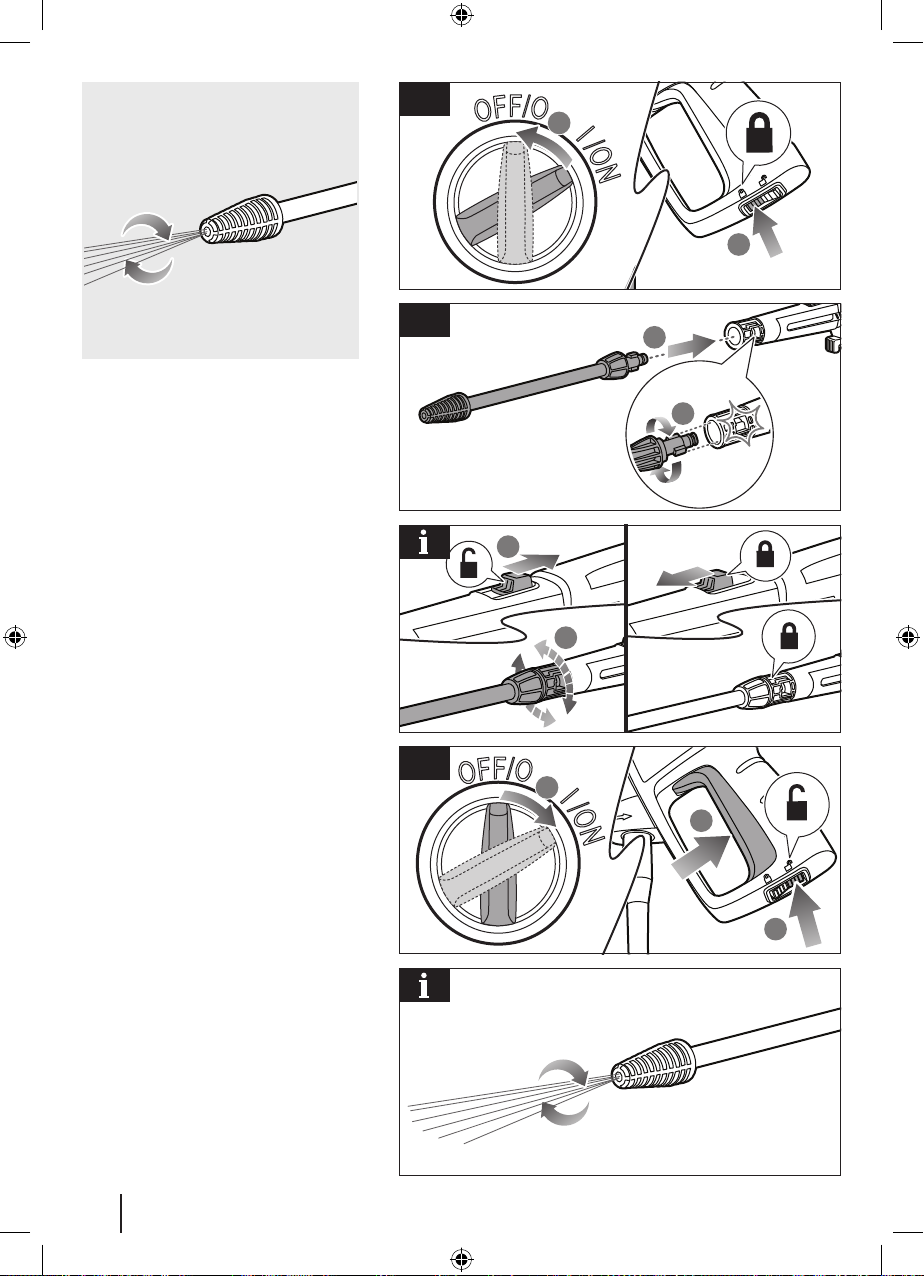

12
1
2
1
2
1
2
1
2
1
2
3
3

13
1
2
1
2
1
2
1
2
3
1
2
3

14
1
2
1
6
3
4
5
2
1
2
4
3
3
4
5
2
1
4
3
1
2
3
4
3
1
2
4

15
1
2
5

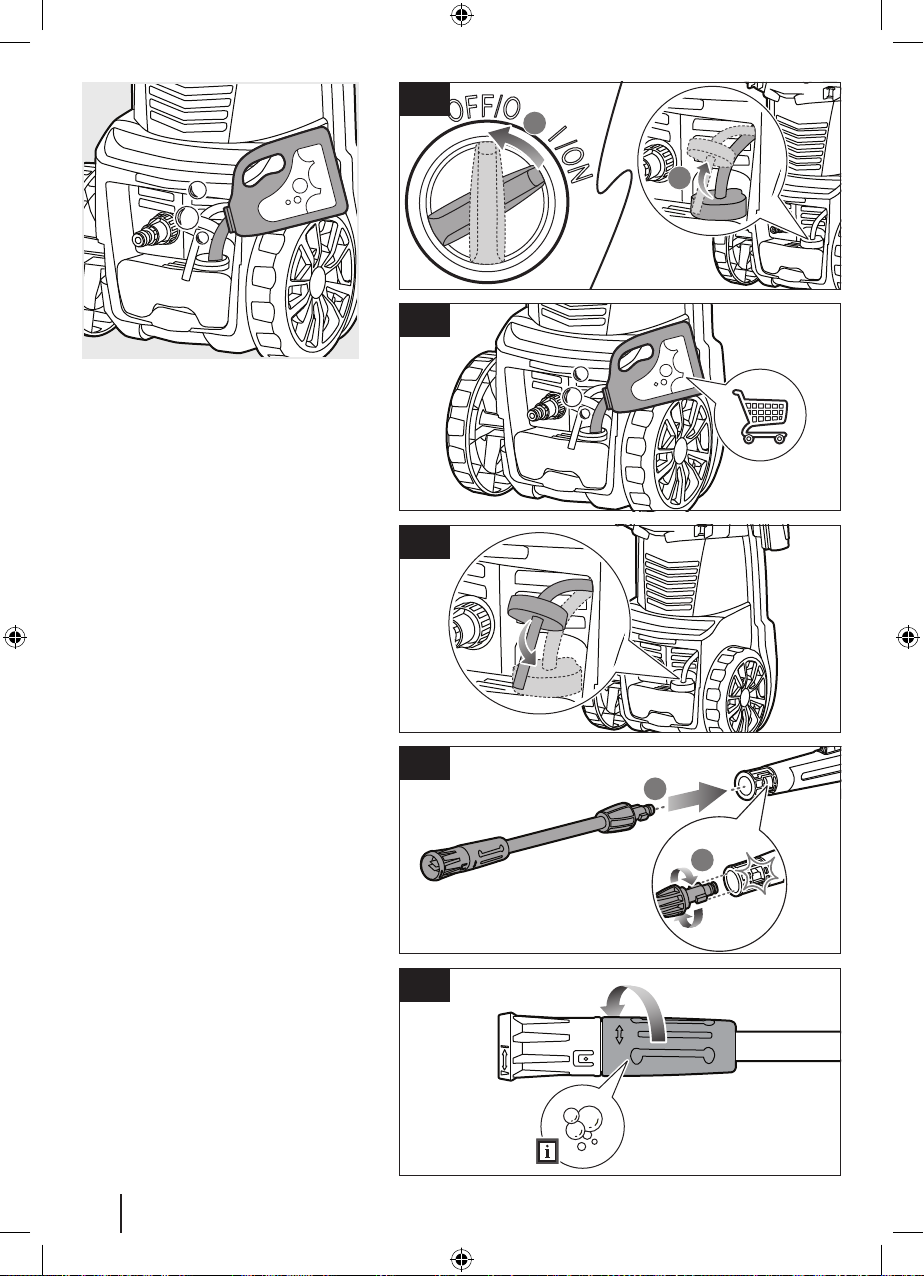

16
1
2
1
2
3
1
2
4
5

17
1
2
3
6

18
1
2
1
2

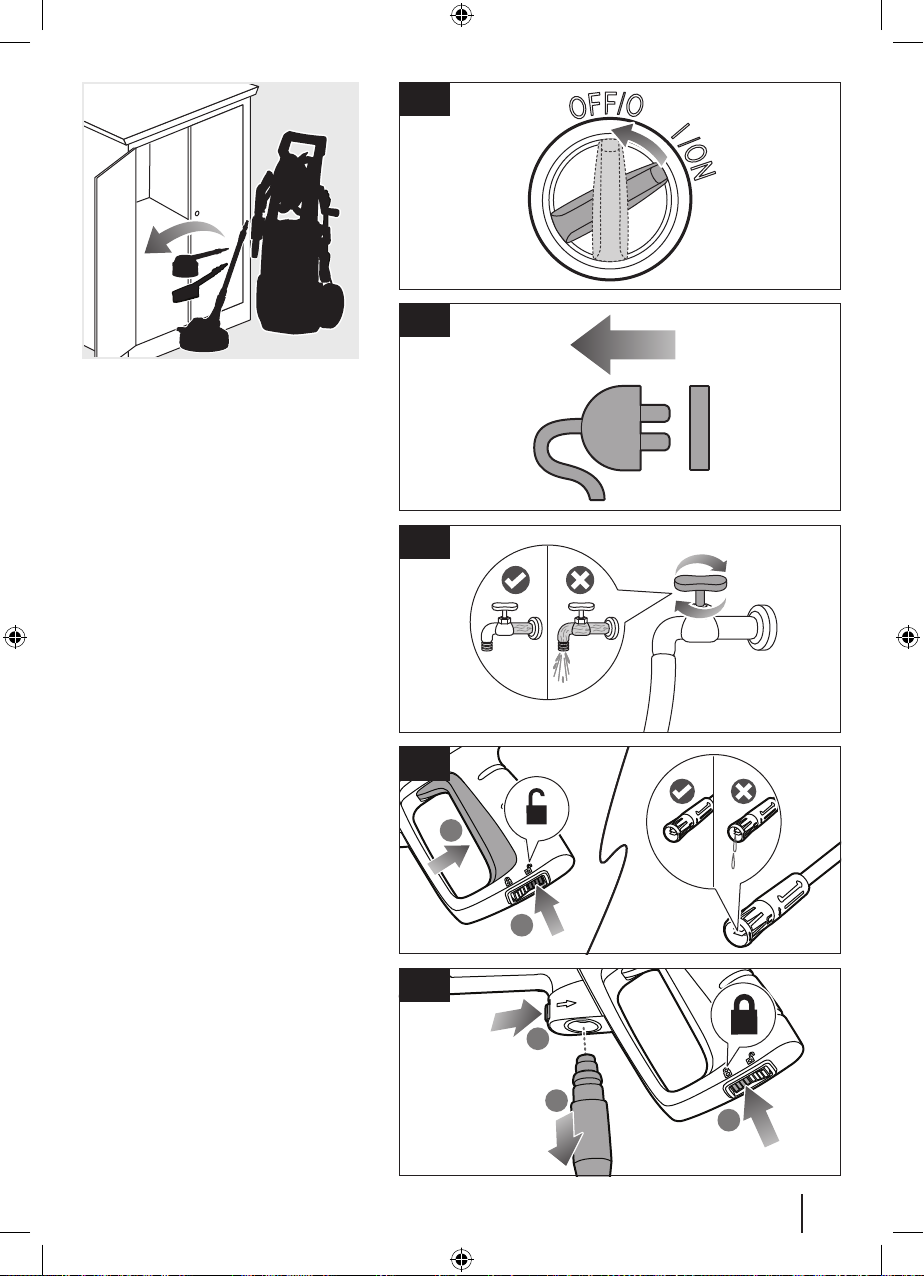

19
2
1
2
3
4
1
1
2
3
5

20
1
2
6
7
8
2
1
9
1
2
3
1
2
3
