Ryobi RTS21 User manual

OPERATOR’S MANUAL
10 in. TABLE SAW
RTS21/RTS21G
SAVE THIS MANUAL FOR FUTURE REFERENCE
Your table saw has been engineered and manufactured to our high standard for dependability, ease of operation, and
operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING: To reduce the risk of injury, the user must read and understand the operator’s manual before using
this product.
Thank you for your purchase.

2
TABLE OF CONTENTS
Introduction ......................................................................................................................................................................2
Warranty ...........................................................................................................................................................................2
General Safety Rules.................................................................................................................................................... 3-4
Specific Safety Rules.................................................................................................................................................... 4-5
Symbols............................................................................................................................................................................6
 Electrical ...........................................................................................................................................................................7
 Glossary of Terms.............................................................................................................................................................8
Features...................................................................................................................................................................... 9-12
Tools Needed .................................................................................................................................................................12
 Loose Parts ....................................................................................................................................................................13
Assembly .................................................................................................................................................................. 14-20
Operation.................................................................................................................................................................. 21-34
Adjustments.............................................................................................................................................................. 35-37
 Maintenance...................................................................................................................................................................37
 Accessories ....................................................................................................................................................................38
 Troubleshooting........................................................................................................................................................ 38-39
Parts Ordering/Service ..................................................................................................................................... Back Page
INTRODUCTION
This tool has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability have
been given top priority in the design of this product making it easy to maintain and operate.
WARRANTY
RYOBI®POWER TOOL - LIMITED THREE YEAR WARRANTY AND 90 DAY EXCHANGE POLICY
One World Technologies, Inc., warrants its RYOBI®power tools with the following conditions:
90-DAY EXCHANGE POLICY: During the first 90 days after date of purchase, you may either request service under this
warranty or you may exchange any RYOBI®power tool which does not work properly due to defective workmanship or
materials by returning the power tool to the dealer from which it was purchased. To receive a replacement power tool
or requested warranty service, you must present proof of purchase and return all original equipment packaged with the
original product. The replacement power tool will be covered by the limited warranty for the balance of the three year
period from the date of the original purchase.
WHAT THIS WARRANTY COVERS: This warranty covers all defects in workmanship or materials in your RYOBI®power
tool for a period of three years from the date of purchase. With the exception of batteries, power tool accessories are
warranted for ninety (90) days. Batteries are warranted for three years.
HOW TO GET SERVICE: Just return the power tool, properly packaged and postage prepaid, to an Authorized Service
Center. You can obtain the location of the Service Center nearest you by contacting a service representative at One
World Technologies, Inc., P.O. Box 1207, Anderson, SC 29622-1207, by calling 1-800-525-2579 or by logging on to
www.ryobitools.com. When you request warranty service, you must also present proof of purchase documentation, which
includes the date of purchase (for example, a bill of sale). We will repair any faulty workmanship, and either repair or replace
any defective part, at our option. We will do so without any charge to you. We will complete the work in a reasonable time,
but, in any case, within ninety (90) days or less.
WHAT’S NOT COVERED: This warranty applies only to the original purchaser at retail and may not be transferred. This
warranty only covers defects arising under normal usage and does not cover any malfunction, failure or defects resulting
from misuse, abuse, neglect, alteration, modification or repairs by other than Authorized Service Centers. One World
Technologies, Inc. makes no warranties, representations or promises as to the quality or performance of its power tools
other than those specifically stated in this warranty.
ADDITIONAL LIMITATIONS: Any implied warranties granted under state law, including warranties of merchantability or
fitness for a particular purpose, are limited to three years from the date of purchase. One World Technologies, Inc. is not
responsible for direct, indirect, or incidental damages, so the above limitations and exclusions may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

3
WARNING:
Read and understand all instructions. Failure to follow
all instructions listed below, may result in electric shock,
fire and/or serious personal injury.
READ ALL INSTRUCTIONS
KNOW YOUR POWER TOOL. Read the operator’s
manual carefully. Learn the saw’s applications and
limitations as well as the specific potential hazards related
to this tool.
GUARD AGAINST ELECTRICAL SHOCK BY
PREVENTING BODY CONTACT WITH GROUNDED
SURFACES. For example, pipes, radiators, ranges,
refrigerator enclosures.
KEEP GUARDS IN PLACE and in good working order.
REMOVE ADJUSTING KEYS AND WRENCHES. Form
habit of checking to see that keys and adjusting wrenches
are removed from tool before turning it on.
KEEP WORK AREA CLEAN. Cluttered areas and
benches invite accidents. DO NOT leave tools or pieces
of wood on the saw while it is in operation.
DO NOT USE IN DANGEROUS ENVIRONMENTS. Do
not use power tools in damp or wet locations or expose
to rain. Keep the work area well lit.
KEEP CHILDREN AND VISITORS AWAY. All visitors
should wear safety glasses and be kept a safe
distance from work area. Do not let visitors contact
tool or extension cord while operating.
MAKE WORKSHOP CHILDPROOF with padlocks and
master switches, or by removing starter keys.
DON’T FORCE TOOL. It will do the job better and safer
at the feed rate for which it was designed.
USE RIGHT TOOL. Don’t force the tool or attachment to
do a job it was not designed for. Don’t use it for a purpose
not intended.
USE THE PROPER EXTENSION CORD. Make sure
your extension cord is in good condition. Use only a
cord heavy enough to carry the current your product
will draw. An undersized cord will cause a drop in line
voltage resulting in loss of power and overheating. A wire
gauge size (A.W.G.) of at least 14 is recommended for an
extension cord 25 feet or less in length. If in doubt, use
the next heavier gauge. The smaller the gauge number,
the heavier the cord.
DRESS PROPERLY. Do not wear loose clothing, gloves,
neckties, or jewelry. They can get caught and draw you
into moving parts. Rubber gloves and nonskid footwear
are recommended when working outdoors. Also wear
protective hair covering to contain long hair.
ALWAYS WEAR SAFETY GLASSES WITH SIDE
SHIELDS. Everyday eyeglasses have only impact-
resistant lenses, they are NOT safety glasses.
SECURE WORK. Use clamps or a vise to hold work when
practical. It’s safer than using your hand and frees both
hands to operate tool.
DON’T OVERREACH. Keep proper footing and balance
at all times.
MAINTAIN TOOLS WITH CARE. Keep tools sharp
and clean for better and safer performance. Follow
instructions for lubricating and changing accessories.
DISCONNECT TOOLS. When not in use, before
servicing, or when changing attachments, blades, bits,
cutters, etc., all tools should be disconnected.
AVOID ACCIDENTAL STARTING. Be sure switch is off
when plugging in any tool.
USE RECOMMENDED ACCESSORIES. Consult the
operator’s manual for recommended accessories. The
use of improper accessories may risk injury.
NEVER STAND ON TOOL. Serious injury could occur if
the tool is tipped or if the cutting tool is unintentionally
contacted.
CHECK DAMAGED PARTS. Before further use of the
tool, a guard or other part that is damaged should be
carefully checked to determine that it will operate properly
and perform its intended function. Check for alignment
of moving parts, binding of moving parts, breakage of
parts, mounting and any other conditions that may affect
its operation. A guard or other part that is damaged must
be properly repaired or replaced by an authorized service
center to avoid risk of personal injury.
USE THE RIGHT DIRECTION OF FEED. Feed work into
a blade or cutter against the direction of rotation of blade
or cutter only.
NEVER LEAVE TOOL RUNNING UNATTENDED. TURN
THE POWER OFF. Don’t leave tool until it comes to a
complete stop.
PROTECT YOUR LUNGS. Wear a face or dust mask if
the cutting operation is dusty.
PROTECT YOUR HEARING. Wear hearing protection
during extended periods of operation.
DO NOT ABUSE CORD. Never yank cord to disconnect
from receptacle. Keep cord away from heat, oil, and sharp
edges.
WHEN OPERATING A POWER TOOL OUTSIDE, USE
AN OUTDOOR EXTENSION CORD MARKED “W-A”
OR “W”. These cords are rated for outdoor use and
reduce the risk of electric shock.
KEEP BLADES CLEAN, SHARP, AND WITH
SUFFICIENT SET. Sharp blades minimize stalling
and kickback.
KEEP HANDS AWAY FROM CUTTING AREA. Keep
hands away from blades. Do not reach underneath work
or around or over the blade while blade is rotating. Do not
attempt to remove cut material when blade is moving.
GENERAL SAFETY RULES

4
GENERAL SAFETY RULES
BLADE COASTS AFTER BEING TURNED OFF.
NEVER USE IN AN EXPLOSIVE ATMOSPHERE.
Normal sparking of the motor could ignite fumes.
INSPECT TOOL CORDS PERIODICALLY. If damaged,
have repaired by a qualified service technician at
an authorized service facility. The conductor with
insulation having an outer surface that is green with
or without yellow stripes is the equipment-grounding
conductor. If repair or replacement of the electric cord
or plug is necessary, do not connect the equipment-
grounding conductor to a live terminal. Repair or replace
a damaged or worn cord immediately. Stay constantly
aware of cord location and keep it well away from the
rotating blade.
INSPECT EXTENSION CORDS PERIODICALLY and
replace if damaged.
GROUND ALL TOOLS. If tool is equipped with three-
prong plug, it should be plugged into a three-hole
electrical receptacle.
CHECK WITH A QUALIFIED ELECTRICIAN or service
personnel if the grounding instructions are not completely
understood or if in doubt as to whether the tool is properly
grounded.
USE ONLY CORRECT ELECTRICAL DEVICES:3-wire
extension cords that have 3-prong grounding plugs and
3-pole receptacles that accept the tool’s plug.
DO NOT MODIFY the plug provided. If it will not fit the
outlet, have the proper outlet installed by a qualified
electrician.
KEEP TOOL DRY, CLEAN, AND FREE FROM OIL AND
GREASE. Always use a clean cloth when cleaning. Never
use brake fluids, gasoline, petroleum-based products, or
any solvents to clean tool.
SPECIFIC SAFETY RULES
FIRMLY BOLT THE SAW TO A WORK BENCH OR LEG
STAND at approximately hip height.
 NEVER OPERATE THE SAW ON THE FLOOR.
 GUARD AGAINST KICKBACK. Kickback occurs when
the blade stalls rapidly and workpiece is driven back
towards the operator. It can pull your hand into the blade
resulting in serious personal injury. Stay out of blade path
and turn switch off immediately if blade binds or stalls.
USE RIP FENCE. Always use a fence or straight edge
guide when ripping.
SUPPORT LARGE PANELS. To minimize risk of blade
pinching and kickback, always support large panels.
REMOVE ALL FENCES AND AUXILIARY TABLES
before transporting saw. Failure to do so can result in an
accident causing possible serious personal injury.
STAY ALERT AND EXERCISE CONTROL. Watch what
you are doing and use common sense. Do not operate
tool when you are tired. Do not rush.
DO NOT USE TOOL IF SWITCH DOES NOT TURN IT
ON AND OFF. Have defective switches replaced by an
authorized service center.
USE ONLY CORRECT BLADES. Do not use blades with
incorrect size holes. Never use blade washers or blade
bolts that are defective or incorrect. The maximum blade
capacity of your saw is 10 in. (254 mm).
BEFORE MAKING A CUT, BE SURE ALL ADJUSTMENTS
ARE SECURE.
BE SURE BLADE PATH IS FREE OF NAILS. Inspect for
and remove all nails from lumber before cutting.
NEVER TOUCH BLADE or other moving parts during
use.
NEVER START A TOOL WHEN ANY ROTATING
COMPONENT IS IN CONTACT WITH THE
WORKPIECE.
DO NOT OPERATE A TOOL WHILE UNDER THE
INFLUENCE OF DRUGS, ALCOHOL, OR ANY
MEDICATION.
WHEN SERVICING use only identical replacement parts.
Use of any other parts may create a hazard or cause
product damage.
USE ONLY RECOMMENDED ACCESSORIES listed
in this manual or addendums. Use of accessories that
are not listed may cause the risk of personal injury.
Instructions for safe use of accessories are included with
the accessory.
DOUBLE CHECK ALL SETUPS. Make sure blade is tight
and not making contact with saw or workpiece before
connecting to power supply.
ALWAYS USE BLADE GUARD, RIVING KNIFE, AND
ANTI-KICKBACK PAWLS on all “through-sawing” op-
erations. Through-sawing operations are those in which
the blade cuts completely through the workpiece as in
ripping or cross cutting. Keep the blade guard down, the
anti-kickback pawls down, and the riving knife in place.
ALWAYS SECURE WORK firmly against the rip fence or
miter gauge. NEVER use the rip fence during the same
operation as the miter gauge.
WHEN MAKING NON-THROUGH RIP CUTS, always
use a push stick, push block, and/or featherboard so your
hands do not come within 3 inches of the saw blade.
WHEN RIPPING NARROW STOCK, always use a push
stick, push block, or featherboard.

5
SPECIFIC SAFETY RULES
NEVER perform any operation “freehand” which means
using only your hands to support or guide the workpiece.
Always use either the rip fence or miter gauge to position
and guide the work.
NEVER stand or have any part of your body in line with
the path of the saw blade.
NEVER reach behind, over, or within three inches of the
blade or cutter with either hand for any reason.
MOVE THE RIP FENCE out of the way when cross cut-
ting.
DO NOT USE THE MITER GAUGE AND RIP FENCE
during the same operation.
NEVER use rip fence as cutoff gauge when cross
cutting.
NEVER attempt to free a stalled saw blade without first
turning the saw OFF and disconnecting the saw from the
power source.
PROVIDE ADEQUATE SUPPORT to the rear and sides
of the saw table for wide or long workpieces.
AVOID KICKBACKS (work thrown back toward you)
by:
a) Keeping blade sharp.
b) Keeping rip fence parallel to the saw blade.
c) Keeping riving knife, anti-kickback pawls, and
blade guard in place and operating.
d) Not releasing the work before it is pushed all the
way past the saw blade using a push stick.
e) Not ripping work that is twisted or warped or
does not have a straight edge to guide along the
fence.
IF THE POWER SUPPLY CORD IS DAMAGED, it must
be replaced only by the manufacturer or by an authorized
service center to avoid risk.
AVOID AWKWARD OPERATIONS AND HAND
POSITIONS where a sudden slip could cause your hand
to move into the cutting tool.
USE ONLY RECOMMENDED ACCESSORIES listed
in this manual or addendums. Use of accessories that
are not listed may cause the risk of personal injury.
Instructions for safe use of accessories are included with
the accessory.
MAKE SURE THE WORK AREA HAS AMPLE LIGHTING
to see the work and that no obstructions will interfere with
safe operation BEFORE performing any work using the
table saw.
ALWAYS TURN OFF SAW before disconnecting it, to
avoid accidental starting when reconnecting to power
supply.
ONLY USE BLADES within the thickness range stamped
on the riving knife.
THIS TOOL should have the following markings:
a) Wear eye protection.
b) Use saw blade guard and riving knife for every
operation for which it can be used, including all
through sawing.
c) Keep hands out of the line of saw blade.
d) Use a push stick when required.
e) Pay particular attention to instructions on reducing
risk of kickback.
f) Do not perform any operation freehand.
g) Never reach around or over the saw blade.
h) Never operate saw on floor or below waist height.
NEVER CUT MORE THAN ONE PIECE OF MATERIAL
AT A TIME.
SAVE THESE INSTRUCTIONS. Refer to them frequently
and use to instruct other users. If you loan someone this
tool, loan them these instructions also.

6
SYMBOLS
Some of the following symbols may be used on this tool. Please study them and learn their meaning. Proper
interpretation of these symbols will allow you to operate the tool better and safer.
Safety Alert Indicates a potential personal injury hazard.
Read Operator’s Manual To reduce the risk of injury, user must read and understand opera-
tor’s manual before using this product.
Eye Protection Always wear eye protection with side shields marked to comply
with ANSI Z87.1.
No Hands Symbol Failure to keep your hands away from the blade will result in
serious personal injury.
Wet Conditions Alert Do not expose to rain or use in damp locations.
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
min Minutes Time
Alternating Current Type of current
n
o
No Load Speed Rotational speed, at no load
.../min Per Minute Revolutions, strokes, surface speed, orbits, etc., per minute
SYMBOL NAME DESIGNATION/EXPLANATION
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER: Indicates an imminently hazardous situation, which, if not avoided, will result
in death or serious injury.
WARNING: Indicates a potentially hazardous situation, which, if not avoided, could result
in death or serious injury.
CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may result in
minor or moderate injury.
NOTICE: (Without Safety Alert Symbol) ) Indicates important information not related to an
injury hazard, such as a situation that may result in property damage.

7
ELECTRICAL
EXTENSION CORDS
Use only 3-wire extension cords that have 3-prong ground-
ing plugs and 3-pole receptacles that accept the tool's plug.
When using a power tool at a considerable distance from the
power source, use an extension cord heavy enough to carry
the current that the tool will draw. An undersized extension
cord will cause a drop in line voltage, resulting in a loss of
power and causing the motor to overheat. Use the chart
provided below to determine the minimum wire size required
in an extension cord. Only round jacketed cords listed by
Underwriter's Laboratories (UL) should be used.
**Ampere rating (on tool faceplate)
0-2.0 2.1-3.4 3.5-5.0 5.1-7.0 7.1-12.0 12.1-16.0
Cord Length Wire Size (A.W.G.)
25' 16 16 16 16 14 14
50' 16 16 16 14 14 12
100' 16 16 14 12 10 —
**Used on 12 gauge - 20 amp circuit.
NOTE: AWG = American Wire Gauge
When working with the tool outdoors, use an extension cord
that is designed for outside use. This is indicated by the
letters “W-A” or “W” on the cord’s jacket.
Before using an extension cord, inspect it for loose or
exposed wires and cut or worn insulation.
WARNING:
Keep the extension cord clear of the working area. Posi-
tion the cord so that it will not get caught on lumber, tools
or other obstructions while you are working with a power
tool. Failure to do so can result in serious personal injury.
WARNING:
Check extension cords before each use. If damaged
replace immediately. Never use product with a damaged
cord since touching the damaged area could cause
electrical shock resulting in serious injury.
ELECTRICAL CONNECTION
This product is powered by a precision built electric motor.
It should be connected to a power supply that is 120 V, AC
only (normal household current), 60 Hz. Do not operate
this product on direct current (DC). A substantial voltage
drop will cause a loss of power and the motor will overheat.
If the saw does not operate when plugged into an outlet,
double check the power supply.
SPEED AND WIRING
The no-load speed of this tool is approximately 5,000 rpm.
This speed is not constant and decreases under a load or
with lower voltage. For voltage, the wiring in a shop is as
important as the motor’s horsepower rating. A line intended
only for lights cannot properly carry a power tool motor. Wire
that is heavy enough for a short distance will be too light for
a greater distance. A line that can support one power tool
may not be able to support two or three tools.
GROUNDING INSTRUCTIONS
This product must be grounded. In the event of a malfunction or
breakdown, grounding provides a path of least resistance for
electric current to reduce the risk of electric shock. This tool is
equipped with an electric cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged
into a matching outlet that is properly installed and grounded
in accordance with all local codes and ordinances.
Do not modify the plug provided. If it will not fit the outlet,
have the proper outlet installed by a qualified electrician.
WARNING:
Improper installation of the grounding plug can result in
a risk of electric shock. When repair or replacement of
the cord is required, do not connect the grounding wire
to either flat blade terminal. The wire with insulation hav-
ing an outer surface that is green with or without yellow
stripes is the grounding wire.
Check with a qualified electrician or service personnel if the
grounding instructions are not completely understood, or if
in doubt as to whether the tool is properly grounded.
Repair or replace a damaged or worn cord immediately.
This product is for use on a nominal 120 volt circuit and
has a grounding plug similar to the plug illustrated in fig-
ure 1. Only connect the product to an outlet having the same
configuration as the plug. Do not use an adapter with this
product.
GROUNDING
PIN 120 V GROUNDED
OUTLET Fig. 1

8
GLOSSARY OF TERMS
Push Blocks (for jointer planers)
Device used to feed the workpiece over the jointer planer
cutterhead during any operation. This aid helps keep the
operator’s hands well away from the cutterhead.
Push Blocks (for table saws)
Device used to hold the workpiece during cutting opera-
tions. This aid helps keep the operator’s hands well away
from the blade.
Push Sticks (for table saws)
Device used to push the workpiece during cutting operations.
A push stick should be used for narrow ripping operations.
The aid helps keep the operator’s hands well away from
the blade.
Resaw
A cutting operation to reduce the thickness of the workpiece
to make thinner pieces.
Resin
A sticky, sap-based substance that has hardened.
Revolutions Per Minute (RPM)
The number of turns completed by a spinning object in one
minute.
Ripping or Rip Cut
A cutting operation along the length of the workpiece.
Riving Knife/Spreader/Splitter (table saws)
A metal piece, slightly thinner than the blade, which helps
keep the kerf open and also helps to prevent kickback.
Saw Blade Path
The area over, under, behind, or in front of the blade. As it
applies to the workpiece, that area which will be or has been
cut by the blade.
Set
The distance that the tip of the saw blade tooth is bent (or
set) outward from the face of the blade.
Snipe (planers)
Depression made at either end of a workpiece by cutter
blades when the workpiece is not properly supported.
Taper Cut
A cut where the material being cut has a different width at
the beginning of the cut from the the end.
Through Sawing
Any cutting operation where the blade extends completely
through the thickness of the workpiece.
Throw-Back
The throwing back of a workpiece usually caused by the
workpiece being dropped into the blade or being placed
inadvertently in contact with the blade.
Workpiece or Material
The item on which the operation is being done.
Worktable
Surface where the workpiece rests while performing a
cutting, drilling, planing, or sanding operation.
Anti-Kickback Pawls (radial arm and table saws)
A device which, when properly installed and maintained,
is designed to stop the workpiece from being kicked back
toward the front of the saw during a ripping operation.
Arbor
The shaft on which a blade or cutting tool is mounted.
Bevel Cut
A cutting operation made with the blade at any angle other
than 90° to the table surface.
Compound Cut
A cross cut made with both a miter and a bevel angle.
Cross Cut
A cutting or shaping operation made across the grain or the
width of the workpiece.
Cutterhead (planers and jointer planers)
A rotating cutterhead with adjustable blades or knives. The
blades or knives remove material from the workpiece.
Dado Cut
A non-through cut which produces a square-sided notch or
trough in the workpiece (requires a special blade).
Featherboard
A device used to help control the workpiece by holding
it securely against the table or fence during any ripping
operation.
FPM or SPM
Feet per minute (or strokes per minute), used in reference
to blade movement.
Freehand
Performing a cut without the workpiece being guided by a
fence, miter gauge, or other aids.
Gum
A sticky, sap-based residue from wood products.
Heel
Alignment of the blade to the fence.
Kerf
The material removed by the blade in a through cut or the
slot produced by the blade in a non-through or partial cut.
Kickback
A hazard that can occur when the blade binds or stalls,
throwing the workpiece back toward operator.
Miter Cut
A cutting operation made with the workpiece at any angle
to the blade other than 90°.
Non-Through Cuts
Any cutting operation where the blade does not extend
completely through the thickness of the workpiece.
Pilot Hole (drill presses)
A small hole drilled in a workpiece that serves as a guide for
drilling large holes accurately.

9
FEATURES
PRODUCT SPECIFICATIONS
Blade Arbor .............................................................. 5/8 in.
Blade Diameter.......................................................... 10 in.
Blade Tilt ................................................................. 0˚ - 45˚
Rating ...............................................120 V, AC only, 60 Hz
Input .....................................................................15 Amps
No Load Speed .................................... 5,000 r/min. (RPM)
Cutting Depth at 0˚ ...................................................... 3 in.
Cutting Depth at 45˚ ..............................................2-1/2 in.

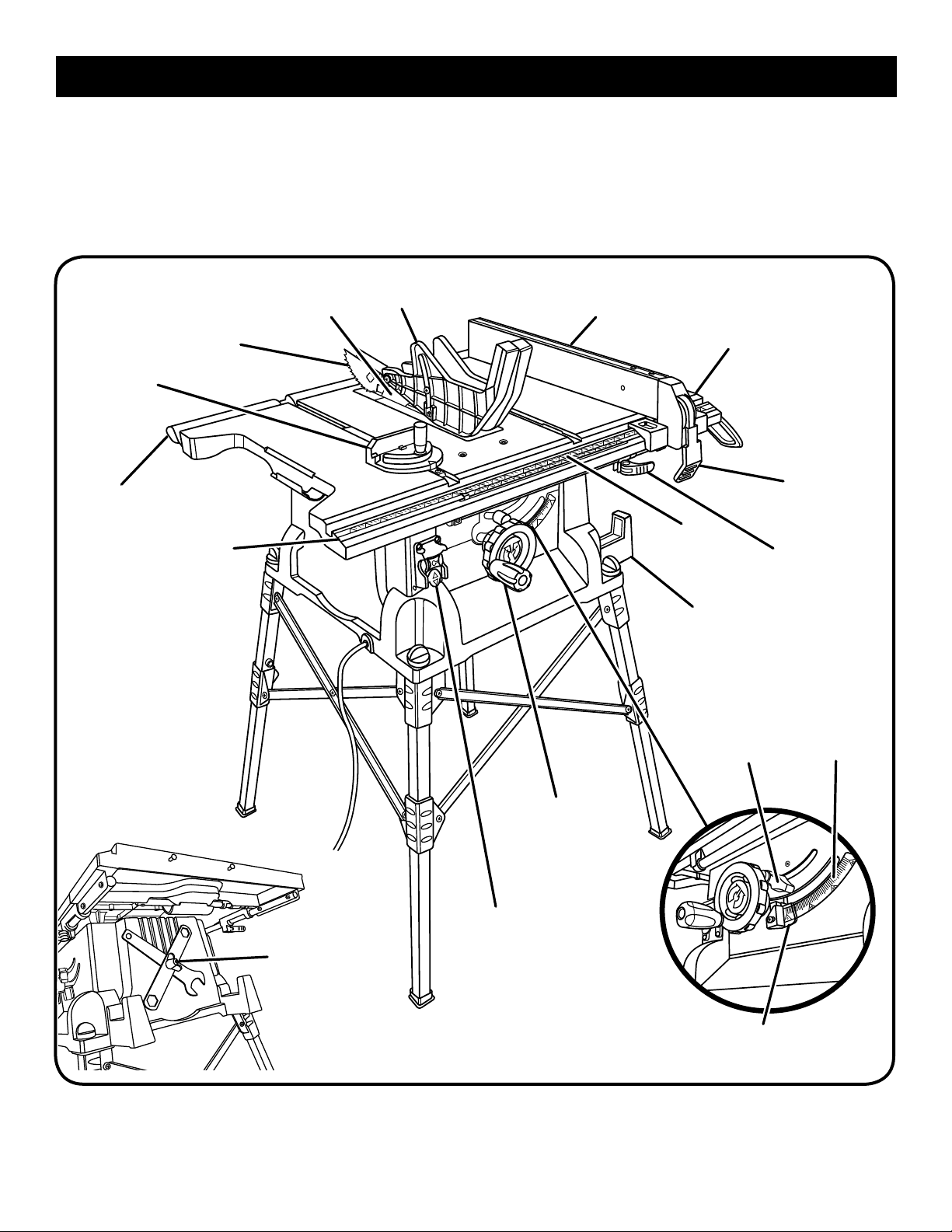

Fig. 2
MITER
GAUGE
BLADE
GUARD
STORAGE
BRACKET(S)
FRONT
RAIL
LOCKING
LEVER
SWITCH
SCALE
HEIGHT/BEVEL
ADJUSTING
HANDWHEEL
BEVEL
LOCKING
LEVER
BEVEL
SCALE
BEVEL
INDICATOR
RIP
FENCE SLIDING TABLE
EXTENSION
OUTFEED
SUPPORT
TABLE
LOCKING
LEVER
RIVING
KNIFE
BLADE
WRENCH
STORAGE
ANTI-KICKBACK
PAWLS

10
KNOW YOUR TABLE SAW
See Figure 2.
The safe use of this product requires an understanding of
the information on the tool and in this operator’s manual as
well as a knowledge of the project you are attempting. Before
use of this product, familiarize yourself with all operating
features and safety rules.
ANTI-KICKBACK PAWLS - Kickback is a hazard in which
the workpiece is thrown back toward the operator. The teeth
on the removable anti-kickback pawls point away from the
workpiece. If the workpiece should be pulled back toward
the operator, the teeth dig into the wood to help prevent or
reduce the possibility of kickback.
BEVEL SCALE - The easy-to-read scale on the front of the
cabinet shows the exact blade angle.
BLADE - This saw is provided with a 24-tooth, 10 in. carbide
blade. The blade is raised and lowered with the height/bevel
adjusting handwheel. Bevel angles are locked with the bevel
locking lever.
WARNING:
Do not use blades rated less than the speed of this tool.
Failure to heed this warning could result in personal injury.
BLADE GUARD - Always keep the removable blade guard
down over the saw blade for through-sawing cuts.
BEVEL LOCKING LEVER - This lever, placed just under
the saw table surface on the front of the cabinet, locks the
angle setting of the blade.
FEATURES
HEIGHT/BEVEL ADJUSTING HANDWHEEL - Located on
the front of the cabinet, use this handwheel to lower and
raise the blade for height adjustments or blade replace-
ment. This handwheel also makes the adjustment for bevel
angles easy.
MITER GAUGE - The miter gauge aligns the wood for a
cross cut. The easy-to-read indicator shows the exact angle
for a miter cut.
MITER GAUGE GROOVES- The miter gauge rides in the
grooves on the saw table.
OUTFEED SUPPORT - This table extension at the back of
the tool gives the operator additional support when cutting
long workpieces.
RIP FENCE - A sturdy metal fence guides the workpiece
and is secured with the locking handle.
RIVING KNIFE - A removable metal piece of the blade
guard assembly, slightly thinner than the saw blade, which
helps keep the kerf open and prevent kickback. When in the
through sawing, or “up” position, it is higher than the saw
blade. When in the non-through sawing, or “down” position,
it is below the saw blade teeth.
SCALE - Located on the front rail, the easy-to-read scale
provides precise measurements for rip cuts.
SLIDING TABLE EXTENSION - Located on the right side
of the saw table, this table extension gives the operator ad-
ditional support when cutting wide workpieces.
SWITCH ASSEMBLY - This saw has an easy access power
switch located below the front rail. To lock the switch in the
OFF position, remove the switch key from the switch. Place
the key in a location that is inaccessible to children and
others not qualified to use the tool.

11
FEATURES
OPERATING COMPONENTS
The upper portion of the blade projects up through the table
and is surrounded by an insert called the throat plate. The
height of the blade is set with a handwheel on the front of the
cabinet. Detailed instructions are provided in the Operation
section of this manual for the basic cuts: cross cuts, miter
cuts, bevel cuts, and compound cuts.
The rip fence is used to position work for lengthwise cuts.
A scale on the front rail shows the distance between the rip
fence and the blade.
It is very important to use the blade guard assembly for
all through-sawing operations. The blade guard assembly
includes: riving knife, anti-kickback pawls, and plastic blade
guard.
SWITCH ASSEMBLY
See Figure 3.

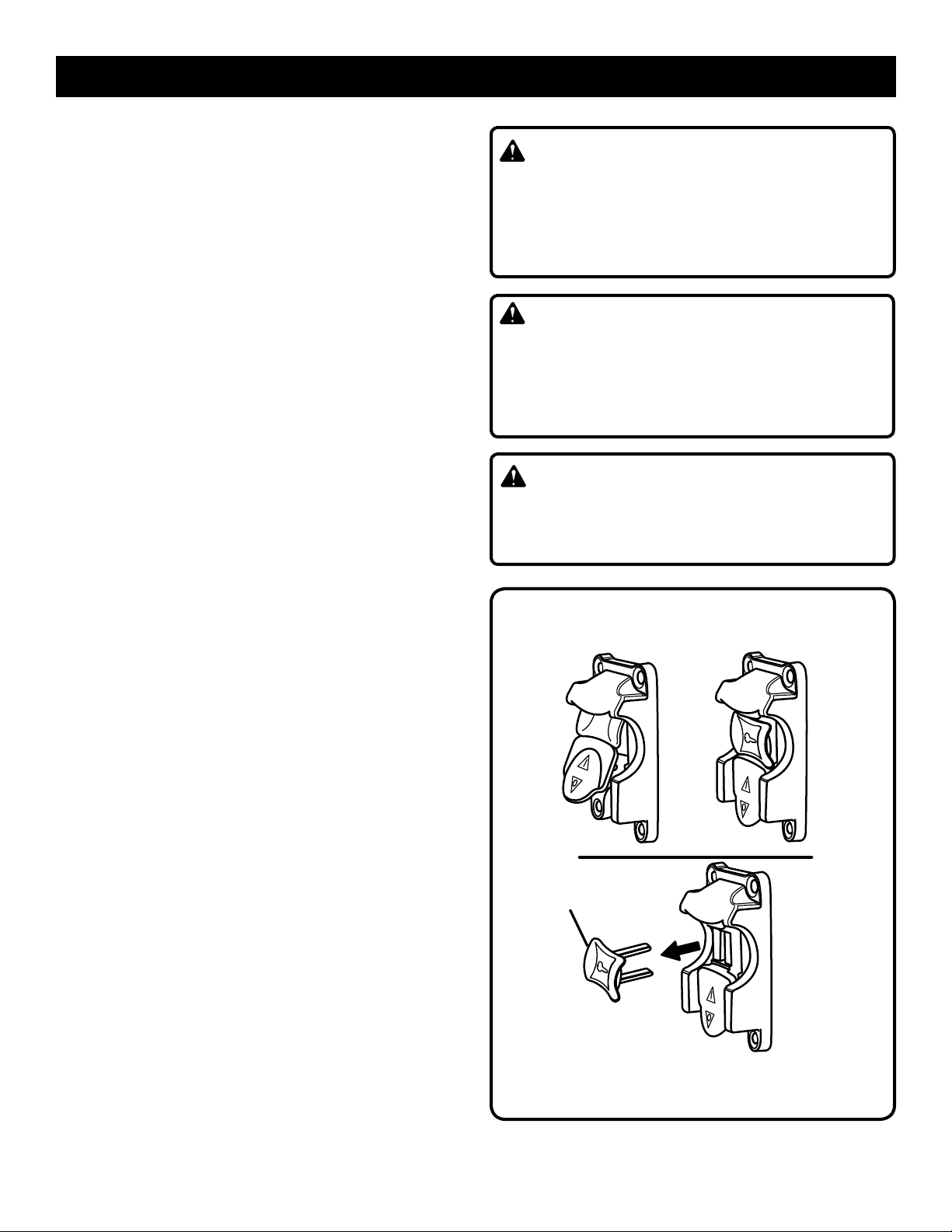

This saw is equipped with a switch assembly that has a
built-in locking feature. This feature is intended to prevent
unauthorized and possible hazardous use by children and
others.
TO TURN YOUR SAW ON:
With the switch key inserted into the switch, lift the switch
to turn on ( l ).
TO TURN YOUR SAW OFF:
Press the switch down to turn off ( O ).
TO LOCK YOUR SAW:
Press the switch down.
Remove the switch key from the switch and store in a
safe, secure location.
Fig. 3
SWITCH KEY
SWITCH IN LOCKED POSITION
SWITCH
OFF
SWITCH
ON
WARNING:
ALWAYS remove the switch key when the tool is not in
use and keep it in a safe place. In the event of a power
failure, turn the switch off ( O ) and remove the key. This
action will prevent the tool from accidentally starting
when power returns.
WARNING:
ALWAYS make sure your workpiece is not in contact with
the blade before operating the switch to start the tool.
Failure to heed this warning may cause the workpiece to
be kicked back toward the operator and result in serious
personal injury.
WARNING:
To reduce the risk of accidental starting, ALWAYS make
sure the switch is in the off ( O ) position before plugging
tool into the power source.

12
The following tools (not included or drawn to scale) are needed for assembly and making adjustments:
TOOLS NEEDED
FEATURES
BLADES
For maximum performance, it is recommended that you use
the 24-tooth, 10 in. carbide-tipped combination blade pro-
vided with your saw. Additional blade styles of the same high
quality are available for specific operations such as ripping.
Your local dealer can provide you with complete information.
Kerf width must be within the limits stamped on the riving
knife.
WARNING:
Do not use blades rated less than the speed of this tool.
Failure to heed this warning could result in personal injury.
Fig. 4
FRAMING SQUARE
PHILLIPS
SCREWDRIVER
FLATHEAD
SCREWDRIVER
SOCKET WRENCH
AND 8 mm SOCKET
COMBINATION
SQUARE
C-CLAMPS

13
The following items are included with your table saw:
Fig. 5
A. Anti-Kickback Pawls ............................................... 1
B. Blade Guard ............................................................ 1
C. Miter Gauge............................................................. 1
D. Blade Wrench.......................................................... 2
E. Handle Assembly .................................................... 1
F. Rip Fence ................................................................ 1
G. Push Stick ............................................................... 1
H. Indicator ...................................................................1
I. Screw.......................................................................2
J. Stand Legs...............................................................2
K. Sliding Table Assembly............................................1
L. End Cap...................................................................1
M. Hex Key....................................................................1
N. Switch Key ...............................................................1
O. Leg Brace .................................................................2
P. Screw .......................................................................8
Q. Lock Nut...................................................................8
B
C
F
J
D
H
E
G
A
I
K
M
N
L
I
O
Q
P
LOOSE PARTS

14
ASSEMBLY
UNPACKING
This product requires assembly.
Carefully lift saw from the carton and place it on a level
work surface.
NOTE: This tool is heavy. To avoid back injury, keep your
knees bent and lift with your legs, not your back, and get
help when needed.
WARNING:
Do not use this product if any parts on the Loose Parts List
are already assembled to your product when you unpack
it. Parts on this list are not assembled to the product by
the manufacturer and require customer installation. Use
of a product that may have been improperly assembled
could result in serious personal injury.
Inspect the tool carefully to make sure no breakage or
damage occurred during shipping.
Do not discard the packing material until you have
carefully inspected the tool, identified all loose parts, and
satisfactorily operated the tool.

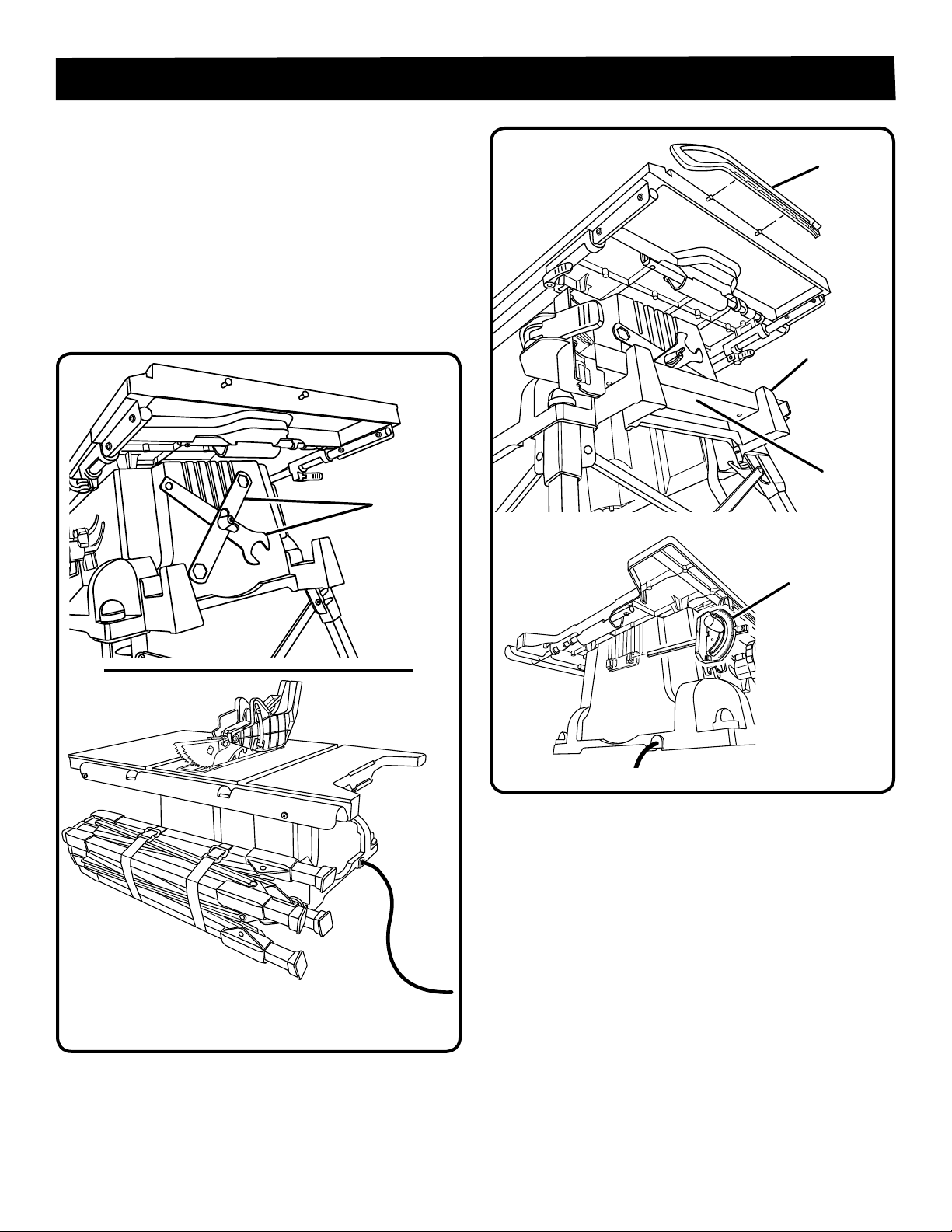

NOTE: Remove the foam block from between the saw’s
housing and the motor by first beveling the blade (see
page 25).
The saw is factory set for accurate cutting. After
assembling it, check for accuracy. If shipping has
influenced the settings, refer to specific procedures
explained in this manual.
If any parts are damaged or missing, please call
1-800-525-2579 for assistance.
WARNING:
If any parts are damaged or missing, do not operate
this tool until the parts are replaced. Use of this product
with damaged or missing parts could result in serious
personal injury.
WARNING:
Do not attempt to modify this tool or create accesso-
ries not recommended for use with this tool. Any such
alteration or modification is misuse and could result in a
hazardous condition leading to possible serious personal
injury.
WARNING:
Do not connect to power supply until assembly is
complete. Failure to comply could result in accidental
starting and possible serious personal injury.
WARNING:
Do not lift the saw without help. Hold it close to your body.
Keep your knees bent and lift with your legs, not your
back. Ignoring these precautions can result in back injury.
WARNING:
Never stand directly in line with the blade or allow hands
to come closer than 3 in. to the blade. Do not reach over
or across the blade. Failure to heed this warning can
result in serious personal injury.
WARNING:
To avoid serious personal injury, always make sure the
table saw is securely mounted to a workbench or an
approved leg stand. NEVER operate the saw on the floor.
MOUNTING HOLES
The table saw must be mounted to a firm supporting surface
such as a workbench or leg stand. If bolted to a workbench,
remove the four locking knobs. Four bolt holes have been
provided in the saw’s base for this purpose. Each of the
four mounting holes should be bolted securely using 3/8 in.
machine bolts, lock washers, and hex nuts (not included).
Bolts should be of sufficient length to accommodate the
saw base, lock washers, hex nuts, and the thickness of the
workbench. Tighten all four bolts securely.
Carefully check the workbench after mounting to make sure
that no movement can occur during use. If any tipping, slid-
ing, or walking is noted, secure the workbench to the floor
before operating.

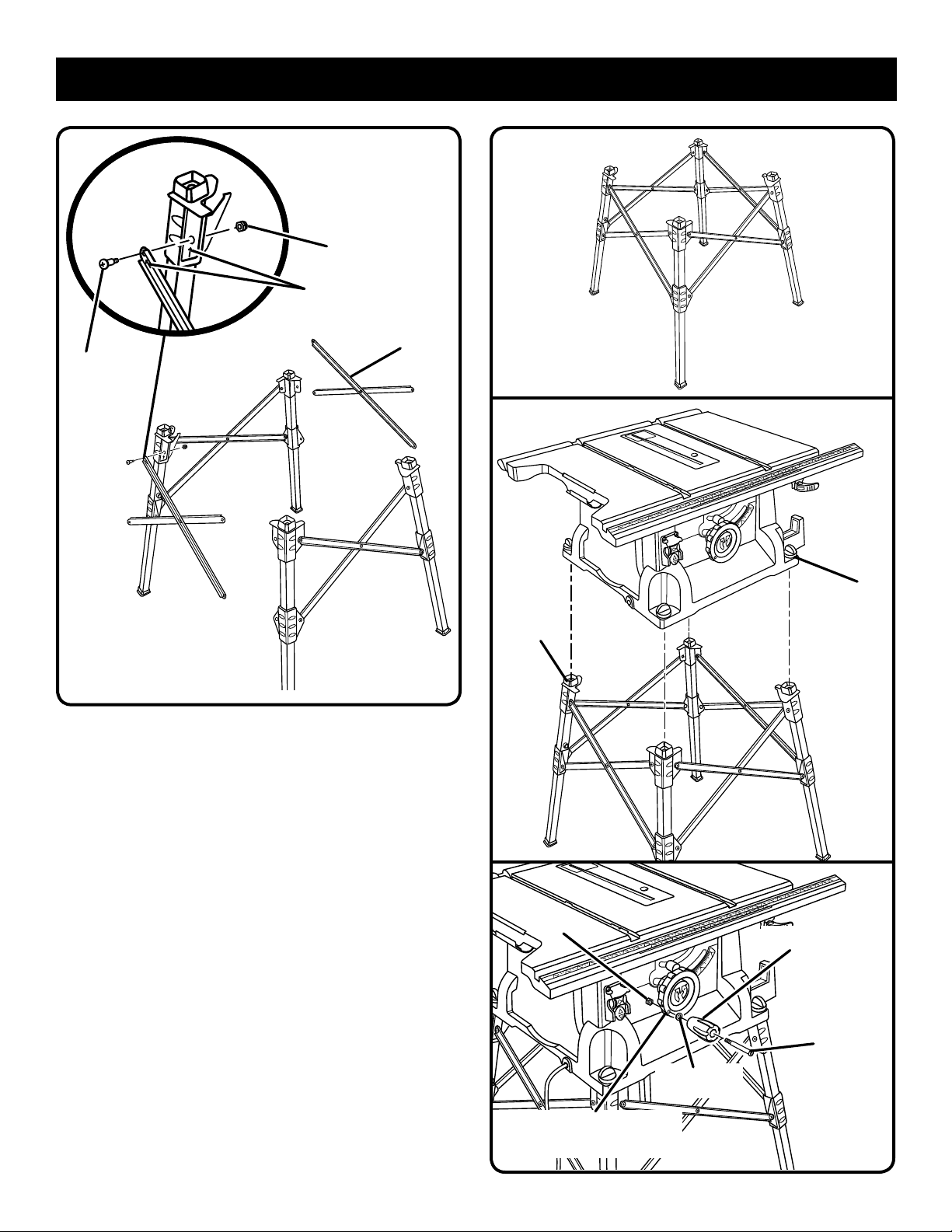

TO ASSEMBLE THE QUICKSTAND®
See Figures 6 - 7.
NOTE: Do not use this leg stand with other equipment or
for other purposes. The arrows on the leg brace identify the
top end (short end) of the leg brace.
Match arrows on the top end of the leg brace with the
arrows on the top of the stand leg as shown in figure 6.
Place the upper holes on the left side leg brace over the
upper holes on the leg assembly. Secure in place with a
screw and lock nut.
Place the upper holes on the right side leg brace under
the upper holes on the second leg assembly. Secure in
place with a screw and lock nut.
Repeat above steps for the second leg assembly and leg
brace.
NOTE: Only mount the saw when the stand is completely
opened.

15
ASSEMBLY
MOUNTING THE TABLE SAW BASE TO THE
QUICKSTAND®
See Figure 8.
Place the table saw base on the leg stand. Position the
locking knob over the holes in the top of the leg stand.
Insert the screw on the locking knob into the hole and
turn the locking knob clockwise to secure the table saw
base to the leg stand.
Repeat with the other three locking knobs.
TO INSTALL THE HANDLE
See Figure 9.
Hold the nylon nut securely and turn the screw counter-
clockwise to remove the nut completely.
NOTE: Do not remove the screw from the handle.
Place the nylon nut into the recessed hole on the back
of the height/bevel adjusting handwheel and hold in
place.
Slide the handle and screw into the hole on the height/
bevel adjusting handwheel.
Using a flathead screwdriver, turn the screw clockwise
and tighten in place.
Fig. 8
LOCKING
KNOB
HOLE
Fig. 9
SCREW
NUT
Fig. 7
Fig. 6
HEIGHT/BEVEL
ADJUSTING HANDWHEEL
LOCK NUT
ARROWS
SCREW
HANDLE
WASHER
LEG BRACE

16
ASSEMBLY
TO REMOVE/REPLACE THE THROAT PLATE
See Figure 10.
Lower the blade by turning the height/bevel adjusting
handwheel counterclockwise.
To remove the throat plate, place your index finger in
the hole and lift the front end pulling the throat plate out
toward the front of the saw.
To reinstall the throat plate, first slip the tab into the slot
at the back of the saw and then push down to secure in
place.
TO CHANGE RIVING KNIFE POSITIONS
See Figure 11.
This saw is shipped with a riving knife that should be placed
in the “down” position for non-through cutting and must be
placed in the “up” position for all other cutting operations.
Unplug the saw.
To place in the “up” position for all through cutting:
Remove the throat plate.
Raise the saw blade by turning the height/bevel adjusting
handwheel clockwise.
Unlock the release lever by pulling it up.
Grasp the riving knife and pull it towards the right side of
the saw to release the riving knife from the spring-loaded
riving clamp.
Pull the riving knife up until the internal pins are engaged
and the riving knife is above the saw blade.
Lock the release lever by pushing the lever down.
Reinstall the throat plate.
To place in riving knife “down” position for all non-
through cutting:
Remove the throat plate.
Raise the saw blade by turning the height/bevel adjusting
handwheel clockwise.
Unlock the release lever by pulling it up.
Grasp the riving knife and pull it towards the right side of
the saw to release the riving knife from the spring-loaded
riving clamp.
Push the riving knife down until it is below the saw blade.
Pull the riving knife up until the internal pins are engaged
and the riving knife is above the saw blade.
Lock the release lever by pushing the lever down.
Reinstall the throat plate.
Fig. 11
IN “UP” POSITION FOR THROUGH CUTTING
IN “DOWN” POSITION FOR NON-THROUGH CUTTING
RELEASE
LEVER
(LOCKED)
Fig. 11
RELEASE
LEVER
(UNLOCKED)
THROAT
PLATE
Fig. 10
RIVING
KNIFE

17
ASSEMBLY
BLADE
WRENCH BLADE
WRENCH
ANTI-KICKBACK
PAWLS
PAWL
HANDLE BUTTON
BLADE
GUARD
GUARD
LEVER
Fig. 14
TO CHECK SAW BLADE INSTALLATION
See Figure 12.
NOTICE:
To work properly, the saw blade teeth must point down
toward the front of the saw. Failure to do so could cause
damage to the saw blade, the saw, or the workpiece.
Unplug the saw.
Lower the saw blade and remove the throat plate.
Make sure the bevel locking lever is securely pushed
to the left, see figure 29. Raise the saw blade to its full
height by turning the height/bevel adjusting handwheel
clockwise.
Place riving knife in “up” position.
To loosen the blade:
Remove the blade wrench from the blade wrench storage
area.
Using blade wrenches, place the flat open end of a blade
wrench on the flats on the arbor shaft.
Insert the closed end of the blade wrench over the blade
nut. Holding both wrenches firmly, pull the wrench (right
side) forward to the front of the machine.
To tighten the blade:
Using the blade wrench, place the flat open end into the
flats on the arbor shaft.
Insert the closed end of the blade wrench over the blade
nut. Holding both wrenches firmly, push the wrench (right
side) to the back of the machine. Make sure the blade nut
is securely tightened. Do not overtighten.
Reinstall the throat plate.
Check all clearances for free blade rotation.
TO INSTALL THE ANTI-KICKBACK PAWLS AND
BLADE GUARD
See Figures 13 - 15.
WARNING:
Replace dull or damaged anti-kickback pawls. Dull or
damaged pawls may not stop a kickback increasing the
risk of serious personal injury.
Anti-kickback pawls should only be installed for through
cuts.
Unplug the saw.
Raise the saw blade by turning the height/bevel adjusting
handwheel clockwise.
Place riving knife in “up” position.
Reinstall the throat plate.
Fig. 12
Fig. 13
BLADE
NUT

18
ASSEMBLY
To install anti-kickback pawls:
Press and hold the button on the right side of the anti-
kickback pawls.
Align the slot in the pawls over the rear hole in the riving
knife.
Push the pawl handle down snapping them into place
and release the button.
NOTE: Pull on the pawl handle to make sure pawls are
securely locked.
To install blade guard:
Lift the guard lever up to unlock.
With the front of the blade guard raised, lower the back
of the guard into the middle hole of the riving knife. Push
the front of the guard down until it is parallel to the table
(see figure 15). If the blade guard is not parallel to the
table, the riving knife is not in the “up” position.
Lock the guard in place by pushing the guard lever down.
NOTE: Blade alignment can be adjusted for different blade
widths. Refer to: To Check and Align the Riving Knife and
Saw Blade. Check the blade guard assembly for clearances
and free movement.

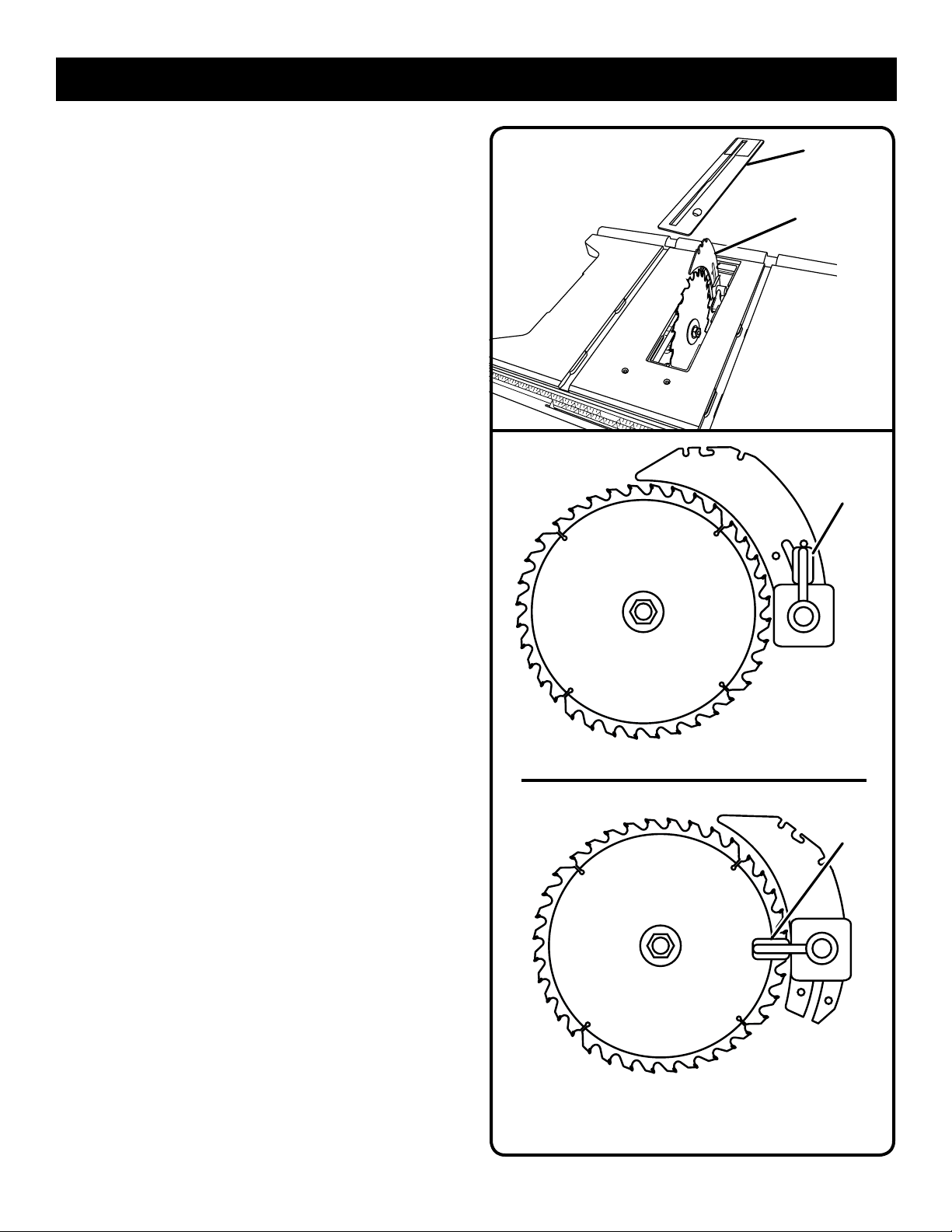

TO CHECK AND ALIGN THE RIVING KNIFE AND
SAW BLADE
See Figure 16.
To check alignment of the riving knife:
Unplug the saw.
Raise the saw blade by turning the height/bevel adjusting
handwheel clockwise.
Remove the anti-kickback pawls and blade guard
assembly. Place a framing square or straight edge against
both the saw blade and the riving knife.
NOTE: Place framing square between carbide teeth and
measure from blade. This step will insure framing square
is square against blade from the front to back of blade.
The saw blade and riving knife are aligned when the
framing square contacts both the blade and riving knife
evenly with no gaps.
If the riving knife is out of alignment with the saw blade,
adjustment is needed. The riving knife must be in alignment
front to back (horizontally) and top to bottom (vertically).
To adjust (horizontally and vertically):
Remove the anti-kickback pawls and blade guard
assembly.
From the back of the saw, loosen the screws holding the
mounting bracket.
Reposition the riving knife left or right as needed to align
the riving knife with the saw blade.
Once properly aligned, securely retighten all screws.
Check again for squareness and continue to adjust if
needed. Fig. 16
Fig. 15
HORIZONTAL
ADJUSTMENT
VERTICAL
ADJUSTMENT
CORRECT
INCORRECT
SCREWS

19
ASSEMBLY
TO ASSEMBLE THE SLIDING TABLE
ASSEMBLY
See Figures 17 - 18.
To install sliding table assembly:
Locate the sliding table assembly.
Unlock the front and back table locking levers.
Insert sliding table assembly into table locking levers.
Push the table assembly until it rests against the saw
table and is completely closed.
Install phillips head screw into hole on the bottom of the
rear extension rod to hold sliding table assembly into
locking levers.
Lock the front and back table locking levers.
To install indicator:
Press the end cap over the front extension rod as shown
in figure 18.
Locate the indicator.
Slip the indicator in the slot on the front rail.
Fit the top slot in the indicator over the detent on the end
plug and the bottom slot over the screw hole on the end
plug.
Insert a screw into the bottom slot of the indicator, the hole
in the end plug and the extension rod. Tighten securely,
but do not overtighten. Overtighting may crush extension
rod ends.
Fig. 18
SCREW
INDICATOR
TABLE
LOCKING
LEVER
REAR
EXTENSION ROD
EXTENSION
ROD
Fig. 17
END CAP
SLIDING
TABLE
ASSEMBLY
DETENT

20
ASSEMBLY
MITER
GAUGE
BLADE
WRENCHES
STORAGE
HOOK
TO STORE THE TABLE SAW ACCESSORIES
AND LEG STAND
See Figures 19 - 20.
The table saw has two convenient storage areas (one on
either side of the saw cabinet) specifically designed for the
saw’s accessories.
When not in use, store the accessories securely by snapping
each accessory in place.
To store the leg stand, close the stand and secure in back
of saw cabinet using hook and look straps.
Fig. 20
RIP
FENCE
Fig. 19
PUSH
STICK
