SafeWaze FS-EX310-1 User manual

225 Wilshire Ave SW, Concord NC, 28025 Phone: [phone] Email: [email protected] Web: safewaze.comFax: 704-262-9051
II I I I
FS-EX310-1
Ring Anchor
Instruction Manual
ANSI Z359.18 Type A - 2017, and OSHA 1910.140 OSHA 1926.502
This manual is intended to meet the manufacturer’s instructions as required by
ANSI Z359 and should be used as part of an employee training program as required
by OSHA.
WARNING
This product is part of a personal fall arrest, work positioning, suspension or rescue system. The
manufacturer’s instructions must be provided to users of this equipment. The user must follow the
manufacturer’s instructions for each component of the system. The user must read and understand these
instructions before using this equipment. Manufacturer’s instructions must be followed for proper use
and maintenance of this equipment. Alterations to this product, misuse of this product, or failure to follow
instructions may result in serious injury or death.
IMPORTANT
Questions regarding the use, care, or suitability of this equipment for your application? Contact
Safewaze.
IMPORTANT
Record identication information before using this product. Identication information may be found on
the equipment label. This information should be recorded in the “Inspection Log” located at the back of
this manual
Do not throw away these instructions!
Read and understand these instructions before using equipment!
User Information
Date of First Use:
Serial#:
Trainer:
User:
INTRODUCTION
Thank you for purchasing a Safewaze Anchorage Connector. This manual must be read and understood
in its entirety, and used as part of an employee training program as required by OSHA or any applicable
state agency. This manual and any other instructional material must be available to the user of the
equipment. The user must understand how to safely and e󰀨ectively use these anchors, and all fall
protection equipment used in conjunction with the anchor.
APPLICABLE SAFETY STANDARDS
When used according to instructions, Safewaze Anchors meets ANSI Z359.18 and OSHA regulations for
fall protection. Applicable standards and regulations depend on the type of work being done, and may
include state-specic regulations. Refer to local, state, and federal (OSHA) requirements for additional
information concerning the governing of occupational safety regarding Personal Fall Arrest Systems
(PFAS).
WORKER CLASSIFICATIONS
Understand the denitions of those who work in proximity of or may be
exposed to fall hazards.
PRODUCT SPECIFIC APPLICATIONS
Lanyard Length
(6’ Total)
Deceleration
distance (3.5’ total)
Height of harness dorsal
D-ring from
worker’s feet
(6’ total)
Safety factor
(2’ total)
Required
distance
from
Anchorage
(17.5’ total)
Fall Clearance: There must be su󰀩cient clearance below the anchorage connector to arrest a fall
before the user strikes the ground or an obstruction. When calculating fall clearance, account for a
MINIMUM 2’ safety factor, deceleration distance, user height, length of lanyard/SRL, and all other
applicable factors (See Figure 1).
An anchorage location selected for a PFAS must have a strength capable of sustaining a static load
applied in the direction permitted by the PFAS of at least
• Two times the maximum arrest force permitted when certication exists, or
• 5,000 lbs (22.2 kN) in the absence of certication
LIMITATIONS
ANCHORAGE

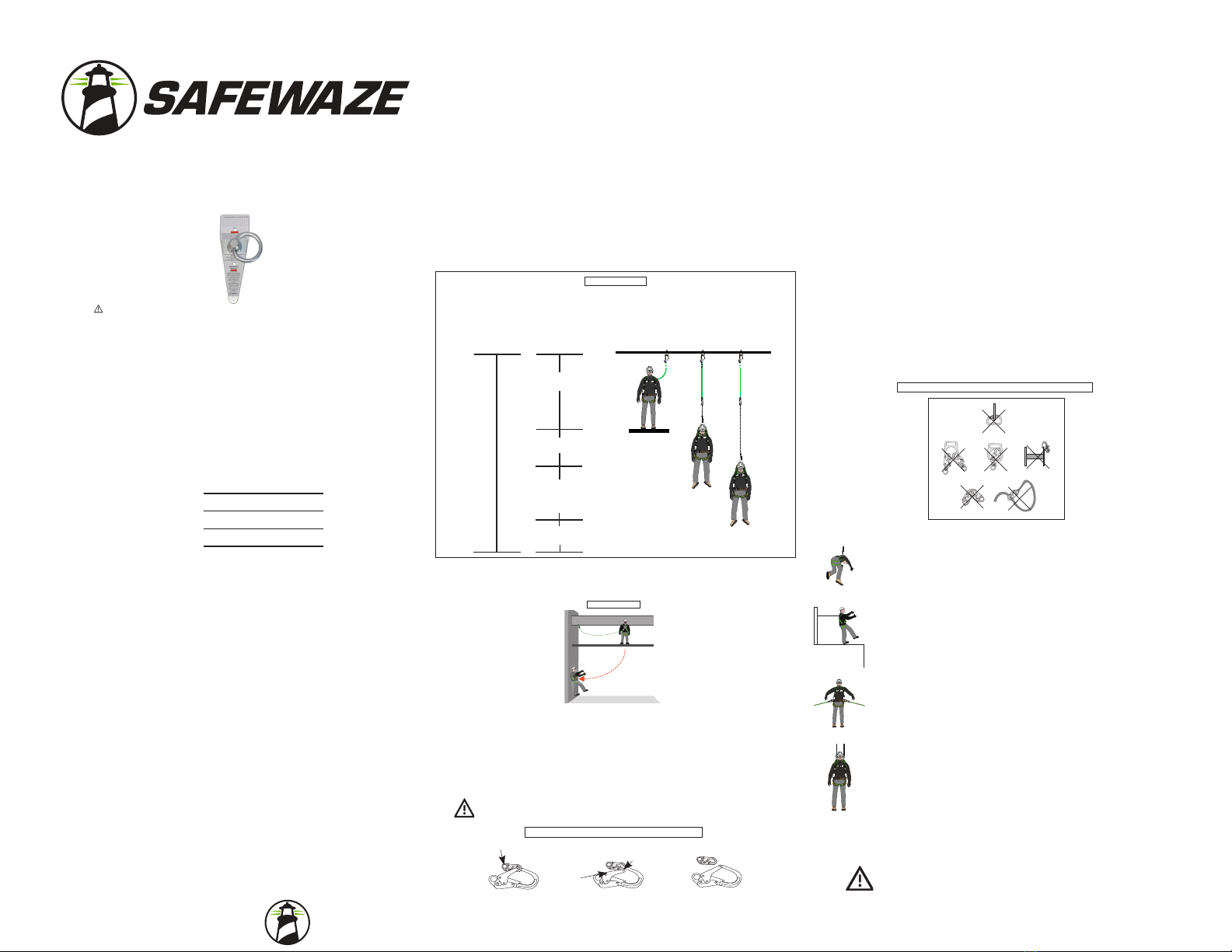

Fall Clearance Diagram
***Diagram shown is an example
fall clearance calculation ONLY.
FIGURE 1
Swing Falls: Prior to installation or use, make considerations for eliminating or minimizing all swing
fall hazards. Swing falls occur when the anchor is not directly above the location where a fall occurs.
Always work as close to in line with the anchor point as possible. Swing falls signicantly increase
the likelihood of serious injury or death in the event of a fall. (See Figure 2)
COMPATIBILITY OF CONNECTORS
Connectors are compatible with connecting elements when they have been designed to work together
in such a way that their sizes and shapes do not cause their gate mechanisms to inadvertently open
regardless of how they become oriented. Connectors (hooks, carabiners, and D-rings) must be
capable of supporting at least 5,000 lbs. (22.2 kN). Connectors must be compatible with the anchorage
or other system components (see Figure 4). Do not use equipment that is not compatible.
Non-compatible connectors may unintentionally disengage (see Figure 3). Connectors must be
compatible in size, shape, and strength. Self-locking snap hooks and carabiners are required by ANSI
Z359 and OSHA guidelines. Contact Safewaze if you have any questions about compatibility.
FIGURE 3 - UNINTENTIONAL DISENGAGEMENT
3 - Gate opens
2 - Gate presses
against
non-compliant
part
4 - And parts
disengage.
1 - Non Compliant Part
NOTE: SOME SPECIALTY CONNECTORS HAVE ADDITIONAL
REQUIREMENTS. CONTACT SAFEWAZE WITH QUESTIONS.
FIGURE 2
MAKING CONNECTIONS
Snap hooks and carabiners used with this equipment must be double locking and/or twist lock. Ensure
all connections are compatible in size, shape and strength. Do not use equipment that is not compatible.
Ensure all connectors are fully closed and locked.
Safewaze connectors (snap hooks and carabiners) are designed to be used only as specied in each
product’s user’s instructions. See gure 4 for examples of inappropriate connections. Do not connect
snap hooks and carabiners:
• To a D-ring to which another connector is attached.
• In a manner that would result in a load on the gate (with the exception of tie back hooks).
NOTE: Large snap hooks must not be connected to objects which will result in a load on the gate if
the hook twists or rotates. Snap hooks marked with ANSI Z359.12 and are equipped with a 3,600 lb
(16 kN) gate. Check the marking on your snap hook to verify its compatibility.
• In a false engagement, where features that protrude from the snap hook or carabiner catch on the
anchor, and without visual conrmation seems to be fully engaged to the anchor point.
• To each other.
• By wrapping the web lifeline around an anchor and securing to lifeline except as allowed for Tie Back
models.
• To any object which is shaped or sized in a way that the snap hook or carabiner will not close and
lock, or that roll-out could occur.
• In a manner that does not allow the connector to align properly while under load.
Using a connector that is undersized or irregular in shape (1) to connect a snap hook or carabiner could
allow the connector to force open the gate of the snap hook or carabiner. When force is applied, the gate
of the hook or carabiner presses against the non-compliant part (2) and forces open the gate (3). This
allows the snap hook or carabiner to disengage (4) from the connection point.
SPECIFIC ANCHOR APPLICATIONS
Personal Fall Arrest: Safewaze Anchors are designed as an anchor point to support
a maximum of 1 Personal Fall Arrest System (PFAS) when utilized for fall protection
applications. The structure to which the anchor is attached must withstand loads applied
in the directions permitted by the system of at least 5,000 lbs. Maximum allowable free
fall is 6’.
Restraint: Safewaze Anchors are authorized for use in Restraint applications. The
structure to which the anchor is attached must withstand loads applied in the directions
permitted by the system of at least 1,000 lbs NO free fall is permitted. Restraint systems
may only be used on surfaces with slopes up to 4 / 12 (vertical / horizontal). For
Restraint applications, the allowable attachment points to harness are Dorsal D-ring,
Chest D-ring, Side D-rings, and Shoulder D-rings.
Work Positioning: Safewaze Anchors are authorized for use in Work Positioning
applications. Work Positioning allows a worker to be supported during suspension while
freeing both hands to conduct work operations. The structure to which the Anchor is
attached must withstand loads applied in the directions permitted by the system of at
least 3,000 lbs. Maximum allowable free fall is 2’. For positioning applications, the
allowable attachment points to harness are the Side D-rings.
Rescue/Conned Space: Safewaze Anchors are authorized for use in Rescue/Conned
Space applications. Rescue systems are utilized to safely recover a worker from a
conned location or after exposure to a fall. Composition of rescue systems can vary
based upon the type of rescue involved. The structure to which the Anchor is attached
must withstand loads applied in the directions permitted by the system of at least 3,000
lbs. NO free fall is permitted. For rescue applications, the allowable attachment points to
harness are Dorsal D-ring, Chest D-ring and Shoulder D-rings.
A
FALL-ARREST
S
W
I
N
G
F
A
L
L
FIGURE 4 - INAPPROPRIATE CONNECTIONS
Purpose: Safewaze Anchors are designed to be used as part of a Personal Fall Arrest System (PFAS).
- A competent person shall train users on this equipment in accordance with OSHA
and ANSI.
- Never exceed a free fall distance of 6 ft. A free fall of more than 6 ft could cause
excessive arrest forces that could result in serious injury or death.
- Safewaze Anchors have a maximum capacity of ANSI 310 lbs / OSHA 420 lbs
including any tools, clothing, accessories, etc..., unless otherwise rated by Safewaze.
- Structures for attachment of Safewaze Anchors shall support a minimum 5,000 lbs or
be designed with a safety factor of two by a Qualied Person.
- All Safewaze anchors must IMMEDIATELY be removed from service if subjected
to fall arrest forces.
- Safewaze anchors shall be inspected by the end user prior to each usage and
by a Competent Person other than the user at least annually. These inspections
shall be documented.
For all applications: worker weight capacity range
(including all clothing, tools, and equipment) is ANSI 130-310 lbs / OSHA Up to 420 lbs
Qualied Person: “Qualied Person” means one who, by possession of a recognized degree,
certicate, or professional standing, or who by extensive knowledge, training, and experience, has
successfully demonstrated his ability to solve or resolve problems relating to the subject matter, the
work, or the project.
Competent Person: “Competent Person” means one who is capable of identifying existing and
predictable hazards in the surroundings or working conditions which are unsanitary, hazardous, or
dangerous to employees, and who has authorization to take prompt corrective measures to eliminate
them.
Authorized Person: “Authorized Person” means a person approved or assigned by the employer to
perform a specic type of duty or duties or to be at a specic location or locations at the job site.
It is the responsibility of a Qualied or Competent person to supervise the job site and
ensure safety regulations are complied with.
All above referenced applications
have a worker weight capacity range of
ANSI 310 lbs / OSHA Up to 420 lbs (including all clothing, tools, and equipment).
WARNING: The FS-EX310-1 is not for use in Horizontal Lifeline
(HLL) applications.

225 Wilshire Ave SW, Concord NC, 28025 Phone: [phone] Email: [email protected] Web: safewaze.comFax: 704-262-9051
II I I I
Jan Feb DecNovOctSepAugJul
JunMay
Apr
Mar
WARNING
This anchor must IMMEDIATELY be removed from service
if exposed to fall arrest forces. Avoid contact with sharp
and/or abrasive edges and surfaces. Avoid contact with
hazardous environments including but not limited to,
electrical, high temperatures, and corrosive chemicals.
WARNING
www.safewaze.com
Minimum Service Temp: -30° F
All connections must be
compatible
with the Ring Anchor.
Minimum Breaking Strength: 5,000 lbs (22.2kN)
Material: Steel
Meets: ANSI Z359.18-2017 Type A
OSHA 1910-1926
Year of MFG:_____ Serial #:________
User must follow
manufacturer’s instructions
included with this equipment
at the time of shipment from
the manufacturer. Refer to
the instruction manual for
proper installation and
limitations. Inspect prior to
each use.
USE: Installs over roof
sheathing into roof truss
using (3) 5/16” x 3”
hex lag screws.
FS-EX310-1
Ring Anchor
WARNING
www.safewaze.com
Minimum Service Temp: -30° F
All connections must be
compatible
with the Ring Anchor.
Minimum Breaking Strength: 5,000 lbs (22.2kN)
Material: Steel
Meets: ANSI Z359.18-2017 Type A
OSHA 1910-1926
Year of MFG:_____ Serial #:________
User must follow
manufacturer’s instructions
included with this equipment
at the time of shipment from
the manufacturer. Refer to
the instruction manual for
proper installation and
limitations. Inspect prior to
each use.
USE: Installs over roof
sheathing into roof truss
using (3) 5/16” x 3”
hex lag screws.
FS-EX310-1
Ring Anchor
Jan Feb DecNovOctSepAugJul
JunMay
Apr
Mar
WARNING
This anchor must IMMEDIATELY be removed from service
if exposed to fall arrest forces. Avoid contact with sharp
and/or abrasive edges and surfaces. Avoid contact with
hazardous environments including but not limited to,
electrical, high temperatures, and corrosive chemicals.
INSTALLATION
INSPECTION LOG
Date Inspection Items
Noted
Corrective Action Initials
LABELS
Lag Screws
(3) 5/16 in x 3in
Stainless Hex Lag
Screws
1. To install the FS-EX310-1 Ring Anchor utilize the (3) 5/16 in x 3 in Hex Lag Screws. ALL screws
and screw holes must be used. All fasteners must be fully embedded into substrate to which they are
attached. Minimum substrate thickness must be 7/16” or greater, with fasteners attached through roof
substrate, with embedment into truss.
2. The FS-EX310-1 can be reused and reinstalled. Fasteners can be reused IF pilot holes are drilled
prior to fastener installation. Pilot holes should be 7/32 in.
3. Prior to initial installation or subsequent removal and re-installation, the user must ensure that the
FS-EX310-1 has no visible damage or defects. If removing and reinstalling the FS-EX310-1, the
user must ensure that no damage or warping has occurred due to prior installation or removal.
If any damage or defects are found the user must IMMEDIATELY remove the FS-EX310-1 from
service.
4. Once properly installed, the user may attach a complete and compatible Personal Fall Arrest System
(PFAS) to the O-ring connection point on the FS-EX310-1.
26°
24°
23°
21°
21°
22'-3" 21°
18'-3"
19'-4"
19'-10"
21'-4"
53°
45°
38°
33°
30°
28°
50'
55'
60'
8'
9'-9"
11'-7"
13'-3"
14'-6"
16'
17'-2"
20'
25'
30'
35'
40'
45'
Anchor Distance
From
Leading Edge (Y)
Working Distance
Along Roof Edge
(Either Direction) (X)
Working Angle
From
Perpendicular (Z)
6'
10'
15'
Z: Total Working Angle
X: Working Distance
Along Leading Edge
Y: Distance From
Leading Edge
X
Y
Z
X
Leading Edge
This chart indicates the allowable working zones to reduce the
risk of swing falls and improper side loading
WARNING
• Users should consult with their doctor to verify ability to safely absorb the forces of a fall arrest
event. Fitness level, age, and other health conditions can greatly a󰀨ect an individuals ability to
withstand fall arrest forces. Women who are pregnant, individuals considered minors must not use
any Safewaze equipment.
• Never alter any part of an anchor or add/remove components. Safewaze shall not be held
responsible for injury or death due to tampering.
• Anchors that are exposed to fall arrest forces MUST be IMMEDIATELY removed from service and
destroyed.
• Failure to follow these instructions and warnings could result in serious injury or death in the event
of a fall.
• A preplanned rescue procedure in the event of a fall is required. The rescue plan must be specic
to the project. The rescue plan must allow for employees to rescue themselves, or to be promptly
rescued by alternative means.
• Harnesses or connectors selected for use with any Safewaze anchor must be compatible in size
and conguration. User must ensure compatibility of snap hooks, carabiners and other connectors.
Any connection which could allow disengagement must be eliminated. Snap hooks and carabiners
must be self locking and self closing and must never be hooked to each other.
• A Competent Person must conduct an analysis of the workplace and anticipate where workers will
be conducting their duties, the route they will take to reach their work, and the existing and
potential fall hazards they may be exposed to. The Competent Person must choose the fall
protection equipment to be utilized.
• Do not misuse equipment.
• Equipment designated for fall protection must never be used to lift, hang, support or hoist tools or
equipment unless specically certied for such use.
Anchor Components Materials
A Anchor Plate Galvanized Steel
B O-ring Galvanized Steel
FIGURE 5 - ANCHOR COMPONENTS
SHEATHING
LAG BOLT
TRUSS
Cross Section of
Proper Installation
• Safewaze Anchors shall be inspected prior to each use by the user, and at least annually by a
Competent Person other than the user. Annual inspections shall be documented. Severity of
conditions during use may necessitate increased frequency of documented inspections.
• Anchors that fail inspection MUST be removed from service.
• Prior to each use, inspect the anchor for deciencies or damage, including, but not limited to,
sharp edges, rough edges, deformations, corrosion, pits, burrs, chemical exposure, extreme heat
expo sure and damaged, missing or illegible labels. If any deciencies or defects are found, the
anchor must IMMEDIATELY be removed from service.
• The anchor must be inspected at least annually by a Competent Person other than the user.
Competent person inspections must be recorded in the inspection log included in this manual and
on the inspection grid label on the anchor.
INSPECTION
MAINTENANCE & STORAGE
WARRANTY
Anchor can be cleaned with water and mild soap if necessary. User should remove all dirt, possible
corrosives, and contaminants from the anchor prior to, and after each use. Never use any type of
corrosive substance to clean the anchor.
Excess water should be blown out with compressed air. Hardware can be wiped o󰀨 with a clean, dry
cloth.
When not in use, store the anchor in a cool dry area where it will not be exposed to extreme light,
extreme heat, excessive moisture, or possibly corrosive chemicals or materials.
Safewaze warrants its products are free from defects in materials and construction under normal use
and service. Liability is not accepted for abuse, modication, improper use, destructive activity and
contaminated exposure.
Safewaze
225 Wilshire Ave SW
Concord, NC 28025
PHONE: [phone]
FAX: [phone]
EMAIL: [email protected]
Web: safewaze.com
The FS-EX310-1 Ring Anchor is designed to provide a fall protection anchorage for a single user. It is
designed for installation into wood roof material only. The work location should be free of debris, and
other materials or equipment that could interfere with the proper operation of this equipment. Inspect the
substrate to which the anchor will be attached. User should inspect the intended installation location for
hazards at that include, but are not limited to, wood rot, severe weathering, multiple layers of previously
applied roong material, electrical hazards, etc...
INSTALLATION PLANNING
A
B
WARNING: The FS-EX310-1 is not for use in Horizontal Lifeline
(HLL) applications.
