Sagem MYZ5 Guide

SITE TECHNICAL DOCUMENTATION
EC 2005 myZ 5
Doc. No. : MTB DTS 9
Version : B
Date : December 09 2005
Produced by SAGEM COMMUNICATION GROUPE SAFRAN
ZI NORD Chemin de Baillot, BP 357, 82003 Montauban cedex, France
Tel [phone] - Fax [phone]
Copyright 2005
SAGEM
Montauban, France
Contents REF MTB DTS 9- Indice B - December 09 2005 Page 1

Site technical documentation EC 2005 myZ 5
Contents REF MTB DTS 9- Indice B - December 09 2005 Page 2

Site technical documentation EC 2005 myZ 5
CONFIDENTIALITY
This document is SAGEM's limited company property. It can not be reproduced or communicated without the
written license.
Contents REF MTB DTS 9- Indice B - December 09 2005 Page 3

Site technical documentation EC 2005 myZ 5
Contents
CHAPTER 1 - FOREWORD
1-1 HOW TO USE THE SITE TECHNICAL DOCUMENTATION
1-1-1 Use
1-2 ABREVIATIONS
1-3 COMMENTS SHEET
CHAPTER 2 - DESCRIPTION - OPERATION
2-1 REMINDERS ABOUT THE GENERAL CHARACTERISTICS OF GSM AND PCS NETWORKS
2-2 REMINDERS ABOUT THE HAND SET CHARACTERISTICS

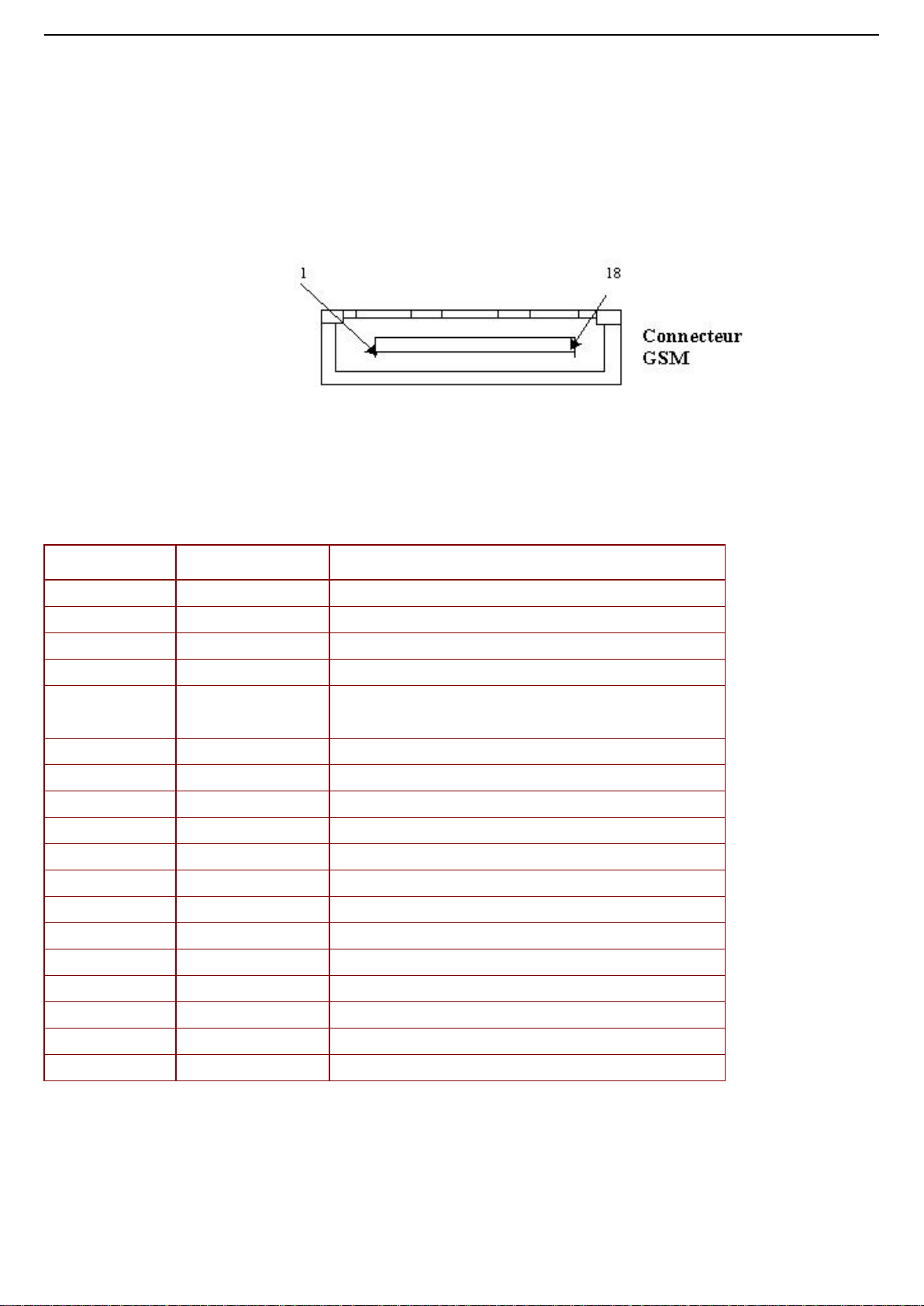

2-3 IN & OUT CONNECTOR
2-3-1 Connector description
2-3-2 Signal description

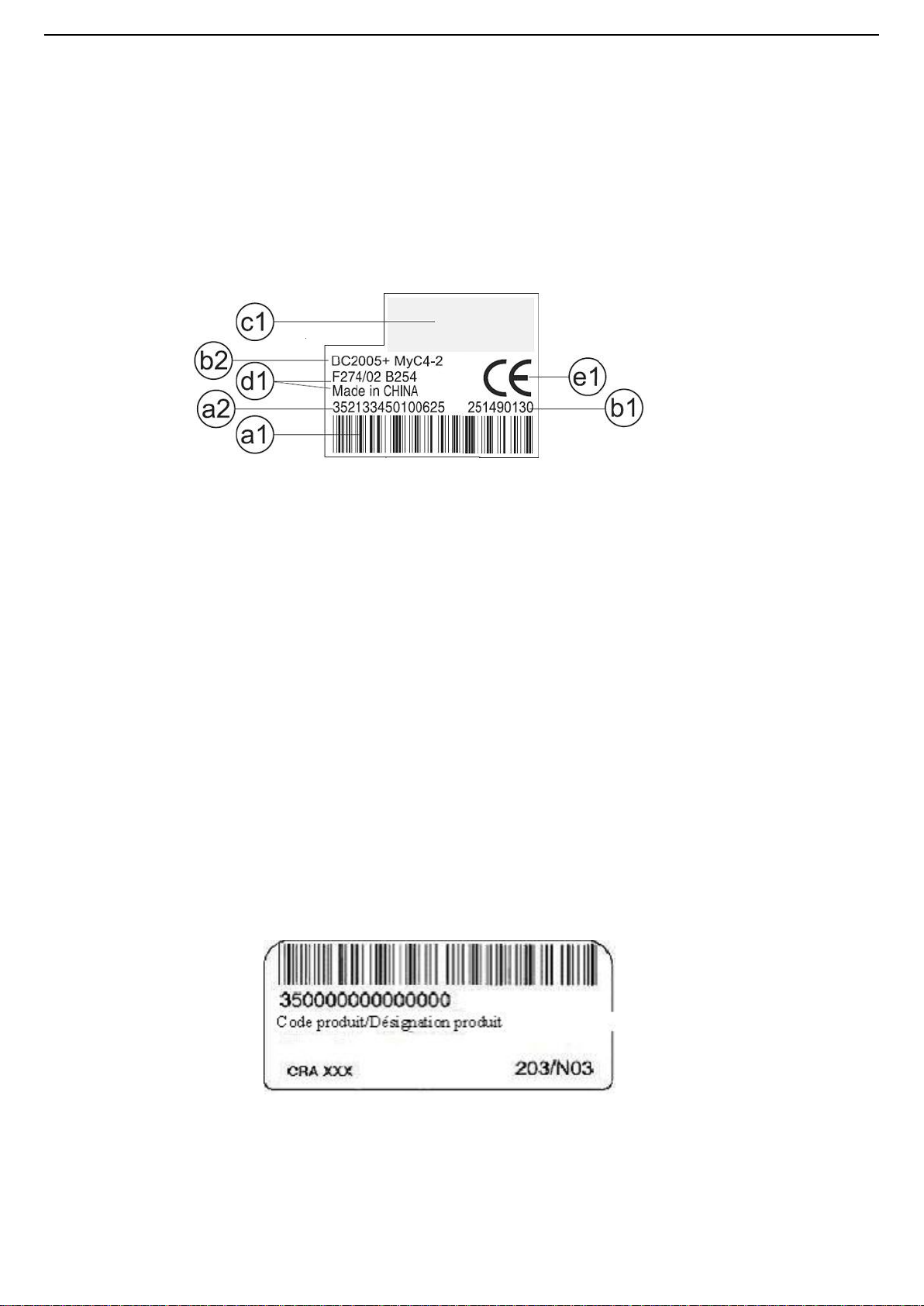

2-4 IDENTIFICATION
2-4-1 Illustration
2-4-2 Description
2-4-3 Description after reparation

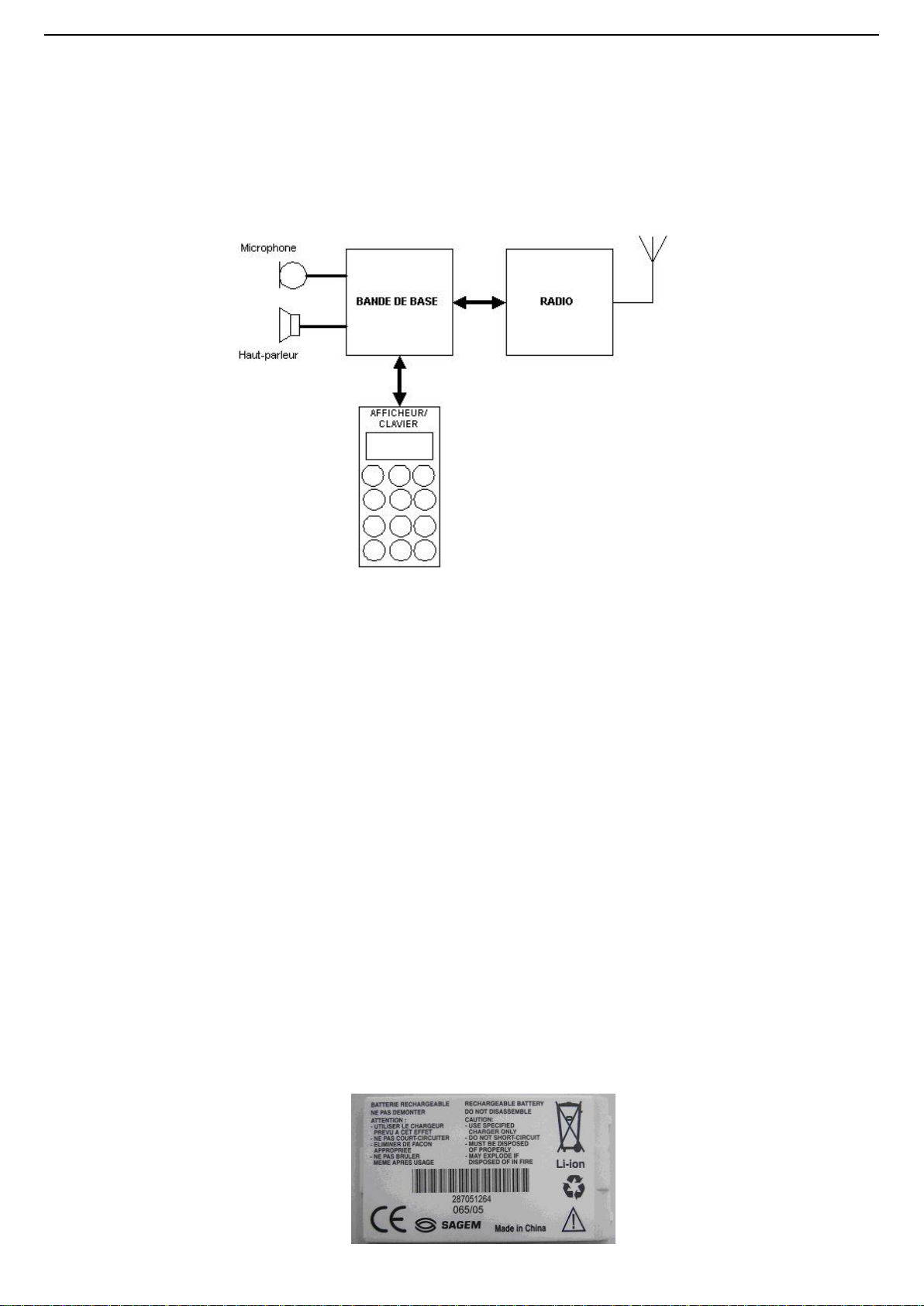

2-5 PHONE BLOCK DIAGRAMS
2-5-1 Block diagram
2-5-2 Standards and environment
2-6 EQUIPMENTS
2-6-1 Battery packs
2-6-1-1 Charactéristics
2-6-1-2 Description
2-6-1-3 Charging time
2-6-2 Mains modules
2-6-2-1 Description
2-6-2-2 Travel mains modules
2-6-2-3 Simple mains modules
CHAPTER 3 - SYMPTOMS
3-1 GENERAL
3-2 LIST OF REPORTED DEFECTS
3-3 ERROR MESSAGES DURING START UP
3-4 OTHER ERROR MESSAGES
3-5 LIST OF OBSERVED DEFECTS
3-6 INFORMATION ABOUT NEW NOTICED FAULTS
SYMPTOM SHEETS
CHAPTER 4 - TESTS AND CHECKS
4-1 GENERAL ABOUT TESTS
4-2 TEST TOOLS
4-3 INSTALLING ON A WORKSTATION (SMT STATION)
4-3-1 Minimum required configuration
4-3-2 Installing the cra downloading kit
4-3-3 Smt functions
Contents REF MTB DTS 9- Indice B - December 09 2005 Page 4

Site technical documentation EC 2005 myZ 5
TEST SHEETS
CHAPTER 5 - MAINTENANCE PROCEDURES
5-1 TECHNICAL WORK LEVELS
5-2 SHORT LOOP PROCESS
5-3 MAINTENANCE TOOLS
PROCEDURE SHEETS
CHAPTER 6 - ACCESSORIES
6-1 CIGAR LIGHTER CHARGERAC1
6-1-1 Description
6-1-2 Charactéristics
6-2 PEDESTRIAN HANDSFREE KIT
6-2-1 Description
6-2-2 Charactéristics
6-3 DATA CABLE PC USB
6-3-1 Description
6-3-2 Charactéristics
CHAPTER 7 - TECHNICAL INFORMATION BULLETIN
7-1 PURPOSE
7-2 APPLICATION
CHAPTER 8 - ILLUSTRATED PARTS CATALOG
8-1 SPARE PARTS
INDEX
Contents REF MTB DTS 9- Indice B - December 09 2005 Page 5

Site technical documentation EC 2005 myZ 5
CHAPTER 1 - FOREWORD
This document is common to all EC 2005 myZ 5 phones in the SAGEM. It is composed of
independent sheets:
-Symptom sheets = Symp Sheet XX
-Test and check sheet= Test Sheet XX
-Maintenance procedure sheet= Proc Sheet X XX
The applicability of a procedure is indicated in the independent sheets title block.
These sheets are updated from time to time in Technical Information Bulletins (TIB).
The information contained in this document is non-contractual, since phone characteristics can
change.
Phones are managed based on SAGEM handset codes; any order for spare parts must refer to
these codes (typical code 25 xxx xxx-x).
1.1 HOW TO USE THE SITE TECHNICAL DOCUMENTATION
This is a modular document. Each sheet is single and independent. In some cases several sheets
may have to be used in order to determine the complete procedure to be applied.
A troubleshooting chapter (chapter 3) is provided and is sorted according to the type of reported
fault, to determine the maintenance procedure to be carried out.
These sheets describe the procedure to be followed. They refer to test sheets or removal and
replacement maintenance sheets. Maintenance ,executed by the repair center, terminates either by
returning the product to the customer, or by dispatching it to level 3 maintenance (return to factory).
The procedure sheets have a number but not systematically consecutive but always in a growing
order.
Symp Sheet (Chap. 3)
Test Sheet (Chap. 4)
Proc Sheet (Chap. 5)
Test Sheet (Chap. 4)
Customers
Symptoms
Maintenance
Tests
Checks
Return to SAGEM
level 3
level 0-1-2
All sheets include illustrations to make it easier to read the procedure.
Chapter 1: Foreword, describes general data about this document.
Contents REF MTB DTS 9- Indice B - December 09 2005 Page 1-1

Site technical documentation EC 2005 myZ 5
Chapter 2: Description - Operation, describes general data and options available in the EC 2005
myZ 5.
Chapter 3: Symptoms, contains troubleshooting procedures to be carried out on equipment.
Chapter 4: Tests and checks, contains tests and check procedures to be performed on the
equipment.
Chapter 5: Maintenance procedures, contains level 0 to 2 maintenance procedures to be carried out
on the equipment, and the procedure to return to SAGEM level 3.

Chapter 6: Accessories, describes the characteristics of accessories for EC 2005 myZ 5 phones.

Chapter 7: Technical Information Bulletins, contains the various modifications made to this
documentation.

Chapter 8: Illustrated Parts Catalogue, contains the various reference for spare parts.
1.1.1 Use
The DTS can be used by means of computer or by paper medium
-For circulation on the DTS one can use the contents which consists of bonds hypertext, and in
bottom of each page, one finds a bond which makes it possible to return until the contents.
-For the paper use an index east provides on last page which indicates the numbers of pages of
each heading.
1.2 ABREVIATIONS
AAC Advanced Audio Codeur
ADPCM Adaptive Differential Pulse Codec Modulation
ALS Alternative Line Services
AOC Advice Of Charge
CCD Charged Coupled Device
CLI Calling Line Identification
CLIP Calling Line Identification Presentation
CSTN Colored Super Twisted Nematic
DCS Digital Cellular System
EFR Enhanced Full Rate
EMS Enhanced Message Service
FDN Fixe dial number
GPRS General Packet Radio Service
GSM Global System for Mobile
IMEI Internationnal Mobile Equipment Identity
ISO International Standard Organisation
LCD Liquid Crystal Display
LU Livret d'Utilisation
MMS Multimedia Message Service
PCS Personnal Communication Service
Contents REF MTB DTS 9- Indice B - December 09 2005 Page 1-2

Site technical documentation EC 2005 myZ 5
PIN Personal Identity Number
PUK PIN Unlocking key
RF Radio Frequence
SAR Specific Absortion Rate
SIM Subscriber Identity Module
SMS Short Message Service
SMS CB Short Message Service Cell Broadcast
SMT Sagem Mobile Tools
TFT Thin Film Transistor
USSD Unstructured Supplementary Service Data
VGA Video Graphics Array
WAP Wireless Application Protocol
WiFi Wireless Fidelity
WSP Wireless Session Protocol
1.3COMMENTS SHEET
Broad experience is very beneficial in several respects. Please let us know your comments so that
we can improve the contents and presentation of this document.
Your suggestions will be read carefully by :
-the design laboratory,
-production,
-the purchasing department,
-the after sales service,
-all users of this document.
All your suggestions are valuable, they will help us to better satisfy you.
Please photocopy and fill in the sheet 1-4.
Contents REF MTB DTS 9- Indice B - December 09 2005 Page 1-3

Site technical documentation EC 2005 myZ 5
Document title:6LWH7HFKQLFDO'RFXPHQW
Reference :
Date :
Please fill in the following table :
([FHOOHQW *RRG )DLUO\JRRG 3DVVDEOH
Easy to find the required information
Clarity of information provided
Quality and accuracy of information given
Document outline
Document presentation and appearance
Quality of illustrations
General satisfaction
Do you think this document could be improved ? if so, how ? :
Improve the overall view
Improve the table of contents
Improve the structure
Add illustrations
Add details
Add information
Comments : __________________________________________________________________
____________________________________________________________________________
_____________________________________________________________
Would you like to discuss the problems mentioned in this questionnaire? If so, state :
Name of the person to be contacted : ________________________ Phone
: ________________
Company : _____________________________________________ Date
: _________________
Address : ________________________________________________________________
7+$1.<28)253$57,&,3$7,1*,17+,6(148,5<<285&2 (176:,//+(/386
&217,18(72, 3529(7+(48$/,7<2)285'2&8 (17$7,21$1'7+86%(77(5
6$7,6)<<2851(('6
When you have filled in this questionnaire, please send it :
- by mail, to 6$*( 6$
&+( ,1'(%$,//27%3
 217$8%$1&('(;
)5$1&(
<28&$1&217$&78621FUDPRELOH#VDJHPFRP
Contents REF MTB DTS 9- Indice B - December 09 2005 Page 1-4

Site technical documentation EC 2005 myZ 5
CHAPTER 2 - DESCRIPTION - OPERATION
2.1 REMINDERS ABOUT THE GENERAL CHARACTERISTICS OF GSM 900, DCS 1800 and PCS
1900
Table 1 below gives the characteristics of the radio interface for the GSM 900, DCS 1800 and
PCS 1900 systems :
*60 '&6 3&6
Frequency Band (MHz) 880 - 915
925 - 960 1710 - 1785 1805 - 1880 1850 - 1910 1930 - 1990
Number of time intervals per
TDMA frame 8
Width 2 x W simplex (MHz) 2 x 25 2 x 75 2 x 60
Duplex spacing (MHz) 45 95 80
Modulation speed (kbit/s) 271
Speech throughput (kbit/s) 13 (5,6)
Maximum data throughput (kbit/s) 12
Multiple access Frequency and temporal multiplexing / frequency
duplexing
Cell radius (km) 0,3 to 30 0,1 to 4 0,1 to 4
SAGEM terminal power (W) 2 1 1
7DEOH5DGLR,QWHUIDFH
Table 2 shows powers as a function of the network:
*60 '&6 3&6
Class
number Maximum nominal
power (W)
Allowable
interval
(W)
Maximum
nominal
power (W)
Allowable
interval
(W)
Maximum
nominal
power (W)
Allowable
interval
(W)
1 - - 1 [0,63 ; 1,6] 1
2 8 [5,0 ; 12,7] 0,25 [0,16 ; 0,4] 0,25
3 5 [3,2 ; 7,9] 4 [2,5 ; 6,3] 2
4 2 [1,3 ; 3,2]
5 0,8 [0,5 ; 1,3]
7DEOH7HUPLQDOVSR HUFODVV
Contents REF MTB DTS 9- Indice B - December 09 2005 Page 2-1

Site technical documentation EC 2005 myZ 5
2.2 REMINDERS ABOUT THE CHARACTERISTICS AND OPTIONS
General characteristics
Name
Name EC 2005 myZ 5
Size
Dimensions 85 x 42 x 23 mm
Weight 85
Volume 82
Power management
Battery type Li-Ion 650mAh
Connector type Clam
Charging time 2 h
Talk time 3 h
Standby time 240 h
User interface
Screen type TFT
Colours 65536
Number of lines up to 8 lines
Screen size NC
Screen resolution 128 x 160
Backlight yes, blue
Customisation
Handset colours black and silver
Interchangeable covers no
Contents REF MTB DTS 9- Indice B - December 09 2005 Page 2-2

Site technical documentation EC 2005 myZ 5
Radio
Type GSM triband
GSM Band 900 / 1800 / 1900 MH
Voice codecs EFR, FR, HR, AMR
Operating system
Operating System Proprietary
Connectivity
Radio
GPRS Yes class 10 (4+1 & 3+2)
EDGE no
UMTS no
Internet
Browser WAP 2.0
Push yes
Fax modem yes
Data transfer
Serial no
IrDA no
Bluetooth no
USB Yes, data cable with USB connector
Wifi no
PC synchronisation yes
Multimedia
Messaging
SMS MO/MT/CB
EMS yes, V5
MMS Yes, V4
Contents REF MTB DTS 9- Indice B - December 09 2005 Page 2-3

Site technical documentation EC 2005 myZ 5
E mail no
IMPS no
Predictive text input T9
Video & images
Camera Yes, CMOS VGA definition (640 x 480)
Image features yes
Video Player Yes, play and record (H263 format)
Image Format BMP, WBMP, PNG, JPEG, GIF, animated GIF
Audio
Audio player yes
Audio Recorder Yes
FM radio no
Polyphonic ringtones Yes, 64 tones with melody chip
Audio formats iMELODY, MIDI, WAV (PCM, ADPCM), AMR, C-MIDI, AAC, MP3
Entertainement
Wallpaper Yes 20 embedded, random mode available
Screensaver Yes, fixed and animated
Clock display Yes analog and digital
Icons Yes
Skins Yes
Ringtone Yes, 64 tones with melody chip
Boot up and shut down sequences Yes
Bookmarks inserted in Games menu no
Embedded Games Yes, Siberian Strike
Downloaded application Yes
JAVA
JAVA Yes, Midp2.0 CLDC 1.1
Contents REF MTB DTS 9- Indice B - December 09 2005 Page 2-4

Site technical documentation EC 2005 myZ 5
OTA dowload
Protocol supported EMS, MMS, WSP Get, WAP save as, PC Sync
Wallpapers Yes via EMS, WAP, PC Downloading (MPAS)
Animation Yes via EMS, WAP, PC Downloading (MPAS)
Menu icon Yes
Download skins Yes
Games Yes
Ringtones Yes
Java application Yes
Reproduction dossier NC
Real time dowload
Flux audio No
Flux video No
Special features No
Call management
Voice features
Mute mode yes
Numerotation vocale no
Integrated handsfree mode yes
Adress book features
Call group yes
Ringtone and Icone customisation yes
Personal information management yes
Advanced features
Conference call yes
Anonymus mode yes
Call wait yes
Call forwarding yes
Contents REF MTB DTS 9- Indice B - December 09 2005 Page 2-5

Site technical documentation EC 2005 myZ 5
Automatic redial yes
SIM toolkit yes
Vibrate mode yes
Speed dialing voice mail only by long press
Call list yes
Caller ID no
Any key answer no
Automatic hang up yes
Special features
Keyboard features
Scroll key No
Programable key Yes 2 keys
Side key 0
Direct access key yes
Keypad lock yes
Silent key yes by long press on #
International access key yes by long press on 0
Menu key no
Personnal management features
Calculator yes
Alarm Clock yes
Timer no
Organizer yes
To do yes
Voice recorder Yes AMR codec
Currency converter yes
Languages up to 10 languages embedded
Contents REF MTB DTS 9- Indice B - December 09 2005 Page 2-6

Site technical documentation EC 2005 myZ 5
Memory
Memory
Internal phone book Depending on available free shared memory, up to 3,7MB
Memoire message Depending on available free shared memory, up to 3,7MB
Redial List 20
Additional multimedia memory no
Embedded memory 3,7 MBytes
Contents REF MTB DTS 9- Indice B - December 09 2005 Page 2-7

Site technical documentation EC 2005 myZ 5
2.3 IN & OUT CONNECTOR
2.3.1 Connector description
This connector is located at the bottom of the transmission module and enables the connection to various
accessories. It comprises power supply pins and signals.
2.3.2 Signal description
Symbol Pin connector Signal fonction
HSCMICIP 1 Differential inpout for external microphone
HSCMICN 2 Differential inpout for external microphone
HSOL 3 STEREO AND MONO AUDIO OUTPUT
HSOR 4 STEREO AND MONO AUDIO OUTPUT
VBAT 5 POWER SUPPLY IMAGE VOLTAGE, connect this
signal to "CHARGER" (pin n°1) to switch the module on.
INTI2C 6 Interrupt signal reserved for sagem specific accessories
CTS 7 Link v24 suit for accessory data
RTS 8 Link v24 suit for accessory data
DSR 9 Link v24 suit for accessory data
DTR 10 Link v24 suit for accessory data
TXD1 11 Link V24 suit for accessory data
Chargeur 12 Phone set power ON and power supply signal
GND 13 ZERO VOLT
RXD1 14 Link V24 suit for accessory data
R1 15 Complete V24 tie for data accessories
DCD 16 Complete V24 tie for data accessories
RXD2 17 Application input serial n°2
Chargeur 18 Phone set power ON and power supply signal
Contents REF MTB DTS 9- Indice B - December 09 2005 Page 2-8

Site technical documentation EC 2005 myZ 5
2.4 IDENTIFICATION
All phones are identified with an identification label sticked on the antenna.
2.4.1 Illustration
2.4.2 Desrcription
a1 : IMEI (bar code),
a2 : IMEI (15 characters)
b1 : Reference of product / aesthetic used .
b2 : Kind of handset / SAGEM Family.
c1: customer personalisation
d1: Production date (date code) + Production level,
Ex. F260/03 = (F) fabrication area (F : Fougères), (260) day of year, (03) last digit of year (03®2003).
e1 : Logo and agreement.
2.4.3 Description after repair
A new sticker is positioning by Repairing Centre on the antenna:
This extra line will appear if the mobile has already been repaired.
 - CRA XXX -> N° de CRA.
 - 260/03 -> Date of repair (260), repairing day (03), last digit of year (03->2003).
Contents REF MTB DTS 9- Indice B - December 09 2005 Page 2-9

Site technical documentation EC 2005 myZ 5
2.5 PHONE BLOCK DIAGRAM
2.5.1 block diagram
2.5.2Standards and environment
The phone complies with the following standards.
Directive EEC  1999 / 5 / CE
Safety (security)  EN 60950
CEM  EN 301 489-1 / EN 301 489-7
Voltage  73 / 23 / EEC
Network  3GPP TS 51.010-1 v 5.2.0 with included GCF-CC V 3.10.0
Requirements GT01 v 4.7.0 / TBR 19 edition 5 / TBR 20 edition 3
TBR 31 edition 2 / TBR 32 edition 2 / EN 301 419-1 / EN 301511
Health  EN 50360 / EN 50361
2.6 EQUIPEMENTS
The description and operation of SAGEM EC 2005 myZ 5 are given in the "User’s handbook" supplied with the handset.
This chapter only describes equipment that operates with the EC 2005 myZ 5 handset.
2.6.1 Battery packs
Contents REF MTB DTS 9- Indice B - December 09 2005 Page 2-10

Site technical documentation EC 2005 myZ 5
2.6.1.1 Charactéristics
Designation Technology Weight Voltage Capacity
2.6.1.2Description
Li-ion type batteries are used. They are rechargeable using:
- mains power supply module.
Batteries caution use:
·Store the batteries in a dry and cool place (excessive cold and heat damage the batteries reliability).
·They must never be stored in bulk, even the rejects, to avoid any short circuits.
·Do not dismantle the battery packs. (Li-Ion regulations).
·Only use original mains power supply module.
Contents REF MTB DTS 9- Indice B - December 09 2005 Page 2-11
