Dear customer,
You have just acquired a new generation Sagemcom telephone. Thank you
for placing your confidence in us.
This device has been manufactured with the utmost care. If you should have
difficulties in operating it, we recommend that you consult this user manual.
This product follows a strategy of continuous development. We reserve the
right to make changes, modifications and improvements without notice to the
products described in this quick start guide.
To operate the device safely and easily, please read carefully the paragraph
“Recommendations and safety instructions”, page 2.
The CE label confirms that the product complies with the 1999/5/EC
regulations of the European Union Parliament regarding wireless
systems and telecommunications.
The declaration of compliance may be looked up on the
www.sagemcom.com website section «Support», or can be obtained
from the following address:
Sagemcom Broadband SAS
250, route de l'Empereur
92848 Rueil-Malmaison Cedex - France
Copyright © Sagemcom Broadband SAS
All rights reserved
Sagemcom is a registered trademark.

2
Recommendations and safety instructions
Recommendations and safety
instructions
For safety reasons, never put the handset in the base
station without the battery inserted or without the lid on
the battery compartment as this could cause an electric
shock.
To avoid damaging your handset/base, only use certified
rechargeable batteries NiMH 1.2 V 650 mAh, never use
never use non-rechargeable batteries. Insert the batteries
in the handset/base battery compartment respecting
polarity.
Only use the enclosed Sagemcom power supply unit and
connect it to your plug socket as per the instructions in
this user guide and on the power supply unit's sticker. As
a precaution if there is a risk of danger, the power plug
can be pulled out to disconnect the 230 volt power supply.
Therefore the sockets should be near the device and
easily accessible.
Do not install your DECT telephone in a damp
environment, such as a bathroom, washroom, kitchen etc,
and not within 1.50 metres of a source of water or outside.
This device is designed for use in temperatures of
between 5 °C and 45 °C.
In regions greatly affected by electrical storms we
recommend that you protect your telephone circuit with a
special fixture for excess voltage.
Do not attempt to remove screws or open the appliance. It
does not contain any user-replaceable parts.

3
This product is intended to be connected to the public
analogue telephone network of any British and Irish
network operator.
Should you experience any problems, contact your
nearest specialst dealer or the Sagemcom Support Team
on 0845 0900 316.
Your DECT telephone has a range of approx. 50 metres
indoors and up to 300 metres outdoors. The range can be
affected by the proximity of metal objects, such as a
television and electrical devices.
Zones without reception may appear owing to elements in
the building. This can cause brief interruptions in the
conversation, caused by faulty transmission.
Certain medical equipment and highly-sensitive machines
or security systems may be affected by the transmission
power of the telephone. In these cases we recommend
adhering to the safety information.
Your D790-D790A has anti-skid pads that should leave no
traces on your furniture and ensure stability. However,
given the the wide variety of finishes used by furniture
manufacturers, traces may appear on surfaces in contact
with the parts of your D790-D790A. Sagemcom
Broadband SAS decline all responsibility in any such
cases of damage.
The used battery must be disposed of in line with the
recycling regulations in this user manual.

4
Overview
Recommendations and safety instructions ............. 2
Discover... ............................................................. 6
The pack.................................................................................... 6
Your phone ................................................................................ 7
Connecting the base .................................................................. 9
Setting up the handset ............................................................. 10
Battery replacement ................................................................ 12
Charging your phone ............................................................... 13
Browsing through the menus ................................................... 13
Making and receiving calls... .................................20
Managing a call........................................................................ 20
Managing several calls ............................................................ 22
Using additional handsets........................................................ 23
Options during a call................................................................ 25
Locating your handset ............................................................. 27
Organizing your contacts......................................28
Using the phonebook ............................................................... 28
Listening and Recording... (model D790A) ...........30
Enabling/disabling the answering machine .............................. 30
Answering machine message .................................................. 31
Messages ................................................................................ 32

5
Setting up... ..........................................................35
The phone................................................................................ 35
The handset ............................................................................. 39
The base .................................................................................. 42
The line.................................................................................... 44
Answering machine settings .................................................... 46
Enjoy... .................................................................48
The alarm................................................................................. 48
The Surveillance mode............................................................. 49
Tracing your calls... ..............................................51
Call logs................................................................................... 51
The events log.......................................................................... 52
Troubleshooting ...................................................53
FAQ ......................................................................................... 53
Environment .........................................................54
Guarantee ............................................................55

6
Discover...
The pack
Make sure that your pack contains the following items:
In the case of purchasing a pack DUO or TRIO, you will find in addition:
Discover...
1
a D790 or D790A base
according to the model
a handset
an AC power supply
a handset charger
a telephone
connection cord
a quick installation
guide
a handset charger
DUO - or -TRIO
a handset

7
Your phone
The base
Caption Description
1Indicator light
2Telephone socket
3Power socket
4button Paging/Pairing :
•Short press: paging of handsets
•Long press: pairing of handsets
23
4
1
Note Indicator light operation:
• Fixed for 10 seconds: base startup.
• Fast flashing: the base is in pairing mode.
•Medium Flashing : searching for handsets paired on the base.
•Slow flashing: ongoing call in progress.

8
Discover...
The handset
* Your D790-D790A has an indicator light on
the back of the handset.
14
4
3
13
10
1
2
5
6
8
9
12
7
11
Key Description
1Speaker
2Graphic screen
3Programmable / cancel
shortcut key
4Browsing through the
menus
5Hang up key.
Long press: Switch off
handset
6Alphanumeric keypad
7# key.
Hold down during a call :
Deactivate / Activate the
microphone
8Phonebook access key
9Microphone.
10 Hands-free key
11 Star key :
Long press: keypad lock /
unlock
12 Pick-up key / Hands-free.
Long press: Switch on
handset
13 Programmable/confirm
shortcut key.
14 Indicator light *.

9
Indicator light operation:
Connecting the base
Take the base and turn it over.
1Take the telephone connecting cord, plug the phone into its socket.
2Connect the other end of the cord to the telephone wall outlet.
3Take the power adapter. Connect the power adapter cord to the underside
of the base.
4Connect the power adapter to the wall power socket.
5Position the base in its final location.
On: When pressing a keypad button.
Flashing: When paging or receiving a call (internal/external)
Slowflashing: A new event occured
Note Check the safety instructions (page 2) before setting up your
phone.
2
1
3
4

10
Discover...

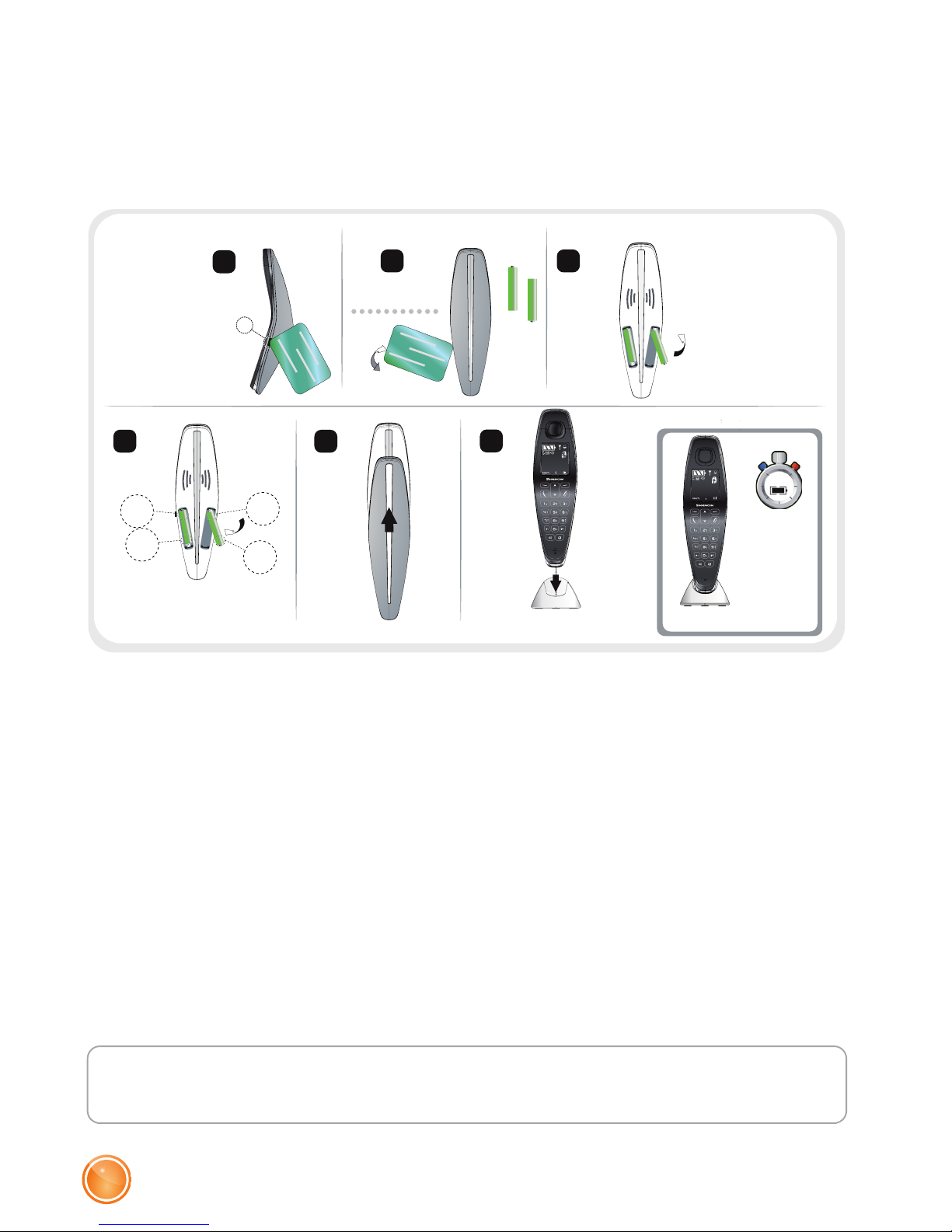

Setting up the handset
1Connect the power adapter of the charger to the mains socket.
2The batteries are already inserted in the handset. To start using your
handset, simply remove the plastic tab by pulling on it firmly in the
direction of the arrow.
3The screen will turn on.
4An information screen presents the current language used.
5Select the language using or keys. Press OK.
6An information screen asks you to choose the country where you will use
your telephone.
7Select the country using or keys. Press OK.
8Place your handset on its charger and fully charge the batteries for at least
15 hours prior to the initial use.
A beep sounds when you place the handset on the charger.
The battery charging icon moves to inform you that charging is in
progress. The icon will stop moving when the batteries are fully charged.
1321
15 H
HD
13/12 -1- 14:05
13/12 -1- 14:05
13/12 -1- 14:05
HD
HD
Note By default, the handset is registered on the base.
If your handset is not recognized by the base, launch manual
recognition (refer to the section "Associating a new handset to
D790 base ", page 39).

11
The screen
THE ICONS DISPLAYED
In standby mode or during use, your phone screen informs you of your
phone’s current state through icons, and in particular:
Caption Description
1 Status icons
Indicates your phone’s current state.
Battery charge
condition
Signal
Phone in conversation
mode
Alarm on
Secret mode on Only for the D790A model:
Answering machine on.
Flashing : new
message(s) on your
answering machine or
voicemail
Hands-Free on
Low transmission
2 Information field
This section will display:
•Current time (if handset placed in the charger),
•Handset number, date and time (if taken out of the charger).
3 Available keys
This section will display:
•Browser and confirmation keys (if handset placed in the
charger),
•Short-cut keys (of taken out of the charger).
13/12 -1- 14:05
Calls TAM
2
1
3

12
Discover...
LOW TRANSMISSION MODE
Due to its Low Transmission feature your handset will adjust the power
consumption according to the distance to the base station.
Battery replacement
1Have your credit card or any plastic card ready to remove the battery
compartment.
Slide your card into one of the notches (A) on the sides of the handset.
2Lift (or push down) the card gently to free the other clips of the battery
compartment.
3Remove the old batteries.
4Insert the new batteries as indicated and according to their electrical
polarity.
5Slide the battery compartment cover from the bottom of the handset
towards the top. It should connect securely.
6Place your handset on its charger and fully charge the batteries.
A beep sounds when you place the handset on the charger.
132
456
+
+
-
-
-
+
-
15 H
+
+
-
+
-
-
+
-
+
-
A
-
+
-
+
HD
13/12 -1- 14:05
13/12 -1- 14:05
13/12 -1- 14:05
HD
HD
Note Depleted batteries should be disposed of in line with the
recycling instructions on page 54 (“Environment”) .

13
Charging your phone
To charge your phone, place the handset in the charger, making sure the
charger is connected to an AC outlet.
During the charging process an animated battery icon progresses from
empty to full. Once it has stopped the batteries are charged.
Browsing through the menus
Browser
This browser allows you to quickly access menus and change
your settings easily. It points in two directions.
When choosing menus, press the top or the bottom of the
browser to access the previous or next menu.
During a call, press the top of the browser to increase the
volume or the bottom to decrease it.
Programmable keys
Your phone has two so-called “programmable” keys allowing you to
associate a shortcut to the menus you use most. This shortcut can then be
accessed from your phone's home screen.
Note To ensure optimum performance, charge the handset in the
charging unit for at least 15 hours prior to its first use. During
the charging process the batteries may get warm; this is
normal behaviour and no reason for concern. 
If handset and telephone base fail to connect we recommend
to check all cables as displayed in this User Guide.
WARNING To prevent damage to your handset, only use approved
AAA format NiMH 1.2 V 650 mAh rechargeable type
batteries. Never us non-rechargeable batteries.

14
Discover...
These keys are also used to confirm or cancel an action in a menu.
Illustration
To browse through menus, use the browser and the two programmable keys :
Programmable
key...
Use this key from the
home screen to...
Use this key from the
menus to...
Left Directly access the
associated menu through
the shortcut.
•Confirm the current entry.
•Display additional menu
options available during a
call.
Right •Cancel the current entry.
Note For further details on programming the left and right
programmable keys, see section “Setting up short-cut keys”,
page 36.
1Press the top or bottom of the browser key .
The main menu is displayed on the screen.
2Press the top or bottom of the browser key to scroll through
the menus and access the desired function.
3Confirm your choice/Enter the displayed menu by pressing the left
programmable key .
4Cancel your choice/Exit the displayed menu:
-either by pressing the right programmable key ,
-or by pressing the key; the home screen is displayed.

15
DETAILED BROWSER EXAMPLE: ADJUST THE DATE AND TIME
To access the date and time setting menu:
1Press the top or bottom of the browser key .
2The main menu is displayed on the screen.
3Scroll through the menus to the SETTINGS menu by pressing the top or
bottom of the browser key .
4Enter the SETTINGS menu by pressing the left programmable key .
The SETTINGS menu is displayed.
5Scroll through the menus to the DATE/TIME menu by pressing the top or
bottom of the browser key .
6Enter the DATE/TIME menu by pressing the left programmable key .
The DATE/TIME menu is displayed.
7Enter the DATE : using the numeric keypad (day, month and year) in the
form DD/MM/YY.
8Confirm your entry by pressing the left programmable key .
The home screen displays the message OK.
9Enter theTIME : using the numeric keypad (hours then minutes).
10 Confirm your entry by pressing the left programmable key .
The home screen displays the message OK.
You have just set your phone’s current date and time.
Refer to section “Menu tree structure”, (page 16) for an overview of your
phone's functions.
Note It is recommended to set the date and time accurately to allow
you to follow the chronological order of your calls and
messages.
Note If you have the Display number option, the date and time will,
depending on your operator, be set automatically when you
receive a call.

16
Discover...
Menu tree structure
PHONEBOOK
CALLS
ACCESSORIES
RING TONE
Option
VIEW
EDIT
ADD NUMBER
NEW ENTRY
DELETE
TRANSMIT
INCOMING CALLS
OUTGOING CALLS
EVENTS
ALARM
ROOM. MONITOR EXTERNAL CALL
INTERNAL CALL
BEEPS
SILENT MODE
"Menu during a call"
HANDSFREE
CALL TRANSFER (**)
SECOND CALL
PHONEBOOK
CALLS
SECRET
RECORD (*)
SIMPLE CALL
(*) Model D790A.
(**) Only if two handsets are registered on the same base.
SWITCH
3-PARTY CONF
HANDSFREE
PHONEBOOK
CALLS
SECRET
RECORD (*)
HANGING UP
SECOND CALL
< New >

17
SETTINGS
PROGRAM KEYS
DATE/TIME
CONTRAST
AUTO HANG UP
AUTO PICKUP
VOICE BOX NO
LANGUAGE
KEYPAD LOCK
RESTRICTION
LIGHT EFFECT
ADVANCED SET. SET HANDSET REGISTRATION
BASE PRIORITY
RESET HANDSET
PERSON REGISTR
HANDSET NAME
REGISTR.MODE
RESET BASE
DELETE HANDSET.
RENAME BASE
INTRUSION
SET BASE
SET LINE NETWORK TYPE
DIAL
FLASHING
PABX PREFIX
COUNTRY
CHANGE CODE

18
Discover...
MESSAGES PLAY
DELETE OLD
ANSWERING MODE
OUTGOING MESS. PLAY
CHANGE
DELETE
SETTINGS REMOTE CODE
MODE ENREG.
NO OF RINGS
ANS.MACH (*)
(*) Model D790A.

19
Procedures in your booklet
This user guide will explain the product features by either:
•displaying the direct shortcut keys
•displaying the path to certain features
EXAMPLE :
or means that you can use one of the
two buttons offered to access the
function.
"Menu during a call" > HANDSFREE means that you access this
function by displaying the menu
and then the HANDSFREE
function.
