SAGEMCOM C112 ECO User manual

1
USE
R
GU
I
DE
C112 ECO/C130 Eco

1
DEAR CUSTOMER,
Congratulations on buying your Sagemcom telephone and thank you for placing your confidence in us.
This device has been manufactured with the utmost care.
If you should have difficulties in operating it, we recommend that you consult this user manual.
You can also find information on the following site :
http://www.sagemcom.com
To operate the device safely and easily, please read the section carefully “Recommendations and safety instructions”, page 4.
The CE label confirms that the product complies with the 1999/5/EC regulations of the European Union Parliament
regarding wireless systems and telecommunications for user protection and for preventing electromagnetic interference.
The declaration of compliance may be looked up on the www.sagemcom.com website section "support" or can be
obtained from the following address :
Sagemcom Broadband SAS
250, route de l'Empereur - 92848 Rueil-Malmaison Cedex - France
Copyright © Sagemcom Broadband SAS
All rights reserved
Sagemcom is a registered trademark

2
CONTENTS
RECOMMENDATIONS
AND SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . 4
YOUR PACK. . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
YOUR PHONE. . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Navigator . . . . . . . . . . . . . . . . . . . . 7
Keypad description . . . . . . . . . . . . . . . 8
Descriptions of icons . . . . . . . . . . . . . . 10
INITIAL INSTALLATION . . . . . . . . . . . . . . . . . . . 11
Getting started with the telephone . . . . . . . . 11
Browsing through the menus . . . . . . . . . . 12
Telephone installation as a wall unit . . . . . . . . 14
PHONE USE. . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Call . . . . . . . . . . . . . . . . . . . . . 15
Making a call . . . . . . . . . . . . . . . . . 15
Ending a call . . . . . . . . . . . . . . . . . 16
During a call (according to your operator) . . . . . 16
Redial key function . . . . . . . . . . . . . . . 17
Insert a pause . . . . . . . . . . . . . . . . . 17
Secret mode . . . . . . . . . . . . . . . . . 18
Hands-free (for the C130 ECO) . . . . . . . . . . 18
Dial one of the last dialled numbers . . . . . . . . 19
Check the voicemail service . . . . . . . . . . . 19
PHONEBOOK . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Creating an entry . . . . . . . . . . . . . . . . 20
Editing an entry . . . . . . . . . . . . . . . . 20
Deleting an entry from your phonebook . . . . . . 21
Calling using the phonebook . . . . . . . . . . . 21
CALL LOG . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Display of numbers not available . . . . . . . . . 22
List of missed calls . . . . . . . . . . . . . . . 22
Viewing the received call log . . . . . . . . . . . 22
Adding a contact from the list of calls . . . . . . . 23
Deleting numbers from the list of calls . . . . . . . 23
Making a call from the list of calls . . . . . . . . . 23

3
TELEPHONE SETTINGS . . . . . . . . . . . . . . . . . . . 24
Modifying the telephone language . . . . . . . . . 24
Modifying the date and time . . . . . . . . . . . . 24
Adjusting the contrast . . . . . . . . . . . . . . 25
Adjusting the volume of the ring tone . . . . . . . . 25
Modifying the ring tone . . . . . . . . . . . . . . 25
Activating / deactivating key beeps . . . . . . . . 25
Modifying the flash duration (Key «R») . . . . . . . 26
Modifying the dialling mode . . . . . . . . . . . . 26
Defining forbidden prefixes
- Call barring . . . . . . . . . . . . . . . . . . 26
Second call . . . . . . . . . . . . . . . . . . 28
Switching off the LED . . . . . . . . . . . . . . 28
Managing speed dial numbers . . . . . . . . . . 28
NETWORK SETTINGS
(ACCORDING TO OPERATOR) . . . . . . . . . . . . . . 31
Voice mail number . . . . . . . . . . . . . . . 31
APPENDIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Care and Maintenance . . . . . . . . . . . . . 32
Problems . . . . . . . . . . . . . . . . . . . 32
CHARACTERISTICS. . . . . . . . . . . . . . . . . . . . . . 34
ENVIRONMENT. . . . . . . . . . . . . . . . . . . . . . . . . 35
Packaging . . . . . . . . . . . . . . . . . . 35
The product . . . . . . . . . . . . . . . . . 35
GUARANTEE . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Terms and Conditions for United Kingdom
& Ireland only . . . . . . . . . . . . . . . . . 36
Terms and Conditions for other countries . . . . . 39

4
RECOMMENDATIONS AND SAFETY INSTRUCTIONS
Do not install your telephone in a damp environment, such as a bathroom, washroom, kitchen etc, and not within 1.50
metres of a source of water or outside. This device is designed for use in temperatures of between 5 °C and 35 °C.
Do not attempt to remove screws or open the appliance. It does not contain any user-replaceable parts.
This device is designed to be used for connecting to the public telephone network. If problems should arise, contact your
nearest specialist dealer. Only use the telephone cable supplied.
In regions greatly affected by electrical storms we recommend that you protect your telephone circuit with a special fixture
for excess voltage.
Your C112 ECO / C130 ECO has anti-skid pads that should leave no traces on your furniture and ensure stability.
However, given the the wide variety of finishes used by furniture manufacturers, traces may appear on surfaces in contact
with the parts of your C112 ECO / C130 ECO. Sagemcom Broadband SAS decline all responsibility in any such cases
of damage.

5
YOUR PACK
Make sure that the box contains the following items :
• one base,
• one handset with its coiled cord,
• one telephone line cord
• and this quick start guide..
YOUR PHONE
The C112 ECO / C130 ECO is a very functional phone specially designed for business needs.
It has several shortcut keys and an LCD display with 3 lines controlled by softkeys. It also has many features related to the services
provided by your operator.
This guide allows you to make full use of all the features provided by the C112 ECO / C130 ECO as part of the services provided by
your operator.
Your C112 ECO / C130 ECO is one of the first land line telephones with a screen that works through your telephone
line alone. It works without any external power supply, and without batteries, making it an ECO device.

6

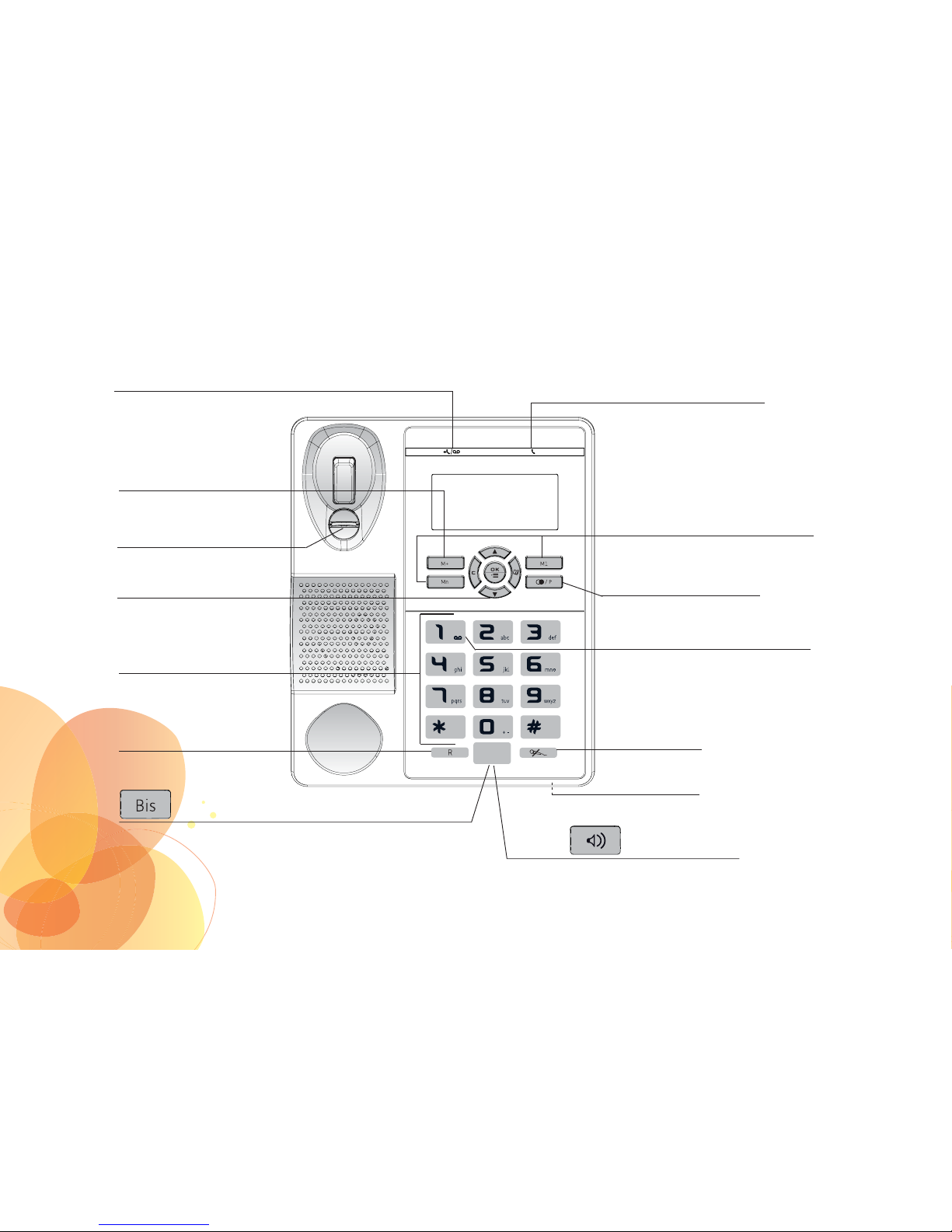

Navigator
Store a number in
the telephone memory
Secret mode
Flash
Last dialed number /
Insert pause
Loudspeaker (*)
Alphanumeric keypad
Memory keys / Fast access
to stored numbers
Connection indicator
Microphone
(*) Only C130 ECO
(**) Only C112 ECO
New event indicator
(missed call, voice message or call forwarding)
Wall mounting clip
Access to voice messaging
service (long press)
Call the last number dialled (**)

7
NAVIGATOR
Navigation key up /
List of missed calls
Navigation key down /
List of missed calls
Validating /
Accessing a menu
Access phonebookDelete / Return
Speaker volume cursor (C130 ECO only)

8

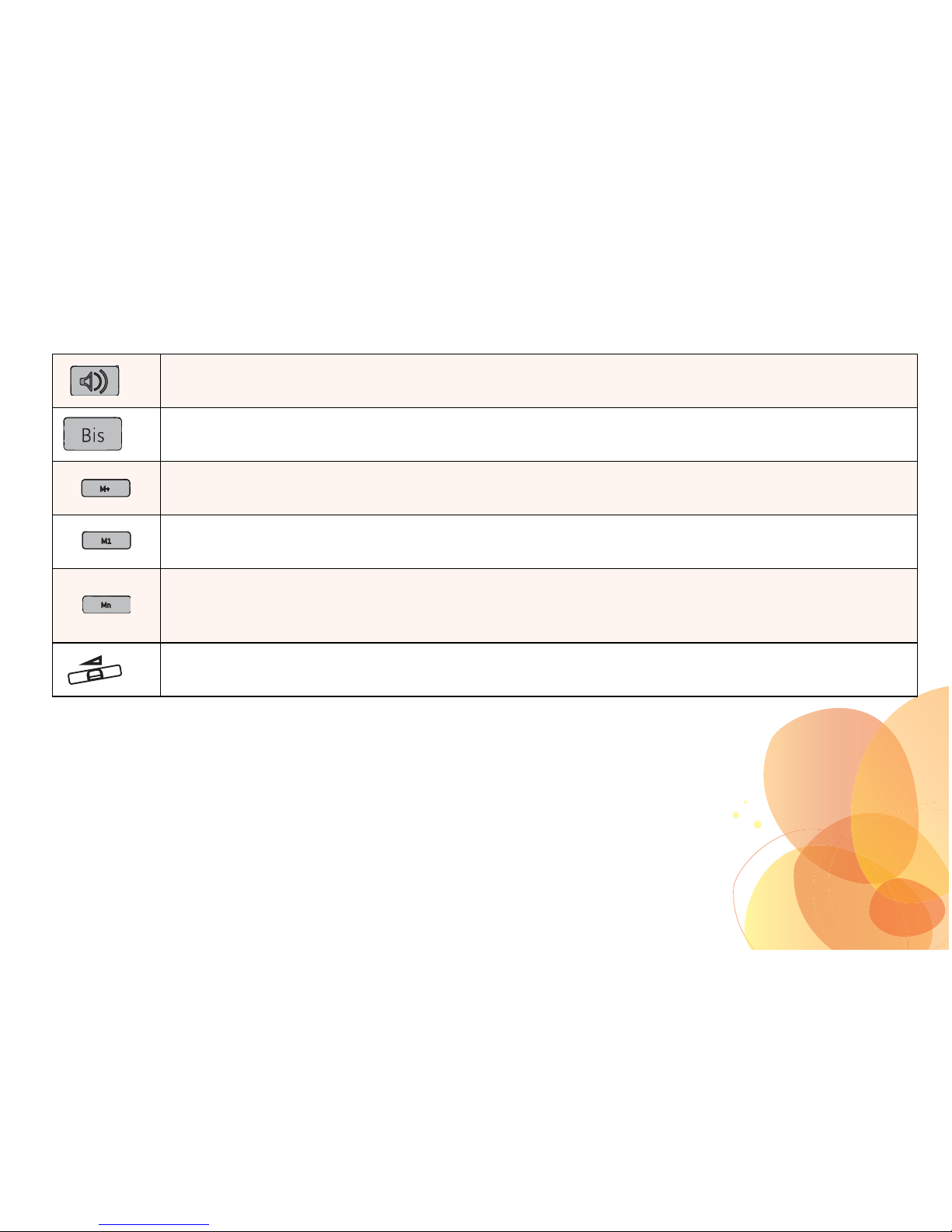

KEYPAD DESCRIPTION
Key Function
Scroll up / Go to the missed calls list
Browse down / Go to the missed calls list
Access a menu / Validate the selection
Delete an entry / Return to the previous menu
Access phonebook

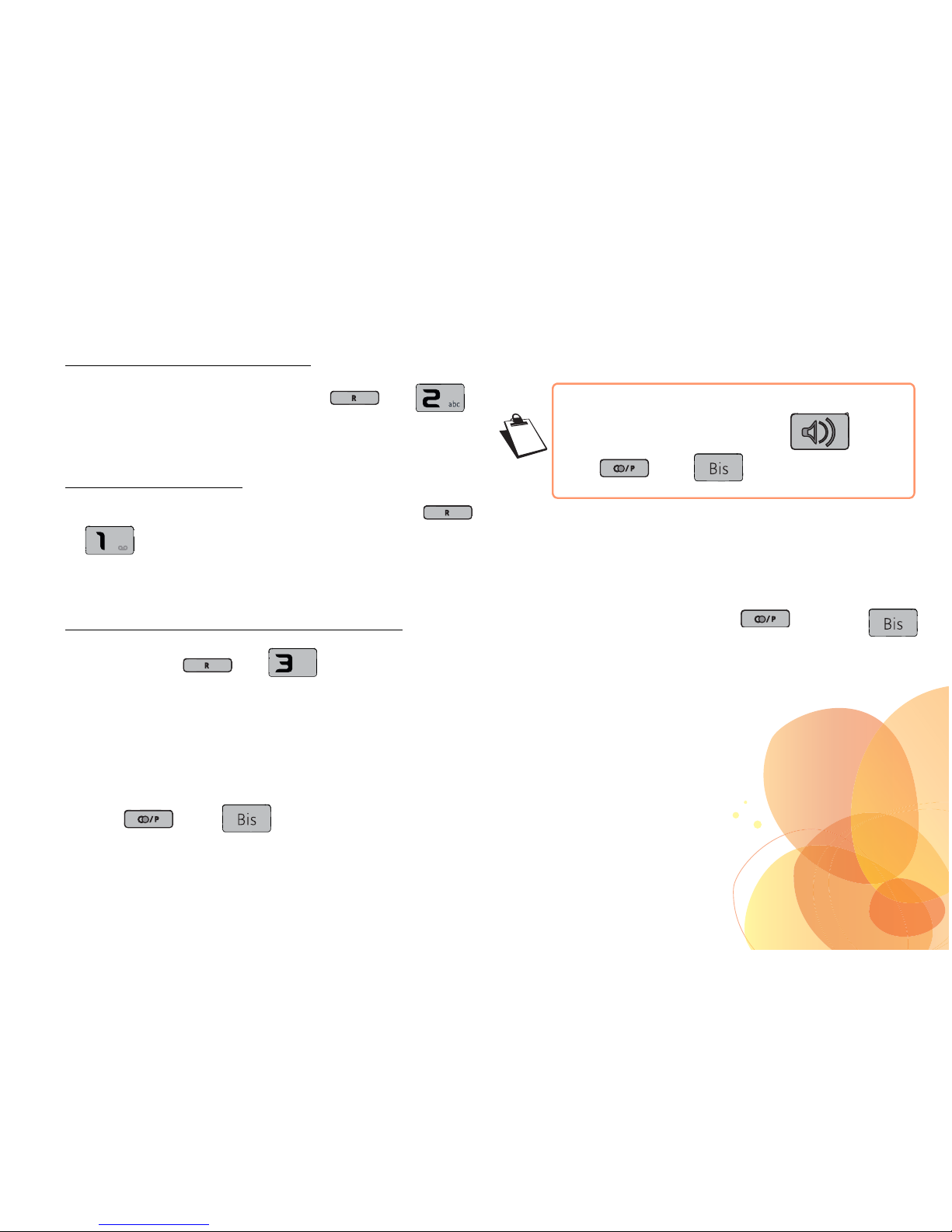

Managing multiple calls
Enable/disable the MUTE function during the call
Last dialled number / Insert pause

9
(*) only C130 ECO
(**) only C112 ECO
(*) Dial the number displayed on the screen / Enable the speakerphone function
(**) Last dialled number / Insert pause
Store a number in the telephone memory
Automatically dial a stored phone number
Consult a number in the memory /
Call a number memorised in one of the dialling keys (0 and 2-9)
(*) To adjust the loudspeaker volume

10
DESCRIPTIONS OF ICONS
LED Function
Line in use indicator :
Shows that the line is being used
New event indicator :
Indicates non-consulted missed calls and voice messages
Communication in progress
8888888888888888
Time Date
Handsfree mode (*)
Numerical display line
Alphabetic display line
New voice mail
List of received calls /
List of made calls
Position
in the list of calls
Missed calls(s) not viewed
in the list of received calls
Repeat of a non-consulted missed
call in the list of received calls
Missed call icon
Received call icon
88:88 AM
PM 88/88
REP NEW IN
OUT
88
x
(*) Only C130 ECO

11
INITIAL INSTALLATION
GETTING STARTED WITH THE TELEPHONE

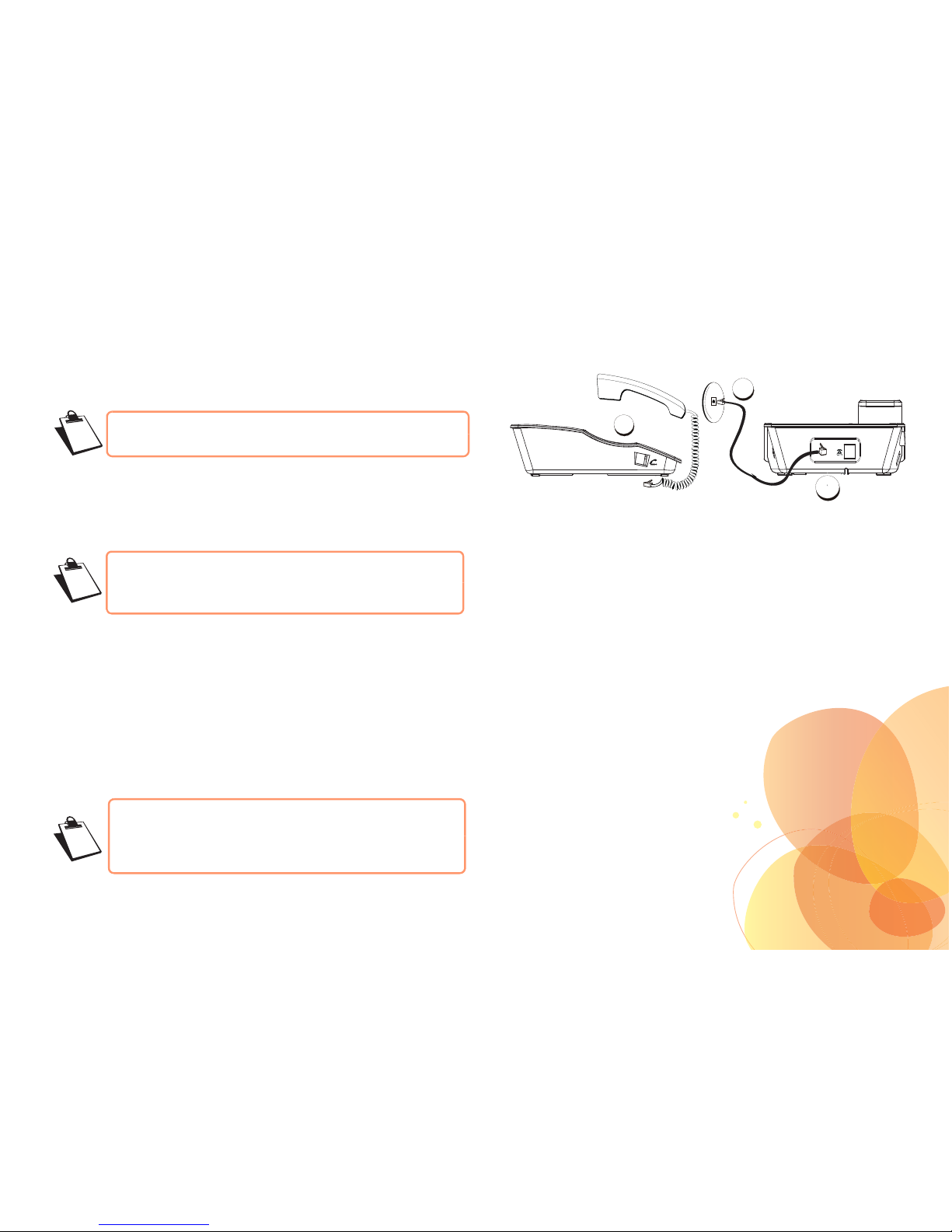

•Click the spiral cord of the telephone set into its socket (1) on
the base side.
•Click the end of the line cord into its socket (2) and plug the
other end into the wall socket (3).
The telephone display will come on 1 minute after connection
and you can use your phone in the normal way.
Adjustments to make before use
After installing your telephone, adjust the time and the contrast
(if necessary). It is important to make these adjustments before
using your telephone.
Refer to paragraph "Modifying the flash duration (Key «R») ",
page 26, to set the flash duration.
Refer to paragraph "Modifying the date and time ", page 24, to
set the date and time of the telephone.
If you cannot see the screen display, refer to paragraph
"Adjusting the contrast ", page 25.
The C112 ECO / C130 ECO telephone is designed
to be connect to a SINGLE telephone line before use.
Before making any connections, please refer to the
paragraph "Recommendations and safety
instructions", page 4
The C112 ECO / C130 ECO is self-powered,
needing no batteries and just 1 minute of connection
to the telephone socket before use.
3
2
1

12

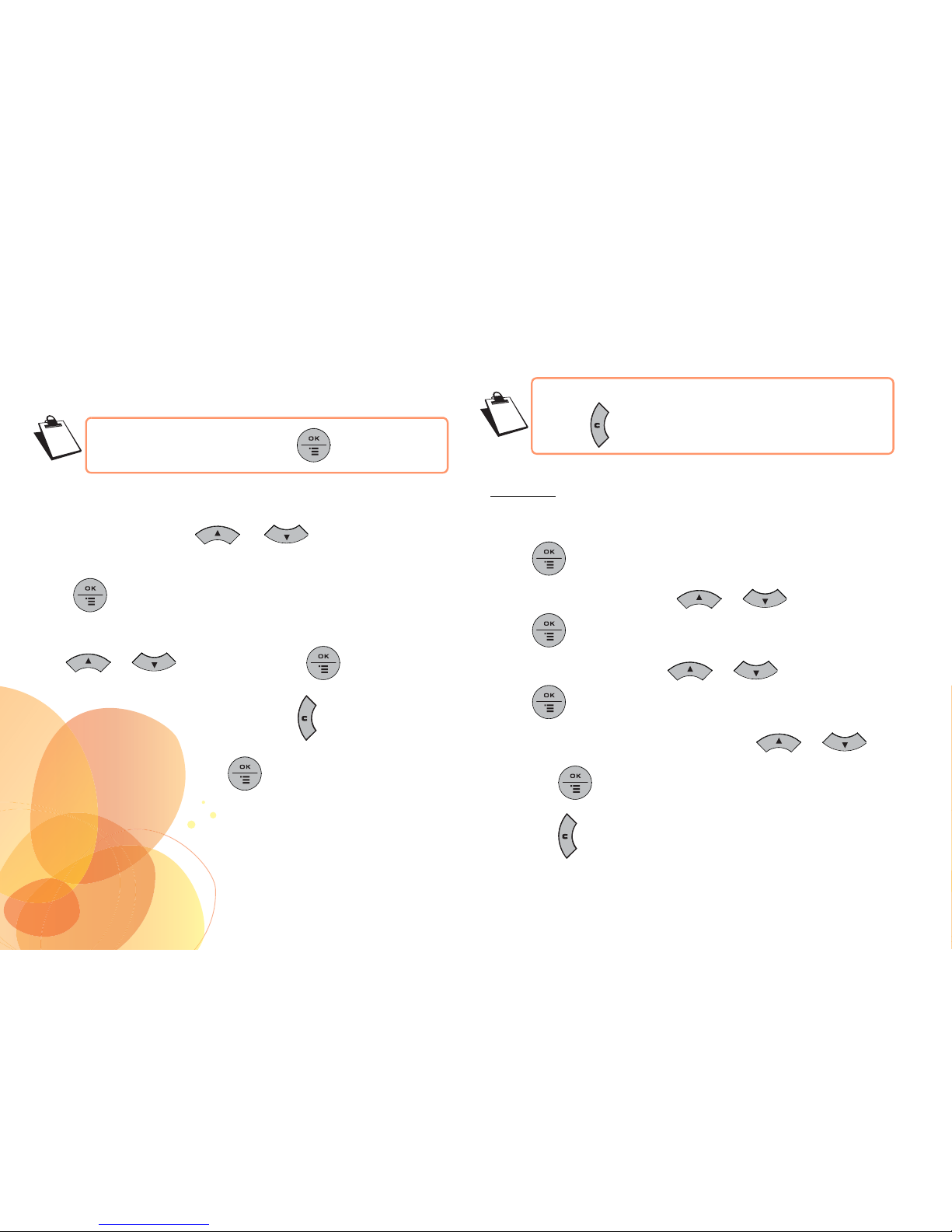

BROWSING THROUGH THE MENUS
Use the browsing keys  or to select the desired
menu.
Press key to confirm your selection.
Select the desired function by pressing the browsing
keys or and then press the .
- To return to the previous menu, press .
- To save the settings, press .
Example :
To access the menu Phone setting / Ring melody :
•Press .
•Select Phone setting using or .
Press .
•Select Ring melody using or .
Press .
•Select your desired ring tone using keys or .
- Press to confirm the setting.
- Press to cancel the setting and return to the previous
menu.
To access the menu list, press .
To return to the welcome screen, press and hold down
the key .

13
See the menu summary below to familiarise yourself with all the
features of your telephone.
Menu structure
15:59 12/31 REP NEW IN
OUT 88
Number of selected menu
Menu selected
x
Phone book
Network setting
Phone setting
Call log
Search
Create
Missed call
Answered call
Dialed Call
Set language
Set Date/Time
LCD contrast
Ring level
Ring melody
Key tone
Set flash time
Dialing type
Call barring
Switch off LED
Call waiting
Network message
Menu

14
TELEPHONE INSTALLATION AS AWALL UNIT
•Swivel the grip clip.
•This prevents the handset from falling off its base.
•Mark the wall at the points where it is to be attached.
•Drill the holes in the wall at the points you have marked. Insert
plugs into the holes if necessary.
•Hang the phone on the wall, align the wall grip slots with screws in
the wall, and then fold down firmly.
•Position the phone so that it is safely secured.
To set your phone to the wall, you will need two wall
anchors and screws.
These are not included in the pack.
Wall hanging slots

15
PHONE USE
CALL
Receiving a call
•When a call is received, the phone rings.
•The call indicator flashes and the caller’s phone
number is displayed on the screen if you have subscribed to
the “Caller ID” service.
•The caller’s name may also be displayed if it is included in
your phone book.
Accepting a call in handset mode
•Pick up the handset.
The line indicator turns and the call time counter is
displayed on the screen.
•To end the call, hang up the handset.

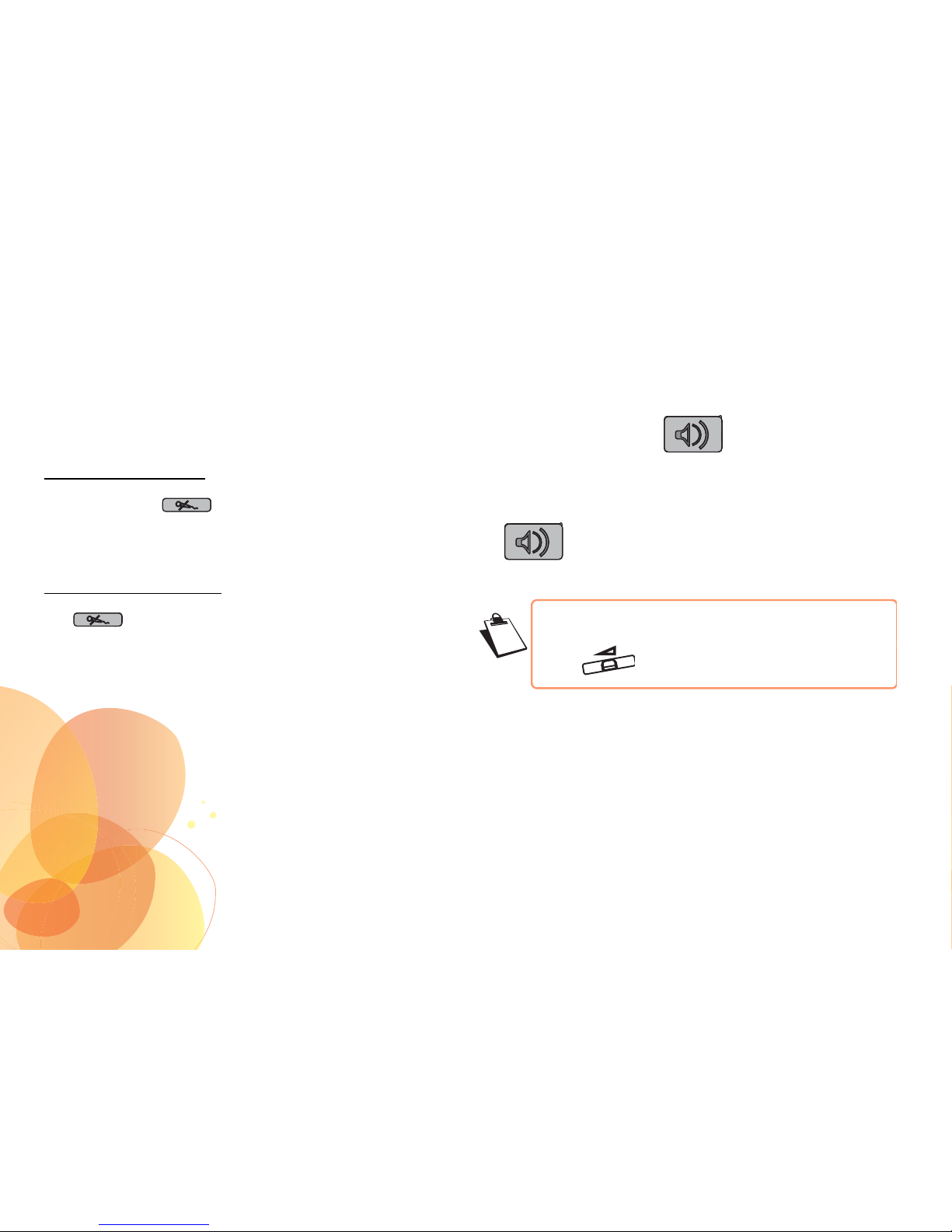

Take a call in speakerphone mode
(for C130 ECO only)
•Press to speak in speakerphone mode (without
holding the handset). The symbol and the call time counter
are displayed on the screen.
•To end the call, press again.
MAKING ACALL
Making a call in handset mode
•Pick up the handset. The line indicator comes on.
Dial your number on the keypad.
The call time counter is displayed on the screen.
•To end the call, hang up the handset on the base or press.
Making a call in speakerphone mode
(for C130 ECO only)
•Press . The symbol is displayed on the screen
and the line indicator comes on.
Dial your number on the keypad.
This is displayed on the screen.
•To end the call, hang up the handset on the base or
press .

16
ENDING ACALL
When you have finished your call:
•Press or hang up the handset on the base
(for C130 ECO only).
•Hang up the handset on the base (for C112 ECO only)
The line indicator goes off.
DURING ACALL
(ACCORDING TO YOUR OPERATOR)
Receiving a second call
During the call, a beep is transmitted to your telephone by your
service provider to let you know that you have a second
call waiting.
Press then to take this new call.
Your other caller is then put on hold and you can talk with your
second caller.
Making a second call
During a call, you can put your contact on hold and call a second
one by pressing and dial the number using the keypad.
The second call is then launched, with the first call still on hold.
You can also dial a number in pre-dialling mode,
whether in handset or speakerphone mode: dial the
number on the keypad and then lift the handset or
press (for
C130 ECO only).
If necessary, you can correct the number entered by
pressing .
The symbol disappears if you were in
speakerphone mode.
Missed calls during a call are stored in the received
calls list.

17
To alternate from one call to the other
To toggle from one call to the other, press then .
The call in progress is put on hold, and you can then take the
second call.
Ending one of the two calls
To end one call and continue with the other, press
then .
The call in progress is then permanently ended and you take the
second call back.
To set up a 3 way-call (the two parties and yourself)
During a call, press then .
You can then talk to both parties simultaneously.
To end the 3 way-call, replace the handset.
REDIAL KEY FUNCTION
Press the (*) or (**) key to access the list of
recently dialled calls, and then pick up the handset.
The last number is then dialled.
INSERT APAUSE
The pause time is 2.5s.
When entering the number, press (*) or the
key (**).
(*) For the
C112 ECO and the C130 ECO
(**) Only for the
C112 ECO
If you want to make a call in speakerphone mode
(for the
C130 ECO ), press then
press (*) or (**).

18
SECRET MODE
During a call, you can switch to mute mode and your phone’s
microphone will be muted. The person you are on line with can
no longer hear you.
To activate secret mode:
During a call, press .
Mute message will appear on the screen, your contact can no
longer hear you.
To deactivate secret mode:
Press again.
Mute message will appear on the screen.
Your correspondent will be able to hear you again.
HANDS-FREE (FOR THE C130 ECO)
If you want to phone in speakerphone mode, do not lift the
handset, but press the base key.
The caller can then be heard through the loudspeaker and you
speak into the microphone at lower right of your telephone.
You finish the conversation by once again pressing the
key .
When you call in hands-free, you can increase or
decrease the audio volume using the volume control
button .

19
DIAL ONE OF THE LAST DIALLED NUMBERS
Your C112 ECO / C130 ECO stores the last 25 numbers dialled:
•Go to Call log /Dialed call.
•Select the number you want to call.
•Pick up the handset.
The number is dialled automatically.
CHECK THE VOICEMAIL SERVICE
Method 1:
•Make sure the handset is replaced on the base.
•Press and hold the key .
The voicemail number is dialed automatically.
Method 2:
•Pick up the handset.
•Dial the number provided by your operator.
To change The voicemail number, Refer to
paragraph "Voice mail number ", page 31.
