Samsung AC TNPPEH Series Guide

Air conditioner
User & installation manual
AC***TNPPEH
• Thank you for purchasing this Samsung air conditioner.
• Before operating this unit, please read this manual carefully and retain it for future reference.
DB68-09343A-00
DB68-09343A-00_IBIM_PAC 미라지 이집트파키스탄_IQ_EN.indd 1 2020-07-28 오전 11:08:42

2
English
Contents
Safety Information 4
Safety Information (Using the Air Conditioner) 4
Operation Features 12
Checking auxiliary power switch • Operating temperature and humidity 12
At a Glance 13
Indoor Unit Overview 13
Opening the panel 13
Control Panel Overview 14
Indoor unit display 14
Controlling with the control panel 15
Turning on or off the air conditioner • Controlling temperature • Controlling the fan speed 15
Selecting the operation mode/Locking the control panel 16
Remote Control Overview 17

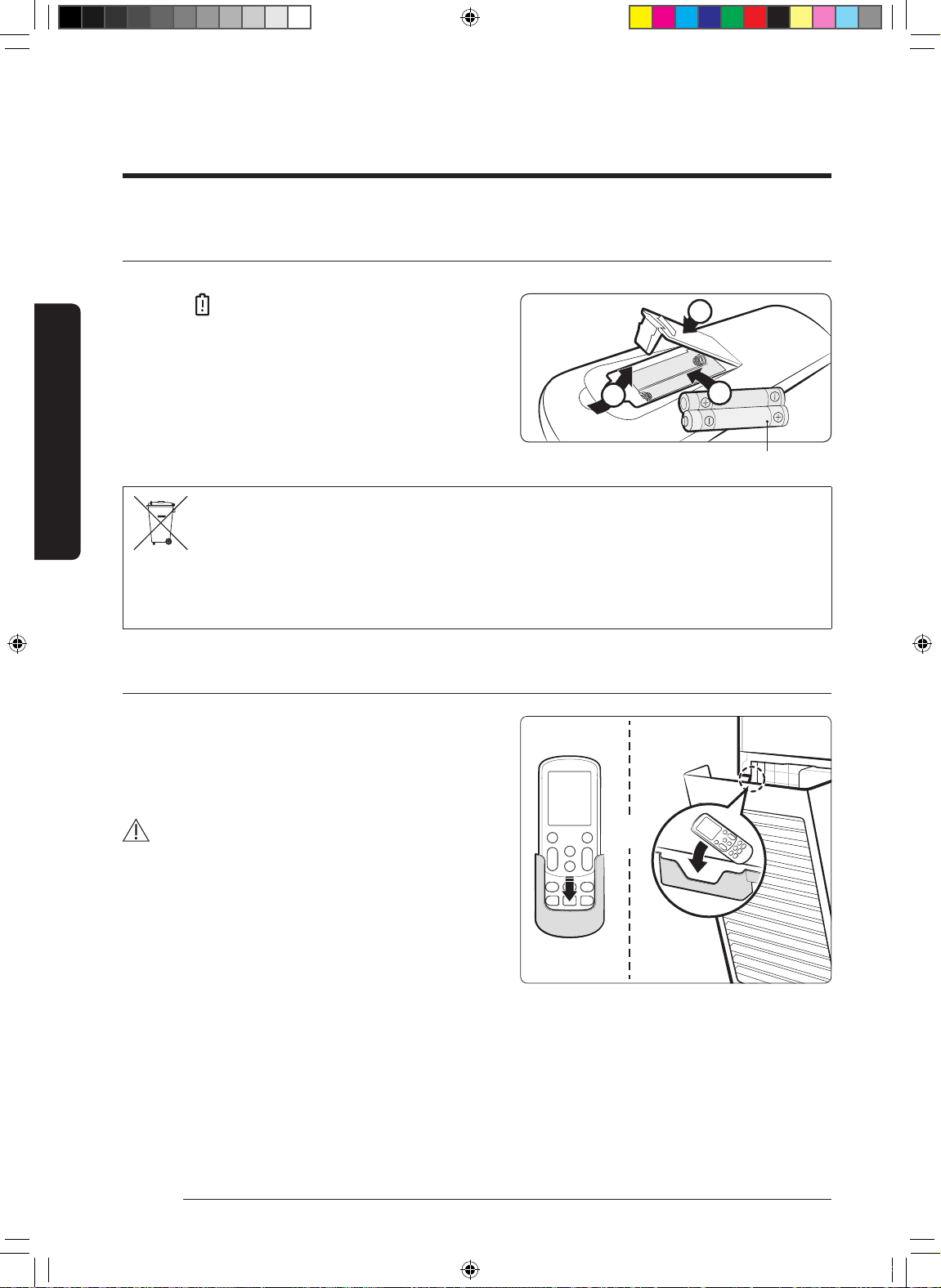

Replacing batteries • Storing the remote control 18
Remote Control Operation 19
Turning on or off the air conditioner • Operation modes 19
Controlling fan speed • Controlling temperature • Controlling air flow direction 20
Power Smart Features 21
Power Smart Features 21
Auto mode • Cool mode 21
Dry mode • Fan mode 22
Heat mode 23
Variety Smart Features 24
Turbo function • Long reach function 24
Clean function 25
Energy-Saving Operation 26
Timed on/Timed off function 26
Cleaning and Maintenance 27
Cleaning at a Glance 27
Troubleshooting 30
DB68-09343A-00_IBIM_PAC 미라지 이집트파키스탄_IQ_EN.indd 2 2020-07-28 오전 11:08:42

3
English
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories
(e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life.
To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these
items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government ofce,
for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product
and its electronic accessories should not be mixed with other commercial wastes for disposal.
Safety Information 33
Safety Information (Installing the Air Conditioner) 33
General information 33
Installing the unit 33
Power supply line, fuse or circuit breaker 34
Installation Procedure 35
Installation Procedure 35
Step 1 Choosing the installation location 35
Step 2 Checking and preparing accessories 35
Step 3 Drilling a hole through a wall 36
Step 4 Taping the pipes, cables, and drain hose 36
Step 5 Purging inert gas from the indoor unit 37
Step 6 Optional: Cutting and flaring the pipes 37
Step 7 Connecting the refrigerant pipes 38
Step 8 Performing the gas leak test 38
Step 9 Fixing and insulating the connection part for refrigerant pipes 39
Step 10 Installing and connecting the drain hose 39
Step 11 Performing drainage test 40
Step 12 Connecting the power and communication cables 40
Step 13 Optional: Extending the power cable 42
Step 14 Setting the indoor unit addresses and the installation options 43
Step 15 Optional: Fixing the indoor unit 52
Appendix 53
Troubleshooting 53
DB68-09343A-00_IBIM_PAC 미라지 이집트파키스탄_IQ_EN.indd 3 2020-07-28 오전 11:08:42

4
English
Safety Information
Safety Information (Using the Air Conditioner)
Before using your new air conditioner, please read this manual thoroughly to
ensure that you know how to safely and efciently operate the extensive features
and functions of your new appliance.
Because the following operating instructions cover various models, the
characteristics of your air conditioner may differ slightly from those described in
this manual. If you have any questions, call your nearest contact center or nd
help and information online at www.samsung.com.
These warning signs are here to prevent injury to you and others. Please follow
them carefully.
Important safety symbols and precautions:
WARNING
Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION
Hazards or unsafe practices that may result in minor personal injury or property
damage.
Follow directions.
Do NOT attempt.
Make sure the machine is grounded to prevent electric shock.
Unplug the power plug from the wall socket.
Do NOT disassemble.
Safety Information
DB68-09343A-00_IBIM_PAC 미라지 이집트파키스탄_IQ_EN.indd 4 2020-07-28 오전 11:08:42

5
English
Safety Information
FOR INSTALLATION
WARNING
Use the power line with the power specications of the product or higher
and use the powerline for this appliance only. In addition, do not use an
extension line.
• Extending the power line may result in electric shock or re.
• Do not use an electric transformer. It may result in electric shock or re.
• If the voltage/frequency/rated current condition is different, it may cause re.
The installation of this appliance must be performed by a qualied
technician orservice company.
• Failing to do so may result in electric shock, re, explosion, problems with
the product, or injury.
Install a switch and circuit breaker dedicated to the air conditioner.
• Failing to do so may result in electric shock or re.
Fix the outdoor unit rmly so that the electric part of the outdoor unit is
not exposed.
• Failing to do so may result in electric shock or re.
Do not install this appliance near a heater, inammable material. Do
not install this appliance in a humid, oily or dusty location, in a location
exposed to direct sunlight and water (rain drops). Do not install this
appliance in a location where gas may leak.
• This may result in electric shock or re.
Never install the outdoorunit in a location such as on a high external wall
where it could fall.
• If the outdoor unit falls, it may result in injury, death or property damage.
DB68-09343A-00_IBIM_PAC 미라지 이집트파키스탄_IQ_EN.indd 5 2020-07-28 오전 11:08:42

6
English
Safety Information (Using the Air Conditioner)
Safety Information
This appliance must be properly grounded. Do not ground the appliance to
a gas pipe, plastic water pipe, ortelephone line.
• Failure to do so may result in electric shock, re, an explosion, or other
problems with the product.
• Never plug the power cord into a socket that is not grounded correctly and
make sure that it is in accordance with local and national codes.
CAUTION
Install your appliance on a level and hard oor that can support its weight.
• Failing to do so may result in abnormal vibrations, noise, or problems with
the product.
Install the draining hose properly so that water is drained correctly.
• Failing to do so may result in water overowing and property damage.
When installing the outdoor unit, make sure to connect the draining hose
so that draining is performed correctly.
• The water generated during the heating operation by the outdoor unit may
overow and result in property damage. In particular, in winter, if a block
of ice falls, it may result in injury, death or property damage.
Do not install the product in a place where thermo-hygrostat is needed
(such as serverroom, machinery room, computerroom, etc.)
• Those places do not provide guaranteed operation condition of the
product therefore performance can be poor in these places.
Do not install the product in a place where hairspray is frequently used
(such as hair salon) since it decreases the hydrophilicity of the product's
heat exchanger and cause dew formation on the surface of the product.
DB68-09343A-00_IBIM_PAC 미라지 이집트파키스탄_IQ_EN.indd 6 2020-07-28 오전 11:08:43

7
English
Safety Information
FOR POWER SUPPLY
WARNING
When the circuit breaker is damaged, contact yournearest service centre.
Do not pull orexcessively bend the powerline. Do not twist ortie the power
line. Do not hook the powerline overa metal object, place a heavy object
on the powerline, insert the power line between objects, orpush the power
line into the space behind the appliance.
• This may result in electric shock or re.
CAUTION
When not using the airconditionerfor a long period of time orduring a
thunder/lightning storm, cut the powerat the circuit breaker.
• Failing to do so may result in electric shock or re.
FOR USING
WARNING
If the appliance is ooded, please contact your nearest service centre.
• Failing to do so may result in electric shock or re.
If the appliance generates a strange noise, a burning smell orsmoke, unplug
the power plug immediately and contact yournearest service centre.
• Failing to do so may result in electric shock or re.
In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate
immediately without touching the power line. Do not touch the appliance
or power line.
• Do not use a ventilating fan.
• A spark may result in an explosion or re.
DB68-09343A-00_IBIM_PAC 미라지 이집트파키스탄_IQ_EN.indd 7 2020-07-28 오전 11:08:43

8
English
Safety Information (Using the Air Conditioner)
Safety Information
To reinstall the air conditioner, please contact yournearest service centre.
• Failing to do so may result in problems with the product, water leakage,
electric shock, or re.
• A delivery service for the product is not provided. If you reinstall the
product in another location, additional construction expenses and an
installation fee will be charged.
• Especially, when you wish to install the product in an unusual location
such as in an industrial area or near the seaside where it is exposed to the
salt in the air, please contact your nearest service centre.
Do not touch the circuit breakerwith wet hands.
• This may result in electric shock.
Do not strike or pull the airconditionerwith excessive force.
• This may result in re, injury, or problems with the product.
Do not place an object nearthe outdoorunit that allows children to climb
onto the machine.
• This may result in children seriously injuring themselves.
Do not turn the airconditioner off with the circuit breakerwhile it is
operating.
• Turning the air conditioner off and then on again with the circuit breaker
may cause a spark and result in electric shock or re.
Afterunpacking the air conditioner, keep all packaging materials well
out of the reach of children, as packaging materials can be dangerous to
children.
• If a child places a bag over its head, it may result in suffocation.
Do not touch the air ow blade with your hands or ngers during the
heating operation.
• This may result in electric shock or burns.
Do not insert your ngers or foreign substances into the outlet when the air
conditioner is operating or the air ow blade is closing.
• Take special care that children do not injure themselves by inserting their
ngers into the product.
DB68-09343A-00_IBIM_PAC 미라지 이집트파키스탄_IQ_EN.indd 8 2020-07-28 오전 11:08:43

9
English
Safety Information
Do not insert your ngers or foreign substances into the air inlet/outlet of
the air conditioner.
• Take special care that children do not injure themselves by inserting their
ngers into the product.
Do not use this airconditionerfor long periods of time in badly ventilated
locations or near inrm people.
• Since this may be dangerous due to a lack of oxygen, open a window at
least once an hour.
If any foreign substance such as water has entered the appliance, cut the
power by unplugging the power plug and turning the circuit breaker off
and then contact your nearest service centre.
• Failing to do so may result in electric shock or re.
Do not attempt to repair, disassemble, ormodify the appliance yourself.
• Do not use any fuse (such as copper, steel wire, etc.) other than the
standard fuse.
• Failing to do so may result in electric shock, re, problems with the
product, or injury.
CAUTION
Do not place objects or devices underthe indoor unit.
• Water dripping from the indoor unit may result in re or property damage.
Check that the installation frame of the outdoorunit is not broken at least
once a year.
• Failing to do so may result in injury, death or property damage.
Max current is measured according to IEC standard forsafety and current is
measured according to ISO standard for energy efciency.
DB68-09343A-00_IBIM_PAC 미라지 이집트파키스탄_IQ_EN.indd 9 2020-07-28 오전 11:08:43

10
English
Safety Information (Using the Air Conditioner)
Safety Information
Do not stand on top of the appliance or place objects (such as laundry,
lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.)
on the appliance.
• This may result in electric shock, re, problems with the product, or injury.
Do not operate the appliance with wet hands.
• This may result in electric shock.
Do not spray volatile material such as insecticide onto the surface of the
appliance.
• As well as being harmful to humans, it may also result in electric shock,
re or problems with the product.
Do not drink the waterfrom the airconditioner.
• The water may be harmful to humans.
Do not apply a strong impact to the remote control and do not disassemble
the remote control.
Do not touch the pipes connected with the product.
• This may result in burns or injury.
Do not use this airconditionerto preserve precision equipment, food,
animals, plants or cosmetics, or for any other unusual purposes.
• This may result in property damage.
Avoid directly exposing humans, animals or plants from the air ow from
the air conditionerforlong periods of time.
• This may result in harm to humans, animals or plants.
This appliance is not intended foruse by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible fortheir safety.
Children should be supervised to ensure that they do not playwith the
appliance.
DB68-09343A-00_IBIM_PAC 미라지 이집트파키스탄_IQ_EN.indd 10 2020-07-28 오전 11:08:43

11
English
Safety Information
FOR CLEANING
WARNING
Do not clean the appliance by spraying water directly onto it. Do not use
benzene, thinner, alcohol or acetone to clean the appliance.
• This may result in discoloration, deformation, damage, electric shock or re.
Before cleaning or performing maintenance, unplug the airconditioner
from the wall socket and wait until the fan stops.
• Failing to do so may result in electric shock or re.
CAUTION
Take care when cleaning the surface of the heat exchanger of the outdoor
unit since it has sharp edges.
• To avoid cutting your ngers, wear thick cotton gloves when cleaning it.
Do not clean the inside of the air conditioner byyourself.
• For cleaning inside the appliance, contact your nearest service centre.
• When cleaning the internal lter, refer to the descriptions in the ‘Cleaning
and maintaining the air conditioner’ section.
• Failure to do may result in damage, electric shock or re.
DB68-09343A-00_IBIM_PAC 미라지 이집트파키스탄_IQ_EN.indd 11 2020-07-28 오전 11:08:43

12
English
Safety Information
Operation Features
Checking auxiliary power switch
ON
1 phase circuit breaker 3 phase 4 wire circuit breaker Turn on the auxiliary power switch which is
installed separately.
NOTE
Auxiliary power switch(ELCB, ELB)
• Auxiliary power switch is not included in the package. Purchase and install it separately.
• Auxiliary power switch is a device for preventing over-current or short circuit. Turn off the auxiliary
power switch when you are cleaning the product or not going to use the product for long period of time.
• If ELB has already been installed in the switch box of the building, it is not mandatory foryou to install
the auxiliary power switch.
Operating temperature and humidity
Mode Outdoor temperature Indoor temperature Indoor humidity
Cool mode -15°C to 50°C 18°C to 32°C 80% or less
Heat mode -20°C to 24°C 30°C or less -
Dry mode -15°C to 50°C 18°C to 32°C 80% or less
CAUTION
• If you use the air conditioner at a relative humidity above 80%, it may cause a formation of
condensation and a leakage of water on the oor.
• The rated heating capacity is based on an outdoor temperature of 7°C. If the outdoor
temperature goes down below 0°C, heating efciencies may decrease depending on the
temperature conditions.
• If the indoor unit is out of the operating temperature and humidity range, the safery device may
operate and the air conditioner may stops.
DB68-09343A-00_IBIM_PAC 미라지 이집트파키스탄_IQ_EN.indd 12 2020-07-28 오전 11:08:43

13
English
At a Glance
The actual product may differ slightly from the image depicted below.
Indoor Unit Overview
At a Glance
01
02
03
04
05
06
07
08
09
01 Air ow blade (up and down)
02 Air ow blade (left and right)
03 Air outlet
04 Control panel
05 Indoor unit display
06 Air lter
07 Remote control holder
08 Air intake
09 Safety hook
Opening the panel
Hold the upper part of the panel, then pull it slightly forward.
CAUTION
• Do not open the panel when the air conditioner is operating. It may
cause a malfunction or an electric shock.
NOTE
• Be sure to fasten the safety hook on the panel while in operation.
DB68-09343A-00_IBIM_PAC 미라지 이집트파키스탄_IQ_EN.indd 13 2020-07-28 오전 11:08:43

14
English
At a Glance
02 03 04 05
01
01 Power button
02 Mode button (Lock button)
03 Fan speed button (Turbo function Button)
04 Indoor unit display
05 Temperature button
Indoor unit display
02 03 04 05 06 07
08
09
01
01 Operation mode indicators
02 Defrost operation indicator
03 Outdoor unit operation indicator
04 Vertical air swing indicator /
Horizontal air swing indicator
05 Fan speed indicator
06 Set temperature indicator
07 Turbo function indicator /
Long reach function indicator /
Clean function indicator /
08 Lock indicator
09 Set timer indicator
NOTE
• If you set a dedicated mode available only in the upper level controller (DMS), it may limit available
operation modes that can be selected in the indoor unit display.
– DMS cooling mode: Auto, Cool, Dry, and Fan
– DMS heating mode: Auto, Fan, and Heat
Control Panel Overview
DB68-09343A-00_IBIM_PAC 미라지 이집트파키스탄_IQ_EN.indd 14 2020-07-28 오전 11:08:44

15
English
At a Glance
You can control the air conditionerwith the control panel without using the remote control.
Controlling with the control panel
Turning on or off the air conditioner
Press the (Power) button. The air conditioner
turns on with a ring sound and then its operation
starts. To turn off the air conditioner, press the
(Power) button again.
Controlling temperature
Each time you press the button, the temperature
increases or decreases by 1 ℃.
Mode Temperature control
Auto/Cool/Dry
Adjust by1°C between 18°C and 30°C.
Fan You cannot control the temperature.
Heat Adjust by1°C between 16°C and 30°C.
(Turbo 3sec)
Controlling the fan speed
Press the (Fan speed) button to change the fan
speed in each mode. Each time you press the button,
the fan speed changes in the following order:
Mode Available fan speeds
Auto/Dry (Auto)
Cool/Heat (Med), (High), (Turbo),
(Auto),
Fan (Med), (High), (Turbo)
Press and hold the (Fan speed) button for 3 seconds
to activate the Turbo function.
NOTE
• In Fan mode, cool air does not come out because
the outdoor unit does not operate.
DB68-09343A-00_IBIM_PAC 미라지 이집트파키스탄_IQ_EN.indd 15 2020-07-28 오전 11:08:44

16
Controlling with the control panel
English
At a Glance
(Lock 3sec)
Selecting the operation mode/
Locking the control panel
• Press the (Mode) button to change the
operation mode. Each time you press the button,
the mode changes in the following order: Auto →
Cool → Dry → Fan → Heat.
• Press the (Mode) button for 3 seconds. The
(Lock) indicator appears and then the control
panel is locked with a ring sound.
NOTE
• Once the Lock function has been activated, the air
conditioner cannot be controlled with the control
panel but the remote control.
• To release the Lock function, press the (Mode)
button for 3seconds.
DB68-09343A-00_IBIM_PAC 미라지 이집트파키스탄_IQ_EN.indd 16 2020-07-28 오전 11:08:44

17
English
At a Glance

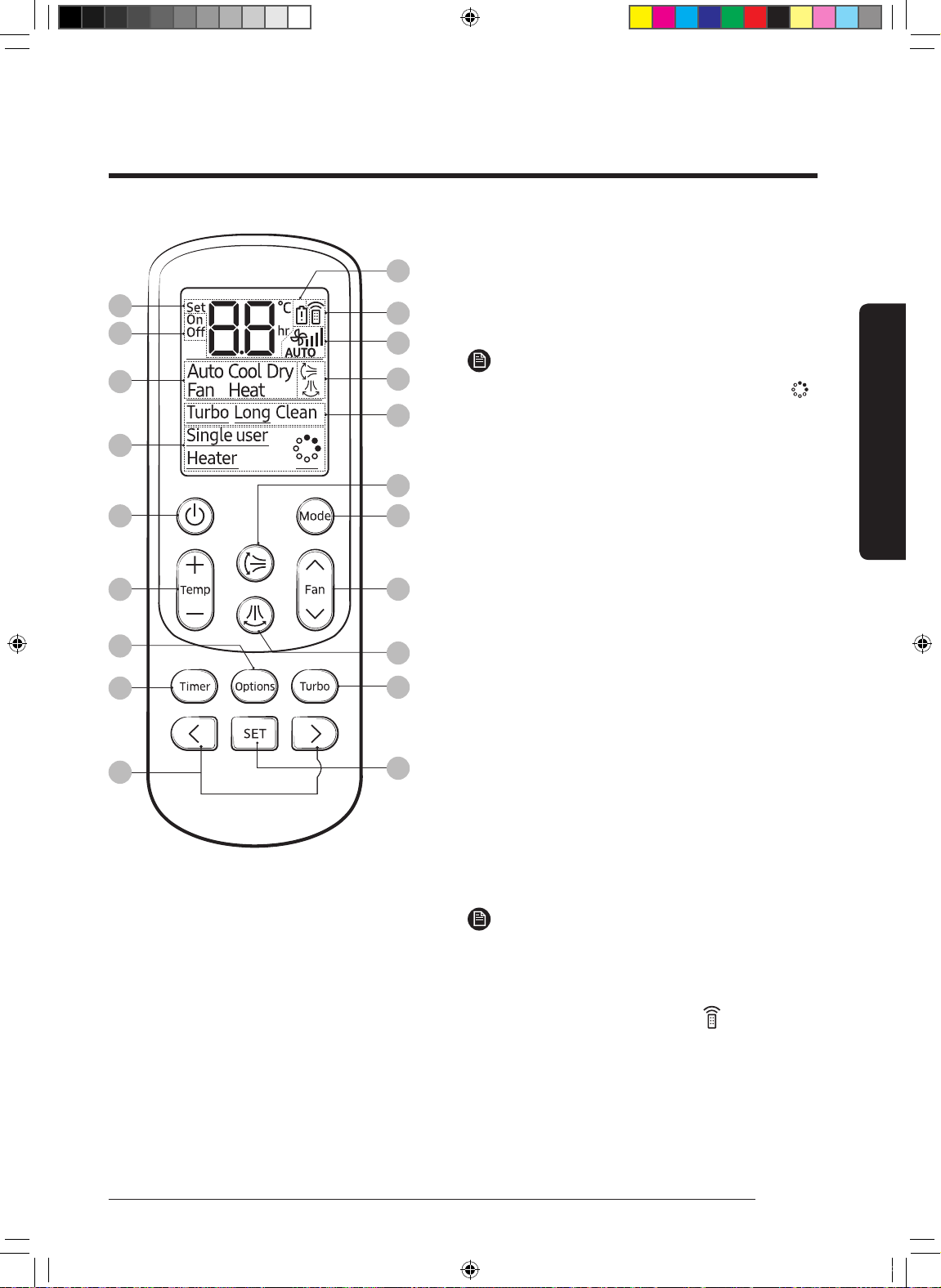

Remote Control Overview
01
02
03
04
10
11
12
13
14
05
06
07
08
09
15
16
17
18
19
20
01 Set temperature indicator
02 Timed on/off indicator
03 Operation mode indicator
04 Unsupported functions
NOTE
• The Single user, Heater and Purity functions ( )
are not supported by this model.
05 Low battery indicator
06 Signal transmission indicator
07 Fan speed indicator
08 Vertical air swing indicator /
Horizontal air swing indicator
09 Options indicator
10 Power button
11 Temperature button
12 Options button
13 Timer button
14 Direction button / Selection button
15 Vertical air swing button
16 Mode button
17 Fan speed button
18 Horizontal air swing button
19 Turbo button
20 SET button
NOTE
• The descriptions in this manual are primarily
made based on the remote control buttons.
• When you press the button, a short ring will
sound and a transmit indicator ( )appears on
the remote controller display.
• Remote controllerwill remember the most
recent temperature setting if you turn off the air
conditioner and then turn it on again
.
DB68-09343A-00_IBIM_PAC 미라지 이집트파키스탄_IQ_EN.indd 17 2020-07-28 오전 11:08:44

18
Remote Control Overview
English
At a Glance
Replacing batteries
When the icon appears in the remote control
display, replace the batteries with new ones. Two
1.5V AAA type batteries are required.
Two 1.5V AAA type batteries
1
3
2
Correct disposal of batteries in this product
This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed
of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb
indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66.
Storing the remote control
If the remote control will not be used for an
extended period of time, remove the batteries
and store it in a remote control holder on the wall
or inside the panel.
CAUTION
• Make sure that water does not come into the
remote control.
OR
DB68-09343A-00_IBIM_PAC 미라지 이집트파키스탄_IQ_EN.indd 18 2020-07-28 오전 11:08:45

19
English
At a Glance
You can use the air conditioner easily by selecting a mode or function and then by controlling the
temperature, fan speed, and air ow direction.

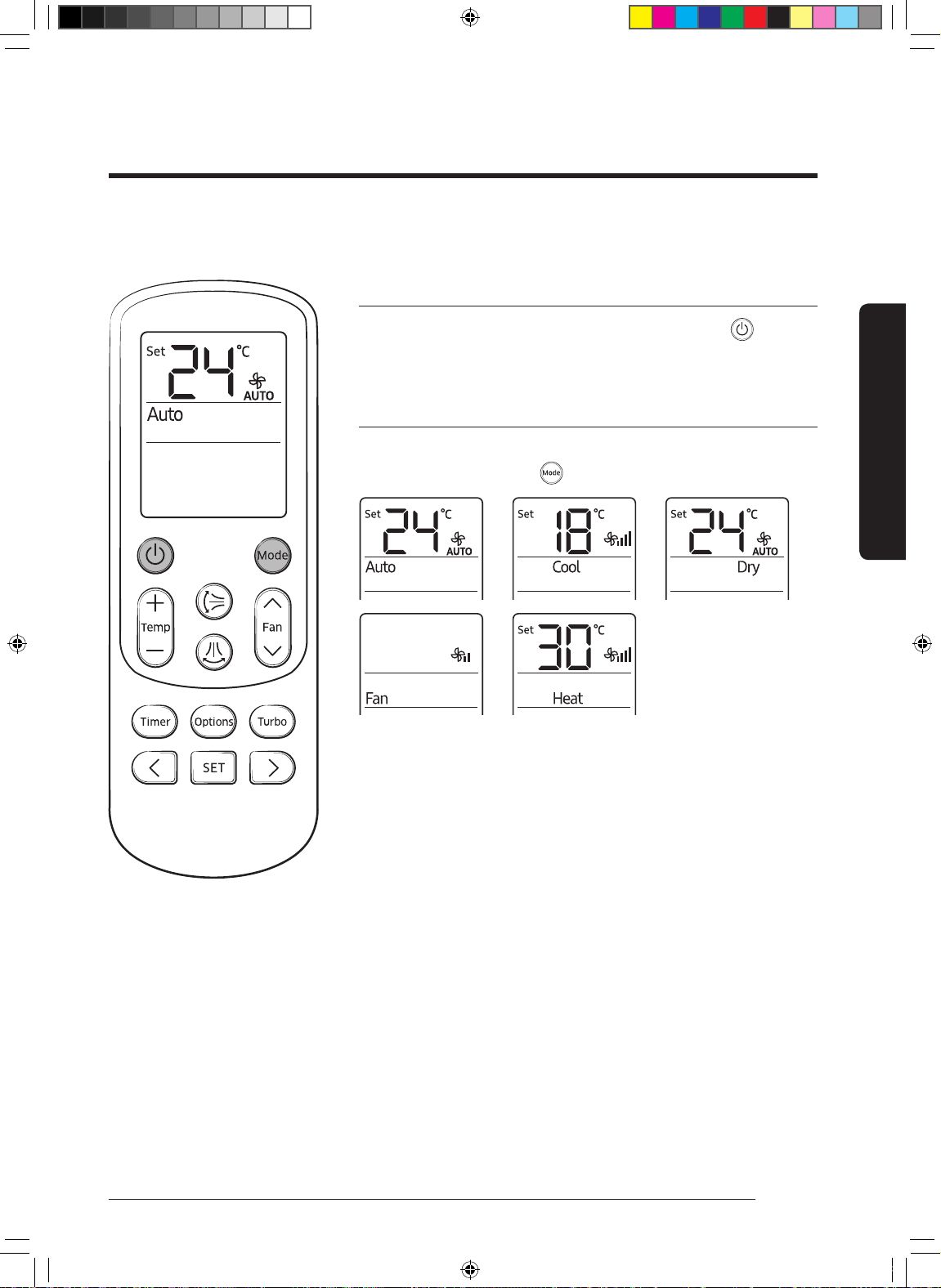

Remote Control Operation
Turning on or off the air conditioner
You can turn on or off the air conditioner by pressing the (Power)
button.
Operation modes
You can change the current mode between Auto, Cool, Dry, Fan
and Heat by pressing the (Mode) button.
▶ ▶ ▶
▶
DB68-09343A-00_IBIM_PAC 미라지 이집트파키스탄_IQ_EN.indd 19 2020-07-28 오전 11:08:45

20
Remote Control Operation
English
At a Glance

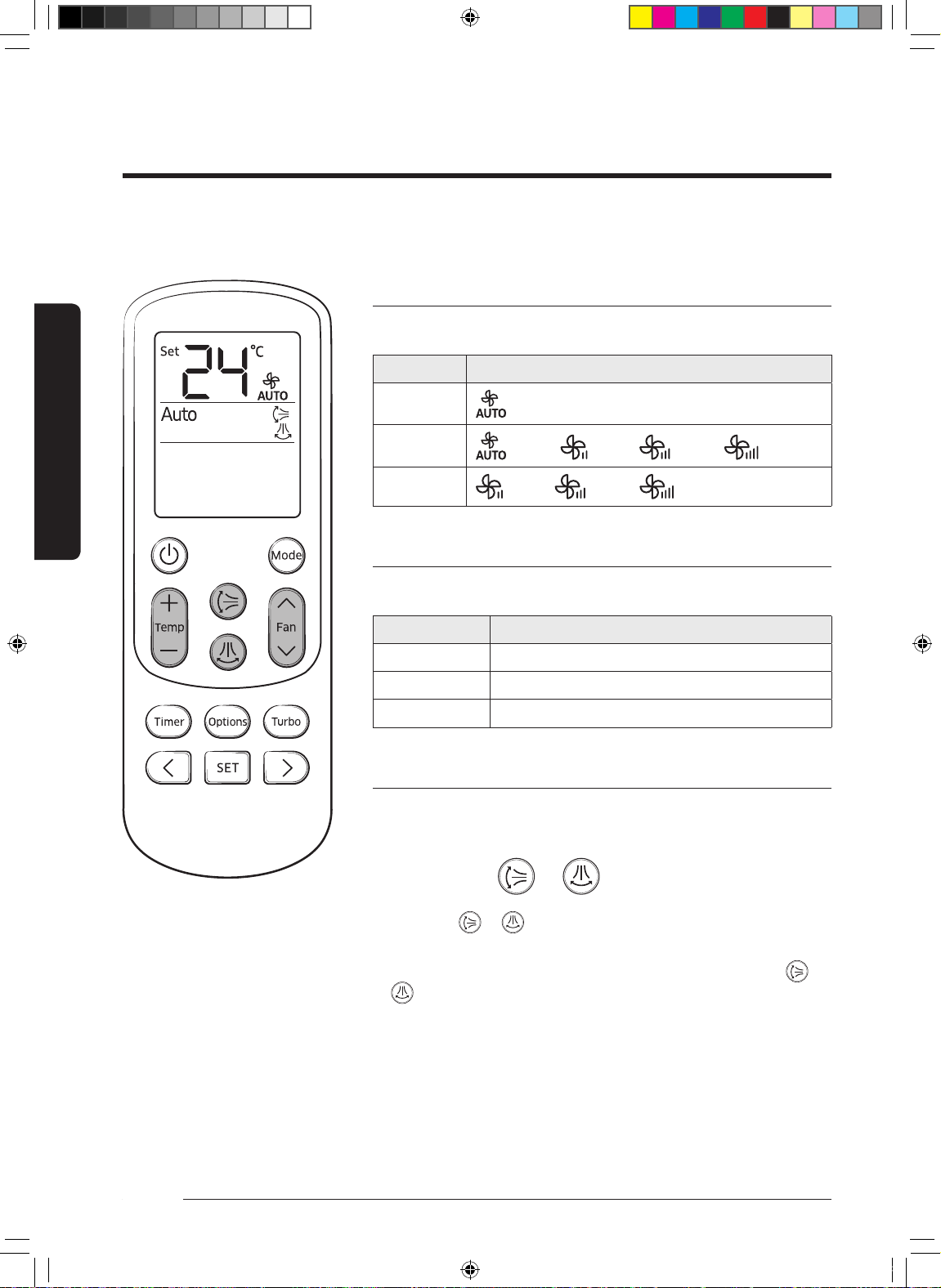

Controlling fan speed
You can select the following fan speeds in each mode:
Mode Available fan speeds
Auto/Dry (Auto)
Cool/Heat (Auto), (Med), (High), (Turbo)
Fan (Med), (High), (Turbo)
Controlling temperature
You can control the temperature in each mode as follows:
Mode Temperature control
Auto/Cool/Dry Adjust by 1°C between 18°C and 30°C.
Fan You cannot control the temperature.
Heat Adjust by1°C between 16°C and 30°C.
Controlling air ow direction
This function allows you to shift the air ow direction up and
down or left and right.
In operation ▶or
• Press the or button to move the air ow direction up and
down or left and right while the air conditioner is turned on.
• When the blade reaches the desired position, press the or
button one more time to set the air ow direction. The
up/down and left/right tilting of the blade will stop.
DB68-09343A-00_IBIM_PAC 미라지 이집트파키스탄_IQ_EN.indd 20 2020-07-28 오전 11:08:45
