Samsung AM093MNQDEH/EU Instruction manual

VRF
Technical
Data Book
MAX (Wall mounted) for Europe
(R410A, 50Hz, HP/HR)
Model : AM093MNQDEH/EU

2
History
Version Modification Date Remark
Ver.1.0 Release MAX (Wall Mounted) TDB ’17. 03. 15
Ver.1.01Modify the Accessory Compatibility table for MCU kit(P33) ’17. 09. 13

3
(1) Classification
AM VRF
(2) Capacity
X 1/10 kW (3 digits)
(3) Version
H2014
J2015
K2016
M2017
(4) Product Type
NIndoor Unit
XOutdoor Unit
(5) Product Notation
11 Way Cassette
N4 Way Cassette (600x600)
44 Way Cassette, 360 Cassette
LLSP Duct
MMSP Duct
CCeiling
JConsole
QRAC (with EEV)
TRAC (without EEV)
AA3050 (Wall Mounted)
(6) Feature
FFlagship
SStandard
DDeluxe
PPremium
(7) Rating Voltage
E1Ф, 220~240V, 50Hz
K1Ф, 220~240V, 50/60Hz
C1Ф, 208~230V, 60Hz
(8) Mode
HHeat Pump
Nomenclature
Indoor Unit
Model Name
AM
(1)
093
(2)
M
(3)
N
(4)
Q
(5)
D
(6)
E
(7)
H
(8)
EU
Buyer

4
TURBO Cooling mode
Samsung's air conditioner operates in its maximum speed in Turbo Cooling mode to quickly reach the set temperature.
Instantly cool down your space with Samsung's Turbo Cooling technology.
Full HD Filter
Full HD 80 Filter filtrates dust particles by up to 80%.
Good sleep
The quality of sleep you get directly impacts your physical and mental health. Concerned with your health, Samsung
performed extensive experiments to determine the ideal temperatures needed to quickly fall asleep.
Features & Benefits

5
Line-up
Indoor unit
Model
Capacity (kW)
9.3
MAX

6
Contents
1. Specification 7
2. Summary Table 8
3. Capacity Table 9
4. Dimensional Drawing 10
5. Center of Gravity 11
6. Electrical Wiring Diagram 12
7. Sound Data 13
8. Temperature and air flow distribution 15
9. Piping Diagram 16
10. Installation 17
11. Accessory 26

7
MAX (Wall Mounted )
1. Specification
Type WALL MOUNTED
Model Name AM093MNQDEH/EU
Power Supply Φ, #, V, Hz 1,2,220-240,50
Mode -HP / HR
Performance Capacity
Cooling kW 9.3
Btu/h 31,700
Heating kW 9.8
Btu/h 33,400
Power
Power Input Cooling W66
Heating 76
Current Input Cooling A0.47
Heating 0.54
Current MCA A0.68
MFA 15
Heat exchanger
Type -Fin & Tube
Material Fin -Al
Tube -Cu
Fin Treatment -Green Hydrophile
Fan
Type -Crossflow Fan
Quantity EA 1
Air Flow Rate H/M/L m³/min 23 / 20 /17
l/s 383 / 333 / 283
Fan Motor Type -BLDC Motor
Output x n W58 x 1
Piping Connections
Liquid Pipe Type Flare connection
Φ, mm (inch) 9.52 (3/8")
Gas Pipe Type Flare connection
Φ, mm (inch) 15.88 (5/8")
Heat insulation -Both liquid and gas pipes
Drain Pipe Φ,mm ID 18 HOSE
Wiring connections Communication Min. mm2 0.75
Remark -F1, F2
Refrigerant Type -R410A
Electronic Expansion Valve -EEV INCLUDED
Sound Sound Pressure Level H/M/L dB(A) 49/46/42
Sound Power Cooling 66
Dimensions
Net Weight kg 18.5
Shipping Weight kg 22.0
Net Dimensions (W×H×D) mm 1280 x 345 x 253
Shipping Dimensions (W×H×D) mm 1352 x 326 x 420
Casing Material -HIPS
NOTE
• Specification may be subject to change without prior notice.
1) Mode : HP(Heat Pump), HR(Heat Recovery)
2) Capacities are based on (Equivalent refrigerant piping 7.5m, Level differences 0m);
- Cooling : Indoor temperature 27°C DB, 19°C WB / Outdoor temperature 35°C DB, 24°C WB
- Heating : Indoor temperature 20°C DB, 15°C WB / Outdoor temperature 7°C DB, 6°C WB
3) Sound level was acquired in an anechoic room. Thus actual noise level may be different depending on the
installation conditions.
4) These products contain R410A (GWP=2,088) which is fluorinated greenhouse gas.
5) Select wire size based on the value of MCA

8
MAX (Wall Mounted )
2. Summary Table
Performance Characteristics
Model Code Fan
Speed
Capacity (kW) Airflow (CMM) Sound Pressure
(dBA)
Sound Power
(dBA)
Cooling Sensible Heating
AM093MNQDEH∗∗
High 9.3 6.3 9.8 23 49 66
Mid 7. 2 5.2 9.1 20 46 -
Low 64.6 8.4 17 42 -
NOTE
• Sound data is based on cooling operation.
Electrical Characteristics
Model Code Power Supply
(Φ, #, V, Hz) Power Input (W) Current Input (A) MCA (A) MFA (A) FLA (A)
AM093MNQDEH∗∗ 1, 2, 220~240, 50 66 / 76 (C/H) 0.47/ 0.54 (C/H) 0.68 15 0.54
NOTE
• MCA : Minimum circuit amperes
• MFA : Maximum fuse amperes
• Select wire size based on the value of MCA

9
MAX (Wall Mounted )
3. Capacity Table
Cooling
TC: Total Capacity, SHC: Sensible Heat Capacity
Capacity
Index
OutdoorAir Temp.
(℃, DB)
Indoortemperature
20 (℃,DB) 23 (℃,DB) 26 (℃,DB) 27 (℃,DB) 28 (℃,DB) 30 (℃,DB) 32 (℃,DB)
14 (℃,WB) 16 (℃,WB) 18 (℃,WB) 19 (℃,WB) 20 (℃,WB) 22 (℃,WB) 24 (℃,WB)
TC SHC TC SHC TC SHC TC SHC TC SHC TC SHC TC SHC
093
10 6.4 5.1 7. 5 5.6 8.8 6.2 9.3 6.3 9.7 6.3 10.4 6.3 11.2 6.0
12 6.4 5.1 7. 5 5.6 8.8 6.2 9.3 6.3 9.7 6.3 10.4 6.3 11.1 5.9
14 6.4 5.1 7. 5 5.6 8.8 6.2 9.3 6.3 9.7 6.3 10.4 6.3 11.1 5.9
16 6.4 5.1 7. 5 5.6 8.8 6.2 9.3 6.3 9.7 6.3 10.4 6.3 11.1 5.9
18 6.4 5.1 7. 5 5.6 8.8 6.2 9.3 6.3 9.6 6.3 10.3 6.2 10.9 5.8
20 6.4 5.1 7. 5 5.6 8.8 6.2 9.3 6.3 9.6 6.3 10.3 6.2 10.9 5.8
21 6.4 5.1 7. 5 5.6 8.8 6.2 9.3 6.3 9.6 6.3 10.3 6.2 10.9 5.8
23 6.4 5.1 7. 5 5.6 8.8 6.2 9.3 6.3 9.6 6.3 10.3 6.2 10.9 5.8
25 6.4 5.1 7. 5 5.6 8.8 6.2 9.3 6.3 9.6 6.3 10.3 6.2 10.9 5.8
27 6.4 5.1 7. 5 5.6 8.8 6.2 9.3 6.3 9.6 6.3 10.3 6.2 10.9 5.8
29 6.4 5.1 7. 5 5.6 8.8 6.2 9.3 6.3 9.6 6.3 10.3 6.2 10.9 5.8
31 6.4 5.1 7. 5 5.6 8.8 6.2 9.3 6.3 9.6 6.3 10.3 6.2 10.9 5.8
33 6.4 5.1 7. 5 5.6 8.8 6.2 9.3 6.3 9.6 6.3 10.3 6.2 10.9 5.8
35 6.4 5.1 7. 5 5.6 8.8 6.2 9.3 6.3 9.6 6.3 10.3 6.2 10.9 5.8
37 6.4 5.1 7. 5 5.6 8.8 6.2 9.3 6.3 9.6 6.3 10.3 6.2 10.8 5.6
39 6.4 5.1 7. 5 5.6 8.8 6.2 9.3 6.3 9.6 6.3 10.1 6.0 10.5 5.5
Heating
TC: Total Capacity
Capacity Index Outdoor Air Temp. (℃)
Indoor temperature
16.0 18.0 20.0 22.0 24.0
TC TC TC TC TC
DB WB kW kW kW kW kW
093
-19.8 -20.0 6.2 6.0 5.9 5.9 5.9
-18.8 -19.0 6.2 6.1 5.9 5.9 5.9
-16.7 -17.0 6.3 6.2 6.0 6.0 5.9
-14.7 -15.0 6.6 6.5 6.2 6.1 5.9
-12.6 -13.0 6.8 6.7 6.5 6.4 6.2
-10.5 -11.0 7.1 7.0 6.9 6.8 6.7
-9.5 -10.0 7. 2 7. 2 7.1 6.9 6.9
-8.5 -9.1 7.4 7. 4 7. 2 7.1 7.0
-7. 0 -7.6 7.6 7.6 7.4 7.3 7.1
-5.0 -5.6 8.0 7. 8 7. 8 7. 6 7.3
-3.0 -3.7 8.4 8.3 8.3 7.8 7.6
0.0 -0.7 8.8 8.7 8.5 8.3 7. 8
3.0 2.2 9.2 9.1 9.0 8.7 8.3
5.0 4.1 9.7 9.5 9.4 8.8 8.3
7.0 6.0 10.1 9.9 9.8 9.1 8.3
9.0 7.9 10.4 10.1 9.8 9.1 8.3
11.0 9.8 10.6 10.2 9.8 9.1 8.3
13.0 11.8 11.1 10.4 9.8 9.1 8.3
15.0 13.7 11.3 10.5 9.8 9.1 8.3

10
4. Dimensional Drawing
MAX (Wall Mounted )
AM093MNQDEH∗∗ Unit: mm (inch)
Knockout hole for
left piping Knockout hole for
right piping
253
(9-15/16)
66 (2-5/8) 72 (2-13/16)
345
(13-9/16)
1280
(50-3/8)
1530
(60-1/4)
364
(14-5/16)
382
(15-1/16)
156
(6-1/8)
(1-3/8) 34
67 (2-5/8)
125
(4-15/16)
Φ65
(2-9/16)
Wall hole for
right rear piping
Wall hole for
right rear piping
Φ65
(2-9/16)
64 (2-9/16)
34 (1-3/8)
No. Name Description
1 Liquid pipe connection 9.52 (3/8")
2 Gas pipe connection 15.88 (5/8")
3 Drain pipe connection ID 18 HOSE
4 Power supply & Communication wiring conduit -

11
MAX (Wall Mounted )
5. Center of Gravity
AM093MNQDEH∗∗ Unit: mm (inch)
1280
(50-3/8) 412
(16-1/4)
345
(13-9/16)
207
(8-1/8)
207
(8-1/8)
253
(9-15/16)
111 (4-3/8)

12
MAX (Wall Mounted )

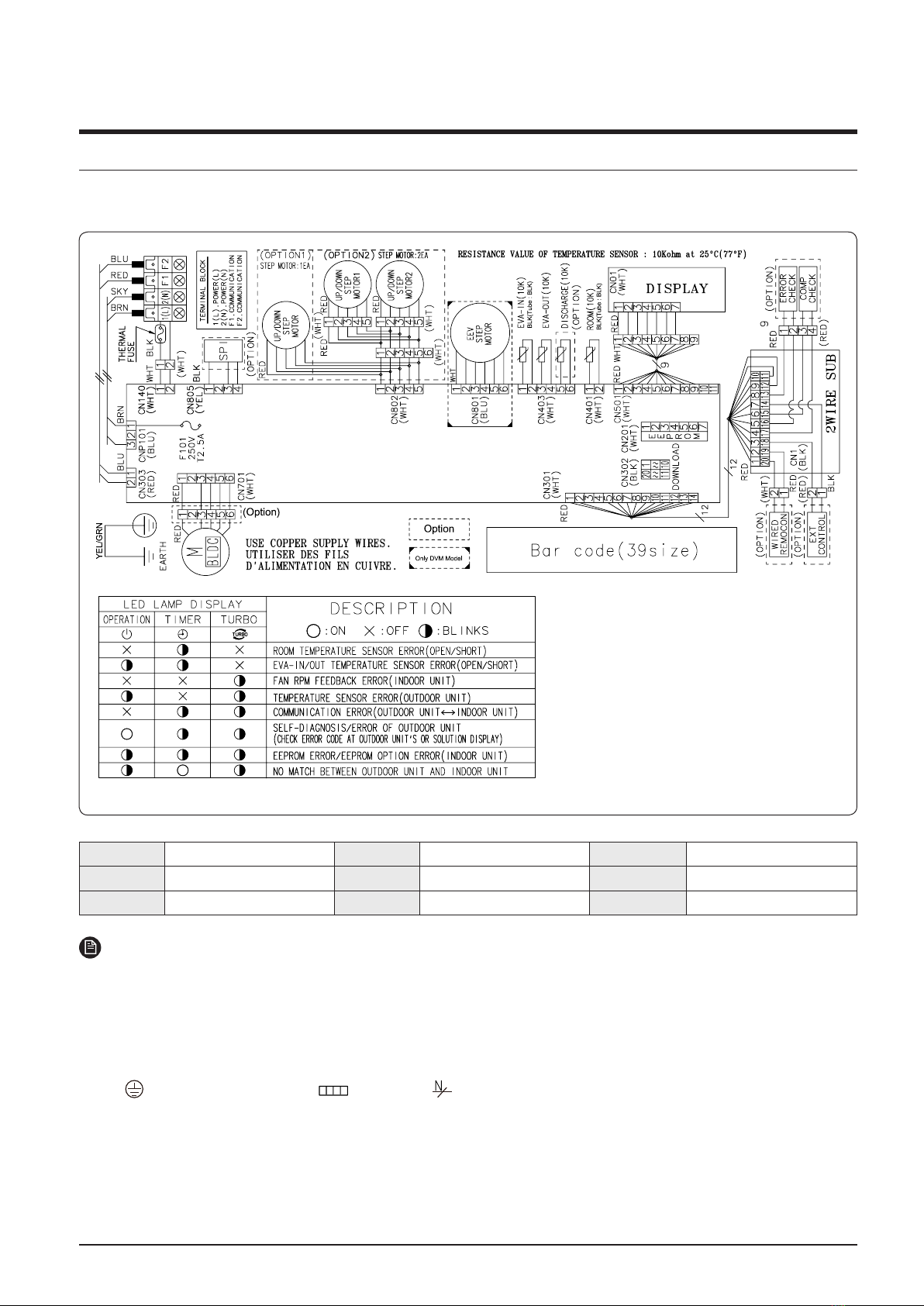

6. Electrical Wiring Diagram
AM093MNQDEH∗∗
MAIN PCB Print circuit board(MAIN) EEV Electronics expansion valve EVA-IN TEMP Thermistor EVAPORATE
DISPLAY Print circuit board(DISPLAY) M-BLDC BLDC Motor EVA-OUT TEMP Thermistor EVAPORATE
2WIRE SUB Print circuit board(SUB COMM) ROOM-TEMP Thermistor AMBIENT
NOTE
• This wiring diagram applies only to the Indoor unit.
• Colors blk: black, red: red, blu: blue, wht: white, yel: yellow, brn: brown, sky: skyblue
• When operating, don't shortciruit the protection device (High Pressure switch)
• For connection wiring indoor-outdoor transmission F1-F2, outdoor-outdoor transmission OF1-OF2, refer to
the installation manual.
• : Protective earth(screw), : connector, : The wire quantity

13
MAX (Wall Mounted )
7. Sound Data
Sound Pressure level
Unit: dB(A)
Microphone
1m
1m
Model High Mid Low
AM093MNQDEH∗∗ 49 46 42

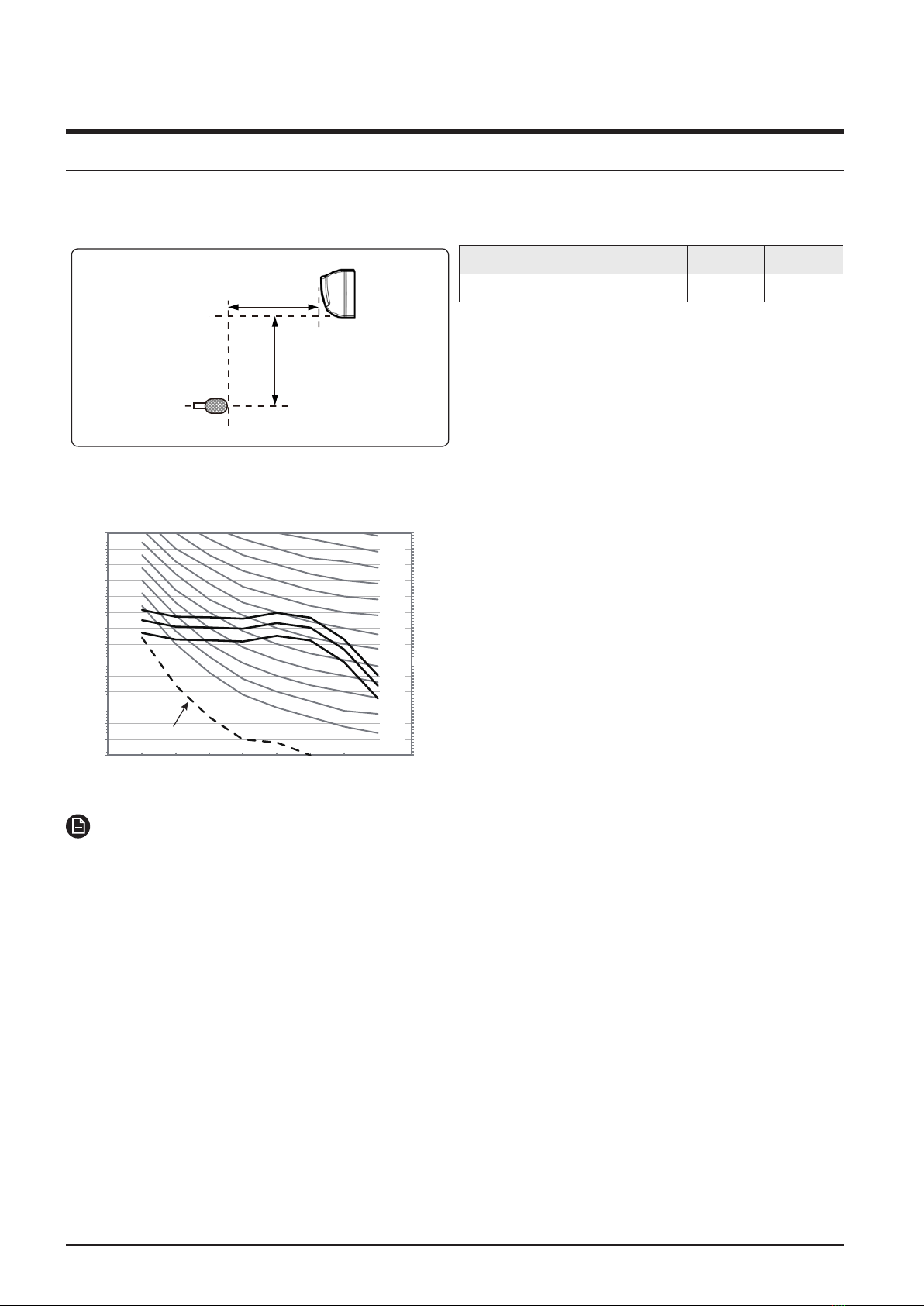

• NR Curve
1) AM093MNQDEH∗∗
High
Mid
0
Low
5
10
Hearing threshold
15
20
25
30
35
40
45
50
55
60
65
70
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
63 125 250 500 1000 2000 4000 8000
Sound Pressure Level (dB)
NR 65
NR 60
NR 55
NR 50
NR 45
Octave Band Center Frequency(Hz)
NR 40
NR 35
NR 30
NR 25
NR 20
NR 15
NR 75
NR 70
NOTE
• Specifications may be subject to change without prior notice.
- Sound pressure level is obtained in an anechoic room.
- Sound pressure level is a relative value, depending on the distance and acoustic environment.
- Sound pressure level may differ depending on operation condition.
- dBA = A weighted sound pressure level
- Reference acoustic pressure 0 dB = 20μPa

6. Electrical Wiring Diagram
14
MAX (Wall Mounted )
Sound Power level
NOTE
• Specifications may be subject to change without prior notice
- Sound power level is an absolute value that a sound source
generates.
- dBA = A-weighted sound power level.
- Reference power : 1pW.
- Measured according to ISO 3741.
Unit: dB(A)
Model Power
AM093MNQDEH∗∗ 66
• NR Curve
1) AM093MNQDEH∗∗
NR 85
NR 80
NR 75
NR 70
NR 65
NR 60
NR 55
NR 50
NR 45
NR 40
NR 35
NR 30
NR 25
NR 20
0
5
NR 15
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
125
80
75
70
65
60
55
50
45
40
35
30
25
20
15
10
5
0250 500 1000 2000 4000 A8000
Sound Power Level (dB)
Octave Band Center Frequency(Hz)

15
8. Temperature and air flow distribution
MAX (Wall Mounted )
AM093MNQDEH∗∗

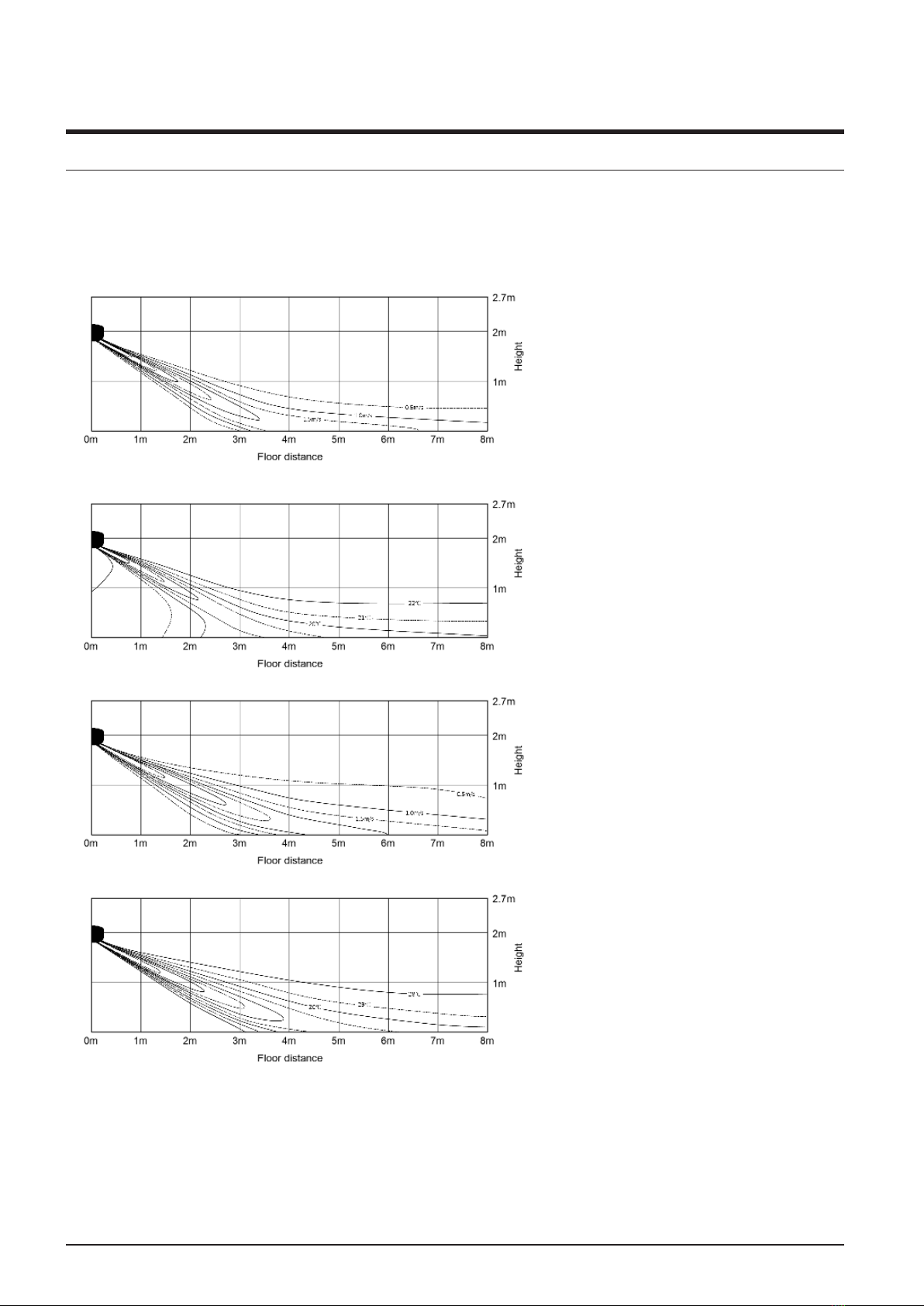

1) Cooling air velocity distribution
2) Cooling Temperature distribution
3) Heating air velocity distribution
4) Heating Temperature distribution
Discharge angle : 27

16
9. Piping Diagram
MAX (Wall Mounted)
EEV included Model
Thermistor
- IDU Heat ExchangerIn
(T_II)
Thermistor
- IndoorRoom
(T_IR)
Filter
Filter
Heat Exchanger
- Indoorunit
(HX_ID)
Thermistor
- IDU Heat ExchangerOut
(T_IO)
Refrigerant flow
Electronic Expansionvalve
- Indoorunit(E_IDU)
Gas pipe
connection port
Ø B
Liquid pipe
connection port
ØA
MODEL A B
AM093MNQDEH∗∗ 9.52 15.88
Refrigerant flow
Cooling Heating
Refrigerant flow
Refrigerant flow

17
MAX

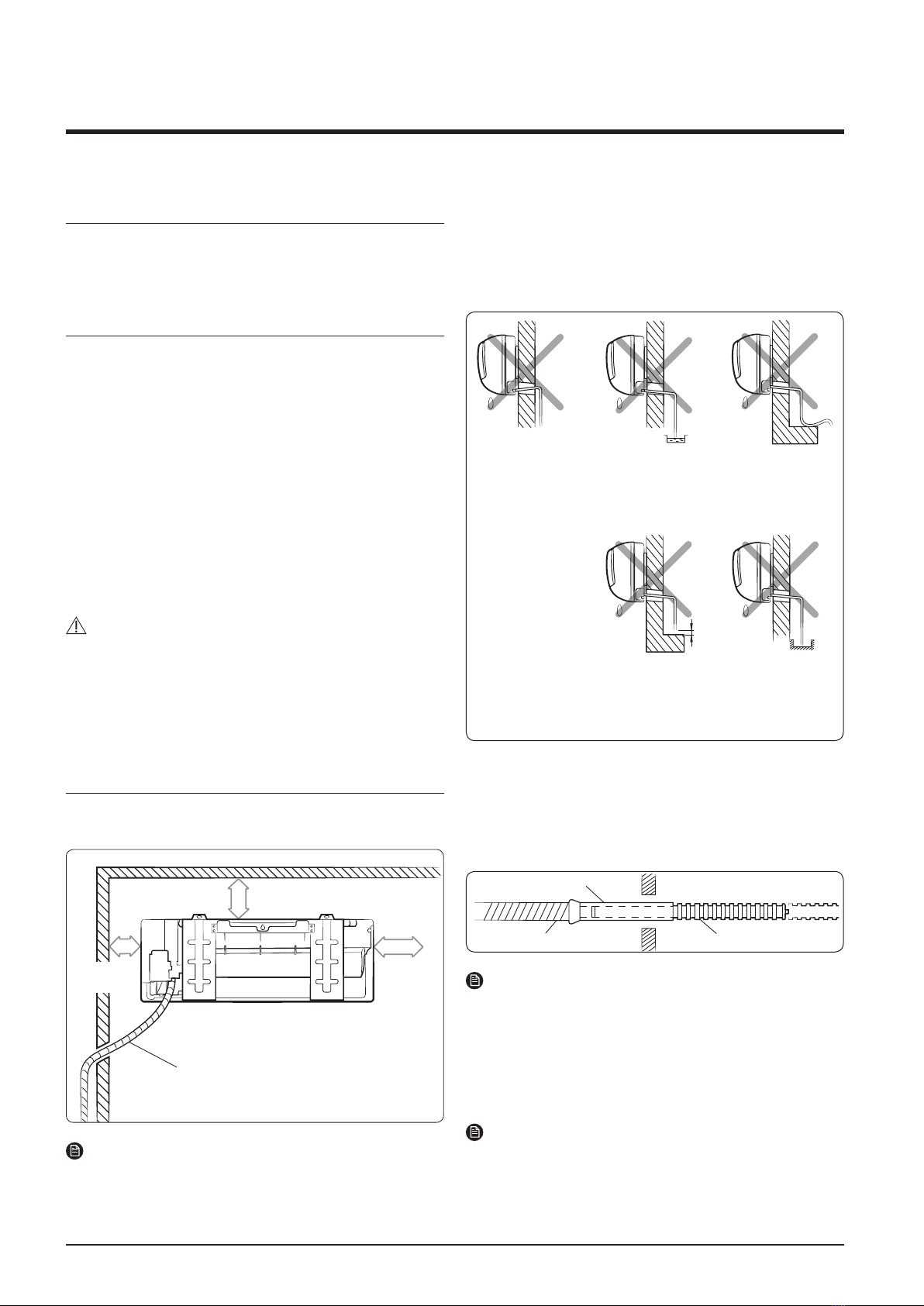

Selecting the installation location
Indoor Unit
• Where airflow is not blocked.
• Where cool air can be distributed throughout the room.
• Install the refrigerant piping length and the height difference
of both indoor and outdoor units as indicated in the installation
diagram.
• Wall that prevents vibration and is strong enough to hold the
product weight.
• Out of the direct sunlight .
• 1m or more away from the TV or radio (to prevent the screen from
being distorted or noise from being generated).
• As far away as possible from fluorescent and incandescent lights (so
that the remote control can be operated well).
• A place where the air filter can be replaced easily.
CAUTION
• Avoid the following places to prevent malfunction of the unit
– Where there is machine oil
– Salty environment such as the seaside areas
– Where sulfide gas exists
– Other special atmosphere areas
Space requirements for installation & service
Observe the clearances and maximum lengths as seen in the
picture below when installing the air conditioner.
100 mm or more
You can select the direction of draining.
(left or right)
Wrap the refrigerant pipes and the drain hose with
the absorbent pad and vinyl tape. Refer to page 17
for further details.
125 mm
or more
125 mm
or more
NOTE
•The appearance of the unit may be different from the diagram
depending on the model.
Installing the drain hose
When installing the drain hose for the indoor unit, check if
condensation draining is adequate. When passing the drain
hose through the 65-mm hole drilled in the wall, check the
following:
The hose must NOT
slant upwards.
5 cm
less Ditch
The end of the drain
hose must NOT be
placed under water.
Do NOT bend the
hose in different
directions.
Keep a clearance of
at least 5cm between
the end of the hose
and the ground.
Do NOT place the
end of the drain hose
in a hollow.
1 If necessary, connect the 2-meter extension drain hose to
the drain hose.
2 If you use the extension drain hose, insulate the inside of the
extension drain hose with a shield.
3 Fit the drain hose into 1 of 2 drain hose holes, then fix the
end of the drain hose tightly with a clamp.
Shield
Drain hose Extension drain hose
NOTE
• If you don’t use the other drain hose hole, block it with a rubber
stopper.
4 Pass the drain hose under the refrigerant pipe, keeping the
drain hose tight.
5 Pass the drain hose through the hole in the wall. Check if it
slants downwards as seen in the picture.
NOTE
• The hose will be fixed permanently into position after finishing the
installation and the gas leak test; refer to page 12 for further details.
• DO NOT WALL UP THE DRAIN HOSE CONNECTION!
Drain hose connection must be easy accessible and serviceable.
10. Installation

10. Installation
18

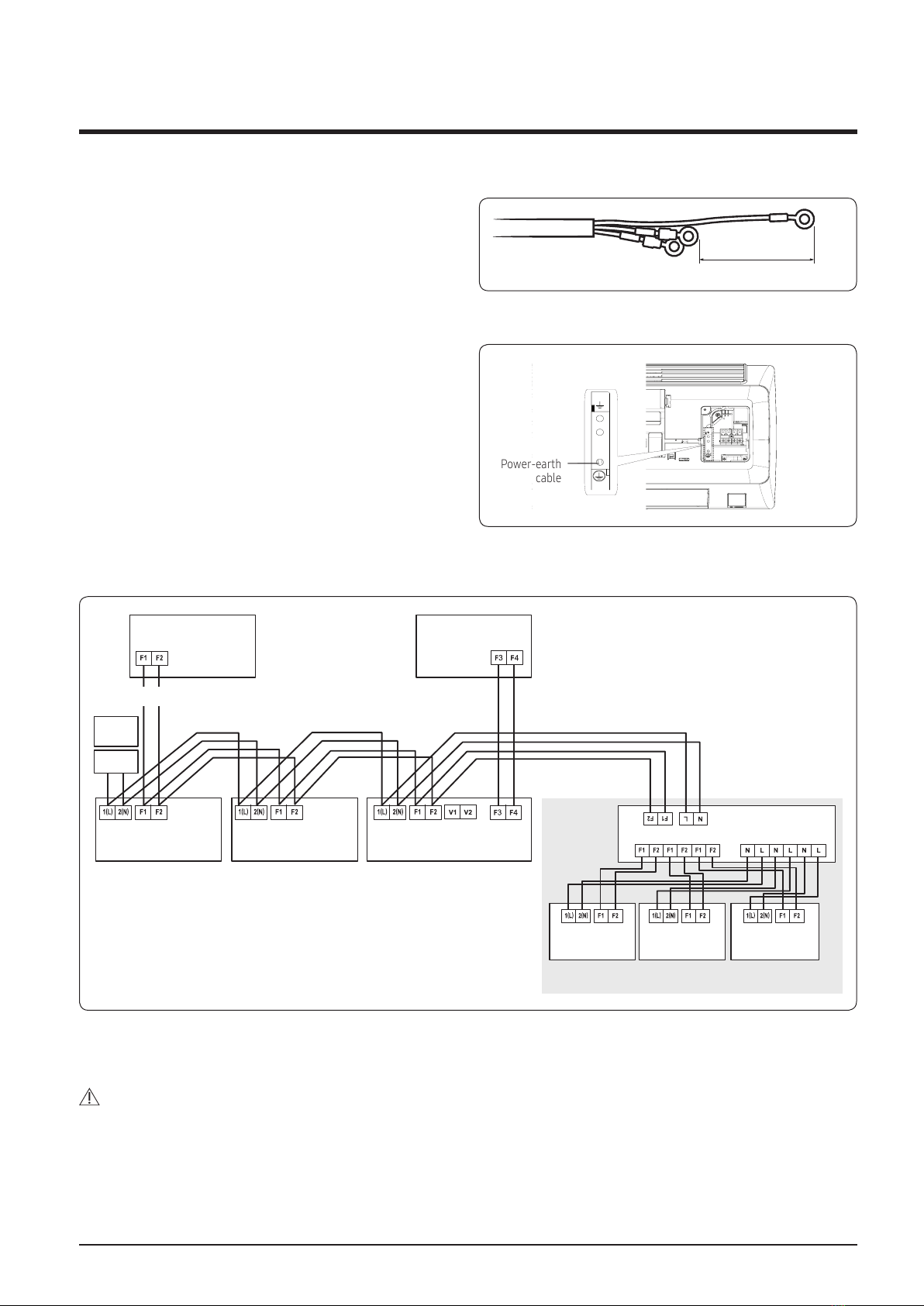

Connecting the power and communication cables
1 Before wiring work, you must turn off all power source.
2 Indoor unit power should be supplied through the breaker
(ELCB or MCCB+ELB ) separated by the outdoor power.
• ELCB:Earth Leakage Circuit Breaker
• MCCB:Molded Case Circuit Breaker
• ELB:Earth Leakage Breaker
3 The power cable should be used only copper wires.
4 Connect the power cable{1(L), 2(N)} among the units within
maximum length and communication cable(F1, F2) each.
5 Cut the cable as like the following picture. The earth cable
need to be longer than the power cable (1(L), 2(N)) by 100
mm.
100mm
6 Connect the earth cable to the plate on the evaporator as
like the following picture.
Power-earth
cable
7 Connect F3, F4(for communication) wires at the back side of the indoor unit when installing the wired remote control.
ELCB
MCCB+
ELB
Outdoor Unit
Indoor Unit 1 Indoor Unit 2 Indoor Unit 3
Indoor Unit 4 Indoor Unit 5 Indoor Unit 6
EEV kit
220-240V~or
Wired Remote
Control
∙ Ceiling, wall-mounted indoor unit.
• ELCB : Essential Installation
• The EEV Kit is optional component.
WARNING
• Power off before connecting any wires;Indoor PBA will be damaged while V1,V2,F3,F4 short each other.
• You must connect the earth cable. If earthing is not complete, electric shock or fire may occur.

19
10. Installation
Specification of electronic wire
Power supply MCCB ELB or ELCB Power cable Earth cable Communication cable
Max : 242V / Min : 198V XA XA, 30mmA, 0.1 s 2.5mm22.5mm20.75~1.5mm2
• Refer to the unit nameplate for rating current.
• Decide the capacity of ELCB(or MCCB+ELB) by below formula.
• Power supply cords of parts of appliances for outdoor use shall not be lighter than polychloroprene sheathed flexible cord. (Code designation
IEC:60245 IEC 57 / CENELEC: H05RN-F or IEC:60245 IEC 66 / CENELEC: H07RN-F )
The capacity of ELCB(or MCCB+ELB) X[A] = 1.25 X 1.1 X ∑Ai
‒X : The capacity of ELCB(or MCCB+ELB).
‒∑Ai : Sum of Rating currents of each indoor unit.
‒Refer to each installation manual about the rating current of indoor unit.
• Decide the power cable specification and maximum length within 10% power drop among indoor units.
nCoef×35.6×Lk×ik
) < 10% of input voltage[V]
‒coef: 1.55
‒Lk: Distance among each indoor unit[m],
Ak: Power cable specification[mm2]
ik: Running current of each unit[A]
∑ (
1000×Ak
k=1
Example of Installation
‒Total power cable length L = 100(m), Running current of each units 1[A]
‒Total 10 indoor units were installed
ELCB
0[m] 10[m] 20[m] 100[m]
9[A]10[A]
Indoor unit1 Indoor unit2 Indoor unit10
1[A]
or
MCCB+
ELB
• Apply following equation.
nCoef×35.6×Lk×ik
) < 10% of input
voltage[V]
∑ ( 1000×Ak
k=1
• Calculation
– Installing with 1 sort wire – Installing with 2 different sort wire.
2.5 [mm
2
]
2.5 [mm2]
-2.2 [V] -2.0 [V]
220 [V]
-(2.2+2.0+1.8+1.5+1.3+1.1+0.9+0.7+0.4+0.2)=-11.2 [V]
208.8 [V] : it's okay
Within 198V to
242V
······· 2.5 [mm2] ······· 4.0 [mm2]4.0 [mm2]
-1.4 [V] -1.2 [V]
220 [V]
-(1.4+1.2+1.8+1.5+1.3+1.1+0.9+0.7+0.4+0.2)=-10.5 [V]
209.5 [V] : it's okay
Within 198V to
242V
······· 2.5 [mm2] ·······

10. Installation
20
CAUTION
• Select the power cable in accordance with relevant local and
national regulations.
• Wire size must comply with local and national code.
• For the power cable, use the grade of H07RN-F or H05RN-F
materials.
• You should connect the power cable into the power cable terminal
and fasten it with a clamp.
• The unbalanced power must be maintained within 10% of supply
rating among whole indoor units.
• If the power is unbalanced greatly, it may shorten the life of the
condenser. If the unbalanced power is exceeded over 10% of supply
rating, the indoor unit is protected, stopped and the error mode
indicates.
• To protect the product from water and possible shock, you should
keep the power cable and the connection cord of the indoor and
outdoor units in the iron pipe.
• Connect the power cable to the auxiliary circuit breaker. An all pole
disconnection from the power supply must be incorporated in the
fixed wiring(≥3mm).
Setting an indoor unit address and installation
option
Set the indoor unit address and installation option with remote
control option. Set the each option separately since you cannot
set the ADDRESS setting and indoor unit installation setting
option at the same time. You need to set twice when setting
indoor unit address and installation option.
Option setting procedure
1 Remove batteries from the remote control.
2 Insert batteries and enter the option setting mode while
pressing (High Temp button) and (Low Temp button).
3 Check if you have entered the option setting status.
4 After entering the option setting status, select the option.
CAUTION
• Option setting is available from SEG1 to SEG 24
• SEG1, SEG7, SEG13, SEG19 are not set as page option.
• Set the SEG2~SEG6, SEG8~SEG12 as ON status and SEG14~18,
SEG20~24 as OFF status.
SEG1 SEG2 SEG3 SEG4 SEG5 SEG6
0 X X X X X
SEG7 SEG8 SEG9 SEG10 SEG11 SEG12
1 X X X X X
SEG13 SEG14 SEG15 SEG16 SEG17 SEG18
2 X X X X X
SEG19 SEG20 SEG21 SEG22 SEG23 SEG24
3 X X X X X
On (SEG1~12) Off (SEG13~24)
Power
Air flow direction
(Up and down)
Temperature
Mode
Options
Fan speed
Direction
Timer
Air flow direction
(Left and right)
Settings
SET
