Preparation for Installation
When deciding on the location of the air conditioner with the owner,
the following restrictions must be taken into account.
General
Do NOT install the air conditioner in a location where it will come into
contact with the following elements:
◆Combustible gases
◆Saline air
◆Machine oil
◆Sulphide gas
◆Special environmental conditions
If you must install the unit in such conditions, first consult your dealer.
E-4
Accessories

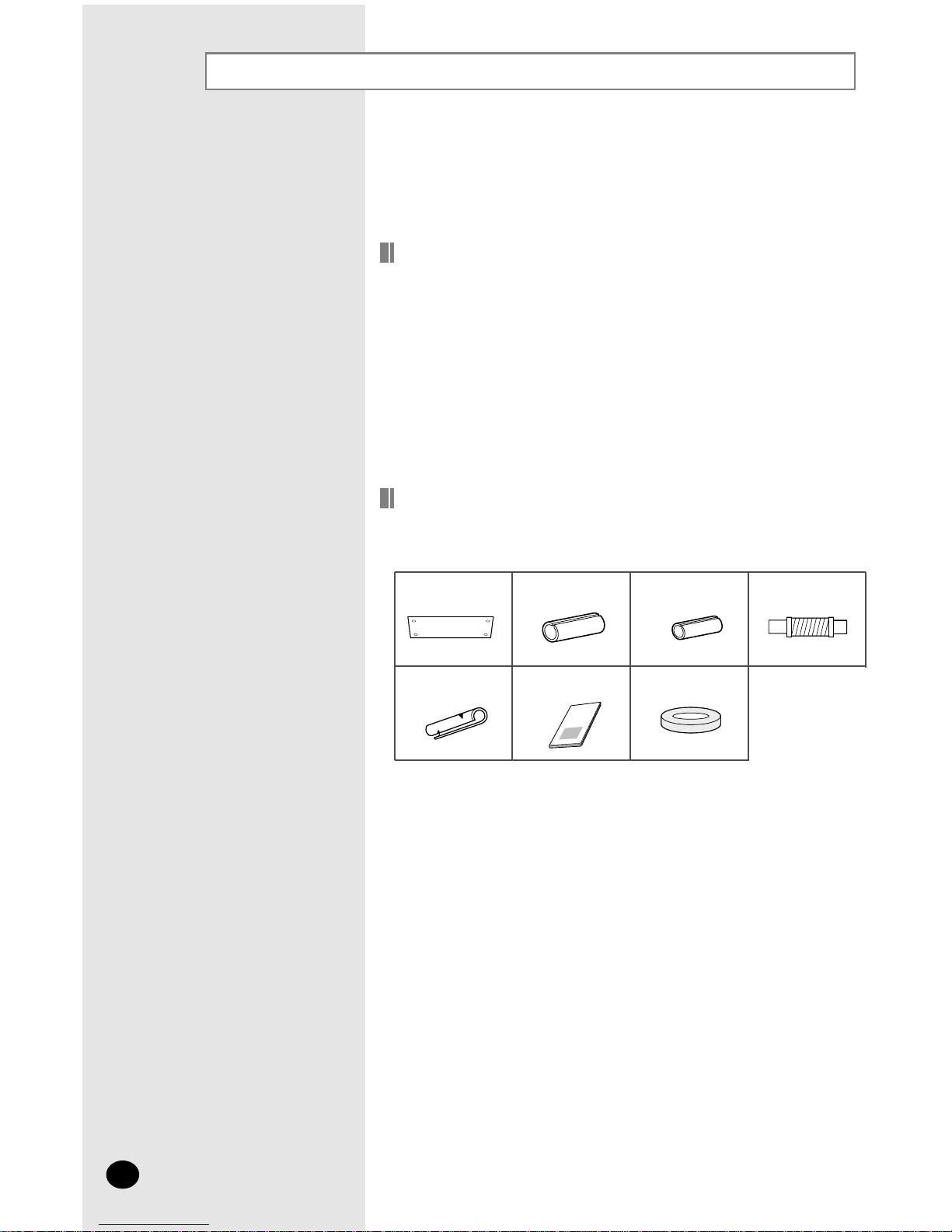

◆The following accessories are supplied with the indoor unit.
The quantities are indicated in parentheses.
Pattern sheet (1) Insulation drain (1)Insulation refrigerant
pipe (2)
Flexible hose (1)
Insulation drain hose
(1) Installation manual (1)
OWNER’SINSTRUCTIONS
Splut-typeRoomAirConditioner
Rubber (8)

Deciding on Where to Install the Indoor Unit
Indoor Unit
◆There must be no obstacles near the air inlet and outlet.
◆Install the indoor unit on a ceiling that can support its weight.
◆Maintain sufficient clearance around the indoor unit.
◆Make sure that the water dripping from the drain hose runs away correctly
and safely.
◆The indoor unit must be installed in this way, that they are out of public
access. (Not touchable by the users)
E-5
ENGLISH

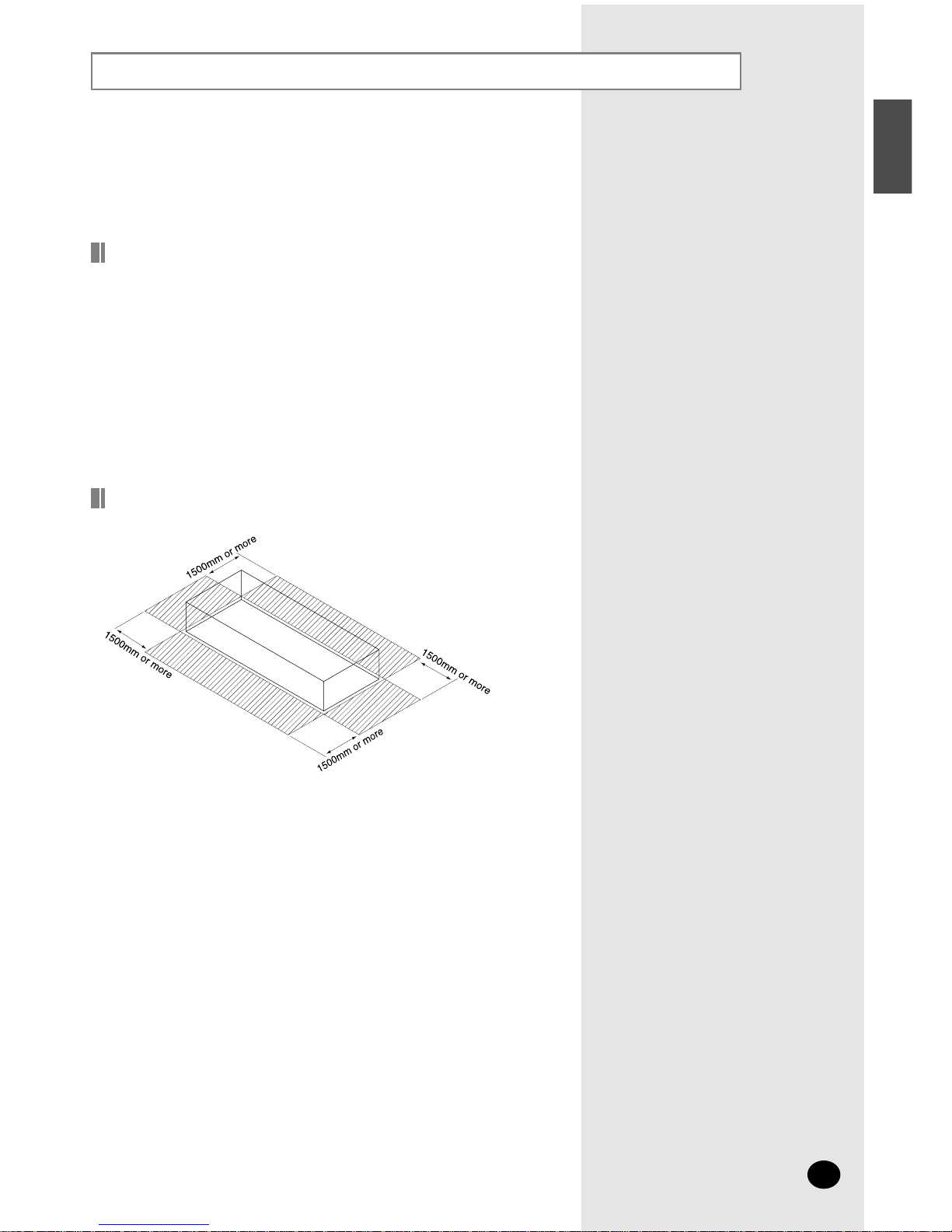

Space Requirements for Indoor Unit

Deciding on Where to Install the Indoor Unit (cont.)
E-6
1
2
3
4
5
6
Liquid pipe connection
Gas pipe connection
Drain pipe connection
Power supply connection
Air discharge grille
Air suction grille
ø
6.35 Nipple
ø 12.70 Flare
OD29 ID25
No. Name Description

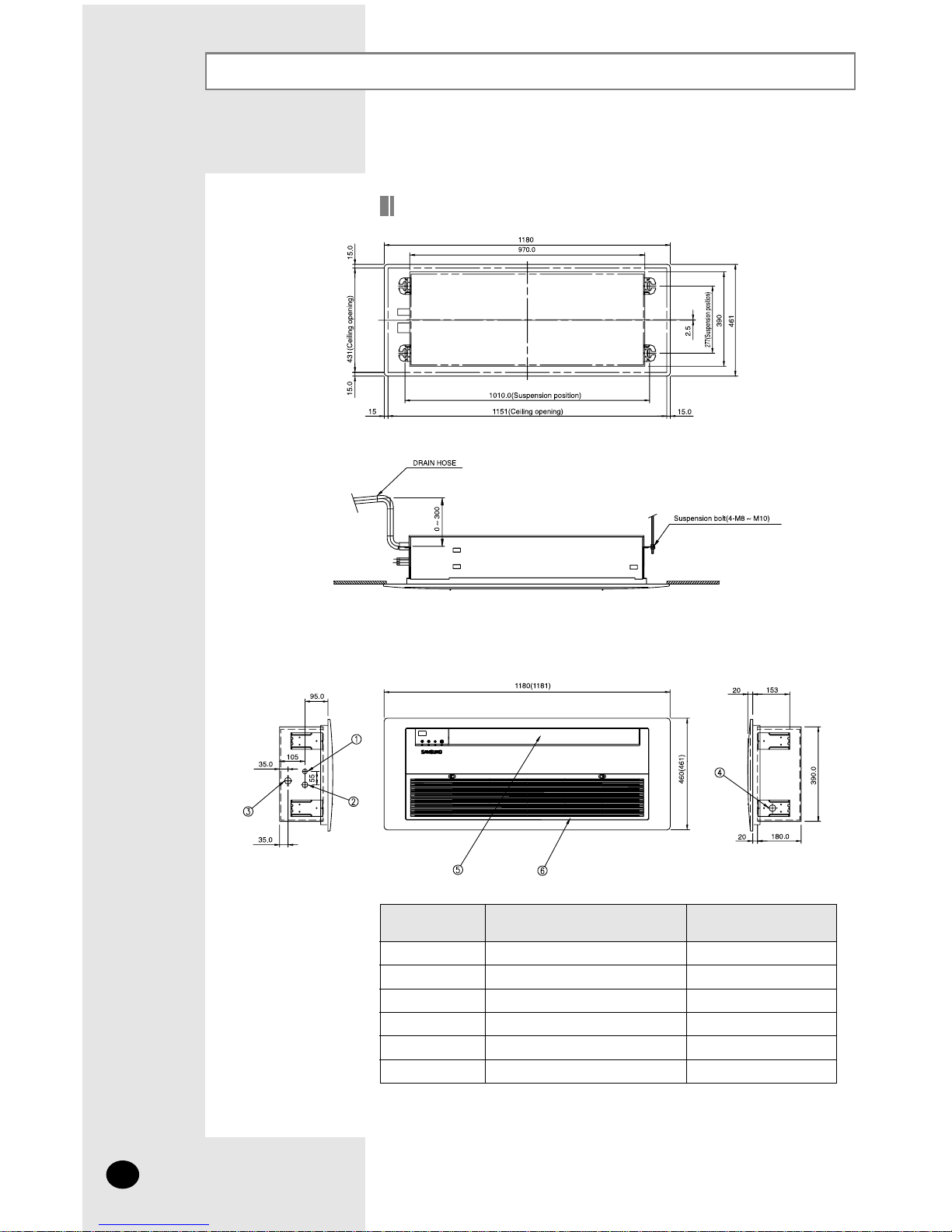

Drawing of the indoor unit
Unit : mm

Indoor Unit Installation
It is recommended to install the refnet joint before installing the indoor unit.
Concrete
Suspension bolt(3/8" or M10)
Hole in anchor
Hole in plug
Insert
Ceiling support

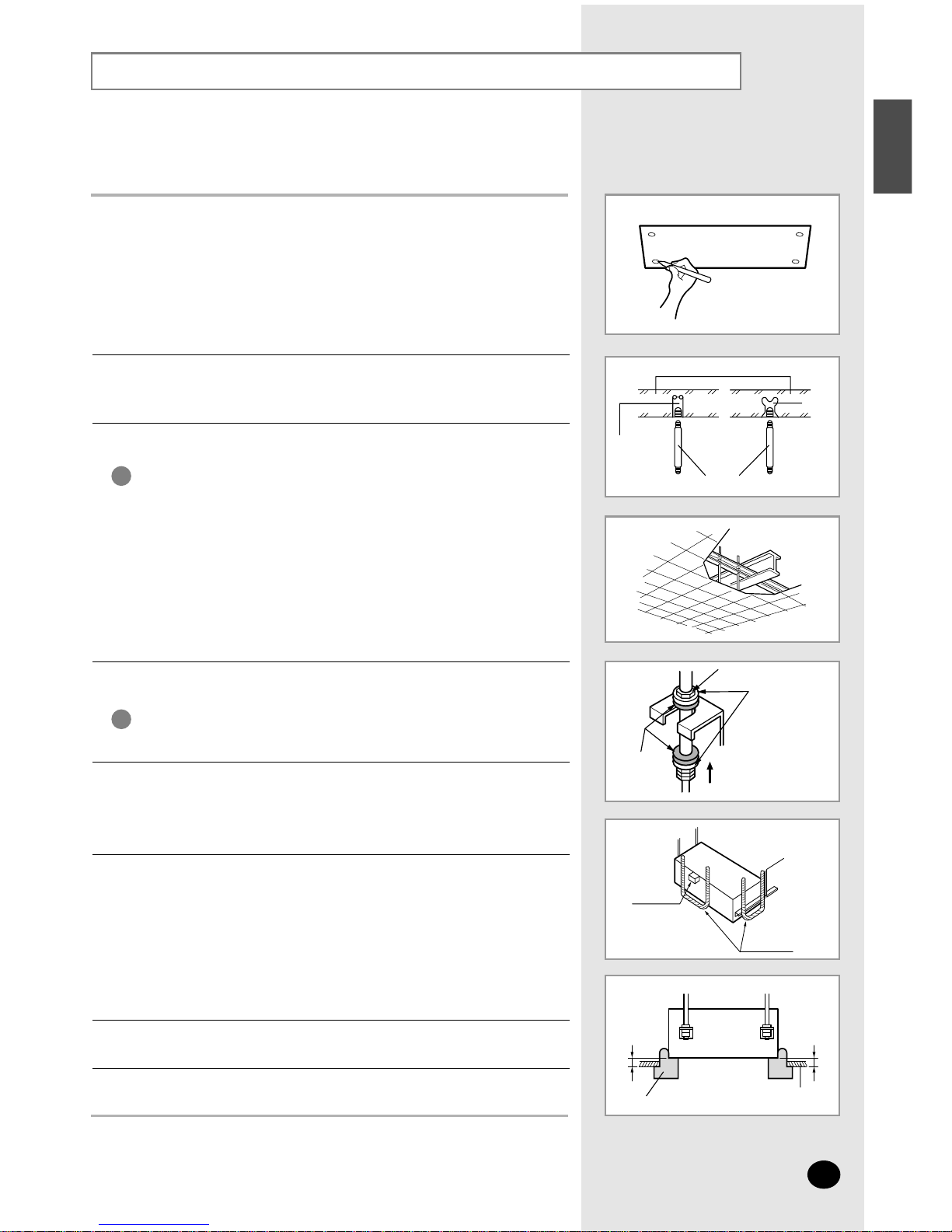

1Place the pattern sheet on the ceiling at the spot where you want to
install the indoor unit.
2Insert bolt anchors, use existing ceiling supports or construct a suitable
support as shown in figure.
3Install the suspension bolts depending on the ceiling type.
4Screw eight nuts to the suspension bolts making space for hanging
the indoor unit.
5Check the level of the indoor unit by using a leveler or a vinyl tube filled
with water.
◆
A tilt of the indoor unit may cause malfunction of a built-in float switch and
water leaks.
6Adjust the height of the indoor unit by using the gauge of dimensions.
◆
The air inlet side should be slightly higher than the air outlet side
(approx. 5mm). The appropriate height from the ceiling surface is 25mm
for the air inlet and 20mm for the air outlet.
◆
You should adjust the gauge of dimensions and the pattern sheet to fit
the cutting dimensions of ceiling.
◆
Make sure that the indoor unit is installed at a level if the indoor unit
slants too much, there can be water leaks.
7Tighten the upper part nuts.
8Remove the gauge of dimensions after installing the indoor unit.
◆Ensure that the ceiling is strong enough to support
the weight of the indoor unit.
Before hanging the unit, test the strength of each
attached suspension bolt.
◆If the length of suspension bolt is more than 1.5m,
it is required to prevent vibration.
IMPORTANT
You must install the suspension bolts more than four
when installing the indoor unit.
IMPORTANT
◆Since the diagram is made of paper, it may shrink or stretch
slightly due to temperature or humidity. For this reason, before
drilling the holes maintain the correct dimensions between the
markings; refer to page 6.
NN
NNoo oott ttee ee
Not supplied
Washer(supplied)
Rubber
Level
Vinyl tube
20mm 25mm
Gauge of Dimensions Ceiling
Air
inlet Air outlet
Fasten the nut
E-7
ENGLISH

Purging the unit
Electronic Expansion Valve Installation
Nylon band
Electronic
Expansion
valve
body
◆To prevent dirt or foreign objects from getting into the pipes
during installation, do NOT remove the pinch pipe completely
until you are ready to connect the piping.
NN
NNoo oott ttee ee
On delivery, the indoor unit is loaded with refrigerant gas.
All this gas must therefore be purged before connecting the assembly
piping. To purge the inert gas, proceed as follows.
Unscrew the pinch pipe at the end of each refrigerant pipe.
Result: All inert gas escapes from the indoor unit.
Fix the electronic expansion valve kit with 2 screws(TH4x12) as shown at
the figure.
2
Connect the "OUT" pipe to the liquid refrigerant pipe.
3
Insulate the connection piping. A joint part of pipe needs double thickness
of insulation.
4
Connect the electronic expansion valve cable to the main PCB of indoor
unit.
5
The expansion valve has to be installed that the user has no access to it.
(built-in type)
6
Connect a strainer to the "IN" pipe and fix it.
1
Liquid
refrigerant
port
Gas refrigerant port
E-8

Connecting the Refrigerant Pipe
There are two refrigerant pipes of differing diameters:
◆
A smaller one for the liquid refrigerant
◆
A larger one for the gas refrigerant
◆
The inside of copper pipe must be clean & has no dust.

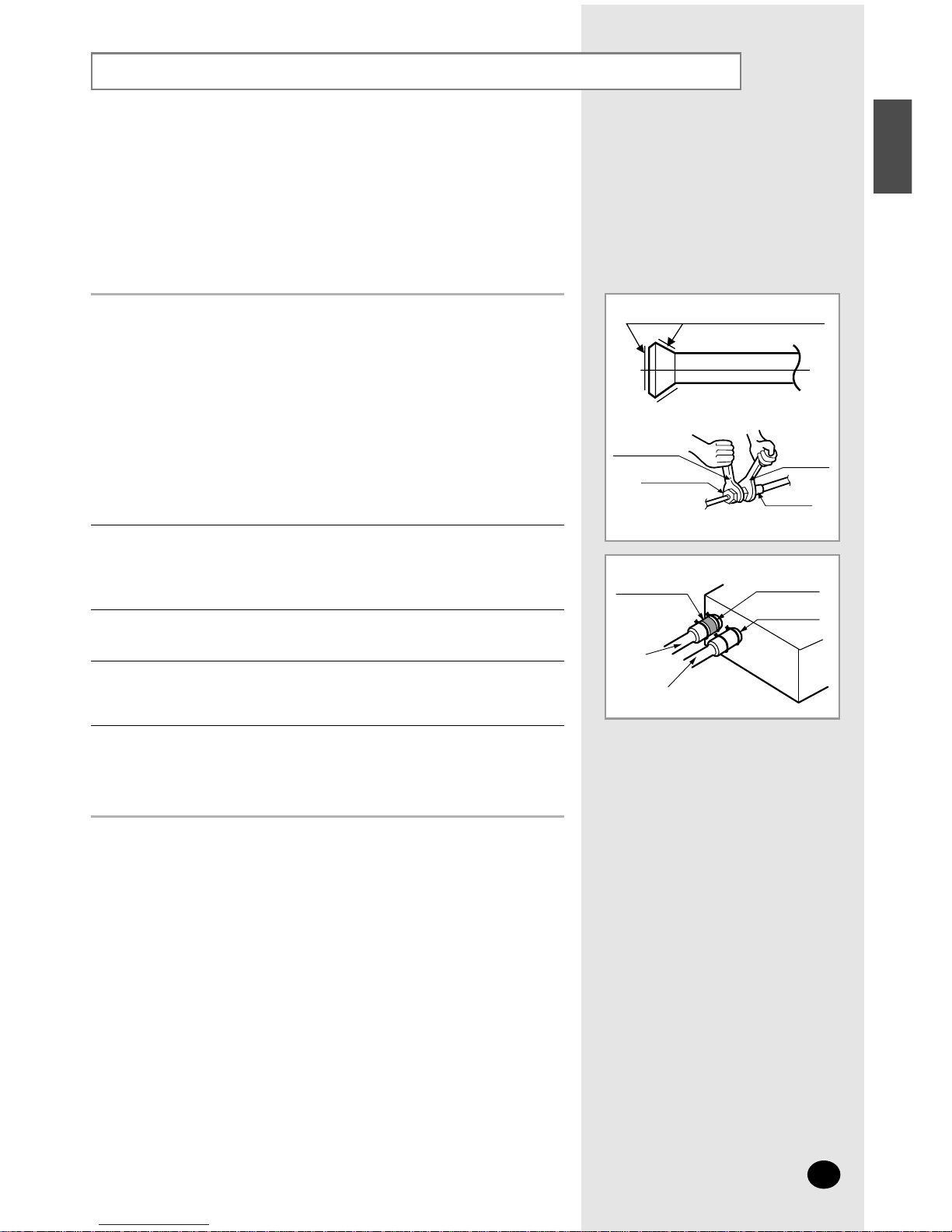

Remove the pinch pipe on the pipes and connect the assembly pipes to
each pipe, tightening the nuts, first manually and then with a wrench, a
spanner applying the following torque.
1
Must use insulator which is thick enough to cover the refrigerant pipe to
protect the condensate water on the outside of pipe falling onto the floor
and the efficiency of the unit will be better.
2
Cut off any excess foam insulation.
3
Be sure that there must be no crack or wave on the bended area.
4
It would be necessary to double the insulation thickness(10mm or more)
to prevent condensation even on the insulator when if the installed area is
warm and humid.
5
◆
If the pipes must be shortened refer to page 10.
NN
NNoo oott ttee ee
Outer Diameter Torque (kgf•cm)
6.35 mm (1/4") 144~176
9.52 mm (3/8") 333~407
12.70 mm (1/2") 504~616
15.88 mm (5/8") 630~770
19.05 mm (3/4") 990~1210
22.23 mm (7/8") 990~1210
Insulation
refrigerant pipe Clamp
Refrigerant oil
Insulation
refrigerant pipe
Liquid refrigerant pipe
Gas
refrigerant
pipe
Torque wrench
Flare nut
Union
Spanner
E-9
ENGLISH

Cutting/Flaring the Pipes
Outer Diameter Torque (kgf•cm)
6.35 mm (1/4") 144~176
9.52 mm (3/8") 333~407
12.70 mm (1/2") 504~616
15.88 mm (5/8") 630~770
19.05 mm (3/4") 990~1210
22.23 mm (7/8") 990~1210
Make sure that you have the required tools available (pipe cutter, reamer,
flaring tool and pipe holder).
1
If you wish to shorten the pipes, cut it with a pipe cutter, taking care to
ensure that the cut edge remains at a 90°angle with the side of the pipe.
Refer to the illustrations below for examples of edges cut correctly and
incorrectly.
2
To prevent any gas from leaking out, remove all burrs at the cut edge of the
pipe, using a reamer.
3
Slide a flare nut on to the pipe and modify the flare.
4
Check that the flaring is correct, referring to the illustrations below for
examples of incorrect flaring.
5
Align the pipes and tighten the flare nuts first manually and then with
a wrench, applying the following torque.
6
Outer Diameter (D) Depth (A)
6.35 mm (1/4") 1.3mm
9.52 mm (3/8") 1.8mm
12.70 mm (1/2") 2.0mm
15.88 mm (5/8") 2.2mm
19.05 mm (3/4") 2.2mm
22.23 mm (7/8") 2.2mm
90O
Oblique Rough Burr
Inclined Damaged Surface Cracked Uneven Thickness
◆ CC
CCAA AAUU UUTT TTII IIOO OONN NN
In case of welding the pipe, you must weld with nitrogen
gas blowing.
E-10

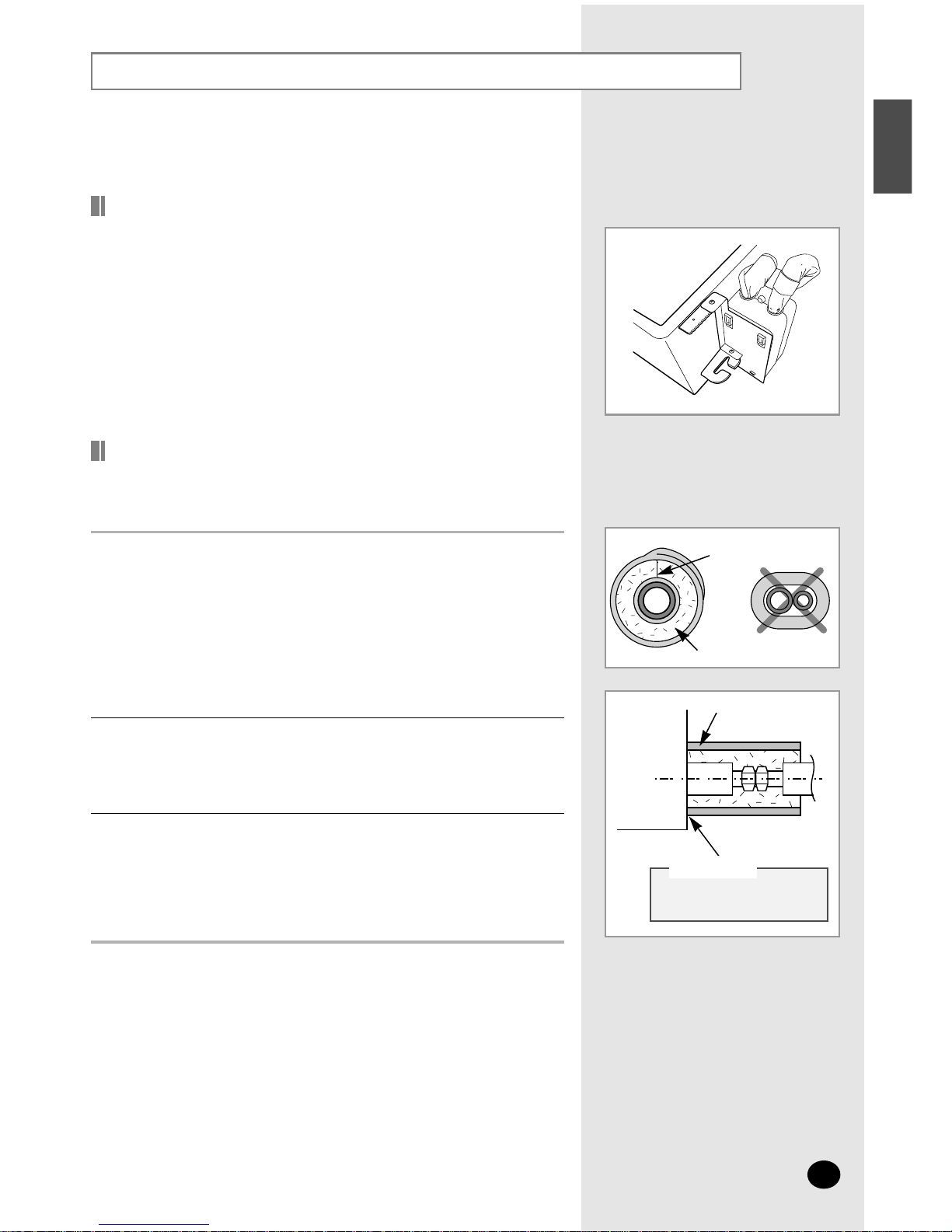

Performing Leak Test & Insulation
To check for gas leaks on the indoor unit, check the connection part
of each refrigerant pipe by using a leak detector.
Once you have checked that there are no leaks in the system,
you can insulate the piping and hose.
To avoid condensation problems, place T13.0 or thicker Acrylonitrile
Butadien Rubber separately around each refrigerant pipe.
1
Wind insulating tape around the pipes.
2
Finish wrapping insulating tape around the rest of the pipes leading to the
outdoor unit.
3
◆
Always make the seam of pipes face upwards.
NN
NNoo oott ttee ee
Leak Test
Insulation
Insulation
Be sure to overlap
the insulation
Indoor Unit
CC
CCAA AAUU UUTT TTII IIOO OONN NN
Must fit tightly against
body without any gap.
No gap
NBR(T13.0 or thicker)
E-11
ENGLISH

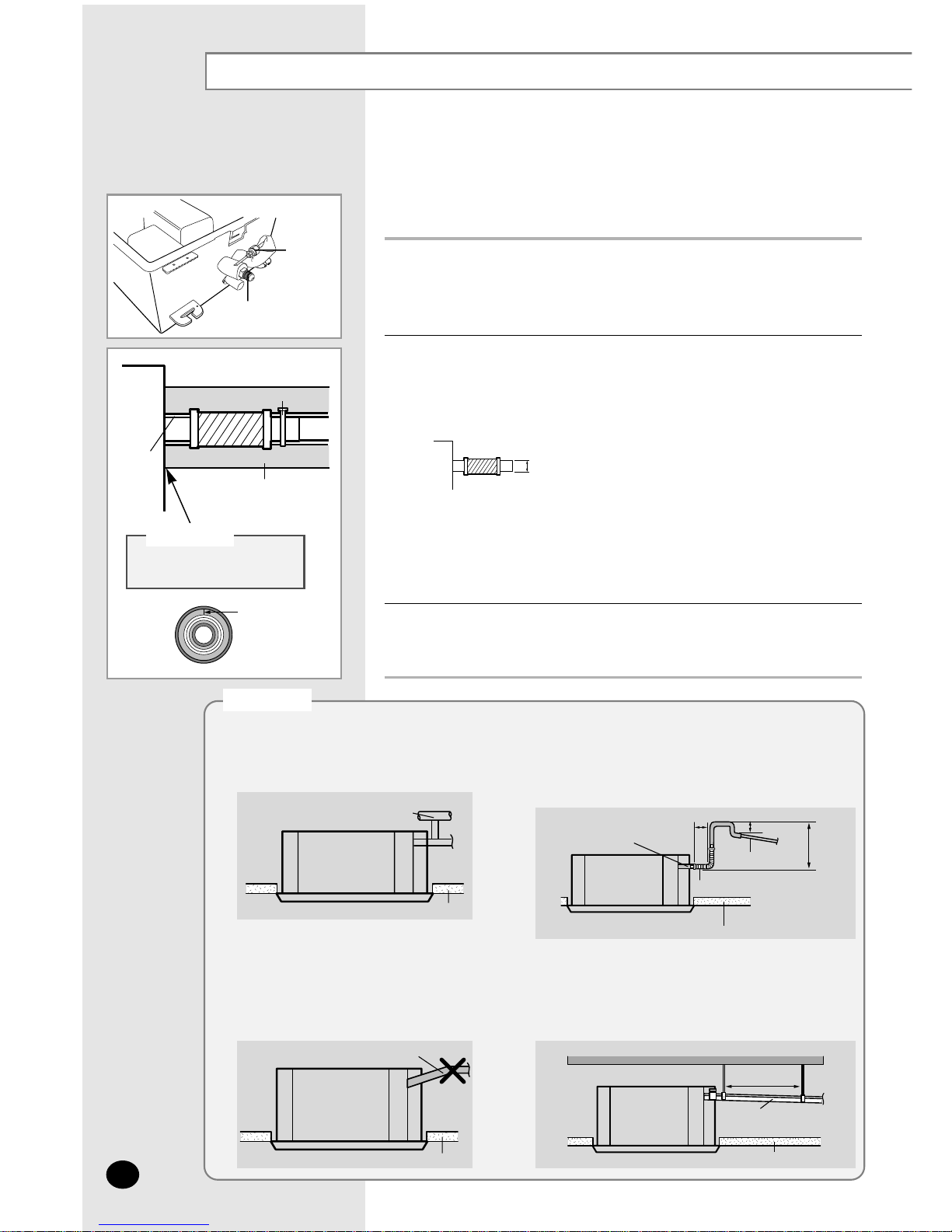

Drain Hose Installation
Care must be taken when installing the drain hose for the indoor unit
to ensure that any condensate water is correctly drained outside.
Insert the flexible hose to the drain hose port.
1
Install the drain hose so that its length can be as short as possible.
Internal diameter of the drain hose should be the same or slightly bigger
than the external diameter of the drain hose port.
◆ Inner diameter of the drain hose
2
Wrap the drain hose with the insulation drain as shown in figure and secure it.
3
◆Give a slightly slant to the drain hose for proper drainage of
condensate.
◆Secure the drain hose with an adhesive for PVC and tape
not to be separated from the unit.
NN
NNoo oott ttee ee
◆Attach the drain hose to the drain hose port with an adhesive for
PVC and tape to prevent water leaks, then secure the hose with
a band etc..(The band is not supplied with the air conditioner.)
NN
NNoo oott ttee ee
CC
CCAA AAUU UUTT TTII IIOO OONN NN
Install air ventilation to drain condensate
water smoothly.
Check that the indoor unit is level with the ceiling by using the leveler.
Air ventilation
Ceiling
Do not give the hose and upward gradient
after the connection port.
This will cause water to flow backwards when
the unit is stopped, resulting in water leaks.
Do not apply force to the piping on the unit side when
connecting the drain hose. The hose should not be
allowed to hang loose from its connection to the unit.
Fasten the hose to a wall, frame or other support as
close to the unit as possible.
Upward gradient Support pieces
1~1.5m
1/100 or more
Ceiling Ceiling
CC
CCAA AAUU UUTT TTII IIOO OONN NN
Must fit tightly against
body without any gap.
Adhesives
No gap
20mm(Outer diameter)
Insulation drain hose
Band(Not supplied)
Indoor
Unit
Liquid
refrigerant
port
Gas refrigerant port
E-12
When installing a flexible hose, install a flexible hose
to be bent smoothly from a drain hose port, especially
within 100-200mm.
Otherwise, flexible hose may be damaged and leak.
550mm or less
1/100 or more
20mm or more
Flexible hose
100-200mm
Band joint
Ceiling

◆If it is raised higher than 55cm, there can be water leaks.
NN
NNoo oott ttee ee
If it is necessary to increase the height of the drain hose somewhat,
install a lift-up drain piping.
Connect a lift-up drain pipe top to the drain hose with an adhesive for
PVC.
1
Wrap the insulation drain with a vinyl tape.
2
Connect the lift-up drain pipe to the indoor unit drain hose with an
adhesive for PVC.
3
Turn the lift-up drain piping, then adjust the height.
4
Lift-up Drain piping
You should test drainage after completing the installation.
Prepare a little water about 1.0 liter.
Open the cover water supply intake.
1
Pour water into the water supply intake.
2
Testing the Drainage
◆ CC
CCAA AAUU UUTT TTII IIOO OONN NN
When maintaining the air conditioner, remove condensate
water remained in the drain pan by using a drain port for
maintenance.
◆If a concentrated drain hose is installed, refer to the figure below.
NN
NNoo oott ttee ee
Drain clamp
Air ventilation
Concentrated drain hose
1/100 or
more slope
100mm or
more
Leveler
Air outlet
E-13
ENGLISH

Connecting the Connection Cord
Wiring Diagram
The indoor unit is powered from the outdoor unit via the connection cord.
Remove the screw on the electrical component box and remove the cover
plate.
1
Route the connection cord through the side of the indoor unit and connect
the cable to terminals; refer to the figure below.
2
Route the other end of the cable to the outdoor unit through the ceiling &
the hole on the wall.
3
Reassemble the electrical component box cover, carefully tightening the
screw.
4
Indoor Unit
Outdoor Unit
PowerCommunication
Next Indoor unit(Power)
Next Indoor unit
(Communication)
E-14

Assigning Address to Indoor Unit
Before installing the indoor unit, assign an address to the indoor unit
according to the air conditioning system plan.
1
The address of the indoor unit is assigned by adjusting MAIN(SW02) and
RMC(SW01) rotary switches.
2
The MAIN address is for communication between the indoor unit and the outdoor
unit. Therefore, you must set it to operate the air conditioner properly.
3
It is required to set the RMC address if you install the wired remote controller
and/or the centralized controller.
4
If you install optional accessories such as the wired remote controller, centralized
controller, etc. see an appropriate installation manual.
5
If an optional accessory is not installed, you do not have to set the RMC
address. However, adjust K1 and K2 switches of the SW03 DIP switch to
"ON" position in this case.
6
Set the MAIN address by adjusting the rotary switch(SW02) from 0 to F. Each
indoor unit connected to the same outdoor unit must have different address.
i. e. If an indoor unit does not have an optional accessory and its MAIN address
is "4"
7
E-15
ENGLISH
K1 K2 K3 K4 K5 K6 K7 K8 K9
K10 K11 K12
SW03 SW04 SW05
SW01 RMC SW02 MAIN
K1 K2 K3 K4 K5 K6 K7 K8 K9
K10 K11 K12
SW03 SW04 SW05
SW01 RMC SW02 MAIN

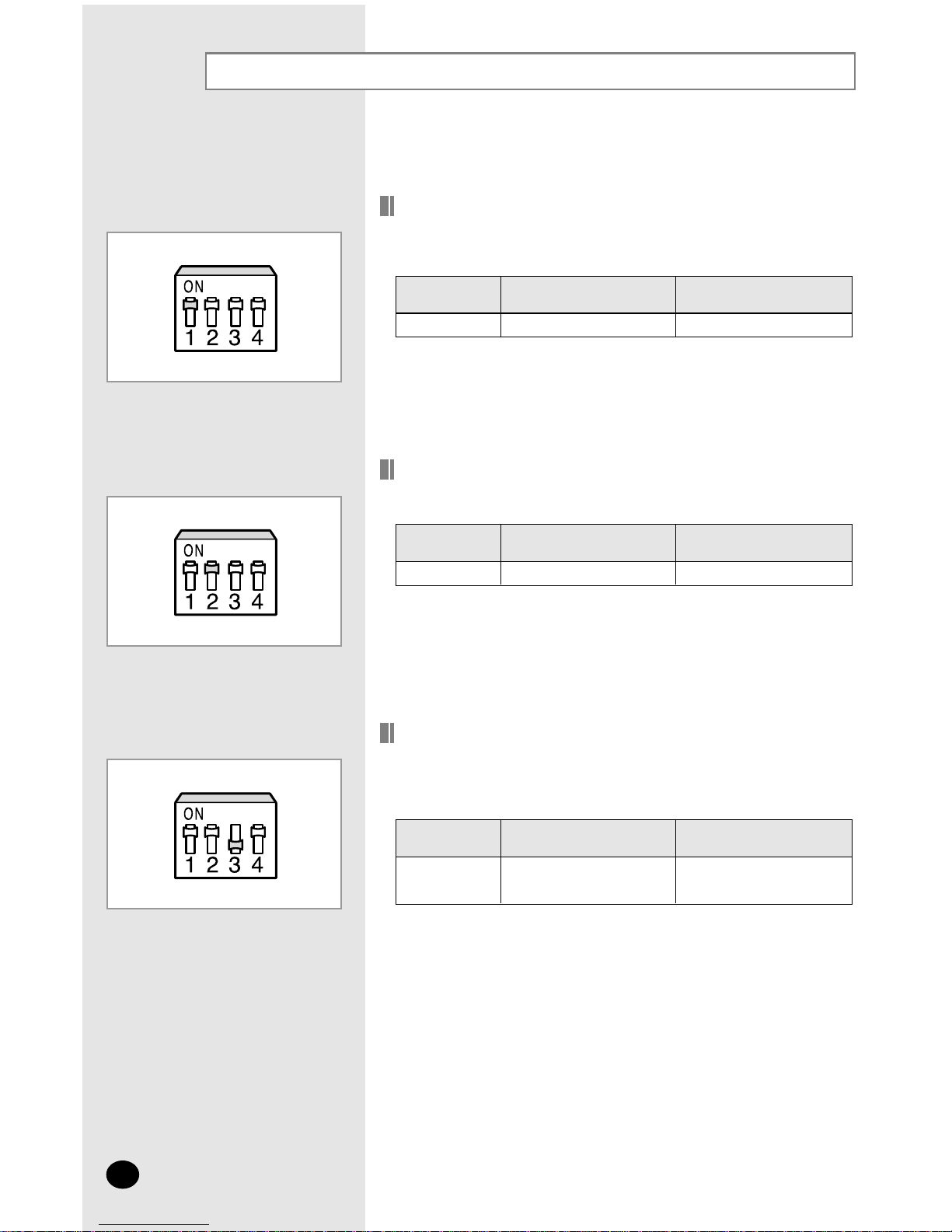

Additional Functions
E-16
Compensation for lost temperature in heating operation
◆Reduces the difference between an actual room temperature and a sensed
temperature by the air conditioner when heating.
Adjusting filter cleaning cycle
◆You can adjust the cycle for filter sign indicator.
K5 K6 K7 K8
SW04
K5 K6 K7 K8
SW04
K5 2°C compensation 5°C compensation
Switch No. Switch ON Switch OFF
Control of electronic expansion valve at the indoor unit off
◆When an indoor unit off makes refrigerant noise, set K11 to OFF position to
reduce the noise. However, if a distributor kit is installed, K11 must be at ON
position.
K9 K10 K11 K12
SW05
K11 Electronic expansion valve
step 80 Electronic expansion valve step 0 (Sub cool control)
Switch No. Switch ON Switch OFF
K6 1000 hours 2000 hours
Switch No. Switch ON Switch OFF

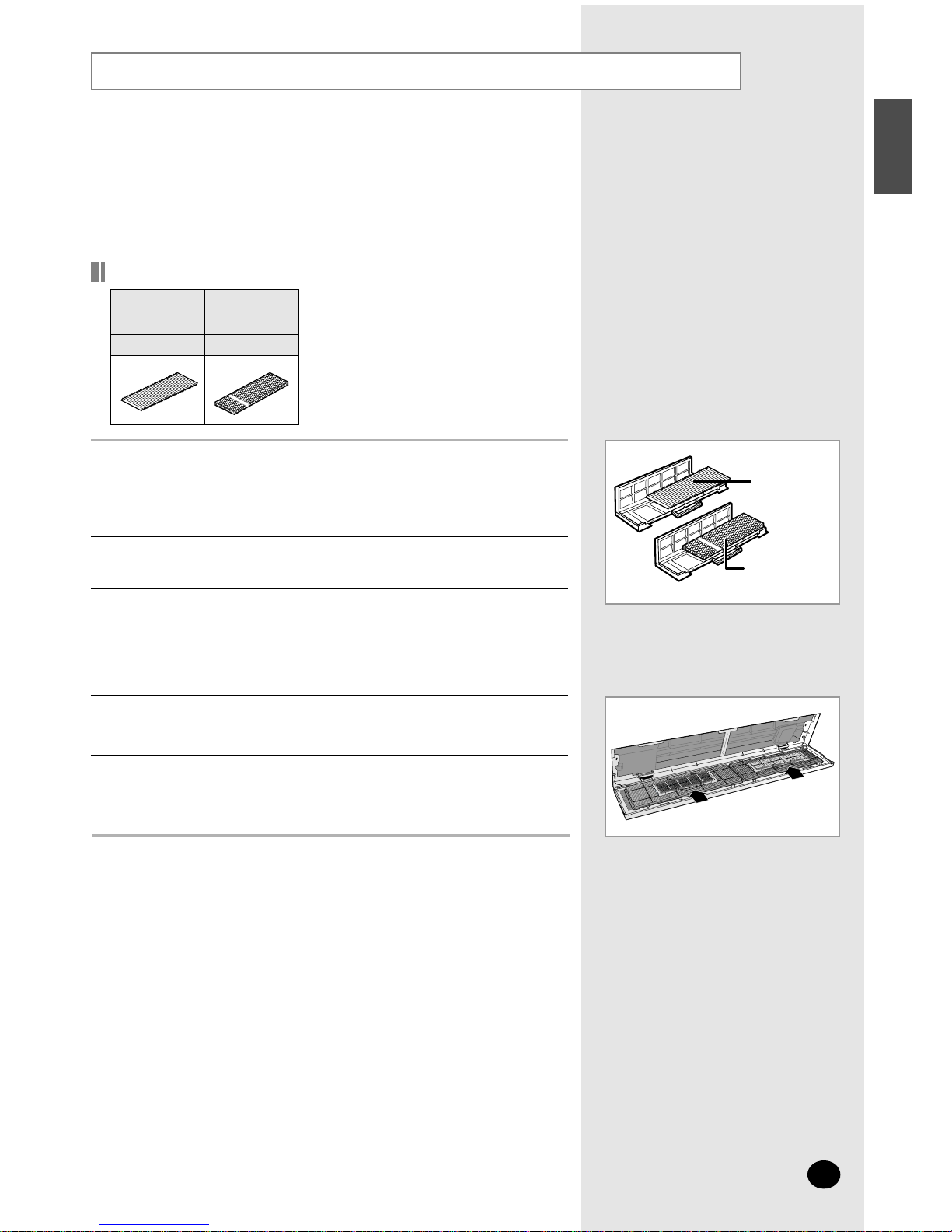

Bio-pure Filter Installation (optional)
E-17
ENGLISH
Open the front grille by pulling the tabs on the grille.
2
Remove the front grille.
3-1 Remove the safety clips.
3-2 Open the front grille about 45°and pull it forward.
3
Insert Bio-Pure or deodorizing filter.
4
Reinstall the front grille and the safety clips.
5
Do not remove the packing from a bio-pure or deodorizing filter
until you wish to use the filter, as it will lose its properties.
NN
NNoo oott ttee ee
The air conditioner can be fitted with a Bio-Pure or deodorizing filter to remove
minute dust particles or odours. The service life of the filter is approximately
three months depending on the time during which the air conditioner is used.
Remove the vinyl packing from the filter.
1
Bio-pure filter
Deodorizing filter
Deodorizing
filter
1
Bio-pure filter
1
Accessories

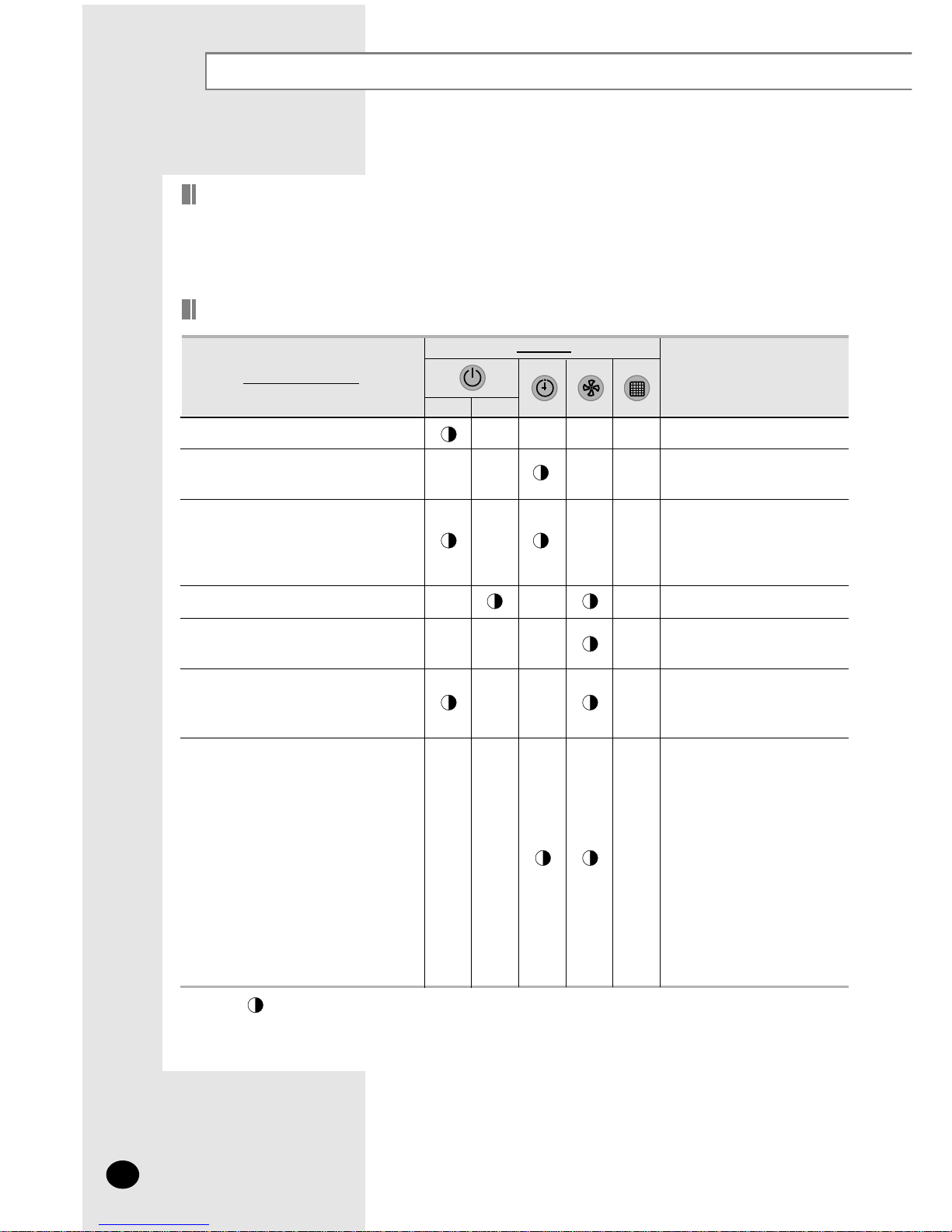

Troubleshooting
E-18
Displayed on appropriate indoor
unit which is operating
Displayed on appropriate indoor
unit which is operating
Displayed on appropriate indoor
unit which is operating
Displayed on appropriate indoor
unit which is operating
Displayed on outdoor unit
1. Error of indoor unit: Displayed
on the indoor unit regardless
of operation
2. Error of outdoor unit:
Displayed on the indoor unit
which is operating
Power reset
Error of temperature sensor in indoor unit
(OPEN/SHORT)
Error of heat exchanger sensor in indoor unit
Error of heat exchanger OUT sensor in indoor unit
Error of outlet temperature sensor in indoor unit
(OPEN/SHORT): For heat pump models only
Error of mixed operation
Error of indoor fan motor:
Below 450RPM for 15 minutes
Error of outdoor temperature sensor
Error of COND sensor
Error of DISCHARGE sensor
1. No communication for 2 minutes between
indoor unit and outdoor unit (communication
error for more than 2 minutes)
2. Indoor unit receiving the communication
error from outdoor unit
3. Outdoor unit tracking 3 minute error
4. When sending the communication error
from outdoor unit due to the mismatching
of the communication numbers and
installed numbers after completion of
tracking (communication error for more
than 2 minutes)
XXX
XXX
XXXX
X
X
X
XXX
X
X
X
X
XX
X
X
●On Flickering X Off
Detection of errors
◆If an error occurs during the operation, an LED flickers and the operation is stopped except the LED.
◆If you re-operate the air conditioner, it operates normally at first, then detect an error again.
LED Display
Operating
Indicators
Abnormal conditions
Green Red
LED Display on the indoor unit

E-19
ENGLISH

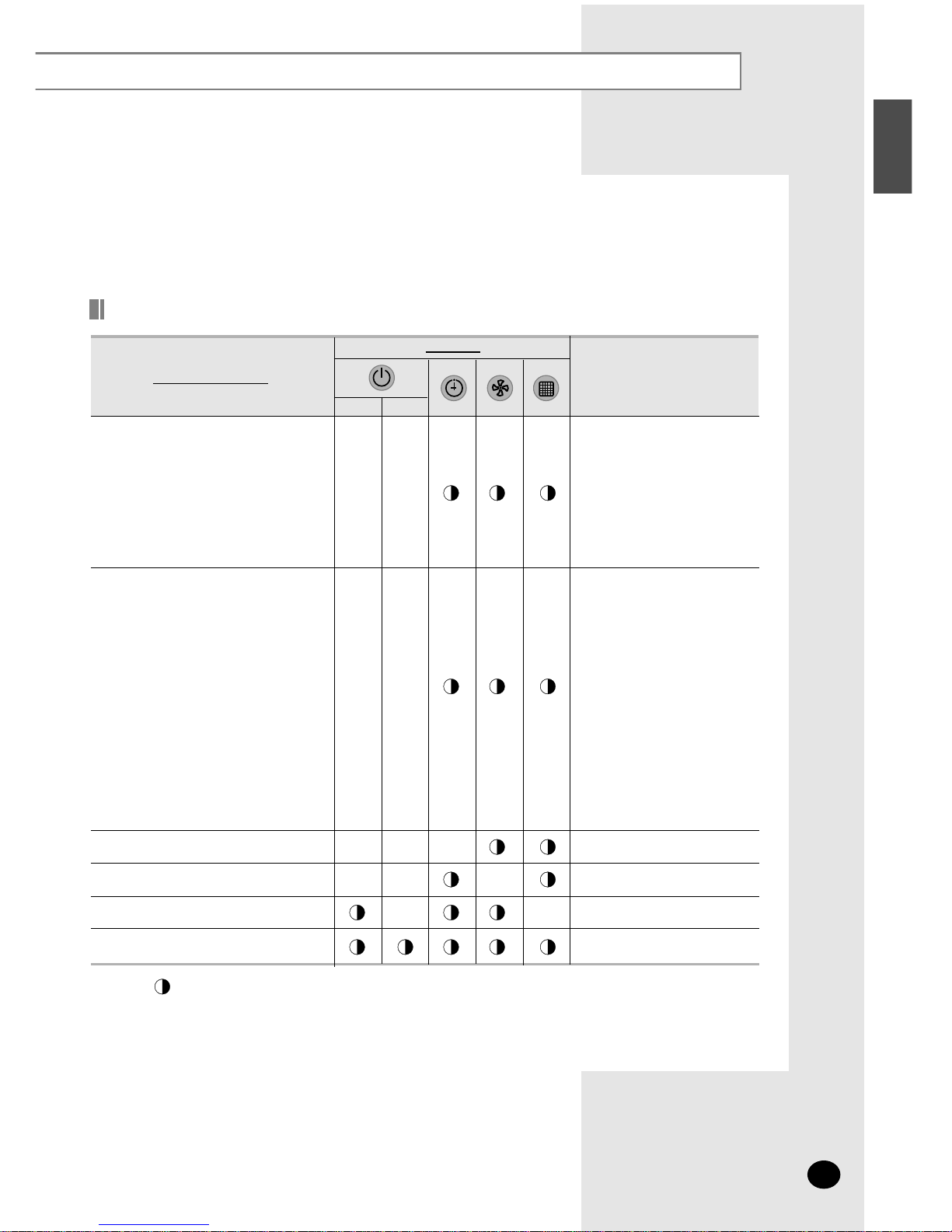

LED Display
●On Flickering X Off
◆If you turn off the air conditioner when the LED is flickering, the LED is also turned off.
◆If you re-operate the air conditioner, it operates normally at first, then detects an error again.
Displayed on appropriate indoor
unit which is operating
Displayed on outdoor unit
Displayed on appropriate indoor
unit which is operating
Displayed on outdoor unit
Self-diagnostic error
(including the indoor unit not detected)
1.
Error of electronic expansion valve close
2. Error of electronic expansion valve open
3. Breakaway of EVA OUT sensor
4. Breakaway of EVA IN sensor
5. Breakaway of COND MID sensor
6.
2nd detection of refrigerant completely leak
7. 2nd detection of high temperature COND
8. 2nd detection of high temperature DISCHARGE
9. COMP DOWN due to 2nd detection of
low pressure switch
10. Error of reverse phase
11. Compressor down due to 6th detection of
freezing
12. Self-diagnosis of condensation sensor (G8, G9)
13. Compressor down due to condensation
ratio control
Error of float switch
Error of setting option switches for optional accessories
EEPROM error
EEPROM option error
X X
XX
XX
XXX
XX
X
Operating
Indicators
Abnormal conditions
Green Red

E-20
Troubleshooting (cont.)
Explanation
Display
Error of communication between the outdoor unit and the wired
remote controller
Error of communication between the indoor unit and the wired
remote controller
Breakaway of indoor unit eva sensor
Breakaway of indoor unit eva out sensor
Open error of electronic expansion valve
Close error of electronic expansion valve
Breakaway of eva mid and eva out sensors in indoor unit
Error of float switch
OPEN/SHORT error of room sensor in indoor unit
OPEN/SHORT error of eva in sensor in indoor unit
OPEN/SHORT error of eva out sensor in indoor unit
EEPROM error
EEPROM option error
Error of fan starting
Error of outdoor unit
Communication
errors
Displays related to
indoor unit
(x : 0~F)
For the details, refer to
the installation manual
of the outdoor unit.
Remark
The order of priority : EA→Eb →Cx →dx →bx →Ax →Fx →ox →qx →rx →sx →tx →Ux →vx →Eo
- In case that the same error displays from multi-indoor units, the one having the faster address
has the priority.
x
x
x
x
x
x
x
x
x
x
x
x
Wired remote controller
◆If an error occurs, is displayed on the wired remote controller.
◆If you would like to see an error code, press the Test button.
