Samsung Galaxy S Plus GT-I9001 User manual

GSM TELEPHONE
GT-i9001
1. Safety Precautions
2. Specification
3. Product Function
4. Exploded View and Parts list
5. MAIN Electrical Parts List
6. Level 1Repair
7. Level 2Repair
8. Level 3Repair
9. Reference data
Notice :
All functionality, features, specifications and other
product information provided in this document inclu
ding, but not limited to, the benefits, design, pricing,
components, performance, availability, and capabiliti
-es of the product are subject to change without
notice or obligation. Samsung reserves the right to
make changes to this document and the product
described herein, at anytime, without obligation on
Samsung to provide notification of such change.
GSM TELEPHONE CONTENTS

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2011. 05. Rev.1.0
ⓒ

2. Specification
2-1
2-1. GSM General Specification
GSM850 EGSM 900 DCS1800 PCS1900 WCDMA21
00
WCDMA90
0
WCDMA19
00
Freq.
Band[MHz]
Uplink/
Downlink
824~849
869~894
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
1922~1977
2112~2167
880~915
925~960
1852~1907
1932~1987
ARFCN
range 128~251 0~124 &
975~1023 512~885 512~810
UL:9612~9
888DL:105
62~10838
UL:2712~2
863,DL:29
37 ~ 3088
UL:9262~9
538,DL:96
62~9938
Tx/Rx
spacing 45MHz 45MHz 95MHz 80MHz 190MHz 45MHz 80MHz
Mod. Bit
rate/
Bit Period
270.833kb
ps
3.692us
270.833kb
ps
3.692us
270.833kb
ps
3.692us
270.833kb
ps
3.692us
3.84Mcps 3.84Mcps 3.84Mcps
Time Slot
Period/
Frame
Period
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
FrameLeng
th:
10ms
Slotlength:
0.667ms
FrameLeng
th:
10ms
Slotlength:
0.667ms
FrameLeng
th:
10ms
Slotlength:
0.667ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK QPSKHQP
SK
QPSKHQP
SK
QPSKHQP
SK
MS Power 33dBm~5d
Bm
33dBm~5d
Bm
30dBm~0d
Bm
30dBm~0d
Bm
24dBm~-
50dBm
24dBm~-
50dBm
24dBm~-
50dBm
Power
Class
5pcl ~
19pcl 5pcl ~19
pcl 0pcl ~15 pcl 0pcl ~15 pcl 3(max+24dB
m)
3(max+24dB
m)
3(max+24dB
m)
Sensitivity -102dBm -102dBm -100dBm -100dBm -106.7dBm -103.7dBm -104.7dBm
TDMAMux8888888
Cell
Radius 35Km 35Km 2Km 2Km 2Km 2Km 2Km

Specification
2-2
2-2. GSM Tx Power Class
TX Power
control
level
GSM850
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
EGSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control
level
PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Operation Instruction and Installation
3-1
This Document can not be used without Samsung's authorization
Main Function
•Android OS: Ginger
•HSDPA 14.4Mbps /HSUPA 5.76Mbps
•5
MP AF
•4.0"
WVGA sAMOLED, Full Touch (C-Type)
•A-GPS /BT v2.1 +EDR /USB v2.0 /WiFi (802.11 b/g/n)
•HD Recording (720p) /Full HD Playback (1080p)
•Sensors: Accelerometer, Compass, Proximity, Light
•TouchWiz 3.0 for Android, Multistage, Augmented Reality, Integrated phonebook with
SNS, IM, E-mail, Face Recognition, etc.

SAMSUNG Proprietary-Contents may change without notice
6. Level 1Repair
6-1
This Document can not be used without Samsung's authorization
6-1. S/W Download
6-1-1. Pre-requisite for S/W Downloading
•Downloader Program(Odin Multi Downloader v4._GalaxyS+.exe)
•GT-I9001 Mobile Phone
•Data Cable
•JIG BOX (GH99-36900B)
•RF Test Cable (GH39-00985A)
•JIG Cable (GH39-01290A)
•Adapter (GH99-38251A)
•Binary files

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-2
This Document can not be used without Samsung's authorization

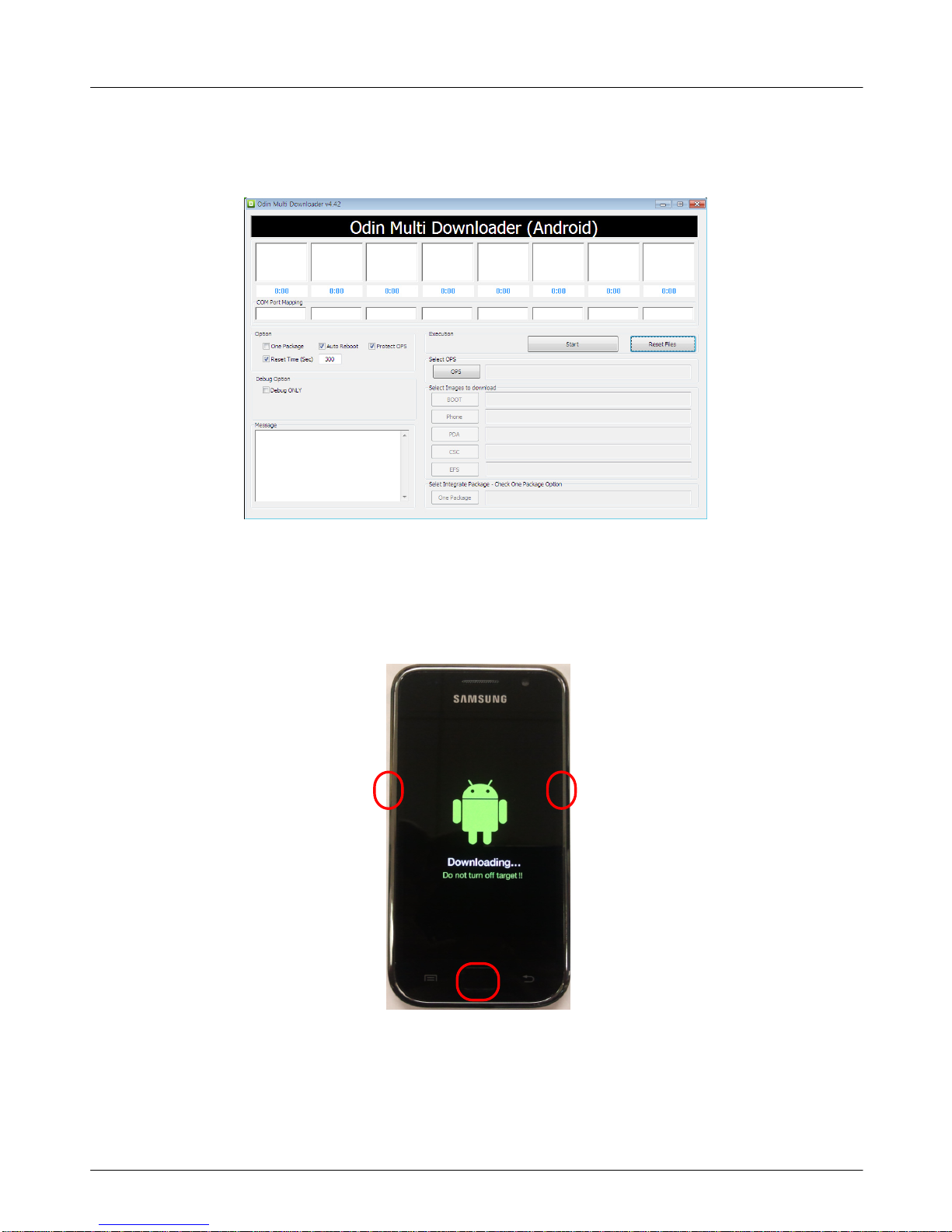

6-1-2. S/W Downloader Program
■Load the binary download program by executing the
"Odin Multi Downloader v4._GalaxyS+.exe "←Run this file.
1.Enter Device into Download Mode
-Enter the device into Download Mode by pressing down on Volume Down button
and OK button and Power On button at the same time.
Volume Down Button Power On Button
OK Button

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-3
This Document can not be used without Samsung's authorization

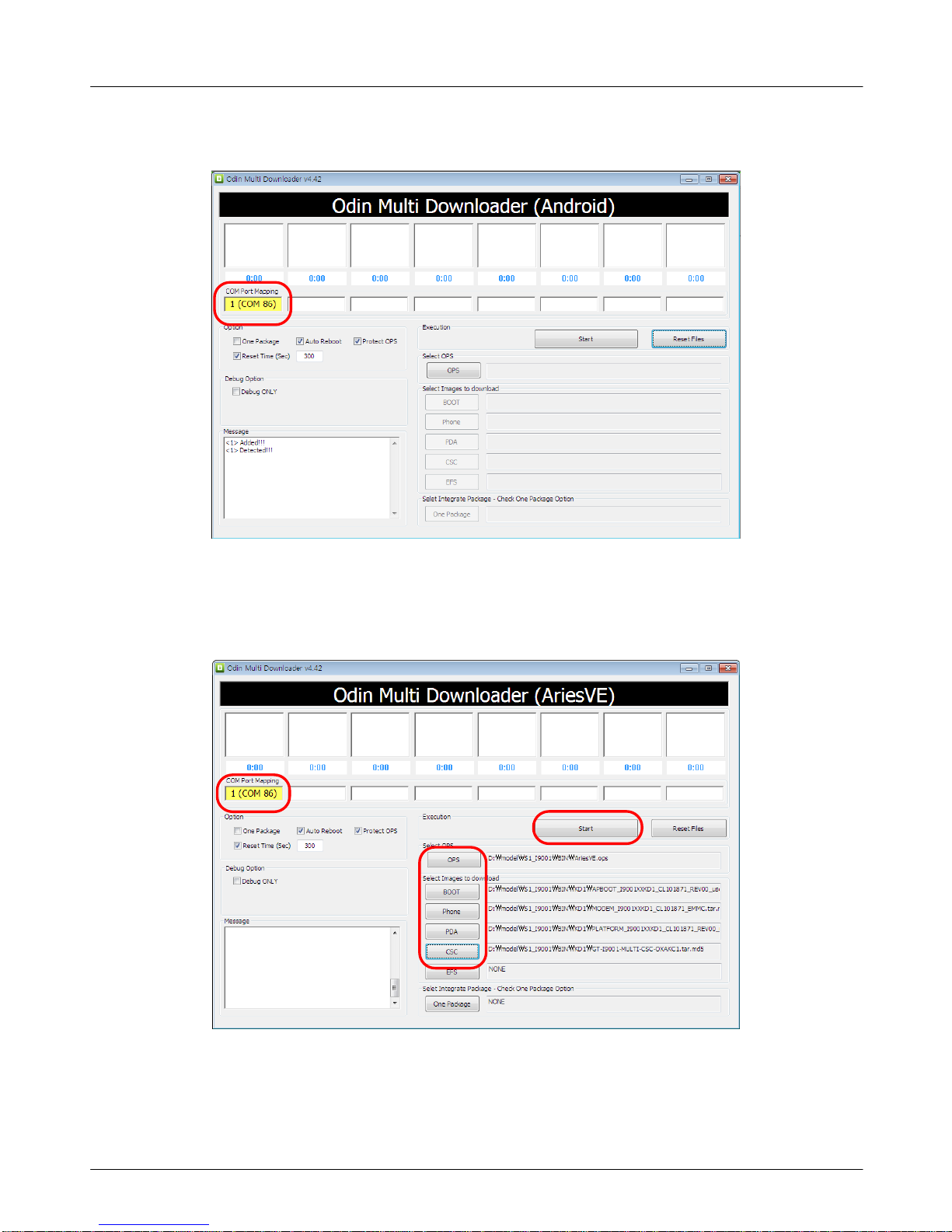

2.Connect the Handset to PC via Data Cable. Make sure ID:COM box highlighted
yellow that the handset is connected to the PC.
3.Select OPS, BOOT, PDA, PHONE and CSC Files.

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-4
This Document can not be used without Samsung's authorization
4.Start Downloading OPS, BOOT, PDA, PHONE and CSC Files by clicking Start
Button. Then wait for "Pass" to be appear on the screen.
5.Once the device boots up, confirm the downloaded version name and etc. :
*#1234#
Full Reset :
*2767*3855#

SAMSUNG Proprietary-Contents may change without notice
9. Reference Abbreviate
This Document can not be used without Samsung's authorization
9-1
Reference Abbreviate
―AAC:Advanced Audio Coding.
―AVC :Advanced Video Coding.
―BER :Bit Error Rate
―BPSK:Binary Phase Shift Keying
―CA :Conditional Access
―CDM :Code Division Multiplexing
―C/I :Carrier to Interference
―DMB :Digital Multimedia Broadcasting
―EN :European Standard
―ES :Elementary Stream
―ETSI:European Telecommunications Standards Institute
―MPEG:Moving Picture Experts Group
―PN :Pseudo-random Noise
―PS :Pilot Symbol
―QPSK:Quadrature Phase Shift Keying
―RS :Reed-Solomon
―SI :Service Information
―TDM :Time Division Multiplexing
―TS :Transport Stream

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
―Repair in Shield Box, during detailed tuning. Take specially care of tuning or test, because
specipicty of cellular phone is sensitive for surrounding interference(RF noise).
―Be careful to use akind of magnetic object or tool, because performance of parts is damaged by
the influence of magnetic force.
―Surely use astandard screwdriver when you disassemble this product, otherwise screw will be
worn away.
―Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
―Repair after separate Test Pack and Set because for short danger (for example an overcurrent
and furious flames of parts etc) when you repair board in condition of connecting Test Pack and
tuning on.
―Take specially care of soldering, because Land of PCB is small and weak in heat.
―Surely tune on/off while using AC power plug, because arepair of battery charger is dangerous
when tuning ON/OFF PBA and Connector after disassembling charger.
―Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
―Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity prevention
string on wrist.
―Use earthed soldering steel when you connect or disconnect ESD.
―Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by static
electricity.
―Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum plate to have conductive power,they are prevented from static electricity.
―You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

SAMSUNG Proprietary-Contents may change without notice
4. Exploded View and Parts List
4-1
This Document can not be used without Samsung's authorization

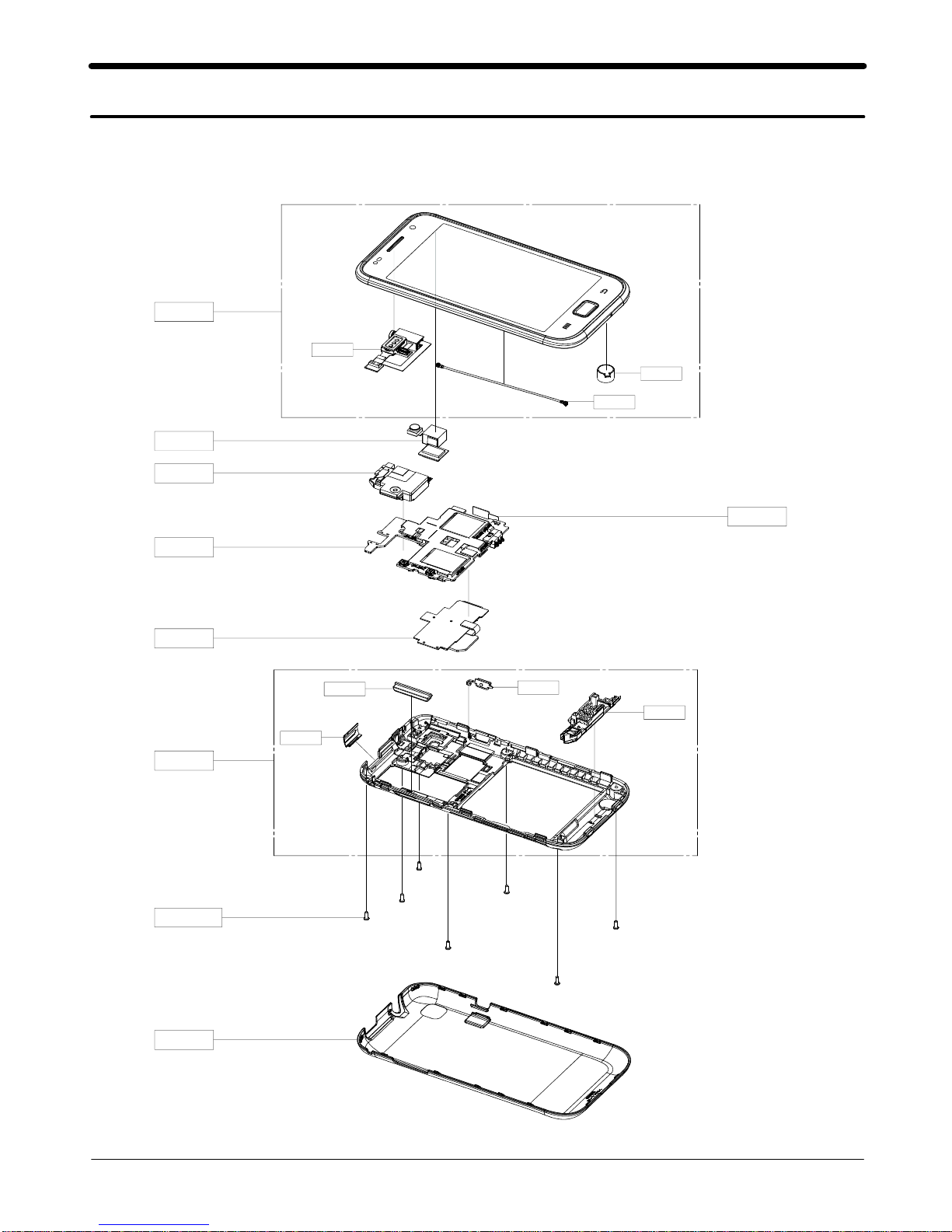

4-1. Cellular phone Exploded View
QVK01
QFR01
QSP01
QCA01
QMP01
QSM01
QRE01
QCR101
QBC00
QCK01
QAN02
QMO01
QCB01
QVO01
QAR01
QRF06

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
4-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
QCR101 SCREW-MACHINE 6001-002005
QSP01 MODULE-SPEAKER GH59-09408A
QVK01 KEY FPCB-POWER KEY(GT-I9000) GH59-09432A
QSM01 ASSY ETC-SIM/T-FLASH ASSY(GT-I9000) GH59-09495A
QMP01 A/S ASSY-PBA MAIN(COMM)GT-I9001 GH82-05792A
QCA01 ASSY CAMERA-5M/VGA MODULE(GT-I9001) GH96-05145A
QBC00 ASSY COVER-BATT GH98-20123A
QFR01 MEA FRONT-OCTA LCD ASSY GH97-12371A
QCB01 CBF COAXIAL CABLE-GT-I9000 ANT CABLE_(76 GH39-01418A
QAR01 MODULE-RCV+SENSOR FPCB(SGH-T959) GH59-09581A
QMO01 MOTOR LINEAR VIBRATION-GTS8000 GH31-00475A
QRE01 ASSY CASE-REAR GH98-16686A
QAN02 INTENNA-GT-I9000 GH42-02543A
QCK01 PMO CASE-POWER KEY(D) GH72-59079A
QRF06 PMO COVER-USB V3 GH72-59633A
QVO01 ASSY KEY-VOL GH98-17171A
4-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
5.a MAIN Electrical Parts List (HW REV0.5) 1_10
10-1
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
ZD500 0403-001688 DIODE-ZENER
D400 0404-001317 DIODE-SCHOTTKY
ZD501 0406-001322 DIODE-TVS
U505 0406-001369 DIODE-TVS
ZD600,ZD601,ZD602
ZD603,ZD604,ZD605 0406-001413 DIODE-TVS
Q500 0505-001165 FET-SILICON
Q300,Q501 0505-002341 FET-SILICON
U614,U701 0801-003031 IC-CMOS LOGIC
U607 0801-003058 IC-CMOS LOGIC
U400 0801-003346 IC-CMOS LOGIC
U601 1001-001394 IC-ANALOG SWITCH
U506 1001-001580 IC-ANALOG MULTIPLEX
U613 1003-002100 IC-LEVEL DRIVER
U600,U700 1003-002391 IC-LEVEL DRIVER
U502 1003-002415 IC-MOTOR DRIVER
UCP400UP 1105-002218 IC-MOBILE SDRAM
PAM102 1201-003009 IC-POWER AMP
PAM101 1201-003107 IC-POWER AMP
U602 1201-003134 IC-AUDIO AMP
U201 1201-003168 IC-RF AMP
PAM100 1201-003199 IC-POWER AMP
U603 1202-001118 IC-VOLTAGE COMP.
U507 1202-001119 IC-VOLTAGE COMP.
U704 1203-004339 IC-MULTI REG.
U606 1203-004340 IC-MULTI REG.
U401 1203-005069 IC-POSI.FIXED REG.
U500 1203-005403 IC-DC/DC CONVERTER
U702 1203-005690 IC-DC/DC CONVERTER
U504 1203-005854 IC-MULTI REG.

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
U604 1203-006054 IC-MULTI REG.
U503 1203-006304 IC-POWER SUPERVISOR
U611 1203-006372 IC-RESET
U703 1203-006772 IC-POSI.FIXED REG.
U501 1203-006787 IC-POWER SUPERVISOR
U202 1204-003176 IC-TUNER
UCP400 1205-004255 IC-MODEM
U300 1205-004264 IC-TRANSCEIVER
U610 1209-001877 IC-SENSOR
U609 1209-002023 IC-SENSOR
TH500 1404-001651 THERMISTOR-NTC
V300,V301,V302,V303
V304,V305,V306,V700
V701,V702,ZD606
1405-001177 VARISTOR
V400,V401,ZD400 1405-001200 VARISTOR
V600 1405-001294 VARISTOR
R634 2007-000138 R-CHIP
R524 2007-000140 R-CHIP
R521 2007-000166 R-CHIP
R533 2007-000170 R-CHIP
R617,R618 2007-000172 R-CHIP
R535 2007-000249 R-CHIP
R635 2007-003015 R-CHIP
R534 2007-007099 R-CHIP
R319 2007-007136 R-CHIP
R614,R615 2007-007190 R-CHIP
R523 2007-007307 R-CHIP
R500,R502 2007-007334 R-CHIP
R412,R413,R456,R457 2007-007517 R-CHIP
R519 2007-007592 R-CHIP
R304,R421,R427 2007-007741 R-CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-3
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
R620 2007-007942 R-CHIP
R428,R506,R507,R508
R520,R601,R606,R619
R631,R650,R651,R652
R653,R700,R705,R707
R708
2007-008045 R-CHIP
R100,R102 2007-008046 R-CHIP
R314,R408,R409,R432
R433,R522,R612,R712 2007-008052 R-CHIP
R207,R404,R405,R633 2007-008055 R-CHIP
R623 2007-008312 R-CHIP
R434 2007-008418 R-CHIP
R208 2007-008419 R-CHIP
R605 2007-008478 R-CHIP
R305,R306,R307,R308
R309,R310,R311,R312 2007-008483 R-CHIP
R600,R701 2007-008486 R-CHIP
R202,R203,R204,R205
R206,R320,R401,R402
R454,R455,R460,R461
R517,R603,R604,R624
R704,R711,R714
2007-008516 R-CHIP
R410,R411,R417,R418
R419,R420,R430,R431
R448,R449,R450,R451
R452,R453,R702,R703
R710
2007-008588 R-CHIP
R526,R527 2007-008774 R-CHIP
R435,R436 2007-008798 R-CHIP
R504 2007-008800 R-CHIP
R101,R201,R628,R629 2007-008806 R-CHIP
R501 2007-008809 R-CHIP
R301,R503,R510,R511
R512,R607 2007-009084 R-CHIP
R440,R446,R462,R509 2007-009157 R-CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-4
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
R429 2007-009171 R-CHIP
R416,R442,R443 2007-009408 R-CHIP
R200 2007-009801 R-CHIP
R602 2007-009804 R-CHIP
R616 2007-010202 R-CHIP
R438 2007-010233 R-CHIP
C203 2203-000233 C-CER,CHIP
C559 2203-000254 C-CER,CHIP
C605 2203-000278 C-CER,CHIP
C603,C611 2203-000386 C-CER,CHIP
C502 2203-000425 C-CER,CHIP
C521 2203-000438 C-CER,CHIP
C543 2203-000725 C-CER,CHIP
C607 2203-000812 C-CER,CHIP
C606 2203-000995 C-CER,CHIP
C610 2203-001153 C-CER,CHIP
C310,C611 2203-002709 C-CER,CHIP
C215 2203-005234 C-CER,CHIP
C104,C149,C150,C216
C520,L102 2203-005682 C-CER,CHIP
C100,C114,C115,C116
C117,C213,C220 2203-005725 C-CER,CHIP
C628,C629 2203-005729 C-CER,CHIP
C553 2203-005732 C-CER,CHIP
C113 2203-005736 C-CER,CHIP
C133,C140 2203-005739 C-CER,CHIP
C132,C137,C138,C151 2203-005777 C-CER,CHIP
C152 2203-005789 C-CER,CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-5
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
C101,C130,C143,C223
C328 2203-005806 C-CER,CHIP
C200,C522,C542,C600
C601,C602,C604,C645 2203-006048 C-CER,CHIP
C219,C323 2203-006120 C-CER,CHIP
C457,C458 2203-006133 C-CER,CHIP
C620,C621 2203-006137 C-CER,CHIP
C128,L125 2203-006187 C-CER,CHIP
C118,C119 2203-006305 C-CER,CHIP
C214 2203-006318 C-CER,CHIP
C709 2203-006324 C-CER,CHIP
C224,C447,C518,C636 2203-006399 C-CER,CHIP
C109 2203-006410 C-CER,CHIP
C111,C205,C208,C304
C305,C308,C309,C311
C314,C315,C316,C329
C330,C333,C608,C609
C657,C658,C659,C660
C700,C701,C706,C707
C719,C720
2203-006423 C-CER,CHIP
C209,C469,C473,C544
C557,C560,C618,C717
C718
2203-006562 C-CER,CHIP
C202 2203-006642 C-CER,CHIP
C225,C226,C103 2203-006648 C-CER,CHIP
C222 2203-006674 C-CER,CHIP
C134,C566,C567 2203-006707 C-CER,CHIP
C468,C471,C500,C501
C504,C505,C506,C554
C625
2203-006839 C-CER,CHIP
C472 2203-006841 C-CER,CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-6
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
C400,C401,C402,C403
C404,C405,C406,C408
C409,C410,C411,C412
C413,C414,C415,C511
C622,C624
2203-006844 C-CER,CHIP
C139,C466 2203-006846 C-CER,CHIP
C301,C306,C307,C312
C503,C519,C555,C637
C638,C703,C711,C712
C713,C714,C715,C722
C723
2203-006872 C-CER,CHIP
C643,C644 2203-006979 C-CER,CHIP
C321,C325 2203-007210 C-CER,CHIP
C102,C407,C510,C523
C545,C547,C548,C550
C551
2203-007240 C-CER,CHIP
C127,C142,C201,C204 2203-007270 C-CER,CHIP
C552,C721 2203-007271 C-CER,CHIP
C423,C428,C433,C439
C444,C508,C513,C514
C515,C516,C517,C549
C710,C716
2203-007279 C-CER,CHIP
C145,L100 2203-007295 C-CER,CHIP
C319,C326,C509,C524
C525,C526,C527,C528
C529,C530,C531,C532
C533,C534,C535,C536
C537,C538,C539,C540
C541
2203-007317 C-CER,CHIP
C619,C623,C630,C631
C632 2203-007385 C-CER,CHIP
C300,C417,C418,C419
C420,C421,C422,C424
C425,C426,C427,C429
C430,C431,C432,C434
C435,C436,C437,C438
C440,C441,C442,C443
C445,C446,C448,C449
C450,C451,C452,C453
C454,C455,C459,C460
C461,C462,C463,C464
C465
2203-007391 C-CER,CHIP
