Samsung GT-i9000B User manual

GSM TELEPHONE
GT-i9000B
1. Safety Precautions
2. Specification
3. Product Function
4. Exploded View and Parts list
5. MAIN Electrical Parts List
6. Level 1Repair
7. Level 2Repair
8. Level 3Repair
9. Reference data
GSM TELEPHONE CONTENTS
Notice
All functionality, features, specifications and o
ther product information provided in this docu
ment including, but not limited to, the benefit
s, design, pricing, components, performance,
availability, and capabiliti-es of the product
are subject to change without notice or oblig
ation. Samsung reserves the right to make
changes to this document and the product
described herein, at anytime, without
obligation on Samsung to provide notification
of such change.

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2010. 07. Rev.1.0
ⓒ
Country Web Site
North America service.samsungportal.com
Latin America latin.samsungportal.com
CIS cis.samsungportal.com
Europe europe.samsungportal.com
China china.samsungportal.com
Asia asia.samsungportal.com
Mideast &Africa mea.samsungportal.com
GSPN (Global Service Partner Network)

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
―Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test, because the specification of cellular phone is sensitive for
surrounding interference(RF noise).
―Be careful to use akind of magnetic object or tool, because performance of parts is damaged by
the influence of magnetic force.
―Surely use astandard screwdriver when you disassemble this product, otherwise screw will be
worn away.
―Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
―Repair after separate Test Pack and Set because for short danger (for example an overcurrent
and furious flames of parts etc) when you repair board in condition of connecting Test Pack and
tuning on.
―Take specially care of soldering, because Land of PCB is small and weak in heat.
―Surely tune on/off while using AC power plug, because arepair of battery charger is dangerous
when tuning ON/OFF PBA and Connector after disassembling charger.
―Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
―Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity prevention
string on wrist.
―Use earthed soldering steel when you connect or disconnect ESD.
―Use soldering removing tool to break static electricity. Otherwise ESD will be damaged by static
electricity.
―Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum plate to have conductive power,they are prevented from static electricity.
―You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

SAMSUNG Proprietary-Contents may change without notice
2. Specification
This Document can not be used without Samsung's authorization
2-1
2-1. GSM General Specification
GSM850 EGSM 900 DCS1800 PCS1900 WCDMA210
0WCDMA850
Freq.
Band[MHz]
Uplink/Downlin
k
824~849
869~894 880~915 925~960 1710~1785 1805~1880 1850~1910 1930~1990 1922~1977 2112~2167 824~849 869~894
ARFCN range 128~251 0~124 &
975~1023 512~885 512~810 UL:9612~9888
DL:10562~10838
UL:4132~4233
,782,787,807
,812,837,862
DL:4357~4458
,1007,1012,1032
,1037,1062,1087
Tx/Rx spacing 45MHz 45MHz 95MHz 80MHz 190MHz 45MHz
Mod. Bit rate/
Bit Period
270.833kbp
s
3.692us
270.833kbp
s
3.692us
270.833kbp
s
3.692us
270.833kbp
s
3.692us 3.84Mcps 3.84Mcps
Time Slot
Period/Frame
Period
576.9us
4.615ms 576.9us 4.615ms 576.9us 4.615ms 576.9us 4.615ms
FrameLengt
h:
10ms
Slotlength:
0.667ms
FrameLengt
h:
10ms
Slotlength:
0.667ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK QPSKHQPS
KQPSKHQPS K
MS Power 33dBm~5dB
m33dBm~5dB m30dBm~0dB m30dBm~0dB m24dBm~- 50dBm 24dBm~- 50dBm
Power Class 5pcl ~
19pcl 5pcl ~19
pcl 0pcl ~15 pcl 0pcl ~15 pcl 3(max+24dB
m) 3(max+24dB m)
Sensitivity -102dBm -102dBm -100dBm -100dBm -106.7dBm -106.7dBm
TDMA Mux 8 8 8 8 88
Cell Radius 35Km 35Km 2Km 2Km 2Km 2Km

SAMSUNG Proprietary-Contents may change without notice
Specification
2-2
This Document can not be used without Samsung's authorization
2-2. GSM Tx Power Class
TX Power
control
level
GSM850
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
EGSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control
level
PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Operation Instruction and Installation
3-1
This Document can not be used without Samsung's authorization
Main Function
•Android OS: Eclair
•HSDPA 7.2Mbps /HSUPA 5.76Mbps
•5
MP AF w/o LED Flash
•4.0"WVGA Super AMOLED Full Touch (C-Type)
•A-GPS /BT v3.0 /USB v2.0 /WiFi (802.11 b/g/n)
•HD Recording (720p) /Full HD Playback (1080p), DLNA
•Sensors: Accelerometer, Compass, Proximity, Light
•TouchWiz 3.0 for Android, Multistage, Augmented Reality, Integrated phonebook with
SNS, IM, E-mail, Face Recognition, etc.

SAMSUNG Proprietary-Contents may change without notice
4. Exploded View and Parts List
4-1
This Document can not be used without Samsung's authorization
4-1. Cellular phone Exploded View

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
4-2
This Document can not be used without Samsung's authorization
Design LOC Discription SEC CODE
QCR101 SCREW-MACHINE 6001-002005
QCA01 CAMERA MODULE-5M A/F CMOS CAMERA MODULE GH59-09400A
QSP01 MODULE-SPEAKER GH59-09636A
QSM01 ASSY ETC-SIM/T-FLASH ASSY(GT-I9000B) GH59-09704A
QMP01 A/S ASSY-PBA MAIN_GT-I9000B,BRAZ (SVC) GH82-04996A
QBC00 ASSY COVER-BATTERY(GOOGLE) GH98-17485A
QLC01 MEA FRONT-GTI9000B GH97-11299A
QCB01 CBF COAXIAL CABLE-GT-I9000 ANT CABLE_(78 GH39-01418A
QAR01 MODULE-RCV+SENSOR FPCB(I9000B);GT-I9000B GH59-09920A
QMO01 MOTOR LINEAR VIBRATION-GTS8000 GH31-00475A
QRE01 ASSY CASE-REAR GH98-17086A
QCR92 SCREW-MACHINE 6001-002261
QAN02 INTENNA-GT-I9000B GH42-02575A
QAN01 ANTENNA-GT-I9000B_SBTVDT GH42-02586A
QRF06 PMO COVER-USB V3 GH72-59633A
QVO01 ASSY KEY-VOLUME GH98-17428A
QCK02 PMO KEY-POWER GH72-60316A
4-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
5. MAIN Electrical Parts List
5-1
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
ANT101 GH62-00016A NPR CONTACT-ANTENNA
ANT102 3705-001448 CONNECTOR-COAXIAL
ANT103,ANT106,ANT701 GH71-08731A NPR CONTACT-ANTENNA
BAT501 4302-001180 BATTERY-LI(2ND)
BTC501 3711-006299 HEADER-BATTERY
C101,C176 2203-005725 C-CER,CHIP
C102,C202,C205,C209 2203-007210 C-CER,CHIP
C103,C104,C105,C106C107,C108,C110,C111 2203-006194 C-CER,CHIP
C109,C165,C717,C718 2203-006399 C-CER,CHIP
C112,C130,C134,C182 2203-006194 C-CER,CHIP
C113,C140,C154,C501 2203-005736 C-CER,CHIP
C114 2203-006123 C-CER,CHIP
C115,C276 2203-000812 C-CER,CHIP
C118,L105 2703-002793 C-CER,CHIP
C119,C120,C127,C131 2203-005732 C-CER,CHIP
C121,C223,C224,C236 2203-005731 C-CER,CHIP
C123,C129,C166,C204 2203-006423 C-CER,CHIP
C124 2203-005727 C-CER,CHIP
C126,C142,C145,C157 2203-005726 C-CER,CHIP
C128 2203-005552 C-CER,CHIP
C132,C288 2203-005729 C-CER,CHIP
C133,C171,C242,C244 2203-006562 C-CER,CHIP
C135,C173,C174,C193 2203-006208 C-CER,CHIP
C136,C150 2203-000233 C-CER,CHIP
C139 2203-007133 C-CER,CHIP
C141 2203-007194 C-CER,CHIP
C143,C147,C152 2203-006674 C-CER,CHIP
C146 2203-005739 C-CER,CHIP
C149,C421 2203-006305 C-CER,CHIP
C151 2703-002649 C-CER,CHIP
C153 2203-005683 C-CER,CHIP
C155,C160,C161,C175 2203-006872 C-CER,CHIP
C158 2203-006620 C-CER,CHIP
C159,C715 2203-006979 C-CER,CHIP
C162,C246,C544 2203-006048 C-CER,CHIP
C163,C230,C231,C554 2203-006890 C-CER,CHIP
C164,C424,C427 2203-006642 C-CER,CHIP
C167,C541 2203-006648 C-CER,CHIP
C168,C172,C504 2203-006824 C-CER,CHIP
C170 2203-005446 C-CER,CHIP
C177,C192 2203-006120 C-CER,CHIP
C183,C704 2203-001259 C-CER,CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
C185 2203-006611 C-CER,CHIP
C186,C556 2203-002709 C-CER,CHIP
C187,C189,C190,C206 2203-006194 C-CER,CHIP
C188 2203-006693 C-CER,CHIP
C194 2203-000438 C-CER,CHIP
C195,C198 2203-005234 C-CER,CHIP
C196,C254,C255,C256 2203-006872 C-CER,CHIP
C197 2203-005050 C-CER,CHIP
C201,C203,C207,C208 2203-007369 C-CER,CHIP
C211,C214,C216,C241 2203-006423 C-CER,CHIP
C220,C226,C227,C229 2203-007369 C-CER,CHIP
C225,C233 2203-006474 C-CER,CHIP
C228,C232,C249 2203-007210 C-CER,CHIP
C234,C235,C243,C247 2203-007317 C-CER,CHIP
C239,C517,C539 2203-005731 C-CER,CHIP
C245,C308 2203-007393 C-CER,CHIP
C250,C251,C279,C281 2203-006562 C-CER,CHIP
C257,C258,C287,C403 2203-007317 C-CER,CHIP
C259,C260,C261,C262 2203-006423 C-CER,CHIP
C264,C278,C285,C286 2203-007369 C-CER,CHIP
C265,TA300 2404-001496 C-CER,CHIP
C267 2404-001561 C-CER,CHIP
C269 2404-001572 C-CER,CHIP
C275 2203-000278 C-CER,CHIP
C277 2203-000995 C-CER,CHIP
C282,C283,C351,C352 2203-006562 C-CER,CHIP
C301 2203-005732 C-CER,CHIP
C302,C310,C336,C337 2203-006423 C-CER,CHIP
C304,C407,C413,C429 2203-007271 C-CER,CHIP
C305,C306,C307,C338 2203-006838 C-CER,CHIP
C317,C332,C333,C401 2203-007369 C-CER,CHIP
C331 2203-006681 C-CER,CHIP
C339,C340,C524,C525 2203-006838 C-CER,CHIP
C344,C348,C402,C408 2203-006423 C-CER,CHIP
C349 2203-001153 C-CER,CHIP
C350 2203-000386 C-CER,CHIP
C400,C420,C514,C538 2203-006839 C-CER,CHIP
C404,C412 2203-007317 C-CER,CHIP
C405,C422,C425,C428 2203-007369 C-CER,CHIP
C410,C411,C414,C416 2203-006423 C-CER,CHIP
C415 2203-006668 C-CER,CHIP
C417,C418 2203-006133 C-CER,CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-3
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
C419,C542 2203-006423 C-CER,CHIP
C430,C503,C512,C522 2203-007369 C-CER,CHIP
C502 2203-006348 C-CER,CHIP
C505,C506,C507,C508,C509,C510,C511 2404-001339 C-CER,CHIP
C515,C516,C528,C533 2203-006562 C-CER,CHIP
C518 2203-006825 C-CER,CHIP
C519,C520,C521 2203-006208 C-CER,CHIP
C523,C526,C527,C530 2203-007369 C-CER,CHIP
C529,C531,C534,C535 2203-006838 C-CER,CHIP
C532,C536,C551,C557 2203-007369 C-CER,CHIP
C537 2203-006838 C-CER,CHIP
C547,C549,C550 2203-006841 C-CER,CHIP
C548 2203-000725 C-CER,CHIP
C553,C701,C702,C703 2203-006562 C-CER,CHIP
C601,C602,C603,C607 2203-007369 C-CER,CHIP
C705 2203-005450 C-CER,CHIP
C706,C710,C711,C716 2203-006839 C-CER,CHIP
C707,C713,C720,L701 2203-007369 C-CER,CHIP
C708,C709,C712 2203-006872 C-CER,CHIP
C714 2203-005806 C-CER,CHIP
C719 2203-006399 C-CER,CHIP
C721 2203-006839 C-CER,CHIP
C722,C723 2203-006439 C-CER,CHIP
D501 0407-001002 DIODE-TVS
F100 2904-001939 FILTER-SAW
F101 2904-001759 FILTER-SAW
F300,F301,F302,F303,F304,F305,F309 2901-001576 FILTER-EMI SMD
F306,F307,F308 2901-001604 FILTER-EMI SMD
F701 2904-001840 FILTER-SAW
HDC300 3711-006483 HEADER-BOARD TO BOARD
HDC301 3711-006865 HEADER-BOARD TO BOARD
HDC302,HEA601 3711-006650 HEADER-BOARD TO BOARD
HDC401 3711-007173 HEADER-BOARD TO BOARD
HEA301 3711-006923 HEADER-BOARD TO BOARD
IFC300 3722-002867 JACK-MICRO USB
L101,L102 2703-002918 INDUCTOR-SMD
L103 2703-002314 INDUCTOR-SMD
L104,L300 3301-001729 INDUCTOR-SMD
L106 2703-002953 INDUCTOR-SMD
L109 2703-002903 INDUCTOR-SMD
L111 2703-002858 INDUCTOR-SMD
L112 2703-002815 INDUCTOR-SMD

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-4
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
L113,L207,L208 2703-003698 INDUCTOR-SMD
L120 2703-002906 INDUCTOR-SMD
L121 2703-002775 INDUCTOR-SMD
L123 3301-001659 INDUCTOR-SMD
L205,L206 3301-001956 INDUCTOR-SMD
L209,L210 3301-001789 INDUCTOR-SMD
L301,L302,L303,L304 3301-001885 INDUCTOR-SMD
L305 2703-001259 INDUCTOR-SMD
L306,L311 3301-001885 INDUCTOR-SMD
L307,L308 2703-002842 INDUCTOR-SMD
L309,L601 3301-001912 INDUCTOR-SMD
L310,L713 2703-002961 INDUCTOR-SMD
L312,L314 3301-001971 BEAD-SMD
L313,L710,L714 3301-001534 BEAD-SMD
L501 2703-003182 INDUCTOR-SMD
L502,L503 2703-003343 INDUCTOR-SMD
L504 2703-003686 INDUCTOR-SMD
L505,L506 2703-002309 INDUCTOR-SMD
L702 2703-002596 INDUCTOR-SMD
L703 2703-002612 INDUCTOR-SMD
L704,L708 2703-001786 INDUCTOR-SMD
L705 2703-002608 INDUCTOR-SMD
L706 2703-002636 INDUCTOR-SMD
L707 2703-002198 INDUCTOR-SMD
L709 2703-002269 INDUCTOR-SMD
L711 2703-001180 INDUCTOR-SMD
L712 2203-007369 INDUCTOR-SMD
L715,L716 2703-002958 INDUCTOR-SMD
OSC100 2809-001358 OSCILLATOR-VCTCXO
OSC101 2809-001348 OSCILLATOR-VCTCXO
OSC102 2804-001884 OSCILLATOR
OSC200,OSC501 2801-004902 CRYSTAL-SMD
OSC400 2801-004458 CRYSTAL-SMD
OSC701 2801-004560 CRYSTAL-SMD
PAM101 1201-003034 IC-POWER AMP
PAM102 1201-003099 IC-POWER AMP
PAM103 1201-003032 IC-POWER AMP
PAM104 1201-002801 IC-POWER AMP
Q300 0504-001138 TR-DIGITAL
R100,R113,R414,R415 2007-008419 R-CHIP
R101,R102,R117,R275 2007-009801 R-CHIP
R118,R601,R603 2007-008806 R-CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-5
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
R119,R235,R239,R342 2007-008055 R-CHIP
R121,R122,R123,R124,R125,R266,R286,R287 2007-008516 R-CHIP
R127 2007-000155 R-CHIP
R211,R212,R216,R233 2007-008045 R-CHIP
R214,R288 2007-000167 R-CHIP
R215,R280,R475,R476 2007-009157 R-CHIP
R217,R345 2007-009084 R-CHIP
R218 2007-007573 R-CHIP
R222,R223,R224 2007-008588 R-CHIP
R229 2007-003018 R-CHIP
R234,R240,R301,R335 2007-008045 R-CHIP
R237,R238 2007-008211 R-CHIP
R245 2007-009323 R-CHIP
R248 2007-008587 R-CHIP
R249 2007-000242 R-CHIP
R278,R279,R343,R344 2007-008531 R-CHIP
R283 2007-008483 R-CHIP
R302,R346,R417,R418 2007-008516 R-CHIP
R303,R304,R309,R353 2007-008774 R-CHIP
R305 2007-007943 R-CHIP
R308 2007-008015 R-CHIP
R326,R328,R329,R330,R331,R340 2007-009171 R-CHIP
R347,R420,R532,R604 2007-008045 R-CHIP
R350 2007-010202 R-CHIP
R354,R355,R356,R357 2007-008774 R-CHIP
R358,R360,R503 2007-008774 R-CHIP
R359,R404,R439,R703 2007-008052 R-CHIP
R411 2007-010029 R-CHIP
R412 2007-008548 R-CHIP
R419,R423,R428,R432 2007-008516 R-CHIP
R431,R434,R435,R437 2007-008055 R-CHIP
R438,R457,R505,R506 2007-008055 R-CHIP
R440,R441,R461,R466 2007-008516 R-CHIP
R447,R448,R449,R450 2007-008419 R-CHIP
R451,R455 2007-009964 R-CHIP
R462,R463,R467,R468 2007-008419 R-CHIP
R465 2007-008531 R-CHIP
R473 2203-005138 R-CHIP
R477,R502,R509,R622 2007-008516 R-CHIP
R479,R480,R481,R482 2007-008419 R-CHIP
R483,R484,R485,R486 2007-008419 R-CHIP
R501 2007-008809 R-CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-6
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
R507,R511,R709 2007-008055 R-CHIP
R518,R520 2007-007307 R-CHIP
R521 2007-008502 R-CHIP
R521 2007-008502 R-CHIP
R560 2007-007592 R-CHIP
R701,R702,R711 2007-008419 R-CHIP
R704 2007-008052 R-CHIP
R705 2007-000172 R-CHIP
R706 2007-007318 R-CHIP
R707,R708 2007-008045 R-CHIP
R710 2007-009793 R-CHIP
RFS100 3705-001503 CONNECTOR-COAXIAL
SC601,SC602,SC603,SC604,SC605,SC606,SC607,SC608,
SC610,SC611,SC612 GH70-04443A IPR SHIELD-CAN CLIP
SC613,SC615,SC616,SC617,SC618,SC619,SC620,SC621,
SC622,SC623,SC624 GH70-03951A IPR SHIELD-CAN CLIP
SC614,SC625 GH70-04828A IPR SHIELD-CAN CLIP
TA501 2404-001506 C-TA,CHIP
TH201,TH401 1404-001221 THERMISTOR
U100 1201-002999 IC-RF AMP
U101 1205-003949 IC-TRANSCEIVER
U102 1203-006199 IC-DC/DC CONVERTER
U104 1204-003026 IC-TUNER
U105 4709-001844 IC-W-LAN MODULE
U106 1205-003966 IC-RECEIVER
U203,U206 1003-002352 IC-LEVEL DRIVER
U207 1205-003943 IC-CODEC
U209 0801-003227 IC-CMOS LOGIC
U210,U303 1203-004819 IC-POSI.FIXED REG.
U300 1203-004339 IC-MULTI REG.
U301 1001-001580 IC-ANALOG MULTIPLEX
U302 1001-001488 IC-ANALOG SWITCH
U307 1203-005521 IC-POSI.FIXED REG.
U308 0406-001369 DIODE-TVS
U503 1203-006186 IC-POWER SUPERVISOR
U505 1209-001817 IC-SENSOR
U506 1209-001877 IC-SENSOR
U507 1203-004925 IC-POSI.FIXED REG.
U508 1003-002047 IC-MOTOR DRIVER
U509 1203-005772 IC-VOLTAGE DETECTOR
U510 2007-007592 R-CHIP
U514 1203-006372 IC-RESET

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-7
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
U515,U602 1203-005854 IC-MULTI REG.
U601 0801-003022 IC-CMOS LOGIC
U606 1202-001036 IC-VOLTAGE COMP.
U607 0801-003139 IC-CMOS LOGIC
UCP200 1205-003993 IC-MODEM
UCP400 0902-002582 IC-MICROPROCESSOR
UME301 1107-001876 IC-FLASH MEMORY
V304,V305,V316,ZD300 1405-001200 VARISTOR
V306,V307,V308,V309,V310,V311,V312,V313,V314,V315,ZD601 1405-001177 VARISTOR
VOL_DOWN,VOL_UP 3404-001406 SWITCH-TACT
ZD301,ZD303,ZD304, ZD306 0406-001413 DIODE-TVS
ZD302 0403-001688 DIODE-TVS
ZD307,ZD308 0406-001231 DIODE-TVS
ZD502 0406-001322 DIODE-TVS
ZD701 0406-001267 DIODE-TVS
Please consult the GSPN website (Samsung Portal) for the most recent version of the product's part list.

SAMSUNG Proprietary-Contents may change without notice
6. Level 1Repair
6-1
This Document can not be used without Samsung's authorization

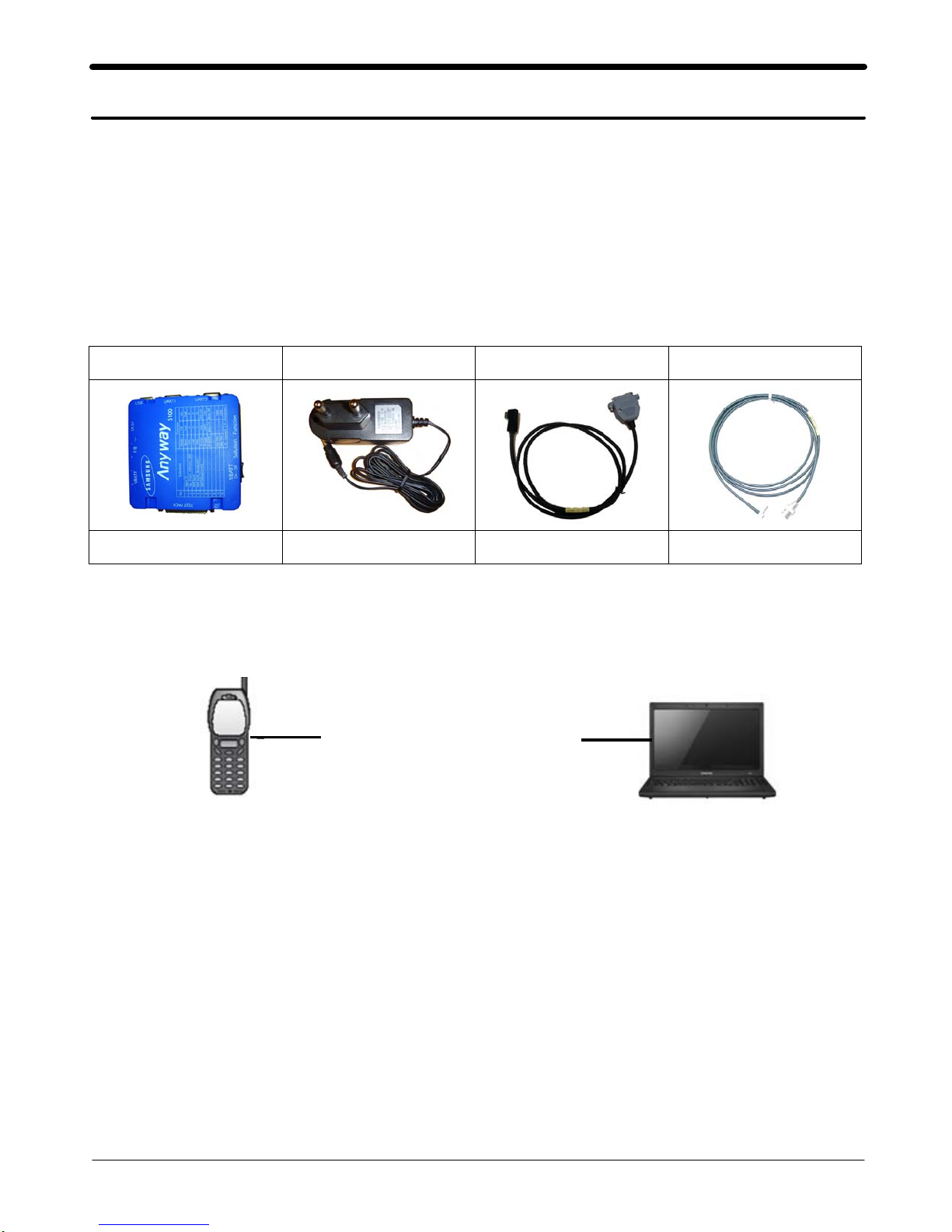

6-1. S/W Download
6-1-1. Pre-requsite for S/W Downloading
•Downloader Program(Odin3 v1.0.exe)
•GT-I9000 Mobile Phone
•Data Cable
•Binary files
※Settings
Data Cable
Anyway Jig Adaptor IF Cable RF Cable
GH99-36900A GH99-38251A GH39-01290AGH39-00985A

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-2
This Document can not be used without Samsung's authorization

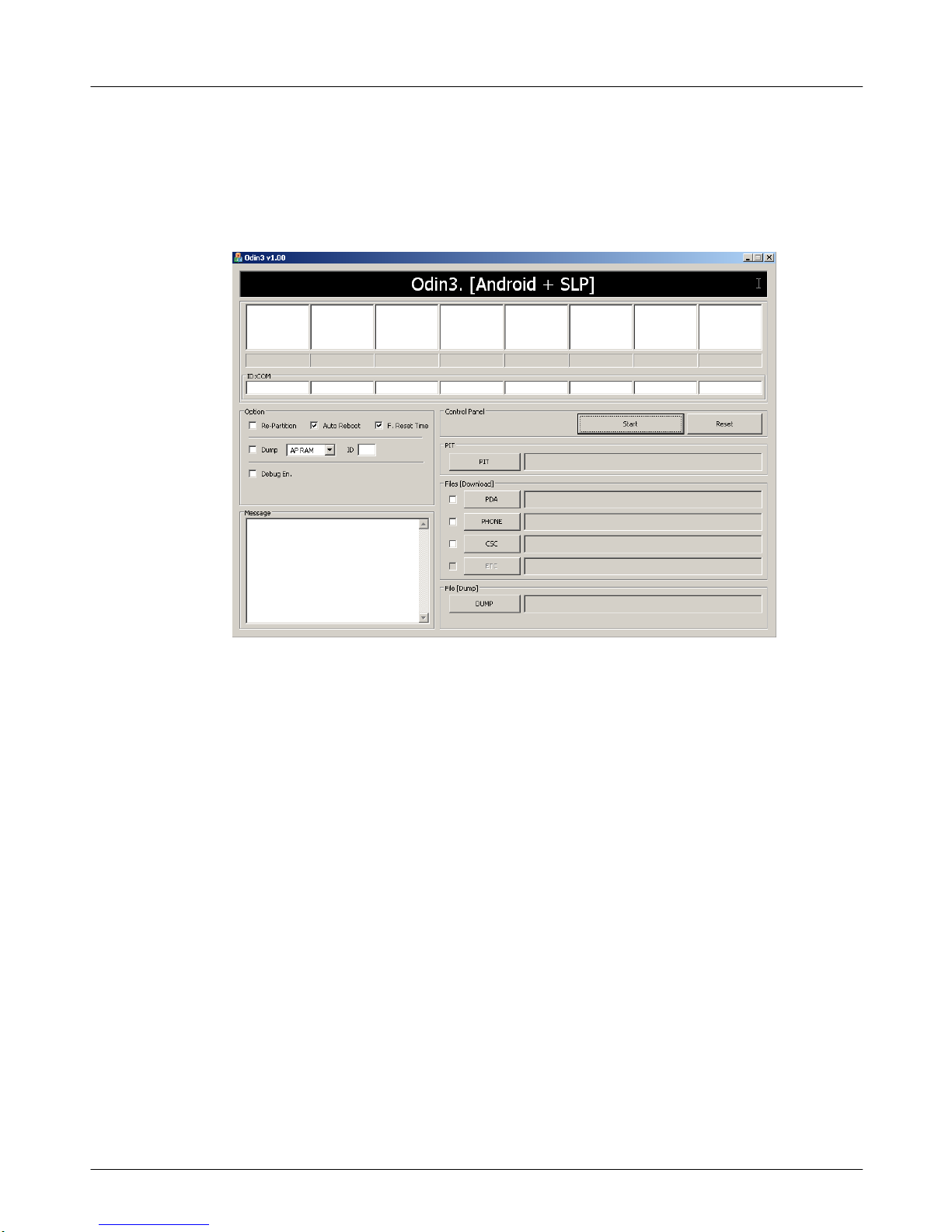

6-1-2. S/W Downloader Program
■Load the binary download program by executing the
"Odin3 v1.0.exe "←Run this file.

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-3
This Document can not be used without Samsung's authorization

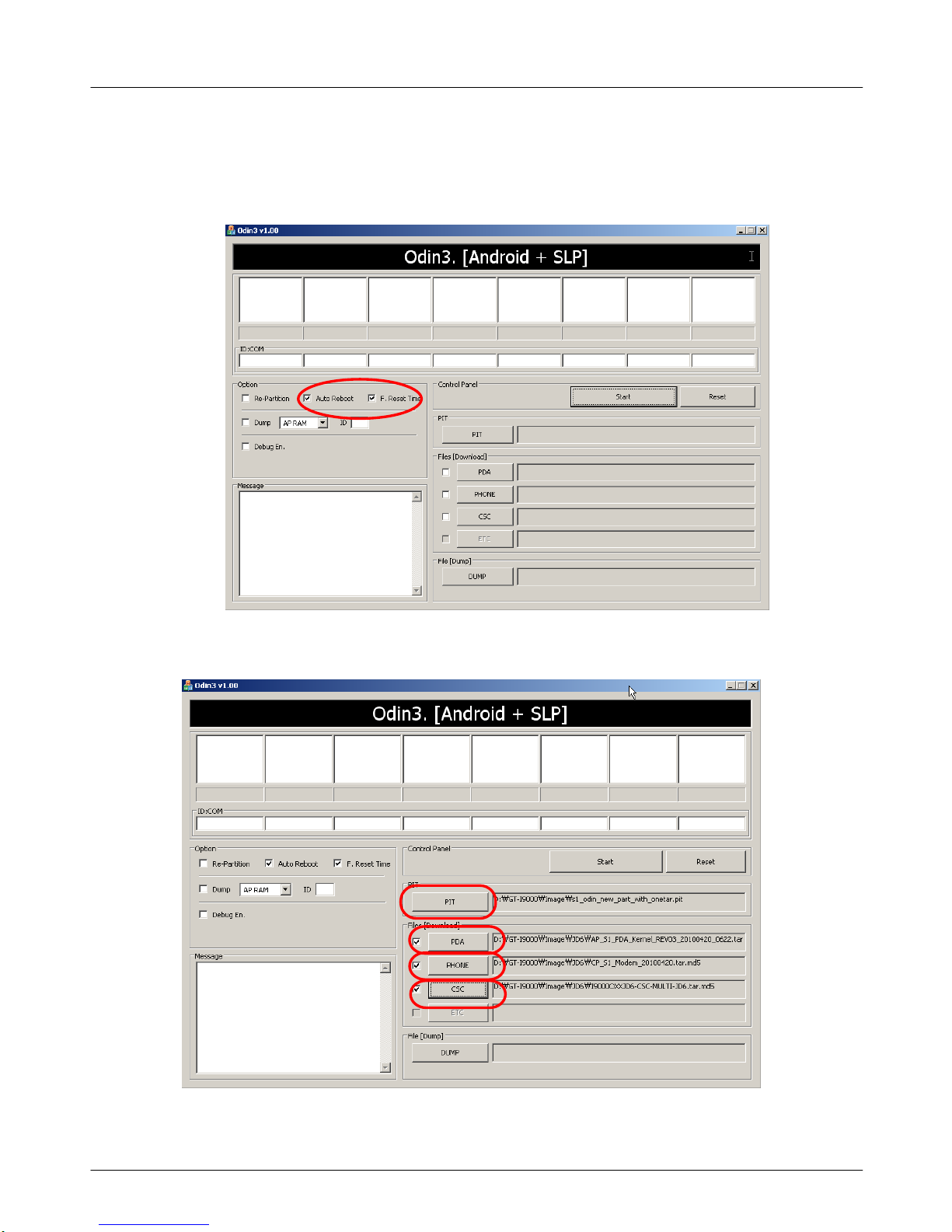

1.Option Selection
-Check Auto Reboot and F. Reset Time
2.Select the PIT, PDA, PHONE &CSC file.

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-4
This Document can not be used without Samsung's authorization
3.Enter Device into Download Mode
-Enter the device into Download Mode by pressing down on Volume Down button
and OK button and Power On button at the same time.
4.Connect the Handset to PC via aData Cable. Make sure ID:COM box
highlighted yellow to know that the handset is connected to the PC.
Volume Down Button Power On Button
OK Button
