Samsung SGH-E950 User manual

GSM TELEPHONE
SGH-E950
GSM TELEPHONE CONTENTS
1. Specification
2. Exploded View and Parts list
3. Chart of Troubleshooting
4. Array course control
5. Block Diagrams
6. PCB Diagrams
7. MAIN Electrical Parts List
8. Reference data
9. Safety Precautions
10. Product Function

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2007. 09. Rev.1.0
ⓒ
Country Web Site
North America service.samsungportal.com
Latin America latin.samsungportal.com
CIS cis.samsungportal.com
Europe europe.samsungportal.com
China china.samsungportal.com
Asia asia.samsungportal.com
Mideast &Africa mea.samsungportal.com
GSPN (Global Service Partner Network)

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
●Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test,
because specipicty of cellular phone is sensitive for surrounding interference(RF noise).
●Be careful to use akind of magnetic object or tool,
because performance of parts is damaged by the influence of manetic force.
●Surely use astandard screwdriver when you disassemble this product,
otherwise screw will be worn away.
●Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
●Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of
connecting Test Pack and tuning on.
●Take specially care of soldering, because Land of PCB is small and weak in heat.
●Surely tune on/off while using AC power plug, because arepair of battery charger is
dangerous when tuning ON/OFF PBA and Connector after disassembing charger.
●Don't use as you pleases after change other material than replacement registered on SEC
System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easilly by static electricity. Such parts are called by
ESD(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
●Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity
prevention string on wrist.
●Use earthed soldering steel when you connect or disconnect ESD.
●Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by
static electricity.
●Don't unpack until you set up ESD on product. Because most of ESD are packed by box
and aluminum plate to have conductive power,they are prevented from static electricity.
●You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

SAMSUNG Proprietary-Contents may change without notice
2. Specification
2-1
This Document can not be used without Samsung's authorization
2-1. GSM/DCS1800/PCS1900 General Specification
EGSM 900
Phase 2
DCS1800
Phase 1 PCS1900
Freq. Band[MHz]
Uplink/Downlink
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
ARFCN range 0~124 & 975~1023 512~885 512~810
Tx/Rx spacing 45 MHz 95 MHz 80 MHz
Mod. Bit rate/
Bit Period
270.833 kbps
3.692 us
270.833 kbps
3.692 us
270.833 kbps
3.692 us
Time Slot
Period/Frame
Period
576.9 us
4.615 ms
576.9 us
4.615 ms
576.9 us
4.615 ms
Modulation 0.3 GMSK 0.3 GMSK 0.3 GMSK
MS Power 33 dBm~5 dBm 30 dBm~0 dBm 30 dBm~0 dBm
Power Class 5 pcl ~19pcl 0pcl ~15pcl 0pcl ~15pcl
Sensitivity -102 dBm -100 dBm -100 dBm
TDMA Mux 8 8 8
Cell Radius 35 Km 2Km -

SAMSUNG Proprietary-Contents may change without notice
Specification
2-2
This Document can not be used without Samsung's authorization
2-2. GSM TX power class
TX Power
control level EGSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9± 3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control level DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Product Function
3-1
This Document can not be used without Samsung's authorization
Main Function
-Camera and Camcorder
-Synchronisation with Windows Media Player
-Music player
-FM radio
-Image editor
-Photo printing
-Phone to TV
-Offline mode
-Bluetooth
-File viewer
-SOS message

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization

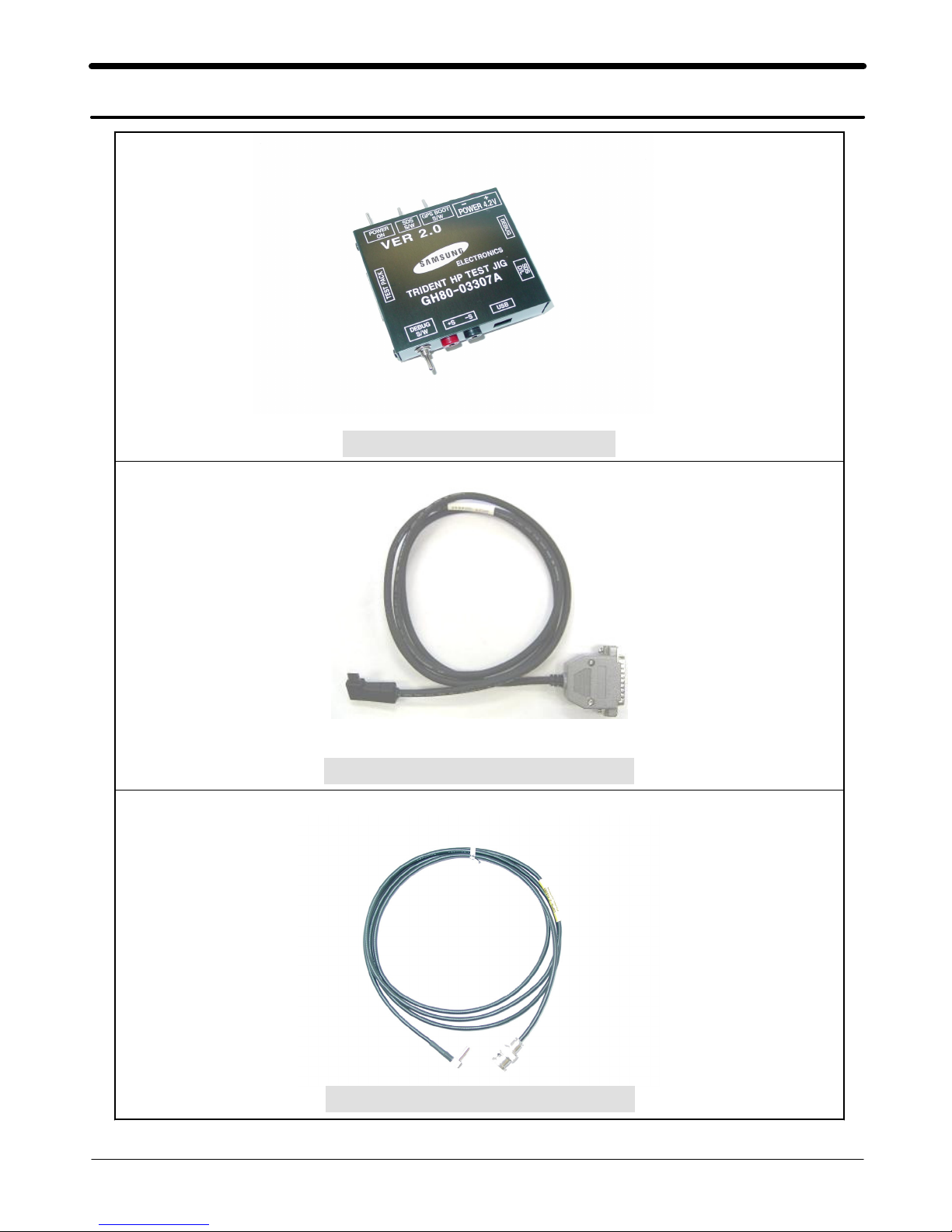

Test Jig (GH80-03307A)
RF Test Cable (GH39-00397A)
Test Cable (GH39-00484A)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
Software Downloading
4-1. Downloading Binary Files
•Three binary files for downloading E950.
–E950XXYY.s3 :Main source code binary.
4-2. Pre-requsite for Downloading
•Downloader Program(OptiFlash.exe)
•E950 Mobile Phone
•Data Cable
•Binary files

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization
4-3. S/W Downloader Program
1. Load the binary download program by executing the “OptiFlash.exe”

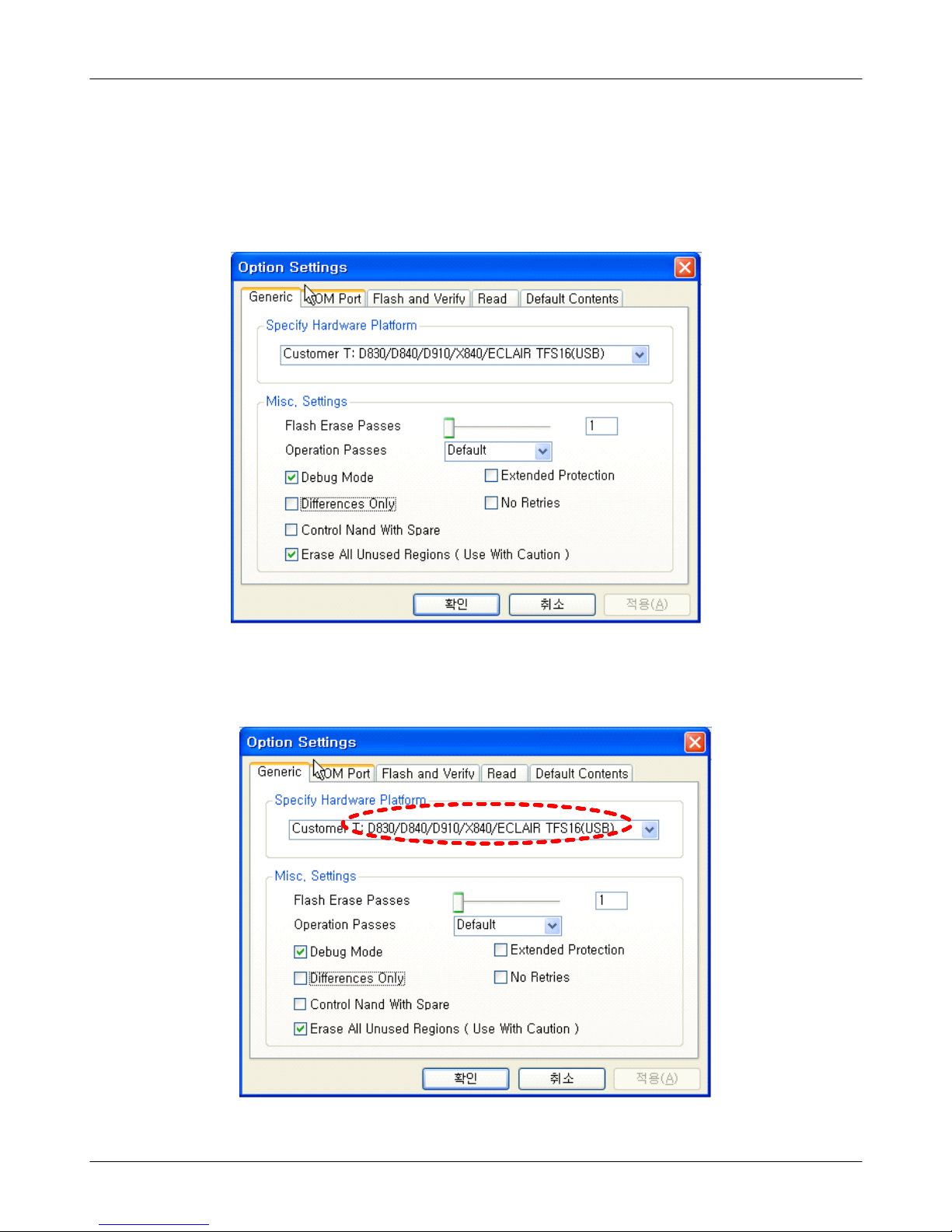

2. Select the “Options”->“ Settings”->“ Generic”->“ Specify hardware platform”.
Choose hardware platform for the downloader file setting.
Set the everything else as the default values which are shown below
1.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization

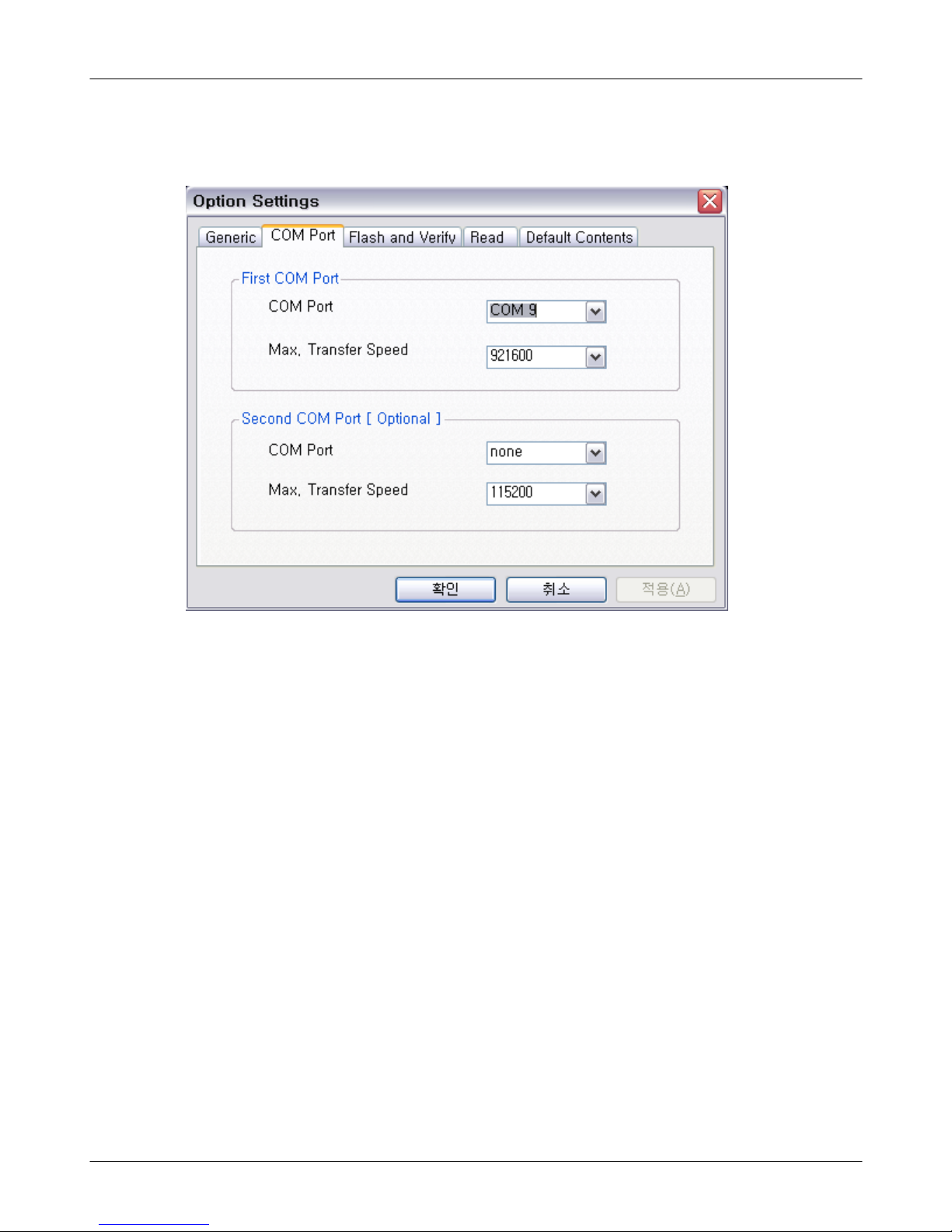

3. Select the COM port when the download cable is connected
Up to twelve ports are supported. Additionally you can select the
maximum transfer speed OptiFlash will use to communicate with
the phone. However, OptiFlash will use aslower speed if either the
PC’s or the phone’s serial hardware is incapable of handling the
selected speed

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization

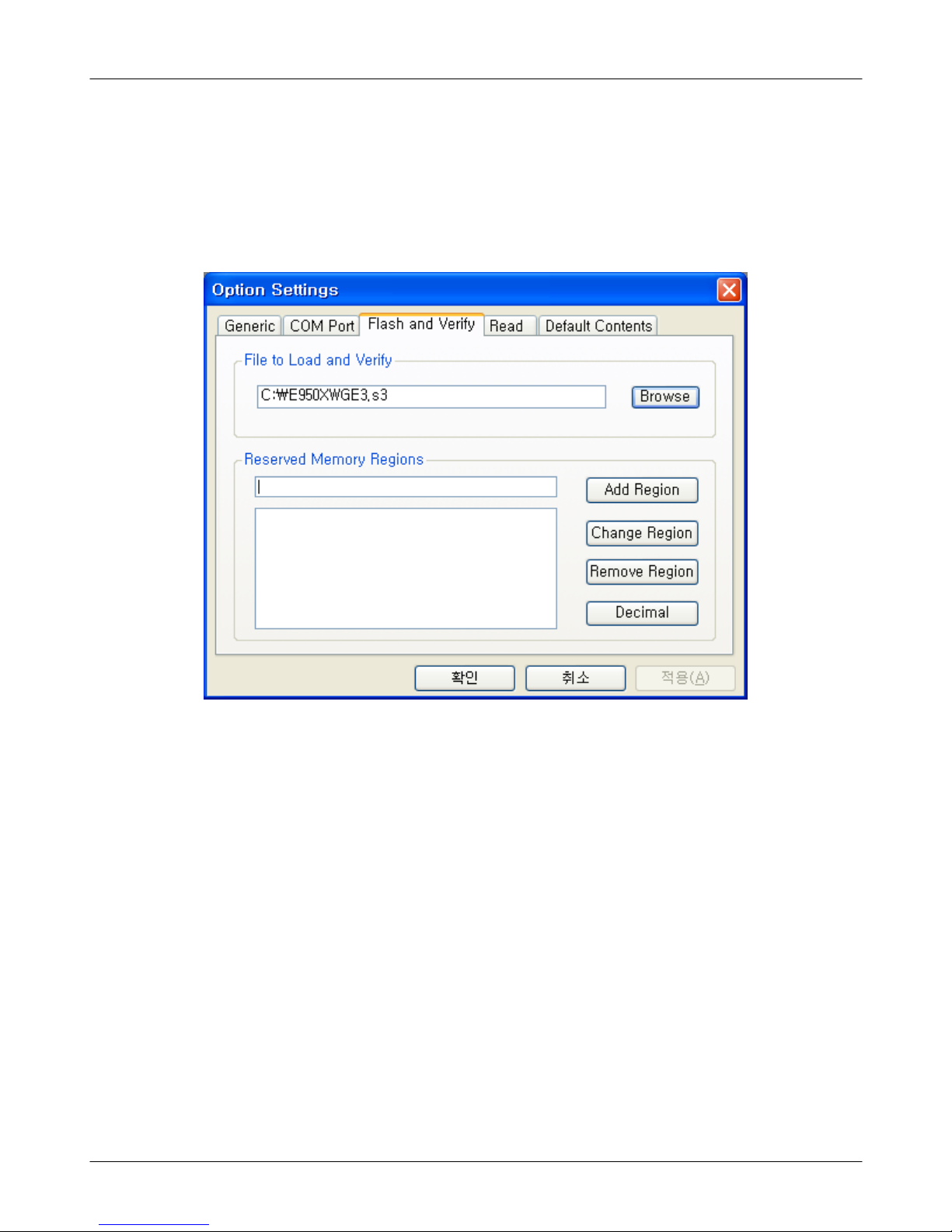

4. Select the“Flash&Verify”->“ Browse”
Set the directory path and choose the latest s/w binary, for example “
E950XXYY.s3”, for the downloader binary setting.
The reserved memory regions are included in optiflash program, platform.def.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-6
This Document can not be used without Samsung's authorization

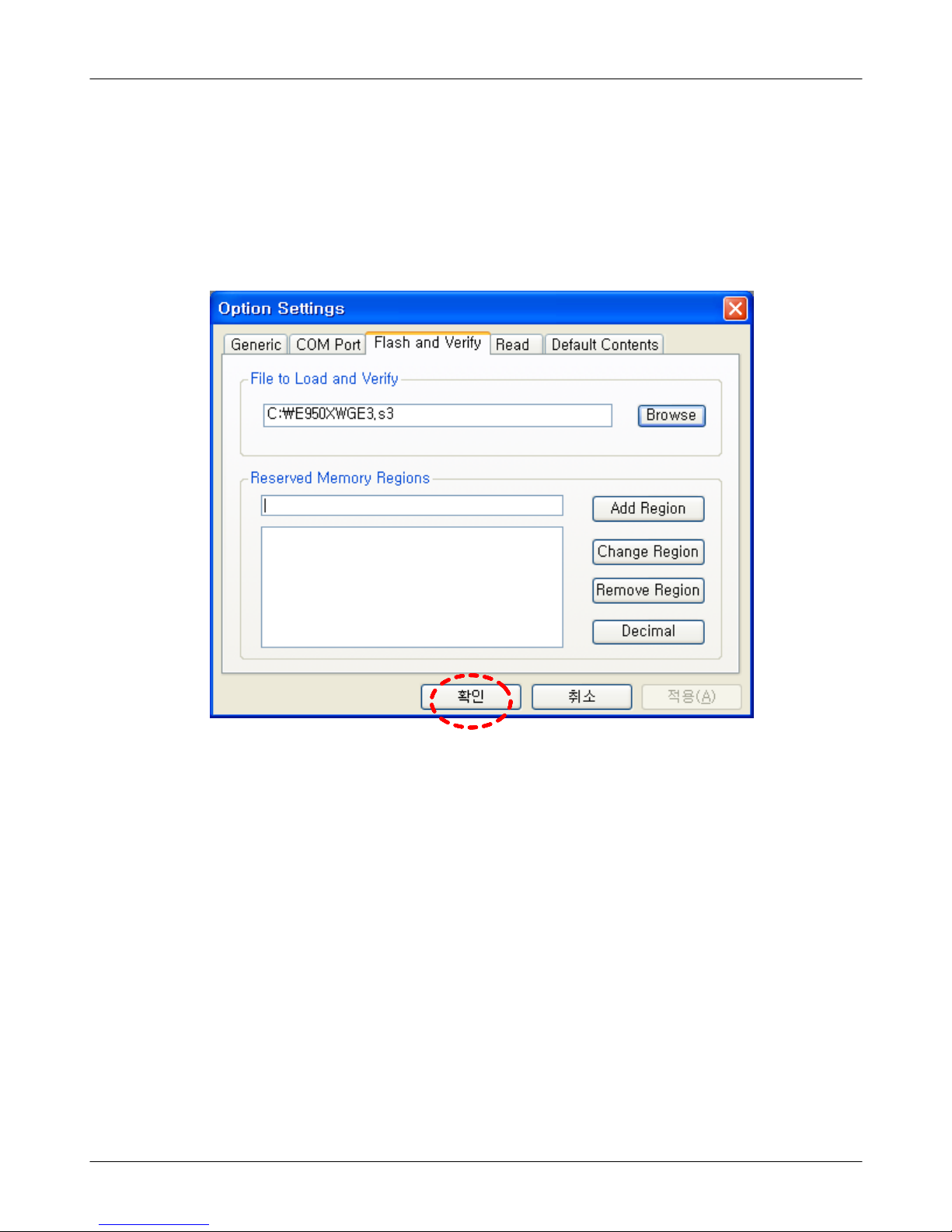

5. Click “OK”button then press “Flash”.
(Before pressing ‘Flash’button, push the button ‘*’and ‘END’at the same time.Then
press ‘Flash’.)
Downloader will upload the binary file as below for the downloading.
6. When downloading is finished successfully, there is a“
All is well”message.
7. After finishing downloading, Certain memory resets should be done to guarantee the
normal performance.
8. Confirm the downloaded version name and etc. :
*#1234#
Full Reset :
*2767*3855#

SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-2
This Document can not be used without Samsung's authorization

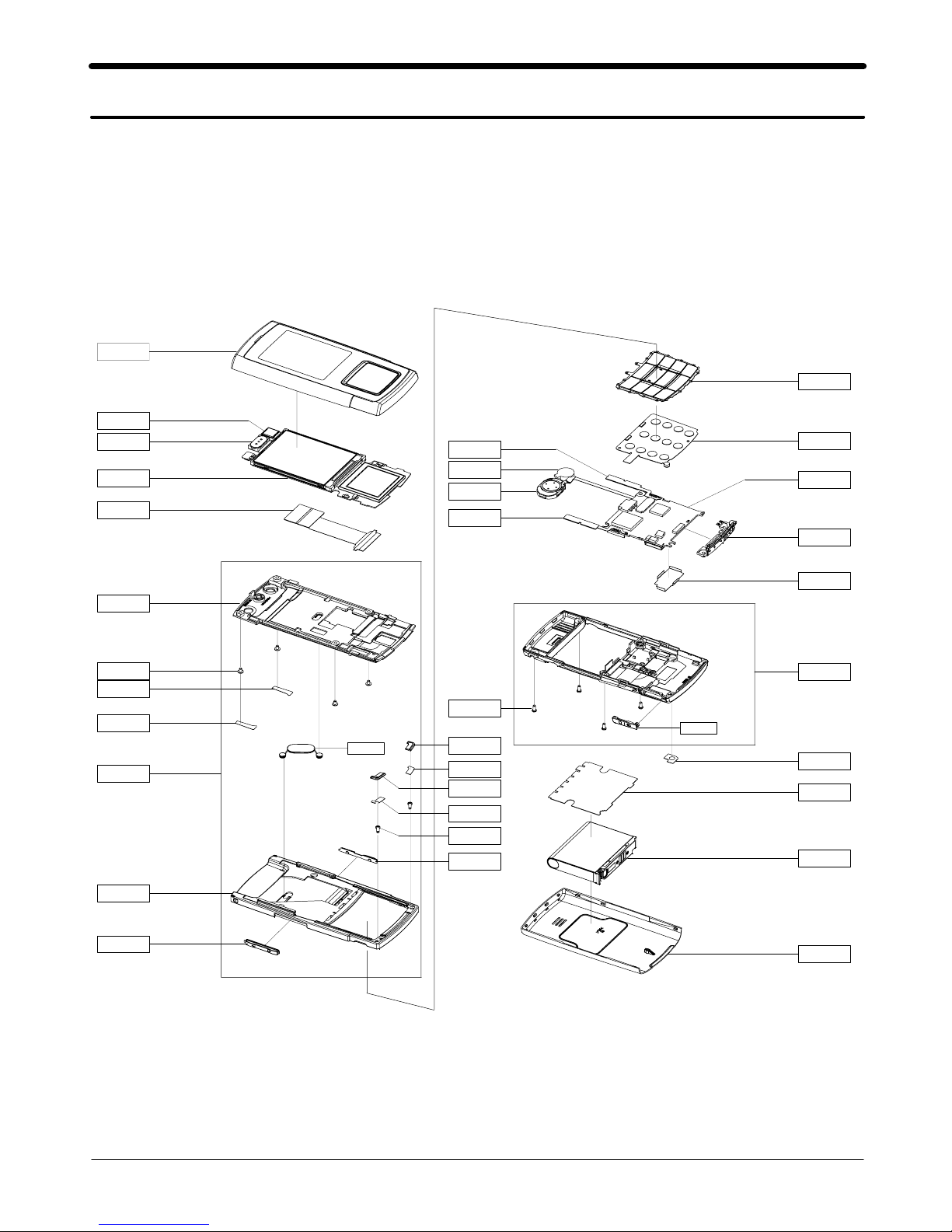

5-1. Cellular phone Exploded View
QFU01
QAR01
QCA01
QLC01
QPC01
QFL01
QFR01
QSC06
QSC05
QCR05
QFR02
QVO01
QSC08
QSP01
QMO01
QCA02
QVK01
QCR09
QSC21
QSC07
QSC20
QCK01
QKP01
QME01
QAN02
QCR09
QSH01
QRE01
QRF01
QSC01
QBA01
QBA00
QMP01
QRF03
QHI01

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
QAN02 INTENNA-SGHE950 GH42-01229A
QAR01 AUDIO-RECEIVER 3009-001274
QBA00 ASSY CASE-BATT GH98-04661A
QBA01 INNER BATTERY PACK-880MAH , BL GH43-02666A
QCA01 CAMERA MODULE GH59-04513A
QCA02 KEY FPCB-SGHE950 SIDE CAM 1 KE GH59-04502A
QCK01 PMO-CAM KEY GH72-39684A
QCR05 SCREW-MACHINE 6001-001478
QCR09 SCREW-MACHINE 6001-001670
QCR09 SCREW-MACHINE 6001-001670
QFL01 ASSY CASE-LOWER GH98-06595A
QFL01 ASSY CASE-LOWER GH98-06595A
QFR01 ASSY CASE-FRONT+LOWER GH98-04663A
QFR02 ASSY CASE-FRONT GH98-06594A
QFR02 ASSY CASE-FRONT GH98-06594A
QFU01 ASSY CASE-UPPER GH98-04662A
QHI01 ASSY HINGE-LINK HINGE GH98-03994A
QKP01 ASSY KEYPAD-(XEF/DSA) GH98-04920A
QLC01 ELA UNIT-SGHE950 LCD MODULE SV GH96-02826A
QME01 KEY FPCB-SGHE950 TF KEY PBA GH59-04504A
QMO01 MOTOR DC-SGH E250 GH31-00304A
QMP01 PBA MAIN-SGHE950 GH92-03584A
QPC01 MEA-SLIDE FPCB KIT GH97-08084A
QRE01 ASSY CASE-REAR GH98-04665A
QRF01 TAPE-RF GH74-35022A
QRF03 PMO-COVER EAR GH72-39675A
QSC01 MPR-TAPE BATT SHEET GH74-31739A
QSC05 TAPE-SCREW SHEET L GH74-33049A
QSC06 TAPE-SCREW SHEET R GH74-33050A
QSC07 PMO-COVER FRONT SCREW L GH72-39679A
QSC08 PMO-COVER FRONT SCREW R GH72-39680A
QSC20 MPR-TAPE FRONT SCREW L GH74-31787A
QSC21 MPR-TAPE FRONT SCREW R GH74-31786A
QSH01 IPR SHIELD-CAN GH70-02602A
QSP01 SPEAKER 3001-002172
QVK01 KEY FPCB-SGHE950 SIDE VOL 2 KE GH59-04503A
QVO01 PMO-VOL KEY GH72-39683A
5-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-3
This Document can not be used without Samsung's authorization
Description SEC CODE
CBF INTERFACE-DLC,X830,BLK,PCB GH39-00720A
ADAPTOR-SGHE690,BLK,EU,A_TYPE GH44-01361A
LABEL(R)-WATER SOAK GH68-09361A
TAPE INSU GH74-18904A
MPR-INSU TAPE SUB CON GH74-31785A
TAPE INSU-SUB LDI GH74-32206A
TAPE GASK GH74-33541A
SPONGE-CAM CON GH74-33951A
TAPE INSU GH74-29554A
MPR-TAPE LCD PCB GH74-31743A
TAPE ELEC-SUB PBA GH74-34666A
TAPE INSU-LCD BACK GH74-32205A
VINYL-BOHO FRONT BUSH GH74-35094A
S/W CD-SGHE950 PC STUDIO 3.1 GH46-00463A
MANUAL USERS-EU FRENCH GH68-15435A
BAG PE 6902-000634
LABEL(P)-UNIT SEAL GH68-00518B
LABEL(P)-OPEN MP3 GH68-11246A
LABEL(R)-MAIN XEF GH68-15775B
BOX(P)-UNIT MAIN EU GH69-05782A
CUSHION-CASE TA2 MA2 GH69-05783A
EARPHONE-SGHJ600,20P,BLK,B-TYP GH59-04923A
VINYL-BOHO UPPER GH74-35650A

SAMSUNG Proprietary-Contents may change without notice
6. MAIN Electrical Parts List
6-1
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription STATUS
0403-001547 ZD200 DIODE-ZENER SA
0403-001547 ZD503 DIODE-ZENER SA
0404-001172 D200 DIODE-SCHOTTKY SA
0406-001210 ZD504 DIODE-TVS SA
0406-001215 ZD500 DIODE-TVS SA
0406-001215 ZD502 DIODE-TVS SA
0406-001223 ZD600 DIODE-TVS SA
0406-001223 ZD601 DIODE-TVS SA
0406-001239 ZD501 DIODE-TVS SA
0406-001256 U602 DIODE-TVS SA
0407-001002 D400 DIODE-ARRAY SA
0505-001518 Q600 FET-SILICON SA
0505-002207 U502 FET-SILICON SA
0801-002958 U600 IC-CMOS LOGIC SA
0801-002995 U300 IC-CMOS LOGIC SA
1001-001231 U506 IC-ANALOG SWITCH SA
1001-001401 U204 IC-ANALOG SWITCH SA
1009-001018 U203 IC-HALL EFFECT S/W SA
1108-000063 UCP200 IC-MCP SA
1201-002233 U410 IC-AUDIO AMP SA
1201-002413 U411 IC-VIDEO AMP SA
1201-002457 PAM100 IC-POWER AMP SA
1203-003340 U403 IC-POSI.FIXED REG. SA
1203-003432 U102 IC-POSI.FIXED REG. SA
1203-003432 U404 IC-POSI.FIXED REG. SA
1203-003737 U401 IC-POSI.FIXED REG. SA
1203-003754 U500 IC-POSI.FIXED REG. SA
1203-003787 U504 IC-POSI.FIXED REG. SA
1203-003789 U601 IC-POWER SUPERVISOR SA
1203-004119 UCP300 IC-POWER SUPERVISOR SA
1203-004518 U301 IC-BATTERY SA
1203-004548 U501 IC-DC/DC CONVERTER SA
1203-004654 U201 IC-DC/DC CONVERTER SA
1204-002138 U206 IC-MELODY SA
1204-002746 U400 IC-TUNER SA
1205-002272 U205 IC-TRANSCEIVER SA

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-2
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription STATUS
1205-002946 U408 IC-CODEC SA
1205-003093 U100 IC-TRANSCEIVER SA
1205-003210 U505 IC-CODEC SA
1205-003235 U103 IC-DATA COMM./GEN. SA
1404-001165 VR301 THERMISTOR-NTC SA
1405-001108 VR622 VARISTOR SA
1405-001177 V400 VARISTOR SA
1405-001177 V401 VARISTOR SA
1405-001177 VR200 VARISTOR SA
1405-001177 VR600 VARISTOR SA
1405-001177 VR601 VARISTOR SA
1405-001177 VR602 VARISTOR SA
1405-001177 VR603 VARISTOR SA
1405-001177 VR604 VARISTOR SA
1405-001177 VR605 VARISTOR SA
1405-001177 VR606 VARISTOR SA
1405-001177 VR607 VARISTOR SA
1405-001177 VR608 VARISTOR SA
1405-001177 VR609 VARISTOR SA
1405-001177 VR610 VARISTOR SA
1405-001177 VR612 VARISTOR SA
1405-001177 VR613 VARISTOR SA
1405-001177 VR614 VARISTOR SA
1405-001177 VR615 VARISTOR SA
1405-001177 VR616 VARISTOR SA
1405-001177 VR617 VARISTOR SA
1405-001177 VR618 VARISTOR SA
1405-001177 VR620 VARISTOR SA
1405-001177 VR621 VARISTOR SA
2007-000171 R123 R-CHIP SA
2007-000171 R124 R-CHIP SA
2007-000171 R125 R-CHIP SA
2007-000171 R126 R-CHIP SA
2007-000171 R227 R-CHIP SA
2007-000171 R414 R-CHIP SA
2007-000171 R556 R-CHIP SA

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-3
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription STATUS
2007-000171 R557 R-CHIP SA
2007-000171 R615 R-CHIP SA
2007-000171 R623 R-CHIP SA
2007-000172 R452 R-CHIP SA
2007-000172 R453 R-CHIP SA
2007-000173 R421 R-CHIP SA
2007-000173 R424 R-CHIP SA
2007-001119 R409 R-CHIP SA
2007-001306 R439 R-CHIP SA
2007-007009 R438 R-CHIP SA
2007-007014 R223 R-CHIP SA
2007-007132 R325 R-CHIP SA
2007-007139 R422 R-CHIP SA
2007-007139 R425 R-CHIP SA
2007-007489 R221 R-CHIP SA
2007-007528 R411 R-CHIP SA
2007-007590 R222 R-CHIP SA
2007-007741 R104 R-CHIP SA
2007-007741 R327 R-CHIP SA
2007-007741 R328 R-CHIP SA
2007-007741 R440 R-CHIP SA
2007-007741 R441 R-CHIP SA
2007-007741 R458 R-CHIP SA
2007-007741 R460 R-CHIP SA
2007-007741 R463 R-CHIP SA
2007-007741 R465 R-CHIP SA
2007-008045 R214 R-CHIP SA
2007-008045 R532 R-CHIP SA
2007-008045 R606 R-CHIP SA
2007-008045 R607 R-CHIP SA
2007-008045 R608 R-CHIP SA
2007-008045 R609 R-CHIP SA
2007-008045 R610 R-CHIP SA
2007-008045 R611 R-CHIP SA
2007-008045 R613 R-CHIP SA
2007-008048 R114 R-CHIP SA

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-4
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription STATUS
2007-008051 R224 R-CHIP SA
2007-008051 R551 R-CHIP SA
2007-008052 R208 R-CHIP SA
2007-008052 R308 R-CHIP SA
2007-008052 R547 R-CHIP SA
2007-008053 R324 R-CHIP SA
2007-008055 R207 R-CHIP SA
2007-008055 R209 R-CHIP SA
2007-008055 R212 R-CHIP SA
2007-008055 R213 R-CHIP SA
2007-008055 R330 R-CHIP SA
2007-008055 R454 R-CHIP SA
2007-008055 R455 R-CHIP SA
2007-008055 R614 R-CHIP SA
2007-008056 R102 R-CHIP SA
2007-008419 R523 R-CHIP SA
2007-008419 R527 R-CHIP SA
2007-008419 R528 R-CHIP SA
2007-008419 R529 R-CHIP SA
2007-008419 R530 R-CHIP SA
2007-008419 R531 R-CHIP SA
2007-008420 R219 R-CHIP SA
2007-008420 R220 R-CHIP SA
2007-008477 R600 R-CHIP SNA
2007-008477 R601 R-CHIP SNA
2007-008477 R602 R-CHIP SNA
2007-008477 R603 R-CHIP SNA
2007-008477 R604 R-CHIP SNA
2007-008477 R605 R-CHIP SNA
2007-008478 R217 R-CHIP SA
2007-008483 R118 R-CHIP SA
2007-008483 R121 R-CHIP SA
2007-008483 R206 R-CHIP SA
2007-008483 R218 R-CHIP SA
2007-008483 R329 R-CHIP SA
2007-008483 R404 R-CHIP SA
