Samsung EO-BG920 User manual

www.samsung.com
User Manual
EO-BG920
08/2015. Rev.1.1

Table of Contents
English(UK)
Français
Deutsch
Italiano
Español
Magyar
Polski
Română
Български
Hrvatski
Srpski
Português
Latviešu
Lietuvių kalba
Eesti
Nederlands
Svenska
Norsk
Suomi
Dansk
Ελληνικά
Slovenščina
Türkçe


Русский
Українська
Қазақ тілі
English(USA)
Español(Castellano)
简体中文
繁體中文(香港)
繁體中文(台灣)
Français(Canada)
Português(Brasil)
한국어

3
Read me first
Please read this manual before using the device to ensure safe and proper use.
•
Images may differ in appearance from the actual product. Content is subject to change
without prior notice.
•
Before using the headset, make sure it is compatible with your device.
Instructional icons
Warning: situations that could cause injury to yourself or others
Caution: situations that could cause damage to your device or other equipment
Note: notes, usage tips, or additional information
English(UK)
1

4
Getting started
Package contents
Check the product box for the following items:
•
Headset
•
Quick start guide
•
The items supplied with the device and any available accessories may vary
depending on the region or service provider.
•
The supplied items are designed only for this device and may not be compatible
with other devices.
•
Appearances and specifications are subject to change without prior notice.
•
You can purchase additional accessories from your local Samsung retailer. Make
sure they are compatible with the device before purchase.
•
Use only Samsung-approved accessories. Using unapproved accessories may cause
the performance problems and malfunctions that are not covered by the warranty.
•
Availability of all accessories is subject to change depending entirely on
manufacturing companies. For more information about available accessories, refer
to the Samsung website.
English(UK)
2

Getting started
5
Device layout
Charger port
Multifunction/Talk
button
Notification light
Magnet
Neckband (Vibration
area)
Volume button
Microphone
Rubber o-ring
Power switch
Left earphone
Microphone
Right earphone
Rubber o-ring
Buttons and functions
Name Function
Power switch
•
Slide to turn the headset on or off.
Multifunction/
Talk button
•
Press to answer or end calls.
•
Press to play or pause multimedia files.
•
Press to reconnect devices when the connection is lost.
•
Press twice to skip to the next file during media playback.
•
Press and hold for one second to reject a call or to launch S Voice .
•
Press and hold for three seconds to enter Bluetooth pairing mode.
English(UK)
3

Getting started
6
Name Function
Volume button
•
Press to adjust the volume during a call or media playback.
•
Press and hold the Volume (-) button to skip to the next file during
media playback.
•
Press and hold the Volume (+) button to skip to the previous file
during media playback.
•
Press and hold the Volume buttons (+ and -) simultaneously for
about a second to turn the vibration feature on or off.
If the vibration feature is turned off when you restart the headset, the feature will be
turned on automatically.
Charging the battery
Charge the battery before using the headset for the first time or when the headset has been
unused for extended periods.
Use only Samsung-approved chargers and cables. Unapproved chargers or cables can
cause the battery to explode or damage the headset.
If the battery is completely discharged, the headset cannot be turned on immediately
when the charger is connected. Allow a depleted battery to charge for a few minutes
before turning on the headset.
Open the charging port cover and connect the headset to a charger.
Connecting the charger improperly may cause serious damage to the headset. Any
damage caused by misuse is not covered by the warranty.
English(UK)
4

Getting started
7
•
Chargers are sold separately.
•
The headset can be used while it is charging, but it may take longer to fully charge
the battery.
•
While charging, the headset may heat up. This is normal and should not affect the
headset’s lifespan or performance. If the battery gets hotter than usual, the charger
may stop charging.
•
If the headset is not charging properly, take the headset to a Samsung Service
Centre.
After fully charging, disconnect the headset from the charger.
•
To save energy, unplug the charger when not in use. The charger does not have a
power switch, so you must unplug the charger from the electric socket when not in
use to avoid wasting power. The charger should remain close to the electric socket
and easily accessible while charging.
•
The socket-outlet shall be installed near the equipment and shall be easily
accessible.
Turning the headset on and off
Slide the Power switch to turn on or off the headset.
On Off
Follow all posted warnings and directions from authorised personnel in areas where
the use of wireless devices is restricted, such as aeroplanes and hospitals.
English(UK)
5

Getting started
8
Notification light identification
The notification light alerts you to the headset’s status.
Status Colour
Power on
•
Flashes blue three times
Power off
•
Flashes red three times
Bluetooth pairing
mode
•
Flashes red and blue
Connected via
Bluetooth
•
Quickly flashes blue three times
Incoming call
•
Flashes blue
Charging
•
Continuously on red
Fully charged
•
Continuously on blue
During use or in
sleep mode
•
Off
•
If the notification light does not work as described, disconnect the charger from
the headset and reconnect it.
•
The notification light may work differently depending on the connected device.
English(UK)
6

9
Connecting via Bluetooth
Bluetooth
About Bluetooth
Bluetooth is a wireless technology standard that uses a 2.4 GHz frequency to connect to
various devices over short distances. It can connect and exchange data with other Bluetooth
enabled devices, such as mobile devices, computers, printers, and other digital home
appliances, without connecting via cables.
Notices for using Bluetooth
•
To avoid problems when connecting your headset to another device, place the devices
close to each other.
•
Ensure that your headset and the other Bluetooth device are within the Bluetooth
connection range (10 m). The distance may vary depending on the environment the
devices are used in.
•
Ensure that there are no obstacles between the headset and a connected device,
including human bodies, walls, corners, or fences.
•
Do not touch the Bluetooth antenna of a connected device.
•
Bluetooth uses the same frequency as some industrial, scientific, medical, and low power
products and interference may occur when making connections near these types of
products.
•
Some devices, especially those that are not tested or approved by the Bluetooth SIG, may
be incompatible with the headset.
•
Do not use the Bluetooth feature for illegal purposes (for example, pirating copies of files
or illegally tapping communications for commercial purposes).
English(UK)
7

Connecting via Bluetooth
10
Connecting to other devices
This headset is compatible with Bluetooth-enabled devices.
1 Headset Slide the Power switch to turn on the headset.
2 Headset Press and hold the Multifunction button for three seconds to enter Bluetooth
pairing mode.
When you turn on the headset for the first time, it automatically enters Bluetooth pairing
mode.
3 Other device Activate the Bluetooth feature and search for Bluetooth devices.
For more information, refer to the other device’s user manual.
4 Other device Tap
Samsung Level U from the list.
•
If the Bluetooth connection fails or other device cannot locate the headset, remove
the device’s information from the other device’s list. Then, try to connect again.
•
If the headset does not work properly, restart it or try to pair the devices again.
•
The Bluetooth connection range and sound quality may vary depending on the
connected devices.
English(UK)
8

Connecting via Bluetooth
11
Connecting additional devices
The headset can connect to up to two Bluetooth-enabled devices at the same time. When
you connect the headset to two devices, the last device you connect is recognised as the
primary device. The other device is recognised as the secondary device.
1 Connect the headset to a device via Bluetooth.
2 Press and hold the Multifunction button for three seconds to re-enter Bluetooth pairing
mode.
The first device will be disconnected.
3 Connect the headset to a second device.
4 Reconnect the headset to the first device.
This feature may not be supported on some devices.
Reconnecting or disconnecting the devices
Reconnecting the devices
When your headset is disconnected from the device due to the distance between the devices,
bring the devices closer together to pair them again.
If the connection is lost due to a problem with the connected device, press the Multifunction
button on the headset. You can also access the Bluetooth menu on the connected device to
pair them again.
Disconnecting the devices
Press and hold the Multifunction button for three seconds. Then, the connection ends and
the headset enters Bluetooth pairing mode.
You can also end the connection by turning off the headset. When you turn on the headset
again and the devices are in range, the headset automatically connects with the most
recently paired device.
English(UK)
9

12
Using the headset
Wearing the headset
The headset contains magnets in its earbuds. The American Heart Association (US)
and the Medicines and Healthcare Products Regulatory Agency (UK) both warn
that magnets can affect the operation of implanted pacemakers, cardioverters,
defibrillators, insulin pumps or other electro medical devices (collectively,“Medical
Device”) within the range of 15 cm (6 inches). If you are a user of any of these Medical
Devices, DO NOT USE THE HEADSET UNLESS YOU HAVE CONSULTED WITH YOUR
PHYSICIAN.
•
Do not store your headset near magnetic fields. Magnetic stripe cards, including
credit cards, phone cards, passbooks, and boarding passes, may be damaged by
magnetic fields.
•
Do not bend or twist the headset excessively.
•
Do not apply excessive pressure to the headset.
•
Do not pull on any part of the headset excessively.
1 Select the earbud tip for the left or right ear.
Each earbud tip is marked with L for the left ear and R for the right ear.
2 Cover the latch at the bottom of the earphone with the earbud tip.
English(UK)
10

Using the headset
13

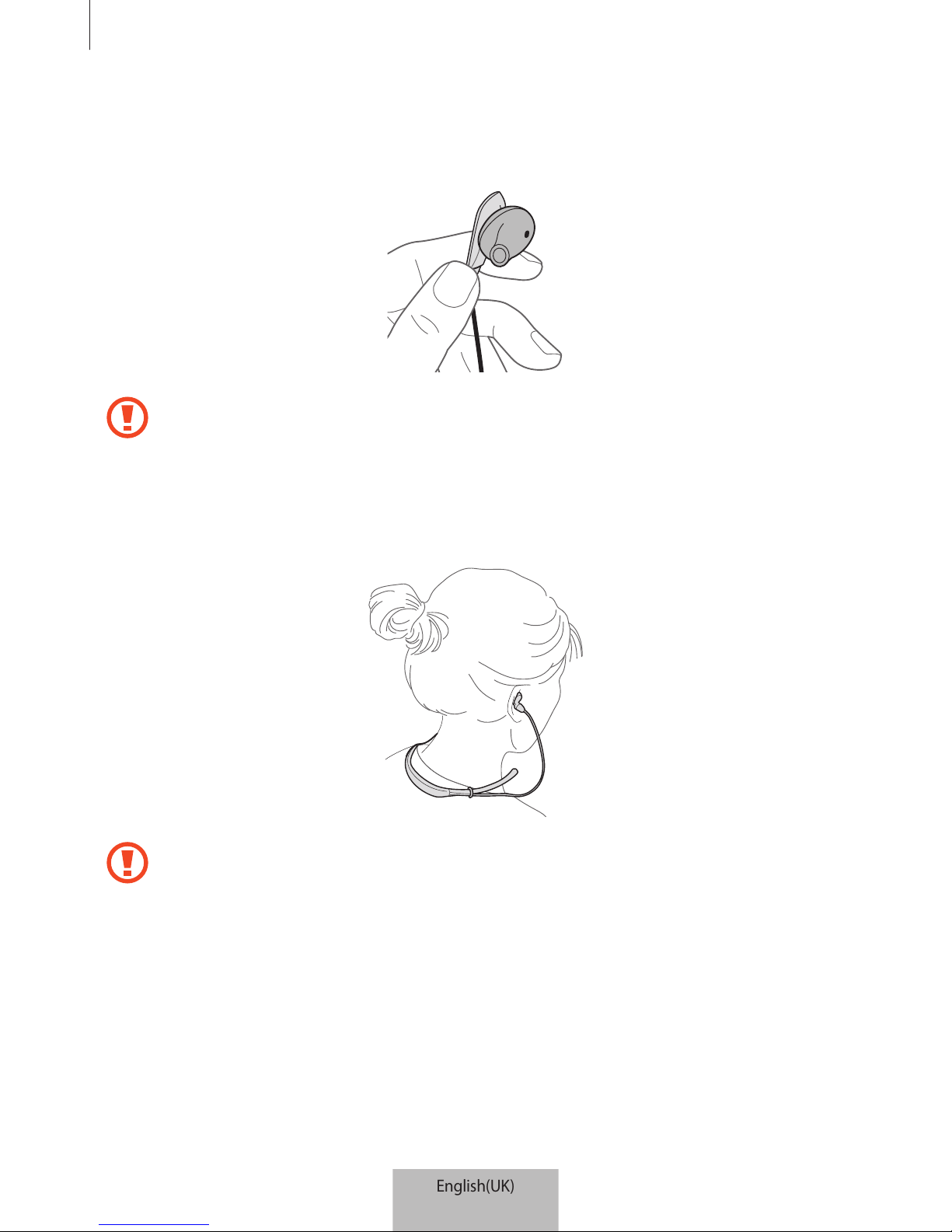

3 Hold the bottom of the earphone and cover the rest of the earphone with the earbud tip.
Follow this procedure for the other earphone.
•
Do not put the earphones in your ears without earbud tips.
•
Do not pull the earbud tip excessively. The earbud tip may tear.
4 Wear the headset as shown in the image below.
You can reposition the rubber o-rings.
Do not pull the rubber o-rings excessively. The rings may tear.
English(UK)
11

Using the headset
14
Wearing and connecting the headset
Wearing the headset
Insert the earphones into your ears or wear the headset around your neck while the
earphones are not connected to each other.
Connecting the earphones
Connect the earphones to each other using the built-in magnets.
The earphones may not connect properly depending on the shape of provided
earbud tips. Ensure that the earphones are correctly connected.
English(UK)
12

Using the headset
15
Using the headset
Various features are available when the headset is connected to another device.
The following descriptions are based on a Samsung mobile device running Android
5.0. Some features may not be available depending on the connected device.
Calling features
Answering a call
When a call comes in while you are wearing the headset, the headset will beep and vibrate.
Press the Talk button to answer the call.
•
When the headset is connected to two devices and both devices receive calls
simultaneously, you can only answer the primary device’s call.
•
When you play a multimedia file from one device, you can still answer calls from
the other device.
Rejecting a call
Press and hold the Talk button for one second.
Adjusting the volume
Press the Volume button.
Switching sound output
Use the connected device’s call features to switch call audio between the headset and the
device.
Ending a call
Press the Talk button.
English(UK)
13

Using the headset
16
Playing multimedia files
Control media playback, such as music and videos, using the Multifunction button.
Playing and pausing a multimedia file
Press the Multifunction button. The most recently-played music file will play automatically in
the default music app installed on the connected device.
During playback, press the Multifunction button to pause playback. To resume playback,
press the Multifunction button again.
When two connected devices are simultaneously playing multimedia files, the
headset will stream from the device that started playing a file first. When you pause
the currently-playing file, the file playing on the other device will play automatically.
Skipping to the next multimedia file
Press the Multifunction button twice or press and hold the Volume (-) button to skip to the
next file during playback.
Skipping to the previous multimedia file
Press and hold the Volume (+) button to skip to the previous file during playback.
Adjusting the volume
Press the Volume button.
English(UK)
14

Using the headset
17
Launching S Voice
Press and hold the Multifunction button for one second. The S Voice app will launch on the
connected device.
This feature is available only with Samsung mobile devices supporting the S Voice
app.
Using Samsung Level
On the connected device, download the Samsung Level app from Google Play Store or
Galaxy Apps. With the app, you can check the remaining battery power and adjust the
volume. You can also set the headset to notify you via voice notification or vibrate when you
have notifications on the connected device. For more information, refer to the app’s help
menu.
The Samsung Level app is compatible with Samsung mobile devices running Android
operating system 4.2.2 or later. Depending on your device’s specifications, some
features may not work on your headset.
English(UK)
15

18
Appendix
Troubleshooting
Before contacting a Samsung Service Centre, please attempt the following solutions.
Your headset does not turn on
When the battery is completely discharged, your headset will not turn on. Charge the battery
completely before turning on the headset.
The battery does not charge properly (For Samsung-approved
chargers)
Ensure that the charger is connected properly.
If the problem is still not resolved, contact a Samsung Service Centre.
Another Bluetooth device cannot locate your headset
•
Ensure that your headset is in Bluetooth pairing mode.
•
Restart your headset and search for the headset again.
•
Ensure that your headset and the other Bluetooth device are within the Bluetooth
connection range (10 m).
If the tips above do not solve the problem, contact a Samsung Service Centre.
Your headset is not connected to another device
•
Ensure that the device you wish to connect with supports the Bluetooth wireless feature.
•
Ensure that your headset and the other Bluetooth device are within the maximum
Bluetooth range (10 m).
English(UK)
16

Appendix
19
Bluetooth connection is often disconnected
•
If there are obstacles between the devices, the operating distance may be reduced.
•
Ensure that your headset and the other Bluetooth device are within the maximum
Bluetooth range (10 m).
•
When using the headset with other Bluetooth devices, the connection may be affected
by electromagnetic waves. Use the headset in environments with fewer wireless devices
present.
You cannot hear others speaking
•
Adjust the device volume.
•
Adjust the volume on the connected device when you cannot hear sounds on your
headset at full volume.
Sound echoes during a call
Adjust the volume by pressing the Volume button or move to another area.
Others cannot hear you speaking on a call
•
Ensure that you are not covering the built-in microphone.
•
Ensure that the microphone is close to your mouth.
Audio quality is poor
•
Wireless network services may be disabled due to issues with the service provider’s
network. Ensure to keep the headset away from electromagnetic waves.
•
Ensure that your headset and the other Bluetooth device are within the maximum
Bluetooth range (10 m).
The headset works differently as described in the manual
•
Available functions may differ depending on the connected device.
•
Some features cannot be used when two devices are connected with the headset at the
same time.
English(UK)
17

Appendix
20
The battery depletes faster than when first purchased
•
When you expose the headset or the battery to very cold or very hot temperatures, the
useful charge may be reduced.
•
The battery is consumable and the useful charge will get shorter over time.
Removing the battery
•
To remove the battery, you must visit an authorised service centre with the provided
instructions.
•
For your safety, you must not attempt to remove the battery. If the battery is not
properly removed, it may lead to damage to the battery and device, cause personal
injury, and/or result in the device being unsafe.
•
Samsung does not accept liability for any damage or loss (whether in contract or tort,
including negligence) which may arise from failure to precisely follow these warnings and
instructions, other than death or personal injury caused by Samsung’s negligence.
1 Remove the rubber cover from the left side of the neckband by pulling it from the end of
the left neckband. Then, remove the left neckband.
2 Separate the earphone cable from the neckband cover.
3 Remove the neckband cover.
4 Disconnect the battery connector.
5 Lift the battery and cut the cables.
6 Remove the battery.
English(UK)
18
