Samsung MWR-WW00N User manual

Wired Remote Control
MWR-WW00N
DVM Hydro unit / Hydro unit HT
installation manual
imagine the possibilities
Thank you for purchasing this Samsung
product.
DB68-03973A-06
DVM HT_HE RC-EU_IM_EN_DB68-03973A-06.indd 1 2017-05-25 오후 4:18:26

2
Safety information
This installation manual explains how to install a wired remote controller connected to a Hydro unit/Hydro unit HT.
Please read this manual thoroughly before installing the remote controller.
(Please refer to the corresponding installation manual for product and other optional installation.)
WARNING Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION Hazards or unsafe practices that may result in minor personal injury or property damage.
WARNING
Contact a service center for installation.
 Failure to do so may result in product malfunction, water leak, electric shock and re.
Install the product with rated power supply.
 Failure to do so may result in re or damage to a wired remote controller.
Do not modify or repair the wired remote controller yourself.
 Failure to do so may result in product malfunction, electric shock, and re. When you need to repair the product, you
should contact a service center.
All the electric work should be performed in accordance with local regulation and installation manual by a certied
technician.
 Failure to do so may result in product malfunction, electric shock and re due to defect.
Install the product on a hard and even surface that can support its weight.
 If the surface cannot support its weight, the wired remote controller may fall down and it may cause product damage.
Do not move or reinstall the connected wired remote controller yourself.
 Failure to do so may result in electric shock and re.
Check whether the installation work is correctly performed in accordance with installation manual.
 When the wired remote controller is incorrectly installed, electric shock and re may occur.
When disposing of the wired remote controller, please contact a service center.
DVM HT_HE RC-EU_IM_EN_DB68-03973A-06.indd 2 2017-05-25 오후 4:18:26

3
ENGLISH
CAUTION
Do not install the product where imammable content may leak.
 Failure to do so may result in re and explosion.
Ensure no water gets into the wired remote controller.
 Failure to do so may result in electric shock and re.
Install the product away from direct exposure to sunlight, in room temperature range of 0°C(32°F)~39°C(102°F).
 Failure to do so may result in electric shock or abnormal operation.
Do not handle the product with sharp objects.
 Failure to do so may result in electric shock or part damage.
Do not install the product in specic areas exposed to oil or vapor.
 Failure to do so may result in part damage or abnormal operation.
Do not put undue stress on the power cable.
 Failure to do so may result in broken cable and re.
Do not install the product in areas where acid or alkali liquid or special spray are used.
 Failure to do so may result in electric shock or abnormal operation.
Do not connect power cable to a communication terminal.
 Failure to do so may result in re.
Be cautious not to interfere with any other electrical devices if the product is installed in a place such as hospital.
 Failure to do so may result in abnormal operation.
DVM HT_HE RC-EU_IM_EN_DB68-03973A-06.indd 3 2017-05-25 오후 4:18:26

4
Wired remote controller installation

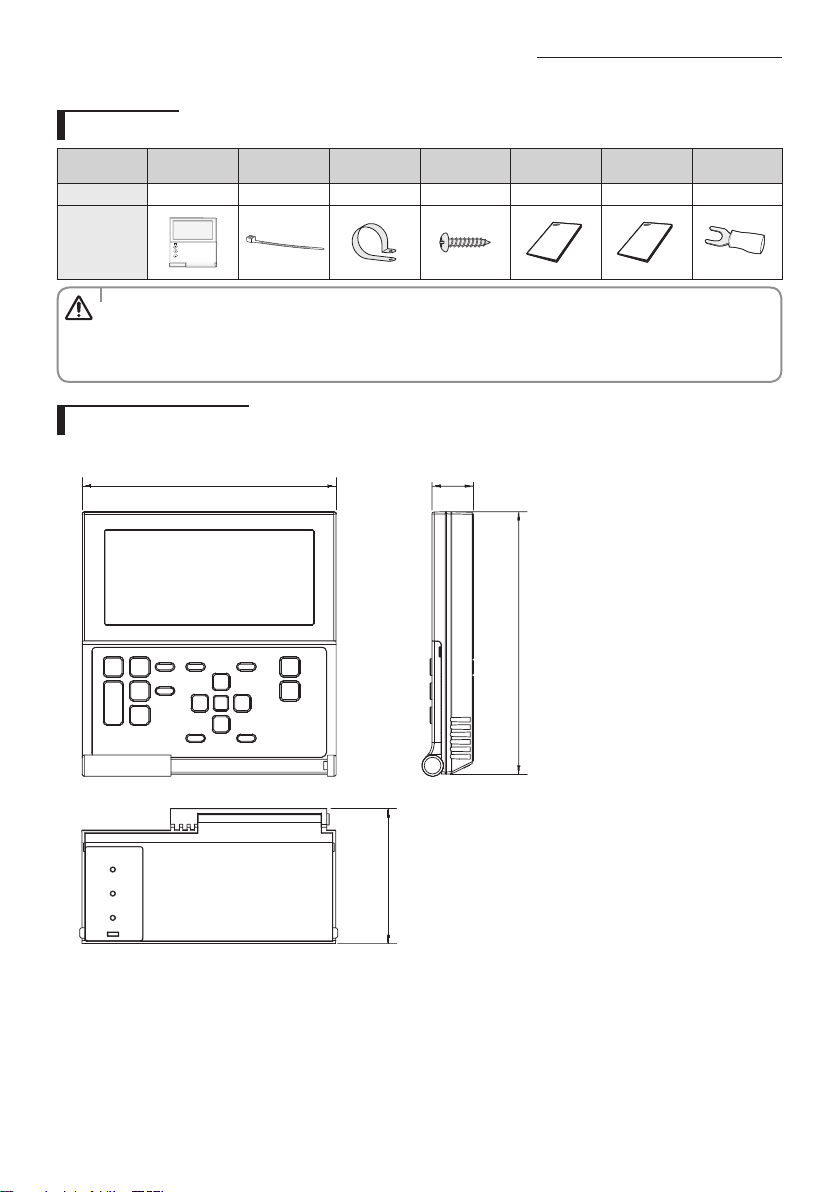

Accessories
Name Wired remote
controller Cable tie Cable clamp M4X16 Screw User Manual Installation Manual U-Terminal
Quantity 1235116
Shape
• The wired remote controller should be installed by a certied technician.
• Check and conrm the power is o before installing your wired remote controller.
• Install the wired remote controller cables in accordance with the electrical wiring regulation, and allow it to pass
through the inner area of the wall so that other people can’t reach it.
CAUTION
External Dimensions
120(4.72)
124(4.88)
63.8(2.51)
19.5(0.76)
Unit : mm(inch)
DVM HT_HE RC-EU_IM_EN_DB68-03973A-06.indd 4 2017-05-25 오후 4:18:27

5
ENGLISH

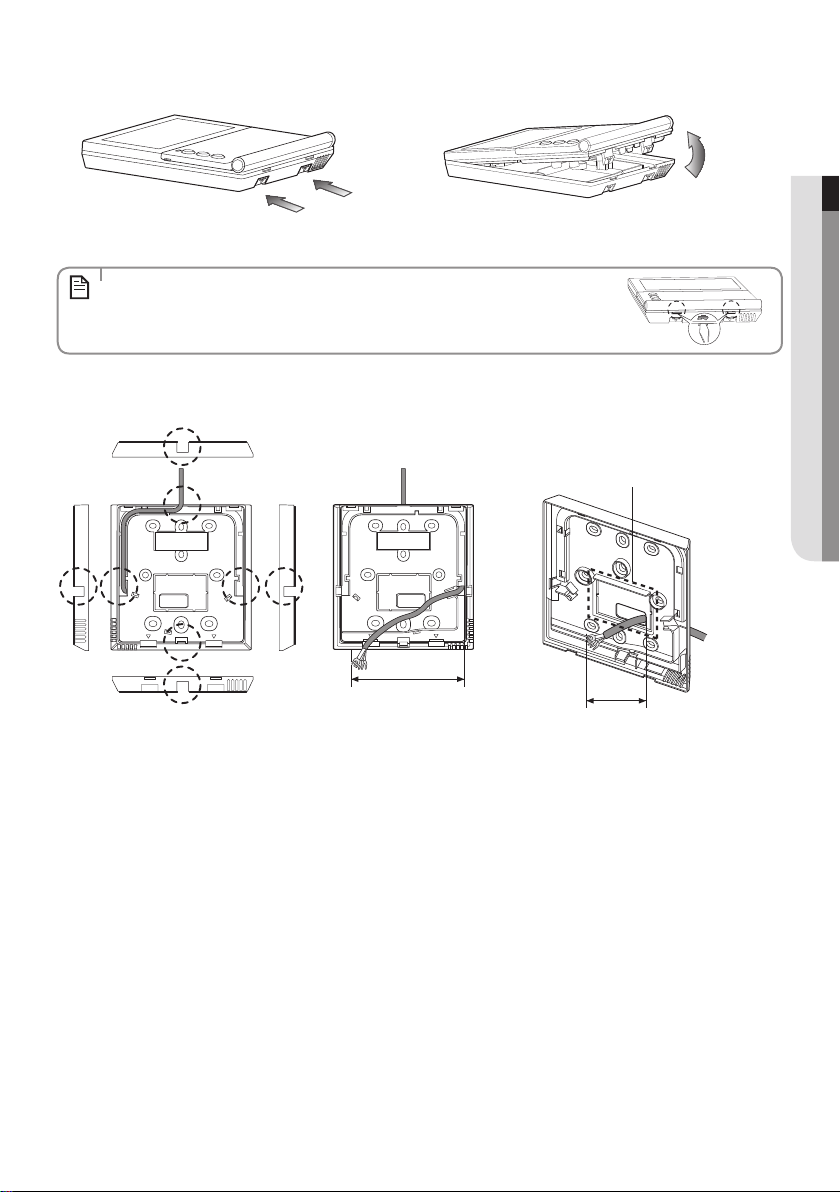

1. Push the two hooks at the bottom of your Wired Remote Controller at the same time, and then pull up the front cover to
separate it from the rear cover.
 Push the two hooks at the same time.
NOTE
• Insert a at head screwdriver into the square groove in the upper area of the hook
to disassemble it easily.
2. Arrange the communication cable so that they t in the housing along the edges of the rear cover.
If you need more space for the wiring
work, you can take it o.
15cm(5.90)
<When the cable is not concealed> <When the cable is concealed>
10cm(3.93)
DVM HT_HE RC-EU_IM_EN_DB68-03973A-06.indd 5 2017-05-25 오후 4:18:27

6
3. Using more than two screws, rmly ax the rear cover of the remote controller to the wall, and then connect
communication cables(F3, F4), making sure these cables have reasonable length, to the terminal at the back of the cover.
10mm (0.4inch) or more
10mm (0.4inch)
or more
50mm (2inch) or more
10mm (0.4inch) or more
Rear cover
Screw hole
Wire (not supplied)
PCB terminal
Front cover
Wired remote
controller
Hydro unit/Hydro unit HT
Hydro unit/Hydro
unit HT PCB
 Before xing the rear cover, allow
at least 10mm(0.4inch) space of
upper side, left side, right side, and
50mm(2inch) space of bottom
side.
 You must t the screws into the
screw holes.
 Do not tighten the screws on the
PCB terminal with excessive force.
4. Reassemble your wired remote controller.
NOTE
• Align the controller with the upper groove rst, and insert it by turning it downward as shown in the
gure. After assembly, check and conrm that no wires are stuck in the gap between the rear and
front cover.
Wired remote controller installation
DVM HT_HE RC-EU_IM_EN_DB68-03973A-06.indd 6 2017-05-25 오후 4:18:28

7
ENGLISH
• When installing a wired remote controller by using a cable longer than 10m, you must install the
communication cable and the power cable separately. (Electrical interference can cause your wired remote
controller to malfunction.)
• When installing your wired remote controller on the wall, consider the size of the wire hole, and select a wire
with a proper thickness.
• Wire that is connectable to wired remote controller PCB.
- If you install the wired remote controller by reclaiming, install it according to U-terminal cable specication.
- If you install the Wired Remote Controller by using two pieces of PVC wire, remove the 30 cm(12 inch) of the
sheath of the cable and install it only with the two pieces of wires. (Recommended specication: AWG20)
- The followings are the specs of the compressed ring terminal connectable to your wired remote controller PCB
W
t
G
E
F
L
Stud D
Stud
Range of Permitted
Wires Rated Size Stud Size Basic Size (mm)
AWG mm2mm2mm tøD G E F W L
22 ~ 16 0.25 ~ 1.65 1.5 30.7 3.8 10.0 4.5 6.5 6.0 21.2
 Maximum distance for connection between communication cable and power
cable: 100m
- ScrewsonthePCBterminalmustbetightenedwithlessthan6N•mtighteningtorque.Ifthetighteningtorque
is greater, it may damage the screw thread.
CAUTION
DVM HT_HE RC-EU_IM_EN_DB68-03973A-06.indd 7 2017-05-25 오후 4:18:28

8
Wired remote controller installation
Tracking Hydro unit/Hydro unit HT from a wired remote controller
The number of Hydro unit/Hydro unit HT
currently detected
Display tracking is
being performed.
1. Tracking of your wired remote controller will automatically start when you turn on the power after installation.
2. If you want to perform tracking again after installation, press the Esc and Delete buttons at the same time for more
than 5 seconds.
 The system will reset, and tracking will start again.
3. During the tracking, the total number of currently searched Hydro unit/Hydro unit HT will be displayed.
• If you want to do system reset for your wired remote controller, press the Esc and Delete buttons at the same
time for more than 5 seconds.
CAUTION
DVM HT_HE RC-EU_IM_EN_DB68-03973A-06.indd 8 2017-05-25 오후 4:18:28

9
ENGLISH

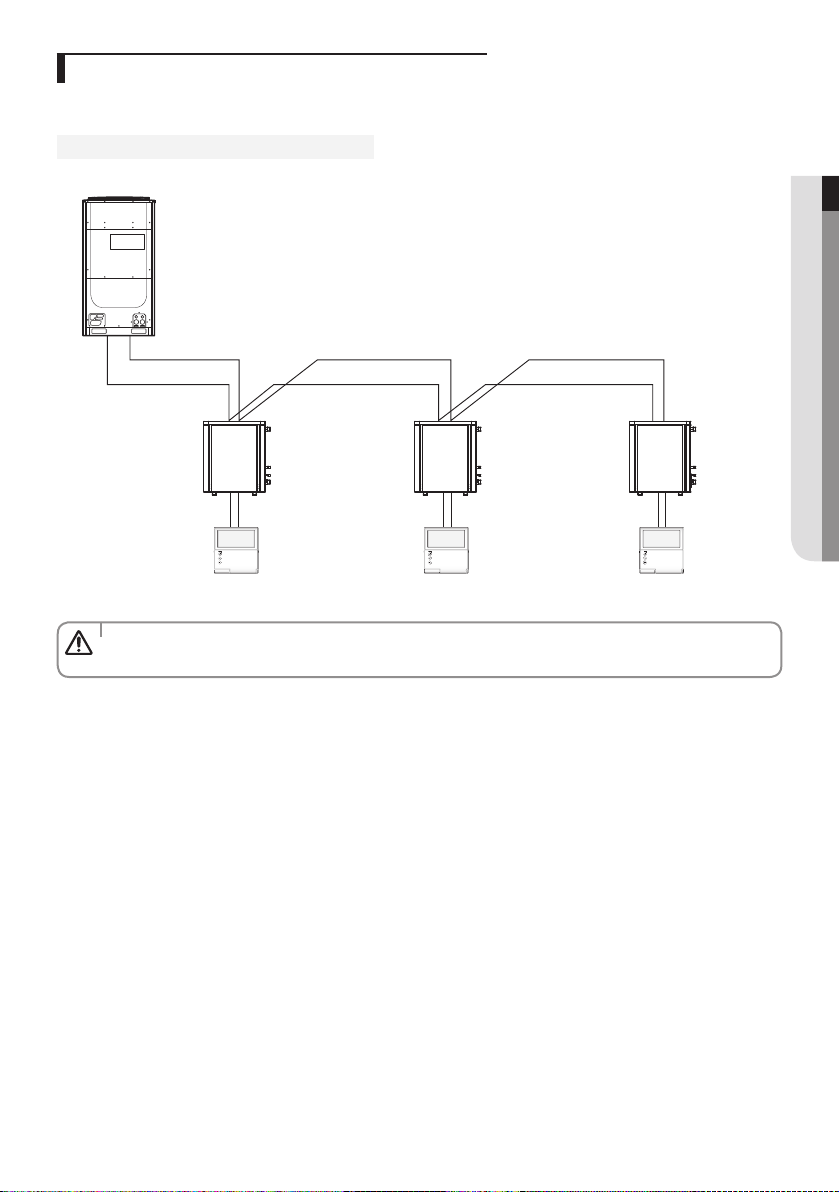

Individual control with your wired remote controller
 Individual control means that you are using one remote controller to control one indoor unit or one Hydro unit/Hydro
unit HT.
When connecting the Hydro unit/Hydro unit HT only
Outdoor unit
COM1(F1, F2)
COM2(F3, F4) COM2(F3, F4)COM2(F3, F4)
COM1(F1, F2)
Hydro
unit/
Hydro
unit HT
Wired remote
controller
Wired remote
controller
Wired remote
controller
Hydro
unit/
Hydro
unit HT
Hydro
unit/
Hydro
unit HT
• Regardless of the Hydro unit/Hydro unit HT group address (RMC address) setting, only the Hydro unit/Hydro unit
HT connected to COM2 is individually controlled.
CAUTION
DVM HT_HE RC-EU_IM_EN_DB68-03973A-06.indd 9 2017-05-25 오후 4:18:28

10
Wired remote controller installation
Group control with your wired remote controller
 Group control means that you are using one wired remote controller to control two or more Hydro unit/Hydro unit HTs at
the same time.
When connecting the Hydro unit/Hydro unit HT only
1) Using one wired remote controller to control three Hydro unit/Hydro unit HTs
Outdoor unit
COM1(F1, F2)COM1(F1, F2)
COM2(F3, F4) COM2(F3, F4)
COM1(F1, F2)
Hydro
unit/
Hydro
unit HT
Wired remote
controller
Hydro
unit/
Hydro
unit HT
Hydro
unit/
Hydro
unit HT
2) Using one wired remote controller to control Hydro unit/Hydro unit HTs connected to dierent outdoor unit
Outdoor unit
Outdoor unit
COM1(F1, F2)
COM1(F1, F2)
COM2(F3, F4)
COM2(F3, F4)
Hydro
unit/
Hydro
unit HT
Hydro
unit/
Hydro
unit HT
Wired remote
controller
• Regardless of the Hydro unit/Hydro unit HT group address (RMC address), only the Hydro unit/Hydro unit HTs
connected to COM2 are controlled in group.
• Regardless of your outdoor units, you can control a maximum of 16 Hydro unit/Hydro unit HTs as a group.
CAUTION
DVM HT_HE RC-EU_IM_EN_DB68-03973A-06.indd 10 2017-05-25 오후 4:18:29

11
ENGLISH

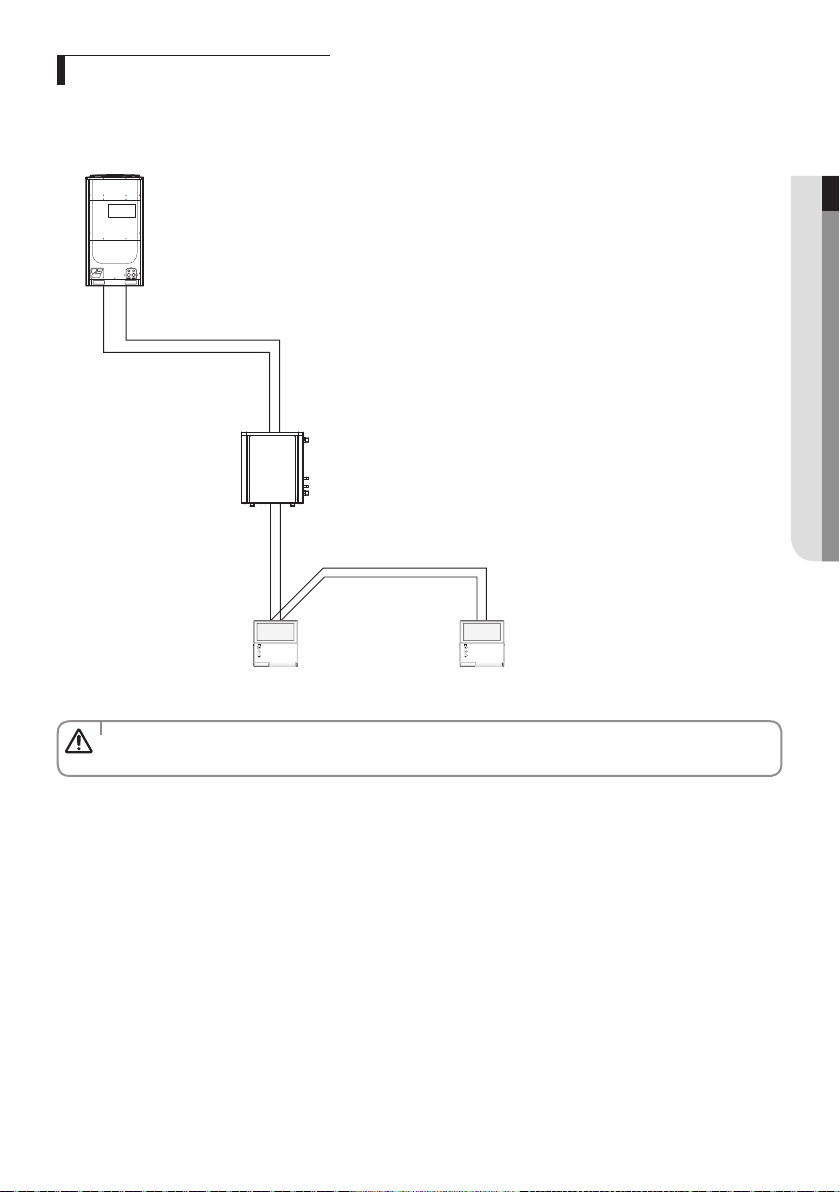

Controlling 2-remote controller
 2-Remote controller is controlling one Hydro unit/Hydro unit HT with two remote controllers.
 When setting the wired remote controller as‘Indoor temperature standard/wired remote controller sensor use’, please
install the master remote controller at indoor places.
Outdoor unit
Wired remote
controller (Slave)
COM1(F1, F2)
COM2(F3, F4)
Hydro
unit/
Hydro
unit HT
Wired remote
controller (Master)
• For the slave wired remote controller settings, please refer to the sections about the wired remote controller
installation/service mode. (Refer to page17) 0: Master, 1: Slave
CAUTION
DVM HT_HE RC-EU_IM_EN_DB68-03973A-06.indd 11 2017-05-25 오후 4:18:29

12
Wired remote controller installation

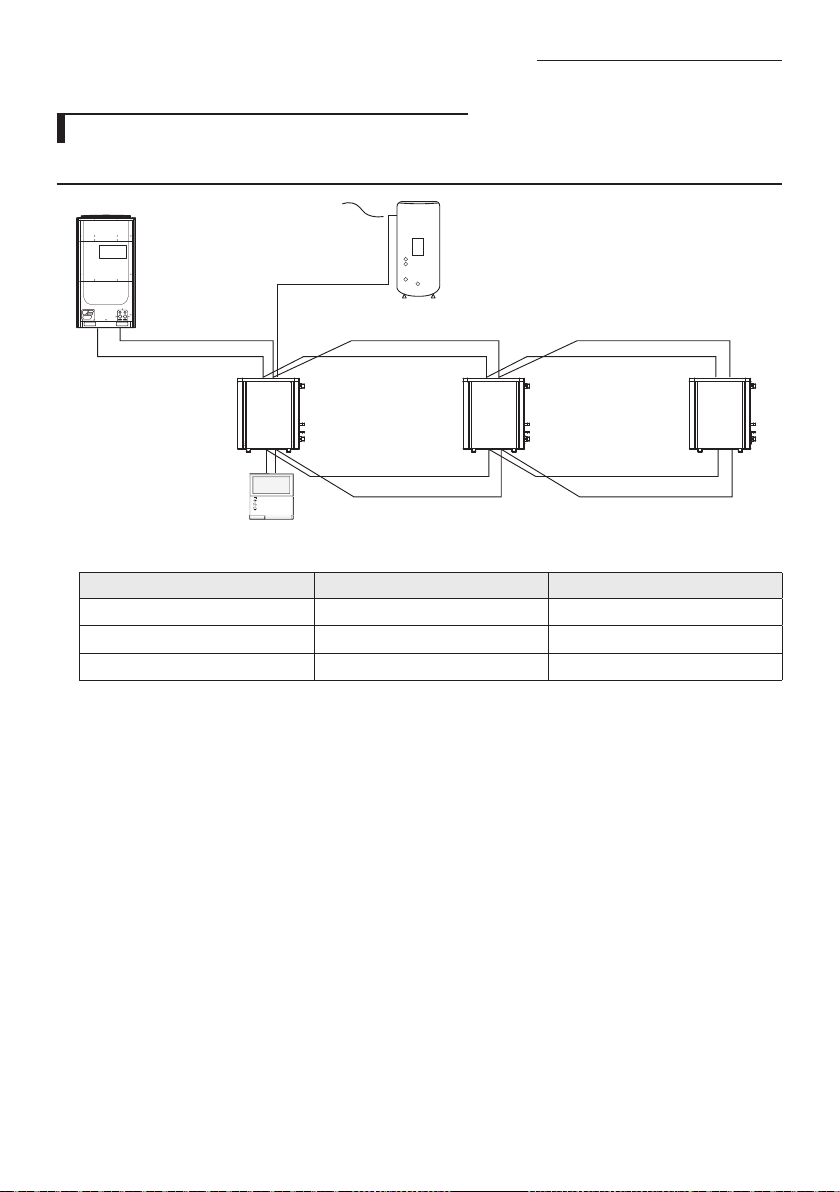

Sharing the temperature of hot water tank sensor
Connecting one wired remote controller
Outdoor unit
COM1(F1, F2)COM1(F1, F2)
COM2(F3, F4) COM2(F3, F4)
COM1(F1, F2)
Hydro
unit/
Hydro
unit HT
Wired remote
controller
Hydro
unit/
Hydro
unit HT
Hydro
unit/
Hydro
unit HT
Unit No. 1 Unit No. 2 Unit No. 3
Hot water tank sensor
Hot water tank
ex)
Unit No. Water tank sensor cable wiring 05 Series install option SEG24 setting
1Connected 0
2Not connected 1
3Not connected 1
DVM HT_HE RC-EU_IM_EN_DB68-03973A-06.indd 12 2017-05-25 오후 4:18:30

13
ENGLISH

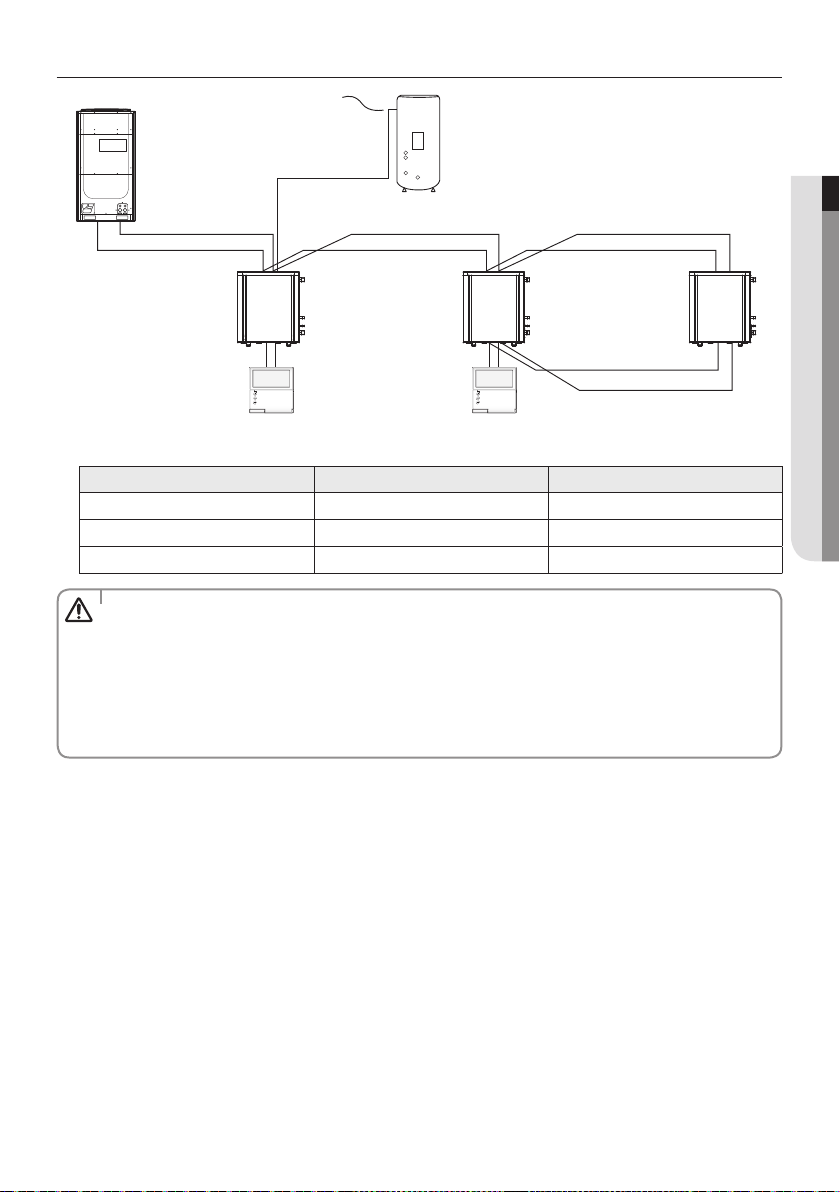

Connecting 2 or more wired remote controller
Outdoor unit
COM1(F1, F2)COM1(F1, F2)
COM2(F3, F4) COM2(F3, F4)
COM1(F1, F2)
Hydro
unit/
Hydro
unit HT
Wired remote
controller
Wired remote
controller
Hydro
unit/
Hydro
unit HT
Hydro
unit/
Hydro
unit HT
Unit No. 1 Unit No. 2 Unit No. 3
Hot water tank sensor
Hot water tank
ex)
Unit No. Water tank sensor cable wiring 05 Series install option SEG24 setting
1Connected 0
2Connected 0
3Not connected 1
• If the hydro unit/ hydro unit HT needs to share the temperature value of the hot water tank, it must be
connected to the same remote controller that is connected to other hydro unit/ hydro unit HT that is connected
directly to the hot water tank with a temperature sensor. Also, when there are more than 2 wired remote
controllers, they should be connected to same communication line.
• When multiple units (hydro unit/hydro unit HT) are connected to one wired remote controller, type of the units
must be same.
- Dierent types of units (hydro unit/ hydro unit HT) should not be connected to the same wire remote
controller
CAUTION
DVM HT_HE RC-EU_IM_EN_DB68-03973A-06.indd 13 2017-05-25 오후 4:18:30

14
Wired remote controller installation

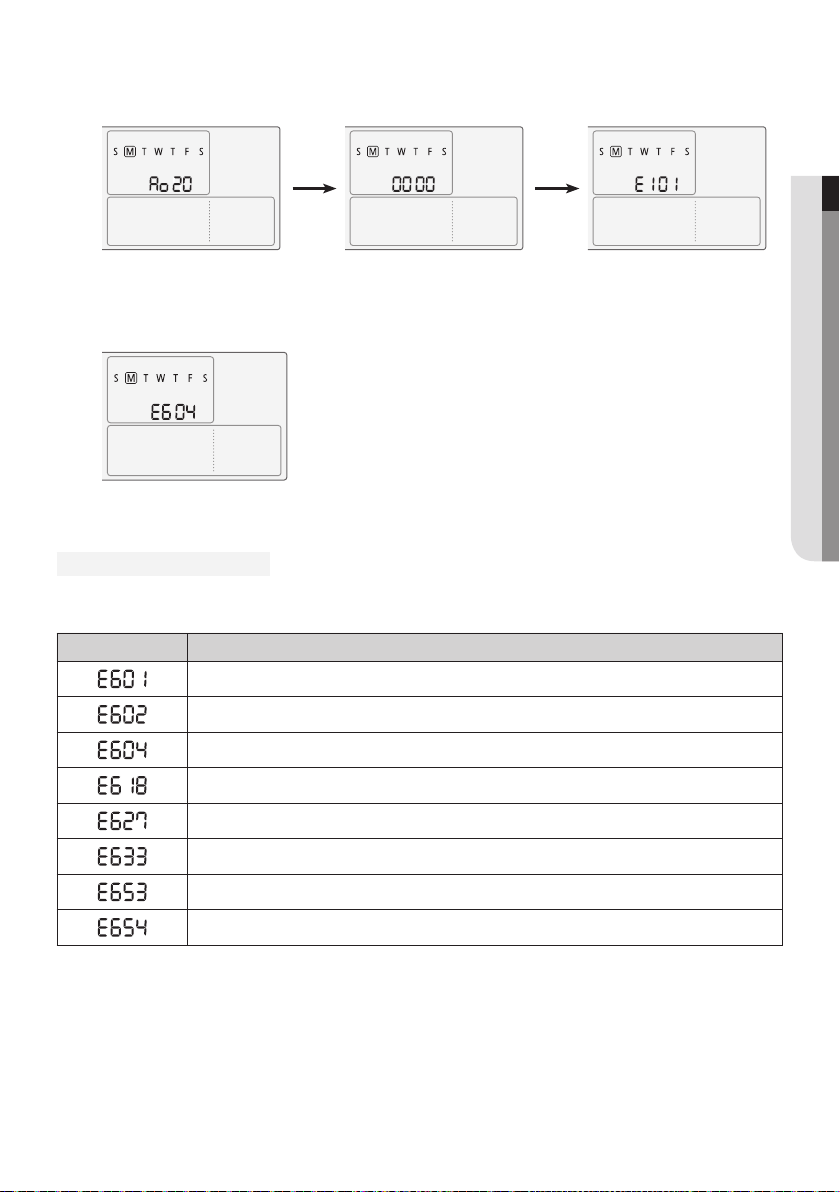

Initializing your wired remote controller communication
1. Press the Esc and Delete buttons at the same time for more than 5 seconds.
 The communication of your wired remote controller will be initialized, and the device will search for the Hydro unit/Hydro
unit HT connected to your wired remote controller again.
Error display on the wired remote controller
 The address of Hydro unit is displayed“200000”
 Error codes for the wired remote controller and the product connected to your wired remote controller will be displayed
in the LCD display.
Error indications are displayed as seen below.
1) Hydro unit/Hydro unit HT error
 The address of Error,“Ai”and the error code will be displayed alternately on the remote controller display.
DVM HT_HE RC-EU_IM_EN_DB68-03973A-06.indd 14 2017-05-25 오후 4:18:30

15
ENGLISH
2) Outdoor unit error
 The address of Error,“Ao”and error code will be displayed alternately on the remote controller display.
3) Wired remote controller error
 The error code will blink at 0.5 second interval on the remote controller display and the address of error will not
be displayed.
Wired remote controller error code
Error codes
For errors on Hydro unit, please refer to the installation manual of the Hydro unit.
Display Contents
Communication error between remote controller and the Hydro unit/Hydro unit HT
Communication error between master and slave remote controller
Tracking error between remote controller and the Hydro unit/Hydro unit HT
Error due to exceeding maximum numbers of Hydro unit installation (16 units)
Error due to exceeding maximum numbers of wired remote controller installation (2 units)
Error caused by installing mixed models
Remote controller's temperature sensor is disconnected or has problem
Data error on remote controller (Memory read/write error)
DVM HT_HE RC-EU_IM_EN_DB68-03973A-06.indd 15 2017-05-25 오후 4:18:31

16
Use of wired remote controller installation / service mode
Use of installation/service mode
1 2 3 4
Main menu
Sub-menu
SEG Used
1. If you want to use the installation/service mode for your wired remote controller, press the Set and ESC buttons at
the same time for more than 3 seconds.
 You will enter the installation/service settings, and the 'main menu' will be displayed.
2. Refer to the list of installation / service setting mode for your wired remote controller on the next page, and select
the desired menu.
 Using the [∧]/[∨] buttons, select a main menu number and press the [＞] button to enter the sub-menu setting
screen.
 Using the [∧]/[∨] buttons, select a sub-menu number and press the [＞] button to enter data setting screen.
 When you enter the setting stage, the current setting value will be displayed.
 Refer to the chart for data settings.
 Using the [∧]/[∨] buttons, change the setting value. Press the [＞] button to move to the next setting value.
 Press the Set button to save the setting value and exit to the sub-menu setting screen.
 Press the ESC button to exit to normal mode.
• When setting the data, you can move SEG range with [＜]/[＞] buttons.
• While conguring the setting, press the ESC button to exit to the sub-menu setting screen without saving your
changes.
• When you don't enter any buttons for more than 3 minutes, you will be back to normal mode.
NOTE
DVM HT_HE RC-EU_IM_EN_DB68-03973A-06.indd 16 2017-05-25 오후 4:18:31

17
ENGLISH
Installation/Service mode
• 'NONE' will be displayed for the menu that setting modes don't support. In some cases, the setting may not be
possible or it may not be applied though it is set on the unit.
• If communication initialization is needed after saving the setting, the system will reset automatically and
communication will be initialized.
NOTE
Main
Menu
Sub
Menu Function SEG number Default Range Unit
1
1
Wired remote
controller’s option
function set /
Check 1
Cooling support Y / N 1 0 0 – Both cooling & heating
1 – Heating Only -
Selecting the standard
temperature of coolingand
heating
2 0 0-Water Outlet temperature
1-Indoor temperature -
Selecting a standard sensor
of indoor temperature 3 0
0-Temperature sensor of wired
remote controller 1-External
temperature sensor
-
Selecting Master/Slave 4 0 0-Master, 1-Slave -
2Wired
remotecontroller’s
option function set /
Check 2
Checking current sensor
temperature value 123 0-9~40˚C -
3Setting compensation
temperature value 123 0-9.9~9.9˚C 0.1˚C
4
Checking the
number of
connected devices
The number of connected
device 12 00~16 1
5Setting desired temperature unit (Available only
when the temperature display is °C) 1 1 0-1˚C, 1-0.5˚C, 2-0.1˚C -
0Reset to option setting default value of
wiredremote controller 1 0 0-Disuse, 1-Reset -
2
1Checking Micom code of wired remote controller 1234, 4 -Micom code -
2Checking version information of wired remote
controller 1234, 34 -Revision date -
3
1
Setting Hydro unit/
Hydro unit HT
option
Hydro unit/Hydro unit HT
address Set/Check 1234 -
2Basic Option Set/Check 1234, 12 -Option code
3Install Option Set/Check 1234, 12 -Option code
4Install(2) Option Set/Check 1234, 12 -Option code
7MCU/Port address setting 124 -MCU address (00 to 15)
Port address (A to F) -
4
1View Master Set/
Check
Hydro unit/Hydro unit HT
View Master Set/Check 1234, 34 -Address
2Master Hydro unit/
Hydro unit HT Set/
Check
Check the Master Hydro
unit/Hydro unit HT address 1234, 34 -Address
3Master Hydro unit/Hydro
unit HT Set 1 - 0-Disuse, 1-Use, 2-Reset
0
1
Reset
Wired remote controller
factory Rese 1 0 0-Disuse, 1-Reset -
2Power Master Reset 1 0 0-Disuse, 1-Reset -
3Addressing Reset(Outdoor
unit Reset) 1 0 0-Disuse, 1-Reset -
DVM HT_HE RC-EU_IM_EN_DB68-03973A-06.indd 17 2017-05-25 오후 4:18:31

18
Use of wired remote controller
Use of user setting mode
1 2 3 4
Main menu
Sub-menu
SEG Used
1. If you want to use the various user setting modes for your wired remote controller, press the User Set button.
2. Refer to the list of user setting mode for your wired remote controller on the next page, and select the desired
menu.
 Using the [∧]/[∨] buttons, select a main menu number and press the [＞] button to enter the sub-menu setting
screen.
 Using the [∧]/[∨] buttons, select a sub-menu number and press the [＞] button to enter data setting screen.
 When you enter the setting stage, the current setting value will be displayed.
 Refer to the chart for data settings.
 Using the [∧]/[∨] buttons, change the setting value. Press the [＞] button to move to the next setting value.
 Press the Set button to save the setting value and exit to the sub-menu setting screen.
 Press the ESC button to exit to normal mode.
• When setting the data, you can move SEG range with the [＜]/[＞] buttons.
• While conguring the setting, press the ESC button to exit to the sub-menu setting screen without saving your
changes.
• When you don't enter any buttons for more than 3 minutes, you will be back to normal mode.
NOTE
DVM HT_HE RC-EU_IM_EN_DB68-03973A-06.indd 18 2017-05-25 오후 4:18:31

19
ENGLISH
User setting mode
• 'NONE' will be displayed for the menu that setting modes don't support. In some cases, the setting may not be
possible or it may not be applied though it is set on the unit.
• If communication initialization is needed after saving the setting, the system will reset automatically and
communication will be initialized.
• When you don't use summer time, you don't need to set year/month.
NOTE
Main
menu
Sub-
menu Function SEG number Default Range Unit
1
1All lock 1 0 0-Unlock, 1-Lock -
2Partial key lock
Operation On/O key lock 1 0 0-Unlock, 1-Lock -
Mode key lock 2 0 0-Unlock, 1-Lock -
Temperature setting key lock 3 0 0-Unlock, 1-Lock -
Timer key lock 4 0 0-Unlock, 1-Lock -
2
1Current time setting(year) 12/34 2013 2000~2099 Year
2Current time setting(month/date) 12/34 01/01 1~12/1~31 Month,
Date
3Current time setting (day/hour/minute)
Day, AM
/ PM, 24,
12/34
Fri., PM,
12/00
Sun~Sat/ AM~PM/
0~12/0~60
Day, hour,
minute
3
1Summer time use
and setting methods
Use of summer time (Y/N) 1 0 0- Disuse, 1- Use -
Summer time application
method 2 0 0- Weekly, 1- Daily -
2Summer time use (weekly) Start (? month, ? th
Sunday) 12,4 03,F
Jan~Dec month
1~4, F(last week)
th week
-
3Summer time use (weekly) End (? month, ? th
Sunday) 12,4 10,F
Jan~Dec month
1~4, F(last week)
th week
-
4Summer time use (daily) Start (? month, ? date) 12,34 0322 Jan~Dec/1~31st
day
Month,
date
5Summer time use (daily) End (? month, ? date) 12,34 0922 Jan~Dec/1~31st
day
Month,
date
4
Backlight time Setting/Checking 12 50~30 sec. 1 sec.
Use of LED(Green) (Y/N) 3 1 0- Disuse ,1- Use -
Use of LED (Red) (Y/N) 4 1 0-Disuse, 1- Use -
0Reset to user mode defaults
(except the current time) 1 0 0-Disuse, 1- Reset -
DVM HT_HE RC-EU_IM_EN_DB68-03973A-06.indd 19 2017-05-25 오후 4:18:31

20
Field specication setting mode of wired remote controller
Use of eld specication setting mode
Data Main menu Sub-menu
1. If you want to use the eld specication setting mode for your wired remote controller, press the Set and [∨]
buttons at the same time for more than 3 seconds.
2. Refer to the list of eld specication for your wired remote controller on the next page, and select the desired menu.
 Using the [∧]/[∨] buttons, select a main menu number and press the [＞] button to enter the sub-menu setting
screen.
 Using the [∧]/[∨] buttons, select a sub-menu number and press the [＞] button to enter data setting screen.
 When you enter the setting stage, the current setting value will be displayed.
 Refer to the chart for data settings.
 Using the [∧]/[∨] buttons, change the setting value and press the Set button to save the setting value. Setting value
will be displayed when it is saved.
 Press the [＜] button to move previous setting value.
 While conguring the sub manu setting, press the ESC button to exit to normal menu.
• While conguring the setting, press the ESC button to exit to the sub-menu setting screen without saving your
changes.
• When you don't enter any buttons for more than 3 minutes, you will be back to normal mode.
NOTE
DVM HT_HE RC-EU_IM_EN_DB68-03973A-06.indd 20 2017-05-25 오후 4:18:32
