Samsung MWR-TH00 User manual

Wired Remote Controller
MWR-TH00
MWR-TH01
OWNER’S INSTRUCTIONS
MANUAL DE INSTRUCCIONES
MANUEL D’UTILISATION
ISTRUZIONI PER L’USO
MANUAL DE INSTRUÇÕES
GEBRAUCHSANWEISUNG
√¢∏°π∂™ Ã∏™∆∏
àçëíêìäñàü èéãúáéÇÄíÖãü
System Air Conditioner
Aire acondicionado sistemático
Climatiseur numérique multifonctionnel
Sistema Aria Condizionata
Sistema Ar Condicionado
Klimaanlage System
™‡ÛÙËÌ· ∫ÏÈÌ·ÙÈÛÌÔ‡
ëËÒÚÂÏÌ˚È ÇÓÁ‰Û¯Ì˚È äÓÌ‰Ë ËÓÌÂ
E S F I P D G R A DB98-15731A(3)
ENGLISH
ESPAÑOL
FRANÇAIS
ITALIANO
PORTUGUÊS
DEUTSCH
E§§HNIKA
RUSSIAN
MWR-TH00 IB_E_15731 3/9/06 2:05 PM Page 21

Safety Precautions
◆Do not attempt to install or repair this wired remote
controller by yourself.
◆This remote controller contains no user-serviceable
parts. Always consult authorized service personnel
for repairs.
◆When moving, consult authorized service personnel
for disconnection and installation of the remote
controller.
◆Ensure that the wall is strong enough to support the
weight of the remote controller.
◆Must install the remote controller with rated power
supply.
◆In the event of a malfunction (burning smell, etc.),
immediately stop operation, turn off the electrical
breaker, and consult authorized service personnel.
WARNING
CAUTION ◆
Do not use inflammable gases near the remote
controller.
◆ Do not spill water into the wired remote controller.
◆ Do not operate the remote controller with wet hands.
◆ Do not install the remote controller in a location
where it will come into contact with the combustible
gases, machine oil, sulphide gas, etc.
◆ Do not press buttons with a pointed thing.
◆ Do not pull or bend the wired remote controller cable
excessively.
◆ Do not use this wired remote controller for other
purpose.
◆ Do not spray an insecticide or other combustible
things on the wired remote controller.
◆ Do not clean the wired remote controller with
benzene, solvents or other chemicals.
◆ Do not give a shock to the wired remote controller or
disassemble it by yourself.
E-2
●
Before using the wired remote controller, read carefully this instructions.
●
After reading the instructions, keep this owner's instructions and the
installation manual in a handy and safe place. If a user is changed, you must
hand over the manuals.
●
Never attempt to install the air conditioning system or to move the wired
remote controller by yourself.

E-3
ENGLISH
Contents
◆ V IEW OF THE W IRED R EMOTE C ONTROLLER
◆ G ETTING S TARTED
◆ S ELECTING THE A
UTOMATIC O PERATING M ODE
◆ C OOLING Y OUR R OOM
◆ H EATING Y OUR R OOM
(E XCEPT COOLING ONLY MODELS
)
◆ R EMOVING E XCESS H UMIDITY
◆ A IRING Y OUR R OOM
◆ A DJUSTING THE A IR F LOW D IRECTION
(E XCEPT DUCT TYPE )
◆ S ETTING THE
O N T IMER
◆ S ETTING THE
O FF T
IMER
4
5
6
8
10
12
14
15
16
18

E-4
The wired remote controller is installed on the wall.
◆The button is for your installation specialist. You must NOT press it.
◆After cleaning the air filter, press the button. Then the wired remote
controller will display the FILTER SIGN indicator when the time to clean the
air filter.
◆Duct type air conditioner does not have function of adjusting air flow
direction. Therefore, the function is not operated even if you press the
button.
NN
NNoo oott ttee ee
Mode selection button
Communication error indicator
On Timer setting
Off Timer setting
Test indicator
Timer button
Timer Set/Cancel button
Test button Filter Reset button
Swing button
(Except Duct type)
Temperature adjustment
buttons
Removing frost indicator
Temperature setting
Fan speed
Air flow direction
Filter Sign indicator
On/Off button
Fan speed adjustment
button
On/Off indicator
Operating mode Centralized controller indicator
(In case of installing the Centralized controller)
View of the Wired Remote Controller

ENGLISH
E-5
G etting Started
You have just purchased a wired remote controller and it has
been installed by your installation specialist.
Your Owner’s Instructions contain much valuable information on
using your wired remote controller. Please take the time to read them
as they will help you take full advantage of the unit’s features.
In the manual, you will find a series of step-by-step procedures for each
function available.
The illustrations in the step-by-step procedures use three different
symbols:
PRESS PUSH HOLD DOWN

E-6
If necessary, press (ON/OFF) button.
Result: :◆The On/Off indicator on the wired remote
controller comes on.
◆The air conditioner runs in the mode
selected when the unit was last used.
1
In the Automatic mode, the room temperature and the
fan speed are controlled automatically.
To select the AUTO mode, press the button until
is displayed at the top of the wired remote controller.
Result: :◆The air conditioner runs in the AUTO mode.
2
The air conditioner is fitted with a
protection mechanism to prevent the unit
from being damaged when it is started
immediately after being:
◆Plugged in
◆Stopped
lt will start up normally after three minutes.
IMPORTANT
◆You can change modes at any time.
NN
NNoo oott ttee ee
Selecting the Automatic Operating Mode

E-7
ENGLISH

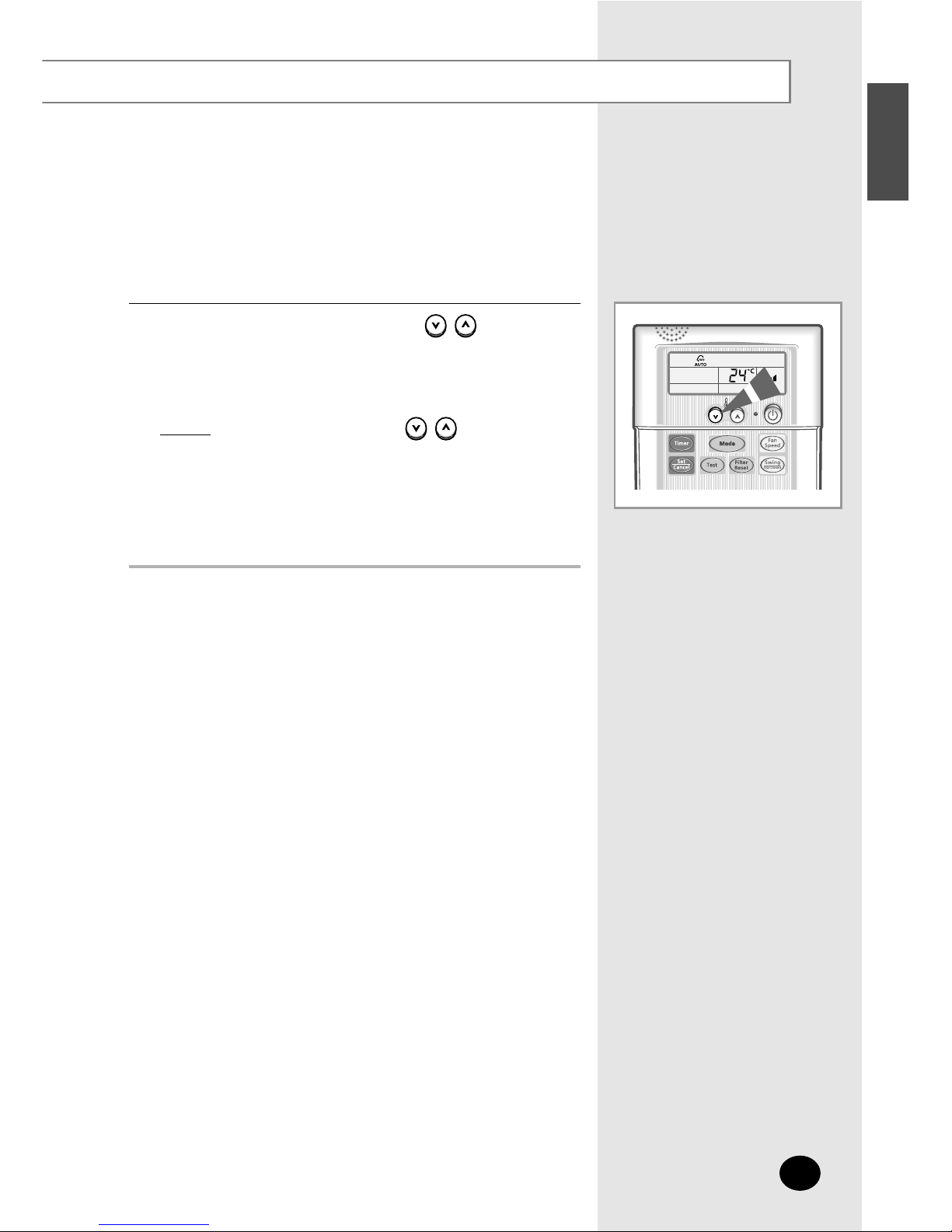

To adjust the temperature, press the buttons one
or more times until the required temperature is displayed.
Possible temperatures are between 18°C and 30°C
inclusive.
Result: ◆Each time you press buttons:
- The temperature is adjusted by 1°C.
◆The air conditioner starts cooling, provided
that the room temperature is than the
selected temperature.
- The quantity of air is adjusted automatically.
3

E-8

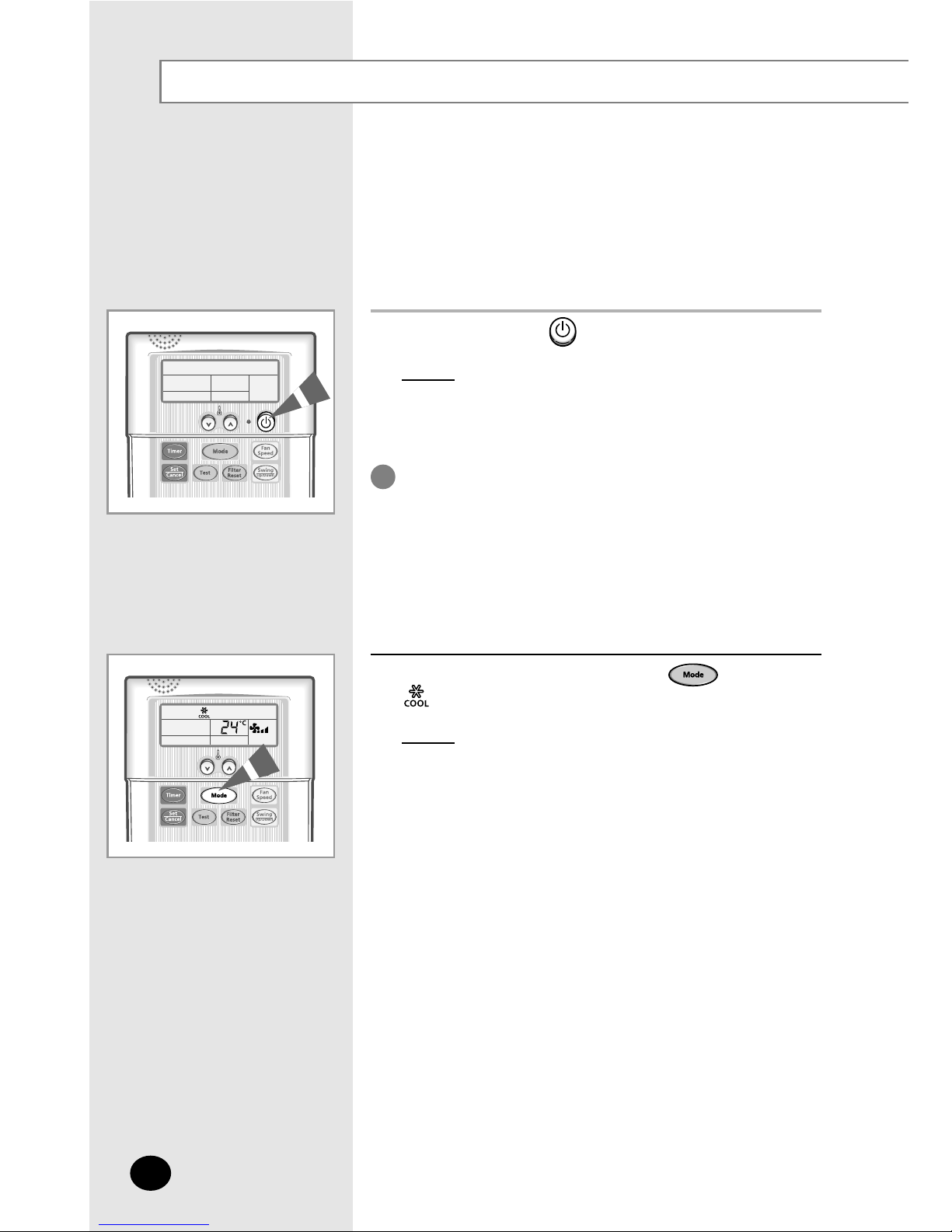

Cooling Your Room
If necessary, press (ON/OFF) button.
Result: :◆The On/Off indicator on the wired remote
controller comes on.
◆The air conditioner runs in the mode
selected when the unit was last used.
1
You must select the COOL mode if you wish to adjust the :
◆Cooling temperature
◆Fan speed when cooling
To select the COOL mode, press the button until
is displayed at the top of the wired remote controller.
Result: :◆ The air conditioner runs in the COOL mode.
2
The air conditioner is fitted with a protection
mechanism to prevent the unit from being
damaged when it is started immediately
after being:
◆Plugged in
◆Stopped
lt will start up normally after three minutes.
IMPORTANT
◆You can change modes at any time.
NN
NNoo oott ttee ee

ENGLISH
E-9
To adjust the temperature, press the buttons one
or more times until the required temperature is displayed.
Possible temperatures are between 18°C and 30°C
inclusive.
Result: ◆Each time you press buttons:
- The temperature is adjusted by 1°C.
◆The air conditioner starts cooling, provided
that the room temperature is higher than the
selected temperature ; the fan will, however,
operate.
3
Select the fan speed by pressing the button one or
more times until the intended value is displayed :
4
To control the direction of the air flow, refer to page 15.
5
Automatic(rotated : ➔➔ )
Low
Medium
High

E-10
Heating Your Room (Except cooling only models)
If necessary, press (ON/OFF) button.
Result: :◆The On/Off indicator on the wired remote
controller comes on.
◆The air conditioner runs in the mode
selected when the unit was last used.
1
You must select the HEAT mode if you wish to adjust the :
◆Heating temperature
◆Fan speed when heating
To select the HEAT mode, press the button until
is displayed at the top of the wired remote controller.
Result: :◆ The air conditioner runs in HEAT mode.
2
The air conditioner is fitted with a protection
mechanism to prevent the unit from being
damaged when it is started immediately
after being:
◆Plugged in
◆Stopped
lt will start up normally after three minutes.
IMPORTANT
◆You can change modes at any time.
NN
NNoo oott ttee ee
You can select the HEAT mode only in heat pump models.

ENGLISH
E-11
To adjust the temperature, press the buttons one
or more times until the required temperature is displayed.
Possible temperatures are between 16
° C and 30 ° C
inclusive.
Result: ◆Each time you press buttons:
- The temperature is adjusted by 1
° C.
◆The air conditioner starts heating, provided
that the room temperature is lower than the
selected temperature ; the fan will, however,
operate.
3
Select the fan speed by pressing the button one or
more times until the intended value is displayed :
4
Automatic(rotated : ➔➔ )
Low
Medium
High
To control the direction of the air flow, refer to page 15.
5

E-12
If necessary, press (ON/OFF) button.
Result: :◆The On/Off indicator on the wired remote
controller comes on.
◆The air conditioner runs in the mode
selected when the unit was last used.
1
If the atmosphere in your room is very humid or damp,
you can remove excess humidity without lowering the
room temperature too much.
To select the DRY mode, press the button until
is displayed at the top of the wired remote controller.
Result: :◆The air conditioner runs in the DRY mode.
2
The air conditioner is fitted with a
protection mechanism to prevent the unit
from being damaged when it is started
immediately after being:
◆Plugged in
◆Stopped
It will start up normally after three minutes.
IMPORTANT
◆You can change modes at any time.
NN
NNoo oott ttee ee
Removing Excess Humidity

ENGLISH
E-13
To adjust the temperature, press the buttons one
or more times until the required temperature is displayed.
Possible temperatures are between 18°C and 30°C
inclusive.
Result: :◆ Each time you press buttons:
- The temperature is adjusted by 1°C.
◆The air conditioner starts removing the
excess humidity.
The quantity of air is adjusted automatically.
3
To control the direction of the air flow, refer to page 15.
4

E-14
Airing Your Room
If necessary, press (ON/OFF) button.
Result: :◆The On/Off indicator on the wired remote
controller comes on.
◆The air conditioner runs in the mode
selected when the unit was last used.
1
If the atmosphere in your room is stale, you can air it
using the FAN feature.
To select the FAN mode, press the button until
is displayed at the top of the wired remote controller.
Result: :◆The air conditioner runs in the FAN mode.
2
The air conditioner is fitted with a protection
mechanism to prevent the unit from being
damaged when it is started immediately
after being:
◆Plugged in
◆Stopped
It will start up normally after three minutes.
IMPORTANT
Select the fan speed by pressing the button one or
more times until the intended value is displayed:
3
To control the direction of the air flow, refer to page 15.
4
◆You can change modes at any time.
NN
NNoo oott ttee ee
Low
Medium
High

ENGLISH
E-15

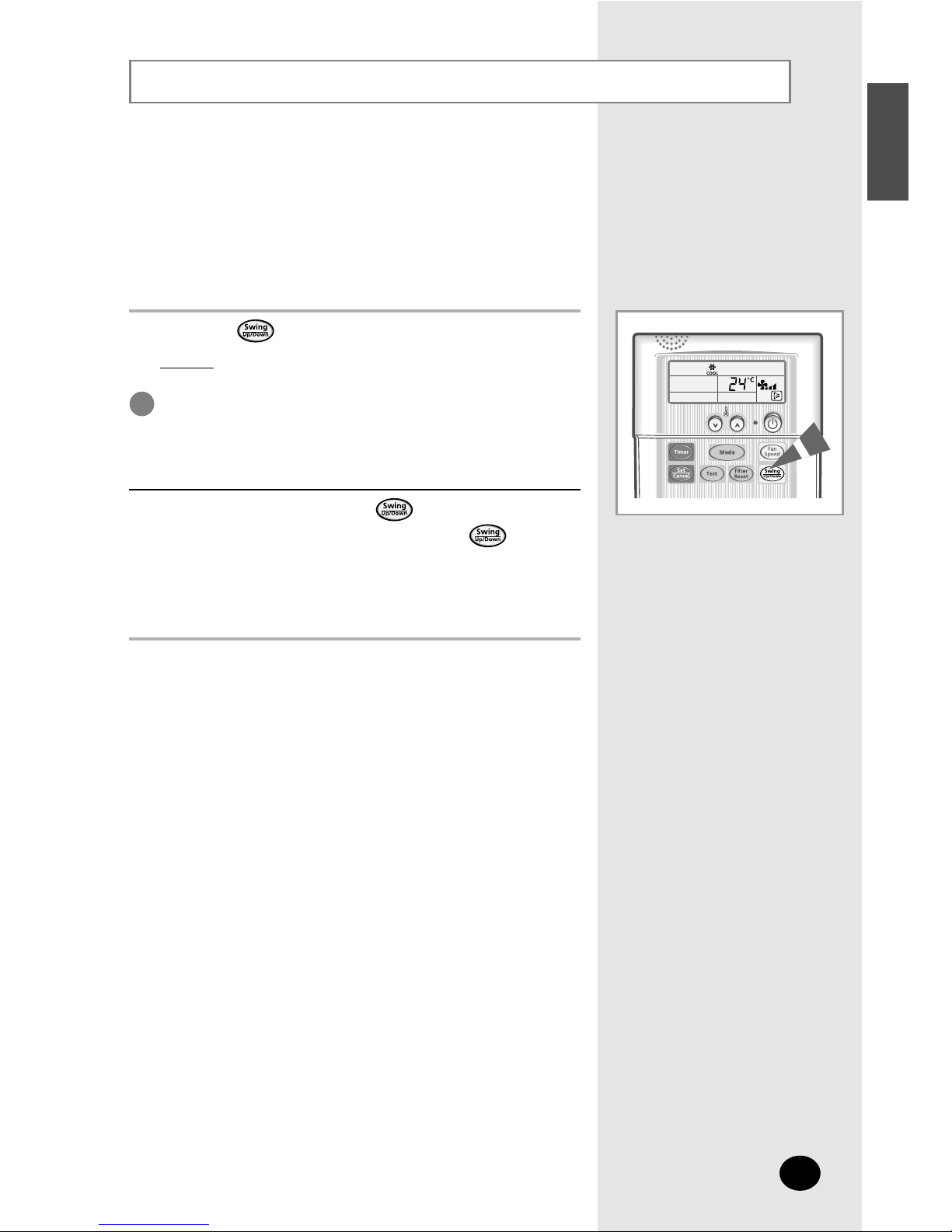

Adjusting the Air Flow Direction(Except Duct Type)
Press the button.
Result: The blade is moving between up and down.
1
Depending on the position of the indoor unit, you can
adjust the position of the air flow blade, thus increasing the
efficiency of the air conditioner.
To stop the blade, press the button again.
To set to the required position, press the button
again when the blade is in the required position.
2
When the air conditioner is first turned on,
the blade is moved.
IMPORTANT

E-16
Setting the On Timer
To set the operating time, press the button one or
more times until the required time is displayed. Possible
time is between 0.5 hour and 24 hours inclusive.
1
The On Timer enables you to switch on the air conditioner
automatically after a given period of time. You can set the
period of time from 30 minutes to 24 hours. You can select
the On Timer only when the air conditioner is off.
Press the button to complete the setting.
Result: ◆The remaining time is displayed.
◆Blinking of the timer indicator stops.
◆The selected mode and the temperature
disappear on the display after 5 seconds.
◆
The air conditioner will switch on
automatically when the counter displayed on
the remote controller reaches the setting
time as disappearing the On timer setting.
2
◆You can see or change the setting mode
and/or the temperature by pressing the
button or the buttons after
setting the On timer.
NN
NNoo oott ttee ee

ENGLISH
E-17

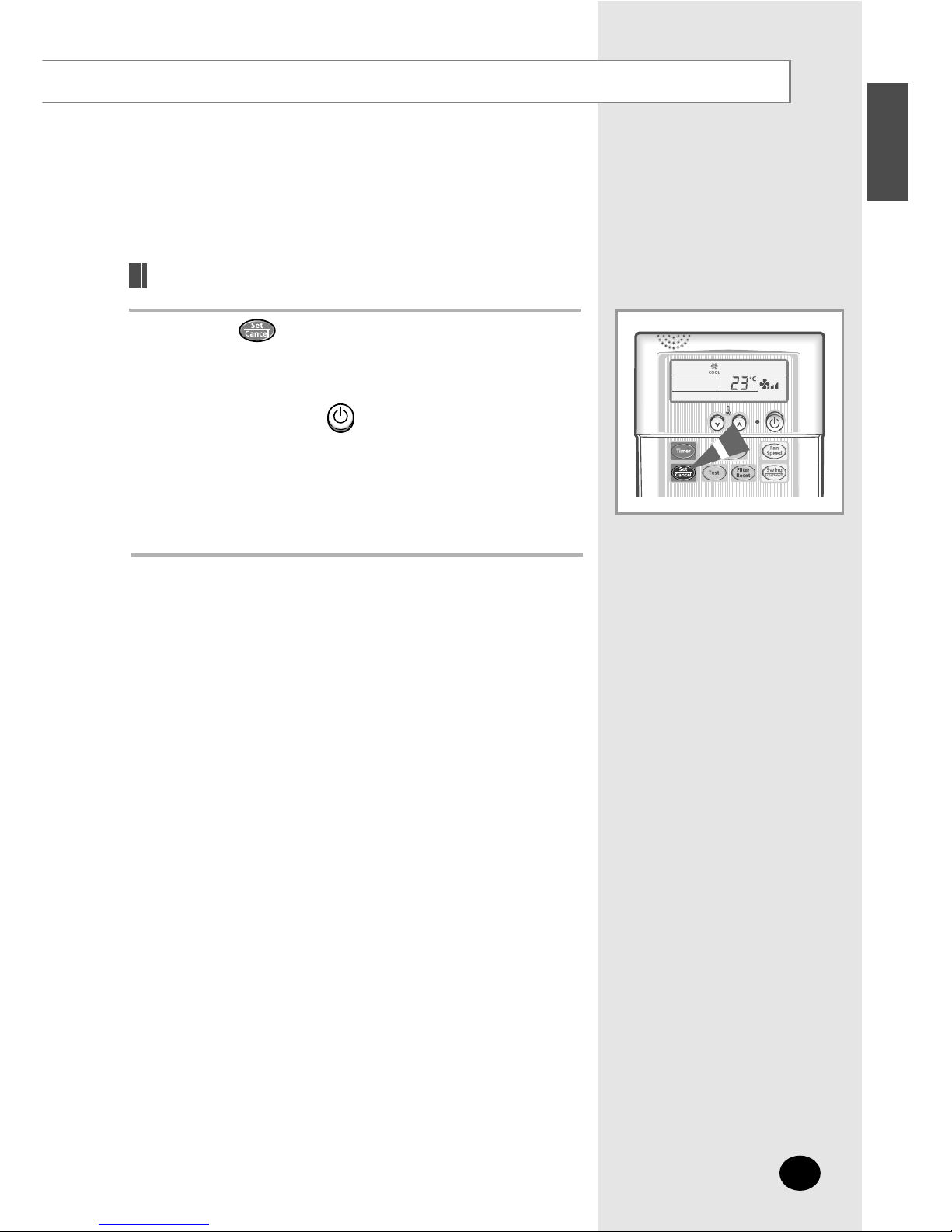

Press the button.
1
To Cancel the On Timer
◆If you want to turn on the air conditioner
before the timer reaches the setting time,
press the button.
NN
NNoo oott ttee ee

E-18
Setting the Off Timer
To set the operating time, press the button one or
more times until the required time is displayed. Possible
time is between 0.5 hour and 24 hours inclusive.
1
The Off Timer enables you to switch off the air conditioner
automatically after a given period of time. You can set the
period of time from 30 minutes to 24 hours. You can select
the Off Timer only when the air conditioner is on.
Press the button to complete the setting.
Result: ◆The remaining time is displayed.
◆Blinking of the timer indicator stops.
◆
The air conditioner will switch off
automatically when the counter displayed on
the remote controller reaches the setting time
as disappearing the Off timer setting.
2

ENGLISH
E-19
Press the button.
1
To Cancel the Off Timer
◆If you want to turn off the air conditioner
before the timer reaches the setting time,
press the button.
NN
NNoo oott ttee ee

ELECTRONICS
THIS AIR CONDITIONER IS MANUFACTURED BY:
ESTE AIRE ACONDICIONADO HA SIDO FABRICADO POR:
CE CLIMATISEUR EST FABRIQUE PAR:
QUESTO CONDIZIONATORE D’ARIA È PRODOTTO DA:
ESTE APARELHO DE AR CONDICIONADO É FABRICADO POR:
DIESE KLIMAANLAGE IST FABRIZIERT VON:
AYTH H ™Y™KEYH KATA™KEYA™THKE A¶O:
ùíéí äéçÑàñàéçÖê àáÉéíéÇãÖç îàêåéâ:
Printed in Korea
