Samsung GT-S5830 User manual

GSM TELEPHONE
GT-S5830
1. Safety Precautions
2. Specification
3. Product Function
4. Exploded View and Parts list
5. MAIN Electrical Parts List
6. Level 1Repair
7. Disassembly and Assembly
Instructions
8. Chart of Troubleshooting
9. Reference data
Notice :
All functionality, features, specifications and other
product information provided in this document inclu
ding, but not limited to, the benefits, design, pricing,
components, performance, availability, and capabiliti
-es of the product are subject to change without
notice or obligation. Samsung reserves the right to
make changes to this document and the product
described herein, at anytime, without obligation on
Samsung to provide notification of such change.
GSM TELEPHONE CONTENTS

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2010. 12. Rev.1.0
ⓒ

2. Specification
2-1
2-1. GSM General Specification
GSM850
Phase 1 EGSM 900 Phase 2 DCS1800 Phase 1 PCS1900 WCDMA 2100 WCDMA900
Freq.
Band[MHz]
Uplink/Downlin
k
824~849
869~894 880~915 925~960 1710~1785 1805~1880 1850~1910 1930~1990 1922~1977 2112~2167 880~915 925~960
ARFCN range 128~251 0~124 &
975~1023 512~885 512~810 UL:9612~98
88DL:10562
~10838
UL:2712~28
63,DL:2937
~3088
Tx/Rx spacing 45MHz 45MHz 95MHz 80MHz 190MHz 45MHz
Mod. Bit rate/
Bit Period
270.833kbp
s
3.692us
270.833kbp
s
3.692us
270.833kbp
s
3.692us
270.833kbp
s
3.692us 3.84Mcps 3.84Mcps
Time Slot
Period/Frame
Period
576.9us
4.615ms 576.9us 4.615ms 576.9us 4.615ms 576.9us 4.615ms
FrameLengt
h:
10ms
Slotlength:
0.667ms
FrameLengt
h:
10ms
Slotlength:
0.667ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK QPSKHQPS
KQPSKHQPS K
MS Power 33dBm~5dB
m33dBm~5dB m30dBm~0dB m30dBm~0dB m24dBm~- 50dBm 24dBm~- 50dBm
Power Class 5pcl ~
19pcl 5pcl ~19
pcl 0pcl ~15 pcl 0pcl ~15 pcl 3(max+24dB
m) 3(max+24dB m)
Sensitivity -102dBm -102dBm -100dBm -100dBm -106.7dBm -106.7dBm
TDMA Mux 8 8 8 8 88
Cell Radius 35Km 35Km 2Km 2Km 2Km 2Km

Specification
2-2
2-2. GSM Tx Power Class
TX Power
control
level
GSM850
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
EGSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control
level
PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Operation Instruction and Installation
3-1
This Document can not be used without Samsung's authorization
Main Function
•Quad Band EGSM850/900/DCS/PCS (EDGE/GPRS), UMTS 900/2100MHz
•HSDPA 7.2 Mbps
•3.5”HVGA TFT Full Touch (c-type )
•Music player, Voice Recorder
•GPS /BT v2.1 /USB v2.0 /WiFi (802.11 b/n/g)
•5MCamera
•FM Radio Receiver
•Sensors: Accelerometer, Compass, Proximity
•Improve TouchWiz 3.0 Light for Android(Multiple SNS(Facebook, Myspace, Twitter),Multiple
IM(Parling: AOL, G-talk))
•Android Froyo OS
•SMS/MMS/Email

SAMSUNG Proprietary-Contents may change without notice
6. Level 1Repair
6-1
This Document can not be used without Samsung's authorization
6-1. Software Download
6-1-1. Pre-requisite for Download
ㆍDownloader Program (Odin Multi Downloader v4.19)
ㆍGT-S5830 Mobile Phone
ㆍData Cable
ㆍJIG BOX (GH99-36900A)
ㆍRF Test Cable (GH39-00985A)
ㆍJIG Cable (GH39-01290A)
ㆍAdapter (GH99-38251A)
ㆍBinary files
-Diagram of Connection:
PC
Mobile Phone(with Battery)
Data Cable

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-2
This Document can not be used without Samsung's authorization
6-1-2. S/W Download Process
1. Load the binary download program by executing the "Odin Multi Downloader v4.19"

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-3
This Document can not be used without Samsung's authorization
2Select OPS file (Cooper_v1.0.ops) from the folder that you saved the binary files.

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-4
This Document can not be used without Samsung's authorization
3. Load the file of Bootloader, Amss, PDA, CSC files from the folder that you saved the binary
files.

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-5
This Document can not be used without Samsung's authorization

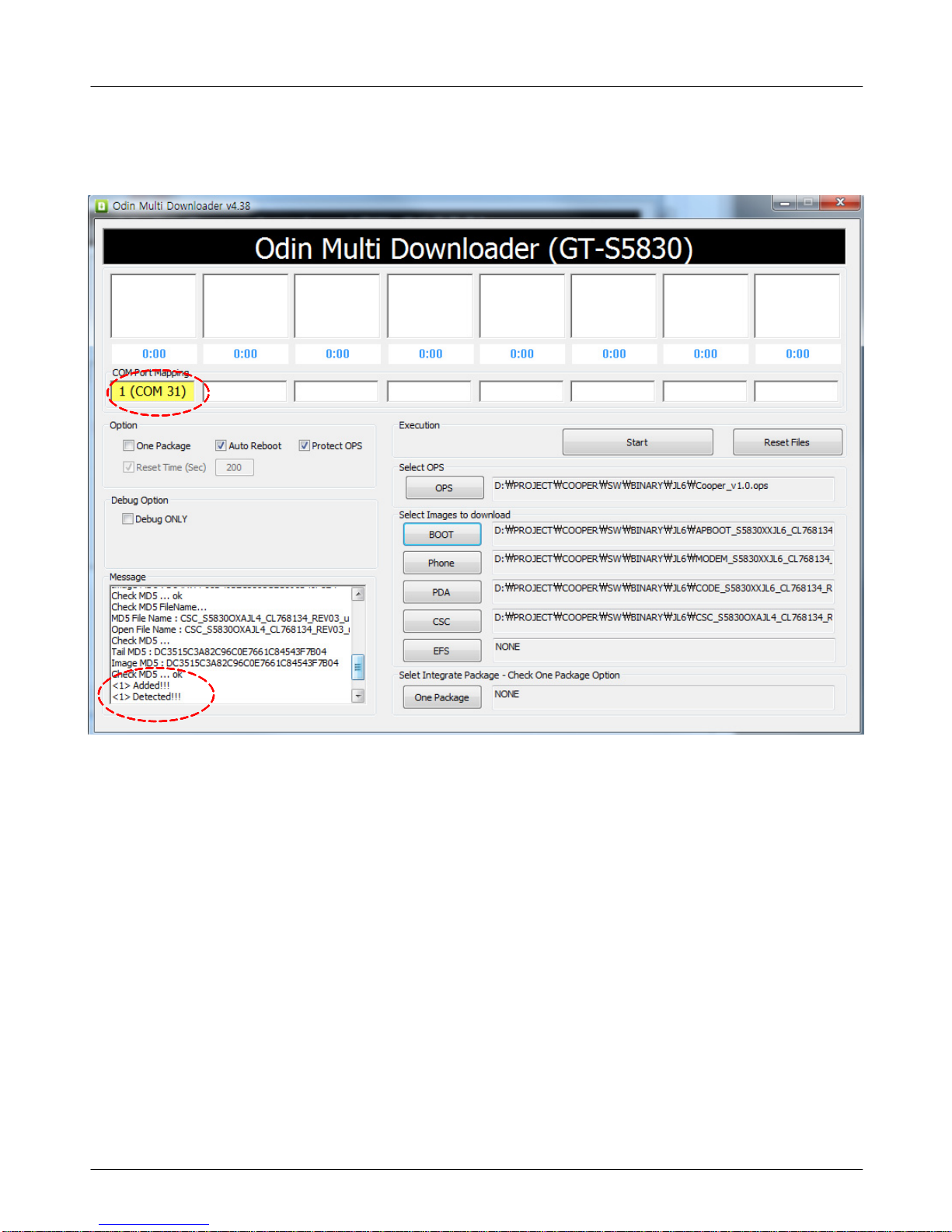

4. COM Port Mapping change to yellow colour when the phone with download mode is
connected to PC by data cable.
cf. You have to set the phone as adownload mode by pressing Middle Key(OK Key) +
Power key and Volume Down Key simultaneously before connecting to PC .
Then, the port would be searched.

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-6
This Document can not be used without Samsung's authorization

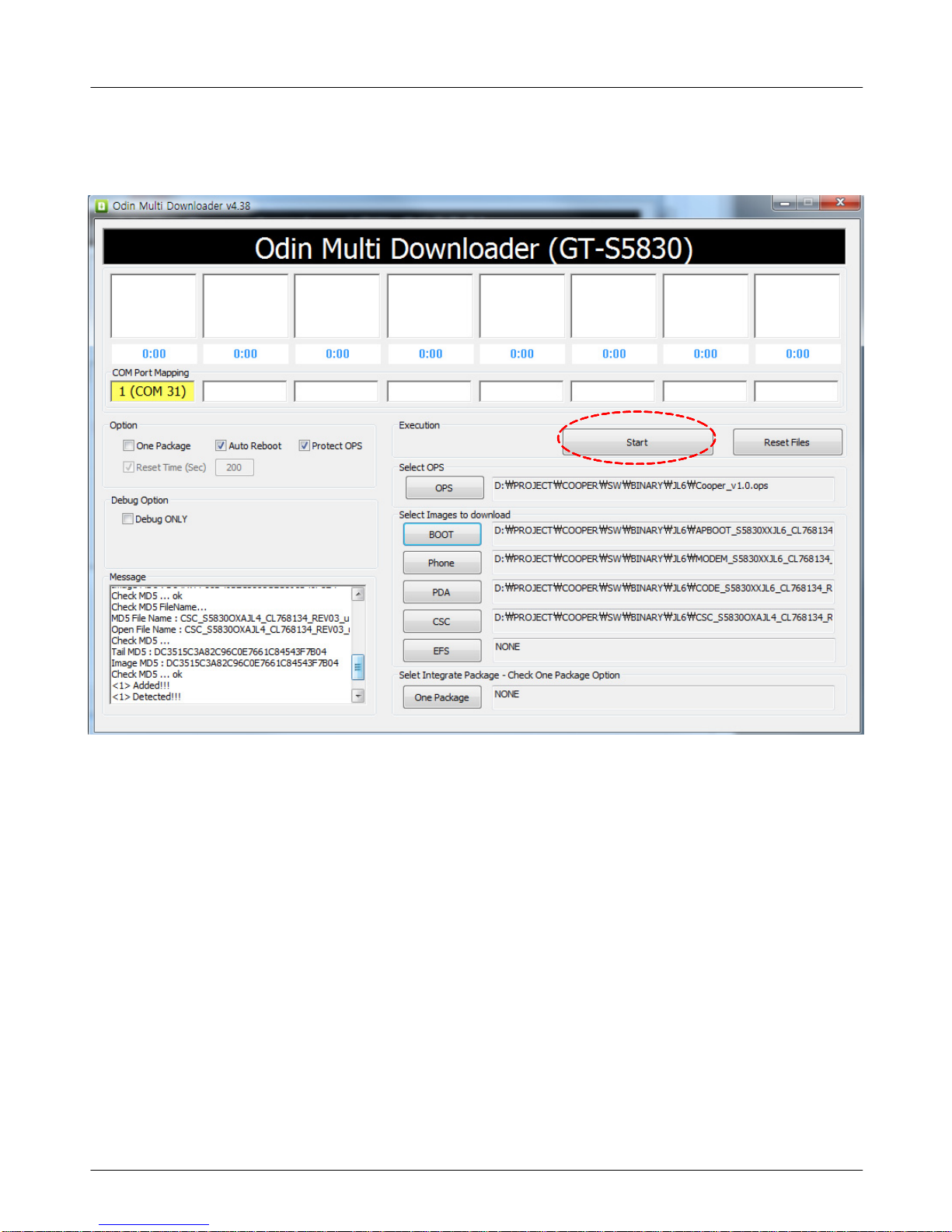

5. Click the Start button when the Port searched.

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-7
This Document can not be used without Samsung's authorization

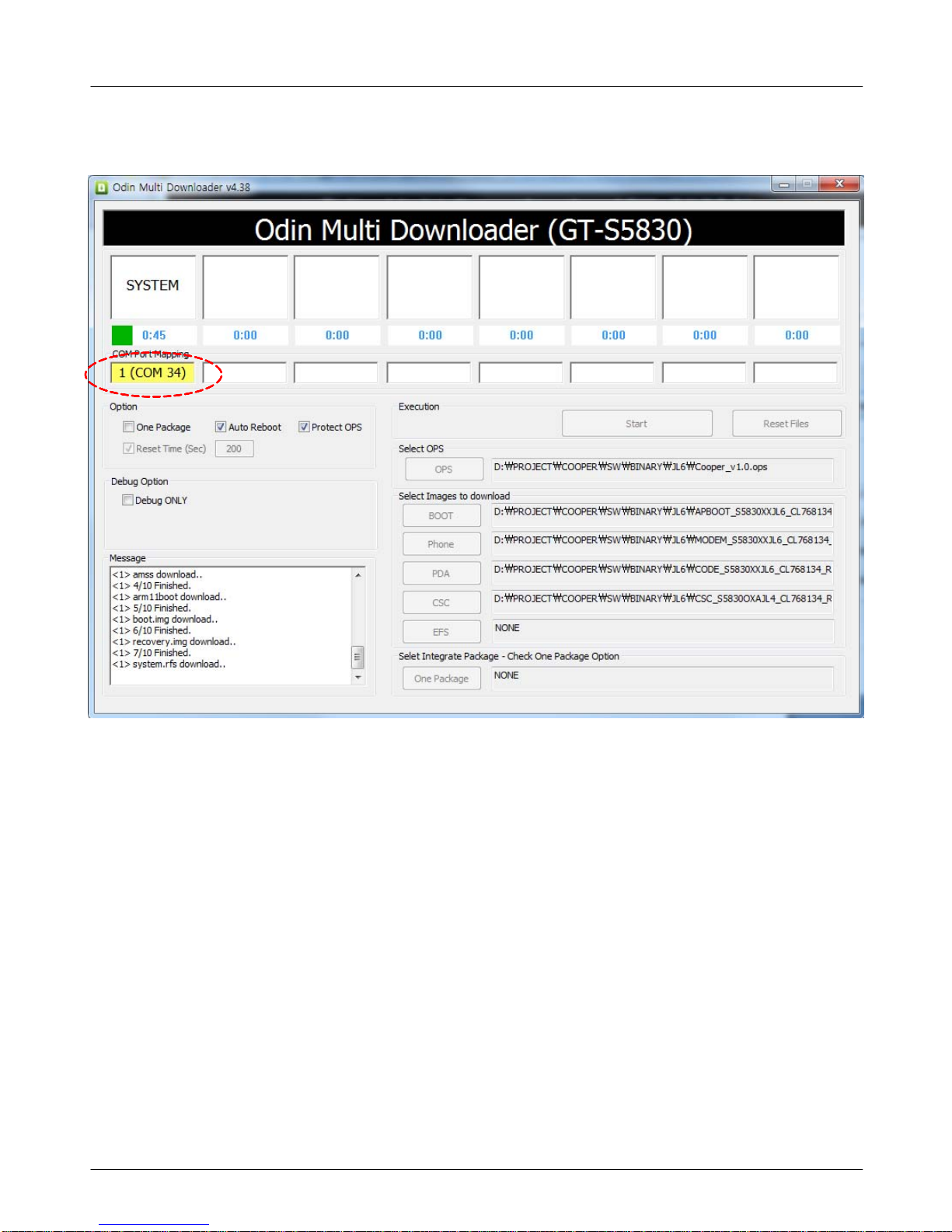

It will start to download.

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-8
This Document can not be used without Samsung's authorization

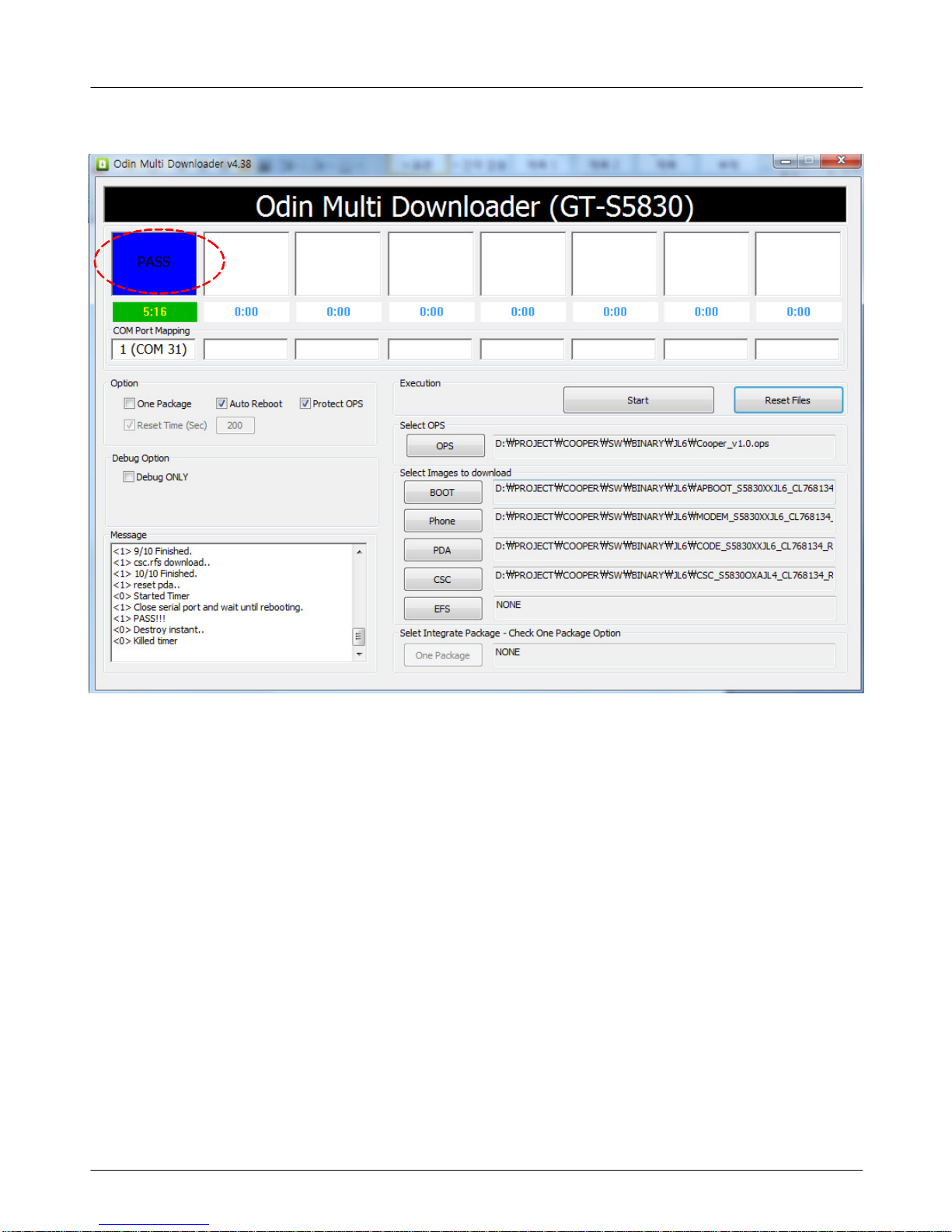

6. When downloading is finished successfully, there is a"
PASS"message.
7. Confirm the downloaded version name and etc. :
*#1234#

SAMSUNG Proprietary-Contents may change without notice
9. Reference Abbreviate
This Document can not be used without Samsung's authorization
9-1
Reference Abbreviate
―AAC:Advanced Audio Coding.
―AVC :Advanced Video Coding.
―BER :Bit Error Rate
―BPSK:Binary Phase Shift Keying
―CA :Conditional Access
―CDM :Code Division Multiplexing
―C/I :Carrier to Interference
―DMB :Digital Multimedia Broadcasting
―EN :European Standard
―ES :Elementary Stream
―ETSI:European Telecommunications Standards Institute
―MPEG:Moving Picture Experts Group
―PN :Pseudo-random Noise
―PS :Pilot Symbol
―QPSK:Quadrature Phase Shift Keying
―RS :Reed-Solomon
―SI :Service Information
―TDM :Time Division Multiplexing
―TS :Transport Stream

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
―Repair in Shield Box, during detailed tuning. Take specially care of tuning or test, because
specipicty of cellular phone is sensitive for surrounding interference(RF noise).
―Be careful to use akind of magnetic object or tool, because performance of parts is damaged by
the influence of magnetic force.
―Surely use astandard screwdriver when you disassemble this product, otherwise screw will be
worn away.
―Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
―Repair after separate Test Pack and Set because for short danger (for example an overcurrent
and furious flames of parts etc) when you repair board in condition of connecting Test Pack and
tuning on.
―Take specially care of soldering, because Land of PCB is small and weak in heat.
―Surely tune on/off while using AC power plug, because arepair of battery charger is dangerous
when tuning ON/OFF PBA and Connector after disassembling charger.
―Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
―Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity prevention
string on wrist.
―Use earthed soldering steel when you connect or disconnect ESD.
―Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by static
electricity.
―Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum plate to have conductive power,they are prevented from static electricity.
―You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

SAMSUNG Proprietary-Contents may change without notice
4. Exploded View and Parts List
4-1
This Document can not be used without Samsung's authorization
4-1. Cellular phone Exploded View
QSP01
QCA01
QMP01
QCK01
QRE01
QCR101
QBA01
QBC00
QAN02
QMI01
QME01
QVK02
QKI01
QVO01
QMO01
QRF06 QSD01
QLB01
QLC01
QAR01
QBR07
QME03
QVK01

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
4-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
QCR101 SCREW-MACHINE 6001-002005
QMI01 MICROPHONE-ASSY-GT_S5830 GH30-00711A
QAN02 INTENNA-MAIN(GT_S5830) GH42-02791A
QBA01 INNER BATTERY PACK-EB494358VU,GT-S5830,L GH43-03504A
QME03 TOUCH/PANEL-GT_S5830 GH59-10422A
QSP01 MODULE-SPEAKER+EARJACK (GT_S5830) GH59-10480A
QCA01 CAMERA MODULE-CAMERA-MODULE,GT-S5830 GH59-10482A
QVK01 KEY FPCB-VOLUME KEY(GT_S5830) GH59-10492A
QME01 DOME SHEET-MAIN(GT-S5830) GH59-10499A
QVK02 KEY FPCB-POWER KEY(GT_S5830) GH59-10540A
QAR01 ASSY ETC-RCV+SENSOR FPCB ASSY(GT_S5830 GH59-10554A
QKI01 PMO KEY-IN(D);GT-S5830,HIPMMA,BLK GH72-62720A
QMP01 A/S ASSY-PBA MAIN (COMM) GH82-05469A
QLC01 ELA MODULE-LCD(GT_S5830) GH96-04970A
QLB01 ASSY BRACKET-LCD GH98-18680A
QBC00 ASSY COVER-BATT GH98-18681A
QBR07 ASSY BRACKET-SUS RCV GH98-18682A
QRE01 ASSY CASE-REAR GH98-18676A
QMO01 MOTOR DC-GT-S5830 GH31-00522A
QVO01 PMO KEY-VOLUME GH72-62112A
QCK01 PMO KEY-POWER GH72-62113A
QSD01 PMO COVER-SD GH72-62114A
QRF06 PMO COVER-USB GH72-62115A
4-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
5. MAIN Electrical Parts List (2010.12.24)
5-1
This Document can not be used without Samsung's authorization
SEC CODE DESIGN LOC Description
0403-001870 D600 TDZ5V6J
0404-001646 ZD505 PMEG4005EJ
0406-001286 ZD504 PESD5V0L5UV
0406-001446 ZD506,ZD507 RD1301
0407-001002 D400,D500 DAN222TL
0504-001138 Q601 DTA114EM
0505-002341 Q600 SI1013X-T1-GE3
0601-002846 LED500,LED501 19-217UTD/S759/TR8
0801-003265 U300 74AUP1G74GM
0801-003383 U301 74LVC1G00GM
1001-001645 U601 FSA9280AUMX
1108-000373 UME300 KAT007012B-BRTT
1201-003057 U102 RF7201
1201-003168 U200 SFMG1M0Q001
1201-003210 PAM100 SKY77554-21
1202-001068 U502 TC75S56FE
1203-005074 U600 AAT1146IJS-1.2-T1
1203-006025 U504 AAT1274IWO-T1
1203-006159 U104 AAT2146IJS-0.6-T1
1203-006346 U500 FT8010MPX
1203-006732 U400 MAX8899GEWZ-T
1203-006760 U503 KTD259EHD-TR
1205-003297 U103 RTR6285
1205-004076 U202 AR6003G-AC2B-R
1205-004113 U201 BCM20780C0KUBG
1205-004180 UCP300 MSM7227-1-SCREEN
1209-002023 C524 BMA222
1209-002030 U604 MMC3280MS
1404-001221 TH300 NCP15WB473J04RC
1405-001298 V500,V501,V603,ZD500 LXES15AAA1-075
1405-001298 ZD501,ZD502,ZD503 LXES15AAA1-075
1405-001298 ZD600 LXES15AAA1-075
2007-000137 R325,R513,R515,R517 RC1005J202CS
2007-000138 R102,R111,R112,R322 RC1005J101CS
2007-000138 R326,R608 RC1005J101CS
2007-000140 R113,R303,R512 RC1005J102CS

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-2
This Document can not be used without Samsung's authorization
SEC CODE DESIGN LOC Description
2007-000141 R304,R305,R306,R307 RC1005J222CS
2007-000141 R311,R312,R313,R314 RC1005J222CS
2007-000144 R400 RC1005J512CS
2007-000148 R308,R502,R600,R604 RC1005J103CS
2007-000148 R615,R622 RC1005J103CS
2007-000149 R607 RC1005J123CS
2007-000151 R623,R624 RC1005J153CS
2007-000157 R610,R611,R612,R613 RC1005J473CS
2007-000157 R614 RC1005J473CS
2007-000162 R300,R302,R315,R319 RC1005J104CS
2007-000162 R320,R324,R327,R410 RC1005J104CS
2007-000162 R508,R526,R527,R528 RC1005J104CS
2007-000165 R518 RC1005J204CS
2007-000166 R121 RC1005J304CS
2007-000168 R616 RC1005J474CS
2007-000170 R509 RC1005J105CS
2007-000172 R603 RC1005J100CS
2007-001295 R405,R406 RC1005J390CS
2007-001298 R329,R401 RC1005J510CS
2007-001301 R110 MCR01MZP5J680
2007-001325 R129 RC1005J332CS
2007-001333 R521 MCR01MZP5J183
2007-001339 R609 RC1005J184CS
2007-002796 R511,R514 MCR01MZP5J511
2007-002965 R525 RK73K1ETP150J
2007-002970 R500,R501 MCR01MZP5J560
2007-003004 R106 TSR16GJ131V
2007-003013 R128 MCR01MZP5J242
2007-003015 R605,R606 MCR01MZP5J2R2
2007-003030 R105 RC1005J910CS
2007-007107 R407 RC1005F1003CS
2007-007132 R204 RC1005F153CS
2007-007139 R309,R310 MCR01MZP5F4702
2007-007309 R109 MCR01MZP5F1202
2007-007334 R402 RC1005F2003CS
2007-007468 R409 RK73H1ETP1213F
