JUICE EXTRACTOR Model # 28 & # 68
!

SANTOS : Instruction and maintenance manual
98168 US 1.0 - 12 2013 www.santos.fr
CONTENTS
“CE” COMPLIANCE DECLARATION ................................................................................3
IMPORTANT SAFEGUARDS............................................................................................4
INSTALLATION AND HANDLING..................................................................................4
IMPROPER USE............................................................................................................4
ELECTRICAL CONNECTION: .......................................................................................5
USING FOR THE 1st TIME:...........................................................................................5
RECYCLING THE PRODUCT AT THE END OF ITS SERVICE LIFE............................6
JUICE EXTRACTOR model # 28 & # 68...........................................................................7
USING THE APPLIANCE..................................................................................................7
USING:...........................................................................................................................7
HOW TO STOP THE MACHINE ....................................................................................8
Cleaning: ........................................................................................................................8
Precautions and risks: ....................................................................................................8
SAFETY / MAINTENANCE................................................................................................8
COVER AND BOWL PRESENCE SAFETY DEVICE:....................................................9
MOTOR OVERLOAD SAFETY FEATURE:....................................................................9
MOTOR OVERHEATING SAFETY FEATURE:..............................................................9
SAFE ACCESS TO THE TOOLS: ..................................................................................9
MAINTENANCE ...........................................................................................................10
SERVICING:.................................................................................................................10
FAULT FINDING .............................................................................................................11
The machine will not start:............................................................................................11
The machine stops because the motor has overheated:..............................................11
The machine stops because of an overload: ................................................................11
The machine vibrates when running empty:.................................................................11
REFERENCE TO STANDARDS .....................................................................................12
TECHNICAL SPECIFICATIONS .....................................................................................12
ELECTRICAL WIRING DIAGRAMS................................................................................13

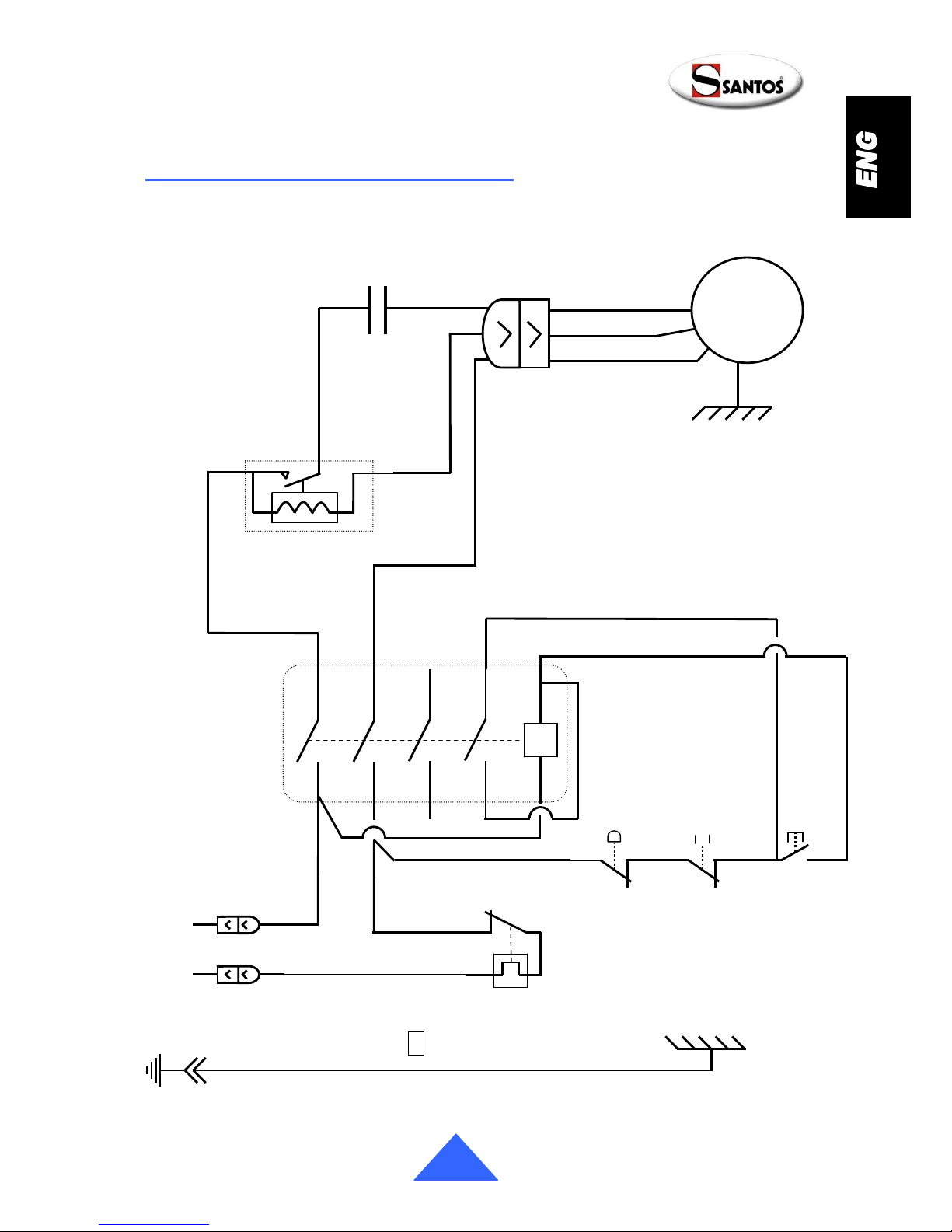

Electrical wiring diagram 110 - 120V 50/60Hz # 28.....................................................13

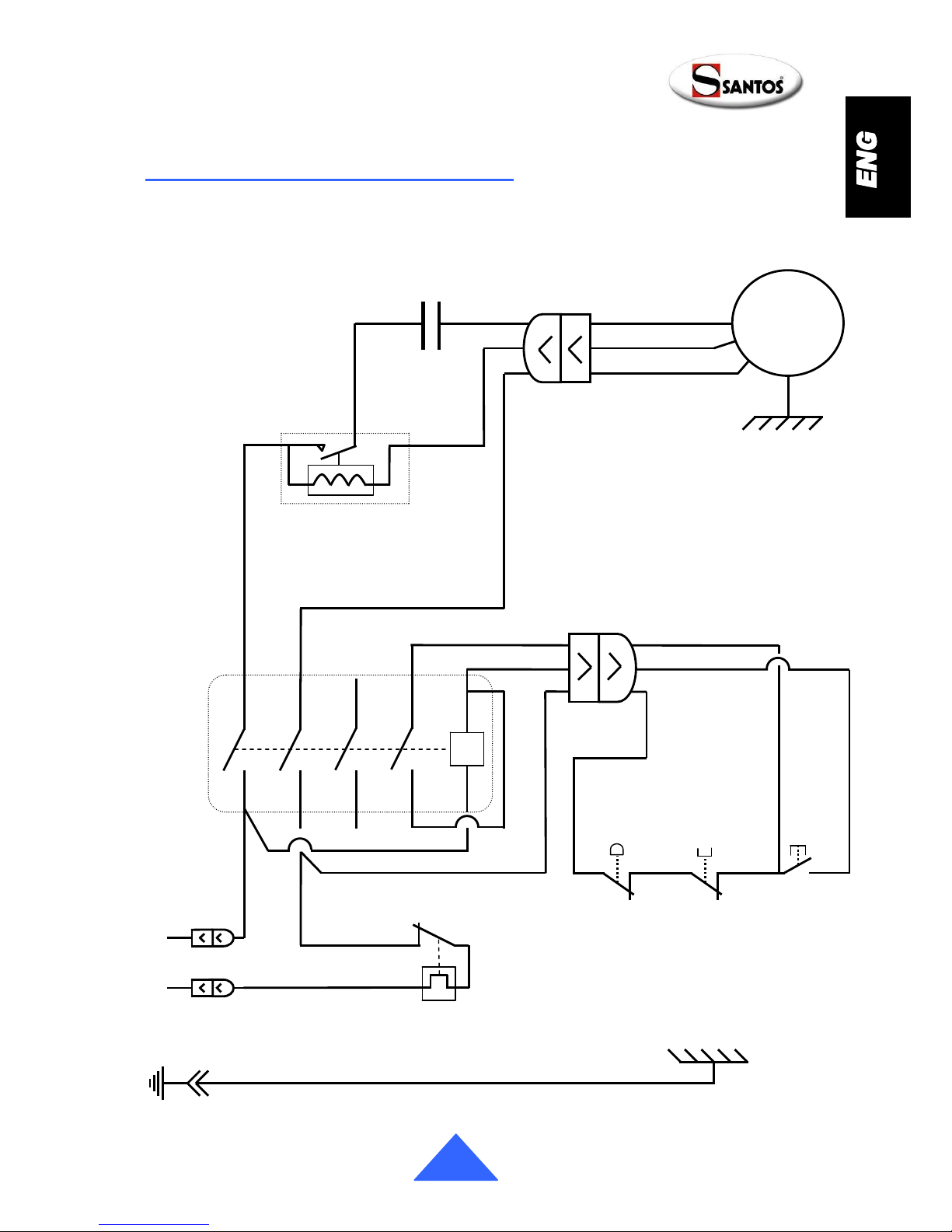

Electrical wiring diagram 110 - 120V 50/60Hz # 68.....................................................14
Electrical wiring diagram 220-240V 50/60Hz # 28.......................................................15
Electrical wiring diagram 220-240V 50/60Hz # 68.......................................................16
FIGURES......................................................................................................................18
WARRANTY CERTIFICATE ..........................................................................................21
APPLIANCE IDENTIFICATION PLATE ........................................................................21

SANTOS : Instruction and maintenance manual
98168 US 1.0 - 12 2013 www.santos.fr
“CE” COMPLIANCE DECLARATION
THE MANUFACTURER:
SANTOS SAS - 140-150, Av. Roger SALENGRO 69120 VAULX-EN-VELIN (LYON)
FRANCE
declares that the appliance intended for the professional market described below:
Description: Juice extractor
Type number: 28, 68
complies with:
the statutory provisions defined in appendix 1 of the European "machines"
directive n°2006/42/CE and the national legislation transposing it
the statutory provisions of the following European directives and regulations:
oN° 2006/95/CE (low voltage directive)
oN° 2004/108/CE (EMC directive)
oNo. 2002/95/CE (RoHS directive)
oNo. 2002/96/CE (WEEE directive)
oN° 1935/2004/CE (regulation) relating to materials and articles intended to
come into contact with foodstuffs
Harmonised European standards used to give presumption of conformity with the
essential requirements of the above-mentioned directives:
NF EN 1678+A1: 2010, Food processing machinery –Vegetable cutting
machines - Safety and hygiene requirements.
This European standard is a type-C standard as defined in EN ISO 12100. When the provisions of
this type-C standard differ from those stated in the type-A or B standards, the provisions of the
type-C standard override the provisions of the other standards. This standard provides the means
to comply with the requirements of the "machines" directive n°2006/42/CE, (see appendix ZA)
NF EN 12547+A1: 2009 Juice extractor. Common safety instructions
NF EN ISO 12100 -1 and 2:2004: Safety of machinery - General principles for
design
NF EN 60204-1: 2006 : Safety of machinery - Electrical equipment of machines-
General requirements
NF EN 1672-2: 2005, Food processing machinery –Basic concepts –Hygiene
requirements
NF EN 60335-1: 2013 : Household and similar electrical appliances. Safety.
NF EN 60335-2-64 :2004 : Particular requirements for commercial electric kitchen
machines
Drawn up in VAULX-EN-VELIN on: 01/01/2010
Signatory’s position: CHIEF EXECUTIVE OFFICER
Signatory’s name: Aurélien FOUQUET
Signature:

SANTOS : Instruction and maintenance manual
98168 US 1.0 - 12 2013 www.santos.fr
IMPORTANT SAFEGUARDS
When using, cleaning or maintaining the machine, always follow these instructions:
Read all instructions
INSTALLATION AND HANDLING
CAREFUL: For all handling operations including unpacking the machine,
the cover clamping handle (1) must not be used for holding or lifting the
appliance.
The machine can be handled by a single person. It is recommended that the appliance
be placed on a table or worktop for more comfortable use, so that the juice outlet spout
and the On (11) and Off (12) buttons are in front of you (recommended height: 90 cm, to
be adapted as required for the user).
During cleaning and installation, handle the basket assembly (5) carefully so as not to put
it out of shape thus preventing the machine from working properly.
IMPROPER USE
1. Do not place food in the channel and press with the plunger before you have
started the machine.
2. The appliance is not designed for handling frozen foods.
3. Remove stones from fruit before processing it in the machine (e.g.: mangoes,
apricots, peaches). Do not let the stones go into the machine.
4. The machine must not be left to operate without supervision.
5. Neither a hose nor a pressure hose should be used for cleaning.
6. Do not use abrasive sponge for cleaning the basket
7. The appliance must not be used on any surface which has a slope of more than 10°
relative to horizontal. The machine's 4 feet must always be resting on that surface.
The machine's motor spindle must always be vertical relative to that surface.
8. Never plunge the base in water or any other liquid for reasons of protection against
risks of electrocution.
9. The appliance must be unplugged before any intervention on it: cleaning, general
care, maintenance.
10.Use of spare parts other than certified original SANTOS parts is prohibited.
11.Do not use the appliance if the power supply cord is damaged. It must be replaced
by either a SANTOS approved dealer or a person with similar qualifications to avoid
any danger.
Note: You will find it easier to understand the next few paragraphs if you refer to
the diagrams at the end of this manual.
!
!

SANTOS : Instruction and maintenance manual
98168 US 1.0 - 12 2013 www.santos.fr
12.Never connect several appliances to the same power socket.
13.Never use the appliance outdoors.
14.Never place the appliance close to or on a source of heat.
15.This appliance is a professional machine designed exclusively for professional use.
It is not designed for household use.
16.This appliance is not designed for use by people (including children) whose
physical, sensorial or mental capacities are impaired or by people with no
experience or knowledge, unless they have been supervised or given training in the
use of the appliance beforehand by a person responsible for their safety.
Supervise children to ensure they do not play with the appliance.
ELECTRICAL CONNECTION:
The appliance is available in with a choice of two voltages for the power supply
220-240V 50/60 Hz single phase
100V 50 Hz - 120V 60 Hz single phase
Line protection: the appliance should be connected to a standard 2-pole + earth electric
socket. The installation should be fitted with an RCD and a fuse rated at
16A. The appliance must be earthed
CARE:
Before connecting the machine, check that the mains electrical voltage is the
same as the voltage for your appliance. Its value is shown:
either on the identification plate under or behind the machine.
or on the identification plate on the last page of this manual.
If the power cable (10) is damaged, it should be replaced by a SANTOS approved
dealer, SANTOS or a person with similar qualifications to avoid any danger.
USING FOR THE 1st TIME:
1. Remove the plunger (3).

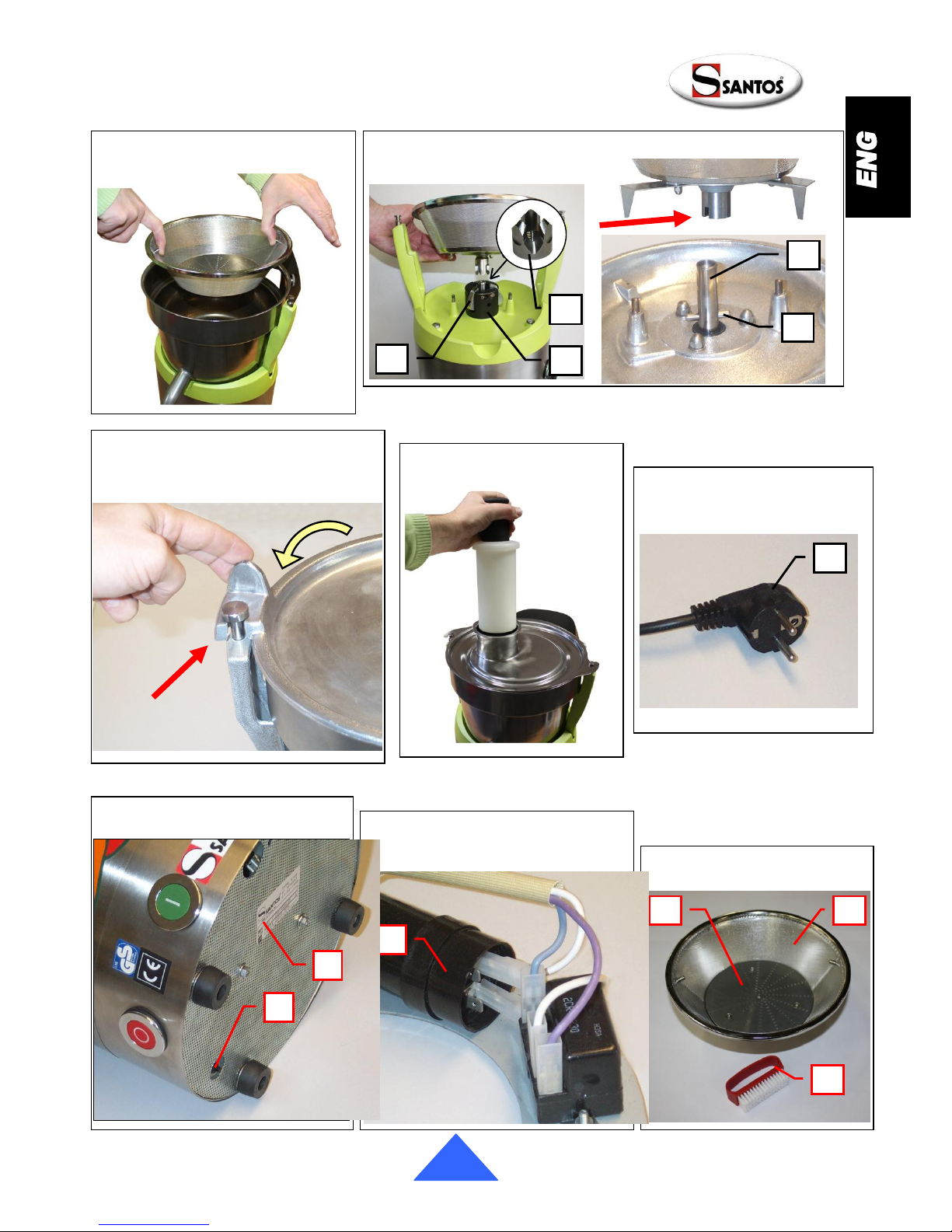

2. Model # 28: Rotate the clamping handle (1) by one half turn to release the cover
(2), Fig.2.
Model # 68: Rotate the clamping handle (1) by one quarter turn to release the
cover (2), Fig.2.
3. To be able to remove the cover, turn then lift the cover (2), Fig.3
4. Model # 28: Using the basket locking spanner (18), unscrew the basket fixing
screw (15) completely, while holding the basket immobile with the other hand.
Fig.4
5. Raise the bowl (4). The basket (5) should come out of its seating. Fig.5
6. Remove the basket assembly (5) and wash in clean water.
!

SANTOS : Instruction and maintenance manual
98168 US 1.0 - 12 2013 www.santos.fr
7. Wash all the elements in contact with food in clean water: the plunger (3), the
cover (2), the bowl (4), the ring (20) and the pulp container (6). Fig.6
Installing the product discharge channel
1. Place the discharge channel (16) on the bowl (4).
Insert and screw tight the 2 screws (17) on the bowl pins (4). Fig.7
RECYCLING THE PRODUCT AT THE END OF ITS SERVICE LIFE
This equipment is marked with the selective sorting symbol relating to
wastes from electrical and electronic equipment. It signifies that this
product should be taken over by a selective collection system conforming
to the Guideline 2002/96/EC (WEEE) –part Professional Equipment –so
that it can be either recycled or dismantled in order to reduce any impact on
the environment.
For more information, please contact your Retailer or the SANTOS.
For eliminating or recycling components of equipment, please contact a specialized
company or contact SANTOS.
The electronic products not undergoing a selective sorting are potentially dangerous for
the environment.
The damaging materials should be eliminated or recycled according to the regulations in
force.

SANTOS : Instruction and maintenance manual
98168 US 1.0 - 12 2013 www.santos.fr
JUICE EXTRACTOR model # 28 & # 68
Robust and very well-constructed (components made of cast aluminum,
engineered plastic and 18/10 stainless steel plate), this juice extractor is
particularly suitable for extracting juice and making coulis and sauce juices from
fruits or vegetables used by the professionals in:
Restaurants, Pizzerias, Snack Bars, Fast Food Outlets, Special Theme
Restaurants, etc.
It has a powerful motor which drives a centrifugation basket.
Centrifugation basket: The active, filtering part of the basket is made of stainless
steel.
18/10 press-drawn stainless steel bowl with stainless steel spout for collecting and
funneling the product juices.
USING THE APPLIANCE
USING:
Assembly and preparation:
1. Fit the bowl (4) on the bowl centering device (7) making sure that the juice run-off
spout is located in the indent provided for that purpose in the bowl centering
device (7) Fig.8
2. Model # 28: Place the basket assembly (5) in the bowl (4), making sure it is
correctly located on the motor shaft (8). The drive pin (19) needs to be in the
grooves in the basket assembly (5). Fig.11
Model #°68: Place the ring (20) in the bowl with the opening facing upwards.
Place the bowl (4) on the appliance. Hold the basket using 2 fingers and fit it on to
the motor shaft (8). Fig.9 and Fig.10
3. Model # 28: Using the spanner (18) insert the basket locking screw (15) and
screw it tight. During this operation, the basket shifts downwards a few millimeters.
During the locking operation the basket can be held with one hand.
4. Place the cover (2) on the bowl (4), turn the cover to engage the 2 lugs in the
catches on the locking rods. Fig.12
5. Model # 28: Rotate the clamping handle (1) by one half turn to block and lock
the cover in place (2), Fig.2
Model #°68: Rotate the clamping handle (1) by one quarter turn to block and
lock the cover in place (2). Fig.2
6. Place the fruit plunger (3) in the cover feed channel (2 Fig.13
7. Position the pulp container (6) correctly relative to the outlet of the discharge
channel (16).
8. Connect the supply cord plug (10) to your mains supply socket. Fig.14
9. Withdraw the fruit plunger (3) from the cover feed channel (2).

SANTOS : Instruction and maintenance manual
98168 US 1.0 - 12 2013 www.santos.fr
Using:
1. Start the machine by operating the On button (11).
2. Place the recipient under the bowl spout (4)
3. Introduce the fruits or vegetables into the cover feed channel (2) and push them
onto the rotating grater with the fruit plunger (3).
4. Continue this operation until the juice recipient is full or all the fruit and vegetables
to be processed have been used. Also keep an eye on the level of pulp in the pulp
container (6).
HOW TO STOP THE MACHINE
The appliance is stopped:
1. by pushing the Off button (12),
2. or by turning the clamping handle (1) from the front to the back.
3. or by unplugging the mains cord plug (10)
Cleaning:
Handle the basket assembly (5) carefully so as not to put it out of
shape thus preventing the machine from working properly.
To clean the basket assembly (5), it is recommended to use the brush (26) supplied with
the machine, for proper cleaning of filter sieve holes and the grater teeth (24). Fig. 17. Do
not use abrasive sponge for cleaning the basket.
Cleaning will be easier if you do not wait for the food remains to dry in the bowl, basket
and cover.
Precautions and risks:
During preparation, the level in the pulp container (6) should be
monitored to prevent the cover pulp outlet (2) from clogging. Such clogging
could result in an imbalance in the basket assembly (5) and thus a risk of
damaging the machine.
The quantity of products to be processed before reaching the maximum
filling level in the container (6) varies according to the products being
processed.
If during preparation an imbalance should occur well before the pulp container is full, it is
sometimes appropriate to continue adding food for the imbalance to be cleared.
But if the imbalance continues, the machine must be stopped and the basket assembly
(5) cleaned. Certain products are liable to clog or block the sieve holes, in which case the
basket assembly (5) should be cleaned more frequently..
SAFETY / MAINTENANCE
!
!

SANTOS : Instruction and maintenance manual
98168 US 1.0 - 12 2013 www.santos.fr
COVER AND BOWL PRESENCE SAFETY DEVICE:
For the juice extractor to be able to start, the cover (2) and the bowl (4) must be centered
in position on the bowl centering device (7) and held by the clamping handle (1).
Putting the clamping handle in the vertical position (up) without the bowl or without the
cover means that the machine cannot be started.
MOTOR OVERLOAD SAFETY FEATURE:
Models 220-240V 50/60Hz
Should the motor become blocked (foreign body, object that is too hard, too much
pressure with the fruit plunger on the products being processed), the circuit breaker (14)
located under the appliance triggers and cuts off the power supply to the motor. Fig.15
Correct the fault, reset the circuit breaker and re-start the machine.
If the problem persists, switch off the power supply to the machine (unplug the cord from
the mains socket (10)) and call in the maintenance service or contact a SANTOS
approved dealer.
Models 110-120V 50/60Hz
Should the motor become blocked (foreign body, object that is too hard, too much
pressure with the fruit plunger on the products being processed), the motor overheating
safety feature triggers and switches off the motor (see overheating safety feature).
MOTOR OVERHEATING SAFETY FEATURE:
Models 110-120V 50/60Hz only
In the event of the motor overheating, the appliance stops automatically.
The safety feature has an automatic reset, so wait for the motor to cool (15 to 30
minutes), before restarting the machine.
If the problem persists, switch off the power supply to the machine (unplug the cord from
the mains socket (10)) and call in the maintenance service or contact a SANTOS
approved dealer.
SAFE ACCESS TO THE TOOLS:
The juice extractor can only be started if the cover and bowl are positioned correctly on
the bowl centering device (7) and the clamping handle (1) is locked.
Releasing the clamping handle (1) results in the machine stopping and the immobilization
of the rotating elements in less than 3 seconds.
Re-starting the juice extractor requires specific operation of the On switch (11) again.
A cut in the mains power supply makes the machine stop.

SANTOS : Instruction and maintenance manual
98168 US 1.0 - 12 2013 www.santos.fr
MAINTENANCE
Before carrying out any work on the juice extractor, the machine must in all cases be
unplugged from the mains power supply and the motor start capacitor discharged:
Discharging the capacitor:
Use a screwdriver with insulated handle to touch the 2 connectors on the
capacitor (13). The appearance of an electric arc shows that the capacitor
has discharged. Fig.16
Spare Parts :
IMPORTANT: Use of spare parts other than certified original SANTOS parts is
prohibited.
This machine requires no particular maintenance because the bearings are lubricated for
life.
If any intervention is necessary to replace parts subject to wear, such as the grater, the
basket, electrical or other components, please refer to the parts list (see the exploded
view at the end of this manual, or that can be downloaded from our Web site
www.santos.fr).
For all spare part orders (see references in the exploded view at the end of the
manual), state the type, the appliance serial number and the electrical specifications
recorded under the appliance.
SERVICING:
Neither a hose nor a pressure hose should be used for cleaning
After use, clean the basket assembly, bowl, cover, pulp container, plunger in clean
water or with a dish washing detergent product designed for this purpose. Then
rinse and dry. Do not use abrasive products or pads to clean the basket
assembly.
The base is to be cleaned with a soft damp sponge, then dried.
Model #°68: if necessary, clean the shaft nut (23), the rockers (22) and the drive
head assembly (21) with water using the brush supplied. Fig.11
TAKE CARE:
For easier cleaning, do not leave food remains to dry on the bowl (4),
the basket assembly (5), the cover (2), or the fruit plunger (3).
It is recommended that all these parts of the machine are cleaned
immediately after the work is finished.
!
!
