Santos 28 Operating instructions

SANTOS : Instruction and maintenance manual
98158 US 2.0 - 05 2007 www.santos.fr
SANTOS SAS :
140-150 AVENUE ROGER SALENGRO
69120 VAULX-EN-VELIN (LYON) - FRANCE
PHONE [phone] - FAX [phone]
FAX [phone]
E-Mail :[email protected] www.santos.fr
JUICE EXTRACTOR Model # 28 & # 58
USER AND MAINTENANCE MANUAL
!
IMPORTANT: documents included in this manual to be kept:
•"CE" COMPLIANCE DECLARATION
•WARRANTY CERTIFICATE
Model # 28 Model # 58
Coffee grinders - Fruit juicers - Mixers - Blenders - Drinks dispensers - Planetary mixers
- Kneaders - Cheese graters - Ice crushers - Mincers - Vegetable slicers – Dough mixer
Moulins à café - Presse-fruits - Mixers - Blenders - Distributeurs de boissons - Batteurs
mélangeurs - Pétrin - Râpes à fromage - Broyeurs à glaçons - Hache-viande - Coupe-légumes
MODELES DEPOSES FRANCE ET INTERNATIONAL
INTERNATIONALLY PATENTED MODELS

SANTOS : Instruction and maintenance manual
CONTENTS
“CE” COMPLIANCE DECLARATION................................................................................3
IMPORTANT SAFEGUARDS............................................................................................4
INSTALLATION AND HANDLING..................................................................................4
IMPROPER USE............................................................................................................4
ELECTRICAL CONNECTION: .......................................................................................5
USING FOR THE 1st TIME:...........................................................................................5
RECYCLING THE PRODUCT AT THE END OF ITS SERVICE LIFE............................5
JUICE EXTRACTOR model # 28 & # 58...........................................................................6
USING THE APPLIANCE..................................................................................................7
USING:...........................................................................................................................7
HOW TO STOP THE MACHINE ....................................................................................7
Cleaning: ........................................................................................................................7
Precautions and risks: ....................................................................................................8
SAFETY / MAINTENANCE................................................................................................8
COVER AND BOWL PRESENCE SAFETY DEVICE:....................................................8
MOTOR OVERLOAD SAFETY FEATURE:....................................................................8
MOTOR OVERHEATING SAFETY FEATURE:..............................................................9
SAFE ACCESS TO THE TOOLS: ..................................................................................9
MAINTENANCE .............................................................................................................9
SERVICING:.................................................................................................................10
FAULT FINDING .............................................................................................................11
The machine will not start:............................................................................................11
The machine stops because the motor has overheated:..............................................11
The machine stops because of an overload:................................................................11
The machine vibrates when running empty:.................................................................11
REFERENCE TO STANDARDS .....................................................................................12
TECHNICAL SPECIFICATIONS .....................................................................................12

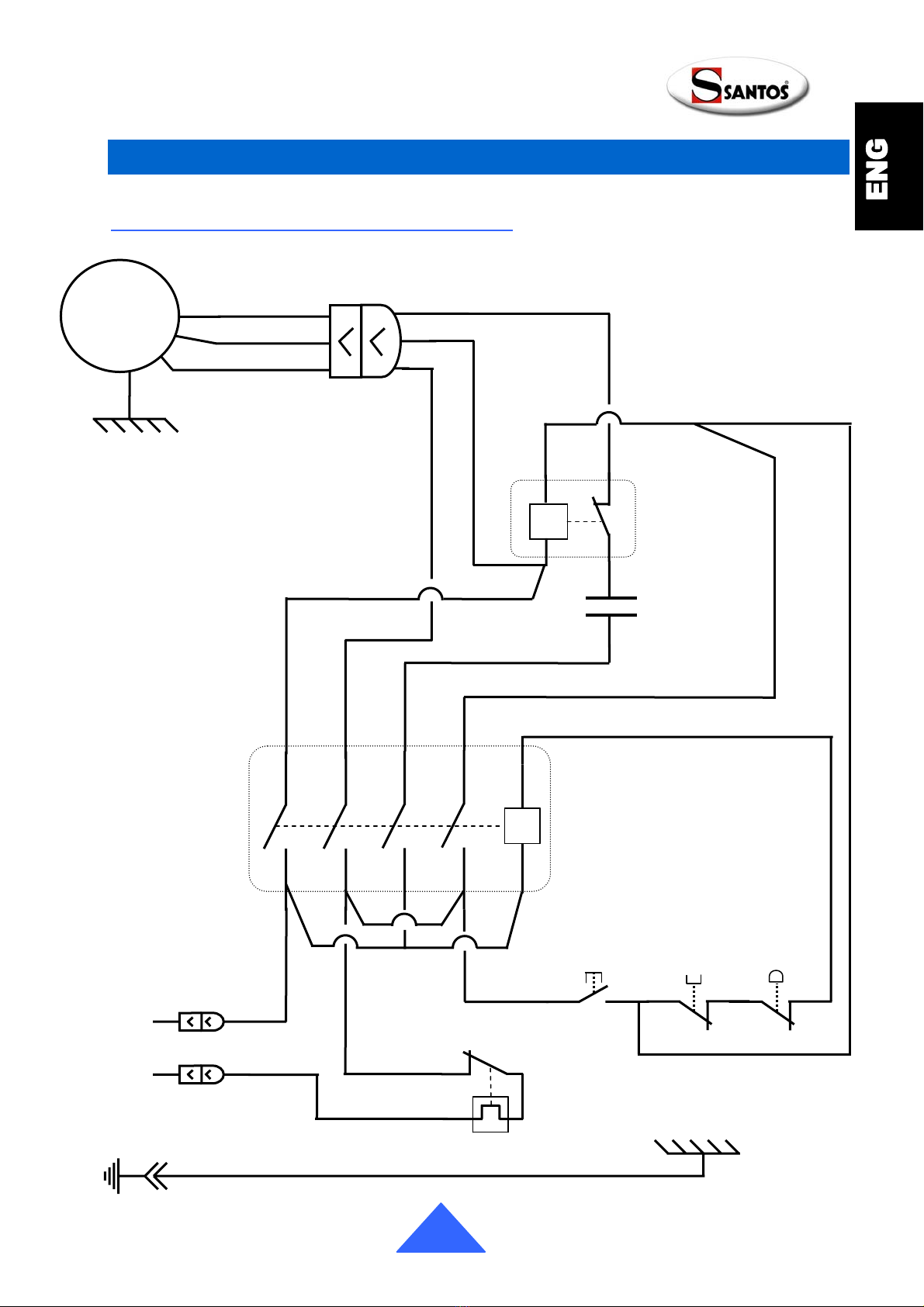

ELECTRICAL WIRING DIAGRAMS................................................................................13
Electrical wiring diagram 110 - 120V 50/60Hz.............................................................13
Electrical wiring diagram 220-240V 50/60Hz...............................................................14
FIGURES......................................................................................................................16
WARRANTY CERTIFICATE ..........................................................................................19
APPLIANCE IDENTIFICATION PLATE ........................................................................19
98158 US 2.0 - 05 2007 www.santos.fr

SANTOS : Instruction and maintenance manual
“CE” COMPLIANCE DECLARATION
THE MANUFACTURER:
SANTOS SAS - 140-150, Av. Roger SALENGRO 69120 VAULX-EN-VELIN (LYON)
FRANCE
HEREBY DECLARES THAT THE MACHINE DESIGNATED ON THE IDENTIFICATION
PLATE AFFIXED:
•UNDER THE APPLIANCE,
•ON THE WARRANTY CERTIFICATE ON THE LAST PAGE OF THIS MANUAL,
COMPLIES WITH THE PROVISIONS OF THE "machines" DIRECTIVE AS MODIFIED
(Directive 98/37/CEI)
AND THE NATIONAL LEGISLATION TRANSPOSING IT.
IT ALSO COMPLIES WITH THE PROVISIONS OF THE FOLLOWING EUROPEAN
DIRECTIVES:
No. 73/23 dated 19/02/73 (Low voltage directive)
No. 89/336 (CEM directive)
No. 2002/95/CE (RoHS directive)
No. 2002/96/CE (WEEE directive)
The machine complies with the provisions of the following harmonised European
standards:
EN ISO 12100 -1 and 2 : 2004 - Machine safety devices - General design
principles
NF EN 60204-1: 2006: Machine safety devices - Machine electrical equipment -
General regulations
NF EN 1678:1998 Machines for food products - vegetable slicers.
NF EN 12547:1998 Juice extractor. Common safety instructions.
SIGNED IN VAULX-EN-VELIN ON: 01/05/2007
SIGNATORY'S TITLE: CHIEF EXECUTIVE OFFICER
SIGNATORY'S NAME: JACQUES FOUQUET
SIGNATURE
98158 US 2.0 - 05 2007 www.santos.fr

SANTOS : Instruction and maintenance manual
IMPORTANT SAFEGUARDS
When using, cleaning or maintaining the machine, always follow these instructions:
Read all instructions

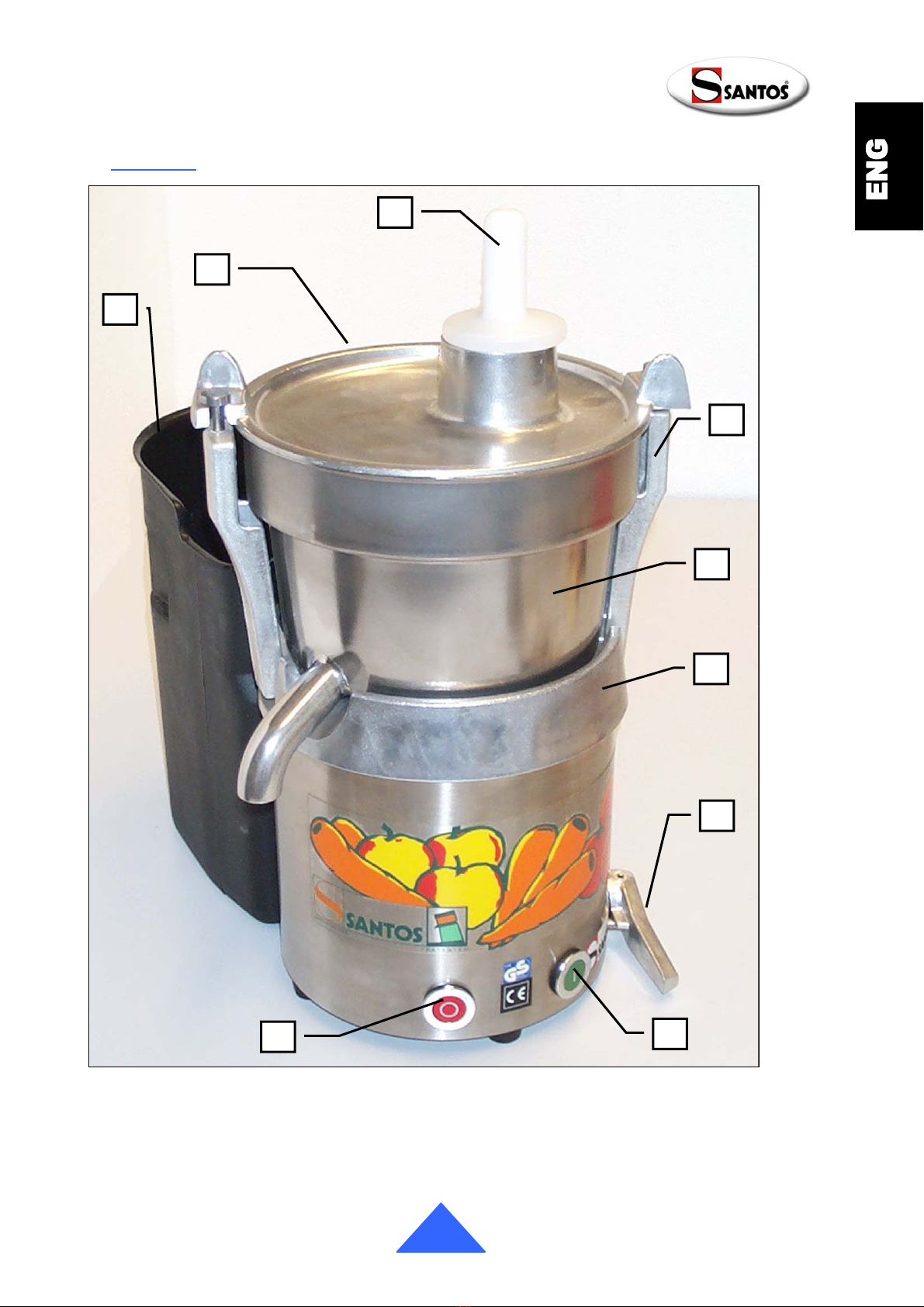

Note: You will find it easier to understand the next few paragraphs if you refer to
the diagrams at the end of this manual.
INSTALLATION AND HANDLING
CAREFUL:
For all handling operations including unpacking the machine, the
cover clamping handle (1) must not be used for holding or lifting the
appliance.
The machine can be handled by a single person. It is recommended that the appliance
be placed on a table or worktop for more comfortable use, so that the juice outlet spout
and the On (11) and Off (12) buttons are in front of you (recommended height: 90 cm, to
be adapted as required for the user).
!
During cleaning and installation, handle the basket assembly (5) carefully so as not to put
it out of shape thus preventing the machine from working properly.
IMPROPER USE
•Do not place food in the channel and press with the plunger before you have
started the machine.
•The appliance is not designed for handling frozen foods.
•Remove stones from fruit before processing it in the machine (e.g.: mangoes,
apricots, peaches). Do not let the stones go into the machine.
!
•Neither a hose nor a pressure hose should be used for cleaning
•The machine must not be left to operate without supervision.
•Do not use abrasive sponge for cleaning the basket
•The appliance must not be used on any surface which has a slope of more than 10°
relative to horizontal. The machine's 4 feet must always be resting on that surface.
The machine's motor spindle must always be vertical relative to that surface.
•Use of spare parts other than certified original SANTOS parts is prohibited.
98158 US 2.0 - 05 2007 www.santos.fr

SANTOS : Instruction and maintenance manual
ELECTRICAL CONNECTION:
The appliance is available in with a choice of two voltages for the power supply
•220-240V 50/60 Hz single phase
•100V 50 Hz - 120V 60 Hz single phase
Line protection: the appliance should be connected to a standard 2-pole + earth electric
socket. The installation should be fitted with an RCD and a fuse rated at 16A. The
appliance must be earthed
CARE:
•Before connecting the machine, check that the mains electrical voltage is the
same as the voltage for your appliance. Its value is shown:
¾either on the identification plate under the machine.
¾or on the identification plate on the last page of this manual.
•If the power cable (10) is damaged, it should be replaced by a special
assembly available from approved SANTOS dealers or from SANTOS.
!
USING FOR THE 1st TIME:

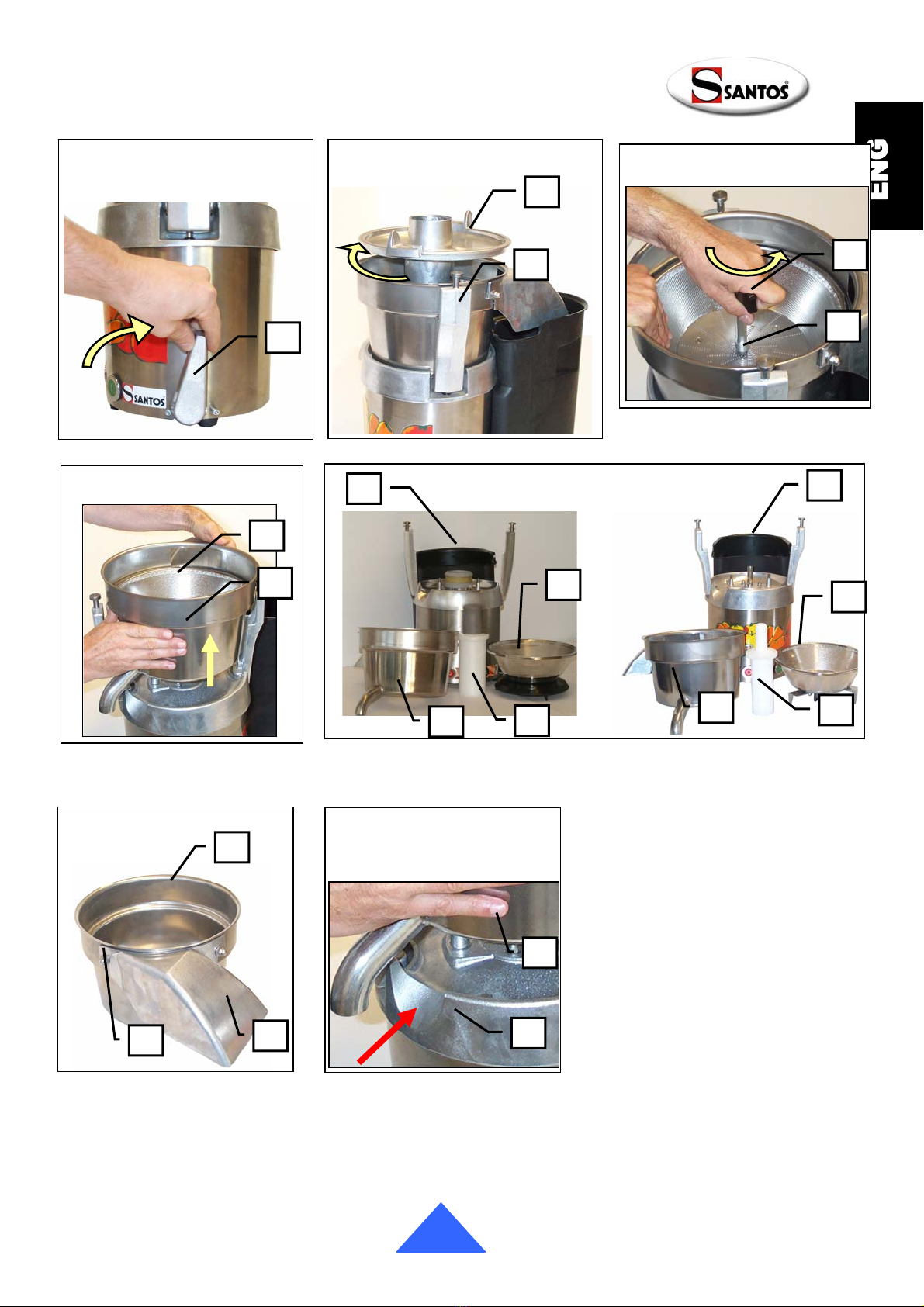

1. Remove the plunger (3).
2. Rotate the clamping handle (1) by one half turn to release the cover (2), Fig.2
3. To be able to remove the cover, turn then lift the cover (2), Fig.3
4. Model # 28 : Using the basket locking spanner (18), unscrew the basket fixing
screw (15) completely, while holding the basket immobile with the other hand.
Fig.4
5. Raise the bowl (4). The basket (5) should come out of its seating. Fig.5
6. Remove the basket assembly (5) and wash in clean water.
7. Wash all the elements in contact with food in clean water: the plunger (3), the
cover (2), the bowl (4) and the pulp container (6). Fig.6
Installing the product discharge channel
1. Place the discharge channel (16) on the bowl (4).
Insert and screw tight the 2 screws (17) on the bowl pins (4). Fig.7
RECYCLING THE PRODUCT AT THE END OF ITS SERVICE LIFE
This equipment is marked with the selective sorting symbol relating to
wastes from electrical and electronic equipment. It signifies that this
product should be taken over by a selective collection system conforming
to the Guideline 2002/96/EC (WEEE) – part Professional Equipment – so
that it can be either recycled or dismantled in order to reduce any impact on
the environment.
For more information, please contact your Retailer or the SANTOS.
For eliminating or recycling components of equipment, please contact a specialized
company or contact SANTOS.
98158 US 2.0 - 05 2007 www.santos.fr

SANTOS : Instruction and maintenance manual
98158 US 2.0 - 05 2007 www.santos.fr
The electronic products not undergoing a selective sorting are potentially dangerous for
the environment.
The damaging materials should be eliminated or recycled according to the regulations in
force.
JUICE EXTRACTOR model # 28 & # 58
•Robust and very well-constructed (components made of cast aluminum,
engineered plastic and 18/10 stainless steel plate), this juice extractor is
particularly suitable for extracting juice and making coulis and sauce juices from
fruits or vegetables used by the professionals in:
Restaurants, Pizzerias, Snack Bars, Fast Food Outlets, Special Theme
Restaurants, etc.
•It has a powerful motor which drives a centrifugation basket.
•Centrifugation basket: The active, filtering part of the basket is made of stainless
steel.
Model # 58 : the bottom part of the basket providing the drive and the locking
system is made of food quality engineered plastic.
•18/10 press-drawn stainless steel bowl with stainless steel spout for collecting and
funneling the product juices.

SANTOS : Instruction and maintenance manual
USING THE APPLIANCE
USING:
Assembly and preparation:

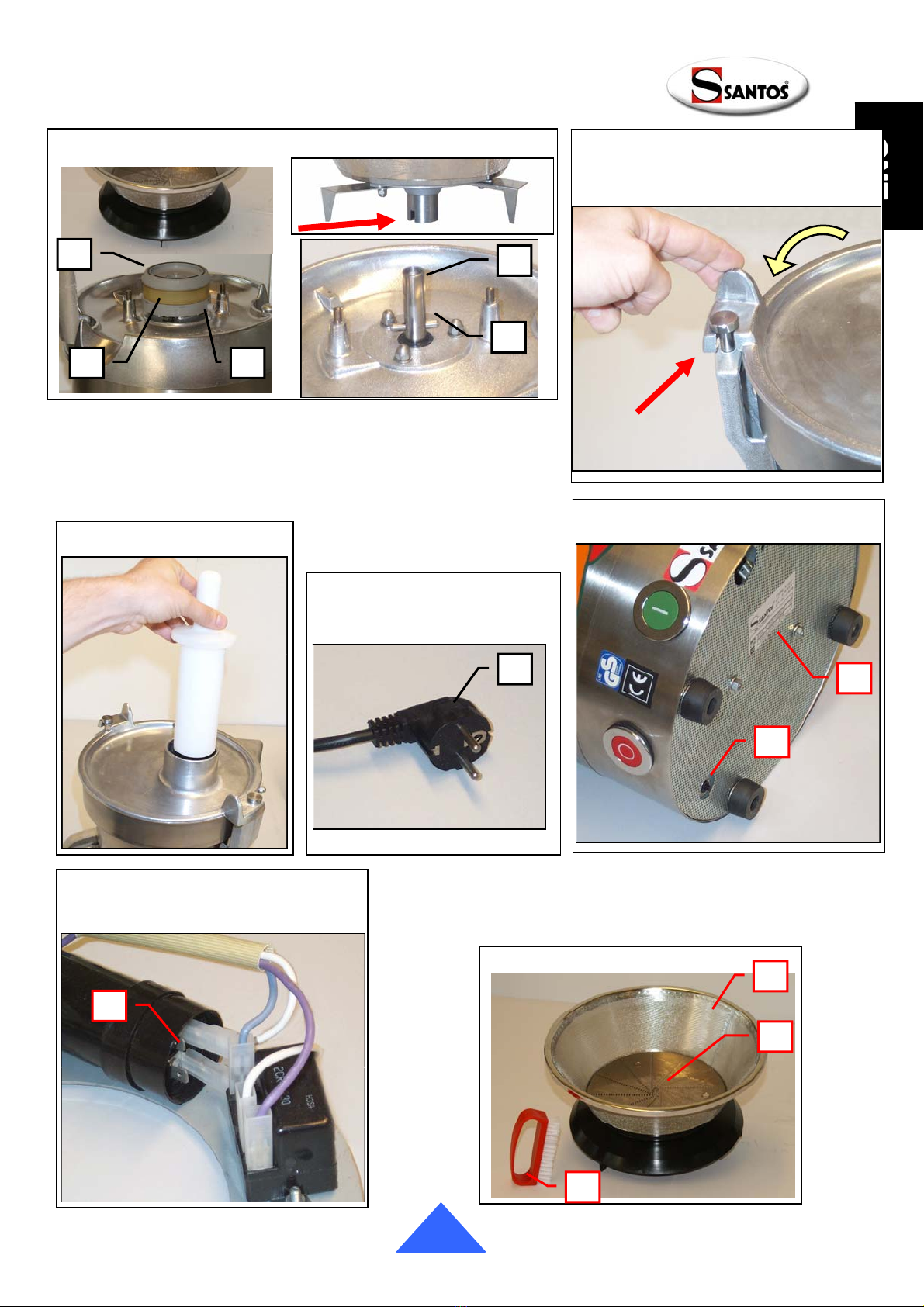

1. Fit the bowl (4) on the bowl centering device (7) making sure that the juice run-off
spout is located in the indent provided for that purpose in the bowl centering
device (7) Fig.8
2. Model # 28 : Place the basket assembly (5) in the bowl (4), making sure it is
correctly located on the motor shaft (8). The drive pin (19) needs to be in the
grooves in the basket assembly (5). Fig.9
Model # 58 : Place the basket assembly (5) in the bowl (4), making sure it is
correctly located on the motor shaft (20). The drive pin (22) should enter the
notches of the basket assembly (5). Fig.9
3. Model # 28 : Using the spanner (18) insert the basket locking screw (15) and
screw it tight. During this operation, the basket shifts downwards a few millimeters.
During the locking operation the basket can be held with one hand.
4. Place the cover (2) on the bowl (4), turn the cover to engage the 2 lugs in the
catches on the locking rods. Fig.10
5. Rotate the clamping handle (1) by one half turn to block and lock the cover in
place (2), Fig.5
6. Place the fruit plunger (3) in the cover feed channel (2 Fig.11
7. Position the pulp container (6) correctly relative to the outlet of the discharge
channel (16).
8. Connect the supply cord plug (10) to your mains supply socket. Fig.12
9. Withdraw the fruit plunger (3) from the cover feed channel (2).
Using:
1. Start the machine by operating the On button (11).
2. Place the recipient under the bowl spout (4)
3. Introduce the fruits or vegetables into the cover feed channel (2) and push them
onto the rotating grater with the fruit plunger (3).
4. Continue this operation until the juice recipient is full or all the fruit and vegetables
to be processed have been used. Also keep an eye on the level of pulp in the pulp
container (6).
HOW TO STOP THE MACHINE
The appliance is stopped:
1. by pushing the Off button (12),
2. or by turning the clamping handle (1) from the back to the front.
3. or by unplugging the mains cord plug (10)
Cleaning:
98158 US 2.0 - 05 2007 www.santos.fr
!

SANTOS : Instruction and maintenance manual
Handle the basket assembly (5) carefully so as not to put it out of
shape thus preventing the machine from working properly.
To clean the basket assembly (5), it is recommended to use the brush (25) supplied with
the machine, for proper cleaning of filter sieve holes and the grater teeth. Fig. 15. Do not
use abrasive sponge for cleaning the basket.
Cleaning will be easier if you do not wait for the food remains to dry in the bowl, basket
and cover.
Precautions and risks:
During preparation, the level in the pulp container (6) should be
monitored to prevent the cover pulp outlet (2) from clogging. Such clogging
could result in an imbalance in the basket assembly (5) and thus a risk of
damaging the machine.
! The quantity of products to be processed before reaching the maximum
filling level in the container (6) varies according to the products being
processed.
If during preparation an imbalance should occur well before the pulp container is full, it is
sometimes appropriate to continue adding food for the imbalance to be cleared.
But if the imbalance continues, the machine must be stopped and the basket assembly
(5) cleaned. Certain products are liable to clog or block the sieve holes, in which case the
basket assembly (5) should be cleaned more frequently..
SAFETY / MAINTENANCE
COVER AND BOWL PRESENCE SAFETY DEVICE:
For the juice extractor to be able to start, the cover (2) and the bowl (4) must be centered
in position on the bowl centering device (7) and held by the clamping handle (1).
Putting the clamping handle in the vertical position (up) without the bowl or without the
cover means that the machine cannot be started.
MOTOR OVERLOAD SAFETY FEATURE:
Models 220-240V 50/60Hz
Should the motor become blocked (foreign body, object that is too hard, too much
pressure with the fruit plunger on the products being processed), the circuit breaker (14)
located under the appliance triggers and cuts off the power supply to the motor. Fig.13
Correct the fault, reset the circuit breaker and re-start the machine.
If the problem persists, switch off the power supply to the machine (unplug the cord from
the mains socket (10)) and call in the maintenance service or contact a SANTOS
approved dealer.
98158 US 2.0 - 05 2007 www.santos.fr

SANTOS : Instruction and maintenance manual
Models 110-120V 50/60Hz
Should the motor become blocked (foreign body, object that is too hard, too much
pressure with the fruit plunger on the products being processed), the motor overheating
safety feature triggers and switches off the motor (see overheating safety feature).
MOTOR OVERHEATING SAFETY FEATURE:
Models 110-120V 50/60Hz only
In the event of the motor overheating, the appliance stops automatically.
The safety feature has an automatic reset, so wait for the motor to cool (15 to 30
minutes), before restarting the machine.
If the problem persists, switch off the power supply to the machine (unplug the cord from
the mains socket (10)) and call in the maintenance service or contact a SANTOS
approved dealer.
SAFE ACCESS TO THE TOOLS:
The juice extractor can only be started if the cover and bowl are positioned correctly on
the bowl centering device (7) and the clamping handle (1) is locked.
Releasing the clamping handle (1) results in the machine stopping and the immobilization
of the rotating elements in less than 3 seconds.
Re-starting the juice extractor requires specific operation of the On switch (11) again.
A cut in the mains power supply makes the machine stop.
MAINTENANCE
Before carrying out any work on the juice extractor, the machine must in all cases be
unplugged from the mains power supply and the motor start capacitor discharged:
Discharging the capacitor:
Use a screwdriver with insulated handle to touch the 2 connectors on the
capacitor (13). The appearance of an electric arc shows that the capacitor
has discharged. Fig.14
!
Spare Parts :
IMPORTANT: Use of spare parts other than certified original SANTOS parts is
prohibited.
This machine requires no particular maintenance because the bearings are lubricated for
life.
If any intervention is necessary to replace parts subject to wear, such as the grater, the
basket, electrical or other components, please refer to the parts list (see the exploded
98158 US 2.0 - 05 2007 www.santos.fr

SANTOS : Instruction and maintenance manual
view at the end of this manual, or that can be downloaded from our Web site
www.santos.fr).
For the machine to operate properly, it is recommended that a check is also made that
the locking membrane (21) is in good condition, in particular the absence of any signs of
tearing. Also check that the elastomer drive sprockets (22) are in good condition, in
particular the absence of any signs of wrenching.
For all spare part orders (see references in the exploded view at the end of the
manual), state the type, the appliance serial number and the electrical specifications
recorded under the appliance.
SERVICING:
Neither a hose nor a pressure hose should be used for cleaning
•After use, clean the basket assembly, bowl, cover, pulp container, plunger in clean
water or with a dish washing detergent product designed for this purpose. Then
rinse and dry. Do not use abrasive products or pads to clean the basket
assembly.
•The base is to be cleaned with a soft damp sponge, then dried.
TAKE CARE:
For easier cleaning, do not leave food remains to dry on the bowl (4),
the basket assembly (5), the cover (2), or the fruit plunger (3).
It is recommended that all these parts of the machine are cleaned
immediately after the work is finished.
!
98158 US 2.0 - 05 2007 www.santos.fr
