FLF215 INSTRUCTION MANUAL
Scan for easy install video
san.us/1116
We’ll Make It Stress-Free
If you have any questions along the way, just give us a call.
1-888-333-9952. We’re ready to help!

2
1 Does your TV weigh more than 100 lbs. (45.3 kg) including accessories?
No — Perfect!
Yes — This mount is NOT compatible.
Visit vuepoint.sanus.com or call 1-888-333-9952 (UK: 0800-056-2853) to find a compatible mount.
2 What is your
wall made
of?
3 Do you have
all the tools
needed?
4 Ready to begin?
Please read through these instructions completely to be sure you’re comfortable with this easy install process. Also check your
TV owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product,
contact Customer Service at 1-888-333-9952.
CAUTION: Avoid potential personal injuries and property damage!
●This product is designed for use in wood stud, solid concrete, and concrete block walls - DO NOT install into drywall alone
●The wall must be capable of supporting five times the weight of the TV and mount combined
●Do not use this product for any purpose not explicitly specified by manufacturer
●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use
IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

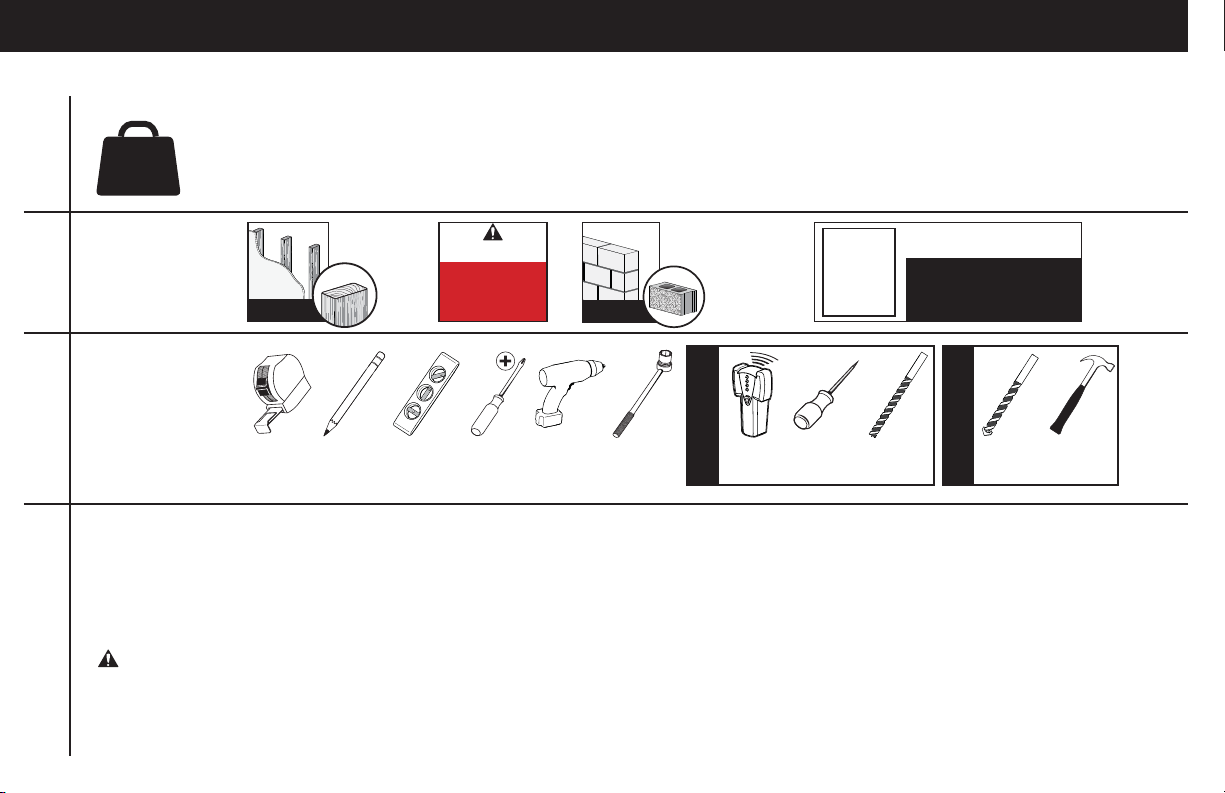

Before getting started, let’s make sure this mount is perfect for you!
100 lbs.
(45.3 kg)
Solid concrete
or concrete
block?
Perfect!
Drywall with
wood studs?
Perfect!
CAUTION:
DO NOT
install into
drywall alone
Unsure?
Call Customer Service:
1-888-333-9952
(UK: 0800-056-2853)
?
Wood Stud Install
Concrete Install
Tape
Measure Pencil Level Screw driver Electric Drill Socket Wrench Stud Finder Awl Wood Drill Bit Masonry Drill Bit Hammer
3/8 in.
(10 mm)
1/2 in.
(13 mm) 7/32 in.
(5 mm)

3
NOTE: TV shifts 3.05 in. (77.6 mm) to the right or left when in the home
position. Consider this when selecting the location of your wall mount.
3.05
[77.6]
OFFSET
Dimensions

4
NOTE: Not all hardware included will be used.
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to
your dealer; contact Customer Service. Never use damaged parts!
M5 x 12mm
M6 x 12mm M6 x 35mm
M5 x 35mm
M8 x 16mm
M8 x 12mm M8 x 35mm
M8 x 20mm
M6 x 20mm
M
5
M
6
/
M
8
STEP 1 Parts and Hardware
01
TV Bracket
TV Screws
Washers Spacers
TV Bracket
Extenders
TV Bracket Interface Screws
03 x8
04 x4 05 x4
06 x4
07 x4 12 x4
08 x4 10 x4 13 x4
09 x4 11 x4 14 x4
01 x1 02 x4
STEP 1 Attach Bracket to TV

5
1-1 Measure Your TV Hole Pattern
cm
inches
inch dimensions are approximate
Measure the width and height of your TV hole pattern in cm.
Record your measurements:
Width__________cm x Height ________ cm
75 mm = 7.5 cm ≈ 3 in.
100 mm = 10 cm ≈ 4 in.
200 mm = 20 cm ≈ 7 7/8 in.
300 mm = 30 cm ≈ 11 3/4 in.
400 mm = 40 cm ≈ 15 3/4 in.
600 mm = 60 cm ≈ 23 5/8 in.

6
01
1-2 Assemble Your TV Bracket
Determine which TV bracket configuration to use, A, B, C, or D
based on your TV hole pattern measurements.
A7.87
[200]
7.87
[200]
3.94
[100]
3.94
[100]
15.75
[400]
15.75
[400]
3.0
[75]
3.0
[75]
in.
[mm]
in.
[mm]
Assemble TV bracket extenders 02 onto TV bracket 01 as illustrated.
Secure using eight screws 03 in the corner holes shown.
400 x 400
01
B
03
02
11.81
[300]
11.81
[300]
11.81
[300]
15.75
[400]
400 x 300
These smaller hole patterns only use TV bracket 01 .
Do not use the four TV bracket extenders 02 and eight screws 03 .
75 x 75
100 x 100
200 X 200
02
03

7
Assemble TV bracket extenders 02 onto TV bracket 01 as illustrated.
Secure using eight screws 03 in the corner holes shown.
600 x 400
01
01
C400 x 200
200 x 400
D
in.
[mm] in.
[mm]
i
03
Assemble TV bracket extenders 02 onto TV bracket 01 as illustrated.
Secure using eight screws 03 in the corner holes shown.
03
02
02
15.75
[400]
15.75
[400]
15.75
[400]
7.87
[200]
7.87
[200]
23.62
[600]

8
M5 M6 M8

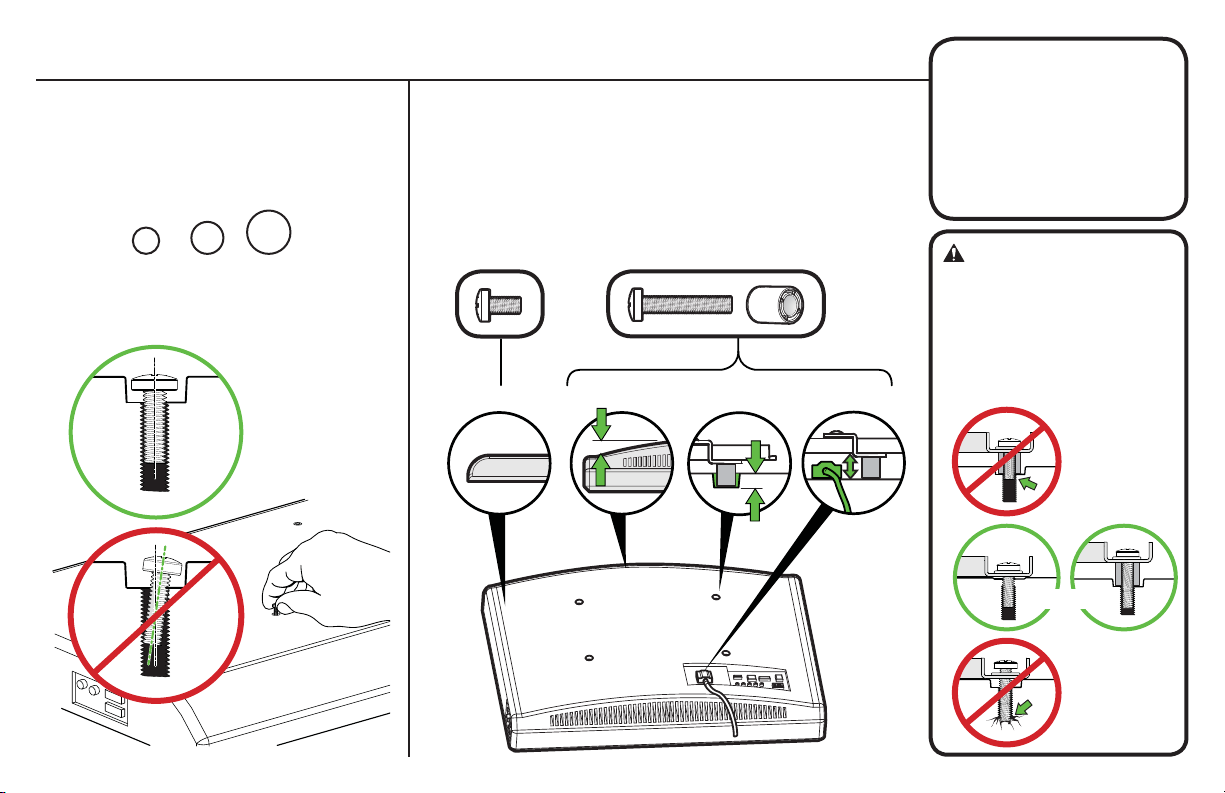

1-3 Select TV Screw Diameter 1-4 Select TV Screw Length
Hand thread screws into the threaded inserts
on the back of your TV to determine which
screw diameter (M5, M6, or M8) to use.
FLAT BACK ROUND BACK CABLESINSET HOLES
If your TV has a flat back AND you want your TV closer to the
wall, use the shorter screws.
Spacers and longer screws are supplied to accommodate:
●Round/irregular back TVs
●TVs with inset mounting holes
●Extra space needed for cables
Too Long
CAUTION:
Verify adequate thread
engagment with the screw or
screw/spacer combination.
-Too short will not hold the TV.
-Too long will damage the TV.
Too Short
Correct
Standard configurations
are shown. For special
applications, or if you
are uncertain about your
hardware selection, contact
Customer Service at 1-888-
333-9952.

9
1-5 Attach TV Bracket
TV Bracket
Configuration A
Illustrated
(with spacers)
TV Bracket
Configuration C
Illustrated
(with spacers)
Flat Back
Round Back / Extra Space
Position your TV bracket configuration (A, B, C, or D) over your TV hole pattern - making sure the bracket is centered over the TV hole pattern and
level. Secure bracket using your screw/washer (Flat Back) or spacer/screw/washer (Round Back / Extra Space) selection.
IMPORTANT: Ensure TV bracket is securely fastened before moving on to the next step.
06
04 05
07 08 09
12
10
13
11
14
04 05
Note
orientation
of hanging
and locking
tabs
Hanging
Locking
Note: Arrow
points up

10
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to
your dealer; contact Customer Service. Never use damaged parts!
NOTE: Not all hardware included will be used.
5⁄16 in. x 2 3⁄4 in.
5⁄16 in. x 2 3⁄4 in.
.695 x .350 x .075 in.
.695 x .350 x .075 in.
THISWAY UP
HERE WE GO!
THIS IS YOUR DRILLING
TEMPLATE FOR STEP 2
YOU’RE REALLY GOING
TO ENJOY STEP 3
GET STARTED
WITH STEP 1
WELCOME AND THANKS FOR CHOOSING SANUS VUEPOINT
Grab the TV brackets and line
them up with the holes on the
back of your TV.
Attach using the bolts that fit.
san.us/1116
Scan here to view
your install video.
Locate your stud and choose
a height for your TV. Then
simply tape this template to
the wall and drill right through.
Once the wall plate is secured,
simply hang TV on arm and secure
into place with safety screw.
Congratulations! You’re done.
We're here to help! If you have
questions at any point, contact
customer service at 1-888-333-9952
Referencethe product manual for
detailson mounting to concrete.
Besure to review the manual for
completesafety instructions.
Model:FLF215KIT
6700-004661<00>
40 – 60 in.
101 – 152 cm
10°
10°
san.us/1127
From your typical viewing
location, position your TV so your
eyes are level with the middle of
the screen. For most people, this
is between 40" and 60" (101 cm
and 152 cm) above the floor.
For precise drilling locations,
scan the HeightFinder™
link below or contact
customer service.
VIEWING HEIGHT
RECOMMENDATION
STEP 2 Parts and Hardware
Wall Plate
Wall Plate Template
Lag Bolts
Lag Bolt Washers
Concrete Installation Kit CMK1 is not included
Contact Customer Service at 1-888-333-9952 to have
the additional hardware shipped directly to you.
STEP 2 Attach Wall Plate to Wall
WARNING: This product contains
small items that could be a choking
hazard if swallowed.
C1 x4
C2 x4
17 x2 18 x2
15 x1 16 x1 Lag Bolts
Lag Bolt Washers
Concrete Anchors
For concrete installations ONLY
CAUTION: Do not use in drywall or wood
Fischer UX10 x 60R Anchor
C3
x4

11
CAUTION: Avoid potential personal injuries and property damage!
●Drywall covering the wall must not exceed 5/8 in. (16 mm)
●Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm)
1. Locate your stud. Verify and mark the center of the stud by finding the stud edges using an awl, a thin nail, or a stud finder.
2. Position the wall plate template 15 at your desired height and line up the holes with your stud center line. Level the wall plate template 15 and
mark the hole positions.
THIS WAY UP
HERE WE GO!
THIS IS YOUR DRILLING
TEMPLATE FOR STEP 2
YOU’RE REALLYGOING
TO ENJOY STEP 3
ARTED
STEP 1
E AND THANKS FOR CHOOSING SANUS VUEPOINT
ackets and line
he holes on the
your TV.
hebolts that fit.
san.us/1116
Scan here to view
your install video.
Locate your stud and choose
aheightfor your TV. Then
simply tape this template to
the wall and drill right through.
Once the wall plate is secured,
simply hang TV on arm and secure
into place with safety screw.
Congratulations! You’re done.
We're here to help! If youhave
questions at any point, contact
customer serviceat 1-888-333-9952
Reference the product manualfor
detailson mounting to concrete.
Be sure to review the manual for
complete safety instructions.
40 – 60 in.
101 – 152 cm
10°
10°
san.us/1127
From yourtypical viewing
location, position your TV so your
eyes are level with themiddle of
the screen. For most people, this
is between 40" and 60" (101 cm
and 152 cm) above the floor.
For precise drilling locations,
scan the HeightFinder™
link below or contact
customer service.
VIEWING HEIGHT
RECOMMENDATION
15
≤ 5/8 in.
(16 mm)
STEP 2A Attach Wall Plate - Wood Stud
NOTE: TV shifts 3.05 in. (77.6 mm)
to the right or left when in the
home position. Consider this when
selecting the location of your wall
mount.
21

12
THISWAYUP
HERE WE GO!
THIS ISYOUR DRILLING
TEMPLATE FOR STEP 2
YOU’RE REALLYGOING
TO ENJOY STEP 3
D THANKS FOR CHOOSING SANUS VUEPOINT
nd line
on the
that fit.
san.us/1116
Scan here to view
your install video.
Locate your stud and choose
aheight for your TV. Then
simply tape this template to
the wall and drill right through.
Once the wall plate is secured,
simply hang TV on arm and secure
into place with safety screw.
Congratulations! You’re done.
We're hereto help! If youhave
questionsat any point, contact
customer service at1-888-333-9952
Reference theproduct manual for
details on mountingto concrete.
Be sure to review the manualfor
complete safety instructions.
40 – 60 in.
101 –152 cm
10°
10°
san.us/1127
From your typicalviewing
location, position your TV so your
eyes are level with the middle of
the screen. For most people, this
is between 40" and 60" (101 cm
and 152 cm) above the floor.
For precise drilling locations,
scan the HeightFinder™
link below or contact
customer service.
VIEWING HEIGHT
RECOMMENDATION
3 in.
(75 mm)
7/32 in.
(5.5 mm)

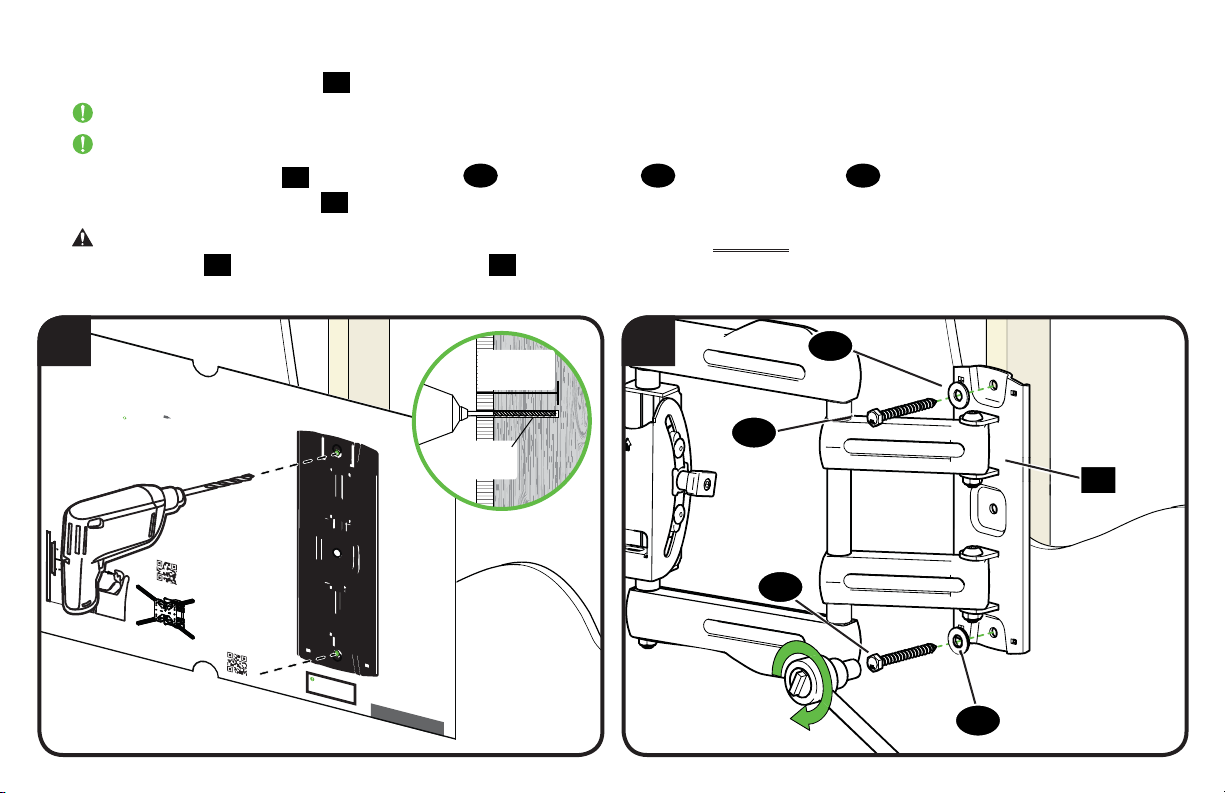

3. Remove the wall plate template 15 and drill pilot holes using a 7/32 in. (5.5 mm) diameter drill bit.
IMPORTANT: Be sure to drill into the center of the stud.
IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm).
4. Install wall plate assembly 16 using two lag bolts 17 and two washers 18 . Tighten the lag bolts 17 only until they are pulled firmly
against the wall plate assembly 16 .
CAUTION: Avoid potential personal injury or property damage! All lag bolts MUST BE firmly tightened to prevent unwanted movement
of the wall plate 16 . Ensure the wall plate assembly 16 is securely fastened to the wall before continuing on to the next step.
16
43 18
18
17
17

13
CAUTION: Avoid potential personal injuries and property damage!
●Mount the wall plate assembly 16 directly onto the concrete surface
●Minimum solid concrete thickness: 8 in. (203 mm)
●Minimum concrete block size: 8 x 8x 16 in. ( 203 x 203 x 406 mm)
1. Position the wall plate template 15 on the wall at your desired height. Level the wall plate template and mark the hole locations.
2. Remove the wall plate template 15 and drill three pilot holes using a 3/8 in. (10 mm) diameter masonry drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm). Never drill into the mortar between blocks.
THISWAYUP
HERE WE GO!
THIS ISYOUR DRILLING
TEMPLATE FOR STEP 2
YOU’RE REALLYGOING
TO ENJOY STEP 3
GETSTARTED
WITH STEP 1
WELCOME AND THANKS FOR CHOOSING SANUS VUEPOINT
Grab the TV brackets and line
them up with the holes on the
back of your TV.
Attach using the bolts that fit.
san.us/1116
Scan here to view
your install video.
Locate your stud and choose
a height for your TV. Then
simply tape this template to
the wall and drill right through.
Once the wall plateis secured,
simply hang TV on arm and secure
into place with safety screw.
Congratulations! You’re done.
We're hereto help! If youhave
questions at any point, contact
customer service at 1-888-333-9952
Referencetheproduct manual for
detailson mounting to concrete.
Besure to review the manual for
complete safety instructions.
Model: FLF215KIT
6700-004661<00>
40 – 60 in.
101 – 152 cm
10°
10°
san.us/1127
From yourtypical viewing
location, position your TV so your
eyes are level with the middle of
the screen. For most people, this
is between 40" and 60" (101 cm
and 152 cm) above the floor.
Forprecise drilling locations,
scan the HeightFinder™
link below or contact
customer service.
VIEWING HEIGHT
RECOMMENDATION
15
21
STEP 2B Attach Wall Plate - Solid Concrete / Concrete Block
10 mm
(3/8 in.)
75 mm
(3 in.)
NOTE: TV shifts 3.05 in. (77.6 mm)
to the right or left when in the
home position. Consider this when
selecting the location of your wall
mount.

14
Concrete Installation Kit CMK1 is not included
(see page 10) Contact Customer Service
at 1-888-333-9952 to have the additional
hardware shipped directly to you.
43

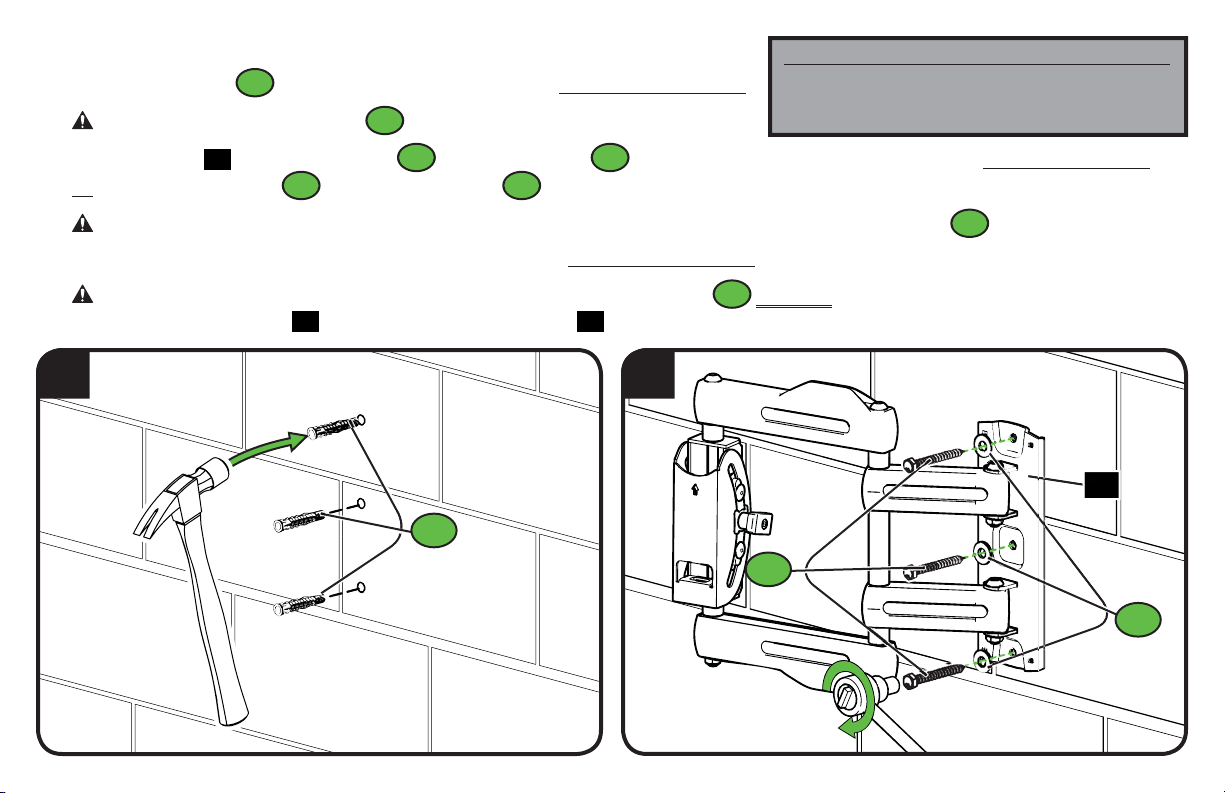

3. Insert three anchors C3 (Fischer UX 10 x 60 - included in the Concrete Installation Kit*).
CAUTION: Be sure the anchors C3 are seated flush with the concrete surface.
4. Install wall plate 16 using three lag bolts C1 and three washers C2 (use only the lag bolts and washers from the Concrete Installation
Kit*). Tighten the lag bolts C1 only until the washers C2 are pulled firmly against the wall plate.
CAUTION: Improper use could reduce the holding power of the lag bolt. DO NOT over-tighten the lag bolts C1 .
*Contact Customer Service at 1-888-333-9952 to have the Concrete Installation Kit shipped directly to you.
CAUTION: Avoid potential personal injury or property damage! All lag bolts C1 MUST BE firmly tightened to prevent unwanted
movement of the wall plate 16 . Ensure the wall plate assembly 16 is securely fastened to the wall before continuing on to the next step.
161
6
1
6
C1
C2
C3

15
HEAVY! You may need assistance with this step.
STEP 3 Hang TV onto Wall Plate
1. Fold first section of the arm of wall plate assembly 16 against the
wall to provide stability.
1/4-20 x 3/4 in.
STEP 3 Parts and Hardware
19 x1
Locking Screw
116

16
2. Hang the TV onto the arm of wall plate assembly 16 by first hooking the top support, then resting the TV into place.
3. Lock the TV to the wall plate assembly 16 with locking screw 19 .
IMPORTANT: This locking screw 19 must be installed to secure the TV onto the wall plate assembly 16 .
16
01
2
Note:
Arrow
points up
Note:
Arrow
points up
3
16 16
01
01
19

17
Manage Cables Cable Ties
Cables can be routed through the cable channels on the top and bottom of the arms of the wall plate assembly 16 for a cleaner look.
Route top cables through the open area of the arm as shown to prevent pinching the cable when folding the arm.
Hook and loop ties
HL
can be used to bundle the cables.
16
HL

18
TV Adjustments
TILT ADJUSTMENT
Your TV should adjust easily when moved, then stay in place.
If your TV is too loose or too tight, adjust the tilt tension knob by hand.
NOTE: Once your TV is in place, tighten the tilt tension knob to
prevent unwanted movement.
LEVEL ADJUSTMENT
To adjust the leveling of your TV, loosen the locking screw 19 , level
your TV, then tighten locking screw 19 .
IMPORTANT: This locking screw 19 must be installed to secure
the TV onto the wall plate assembly 16 .
22
16
L
o
o
s
e
n
T
i
g
h
t
e
n
Tilt Tension Knob
K
16
01
01
19

19
REMOVING THE TV
To remove your TV from the wall plate assembly 16 , disconnect all cables and then reverse the procedures in STEP 3.
16
HEAVY! You may need
assistance with this step.

20
Features
15.75
400.0
3.94
7.87
200.0
23.62
600.0
2.95
75.0
100.0
2.95
75.0
3.94
100.0
7.87
200.0
15.75
400.0
11º
10º
TV bracket can be
configured to fit TV hole
patterns from 75 x 75 mm
up to 600 x 400 mm
Fully articulating arm, with
3 pivot points, creates
optimal viewing positions
TV tilts up or
down for the
perfect viewing
angle
Level
adjustments
create a
worry-free
installation
Adjustments allow fingertip control
of TV or restriction of TV movement
Cable channel
and tie slots hold
cables along
mount arm for a
clean look
