Sanus HMF115 User manual

HMF115
INSTRUCTION MANUAL
Para Español ver página 18
Recommended placement Our US-based
install experts
are standing
by to help.
Call us at:
888-384-1115
Or, chat at:
SANUS.com/chatSH
Get it right the
first time.
HeightFinder™
shows you
where to drill.
Check it out at:
SANUS.com/2933
Want to watch a
video that shows
how easy this DIY
project will be?
Watch it now at:
SANUS.com/2943
WE’RE HERE TO HELP

2
IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE
Before getting started, let’s make sure this mount is perfect for you!
No — Perfect!
Yes — This mount is NOT compatible. Visit MountFinder.sanus.com or call
888-384-1115 to find a compatible mount.
Do you have
all the tools
needed?
1
2
3
4
What is your
wall made of?
50 lb
(22.6 kg)
Ready to begin?
Does your TV
(including accessories)
weigh more than
50 lb (22.6 kg)?
Drywall with
wood studs?
Solid concrete or
concrete block?
Perfect!
Wood Stud Install
Concrete Install
Awl
Pencil Level Stud Finder Screwdriver
Tape
Measure
7/32 in.
(5.5 mm)
Wood
Drill Bit
Electric
Drill Hammer
1/2 in.
(13 mm)
Socket
Wrench Drill Bit
3/8 in.
(10 mm)
Concrete
Unsure?
Call Customer Service: 888-384-1115
Concrete kit CMK1 (not included)
CAUTION:
DO NOT
install into
drywall alone
Please read through these instructions completely to be sure you’re comfortable with this easy install process.
Also check your TV owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use
of this product, contact Customer Service at 888-384-1115.
CAUTION: Avoid potential personal injury or property damage!
●This product is designed for use in wood stud, solid concrete, and concrete block walls - DO NOT install into drywall alone
●This product is designed for INDOOR USE ONLY
●The wall must be capable of supporting five times the weight of the TV and mount combined
●Do not use this product for any purpose not explicitly specified by manufacturer
●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use

3
Dimensions
7.87in
200mm
3.94in
100mm
MIN
3.94in
100mm
MIN
15.75in
400mm
MAX
15.75in
400mm
MAX
11.81in
300mm
8.27in
210mm
4.01in
101.9mm
9.92in
251.9mm
0.33in
8.4mm
17.07in
433.7mm
17.07in
433.7mm
6deg
ROLL
15.02in
381.4mm
15deg
DOWN
5deg
UP
2.78in
70.6mm
WITHOUT
EXTENSION
BRACKETS
3.07in
78mm
45deg45deg
SIMULATED 46"
FLAT SCREEN TV
TV INTERFACE
WALL PLATE TOP VIEW - EXTENDED
3-D
SIDE VIEW - EXTENDED
SIDE VIEW RETRACTED TOP VIEW - RETRACTED FULLY ASSEMBLED MOUNT
Before getting started, let’s make sure this mount is perfect for you!

4
M8 x 12mm
5/16 x 2¾ in.
M8 x 16mm M8 x 35mm
M8 x 25mm M8 x 50mm
M5 x 6mm
M6 x 12mm
M6 x 35mm
M6 x 20mm
M4 x 12mm M4 x 35mm
Fischer UX10 x 60R Anchor
NOTE: Not all hardware included will be used.
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to
your dealer; contact Customer Service. Never use damaged parts!

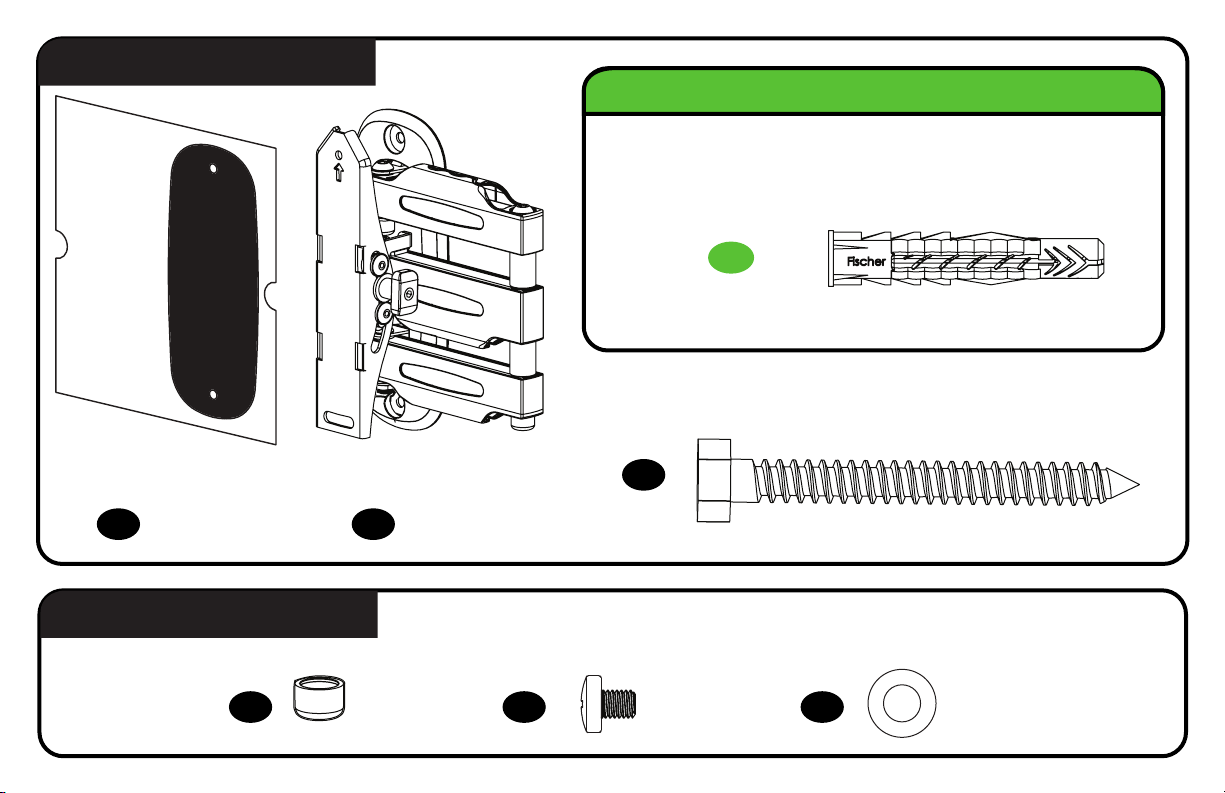

Supplied Parts and Hardware
STEP 1 Parts and Hardware
TV Bracket
TV Bracket
Extender
TV Bracket
Screw
TV Screws
(qty. 4 each) [Only one size fits your TV]
Washers Spacer
[If necessary]
03
02
01
M6/M8
M4
M4/M6/M8
22 mm
M4/M6/M8
2.5 mm
M4
M6
M8
(qty. 4)
05
(qty. 1)
04
(qty. 8)
06
(qty. 4)
(qty. 4)

5
M8 x 12mm
5/16 x 2¾ in.
M8 x 16mm M8 x 35mm
M8 x 25mm M8 x 50mm
M5 x 6mm
M6 x 12mm
M6 x 35mm
M6 x 20mm
M4 x 12mm M4 x 35mm
Fischer UX10 x 60R Anchor
STEP 2B: Concrete Installation Kit CMK1 [NOT INCLUDED]
STEP 2 Parts and Hardware
STEP 3 Parts and Hardware
Nut Cap
Arm Assembly
Wall Plate
Template
Lag Bolt
Concrete Anchor
C1
Washer
Contact Customer Service at 888-384-1115 to inquire about
the CMK1 Concrete Installation Kit.
Locking Screw
(qty. 1)
10
(qty. 1)
11
(qty. 2)
09
(qty. 1)
12
(qty. 2)
(qty. 1)
07 (qty. 1) 08

6
cm
inches
cm
inches
inch dimensions are approximate
inches cm mm
3 7.5 75
4 10 100
7 ⅞ 20 200
11 ¾ 30 300
15 ¾ 40 400
W
H
STEP 1 Attach TV bracket to TV

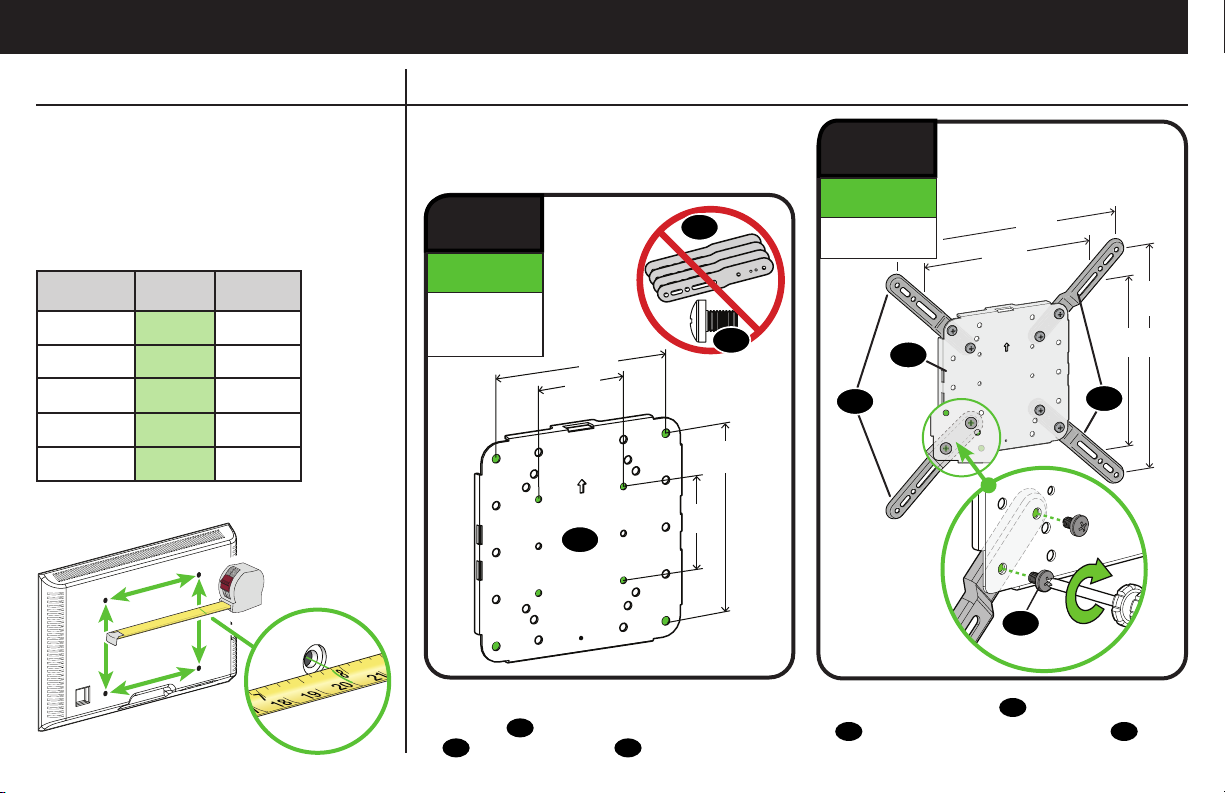

1.1 Measure Your TV Hole Pattern 1.2 Assemble Your TV bracket
Measure the width and height of your
TV hole pattern in cm.
Record your measurements:
Width_______cm x Height_______cm
Based on your TV hole pattern measurements
(Wcm x Hcm), determine your TV bracket
configuration: A, B, C, D or E.
A
20.0
[7.87]
20.0
[7.87]
40.0
[15.75]
40.0
[15.75]
B
These smaller hole patterns only use TV
bracket 04 . Do not use the four extenders
05 and eight screws 06 .
10.0
[3.94]
10.0
[3.94]
Assemble extenders 05 onto TV bracket
04 and secure using eight screws 06 in
the corner holes indicated.
06
05
05 05
04
04
06
30.0
[11.81]
30.0
[11.81]
10.0 x 10.0
20.0 x 10.0
20.0 x 20.0
For TV Hole Pattern
Measurements
(Dimensions in cm)
30.0 x 30.0
40.0 x 40.0
For TV Hole Pattern
Measurements
(Dimensions in cm)

7
D E
20.0
[7.87]
20.0
[7.87]
Assemble extenders 05 onto TV bracket
04 and secure using eight screws 06 in
the corner holes indicated.
Assemble extenders 05 onto TV bracket
04 and secure using eight screws 06 in
the corner holes indicated.
C
Assemble extenders 05 onto TV bracket
04 and secure using eight screws 06 in
the corner holes indicated.
40.0
[15.75]
40.0
[15.75]
40.0
[15.75]
05
05
05
05
05
05
04
04
04
06 06
06
30.0
[11.81]
40.0 x 30.0
For TV Hole Pattern
Measurements
(Dimensions in cm) 40.0 x 20.0
For TV Hole Pattern
Measurements
(Dimensions in cm) 20.0 x 40.0
For TV Hole Pattern
Measurements
(Dimensions in cm)

8
Too Long
Too Short
Correct
1.3 Select TV Screw Diameter 1.4 Select TV Screw Length
CAUTION:
Verify adequate thread
engagement with your screw/
washer/spacer combination
AND TV bracket.
–Too short will not hold the TV.
–Too long will damage the TV.
M4 M6 M8
ab
a:For flat-back TVs,
no spacers 03
required.
b:Spacers 03 supplied for:
●Round (irregular) back TVs
●Extra space needed (for cables
or inset mounting holes)
FLAT BACK ROUND BACK CABLES INSET HOLES
Only one size fits your TV.
03
If your TV included inset
spacers or wall mount adapters,
use them
UNDER the
mount hardware.

9
1.5 Attach TV Bracket
TV Bracket Configuration B
Illustrated (with spacers)
02
03
02
a: Flat Back
b: Round Back / Extra Space
TV Bracket Configuration A
Illustrated (with spacers)

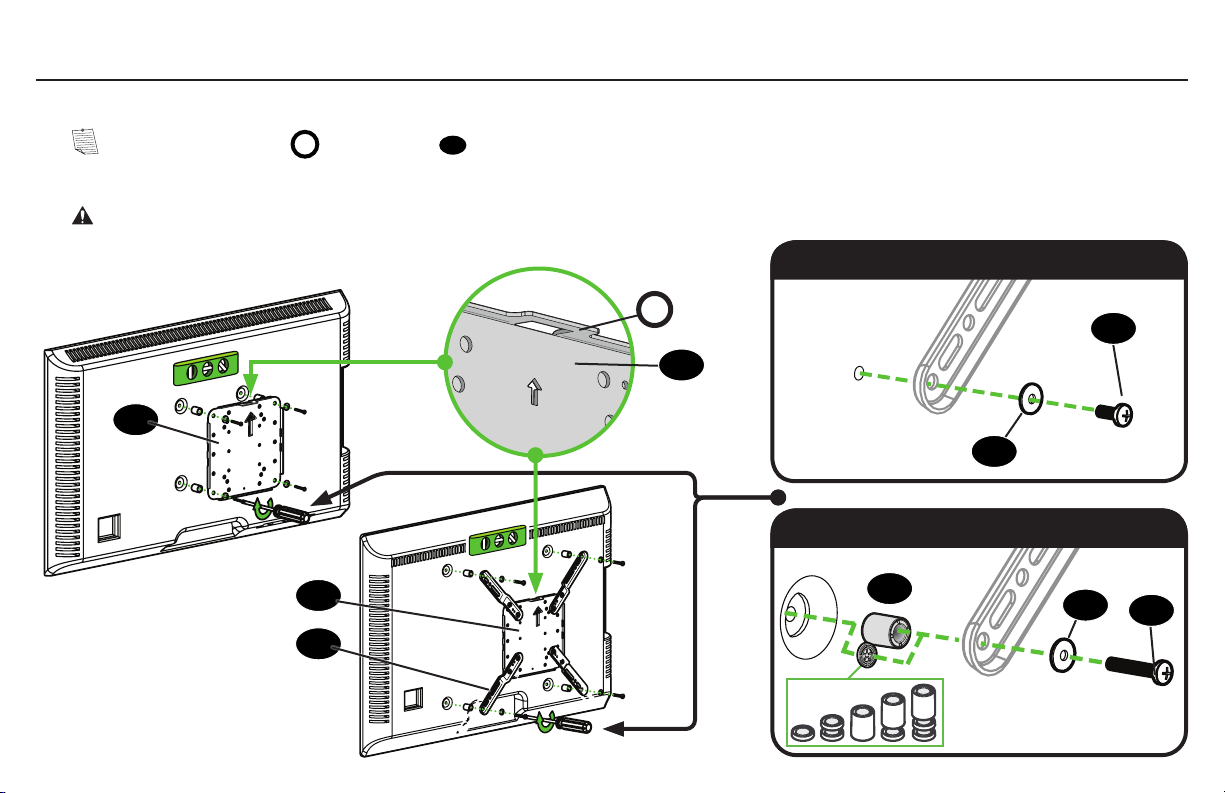

Position your TV bracket configuration (A, B, C, D or E) onto your TV, making sure the bracket is both centered and level over your TV hole pattern.
NOTE: The hanging tab Hon TV bracket 04 must be oriented toward the top of the TV.
Secure the TV bracket using your selection: (a) screw/washer or (b) screw/washer/spacer.
CAUTION: Avoid potential personal injuries and property damage! DO NOT use power tools for this step. Tighten the screws only enough to
secure the TV bracket to the TV. DO NOT overtighten the screws.
H01
04
04
04
05
01
Spacer Options

10

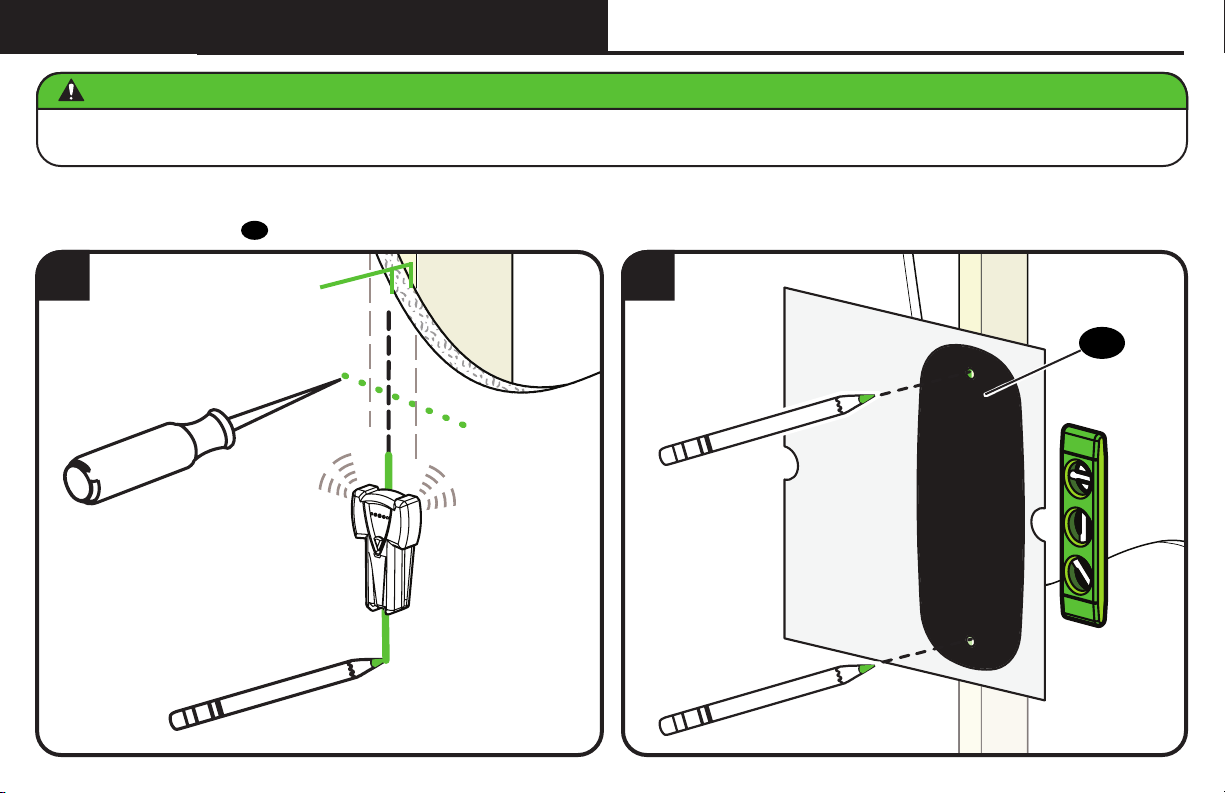

1. Locate your stud. Verify and mark the center of the stud by finding the stud edges using an awl, a thin nail, or an edge to edge stud finder.
2. Position the template 07 at your desired height and line up the holes with your stud center line. Level the template and tape in place.
≤ 5/8 in.
(16 mm)
STEP 2A Attach Wall Plate to Wall Wood Stud Installation
CAUTION: Avoid potential personal injury or property damage!
●Drywall covering the wall must not exceed 5/8 in. (16 mm)
●Minimum wood stud size: nominal 2 x 4 in. (51 x 102 mm) actual 1 ½x 3 ½in. (38 x 89 mm)
21
07

11
3. Drill pilot holes using a 7/32 in. (5.5 mm) diameter drill bit. Remove template 07 .
IMPORTANT: Be sure to drill into the center of the stud.
IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm).
4. Install arm assembly 08 using two lag bolts 09 . Tighten the lag bolts only until they are pulled firmly against the wall plate.
CAUTION: Improper use could reduce the holding power of the lag bolt. DO NOT over-tighten the lag bolts 09 .
Wood Stud Installation
3 in. (75 mm)
7/32 in.
(5.5 mm)
4
309
09
07 08

12

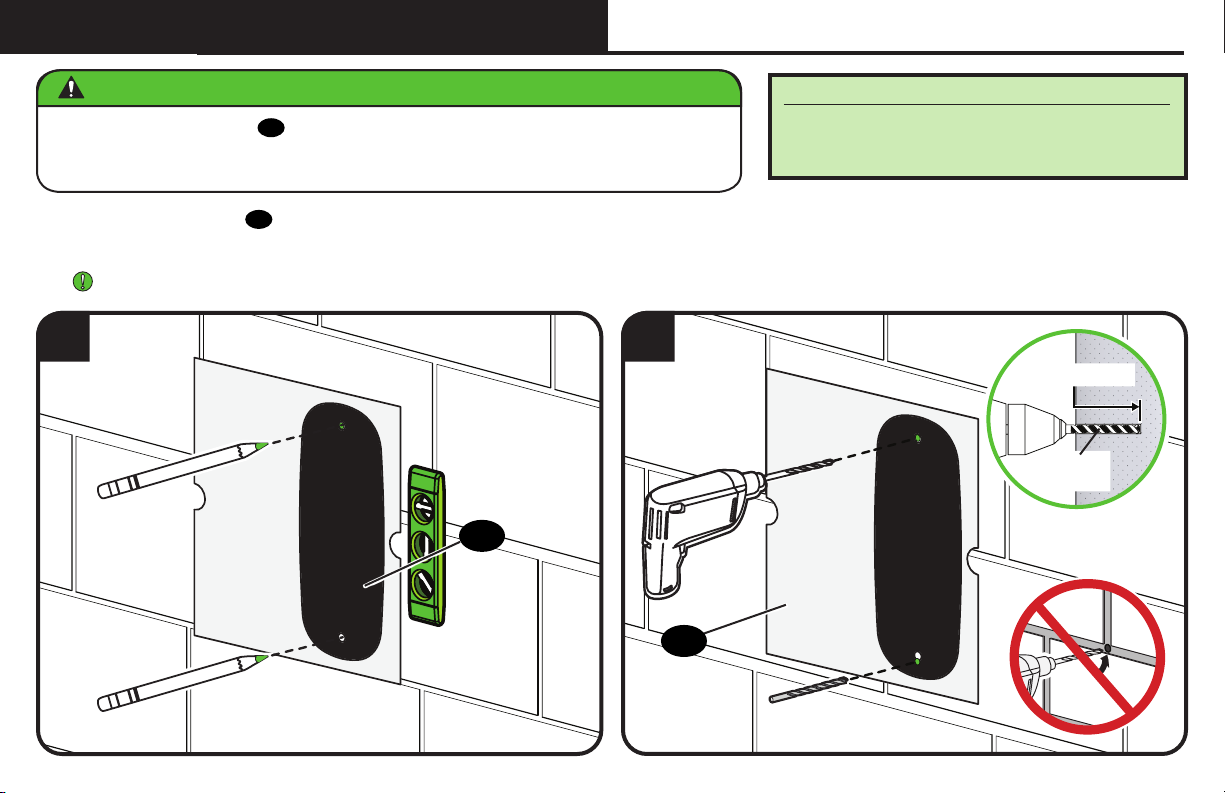

1. Position the template 07 on the wall at your desired height. Level the template and mark the hole locations.
2. Drill two pilot holes using a 3/8 in. (10 mm) diameter masonry drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm). Never drill into the mortar between blocks.
21
Concrete Installation Kit CMK1 is not included
(see page 5) Contact Customer Service at
888-384-1115 to inquire about the additional
hardware.
STEP 2B Attach Wall Plate to Wall
Solid Concrete/Concrete Block Installation
3/8 in.
(10 mm)
3 in. (75 mm)
CAUTION: Avoid potential personal injury or property damage!
●Mount arm assembly 08 directly onto concrete surface (no wall covering)
●Minimum solid concrete thickness: 8 in. (203 mm)
●Minimum concrete block size: 8 x 8 x 16 in. (203 x 203 x 406 mm)
07
07

13
43
3. Remove the template 07 and insert two anchors C1 (Fischer UX 10 x 60R - included in the Concrete Installation Kit CMK1*).
CAUTION: Be sure the anchors C1 are seated flush with the concrete surface.
4. Install arm assembly 08 using two lag bolts 09 . Tighten the lag bolts only until they are pulled firmly against the wall plate.
CAUTION: Improper use could reduce the holding power of the lag bolt. DO NOT over-tighten the lag bolts 09 .
*Contact Customer Service at 888-384-1115 to inquire about the Concrete Installation Kit CMK1.
*
C1
09
08

14
HEAVY! You may need assistance with this step.
STEP 3 Hang TV onto Wall Plate
1. Install the nut cap 10 on arm assembly 08 .
2. Fold first section of the arm of arm assembly 08 against the wall to provide stability.
1 2
10
08
08

15
3 4

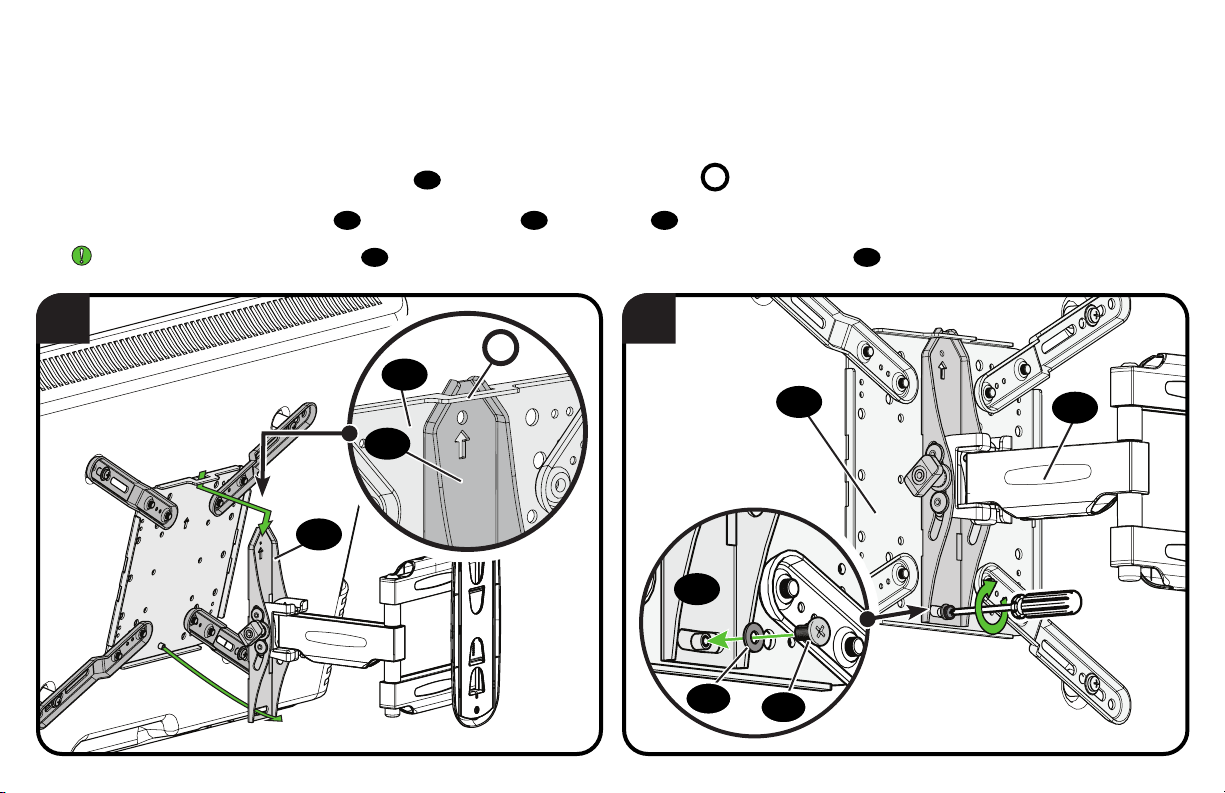

3. Hang the TV onto the arm of arm assembly 08 by first hooking the hanging tab H, then resting the TV into place.
4. Lock the TV to the arm assembly 08 with locking screw 11 and washer 12 .
IMPORTANT: This locking screw 12 must be installed to secure the TV onto the arm assembly 08 .
H
11
12
08
08
08
08
04
04

16
Manage Cables
Cables can be routed through the cable channel on the top and bottom of the arm assembly 08 for a cleaner look.
08

17
L
o
o
s
e
n
T
i
g
h
t
e
n
TV Adjustments
TILT ADJUSTMENT
Your TV should adjust easily when
moved, then stay in place.
If your TV is too loose or too tight,
adjust the tilt tension knob by hand.
NOTE: Once your TV is in
place, tighten the tilt tension
knob to prevent unwanted
movement.
LEVEL ADJUSTMENT
To adjust the leveling of your TV, loosen the
locking screw 11 , level your TV, then tighten
locking screw 11 .
IMPORTANT: This locking screw 11 must
be installed to secure the TV onto the arm
assembly 08 .
Tilt Tension Knob
11
08
HEAVY! You may need
assistance with this step.
1
2
3
REMOVING THE TV
1. Disconnect the cables from your TV.
2. Remove locking screw 11 .
3. Carefully lift your TV up and off of
wall plate assembly 08 .
11
08

18
ESPAÑOL
INSTRUCCIONES DE SEGURIDAD IMPORTANTES. CONSÉRVELAS. LEA TODO EL MANUAL ANTES DE UTILIZAR ESTE PRODUCTO.
Antes de comenzar, verifiquemos que este soporte sea el ideal para sus necesidades.
5,5 mm
(7/32'')
Madera
10 mm
(3/8'')
Hormigón
No — ¡Perfecto!
Sí — Este soporte NO es compatible. Visite Mountfinder.Sanus.com o llame al 888-384-1115 para encontrar
un soporte compatible.
¿Su televisor pesa
más de 22,6 kg
(50 libras), incluidos
los accesorios?
Lea estas instrucciones en su totalidad para estar seguro de sentirse cómodo con este fácil proceso de instalación. Consulte
también el manual del usuario de su televisor para ver si existe algún requisito especial para instalar su televisor en la pared.
Si no entiende las instrucciones o si tiene dudas acerca de la seguridad de la instalación, del ensamblado o del uso del
producto, póngase en contacto con el servicio de atención al cliente al 888-384-1115.
¿Tiene
todas las
herramientas
necesarias?
1
2
3
4
¿De qué está
hecha su pared?
22,6 kg
(50 lbs.)
¿Listo para
comenzar?
13 mm
(1/2”)
¿Tabiques
de yeso con
montantes de
madera?
¡Perfecto!
DestornilladorCinta métrica Broca Broca
Taladro
eléctrico MartilloLlave de tubo PunzónLápiz Nivel Localizador
de montantes
PRECAUCIÓN:
NO lo instale
en tabiques
únicamente
de yeso
Paredes con
montantes de madera
paredes con de
hormigón
¿Hormigón sólido
o bloques de
cemento?
Llame al 888-384-1115
Concrete kit CMK1 (not included)
¿No está
seguro?
PRECAUCIÓN: Evite posibles lesiones personales y daños materiales.
●Este producto incluye instrucciones y elementos de sujeción para su instalación en paredes con montantes de madera,
en superficies de hormigón y sobre bloques de cemento. NO lo instale en tabiques únicamente de yeso.
●Este producto está diseñado para USO EN EL INTERIOR SOLAMENTE
●La pared debe soportar cinco veces el peso del televisor y del soporte juntos.
●No utilice este producto para ningún otro propósito que no sea el explícitamente especificado por el fabricante.
●El fabricante no se responsabiliza por ningún daño o lesión resultante del montaje incorrecto o de uso indebido.

19
NOTA: No todos los accesorios incluidos deberán utilizarse.
ADVERTENCIA: Este producto contiene piezas pequeñas que, si fuesen tragadas, podrían producir asfixia.
Antes de iniciar el ensamblaje, compruebe que todas las piezas estén incluidas y en buenas condiciones. Si faltan piezas o alguna está dañada,
no devuelva el artículo al distribuidor; póngase en contacto con el servicio de atención al cliente. Nunca utilice piezas deterioradas.
Piezas y accesorios suministrados
PASO 1 Fijar la placa de sujeción al televisor
1,1 Mida el patrón de orificios del televisor
1,2 Arme la placa de sujeción del televisor
Determine qué configuración de placa de sujeción debe usar (A, B, C, D o E) según las medidas del patrón de orificios del televisor (Wcm x Hcm).
Los patrones de orificios más pequeños solo requieren placa de sujeción 04 . No utilice las cuatro extensiones de la placa de
sujeción 05 ni los ocho tornillos 06 .
Ensamble las extensiones 05 de la placa de sujeción y la placa de sujeción 04 tal como se muestra en la ilustración. Fije colocando
ocho tornillos 06 en los orificios de las esquinas que se muestran en la imagen.
A
B–E
Mida en mm el ancho y el alto del patrón de orificios del televisor.
Anote las medidas: Ancho________cm x Alto________cm
ESPAÑOL
Ver página 4
Ver página 6
Dimensiones Ver página 3

20
PRECAUCIÓN: Evite lesiones y daños materiales.
●El yeso que recubre la pared no debe exceder los 16 mm (5/8'')
●Tamaño mínimo del montante de madera: nominal 51 mm x 102 mm (2'' x 4''); real 38 mm x 89 mm (1½'' x 3½'')
1. Localice un montante. Busque los bordes del montante y marque el centro con un punzón o un clavo delgado, o bien utilice un detector de
bordes de montantes.
2. Ubique la plantilla de placa mural 07 a la altura deseada y alinee los orificios con la línea central de los montantes. Nivele la plantilla y fíjela
con cinta adhesiva en el lugar.
1,3 Seleccione el diámetro de los tornillos para el televisor
1,4 Seleccione el largo de los tornillos para el televisor
a: Si el dorso del televisor es plano, no se requieren espaciadores 03 .
b: Los espaciadores 03 y los tornillos largos se proporcionan para:
• televisores con dorso irregular o redondeado • dejar un espacio adicional para cables o orificios de montaje intercalados
Enrosque manualmente los tornillos en los encastres roscados del dorso del televisor a fin de determinar qué diámetro de tornillos (M4, M6 o M8) utilizar.
PRECAUCIÓN: Verifique que el tornillo o la combinación de tornillo y espaciador enrosquen correctamente.
–Si el tornillo es demasiado corto, no sostendrá el televisor. –Si es demasiado largo, dañará el televisor.
1,5 Fije la placa de sujeción
Coloque su configuración de soporte de televisor (A, B, C, D o E) sobre el patrón de orificios de su televisor, asegurándose de que el soporte
esté centrado sobre el patrón de orificios del televisor y nivelado.
NOTA: La lengüeta colgante Hdel soporte del televisor 04 debe estar orientada hacia la parte superior del televisor.
Fije el soporte con su selección de tornillo/arandela (a) parte trasera plana o espaciador/tornillo/arandela (b) parte trasera redondeada /
espacio adicional.
PRECAUCIÓN: Evite posibles lesiones personales y daños materiales. NO use herramientas eléctricas para este paso. Apriete los
tornillos con la fuerza adecuada para fijar la placa de sujeción al televisor. NO los apriete demasiado.
ESPAÑOL
PASO 2A Fijar la placa mural Montantes de madera Ver página 10
Si su televisor incluye espaciadores empotrados o adaptadores para soportes de pared, úselos BAJO el hardware de montaje.
