Sanyo DC-DA280 User manual

Service Manual
FILE NO.
REFERENCE No.
Micro Component System DC-DA280 (AU)
(KR)
PRODUCT CODE No.
129 622 05 (AU)
129 622 07 (KR)
AU: This service manual consists of "DC-DA280U/AU" (Main unit : 129 621 05) and
"SX-DA280/UK" (Speaker system : 165 046 00).
KR: This service manual consists of "DC-DA280U/KR" (Main unit : 129 621 07) and
"SX-DA280/KR" (Speaker system : 165 046 05).
Contents
Specifications ................................................................... 1
System connections ......................................................... 1
What to do if ..................................................................... 1
Laser beam safety precaution .......................................... 2
CD pick-up maintenance .................................................. 2
CD player adjustments ..................................................... 2
Tape adjustments ............................................................ 3
Tuner adjustments ........................................................... 4

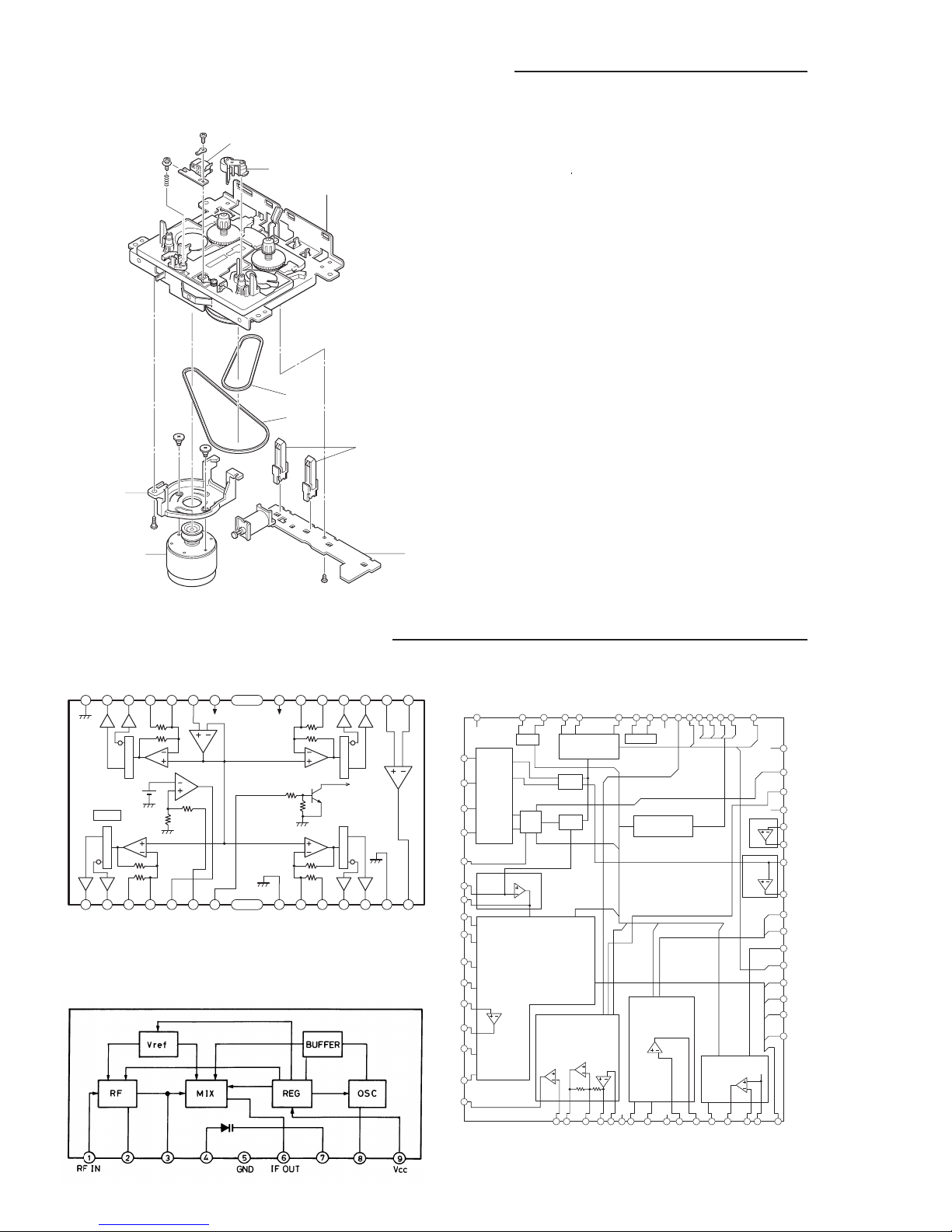

Exploded view
(Cabinet & Chassis) ...................................................... 5
(Tape mechanism) ........................................................ 9
Parts list
(Cabinet & Chassis) ...................................................... 6
(Tape mechanism) ........................................................ 9

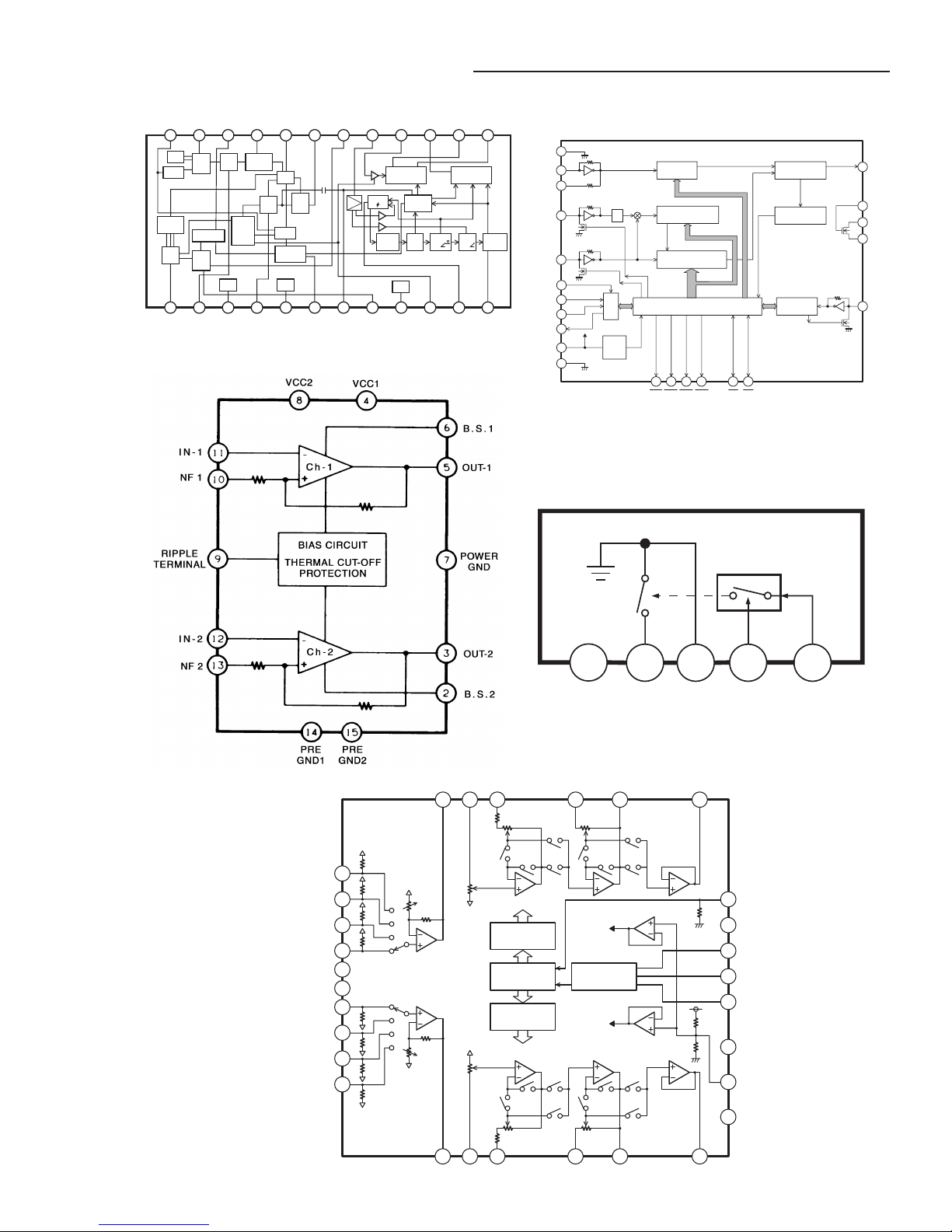

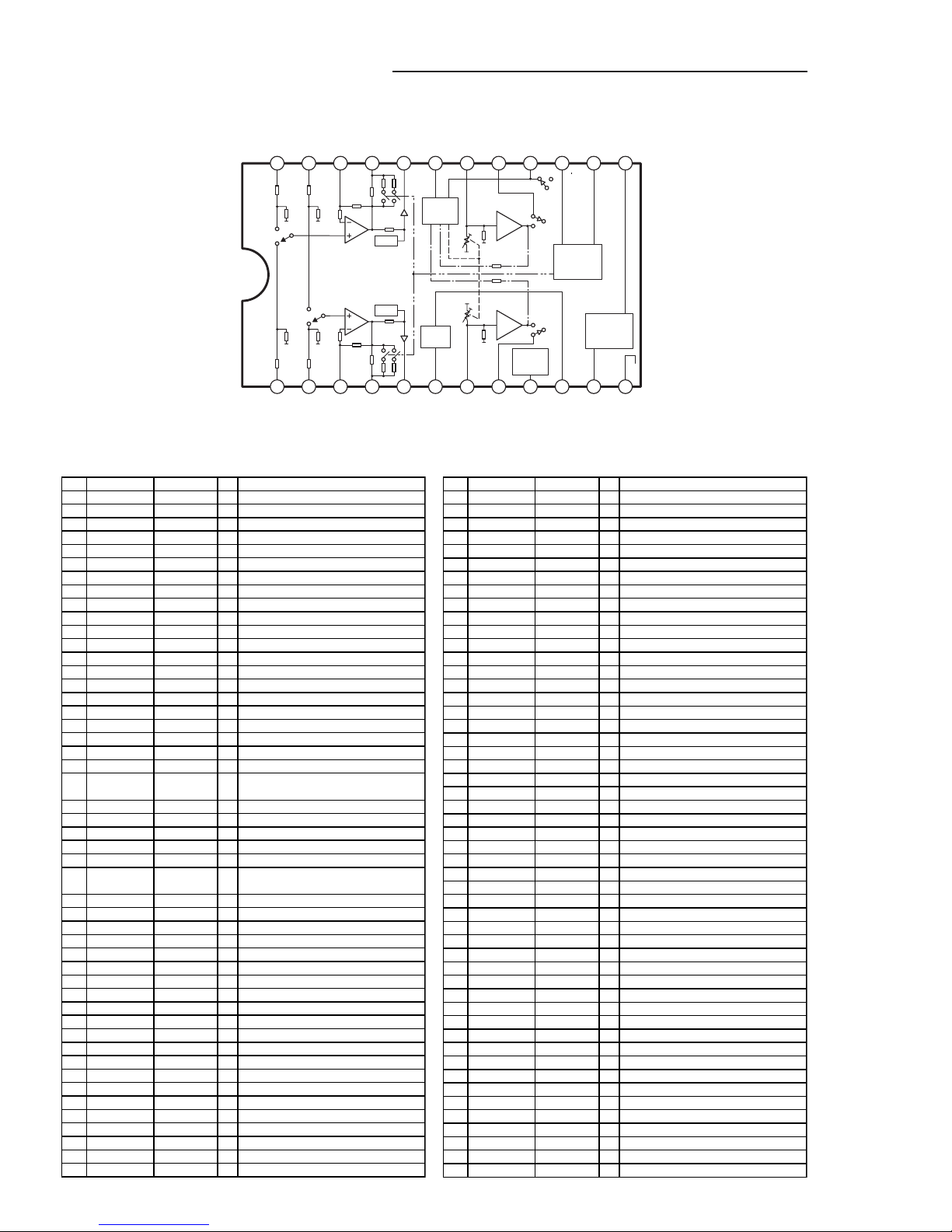

IC block diagram & description ........................................ 9
LCD display description ................................................... 14
Wiring connection ............................................................ 15
Schematic diagram
(FRONT) ....................................................................... 16
(CD)............................................................................... 18
(AMPLIFIER for AU)...................................................... 22
(AMPLIFIER for KR)...................................................... 24
(TUNER for AU) ............................................................ 26
(TUNER for KR) ............................................................ 28
Wiring diagram
(FRONT & CD) .............................................................. 20
(AMPLIFIER & TUNER for AU) ..................................... 30
(AMPLIFIER & TUNER for KR) ..................................... 32
(POWER TRANSFORMER) ......................................... 34
SM5810288
MEMORY
REPEAT/FMMODE
SOUND
PRESET
PRESET
TUNER
/BAND TUNING
VOLUME
REMOTE CONTROLLER RB-DA280AR
LINE

- 1 -
General
Output power ......................... 4W x 2
(at 4 ohms, 10% distortion)
Outputs .................................. SPEAKERS : 4 ohms
PHONES : 8 - 32 ohms
Power requirements............... AC 240V, 50Hz(AU)
AC 220V, 60Hz(KR)
Power consumption ............... 21 W
Dimensions (W x H x D) ........ Approx. 150 x 230 x 205 mm
Weight.................................... Approx. 2.3 kg
Speaker system
Type ....................................... Full range bass reflex
Unit used................................ 10 cm cone type
Maximum
power-handling capacity ..... 8 W (peak)
Nominal impedance ............... 4 ohms
Dimensions (W x H x D) ........ Approx. 145 x 230 x 170 mm
Weight.................................... Approx. 1.2 kg (per speaker)
Specifications subject to change without notice.
SPECIFICATIONS
Tuner
Reception frequency
FM : 87.5 - 108.0 MHz
AM: 522 - 1710kHz (9 kHz step)
520 - 1710kHz (10 kHz step)
CD player
Channels................................ 2-channel stereo
Sampling frequency ............... 44.1 kHz
Pick-up ................................... Optical 3-beam
semiconductor laser
Laser output ........................... 0.6mW(Continuous wave max.)
Wave length ........................... 790 nm
Wow and Flutter ..................... Below measurable limits
Cassette deck
Track system ......................... 4-track, 2-channel stereo
Frequency response .............. 80 Hz - 15 kHz
Signal to noise ratio ............... 40 dB
Wow and Flutter ..................... 0.15% (WRMS)
Fast forward / Rewind time .... Approx. 110 sec. (C-60)

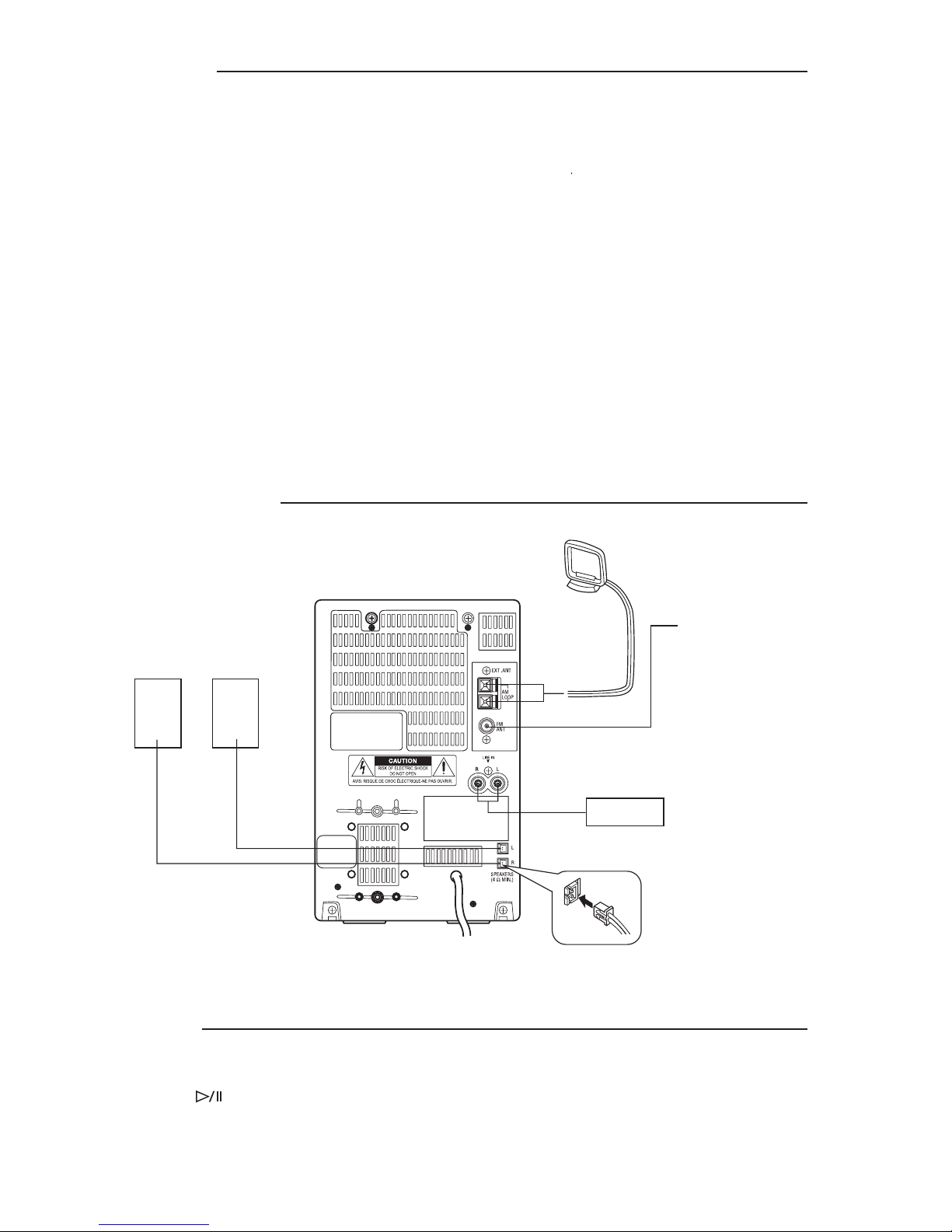

SYSTEM CONNECTIONS
FM aerial
AM loop aerial
Video/ Auxiliary equipment
L ch speaker
R ch speaker
To an AC outlet
WHAT TO DO IF
If the operation of the unit or display is not normal,
1. Disconect the mains lead.
2. Press the button on the unit for at least 30 seconds.
3. Connect the mains lead.
4. Operate the unit.

- 2 -
LASER BEAM SAFETY PRECAUTION
•Pick-up that emits a laser beam is used in this CD player section.
CAUTION :
USE OF CONTROLS OR ADJUSTMENTS
OR PERFORMANCE OF PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION
EXPOSURE.
LASER OUTPUT.......... 0.6 mW Max. (CW)
WAVELENGTH ............. 790 nm
CAUTION – INVISIBLE LASER RADIATION WHEN OPEN AND
INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM.
ADVARSEL – USYNLIG LASER STRÅLING VED ÅBNING, NÅR
SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION, UNDGÅ UDS ÆTTELSE
FOR STRÅLING.
VARNING – OSYNLIG LASER STRÅLNING NÄR DENNA DEL ÄR ÖPPNAD
OCH SPÄRR ÄR URKOPPLAD. STRÅLEN ÄR FARLIG.
VORSICHT – UNSICHTBARE LASERSTRAHLUNG TRITT AUS, WENN
DECKEL GEÖFFNET UND WENN SICHERHEITSVERRIEGELUNG
ÜBERBRÜCKT IST. NICHT, DEM STRAHL AUSSETZEN.
VARO – AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA
NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.
CD PICK-UP MAINTENANCE
About pick-up (Optical lens) Cleaning
Clean a lens with swab of the cotton which moistened it with alcohol, cleaning paper or cleaning disc appointed.
Specified cleaning disc : LC-1 (Part code : 645 026 1961 ..... manufactured by SANYO.)
Show a clean procedure in the following in reference by swab of cotton.
1. Cotton swab is wrapped with Cleaning paper.
2. Add the isopropyl alcohol.
3. Gently move the tip of cotton swab just like a draw a whirlpool from inside to outside on the surface of lens.
CD PLAYER ADJUSTMENTS
1. ADJUSTMENTS
(1) Confirm the tracking balance
1. Turn on the POWER switch.
2. Connect an Oscilloscope to TP2 (TE) and TP4 (VC).
3. Set the test disc.
4. Press "PLAY" button to turn into the "PLAY" mode.
5. Keep holding "SKIP" button down so as to be "SERCH"
mode, then confirm that the oscilloscope waveform is
symmetrical on the top and bottom in relation to 0V (VC).
200mV/div.
5ms/div.
(AU Only)

- 3 -
OPENING EXPANDED
b
a

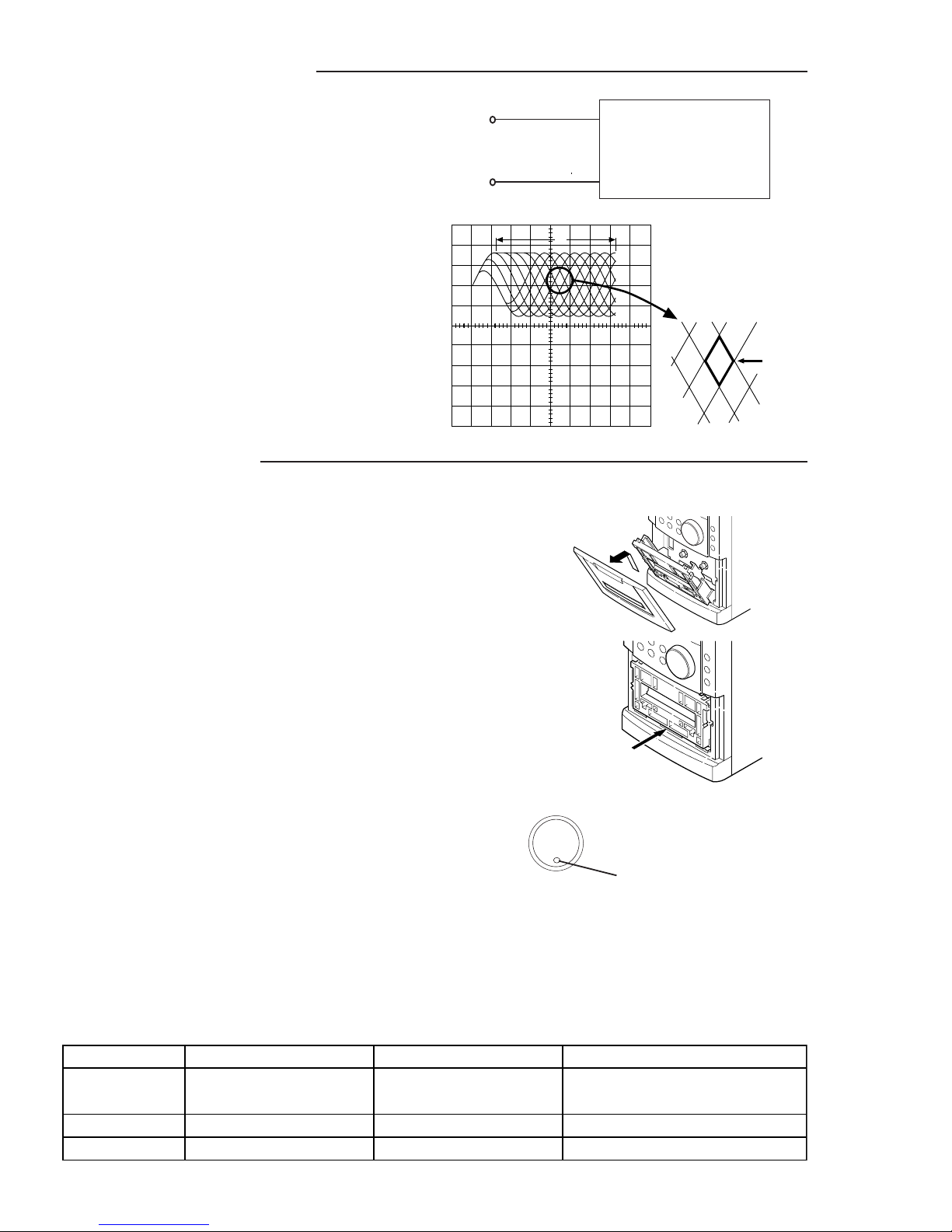

(2) Checking the "eye" pattern
1. Switch "ON" the POWER.
2. Connect an oscilloscope to TP1 (RF) and TP4 (VC).
3. Load the test disc.
4. Press the PLAY button.
5. Check to be sure that the "eye" pattern is at the center of
waveform and that the diamond shape is clearly defined.
6. Press the STOP button.
7. Turn off the POWER switch.
CD PLAYER ADJUSTMENTS
OSCILLOSCOPE
+
TP1
(RF)
TP4
(VC)
-
TAPE ADJUSTMENTS
•Be sure to clean the heads before attempting to make any adjustment.
•Be sure both channels (1 and 2) are the same level.
(Using a dual-channel oscilloscope)
•Be sure both channel's waveform are same for the phase matching.
• After completion of the adjustment, use the threadlock (TB-1401B) to
secure the azimuth adjustment screws.
1. Remove the cover deck as Fig.1.
2. Load a test tape (VTT-738 etc. : 10kHz) in the Deck.
3. Press the PLAY button. (Normal playback)
4. Use a + tip screwdriver to turn the screw for normal azimuth
adjustment so that the left and right outputs are maximized at
the same phase during normal playback. See Fig.2.
5. Adjust so that the waveforms for the left and right channels are in alignment.
1. Azimuth Adjustment
3. Torque Measurement
2. Tape Speed Adjustment
NORMAL
• Connect the Frequency Counter to TAPE OUT.
1. Insert the test tape (MTT-111N, etc.; 3,000Hz) into the DECK.
2. Press the PLAY button. .
3. Adjust a hole on the motor bottom so that a frequency counter reading of 3,000 }5Hz is obtained.See Fig.3.
4. Press the STOP button, and eject the test tape.
Fig.1
Fig.2
hole for adjustment
MOTOR Fig.3
Item Take-up Torque Back tention
PLAY/REV. 30~65 grcm 2~6 grcm
F.FWD/REW 55~140 grcm -
> 50 grcm
-
Pully tention
Test Cassette PLAY:TW2111A(FWD) PLAY:TW2112A(FWD) Driving power cassette:
TW-2412(PLAY)

- 4 -
TUNER ADJUSTMENTS
Antenna : 75Ωunbalanced, Modulation : 1 KHz
Dev. : 22.5kHz
RF Level : dBuV EMF, Output Level : about 30mV at TP13, TP14, TP15
• Use a plastic screw driver for adjustments.
• MODE : TUNER
• Speaker impedance : 4 ohm
• TUNING
FM : 87.5 - 108MHz
AM : 522 - 1710kHz, 520 - 1710kHz
Anntena : IRE Loop(SG), Modulation : 1kHz, 30%
RF Level : dBuV EMF, Output Level : about 30mV at TP13, TP14, TP15
E
112
13
24
13 24
12 1
1
J4413 J4414
J4415
X2451 C2457
L2151
L2153
CT252
D2466
L2451
C2451
C2301
XF233
D2103
J2505
D2153
Q2451
J2511
J2510
XF221
XF222
D2301
C2321
C2305
C2328
C2327
C2307 C2317
T2002
J2501
C2303
J2601
J2509
J2606
J2605
J2604
J2120
J2603
J2112
C2901 D2151
J2600
D2456
C2116
XF231
L_CH R_CHGND
J2500
J2122
J2502
IC231
IC241
J2118
R2109
VT
J2503
CN202 CN201
S2001
XF211
IC211
J2124
J2123
C2306
J2119
J2121
J2100
L2104
D2102
L2103
C2311
C2313
J2113
J2114
J2504
J2117
J2102 J2103 J2104
J2116
J2107
D2452
C2452
J2111
J2110
J2109
J2108
J2106
J2105
J2602
J2508
J2507
D2101
L2102
J2506
D2453
J2101
Q2201
J2115
C2109
IC231
C2461
R2460
R2459
C2456
R2453
R2452
C2455
C2141
C2154
R2131
C2152
C2151
R2149
R2458
R2151
C2453
C2454
R2455
C2304
R2304
R2305
R2306
C2320
C2319
C2309
C2316 R2307
R2309
R2308 C2308
C2324 C2315
C2310
C2312
R2302
R2454
R2148
C2902
R2801
R2701
R2301 R2311
R2100
R2712
R2812
C2314
C2302
C2462
C2600
C2322
C2463
C2464
C2318
R2106
R2312
C2115
C2323
C2101
C2105
C2106
R2101
C2103
C2104
C2107R2102R2107C2110
C2111
R2108
C2112
R2103
C2114
C2113
R2110
R2201
R2204
R2202R2203
C2203
R2205
R2303
C2102
R2105
TP14 TP15
TP13
TP24
TP11
TP25 TP12 CT252
L2151IC231
L2153
L2103
T2002
XF233
1. FM
Connection
Input Output
Alignment voltage IC231 Alignment voltage IC231
3-22pin(TP24,25) is 0.0±0.05V 3-22pin is 0.0±0.05V
L2103 Connect Digital DC voltmeter to 87.5MHz --- 1.00±0.05V
--- TP11(H), TP12(E). 108.0MHz --- 5.30±0.50V Check Only
2. AM
Connection
Input Output
Connect to VTVM
point TP13(L) or TP14(R) and TP15(E).
--- Connect Digital DC voltmeter to 522kHz L2153 1.00±0.05V
--- TP11(H )and TP12(E). 1710kHz --- 7.10±0.50V Check Only
Connect to VTVM 603kHz L2151
point TP13(L) or TP14(R) and TP15(E). 1404kHz CT252
IF(0V)
Adjustment XF233
Maximum
98MHz
Cover
Voltage
450KHz
at 999kHz T2002 MaximumLoop Ant
3
FM Antenna SG=66dBuV/EMF
IF
Adjustment
Loop Ant
1
2
1
Tracking
2Cover
Voltage
Remark
Remark
Step
Step
Adjusting
Circuit
Adjusting
Circuit
SG
Frequency Adjustment
Adjustment
SG
Frequency

- 5 -
EXPLODED VIEW (CABINET & CHASSIS)
12
24
Y02
Y04
Y05
Y05 Y08
Y11
Y12
Y14
Y14
Y13
Y13
Y15
Y16
Y09
Y09
Y10
Y02
Y03
Y02
Y02
Y01
Y07
Y06
11
1
2
3
4
5
6
7
8
9
71
73
74
72
23
22
16
14
17 15
18
19
20
21
10
11
13
51
54
56
55
57(AU)
57
Y07
Y06
52
53
(KR)
58

- 6 -
PARTS LIST
PRODUCT SAFETY NOTICE
EACH PRECAUTION IN THIS MANUAL SHOULD BE FOLLOWED DURING SERVICING. COMPONENTS IDENTIFIED WITH
THE IEC SYMBOL !
!! IN THE PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATED COMPONENTS IN WHICH
SAFETY CAN BE OF SPECIAL SIGNIFICANCE. WHEN REPLACING A COMPONENT IDENTIFIED BY !
!! , USE ONLY THE
REPLACEMENT PARTS DESIGNATED, OR PARTS WITH THE SAME RATINGS OF RESISTANCE, WATTAGE OR
VOLTAGE THAT ARE DESIGNATED IN THE PARTS LIST IN THIS MANUAL. LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS MUST BE MADE TO DETERMINE THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM
THE SUPPLY CIRCUIT BEFORE RETURNING THE PRODUCT TO THE CUSTOMER.
CAUTION :Regular type resistors and capacitors are not listed. To know those values, refer to the schematic diagram.
Regular type resistors are less than 1/4 W Carbon type and Chip type resistors.
Regular type capacitors are less than 50 V and less than 1000 µF type of Ceramic type, Electrical type and
Chip type.
PACKING & ACCESSORIES
REF.NO. PART NO. DESCRIPTION
614 321 4083 CARTON CASE(AU)
614 321 4106 CARTON CASE(KR)
614 319 7430 CUSHION,REAR
614 319 7447 CUSHION,FRONT
614 321 4182 INSTRUCTION MANUAL(AU)
614 321 4205 INSTRUCTION MANUAL(KR)
645 047 0509 POLY SHEET
645 037 8102 POLY BAG,AC CODE
645 005 1227 ASSY,ANTENA,LOOP
or 645 046 8322 ASSY,ANTENA,LOOP
645 053 2542 REMOCON RB-DA280AR
614 318 9404 LID,BATTERY,SERVICE
614 319 6662 ASSY,BOX,SPEAKER(AU)
614 324 1768 ASSY,BOX,SPEAKER(KR)
CABINET & CHASSIS
REF.NO. PART NO. DESCRIPTION
1614 319 6983 COVER,DECK
2614 319 7003 DEC,WINDOW,DECK
3614 320 3520 SPRING,WIRE,DOOR DECK
4614 319 7096 LID,CASSETTE
5614 323 2148 ASSY,PANEL,FRONT
6614 319 7072 KNOB,VOLUME
7614 303 1277 LATCH,CAM,DECK DOOR,LOCKING
8614 309 7969 ASSY,GEAR,LID,CASSETTE
9614 322 7717 BUTTON,OPERATION,11 KEYS
10 614 319 6945 BUTTON,RIGHT,4 KEYS
11 614 310 3899 SPACER,MECHA,MTG CD+DA11
12 614 307 2072 COVER,PICK-UP
13 614 319 7119 MOUNTING,CD
14 614 322 2125 ASSY,GEAR,LID,CD
15 614 303 0263 LATCH,PUSH,CD DOOR LOCKING
16 614 319 7201 SPRING,WIRE,DOOR CD
17 614 319 6938 BUTTON,POWER
18 614 307 8821 PULLEY
19 614 303 0256 LATCH,MAGNET
20 614 319 7102 LID,CD
21 614 319 7058 DEC,WINDOW,CD
22 614 316 1172 STOPPER
23 614 321 3925 ASSY,CABINET,REAR
24 614 307 9804 ASSY,MECHA,CDDA11N-SASH
FIXING PARTS
REF.NO. PART NO. DESCRIPTION
Y01 411 021 3503 SCR S-TPG BIN 3X10,
F-PANEL+LATCH,CAM
Y02 411 021 3503 SCR S-TPG BIN 3X10,
F-PANEL+DECK MECHA
Y03 614 129 9136 LUG,LEAD FIX
Y04 411 020 8905 SCR S-TPG BRZ+FLG 3X10,
F-PANEL+ASSY.GEAR,DECK
Y05 411 021 3503 SCR S-TPG BIN 3X10,
SWITCH,PWB+MTG CD
Y06 411 021 1806 SCR S-TPG BIN 2.6X10,
MTG CD+DA11
Y07 411 092 0906 WASHER Z 2.6X10X0.5,
MTG CD+DA11
Y08 411 020 8905 SCR S-TPG BRZ+FLG 3X10,
F-PANEL+ASSY.GEAR,CD
Y09 411 021 4906 SCR S-TPG BIN 3X20,
F-PANEL+MOUNTING,CD
Y10 411 184 0906 SCR S-TPG BIN 2.3X10,
LID CD+DEC WINDOW CD
Y11 412 032 6408 SPECIAL SCREW,REAR+P-TRANS
Y12 411 021 3503 SCR S-TPG BIN 3X10,
REAR+STOPPER
Y13 411 098 7800 SCR S-TPG FLT 3X12,
REAR+MTG(L/R)
Y14 411 021 4906 SCR S-TPG BIN 3X20,
REAR+PANEL,FRONT
Y15 411 021 3503 SCR S-TPG BIN 3X10,
REAR+ANT TERMINAL
REAR+AUDIO TERMINAL
Y16 411 021 3503 SCR S-TPG BIN 3X10,
REAR+MTG CD
ELECTRICAL PARTS
REF.NO. PART NO. DESCRIPTION
51 614 322 2279 ASSY,WIRE,AMP-TAPE MECHA
52 614 322 2439 FLEXIBLE FLAT CABLE,
FRONT-AMP
53 614 313 7023 FLEXIBLE FLAT CABLE,
CD-CD MECHA
or 614 310 5459 FLEXIBLE FLAT CABLE,
CD-CD MECHA
54 614 316 8041 ASSY,WIRE,CD-CD MECHA
55 423 016 7908 FUSE 250V 2.5A
56 645 051 8744 TRANS,POWER(AU)
56 645 051 8720 TRANS,POWER(KR)
57 645 032 1887 CORD,POWER-2.0MK(AU)
57 645 047 8055 CORD,POWER-1.8MK(KR)
or 645 039 2528 CORD,POWER-1.75MK(KR)
58 614 322 2255 ASSY,WIRE,R/P HEAD-AMP
423 016 9407 FUSE 250V 0.25A(KR)

- 7 -
PARTS LIST
FRONT P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
71 614 324 1140 ASSY,PWB,FRONT(Only Initial)
AC601 614 320 3469 COVER,LED
AH601 614 320 3483 HOLDER,LCD
AS601 614 314 9286 DEC,SHEET,LCD
CN601 645 012 5324 SOCKET,FPC 28P
D6010 407 012 4406 DIODE 1SS133
D6110 407 012 4406 DIODE 1SS133
D6111 407 012 4406 DIODE 1SS133
D6112 407 225 7300 LED LT03B3-43-URE1
D6113 407 012 4406 DIODE 1SS133
IC601 410 432 5700 IC LC867232A-5Z21
L6010 645 001 5441 INDUCTOR,2.2U K
LCD60 645 050 7397 LCD
Q6107 405 141 3307 TR KTC3198-GR
or 405 141 3208 TR KTC3198-Y
or 405 019 2708 TR 2SC536-F-NP
or 405 019 3804 TR 2SC536-G-NP
Q6108 405 143 8706 TR KTC3199-GR
or 405 011 8500 TR 2SC1740S-R
or 405 011 8609 TR 2SC1740S-S
or 405 017 9600 TR 2SC3330-T
or 405 017 9709 TR 2SC3330-U
S6001 645 054 1230 SWITCH,ROTARY(ENCODER)
S6110 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
S6111 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
S6112 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
S6113 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
S6114 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
S6115 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
S6116 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
S6117 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
S6210 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
or 614 220 5471 SWITCH,TACT
S6211 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
S6212 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
S6213 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
S6214 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
S6215 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
S6216 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
SE601 407 217 1101 PHOTO DIODE SPS-442-1G
X6102 645 018 6103 OSC,CERAMIC 6.000MHZ
CD P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
72 614 320 0444 ASSY,PWB,CD(Only Initial)
CN111 645 026 2463 SOCKET,FFC 15P
or 645 040 0513 SOCKET,FPC 15P
CN113 645 005 8127 PLUG,6P,BASEMECHA
or 614 310 2472 PLUG,6P,BASEMECHA
D1402 407 099 5204 ZENER DIODE MTZJ5.1B
D1403 407 004 9709 DIODE DSK10C
D1404 407 012 4406 DIODE 1SS133
D1410 407 098 3300 DIODE RL153-BF-S2
D1482 407 012 4406 DIODE 1SS133
IC101 409 396 8100 IC LA9241ML
IC102 409 435 2106 IC LC78622NE
IC103 409 486 8706 IC MM1469XH
L1451 645 001 4550 INDUCTOR,10U K
LUG01 614 129 9082 LUG
PR140 645 014 2499 PROTECTOR,0.4A 125V
Q1301 405 008 7103 TR 2SB808-G-SPA
or 405 151 4509 TR KTA1270-Y
or 405 151 4608 TR KTA1270-O
or 405 008 6809 TR 2SB808-F-SPA
Q1401 405 009 5306 TR 2SB927-T
or 405 009 5207 TR 2SB927-S
or 405 141 3604 TR KTA1273-Y
X1451 614 231 2667 RESONATOR
AMPLIFIER & TUNER P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
73 614 321 5769 ASSY,PWB,AMP-TU(AU)(Only Initial)
73 614 321 5790 ASSY,PWB,AMP-TU(KR)(Only Initial)
C2457 403 259 0508 NP-ELECT 1U M 50V
C4601 403 057 3503 POLYESTER 0.1U K 50V
C4605 403 061 3605 POLYESTER 0.039U J 50V
C4606 403 061 7702 POLYESTER 4700P J 50V
C4607 403 059 3204 POLYESTER 2200P J 50V
C4608 403 060 2807 POLYESTER 0.027U K 50V
C4734 403 058 4608 POLYESTER 0.15U J 50V
C4834 403 058 4608 POLYESTER 0.15U J 50V
C4913 403 329 5907 ELECT 3300U M 25V
CN201 614 221 8273 TERMINAL
CN202 645 038 7715 TERMINAL
or 645 025 4703 TERMINAL,ANTENNA
CN400 645 012 5324 SOCKET,FPC 28P
CN401 645 006 1875 PLUG,2P,SPEAKER
CN402 645 006 1875 PLUG,2P,SPEAKER
CN440 614 310 2472 PLUG,6P
or 645 005 8127 PLUG,6P
CN441 614 310 2731 PLUG,2P,POWER
or 645 004 2881 PLUG,2P,POWER
CN442 614 276 6835 SOCKET,JACK
CN443 645 011 6384 JACK,PHONE D3.6,HEAD PHONE
CN445 614 310 2519 PLUG,10P
or 645 005 8158 PLUG,10P
CT252 645 032 5663 TRIMMER,7PF
D2101 407 157 8109 VARACTOR DI SVC211-B
D2102 407 157 8109 VARACTOR DI SVC211-B
D2103 407 012 4406 DIODE 1SS133
D2151 407 012 4406 DIODE 1SS133
D2153 407 105 1602 VARACTOR DI SVC342M-V
or 407 105 1305 VARACTOR DI SVC342L-V
D2301 407 063 9108 ZENER DIODE MTZJ6.8B
D2451 407 012 4406 DIODE 1SS133
D2452 407 153 7502 ZENER DIODE GZS3.0B
D2453 407 012 4406 DIODE 1SS133
D2456 407 012 4406 DIODE 1SS133
D2466 407 012 4406 DIODE 1SS133
D4951 407 099 6003 ZENER DIODE MTZJ9.1B
D4953 407 012 4406 DIODE 1SS133
D4954 407 012 4406 DIODE 1SS133
D4960 407 012 4406 DIODE 1SS133

- 8 -
PARTS LIST
REF.NO. PART NO. DESCRIPTION REF.NO. PART NO. DESCRIPTION
D4961 407 012 4406 DIODE 1SS133
D4963 407 012 4406 DIODE 1SS133
D4964 407 012 4406 DIODE 1SS133
HS401 614 319 7065 HEAT SINK,HEATSINK
IC211 409 016 0200 IC LA1186N-AUDIO
IC231 409 474 3201 IC LA1844ML
IC241 409 439 4502 IC LC72121M-D
IC440 409 451 7406 IC AN7348K
IC441 409 474 6103 IC LC75342M
IC442 409 295 7402 IC TA8229K
IC443 409 189 3404 IC BA7755A
L2102 645 040 2753 INDUCTOR,AIR —
L2103 645 040 2746 COIL,AIR —
L2104 645 002 1534 INDUCTOR,8.2U K
L2151 645 037 2377 TRANS,ANT,796KHZ
L2153 645 040 2739 TRANS,OSC,796KHZ
L2451 645 001 4581 INDUCTOR,100U K
L4600 645 006 1523 INDUCTOR,470U J
L4601 645 006 1523 INDUCTOR,470U J
L4602 645 037 2858 CORE,PIPE
L4603 645 006 1523 INDUCTOR,470U J
L4604 645 037 2858 CORE,PIPE
L4781 645 002 1459 INDUCTOR,22U K
L4782 645 002 1459 INDUCTOR,22U K
L4881 645 002 1459 INDUCTOR,22U K
L4882 645 002 1459 INDUCTOR,22U K
L4981 645 002 1459 INDUCTOR,22U K
L4982 645 002 1459 INDUCTOR,22U K
PR495 645 042 2621 PROTECTOR,1.5A 125V
PR496 645 042 2621 PROTECTOR,1.5A 125V
Q2201 405 151 4301 TR KTC3195-Y
or 405 151 4806 TR KTC3195-O
Q2451 405 036 3702 TR 2SA1564
or 405 151 5209 TR KRA107M
or 405 000 0904 TR DTA114YS
or 405 078 2404 TR BN1A4P
Q4410 405 141 3406 TR KTA1266-GR
or 405 141 3505 TR KTA1266-Y
or 405 004 4502 TR 2SA608-F-NP
or 405 004 5004 TR 2SA608-G-NP
Q4600 405 155 0002 TR MPSA56
Q4601 405 000 3806 TR DTC114YS
or 405 143 0007 TR KRC107M
Q4602 405 141 3307 TR KTC3198-GR
or 405 141 3208 TR KTC3198-Y
or 405 019 2708 TR 2SC536-F-NP
or 405 019 3804 TR 2SC536-G-NP
Q4603 405 141 3307 TR KTC3198-GR
or 405 141 3208 TR KTC3198-Y
or 405 019 2708 TR 2SC536-F-NP
or 405 019 3804 TR 2SC536-G-NP
Q4700 405 000 3806 TR DTC114YS
or 405 143 0007 TR KRC107M
Q4701 405 000 3806 TR DTC114YS
or 405 143 0007 TR KRC107M
Q4751 405 151 4400 TR KTD1303
or 405 021 0204 TR 2SD1012-F-SPA
or 405 021 0600 TR 2SD1012-G-SPA
or 405 033 6706 TR 2SD1468S-R
or 405 033 6805 TR 2SD1468S-S
Q4800 405 143 0007 TR KRC107M
or 405 000 3806 TR DTC114YS
Q4801 405 000 3806 TR DTC114YS
or 405 143 0007 TR KRC107M
Q4851 405 151 4400 TR KTD1303
or 405 021 0204 TR 2SD1012-F-SPA
or 405 021 0600 TR 2SD1012-G-SPA
or 405 033 6706 TR 2SD1468S-R
or 405 033 6805 TR 2SD1468S-S
Q4920 405 141 3307 TR KTC3198-GR
or 405 141 3208 TR KTC3198-Y
or 405 019 2708 TR 2SC536-F-NP
or 405 019 3804 TR 2SC536-G-NP
POWER TRANSFORMER P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
74 614 320 0451 ASSY,PWB,PT(AU)(Only Initial)
74 614 321 5806 ASSY,PWB,PT(KR)(Only Initial)
CN420 614 020 1215 SOCKET,2P
CN421 614 017 8203 TERMINAL BOARD
CN422 614 017 8203 TERMINAL BOARD
CN423 614 322 2262 ASSY,WIRE,PT-AMP WIRE
D4280 407 098 3300 DIODE RL153-BF-S2
D4281 407 098 3300 DIODE RL153-BF-S2
D4282 407 098 3300 DIODE RL153-BF-S2
D4283 407 098 3300 DIODE RL153-BF-S2
FCL41 645 006 4760 HOLDER,FUSE
or 645 031 7903 HOLDER,FUSE
FCL42 645 006 4760 HOLDER,FUSE
or 645 031 7903 HOLDER,FUSE
FCL43 645 006 4760 HOLDER,FUSE(KR)
or 645 031 7903 HOLDER,FUSE(KR)
FCL44 645 006 4760 HOLDER,FUSE(KR)
or 645 031 7903 HOLDER,FUSE(KR)
L4291 645 017 8061 INDUCTOR,181M
or 645 038 6053 INDUCTOR,181U
or 645 041 3087 INDUCTOR,180U
Q4930 405 033 6805 TR 2SD1468S-S
or 405 033 6706 TR 2SD1468S-R
or 405 021 0600 TR 2SD1012-G-SPA
or 405 151 4400 TR KTD1303
or 405 021 0204 TR 2SD1012-F-SPA
Q4931 405 000 0508 TR DTA114ES
or 405 110 5400 TR KRA102M-A
Q4951 405 138 6403 TR KTD2058Y
or 405 095 1602 TR 2SD2061-E
or 405 095 1701 TR 2SD2061-F
Q4960 405 155 0002 TR MPSA56
Q4961 405 155 0002 TR MPSA56
Q4962 405 000 3806 TR DTC114YS
or 405 143 0007 TR KRC107M
Q4963 405 000 3806 TR DTC114YS
or 405 143 0007 TR KRC107M
R4940 402 081 0205 FUSIBLE RES 27 JA 1/4W
S2001 645 023 5795 SWITCH,LEVER
S4951 645 052 2772 SWITCH,PUSH 2P-2TX2,
POWER SW
SA401 411 021 6405 SCR S-TPG BIN 3X8
SA402 411 021 6405 SCR S-TPG BIN 3X8
T2002 645 046 2023 FILTER,450KHZ
X2451 645 023 4965 OSC,CRYSTAL 7.2MHZ
or 645 053 4263 OSC,CRYSTAL 7.2MHZ
XF211 645 026 2975 FILTER,BP 108MHZ
or 614 252 1045 FILTER,LC
XF221 645 054 1223 CERAMIC FILTER 10.70MHZ
or 645 010 7665 CERAMIC FILTER 10.70MHZ
or 645 010 0079 CERAMIC FILTER 10.70MHZ
or 614 240 2917 FILTER,CERAM
XF222 645 054 1223 CERAMIC FILTER 10.70MHZ
or 645 010 7665 CERAMIC FILTER 10.70MHZ
or 645 010 0079 CERAMIC FILTER 10.70MHZ
or 614 240 2917 FILTER,CERAM
XF231 645 041 9324 CERAMIC FILTER 450KHZ
XF233 645 040 9981 TRANS,IF 10.7MHZ
or 645 039 9923 TRANS,IF 10.7MHZ

- 9 -
IC BLOCK DIAGRAM & DESCRIPTION
IC101 LA9241ML (Servo Signal Processor)
28 27 26 25 24 23 22 21 20 19 18 17 16 15
1234567 891011121314
Vcc
Vcc
DRIVER MUTE
D.BUFD.BUFD.BUFD.BUF
D.BUFD.BUFD.BUFD.BUF
Level shift
Level shift
Level shift
Level shift
T.S .D
IC103 MM1469XH (CD Driver)
IC211 LA1186N-AUDIO (FM Front End)
FSS
64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49
48
47
46
45
44
43
41
40
39
38
37
36
35
34
33
42
32313029282726252423222120191817
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Vcc1 LDS LDD BH1 PH1 LF2 VR REF1 Vcc2
DRF CE DAT CL CLK DEF
NC
TBC
FSC
DGN
D
SLI
SLC
RFS-
RFS
M
CV+
CV-
SLOF
HFL
TES
TOFF
TGL
JP+
JP-SL+SL-SLDSLEQSPDSP-SPGSP
NC AGND FE-FE FA-FAFD-
FD
TO
JP
TD
TD-
TA
TH
SCI
TESI
TE
TE-
TB
F
E
FIN1
FIN2
APC
RF DET
REF
VCA
I/V
BAL VCA
INTER FACE
É -com
SLC
RF Amp
TE
T.SERVO & T.LOGICK
F.SERVO & F.LOGICK
SPINDLE SERVO
SLED SERVO
*
**
*
*
TM01
TM02
TM03
TM04
TM05
TM06
*
*
EXPLODED VIEW & PARTS LIST(TAPE MECHANISM)
N.S.P : Not supplied as service parts.
*
TAPE MECHANISM
REF.NO. PART NO. DESCRIPTION
614 315 4839 ASSY,MECHA,TM-DA370TN-SH
TM01 645 045 1799 R/P HEAD KC-9142EA-0321
TM02 645 010 9447 PINCH ROLLER(F) ASSY
TM03 645 045 1959 RF BELT
TM04 645 045 1997 MAIN BELT
TM05 645 045 2048 DETECT SWITCH MXS01190
TM06 645 045 1751 ASSY,MOTOR

- 10 -
IC BLOCK DIAGRAM & DESCRIPTION
IC101 LA9241ML (Servo Signal Processor)
No. Pin Name I/O Function
1FIN2 I Connection Pin for Photo Diode of Pickup.
2FIN1 I FIN2 + FIN1 = RF, FIN2 - FIN1 = FE
3EIConnection Pin for Photo Diode of Pickup.
4FIE- F = TE
5TBIInput Pin for DC ingredient of TE Signal.
6TE- I Connection Pin for Gain Setting Resistor of TE
Signal to TE Signal Pin.
7TEOOutput Pin for Tracking Error Signal.
8TESI I Input Pin for Track Error Sense Comparator.
TE Signal through Band Pass, and Inputted.
9SCI I Input Pin for Shock Detection.
10 TH I Connection Pin for Time Constant Setting of
Tracking Gain.
11 TA O Output Pin for TA Amplifier.
12 TD- I Connection Pin for Constant Tracking Phase
Compensation, Consist of between TD and VR.
13 TD I Connection Pin for Constant of Tracking Phase
Compensation.
14 JP I Connection Pin for Amplitude Setting of Tracking
Jump (Kick Pulse) Signal.
15 TO O Output Pin for Tracking Control Signal.
16 FD O Output Pin for Focusing Control Signal.
17 FD- I Connection Pin for Constant of Focusing Phase
Compensation, Consist of between FD and FA.
18 FA+ I Connection Pin for Constant of Focusing Phase
Compensation, Consist of between FD- and FA-.
19 FA- I Connection Pin for Constant of Focusing Phase
Compensation, Consist of between FA and FE.
20 FE O Output Pin for Focusing Error Signal.
21 FE- I Connection Pin for Gain Setting Resistor of FE
Signal to FE Signal Pin.
22 AGND - Ground for Analog Signal.
23 NC -No Connect
24 SP O Output Pin for Single End of Input Signal of the
CV+, CV- Pin.
25 SPG I Connection Pin for Gain Setting Resistor, when
Spindle 12 cm Mode.
26 SP- I Connection Pin for Constant of Spindle Phase
Compensation with SPD Pin.
27 SPD O Output Pin for Spindle Control Signal.
28 SLEQ I Connection Pin for Constant of Sled Phase
Compensation.
29 SLD O Output Pin for Sled Control Signal.
30 SL- IInput Pin for Sled Signal from Micro Processor.
31 SL+ I
No. Pin Name I/O Function
32 JP-IInput Pin for Tracking Jump Signal from Digital
33 JP+ISignal Processor.
Digital Signal Processor. TGL = H : Gain Low
35 TOFF I Input Pin for Tracking Off Control Signal from Digital
Signal Processor. TOFF = H : OFF
36 TES OOutput Pin for Track Error Sense Signal to Digital
Signal Processor.
37 HFL IHigh Frequency Level Signal Use Detection
Main-Beam Position is on the pit or mirror.
38 SLOF I Input Pin for Sled Servo Off Control.
39 CV- I Input Pin for Constant Linear Velocity Error
40 CV+ ISignal from Digital Signal Processor.
41 RFSM O Output Pin for RF Signal.
42 RFS- I Connection Pin for Gain Setting of RF and
Constant Setting of 3T Compensation of the
EFM Signal with RFSM Pin.
43 SLC OSlice Level Control Signal is Output Pin.
It Control Level of Data-Slice by Digital Signal
Processor of the RF Waveform.
44 SLI IInput Pin for Level Control of Data-Slice by
Digital Signal Processor.
45 DGND - Ground for Digital Signal.
46 FSC O Output Pin for Focus Search Smooth Condenser
47 TBC OConnection Pin for Variable Range Setting of
EF Balance.
48 N_ - No Connect
49 DEF O Output Pin for Defect Detection of Disc.
50 CLK I Input Pin for Reference Clock Pulse.
(4.23 MHz of Digital Signal Processor)
51 CL I Input Pin of Clock Pulse for Command from
Micro Processor.
52 DAT IInput Pin of Data for Command from Micro
Processor.
53 CE IInput Pin of Chip Enable for Command from Micro
Processor.
54 DRF O Output Pin for Detect of RF Level.
55 FSS I Select Pin for Focus Search Mode
56 VCC2 - VCC for Servo and Digital Root.
57 REFI I Bus Control Connection Pin for Reference Voltage.
58 VR O Output Pin for Reference Voltage.
59 LF2 I Connection Pin for Time Constant Setting of
Detect Detection of the Disc.
60 PH1 I Capacitor Connection Pin for Peak-hold of RF Signal.
61 BH1 I Capacitor Connection Pin for Bottom-hold of
RF Signal.
62 LDDOOutput Pin of APC (Automatic Power Control) Circuit.
63 LDS I Input Pin of APC (Automatic Power Control) Circuit.
64 VCC1 I VCC for RF Root.

- 11 -
IC102 LC78622NE (Digital Signal Processor)
EFMO VVDD VVSS PDO ISET FR PCK TAI
TST11
TEST1 TEST3 TEST5
TEST2 TEST4
VDD VSS
C2F
DOUT
(NC)
LVDD
LVSS
MUTELLCHO
MUTER
RVDD
RVSS
RCHO XVDD
XOUT
XINFSX
XVSS
4.2M16MEFLGEMPHCONT5
CONT4
CONT3
CONT2
CONT1 TGL RESJP+JP-TOFFTESHFL
RWC
COIN
CQCK
SQOUT
WRQ
CS
SFSY
SBSY
SBCK
PW
V/P
CLV-
CLV+
FSEQ
EFMIN
DEFI
10
22
1
12
13
14
49
51
47
50
63
53
55
57
56
54
15 16 17 20 19 58 18 24 25 26 27 28 29 48 60 61 46 52 45 44 43 39 41 42 40 37 35 38 36
34
31
30
9
21
64357 2
59 64 11 32 33 62
8
23
Slice level
Control
Subcode Dxract
QCRC
Syncrnous Detect
EFM Demodulation
VCO Clock Oscillator
& Clock Control
X'tal Root
Timing Generator
RAM Address
Generatorl
2KÅ~8bit
RAM
Billingual
Digital Out
General Ports
Digital Attenuator
Quadruple Over Sampling
Digital Filter
Interpolalation Mute
C1 C2 Error Detect &
Correct Control Flag
1bit DAC
L.P.F
CLV
Digital Servo
µCOM
Inter Fase
Servo Commander
IC BLOCK DIAGRAM & DESCRIPTION
No. Pin Name I/O Function
1DEFI I Input terminal for detect signal of defect
2TAI I Input terminal for test.
3PDO O The phase comparison output terminal for
external VCO control.
4VVSS - Ground terminal for built-in VCO
5ISET I Resistance connection terminal for
electric current adjustment of PDO output.
6VVDD - Built-in VCO power supply terminal.
7FRIVCO frequency range adjustment.
8VSS -Ground for Digital
9EFMO O EFM signal output terminal for slice level control.
10 EFMIN I EFM signal input terminal for slice level control.
11 TEST2 I TEST pin. Normal time is non connection.
12 CLV+ O Output terminal for Disc motor control.
13 CLV- O Output terminal for Disc motor control.
14 V/P O Change of rough servo / phase control
Rough servo : "H", Phase control : "L"
15 HFL I Input terminal of track search signal.
16 TES I Input terminal of tracking error signal.
17 TOFF O Output terminal of tracking off.
18 TGL O Output terminal for change of tracking gain.
19 JP+ OOutput terminal for tracking jump control.
20 JP- OOutput terminal for tracking jump control.
21 PCK O Clock monitor output terminal for EFM data
playback. (4.3218 MHz)
22 FSEQ O Output terminal for detect of SYNC signal.
23 DVDD - +5V
24 CONT1 I/O
25 CONT2 I/O This output can control at serial control from
26 CONT3 I/O micro processor.
27 CONT4 I/O
28 CONT5 I/O
29 EMPH O Output terminal of de-emphasis monitor .
"H" : de-emphasis
30 C2F OOutput terminal of C2 flag
31 DOUT O Output terminal of digital out
No. Pin Name I/O Function
32 TEST3 I Test pin.
33 TEST4 I Test pin.
34 NC - Non connection.
35 MUTEL O Mute output terminal for L-ch
36 LVDD - Power supply for L-ch
37 LCHO O Output terminal for L-ch
38 LVSS - GND for L-ch
39 RVSS - GND for R-ch
40 RCHO O Output terminal for R-ch
41 RVDD - Power supply for R-ch
42 MUTER O Mute output terminal for R-ch
43 XVDD - Power supply of crystal oscillation
44 XOUT O Connection terminal of crystal oscillation (16.9344MHz)
45 XIN I Connection terminal of crystal oscillation (16.9344MHz)
46 XVSS - GND of crystal oscillation
47 SBSY O Output terminal for synchronizing signal of
sub-cord block
48 EFLG O Output terminal for correction monitor of C1, C2,
Single and Double
49 PW OOutput terminal for sub-cord of P, Q, R, S, T, U and W
50 SFSY O Output terminal for synchronizing signal of
sub-cord frame
51 SBCK I Input terminal for readout clock of sub-cord
52 FSX O Output terminal of Synchronizing signal (7.35kHz)
53 WRQOOutput terminal for standby of sub-cord Q output
54 RWC I Input terminal of read / write control
55 SQOUT O Output terminal of sub-cord Q
56 COINIInput terminal of command from micro processor
57 CQCK I Clock input for reading sub-cord from SQOUT
58 RES I Reset (turn on : L)
59 TST11 O Test pin
60 16M O 16.9344MHz
61 4.2M O 4.2336MHz
62 TEST5 I Test pin
63 CS I Chip select terminal
64 TEST1 I Test pin

- 12 -
IC BLOCK DIAGRAM & DESCRIPTION
2
1
24
17
16
3
4
5
6
18
15
78910 11 14
19
20
21
22
13
Vssx
XIN
XOUT
FMIN
AMIN
CE
DI
CL
DO
VDD
Vssd
PD
AIN
AOUT
Vssa
IFIN
IO1 IO2
BO1BO2 BO3 BO4
PHASE DETECTOR
CHARGE PUMP
UNLOCK
DETECTOR
UNIVERSAL
COUNTER
REFERENCE
DIVIDER
SWALLOW COUNTER
1/16, 1/17 4bits
12bits PROGRAMMABLE
DIVIDER
DATA SHIFT REGISTER LATCH
1/2
CCB
I / F
POWER
ON
RESET
IC241 LC72121M-D (Pll Synthesizer)
14 52 3
IC443 BA7755A (Head Switch)
FM
IF FM
DET
LEVEL
DET
S-CURVE
AM/FM
IF
BUFF
REG GND
COMP
TUNING
DRIVE
AM
IF
AM
DET
VCC
AGC PILOT
CANCEL
PILOT
DET
DECODER
ANTI-BIRDIE
STEREO
SW
FF
38k FF
19k
VCO
304kHz
AM
RF.AMP
AM
MIX
AM
OSC
ALC
BUFF
P-DET
FF
19k
2
123456789101112
24 23 22 21 20 19 18 17 16 15 14 13
IC231 LA1844ML ( Tuner System)
IC442 TA8229K (Power Amplifier)
CONTROL
CIRCUIT
LOGIC
CIRCUIT CCB INTERFACE
CONTROL
CIRCUIT
15
14
16
17
18
19
20
21 22 24 25 2623
10 9 7 6 58
11
L4
L3
L2
L1
NC
NC
R1
R2
R3
R4
RSELO RIN RTRE RBASS1 RBASS2 ROUT
LSELO LIN LTRE LBASS1 LBASS2 LOUT
TEST
V
SS
CE
DI
CL
V
DD
Vref
NC
12
13
1
2
30
29
28
27
4
3
LVref
RVref
IC441 LC75342M (2 band equalizer)

- 13 -
IC BLOCK DIAGRAM & DESCRIPTION
IC601 LC867232A-5Z21 (Micro Processor)
IC440 AN7348K ( Play/Rec Pre Amp)
Nor/Cro
& Hi/Lo
Logic
R
R
P
R
P
P
ALC
Mute
Mute
Logic
A/B
Logic
Rec/PB
Ripple
Rejection
Rec
Amp(L)
Rec
Amp(R)
PB Amp(L)
PB Amp(R)
A/Rec
A/Rec
B
B
123457
68910 1211
1314
15
16
17
1819
20
21222324
L-PB AMP
R-PB AMP
R-PB NF
R-PB EO
R-PB OUT
AB SW
R-REC OUT
R-REC IN
REC/PB SW
A/B SW
FILTER
GND VCC
CRO/NOR
HI/LO
ALC
L-REC OUT L-REC IN
ALC
L-PB AMP OUT
L-PB EO L-PB NF R-PB AMP
L-PB AMP
NO. PIN NAME NAME I/O DESCRIPTION
1P06 O
2P07 DSP_RESET O DSP Reset Signal
3P10/S00 COIN O CD_DSP Interface (Command, Data Output)
4P11/SIO/SB0 SQOUT I CD_DSP Interface (SubQ Data Input)
5P12/SCK0 CQCK O CD_DSP Interface (Clock)
6P13/S01
7P14/SII/SB1 CLK_SHIFT O Shift Control for Micon Oscillation Frequency
8P15/SCK1 RWC O CD_DSP Interface (Command, Latch Output)
9P16/BUZ JOG + I Jog Dial +
10 P17/PWM0 JPG - I Jog Dial -
11 P70/INT0 DRF I DRF Signal Input
12 RES RESET Reset Switch
13 XT1/P74 I
14 XT2/P75 I
15 VSS1 VSS Gnd
16 CF1 CF1 Main Clock OSC
17 CF2 CF2 Main Clock OSC
18 VDD1 VDD Positive Power Supply Pin
19 P80/AN0 I
20 P81/AN1 KEY1 A/D Key In
21 P82/AN2 KEY2 A/D Key In
23 P84/AN4 LID SW I Top Lid Switch
24 P85/AN5 LIMIT_SW I Limit Switch
25 P86/AN6 C2F I DSP C2F Input
26 P87/AN7 I
27 P71/INT1 WRQ I CD DSP Interface(Sub Q Request)
29 P73/INT2/TOIN IR I Remotecontrol Input
30 S0/PA0 I
31 S1/PA1 G_REVS I Failure Record SW(Tape AB side)Input
32 S2/PA2 G_FWD I Failure Record SW(Tape B side)Input
33 S3/PA3 PACK I Tape Park Check Input
34 S4/PA4 TAPE_INI I Tape Deck Initialize
35 S5/PA5 REEL I Real Rotor Signal Input
36 S6/PA6 TAPE PLAY PL O Tape Play Plunger Output
37 S7/PA7 MOTOR O Tape Motor Output
38 S8/PA8 BEAT O Beat Cancel Control
39 S9/PB1 R MUTE O Tape Recording Mute
40 S10/PB2 OSC O Control for Oscillation of Tape On/Off
41 S11/PB3 SURROUND O Surround Output
42 S12/PB4 O
43 S13/PB5 O
44 S14/PB6 O
45 S15/PB7 O
46 S16/PC0 O
47 S17/PC1 O
48 S18/PC2 O
49 S19/PC3 O
One Way / Recerse Mecha Select
(Low; One Way Mecha)
28 P72/INT2/TOIN AC SENSE I Detection for Power Failure
Processor Power Check Input
22 P83/AN3 DECK_SEL I
NO. PIN NAME NAME I/O DESCRIPTION
50 S19/PC4 O
51 S21/PC5 O
52 S22/PC6 O
53 S23/PC7 O LCD Pin No28
54 S24/PD0 O LCD Pin No27
55 S25/PD1 O LCD Pin No26
56 VDD2 VDD O Vdd
57 VSS2 VSS O Gnd
58 S26/PD2 O LCD Pin No25
59 S27/PD3 O LCD Pin No24
60 S28/PD4 O LCD Pin No23
61 S29/PD5 O LCD Pin No22
62 S30/PD6 O LCD Pin No21
63 S31/PD7 O LCD Pin No20
64 S32/PE0 O LCD Pin No19
65 S33/PE1 O LCD Pin No18
66 S34/PE2 O LCD Pin No17
67 S35/PE3 O LCD Pin No16
68 S36/PE4 O LCD Pin No15
69 S37/PE5 O LCD Pin No14
70 S38/PE6 O LCD Pin No13
71 S39/PE7 O LCD Pin No12
72 S40/PF0 O LCD Pin No11
73 S41/PF1 O LCD Pin No10
74 S42/PF2 O LCD Pin No9
75 S43/PF3 O LCD Pin No8
76 S44/PF4 O LCD Pin No7
77 S45/PF5 O LCD Pin No6
78 S46/PF6 O LCD Pin No5
79 S47/PF7 O LCD Pin No4
80 V3/PL6
81 V2/PL5
82 V1/PL4
83 COM0/PL0 LCD COM1 O LCD COM1 (LCD Panel Pin3)
84 COM1/PL1 LCD COM2 O LCD COM2 (LCD Panel Pin2)
85 COM2/PL2 LCD COM3 O LCD COM3 (LCD Panel Pin1)
86 COM4/PL3
87 P30 D_CLK O Tuner / Volume FUNC IC Serial Clock Output
88 P31 TU_DUT O Tuner IC Serial Data Output
89 VSS3 VSS Gnd
90 VDD3 VDD Positive Power Supply Pin
91 P32 VF_DO O VOL_FUNC IC Serial Data Output
92 P33 VF_CE O VOL_FUNC IC Serial Latch Output
93 P34 TU_CE O TU IC Serial Latch Output
94 P35 TU_DI I TU IC Serial Data Input
95 P00 O
96 P01 O
97 P02 O
98 P03 PRE_MUTE O Pre Amp Mute Output
99 P04 MAIN_MUTEOPower Amp Mute
100 P05 O

- 14 -
LCD DISPLAY DESCRIPTION
PAD NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
IC NO.
C3
C2
C1
S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
S11
S12
S13
S14
S15
S16
S17
S18
S19
S20
S21
S22
S23
S24
S25
COM1
--
--
COM1
7A
7B
T8
6A
6B
JAZZ
T1
5
T5
4A
4B
4h
3A
3B
3h
2A
2B
2h
REV PLAY
1A
1B
1h
T2
POP
ROCK
COM2
--
COM2
--
7F
7G
7C
6F
6G
6C
MHZ
PROG.
T6
4F
4G
4C
3F
3G
3C
2F
2G
2C
T9
1F
1G
1C
--
T10
T11
COM3
COM3
--
--
7E
7D
CH
6E
6D
TR
kHZ
REC
ST
4E
4D
SURR
3E
3D
BASS
2E
2D
CLASSIC
FWD PLAY
1E
1D
T4
T3
--
T7
A
G
BF
D
(DIGIT 2) (DIGIT 1,3,4)
28 1
CE H
A
G
BF
D
CE
LCD60

- 15 -
WIRING CONNECTION
CD MECHANISM
(6P)
(15P) (9P)
CN111
(15P) CN113
(6P)
CN601
(28P)
CN400
(28P)
CN445
(9P)
CN440
(6P)
CN441
(2P)
CN401
CN201
CN202
CN402
CN442
CN443
PHONES
CN420
(2P)
AM LOOP ANT.
L-CH
SPEAKER
BOX
R-CH
SPEAKER
BOX
CD P.W.B
POWER TRANSFORMER P.W.B
FRONT P.W.B
AMPLIFIER & TUNER P.W.B
TAPE MECHANISM
FM ANT.
LINE IN
FU421
T2.5A L 250V
P. T
AC IN
BL
CN421
BW
CN422
This is a basic wiring connection.
