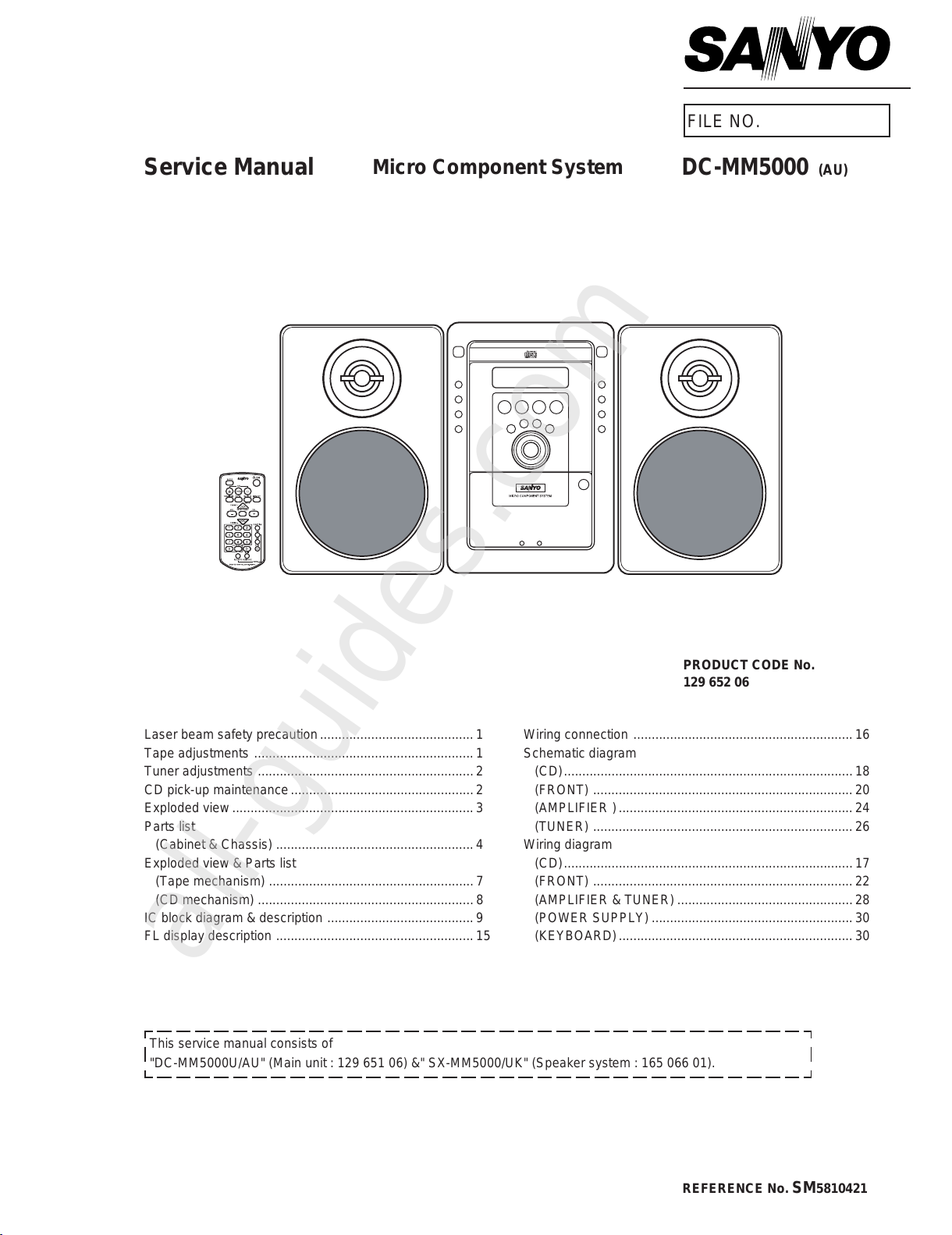

Sanyo DC-MM5000 (XE) User manual

Service Manual
FILE NO.
Micro Component System
DC-MM5000 (AU)
PRODUCT CODE No.
129 652 06
REFERENCE No. SM5810421
Laser beam safety precaution..........................................1
Tape adjustments ............................................................1
Tuner adjustments ........................................................... 2
CD pick-up maintenance..................................................2
Exploded view .................................................................. 3
Parts list
(Cabinet & Chassis) ......................................................4
Exploded view & Parts list
(Tape mechanism) ........................................................7
(CD mechanism) ...........................................................8

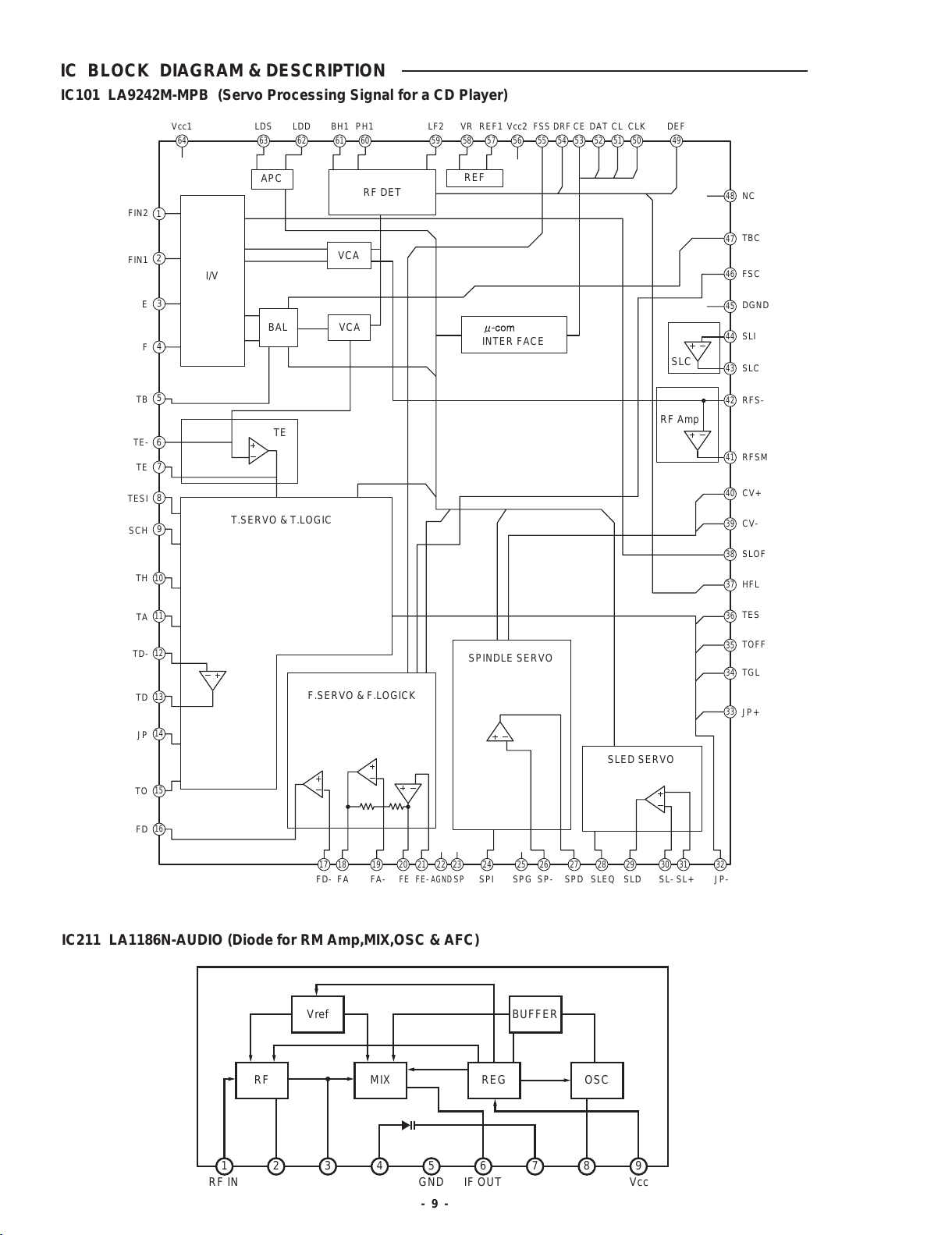

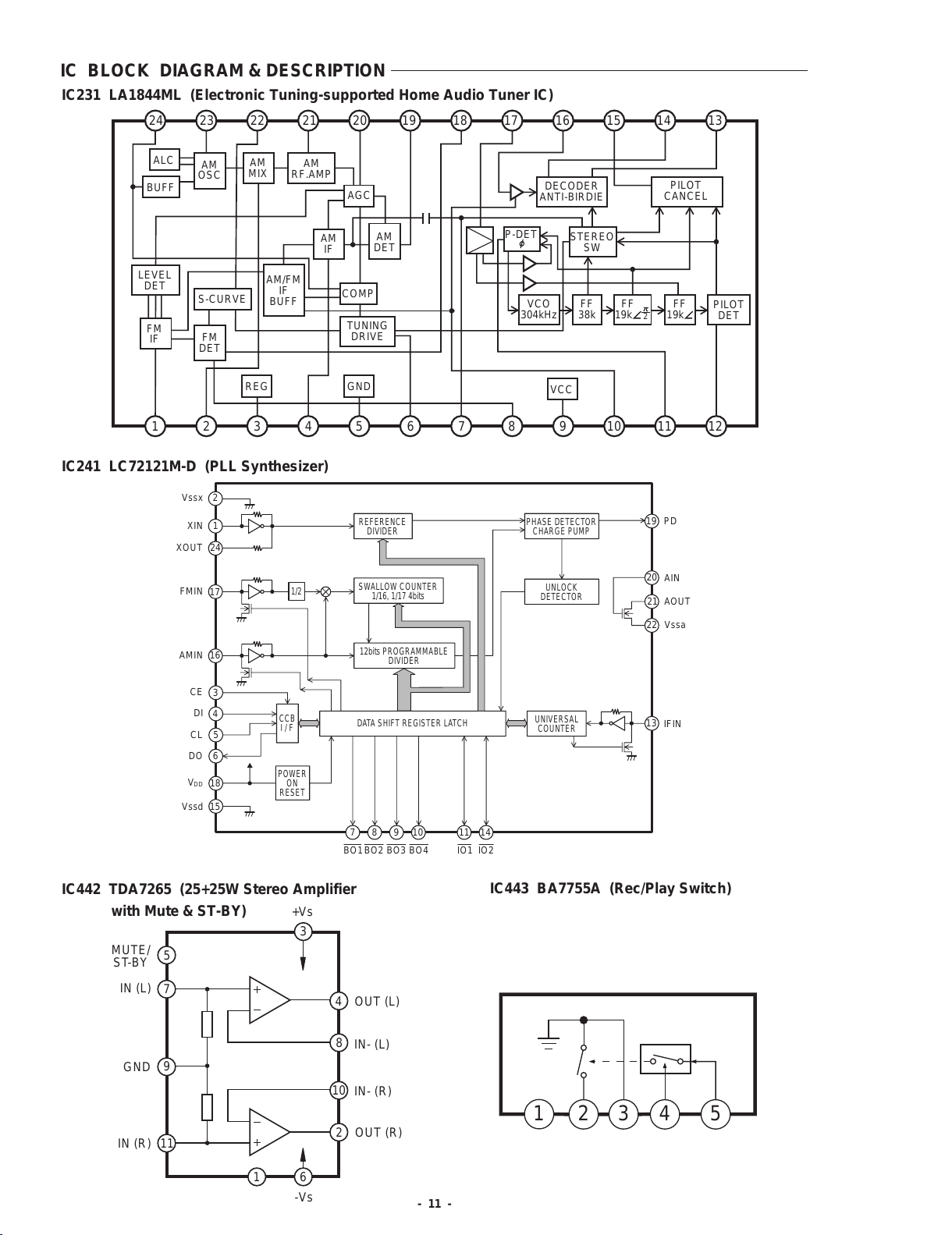

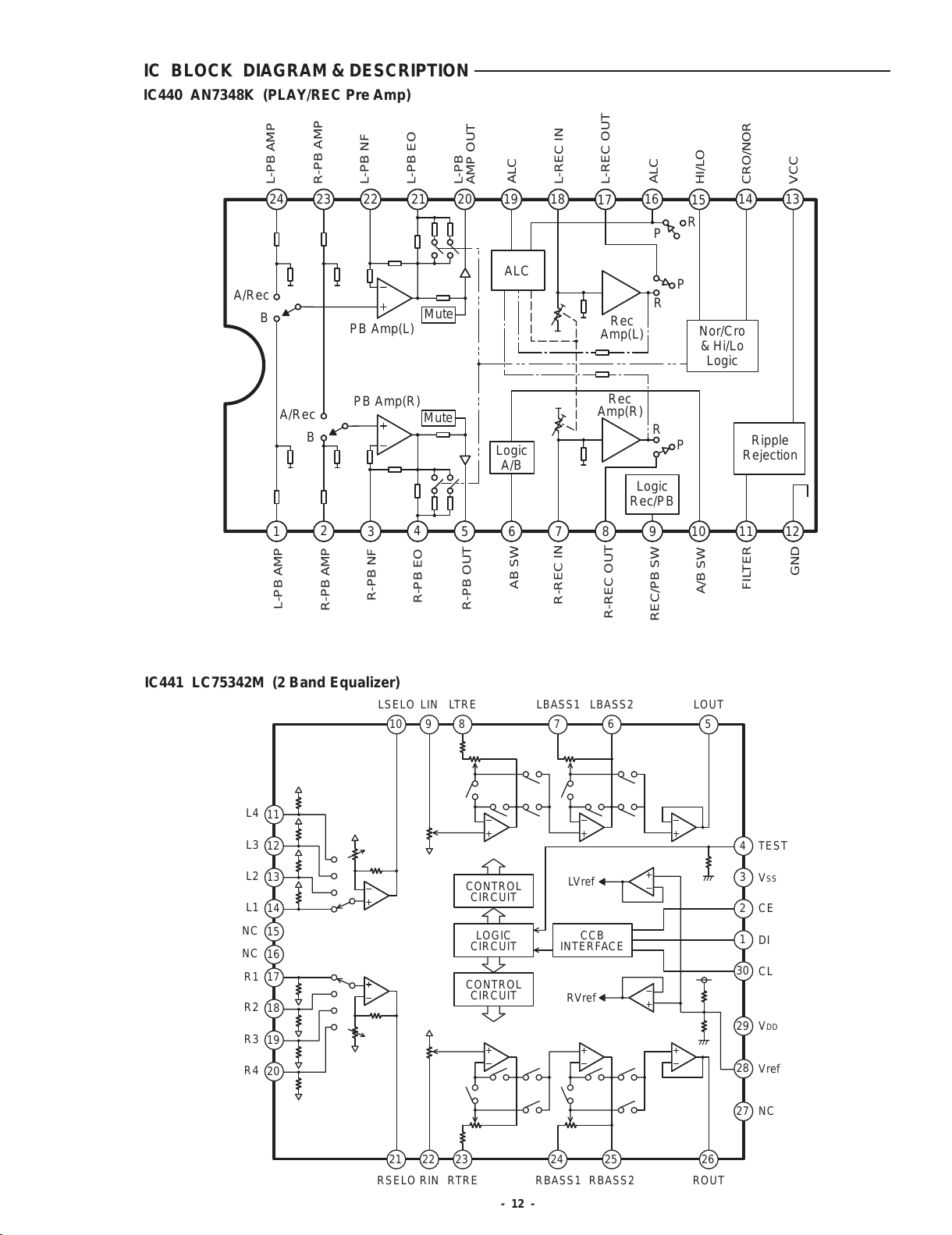

IC block diagram & description ........................................ 9

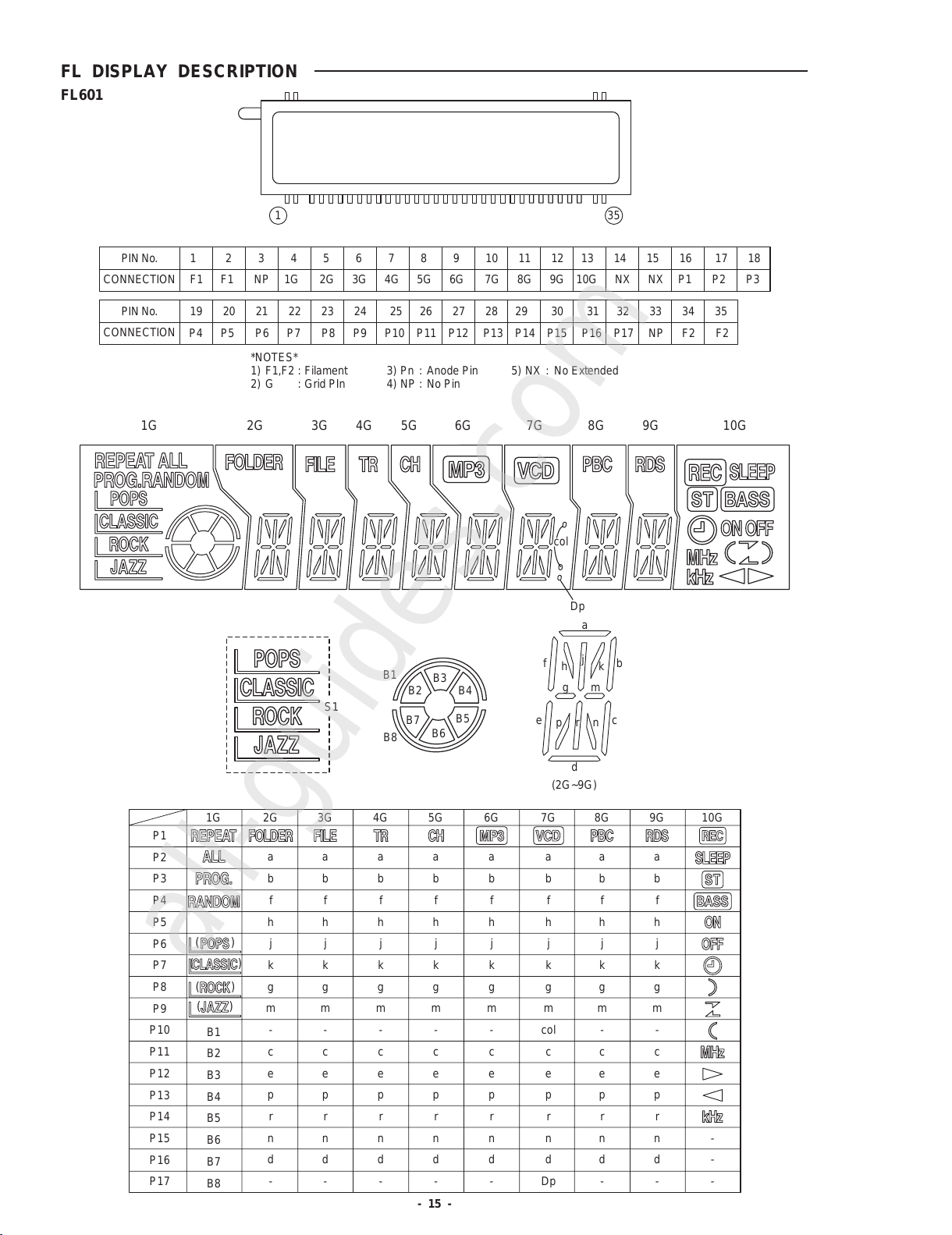

FL display description ...................................................... 15
This service manual consists of
"DC-MM5000U/AU" (Main unit : 129 651 06) &" SX-MM5000/UK" (Speaker system : 165 066 01).

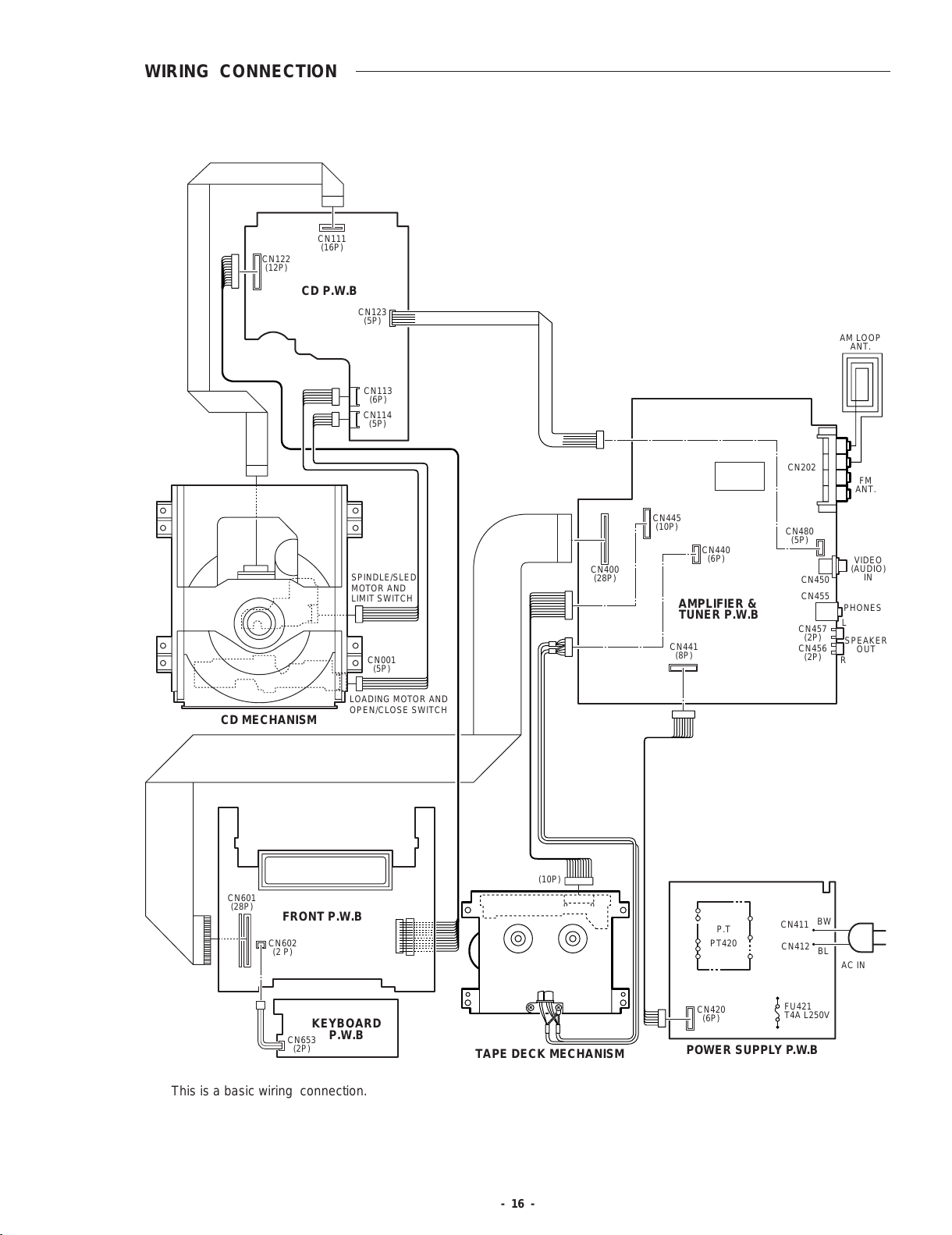

Wiring connection ............................................................16
Schematic diagram
(CD)...............................................................................18
(FRONT) .......................................................................20
(AMPLIFIER )................................................................24
(TUNER) .......................................................................26
Wiring diagram
(CD)...............................................................................17
(FRONT) .......................................................................22
(AMPLIFIER & TUNER) ................................................28
(POWER SUPPLY) .......................................................30
(KEYBOARD)................................................................30
All manuals and user guides at all-guides.com
all-guides.com

- 1 -
TAPE ADJUSTMENTS
• Be sure to clean the heads before attempting to make any adjustment.
• Be sure both channels (1 and 2) are the same level.
(Using a dual-channel oscilloscope)
• Be sure both channel's waveform are same for the phase matching.
• After completion of the adjustment, use the threadlock (TB-1401B) to
secure the azimuth adjustment screws.
1. Remove the cover deck as Fig.1.
2. Load a test tape (VTT-738 etc. : 10kHz) in the Deck.
3. Press the PLAY button. (Normal playback)
4. Use a + tip screwdriver to turn the screw for normal azimuth
adjustment so that the left and right outputs are maximized at
the same phase during normal playback. See Fig.2.
5. Adjust so that the waveforms for the left and right channels are in alignment.
1. Azimuth Adjustment
3. Torque Measurement
2. Tape Speed Adjustment
NORMAL
•Connect the Frequency Counter to TAPE OUT.
1. Insert the test tape (MTT-111N, etc.; 3,000Hz) into the DECK.
2. Press the PLAY button. .
3. Adjust a hole on the motor bottom so that a frequency counter reading of 3,000 5Hz is obtained.See Fig.3.
4. Press the STOP button, and eject the test tape.
Fig.1
Fig.3
LASER BEAM SAFETY PRECAUTION
•Pick-up that emits a laser beam is used in this CD player section.
CAUTION :
THIS PRODUCT CONTAINS A LOW POWER LASER DEVICE,
TO ENSURE CONTINUED SAFETY DO NOT REMOVE ANY
COVERS OR ATTEMPT TO GAIN ACCESS TO THE INSIDE
OF THE PRODUCT.
REFER ALL SERVICING TO QUALIFIED PERSONNEL.
LASER OUTPUT .............. 0.6 mW Max. (CW)
WAVELENGTH .................. 790 nm
Fig.2
hole for adjustment
MOTOR
All manuals and user guides at all-guides.com

- 2 -
1. FM
Connection
Input Output
Alignment voltage IC231 Alignment voltage IC231
3-22pin(TP24,25) is 0.0±0.05V 3-22pin is 0.0±0.05V
---
2. AM
Connection
Input Output
TP13 (L)
TP14 (R)
TP15 (E)
---
L2103
L2153
--- TP12 (E)
TP11 (H)
--- TP11 (H)
TP12 (E)
Adjustment
603kHz
1404kHz
Remark
Remark
SG
Frequency
SG
Frequency
XF233
Adjustment
Step
Adjusting
Circuit
Adjusting
Circuit
IF(0V)
Adjustment
2Cover
Voltage
FM Antenna SG=66dBuV/EMF198MHz
Step
1.00±0.05V
6.50±0.50V Check Only
1IF
Adjustment Loop Ant 450KHz at 999kHz T2002 Maximum
87.5MHz
108.0MHz
2Cover
Voltage
TP14 (R)
TP15 (E)
Tracking3Loop Ant
TP13 (L)
1710kHz
522kHz
Maximum
L2151
CT252
1.00±0.05V
8.10±0.50V Check Only
TUNER ADJUSTMENTS
E
1
E
DIP
E
EE
E
E
E
BB
C
C
B
C
L2151
L2153
D2153
J2704
J2705
Q2451
XF211
+9.4V
+5.6V
TU_R
GND
TU_L
IC211
D2101 D2102
L2102
L2103
C2313
C2303
C2311
C2317
C2307
C2328
C2327
C2301
C2321
C2305
C2901
C2306
C2451
C2457
T2002
L2104 XF221
R2109
J2521
J2518
J2516
J2508
CT252
J2504
J2520
XF222
Q2201
J2709
XF231
J2523
J2522
J2714
J2715
J2716
D2456
J2713
J2609
J2711
L2451
D2452
J2501
J2701
D2466
J2608
J2607
J2606
J2604
J2514
J2513
J2512 J2505
J2509 C2452
X2451
D2451 J2507
J2506
J2602
J2603
J2706
J2707
J2511
J2605
D2151
D2103
C2116
XF233
J2712
J2510
J2702
J2601
J2502
VT
C2106
C2120
J2710
J2708
J2519
J2517
J2515
J2703
IC241
D2453
R2901
C2903
CN202
C4821
C4825
C4822
C
4721
CN445
Q4410
D4960 Q4963
Q4961
Q4960
CN480
IC443
C4701
C4702
C4551
C
4552
Q4700
C4833
C4603
L4602
C4602
CD L
+9.4V
J4512
J4708
J4707
J4511
J4509
J4602
J4507
R4602
J4703
J4508
D4406
J4502
J4705
J4716
J4715
J4504
J4717
TU_R
GND
TU_L
(R)REC SW
PACK SW
NC
(F)REC SW
PLUNGER
INI SW
MOTOR
PH1
GND
REEL
J4506
IC231
C2152
C2105 C2107 R2102 R2108R2107 R2105
R2105
R2106
R2106
R2105 C2110
C2101 C2113
C2114
R2110
C2112
C2103
C2104
R2101
R2103 R2106
C2111
C2109
C2154
R2131
C2141
R2201
R2205
R2204
R2202
R2203
C2203
C2302
C2302
R2306
R2306
R2305
R2305
C2308
C2308
R2309
R2309
C2314
C2314
C2302
R2304
C2318
C2312
R2302
R2302
C2323
C2323
C2304
C2304
C2310
C2310
R2302C2323
C2304
R2306
R2305
R2311 R2301
C2322
R2801 R2701
R2701
R2812
R2812
R2712
R2712
R4603
R4603
R2701
C2310
R2312
C2308
R2309
R2308 C2309 C2316 C2320 R2307
C2319
R2458
R2454 R2455
R2452 R2453
C2314
R2460 R2459
C2464
C2454
C2453
C2461
C2463 C2462
R2464
R2463
R2462
R2461
C2456 C2455
C2324
C2315
R2812 R2712
C2115
R2149
R2148
R2151
C2151
C2902
R2802
C4705
C4705
C4700C4700
R4700
R4700
R4403
R4402
R4400R4401
R4965
R4966
R4966
R4966
C4706
C4706
R4550
R4550
R4963
R4963
C4553
C4553
R4552
R4553
C4705
C4700
R4700
R4705
C4706
R4550
R4701
R4963 C4553
R4721R4721
R4821
R4821
R4827
R4827
R4727
R4727
R4831
R4831
R4822
R4822
R4828
R4828
C4826
C4826
R4721
R4821
R4827
R4727 R4604
C4604
R4603
R4825
R4831 R4822 R4828
C4826
C4827
C4828
R4832
C4923 R4923 C4922 R4922 R4921 C4921
R4406
TP11
TP12
TP13
IC231
XF233T2002 TP14 TP15TP25TP24
L2153
L2103
L2151
CT252
Antenna : 75Ωunbalanced, Modulation : 1 kHz
Dev. : ±22.5kHz(MONO), ±22.5kHz(STEREO),±6.75kHz(PILOT)
RF Level : dBuV EMF
Output Level : about 30mV at TP13, TP14, TP15
Anntena : IRE Loop(SG), Moduration : 1kHz 30%
RF Level : dBuV EMF
Output Level : about 30mV at TP13, TP14, TP15
CD PICK-UP MAINTENANCE
About pick-up (Optical lens) Cleaning
Clean a lens with swab of the cotton which moistened it with alcohol, cleaning paper or cleaning disc appointed.
Specified cleaning disc : LC-1 (Part code : 645 026 1961 ..... manufactured by SANYO.)
Show a clean procedure in the following in reference by swab of cotton.
1. Cotton swab is wrapped with Cleaning paper.
2. Add the isopropyl alcohol.
3. Gently move the tip of cotton swab just like a draw a whirlpool from inside to outside on the surface of lens.
• Use a plastic screw driver for adjustments. • MODE : ST (Stereo)
• Speaker impedance : 4 ohms
• TUNING FM : 87.5 - 108MHz
AM : 522 - 1710 kHz (9 kHz steps)
520 - 1710 kHz (10 kHz steps)
All manuals and user guides at all-guides.com

- 3 -

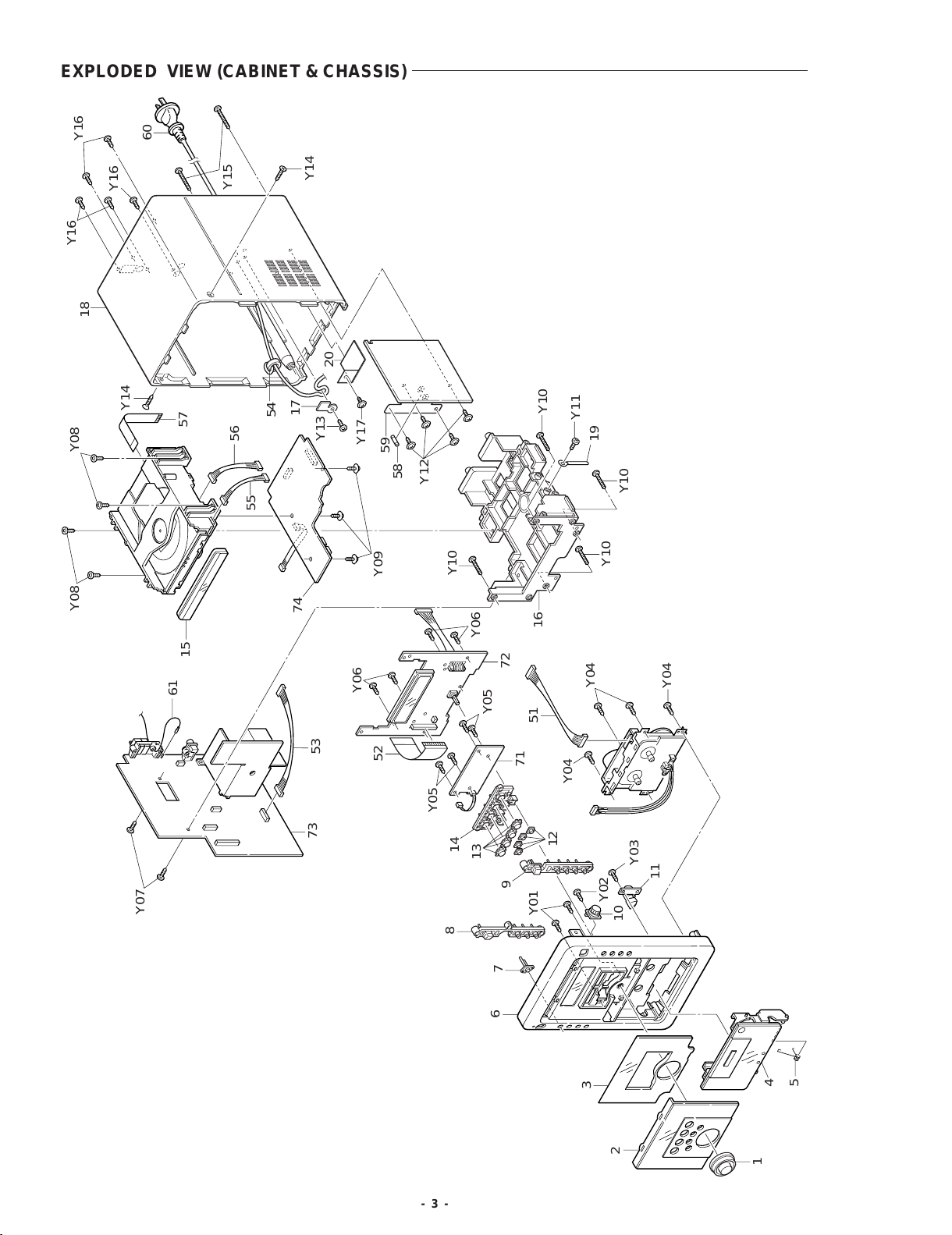

EXPLODED VIEW (CABINET & CHASSIS)
14
5
2
3
6
8
771 51
52
72
53
54
56
61 57
58
55
59
73 74
9
10
11
12
13
14
15
16
17
20
60
18
Y02
Y01
Y03
Y04 Y04
Y05 Y06
Y06
Y07
Y08 Y08
Y09
Y12
Y13
Y17
Y14
Y14
Y15
Y16 Y16
Y16
Y10
Y10 Y10
Y10
Y11
19
Y05
Y04
All manuals and user guides at all-guides.com

- 4 -

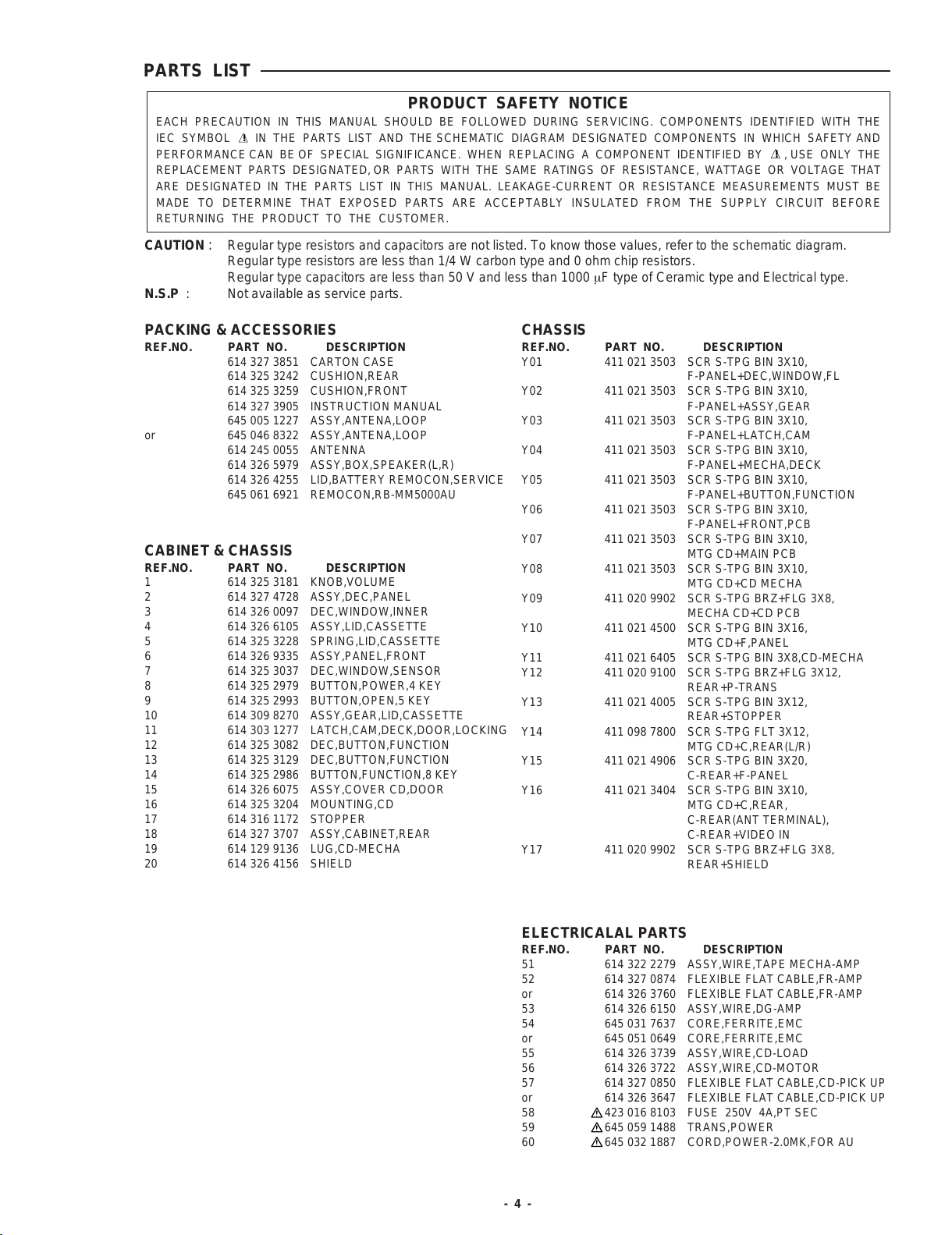

PARTS LIST
CAUTION :Regular type resistors and capacitors are not listed. To know those values, refer to the schematic diagram.
Regular type resistors are less than 1/4 W carbon type and 0 ohm chip resistors.
Regular type capacitors are less than 50 V and less than 1000 µF type of Ceramic type and Electrical type.
N.S.P : Not available as service parts.
PRODUCT SAFETY NOTICE
EACH PRECAUTION IN THIS MANUAL SHOULD BE FOLLOWED DURING SERVICING. COMPONENTS IDENTIFIED WITH THE
IEC SYMBOL !
!! IN THE PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATED COMPONENTS IN WHICH SAFETY AND
PERFORMANCE CAN BE OF SPECIAL SIGNIFICANCE. WHEN REPLACING A COMPONENT IDENTIFIED BY !
!! , USE ONLY THE
REPLACEMENT PARTS DESIGNATED, OR PARTS WITH THE SAME RATINGS OF RESISTANCE, WATTAGE OR VOLTAGE THAT
ARE DESIGNATED IN THE PARTS LIST IN THIS MANUAL. LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS MUST BE
MADE TO DETERMINE THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT BEFORE
RETURNING THE PRODUCT TO THE CUSTOMER.
PACKING & ACCESSORIES
REF.NO. PART NO. DESCRIPTION
614 327 3851 CARTON CASE
614 325 3242 CUSHION,REAR
614 325 3259 CUSHION,FRONT
614 327 3905 INSTRUCTION MANUAL
645 005 1227 ASSY,ANTENA,LOOP
or 645 046 8322 ASSY,ANTENA,LOOP
614 245 0055 ANTENNA
614 326 5979 ASSY,BOX,SPEAKER(L,R)
614 326 4255 LID,BATTERY REMOCON,SERVICE
645 061 6921 REMOCON,RB-MM5000AU
CABINET & CHASSIS
REF.NO. PART NO. DESCRIPTION
1614 325 3181 KNOB,VOLUME
2614 327 4728 ASSY,DEC,PANEL
3614 326 0097 DEC,WINDOW,INNER
4614 326 6105 ASSY,LID,CASSETTE
5614 325 3228 SPRING,LID,CASSETTE
6614 326 9335 ASSY,PANEL,FRONT
7614 325 3037 DEC,WINDOW,SENSOR
8614 325 2979 BUTTON,POWER,4 KEY
9614 325 2993 BUTTON,OPEN,5 KEY
10 614 309 8270 ASSY,GEAR,LID,CASSETTE
11 614 303 1277 LATCH,CAM,DECK,DOOR,LOCKING
12 614 325 3082 DEC,BUTTON,FUNCTION
13 614 325 3129 DEC,BUTTON,FUNCTION
14 614 325 2986 BUTTON,FUNCTION,8 KEY
15 614 326 6075 ASSY,COVER CD,DOOR
16 614 325 3204 MOUNTING,CD
17 614 316 1172 STOPPER
18 614 327 3707 ASSY,CABINET,REAR
19 614 129 9136 LUG,CD-MECHA
20 614 326 4156 SHIELD
CHASSIS
REF.NO. PART NO. DESCRIPTION
Y01 411 021 3503 SCR S-TPG BIN 3X10,
F-PANEL+DEC,WINDOW,FL
Y02 411 021 3503 SCR S-TPG BIN 3X10,
F-PANEL+ASSY,GEAR
Y03 411 021 3503 SCR S-TPG BIN 3X10,
F-PANEL+LATCH,CAM
Y04 411 021 3503 SCR S-TPG BIN 3X10,
F-PANEL+MECHA,DECK
Y05 411 021 3503 SCR S-TPG BIN 3X10,
F-PANEL+BUTTON,FUNCTION
Y06 411 021 3503 SCR S-TPG BIN 3X10,
F-PANEL+FRONT,PCB
Y07 411 021 3503 SCR S-TPG BIN 3X10,
MTG CD+MAIN PCB
Y08 411 021 3503 SCR S-TPG BIN 3X10,
MTG CD+CD MECHA
Y09 411 020 9902 SCR S-TPG BRZ+FLG 3X8,
MECHA CD+CD PCB
Y10 411 021 4500 SCR S-TPG BIN 3X16,
MTG CD+F,PANEL
Y11 411 021 6405 SCR S-TPG BIN 3X8,CD-MECHA
Y12 411 020 9100 SCR S-TPG BRZ+FLG 3X12,
REAR+P-TRANS
Y13 411 021 4005 SCR S-TPG BIN 3X12,
REAR+STOPPER
Y14 411 098 7800 SCR S-TPG FLT 3X12,
MTG CD+C,REAR(L/R)
Y15 411 021 4906 SCR S-TPG BIN 3X20,
C-REAR+F-PANEL
Y16 411 021 3404 SCR S-TPG BIN 3X10,
MTG CD+C,REAR,
C-REAR(ANT TERMINAL),
C-REAR+VIDEO IN
Y17 411 020 9902 SCR S-TPG BRZ+FLG 3X8,
REAR+SHIELD
ELECTRICALAL PARTS
REF.NO. PART NO. DESCRIPTION
51 614 322 2279 ASSY,WIRE,TAPE MECHA-AMP
52 614 327 0874 FLEXIBLE FLAT CABLE,FR-AMP
or 614 326 3760 FLEXIBLE FLAT CABLE,FR-AMP
53 614 326 6150 ASSY,WIRE,DG-AMP
54 645 031 7637 CORE,FERRITE,EMC
or 645 051 0649 CORE,FERRITE,EMC
55 614 326 3739 ASSY,WIRE,CD-LOAD
56 614 326 3722 ASSY,WIRE,CD-MOTOR
57 614 327 0850 FLEXIBLE FLAT CABLE,CD-PICK UP
or 614 326 3647 FLEXIBLE FLAT CABLE,CD-PICK UP
58 423 016 8103 FUSE 250V 4A,PT SEC
59 645 059 1488 TRANS,POWER
60 645 032 1887 CORD,POWER-2.0MK,FOR AU
All manuals and user guides at all-guides.com

- 5 -
PARTS LIST
REF.NO. PART NO. DESCRIPTION
KEYBOARD P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
71 614 325 3617 ASSY,PWB,KEYBOARD(Only Initial)
CN650 614 326 6174 ASSY,WIRE,KEYBOARD-FRONT
CN653 614 035 4911 SOCKET,DIP 2P
S6510 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
S6511 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
S6512 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
S6513 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
S6514 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
S6515 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
S6516 614 220 5471 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
S6517 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
FRONT P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
72 614 326 7348 ASSY,PWB,FRONT(Only Initial)
BR601 614 325 4249 HOLDER,FL,HOLDER-FL
BR602 614 325 4256 HOLDER,LED,HOLDER-LED
BR603 614 325 4256 HOLDER,LED,HOLDER-LED
CN601 645 009 8482 SOCKET,FFC 28P,FRONT-AMP
or 645 012 5324 SOCKET,FPC 28P,FRONT-AMP
CN602 645 005 7366 PLUG,2P
or 614 310 2434 PLUG,2P
CN611 614 324 4646 ASSY,WIRE,FRONT-CD
D6010 407 012 4406 DIODE 1SS133
D6110 407 012 4406 DIODE 1SS133
D6111 407 012 4406 DIODE 1SS133
D6112 407 012 4406 DIODE 1SS133
D6115 407 099 4603 ZENER DIODE MTZJ3.9B
D6320 407 231 7806 LED AMBER LT6E34-81-URC1,
BACK LIGHT
D6321 407 231 7806 LED AMBER LT6E34-81-URC1,
BACK LIGHT
D6322 407 231 3808 LED LT2P11-81,STAND-BY-LED
FL601 645 057 3149 FLOURESCENT TUBE,FL
IC601 410 469 0600 IC LC866540A-51D1,MICON
L6010 645 001 5441 INDUCTOR,2.2U K
Q6101 405 019 3804 TR 2SC536-G-NP
or 405 019 2708 TR 2SC536-F-NP
or 405 141 3208 TR KTC3198-Y
or 405 141 3307 TR KTC3198-GR
Q6107 405 004 5004 TR 2SA608-G-NP
or 405 004 4502 TR 2SA608-F-NP
or 405 141 3505 TR KTA1266-Y
or 405 141 3406 TR KTA1266-GR
Q6108 405 017 9709 TR 2SC3330-U
or 405 017 9600 TR 2SC3330-T
or 405 011 8609 TR 2SC1740S-S
or 405 011 8500 TR 2SC1740S-R
or 405 143 8706 TR KTC3199-GR
Q6302 405 143 0007 TR KRC107M
or 405 000 3806 TR DTC114YS
Q6303 405 143 0007 TR KRC107M
or 405 000 3806 TR DTC114YS
AMPLIFIER & TUNER P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
73 614 327 3653 ASSY,PWB,AMP-TU(Only Initial)
C2457 403 259 0508 NP-ELECT 1U M 50V
C4601 403 057 3503 POLYESTER 0.1U K 50V
C4605 403 061 3605 POLYESTER 0.039U J 50V
C4606 403 061 7702 POLYESTER 4700P J 50V
C4607 403 059 3204 POLYESTER 2200P J 50V
C4608 403 060 2807 POLYESTER 0.027U K 50V
C4743 403 057 3503 POLYESTER 0.1U K 50V
C4843 403 057 3503 POLYESTER 0.1U K 50V
C4950 403 332 7400 ELECT 2200U M 50V
C4984 403 329 3309 ELECT 2200U M 25V
CN202 645 005 0695 TERMINAL,ANT
or 645 031 7910 TERMINAL
CN400 645 009 8482 SOCKET,FFC 28P
or 645 012 5324 SOCKET,FPC 28P
CN440 614 310 2472 PLUG,6P
or 645 005 8127 PLUG,6P
CN441 614 310 2779 PLUG,6P,POWERSOCKET
or 645 004 2928 PLUG,6P,POWERSOCKET
CN445 614 310 2519 PLUG,10P
or 645 005 8158 PLUG,10P
CN450 645 048 6241 JACK,RCA-2,JACK
CN455 645 011 6384 JACK,PHONE D3.6,HEADPHONE
CN456 645 006 1875 PLUG,2P,SPEAKER
CN457 645 006 1875 PLUG,2P,SPEAKER
CN480 614 310 2465 PLUG,5P
or 645 005 9292 PLUG,5P
CT252 645 032 5663 TRIMMER,7PF
D2101 407 157 8109 VARACTOR DI SVC211-B
D2102 407 157 8109 VARACTOR DI SVC211-B
D2103 407 012 4406 DIODE 1SS133
Q6304 405 143 0007 TR KRC107M
or 405 000 3806 TR DTC114YS
S6001 645 057 4689 SWITCH,ROTARY(ENCODER)
S6110 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
S6111 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
S6112 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
S6113 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
S6114 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
S6115 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
S6116 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
S6117 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
S6118 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
SE601 407 229 6101 PHOTO DIODE SPS-442-1-G1
or 407 217 1101 PHOTO DIODE SPS-442-1G
X6101 645 032 1627 OSC,CRYSTAL 32.768KHZ
X6102 645 018 6103 OSC,CERAMIC 6.000MHZ
or 645 057 1138 OSC,CERAMIC 6.0MHZ
All manuals and user guides at all-guides.com
all-guides.com

- 6 -
PARTS LIST
REF.NO. PART NO. DESCRIPTION REF.NO. PART NO. DESCRIPTION
D2151 407 012 4406 DIODE 1SS133
D2153 407 105 1602 VARACTOR DI SVC342M-V
or 407 105 1305 VARACTOR DI SVC342L-V
D2451 407 012 4406 DIODE 1SS133
D2452 407 153 7502 ZENER DIODE GZS3.0B
D2453 407 012 4406 DIODE 1SS133
D2456 407 012 4406 DIODE 1SS133
D2466 407 012 4406 DIODE 1SS133
D4320 407 099 4603 ZENER DIODE MTZJ3.9B
D4321 407 012 4406 DIODE 1SS133
D4341 407 012 4406 DIODE 1SS133
D4342 407 012 4406 DIODE 1SS133
D4343 407 012 4406 DIODE 1SS133
D4344 407 012 4406 DIODE 1SS133
D4345 407 099 9509 ZENER DIODE MTZJ30B
D4348 407 099 5204 ZENER DIODE MTZJ5.1B
D4406 407 099 5204 ZENER DIODE MTZJ5.1B
D4500 407 012 4406 DIODE 1SS133
D4960 407 012 4406 DIODE 1SS133
D4991 407 099 6805 ZENER DIODE MTZJ13B
D4992 407 099 6102 ZENER DIODE MTZJ10B
D4993 407 012 4406 DIODE 1SS133
D4994 407 098 3300 DIODE RL153-BF-S2
D4998 407 012 4406 DIODE 1SS133
HS401 614 325 3167 HEAT SINK,HEATSINK
IC211 409 016 0200 IC LA1186N-AUDIO
IC231 409 474 3201 IC LA1844ML
IC241 409 439 4502 IC LC72121M-D
IC440 409 451 7406 IC AN7348K
IC441 409 474 6103 IC LC75342M
IC442 409 441 6402 IC TDA7265
IC443 409 189 3404 IC BA7755A
IC446 409 169 7804 IC NJM78M05FA
L2102 645 040 2753 INDUCTOR,AIR —
L2103 645 040 2746 COIL,AIR —
L2104 645 002 1534 INDUCTOR,8.2U K
L2151 645 037 2377 TRANS,ANT,796KHZ
L2153 645 040 2739 TRANS,OSC,796KHZ
L2451 645 031 7842 INDUCTOR,100U K
or 645 001 4581 INDUCTOR,100U K
L4581 645 002 1459 INDUCTOR,22U K
L4600 645 006 1523 INDUCTOR,470U J
L4601 645 006 1523 INDUCTOR,470U J
L4602 645 037 2858 CORE,PIPE
L4603 645 006 1523 INDUCTOR,470U J
L4604 645 037 2858 CORE,PIPE
L4751 645 001 5519 INDUCTOR,47U K
L4781 645 002 1459 INDUCTOR,22U K
L4851 645 001 5519 INDUCTOR,47U K
L4881 645 002 1459 INDUCTOR,22U K
L4951 645 001 5519 INDUCTOR,47U K
PR436 645 014 2475 PROTECTOR,0.75A 125V
PR495 645 014 2505 PROTECTOR,0.8A 125V
PR496 645 014 2529 PROTECTOR,1.25A 125V
Q2201 405 151 4301 TR KTC3195-Y
or 405 151 4806 TR KTC3195-O
Q2451 405 036 3702 TR 2SA1564
or 405 151 5209 TR KRA107M
or 405 000 0904 TR DTA114YS
or 405 078 2404 TR BN1A4P
Q4320 405 141 3406 TR KTA1266-GR
or 405 141 3505 TR KTA1266-Y
or 405 004 4502 TR 2SA608-F-NP
or 405 004 5004 TR 2SA608-G-NP
Q4321 405 004 5004 TR 2SA608-G-NP
or 405 141 3406 TR KTA1266-GR
or 405 141 3505 TR KTA1266-Y
or 405 004 4502 TR 2SA608-F-NP
Q4410 405 155 0002 TR MPSA56
Q4501 405 151 5209 TR KRA107M
or 405 036 3702 TR 2SA1564
or 405 000 0904 TR DTA114YS
or 405 078 2404 TR BN1A4P
Q4502 405 000 3806 TR DTC114YS
or 405 143 0007 TR KRC107M
Q4600 405 155 0002 TR MPSA56
Q4601 405 000 3806 TR DTC114YS
or 405 143 0007 TR KRC107M
Q4602 405 141 3307 TR KTC3198-GR
or 405 141 3208 TR KTC3198-Y
or 405 019 2708 TR 2SC536-F-NP
or 405 019 3804 TR 2SC536-G-NP
Q4603 405 141 3307 TR KTC3198-GR
or 405 141 3208 TR KTC3198-Y
or 405 019 2708 TR 2SC536-F-NP
or 405 019 3804 TR 2SC536-G-NP
Q4700 405 075 8607 TR DTC143ZS
or 405 143 9000 TR KRC106M
Q4800 405 143 9000 TR KRC106M
or 405 075 8607 TR DTC143ZS
Q4960 405 155 0002 TR MPSA56
Q4961 405 155 0002 TR MPSA56
Q4962 405 000 3806 TR DTC114YS
or 405 143 0007 TR KRC107M
Q4963 405 000 3806 TR DTC114YS
or 405 143 0007 TR KRC107M
Q4990 405 138 6403 TR KTD2058Y
or 405 095 1602 TR 2SD2061-E
or 405 095 1701 TR 2SD2061-F
Q4991 405 138 6403 TR KTD2058Y
or 405 095 1602 TR 2SD2061-E
or 405 095 1701 TR 2SD2061-F
Q4992 405 141 3703 TR KTA1271-Y
or 405 008 2405 TR 2SB698-F
or 405 008 2504 TR 2SB698-G
Q4993 405 141 3703 TR KTA1271-Y
or 405 008 2405 TR 2SB698-F
or 405 008 2504 TR 2SB698-G
Q4994 405 143 0007 TR KRC107M
or 405 000 3806 TR DTC114YS
R4340 402 081 1004 FUSIBLE RES 10 JA 1/4W
R4743 402 071 1304 FUSIBLE RES 2.2 JA 1/4W
R4843 402 071 1304 FUSIBLE RES 2.2 JA 1/4W
S4901 614 215 9828 SWITCH,TACT
SA401 411 021 6405 SCR S-TPG BIN 3X8,HEAT SINK
SA402 411 021 6405 SCR S-TPG BIN 3X8,HEAT SINK
SA403 411 021 6405 SCR S-TPG BIN 3X8,HEAT SINK
SA404 411 021 6405 SCR S-TPG BIN 3X8,HEAT SINK
SA405 411 021 6405 SCR S-TPG BIN 3X8,HEAT SINK
T2002 645 046 2023 FILTER,450KHZ
or 645 060 4072 FILTER,450KHZ
X2451 645 023 4965 OSC,CRYSTAL 7.2MHZ
XF211 645 059 0047 FILTER,BP
or 645 026 2975 FILTER,BP 108MHZ
or 614 252 1045 FILTER,LC
XF221 645 054 1223 CERAMIC FILTER 10.70MHZ
or 645 010 7665 CERAMIC FILTER 10.70MHZ
or 614 240 2917 FILTER,CERAM
XF222 645 054 1223 CERAMIC FILTER 10.70MHZ
or 645 010 7665 CERAMIC FILTER 10.70MHZ
or 614 240 2917 FILTER,CERAM
XF231 645 059 0054 CERAMIC FILTER 450KHZ
or 645 041 9324 CERAMIC FILTER 450KHZ
XF233 645 039 9923 TRANS,IF 10.7MHZ
or 645 040 9981 TRANS,IF 10.7MHZ
or 645 060 4089 TRANS,IF 10.7MHZ
All manuals and user guides at all-guides.com

- 7 -
PARTS LIST
EXPLODED VIEW & PARTS LIST(TAPE MECHANISM)
*
**
**
TM01
TM02
TM03
TM04
TM05
TM06
*
*
* N.S.P : Not supplied as service parts.
REF.NO. PART NO. DESCRIPTIONCD P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
74 614 325 2047 ASSY,PWB,CD(Only Initial)
CN111 645 059 0498 SOCKET,FPC 16P
or 645 026 2470 SOCKET,FFC 16P
or 645 033 8168 SOCKET,FPC 16P
CN113 614 310 2625 PLUG,6P
or 645 006 0939 PLUG,6P
CN114 614 310 2618 PLUG,5P
or 645 006 0922 PLUG,5P
CN122 614 310 2533 PLUG,12P
or 645 006 0878 PLUG,12P
CN123 614 035 4942 SOCKET,DIP 5P
CN162 614 326 6167 ASSY,WIRE,CD-AMP
D1371 407 099 5105 ZENER DIODE MTZJ4.7B
D1401 407 012 4406 DIODE 1SS133
or 407 012 5809 DIODE 1SS176
D1402 407 012 4406 DIODE 1SS133
or 407 012 5809 DIODE 1SS176
D1403 407 012 5809 DIODE 1SS176
or 407 012 4406 DIODE 1SS133
D1480 407 012 5809 DIODE 1SS176
or 407 012 4406 DIODE 1SS133
D1601 407 148 6701 DIODE 1A3-I
D1881 407 099 5204 ZENER DIODE MTZJ5.1B
IC101 409 503 5701 IC LA9242M-MPB
IC102 409 539 9704 IC LC78629E
IC103 409 486 8706 IC MM1469XH
IC132 409 408 1303 IC LB1641L
L1451 645 001 4550 INDUCTOR,10U K
PR101 645 014 2499 PROTECTOR,0.4A 125V
PR132 645 042 2553 PROTECTOR,0.63A 125V
or 645 014 2468 PROTECTOR,0.63A 125V
POWER SUPPLY P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
75 614 325 2030 ASSY,PWB,DG(Only Initial)
CN411 614 017 8203 TERMINAL BOARD
CN412 614 017 8203 TERMINAL BOARD
CN415 645 006 4760 HOLDER,FUSE,FUSEHOLDER
or 645 031 7903 HOLDER,FUSE,FUSEHOLDER
CN416 645 006 4760 HOLDER,FUSE,FUSEHOLDER
or 645 031 7903 HOLDER,FUSE,FUSEHOLDER
CN420 645 004 2928 PLUG,6P,POWERSOCKET
or 614 310 2779 PLUG,6P,POWERSOCKET
D4280 407 196 5800 DIODE 1N5402BD82
D4281 407 196 5800 DIODE 1N5402BD82
D4282 407 196 5800 DIODE 1N5402BD82
D4283 407 196 5800 DIODE 1N5402BD82
D4284 407 098 3300 DIODE RL153-BF-S2
L4191 645 038 6053 INDUCTOR,181U
or 645 041 3087 INDUCTOR,180U
PR420 645 014 2567 PROTECTOR,2.5A 125V
TAPE MECHANISM
REF.NO. PART NO. DESCRIPTION
614 320 4213 ASSY,MECHA,TM-DA280TN-SH
TM01 645 052 2888 RP HEAD C-9142-BD-1025
TM02 645 010 9447 PINCH ROLLER(F) ASSY
TM03 645 045 1959 RF BELT
TM04 645 052 4158 MAIN BELT
TM05 645 045 2048 DETECT SWITCH MXS01190
TM06 645 052 2864 ASSY,MOTOR
Q1301 405 008 7301 TR 2SB810-F
or 405 008 7202 TR 2SB810-E
or 405 008 6809 TR 2SB808-F-SPA
Q1401 405 141 3604 TR KTA1273-Y
or 405 009 5207 TR 2SB927-S
or 405 009 5306 TR 2SB927-T
R1371 402 083 3600 RESISTOR 15 J- 2W
X1451 645 057 1145 OSC,CERAMIC 16.93MHZ
or 614 231 2667 RESONATOR
