SERVICE MANUAL
Real Time Video Cassette Recorder
FILE NO.
CONTENTS
MAINTENANCE TABLE ON THE MONITOR SCREEN ........... 3
1. DISASSEMBLY .................................................................... 6
2. ELECTRICAL ADJUSTMENT .............................................. 8
3. TEST POINTS FOR TAPE PATH ADJUSTMENT ............. 11
4. PARTS LIST
MECHANISM PARTS ......................................................... 12
ACCESSORIES & PACKING MATERIALS ........................ 14

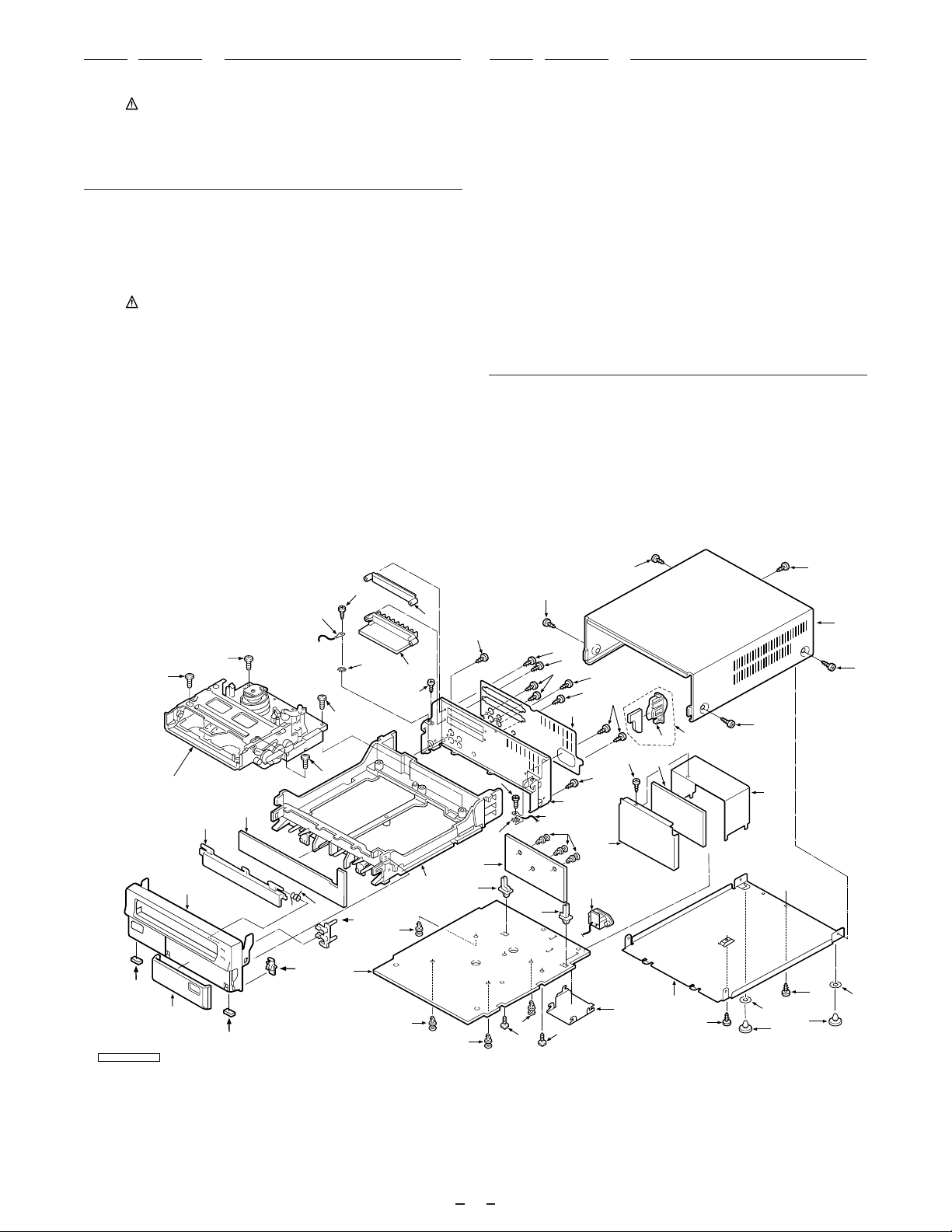

CABINET & CHASSIS PARTS ........................................... 14
ELECTRICAL PARTS ........................................................ 15
CIRCUIT DIAGRAM & PRINTED WIRING BOARDS ............. C1
Please see other materials with Reference
number given in table below.
REFERENCE No.SM5310428
NOTE: 1. Parts order must contain model number, part number, and description.
2. Substitute parts may be supplied as the service parts.
3. N.S.P. : Not available as service parts.
Design and specifications are subject to change without notice.
NB4QR/NA
SRT-4040
Materials Model No. Reference No.
MM5310380
VP-R/VP-N
Mechanism
Mechanism
Manual
(Product Code : 175 700 74)
(U.S.A.)
(Canada)
(Korea)
(Taiwan)

– 2 –
SAFETY PRECAUTIONS
1. Many electrical and mechanical parts in this recorder have
special safety-related characteristics for providing protec-
tion against shock, fire and other hazards. These charac-
teristics often go unnoticed in a visual inspection, and the
protection afforded by them cannot necessarily be ob-
tained by using replacement components with higher
ratings (voltage, wattage, etc.).
2. Replacement parts having special safety-related charac-
teristics are identified in this manual, and in the schematic
diagrams, by the symbol ! . These components have
values that are of special significance to product safety.
Should any component (identified by the symbol ) need
to be replaced, use only the part designated in the parts
List. Do not deviate from the specified resistance, wattage,
and voltage ratings.

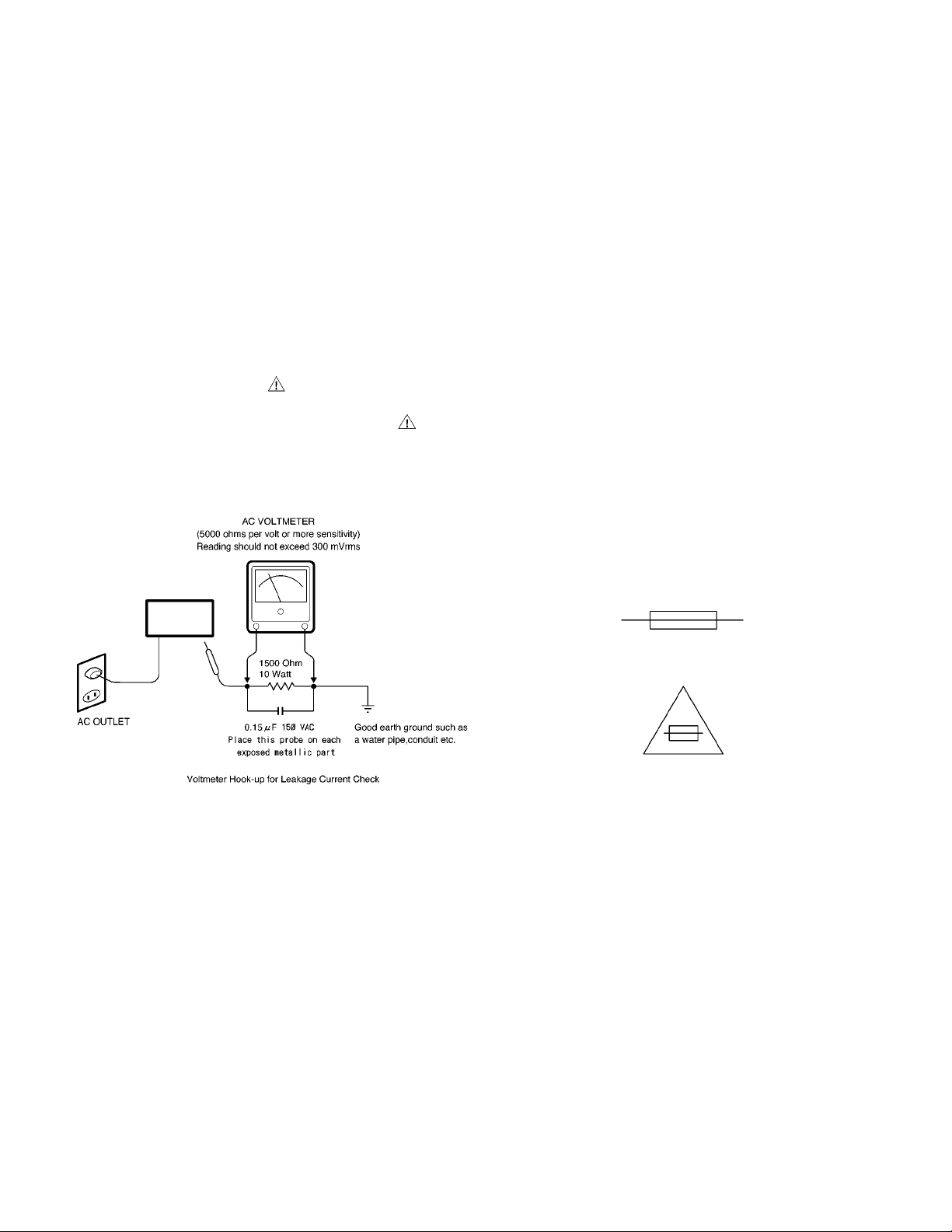

3. Before returning the set to the customer, always perform
an AC leakage current check on the exposed metallic
parts of the cabinet, such as terminals, screwheads, metal
overlays, etc. to be sure that the set is safe to operate
without the danger of electrical shock, Plug the AC line
cord directly into a 120 V AC outlet. (Do not use a line
isolation transformer during this check.) Use an AC volt-
meter with a sensitivity of 5000 ohms per volt (or more) as
follows: Connect a 1500 ohms, 10 watt resistor, paralleled
by a 0.15 mfd, 150 VAC capacitor, between a known good
earth ground (water pipe, conduit, etc.) and the exposed
metallic parts, one at a time. Measure the AC voltage
across the 1500 ohms resistor and 0.15 mfd capacitor
combination. Reverse the AC plug at the AC outlet and
repeat the AC voltage measurements for each exposed
metallic part. The measured voltage must not exceed 300
mVrms. This corresponds to 200 µA AC. Any value
exceeding this limit constitutes a potential shock hazard
and must be corrected immediately.
4. Fuse symbol marks.
For CANADA
For U.S.A.
CAUTION "Risk of fire-replace fuse as marked"
UNDERWRITERS LABORATORIES Standard
Fuse rating is marked
at adjacent fuse.
Real Time
Video Cassette
Recorder
WARNING:
Service should not be attempted by anyone unfamiliar with the necessary precautions for this
recording or playback equipment. The following precautions are necessary during servicing:

– 3 –
MAINTENANCE TABLE ON THE MONITOR SCREEN
VIDEO: Used time of the video head (cylinder) total
hours.
Note : Reset when the cylinder is replaced.
POWER: Hours of the power supply being.
ALARM: Number of ALARM REC.
Total counts of ALARM.
Note: The data for the maintenance tables are memoried
in E2PROM, and the memory can be kept if the timer
microcomputer is reset.
To display the maintenance table, press “MENU” key with “REC/PLAY SPEED” key while the fourth MENU <POWER FAILURE>
is displayed.
POWER FAILURE
Normal screen
Maintenance table 1
Maintenance table 2
Press “MENU” key with “REC/PLAY
SPEED” key
“MENU” key“MENU” key
Maintenance table 1 Maintenance table 2
MAINTENANCE TABLE 1
< USED TIME/ALARM >
VIDEO 0 0 0 0 0 H
POWER 0 0 0 0 0 H
ALARM 0 0 0 0 0 0
MAINTENANCE TABLE 2
<ERROR>
1 12 - 31 - 02 E01 08
2 - - - - - - - - - - - - -
3 - - - - - - - - - - - - -
4 - - - - - - - - - - - - -
5 - - - - - - - - - - - - -
6 - - - - - - - - - - - - -
7 - - - - - - - - - - - - -
8 - - - - - - - - - - - - -
When the “MENU RESET” key is pressed during display and
resetting all data.
<ERROR> : Dates and error codes are displayed when VCR
happens to be in an abnormal condition and the
system is down.
The newest data is displayed in the first line, and
the old ones are moved down one by one. Not-
displayed old data is cleared automatically.
The used time of each mode (part) is displayed, and can be
reset by items.
Access the maintenance-screen according to the above,
and then Fig. below is displayed and HEAD TIME will blink.
Move the blinking to the item to be reset with “ ” key and
press the “MENU RESET” key, and then the used time for the
item will be reset.
As shown in Fig. below Maintenance Table 2, <ERROR> is
displayed on the screen.

– 4 –
E01→The cylinder motor does not rotate.
E02→The take-up reel does not rotate.
E03→The capstan motor does not rotate.
E05→The loading and unloading cannot be performed with
the cassette inserted.
(The tape guide is caught.)
E06→Front unloading cannot be performed when ejecting
the cassette.
(Front loading can be performed.)
E07→Front loading and front unloading cannot be per-
formed when ejecting the cassette.
E08→The mechanism becomes 1 (BRAKE) while
moving from 2 (STOP), 3 (PLAY), 4 (STILL/
SLOW), and to 5 (REVERSE FRAME ADVANCE).
(The mechanism mode switch contact is faulty.)
E09→The mechanism becomes 7 (INITIAL) while
moving from1 (BRAKE), 2 (STOP), 3 (PLAY), 4
(STILL/SLOW), and to 5 (REVERSE FRAME
ADVANCE).
(The mechanism mode switch contact is faulty.)
E10→The capstan motor does not rotate, or the capstan
motor and the cylinder motor does not rotate with
the cassette inserted.
E11→The cylinder motor does not rotate with the
cassette inserted.
E12→The supply reel does tte tape eject when tape
unloading.
E13→The tape cannot be loaded with the cassette
inserted.
(But unloading can be performed.)
E14→The tape cannot be loaded normally.
E15→The mechanism does not move to the correct
position after tape loading.
E16→Mechanism position “3” cannot be used during
intermittent recording.
Error Codes (Self-Diagnosis Contents)
Mechanism Mode Display Contents
00
01
02
03
04
06
08
CASSETTE OUT
STAND-BY
STOP
STILL
REC-PAUSE
FRAME ADVANCE
PLAY
09
12
13
14
15
30
31
REC
CUE
REVIEW
FAST FORWARD
REWIND
REVERSE PLAY
REVERSE FRAME ADVANCE
32
33
INTERMITTENT REC
REVERSE STILL
Mode. No. Mechanism mode Mode. No. Mechanism mode Mode. No. Mechanism mode

– 5 –
8000H Notes
ASSY, BRAKE BAND
ASSY, LEVER BT (tape guide)
FULL ERASE HEAD
ASSY, ROLLER CLEANER
ASSY, GUIDE ROLLER
ASSY, MOUNTING INCLNE S
ASSY, MOUNTING INCLNE T
ACE HEAD
ASSY, LEVER PINCH ROLLER
MOUNTING, LIFT PINCH
CAM, LIFT PINCH
GEAR, CAM PINCH
EARTH CHIP CYLINDER
COMPL, CYLINDER
ASSY, CYLINDER UPPER
ASSY, BRAKE S
ASSY, BRAKE T
ASSY, BRAKE CAPSTAN
ASSY, BRAKE SOFT T
ASSY, REEL SUPPLY
ASSY, REEL TAKEUP
GEAR, REEL S
GEAR, REEL T
PULLEY, REEL
SPECIAL, WASHER 2.4 X 6 X 0.25
COMPL, MOUNTING CLUTCH
BELT, REEL
MOTOR, CAPSTAN
ASSY, GEAR FRICTION
ASSY, LOADING MOTOR
DAMPER
COMPL, GEAR WORM
CAM, MAIN
SPECIAL WASHER 3.6 X 0.5
GEAR, WHEEL 1
GEAR, WHEEL 2
GEAR RELAY PINCH OPT
SLIDE, CRECENT
GEAR, LOAD S
GEAR, RACK FRONT
GEAR, RACK START
GEAR, PINON
BACK TENSION TORQUE
FWD, REW TORQUE
PLAY TORQUE
REV TORQUE
: Cleaning : Confirmation : Lubrication : Exchange
Maintenance Table
PB BACK TENSION TORQUE 25 ~ 50 g ⋅cm
FWD, REW TORQUE ≥600 g ⋅cm
PLAY 55 ~ 110 g ⋅cm
REV 100 ~ 210 g ⋅cm
Tape path
system
Reel drive
system
Brake
Loading drive
system
Performance
check
6000H
4000H2000H
1. This table shows the maintenance for up to 8000 hours. After this, repeat from the start or the table.
2. For places with symbols such as ( ) and ( ), carry out checking and cleaning, aand replace if necessary.
3. This periodic maintenace check table changes considerably according to the using conditions and environment.
4. Refer to the (POWER FAILURE/DEW/USED TIME) menu for the length of time the unit has been used.
5. As the life of parts may be shortened if foreign particles and dusts remain accumulated on the tape guides and rotating and
contacting poritions, clean if dirty.
6. Dusts and other foreign particles on the tape guides may also shorten the tape life and lower picture quality, therefore clean
throughly.

– 6 –
1. DISASSEMBLY

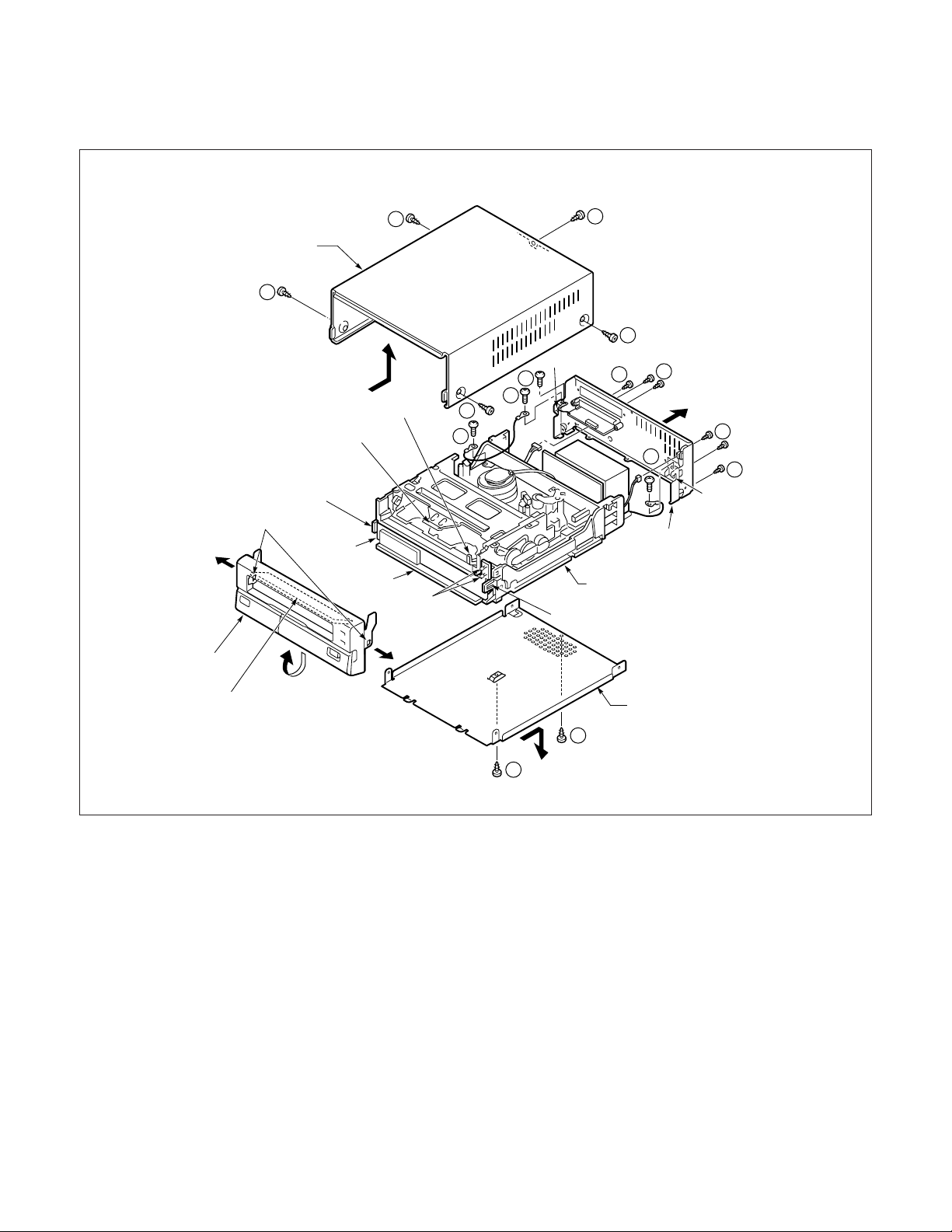

1-1. REMOVAL OF CABINET
Fig. 1-1-1
M-NB4QR/NA-1
Cabinet
1
1
1
Front Panel
Terminal
Cover
Indicators (LED)
Door Opener Lever
Edge of Cassette Holder
Clamp (B)
Clamp (B)
TM-1 PWB
Clamps (A)
Cassette Door Bottom Cover
Main Unit
1
1
2
Clamps (C)
Clamps (C)
3
3
5
4
4
Indicators (LED)
CP-1 PWB
2
5
5
5

–7 –

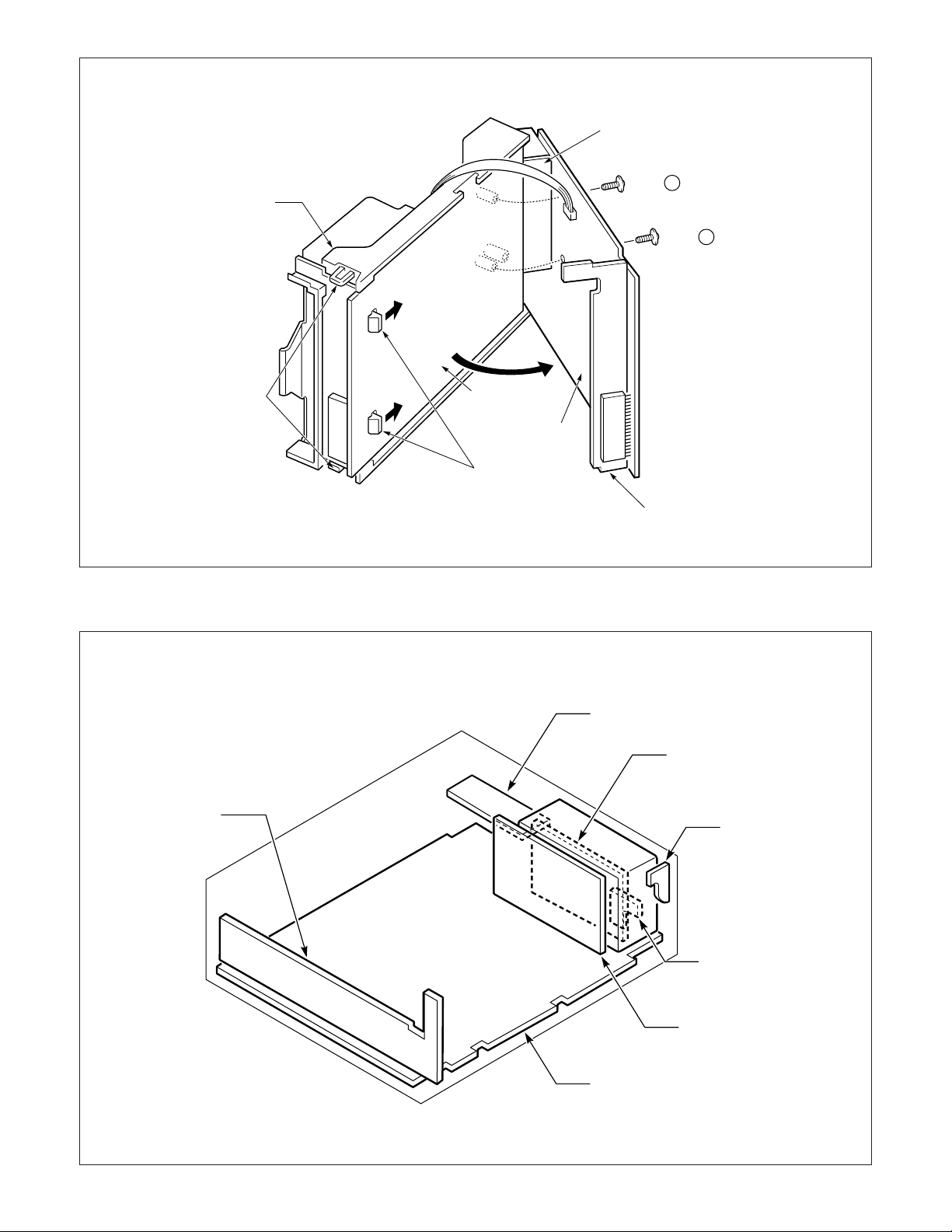

Fig. 1-1-3
Fig. 1-1-2
M-NB4QR/NA
M-NC4QG/U-2
Main Unit
Clamps (B)
Clamps (D)
CP-1 PWB
(Foil side)
TM-1 PWB
CP-1 PWB
(parts side)
6
Screw
6
Screw
VD-1 PWB
1-2. CIRCUIT BOARD LOCATIONS
CP-1 PWB
PW-1 PWB
TM-1 PWB
TB-1 PWB
VD-1 PWB
TB-4 PWB
TB-2 PWB

–8 –
2. ELECTRICAL ADJUSTMENT
2-1. SERVO CIRCUIT ADJUSTMENT
•These adjustments should be carried out upon completion of the tape transport adjustments.
•If the tape transport adjustments (except the tilt adjustment) are done after these adjustments, follow the procedures again in
section 2-1-3. “SWITCHING POSITION ADJ.”
•When a cassette tape is loaded, auto-tracking will be set immediately after starting the first playback. As this will deviate the
tracking center set, be sure to press tracking buttons (+) or (-) once directly after starting playback to prevent auto-tracking from
being set.
2-1-1. TEST EQUIPMENT AND STANDARDS REQUIRED
Color Bar Signal Generator Monoscope signal
Alignment Tape
Blank Tape
Monitor TV
Oscilloscope
VHJ-0007 : EP mode
VHS-tape cassette tape
Vertical sensitivity : 5 mV/DIV, external trigger
Band width : more than 10 MHz
2-1-2. LOCATION OF ADJUSTMENT POINTS
CP-1 PWB (Foil side) Fig. 2-1-1
VR111 TP101
TP102

–9 –
Start of play
back display
REC button
ON
OFF
within
10 sec.
within
2 sec.
more
then
0.5
sec.
adjusting
period 10 sec.
REC button, EJECT button
TRACKING (+), (–) buttons
Adj. Condition
TP101 (VIDEO
OUT)
TP152 (SW-P)
6.5 H ±0.5 H
Notes :
•Set the REC/PLAY SPEED button to indicator panel to the
8H (8 hours) mode.
•Self-recoding means “Record any broadcasting or video sig-
nal and play back the just-recorded portion”.
1. Play back the alignment tape, and set the tracking control
position to the center by pressing TRACKING buttons (+)
and (–) simultaneously.
2. Press the REC button three times within 10 seconds after
the display is shown. All three presses must be carried out
within 3 seconds. For the third time, press the REC button
more than 0.5 seconds as shown in Fig. 2-1-3.
3. The automatic adjustment mode is set, the numerals of
Indicator display “P 00 00”changes automatically and the
unit stops at the point the adjustment value becomes
approx. 6.5 H.
4. In the same adjustment mode, trigger at the falling edge of
the RF SW pulse, and check that the front edge of the V
sync signal from the rising edge of the RF SW pulse is
delayed by 6.5 H ±0.5 H as shown in Fig. 2-1-4. If it is not
6.5 H ±0.5 H, manually perform fine adjustments for the
TRACKING buttons (+) or (–) to satisfy the specification.
5. After completing adjustments, press the EJECT button (more
than 1 second) and check the Indicator shows “P ––” at
this time.
Note : Repeat steps 1 to 4 if the adjustment takes more than
20 seconds.
2-1-3. SWITCHING POSITION ADJ.
Measuring Point
Measuring Equipment
Adj. Condition
Oscilloscope PLAY (8H) mode
Alignment tape
VHJ-0007
Adj. Condition
Fig. 2-1-2
Fig. 2-1-3
T=6.5H 0.5H
0.5H1H
Front edge of
vertical sync signal
RF.SW.PULSE
Fall
–
Adj. Value
Adj. Condition
Self-recording
(8H) mode
24H mode
Adj. Location
TRACKING (+) or (–) buttons
REC button
Picture of
monitor
2-1-4. 24H PLAYBACK MODE TRACKING ADJ.
Measuring Point
Measuring Equipment
1. Play back the own recorded portion of the tape in the 24H
mode.
2. Use the front tracking adjustment button to fine-tune to the
optimum posiiton so that the positions of noise on the moni-
tor screen at the tracking center are vertically symmetrical.
Then press the REC button 1 second to enter this position
as the new tracking center.
3. If vertical shaking occurs at the tracking center, read just by
pushing the TRACKING buttons (no more than 3 times),
then enter this new tracking position as the tracking center.
3
–
Adj. Value
Adj. Condition
Self-recording
(8H) mode, PLAY
mode, Blank tape
Adj. Location
TRACKING (+), (–) buttons
REC button
EJECT button
Picture of
monitor TV
2-1-5. F. SLOW TRACKING CONFIRM AND ADJ.
Measuring Point
Measuring Equipment
Color bar generator
(Monoscope pattern
signal), Monitor TV
1. Play back the own recorded tape and then set the VCR in
the STILL mode.
2. Change to F. Slow play back mode by pressing REC button
3 times. These 3-push must be done within 3 seconds, and
last push must be kept pressed for 0.5 seconds.
3. Set the tracking control position to the center by pressing
TRACKING (+) and (–) buttons simultaneously, and con-
firm the absence of noise in the slow playback image on
the monitor screen at this centered tracking position. Start-
ing from this centered tracking position, push the (+) and
(–) buttons and confirm that no noise appears before the
fifth push in either direction.
If noise appears before the fifth push, fine-tune with the
front tracking adjustment button so that no noise appears
before the fifth push, then press the EJECT button to make
this point the new tracking center. (When pressing the
EJECT button to enter this new tracking center, the track-
ing should be displayed.)
The FLD counter readout changes to “P ––” for approxi-
mately 1 second in order to confirm that data has been
entered.
Color bar generator
(Monoscope pattern
signal), Monitor TV
20

–10 –
2-2. VIDEO CIRCUIT ADJUSTMENT
Before making the following adjustments, complete the adjustments described in section 2-1. “Servo Circuit.”
2-2-1. TEST EQUIPMENT AND STANDARDS REQUIRED
NTSC color bar signal with 100% white level (EIA color bar signal),
monoscope signal
Input capacity : less than 25 pF (10:1)
less than 40 pF (1:1)
Covering frequency : DC~40 MHz (10:1)
DC~30 MHz (10:1)
Vertical sensitivity : 5 mV/DIV, external trigger
Bandwidth : more than 10 MHz
VHS cassette tape
Color Bar Signal Generator
Frequency Counter
Oscilloscope
Oscilloscope Probe
Blank Tape
Notes :
•Self-recording means “Record the video signal and play
back the just-recorded portion.”
E-E mode
Measuring Point
VR111 (COMB)
Adj. Location
TP102
2-2-2. COMB FILTER ADJ.
Measuring Equipment
Adj. Condition
Color bar generator
Oscilloscope
Adj. Value
minimum
1. Connect the color bar generator (Color bar signal with 100
% white level) to the VIDEO IN terminal.
2. Connect the Oscilloscope to TP102.
3. Adjust VR111 (COMB) so that the chroma level becomes a
minimum.
Measuring Point
Adj. Location
VR151 (2H-DL)
TP151
or VIDEO OUT
2-2-3. 2H DELAY LEVEL ADJ.
Measuring Equipment
Adj. Condition
Self-recording
(8H) mode
STILL mode
Blank tape
Adj. Value
Oscilloscope
Color bar generator
1. Terminate TP151 (or VIDEO OUT) and ground with a 75 Ω
resistor or connect the monitor TV to the VIDEO OUT ter-
minal.
2. Connect the color bar generator (monoscope signal) to the
VIDEO IN terminal.
3. Record the monoscope signal on the blank tape.
4. Play back of the just-recorded portion.
5. Adjust VR151 (2H-DL) so that the luminance signal level of
switching alternately becomes the same or no flicker by
monitor TV.
VD-1 PWB (Parts side) Fig. 2-1-1
VR151 TP151
TP152
TP153

–11 –
3. TEST POINTS FOR TAPE PATH ADJUSTMENT
Test points TP153 (ENV) and TP152 (SW-P) for tape path adjustment are shown in figure below.
Fig. 3-1
VD-1 PWB (Parts side)
VR151 TP151
TP152
TP153

12
LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION
1100
0800
0900
6073
6073
0099
0100
N.S.P.
040D
040C
040B
0300
1000
10400
12000
10400
10400
13000
20310
20300
30900
30700
61000
61100
6070
30600
30500
10140
20600
40300
40100
40200
50110
50100
20100
8010B
8010A
5050B
5050C
5050A
10120
6070
20200
50210
31100
50200
5060B
5060C
5060A
7010C
7010A
7010B
70410
70200
70400
70300
50900
50700
50800
51010 51000
N.S.P.
6070
10140
10150
6070
30300
30400
20400
20410
20700
30800 6090B
6090C
60910
31800
31700
N.S.P. : Not available as service parts.
MECHANISM-PART 1
RQ4QR/NA-M1(MS)
6090A
6102
20210
20110
40500
80300
80200
50220
51200
51100
51300
10150
1300
1200
40000
40000
22000
21000
11000
11200
11100
11600 11300
11500 11400
11280
MECHANISM PARTS 1
11000 613 196 4600 COMPL,CYLINDER,2N4N-QL
11100 613 196 4648 ASSY,CYLINDER,LWR,4Q
11200 613 182 5062 ASSY,CYLINDER,UPR,2N4N-QL
11280 613 182 6366 SPACER,CYLINDER
11300 613 189 9124 MOUNTING,MOTOR,CYLINDER
OR 613 182 6311 MOUNTING,MOTOR,CYLINDER
11400 411 158 0208 SCR SET HEX-SCT 4X6
11500 613 182 6229 EARTH,CHIP,CYLINDER
11600 613 182 6533 SPRING,EARTH,CYLINDER
12000 613 176 9533 MOUNTING,CYLINDER
13000 412 048 8601 SPECIAL SCREW-2.6X7
21000 645 035 8043 MOTOR,ROTOR,CYL DC 2W VC
22000 645 048 6647 MOTOR,STATOR,CYL DC 2W VN
40000 412 036 5001 SPECIAL SCREW 2.3X6
10400 412 048 8106 SPECIAL SCREW-2.6X8
6073 412 048 8205 SPECIAL SCREW-2.6X6
6102 613 151 6618 PAD
0099 613 185 4055 COMPL,CASSETTE MECHANISM
0100 613 152 0738 STAND L
0300 613 152 0660 FRAME UNDER
040B 613 152 0417 SPRING,LID OPENER
040C 613 152 0707 LEVER,RELEASE
040D 613 152 0424 SPRING,TRAY LOCK
0800 613 152 2794 GEAR,LOCK
0900 613 152 2800 GEAR,PINION
1000 613 151 9480 LEVER,DOOR OPENER
1100 613 151 9299 HOLDER,GEAR
1200 411 008 5001 WASHER F 4X8X0.8
1300 411 109 2008 WASHER Y 3.1X8X0.5
6070 411 021 7907 SCR S-TPG BIN 4X12
10120 407 162 1102 LED LN59L (D8003)
10140 407 162 8705 PHOTO DIODE PN263L-(NC) (D8001,D8002)
10150 407 165 8108 PHOTO COUPLE SG-105F (PC801)(PC802)
OR 407 043 0101 PHOTO DIODE ON2170-R (PC801)(PC802)
20100 613 176 2343 ASSY,REEL SUPPLY
OR 613 169 3722 ASSY,REEL SUPPLY
20110 412 015 8603 SPECIAL WASHER 3.1X6X0.25
20200 613 160 4193 ASSY,REEL TAKE UP
OR 613 168 1514 ASSY,REEL TAKE UP
20210 412 021 5306 SPECIAL WASHER 3.1X6X0.3
OR 412 015 8900 SPECIAL WASHER 3.1X6X0.4
OR 412 015 8504 SPECIAL WASHER 3.1X6X0.5
20300 613 175 0661 COMPL,MOUNTING CLUTCH
OR 613 171 6896 COMPL,MOUNTING CLUTCH
20310 412 048 7505 SPECIAL SCREW-2.6X4
20400 613 151 9701 PULLEY,REEL
20410 412 045 4606 SPECIAL WASHER 2.4X6X0.25
20600 613 152 2749 GEAR,REEL S
20700 613 152 2756 GEAR,REEL T
30300 613 160 3356 ASSY,BRAKE SOFT T
30400 613 152 0295 SPRING,SOFT T
30500 613 151 9411 LEVER,SOFT S
30600 613 152 0318 SPRING,SOFT S
30700 613 189 8868 ASSY,BRAKE,S 90
30800 613 189 8875 ASSY,BRAKE,T 90
30900 613 191 7040 SPRING,BRAKE 90
31100 613 152 0189 SLIDE,ACT BRAKE T
31700 613 175 4843 ASSY,BRAKE CAPSTAN TL
31800 613 182 8377 SPRING,BRAKE CAPSTAN
40100 613 151 8759 ASSY,LEVER,BT
40200 613 160 5282 ASSY,BRAKE,BAND
40300 613 176 5610 SPRING,BT MAIN TL
40500 613 176 5627 SPRING,BT SUB TL
50100 645 023 0943 HEAD,ERASE FULL
50110 412 048 9707 SPECIAL SCREW-2.6X10
50200 613 190 8246 ASSY,HEAD R/P ACE
50210 412 052 3500 SPECIAL SCREW 2.6X12
50220 412 015 8603 SPECIAL WASHER 3.1X6X0.25
5050A 613 151 8858 ASSY,MOUNTING,INCLINE S
5050B 613 022 0233 ASSY,GUIDE,ROLLER
5050C 412 048 4504 SPECIAL SCREW-2X3
4. PARTS LIST

13

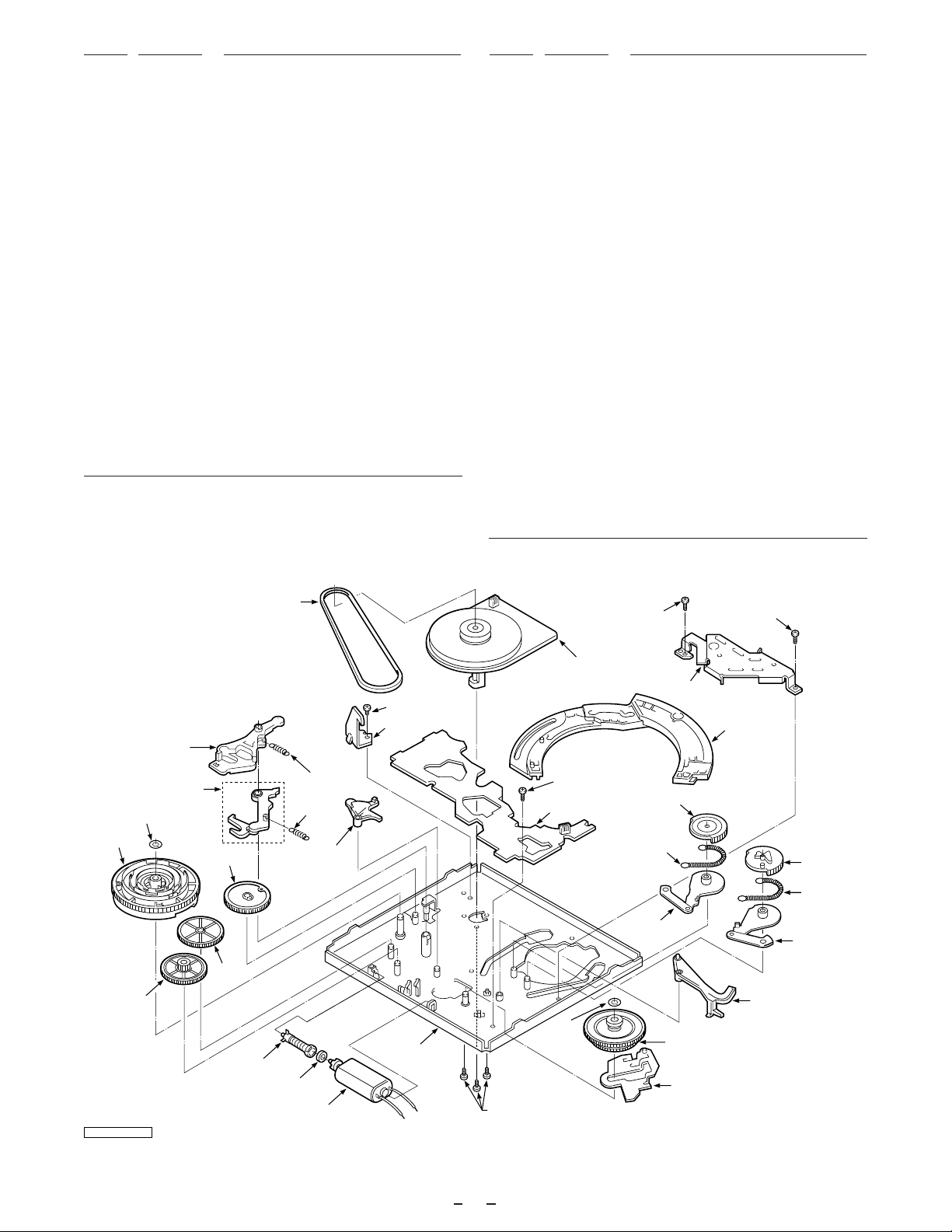

LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION
5030C
N.S.P. : Not available as service parts.
MECHANISM-PART 2
31000
20500
20510
40400
5030B
5030A
5040C
5040B
5040A
10110
60700
60800
60810
70500
20800
31200
31600
31300
31400
31500
10130
60610
60600
60400
60500
60200
60300
60100 70510
N.S.P.
RF4QR/NA-M2
60810
10160
10720
10700
5060A 613 151 8872 ASSY,MOUNTING INCLINE T
5060B 613 022 0233 ASSY,GUIDE,ROLLER
5060C 412 048 4504 SPECIAL SCREW-2X3
50700 613 175 6472 ASSY,LEVER,LOAD TL
50800 613 152 0387 SPRING,LEVER L GUIDE
50900 412 048 8908 SPECIAL NUT-3X3
51000 613 175 6489 ASSY,LEVER ACT L-GUIDE TL
51010 412 033 4502 WASHER SLIT 2.6X8X0.50
51100 613 175 6496 ASSY,LEVER STOPPER TL
51200 613 176 3043 SPRING,ACT L GUIDE TL
51300 613 176 3050 SPRING,STOPPER TL
6090A 613 151 9152 GEAR,RACK FRONT
OR 613 160 4636 GEAR,RACK FRONT
6090B 613 151 9114 GEAR,RACK START
6090C 613 152 0226 SPRING,RACK FRONT
60910 412 050 2802 SPECIAL SCREW-2.6X6
61000 613 151 9398 LEVER,EP SW
61100 613 152 3692 SPRING,EP SW
7010A 613 151 8803 ASSY,LEVER,PINCH ROLLER
7010B 613 182 8308 ASSY,MOUNTING,LIFT JG
7010C 613 152 0233 SPRING,PINCH ROLLER
70200 613 156 3841 CAM,LIFT PINCH
70300 613 182 8322 GEAR,CAM PINCH JG
70400 613 182 8339 MOUNTING,OPENER JG
70410 412 049 1106 SPECIAL SCREW-2.6X16
80200 645 049 1412 ASSY,R-SPECIAL,DEW
80300 411 137 0007 SCR L-TPG BIN 3X10
8010A 613 171 9606 LEVER,CLEANER
8010B 613 171 9439 ASSY,MOUNTING CLEANER
MECHANISM PARTS 2
10110 613 181 4967 COMPL PWB,MC-1
10130 613 195 9712 GEAR,RELAY PINCH OPT
10160 412 048 7505 SPECIAL SCREW-2.6X4
10700 613 167 5926 MOUNTING CAPSTAN
10720 412 048 8007 SPECIAL SCREW-2.6X6
20500 613 183 4361 ASSY,GEAR,FRICTION
OR 613 152 2602 ASSY,GEAR,FRICTION
20510 411 109 1605 WASHER Y 2.6X6X0.25
20800 613 151 9039 BELT,REEL
31000 613 152 0165 SLIDE,ACT BRAKE S
31200 613 159 0991 LEVER,CONTROL BRAKE
31300 613 159 0847 COMPL,LEVER,ACT BRAKE
31400 613 152 0332 SPRING,RETURN BRAKE
31500 613 151 9459 LEVER,CHANGE CLUTCH
31600 613 152 0349 SPRING,CHANGE CLUTCH
40400 613 176 5511 ASSY,LEVER SPRING BT TL
5030A 613 152 2763 GEAR,LOAD S
5030B 613 152 0370 SPRING,LOAD S
5030C 613 151 8766 ASSY,LEVER,LOAD S
5040A 613 152 2770 GEAR,LOAD T
5040B 613 152 0363 SPRING,LOAD T
5040C 613 151 8773 ASSY,LEVER,LOAD T
60100 645 003 4305 ASSY,MOTOR LOADING
60200 613 193 2883 COMPL,GEAR,WORM
60300 613 151 9107 DAMPER
60400 613 151 9138 GEAR,WHEEL 1
OR 613 187 4602 GEAR,WHEEL 1
60500 613 160 3790 GEAR,WHEEL 2
60600 613 195 9705 CAM MAIN OPT N
60610 412 054 6806 SPECIAL WASHER 3.6X0.5
60700 613 182 8360 SLIDE,CRESCENT JG
60800 613 159 8997 MOUNTING,CRESCENT
60810 412 048 8007 SPECIAL SCREW-2.6X6
70500 645 044 6580 MOTOR,CAPSTAN DC 3W
70510 412 048 7604 SPECIAL SCREW-2.6X6

14
CABINET & CHASSIS PARTS
18
16
15
17
N.S.P.
10
9
7
12 1
5
28
6
5
5
*CH-NB4QR/NA (MS)
5
5
44
9
9
9
11
14
14
19
9
N.S.P.
N.S.P.
24
25
26
1
27
21
5
3
30 30
1
21
20 (N.S.P.)
5
5
8
31
N.S.P.
N.S.P.
22
29
29
N.S.P.
2
32
34
33
33
13
N.S.P.:Not available as service parts
27
5
5
Mechanism
2
2
2
2
LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION
ACCESSORIES & PACKING MATERIALS
9170 613 198 2888 INSTRUCTION MANUAL
9200 645 052 4066 CORD,POWER-2.0MK
9001 613 196 9674 CARTON CASE
9002 613 180 1547 CUSHION,RIGHT
9003 613 180 1554 CUSHION,LEFT
9010 613 133 5943 POLYE COVER,INNER-K
CABINET & CHASSIS PARTS
1 411 137 0007 SCR L-TPG BIN 3X10
2 411 021 7907 SCR S-TPG BIN 4X12
3 411 021 7600 SCR S-TPG BIN 4X10
4 412 052 5108 SPECIAL SCREW-2.6X12
5 411 021 3701 SCR S-TPG BIN 3X10
6 613 194 1502 COMPL,COVER TOP SJC
7 613 199 0517 COMPL PWB,PW-1
8 411 003 4207 SCR PAN 4X8
9 613 053 8048 FIXER
10 613 198 3397 COMPL PWB,CP-1-A
11 613 198 3793 COMPL PWB,VD-1
12 613 175 7646 COVER BOTTOM
13 613 198 3250 COMPL PWB,TB-4
14 613 082 5223 HOLDER
15 613 194 0420 COMPL PWB,TM-1
16 613 198 3861 DOOR CASSETTE
17 613 153 0478 SPRING
18 613 198 3809 ASSY,CABINET FRONT SJC
19 613 198 3991 COMPL,DOOR SJC
20 613 178 0125 TERMINAL (N.S.P.)
21 411 021 4005 SCR S-TPG BIN 3X12
22 613 048 2884 LOCK
24 411 021 5705 SCR S-TPG BIN 3X6
(Included in COMPL PWB,PW-1)
25 613 198 3236 COMPL PWB,TB-2
26 613 175 7653 HOLDER, TB-2 (Included in COMPL PWB,TB-2)
27 411 085 3709 WASHER OUT TW 4
28 613 198 3908 DEC BACK
29 412 057 1303 SPECIAL WASHER 3X0.5
30 613 179 0537 STAND,TERMINAL
31 613 198 8941 TERMINAL
32 613 198 3229 COMPL PWB,TB-1
33 613 121 1001 STAND,FELT
34 613 175 8001 DEC WINDOW

14
CABINET & CHASSIS PARTS
18
16
15
17
N.S.P.
10
9
7
12 1
5
28
6
5
5
*CH-NB4QR/NA (MS)
5
5
44
9
9
9
11
14
14
19
9
N.S.P.
N.S.P.
24
25
26
1
27
21
5
3
30 30
1
21
20 (N.S.P.)
5
5
8
31
N.S.P.
N.S.P.
22
29
29
N.S.P.
2
32
34
33
33
13
N.S.P.:Not available as service parts
27
5
5
Mechanism
2
2
2
2
LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION
ACCESSORIES & PACKING MATERIALS
9170 613 198 2888 INSTRUCTION MANUAL
9200 645 052 4066 CORD,POWER-2.0MK
9001 613 196 9674 CARTON CASE
9002 613 180 1547 CUSHION,RIGHT
9003 613 180 1554 CUSHION,LEFT
9010 613 133 5943 POLYE COVER,INNER-K
CABINET & CHASSIS PARTS
1 411 137 0007 SCR L-TPG BIN 3X10
2 411 021 7907 SCR S-TPG BIN 4X12
3 411 021 7600 SCR S-TPG BIN 4X10
4 412 052 5108 SPECIAL SCREW-2.6X12
5 411 021 3701 SCR S-TPG BIN 3X10
6 613 194 1502 COMPL,COVER TOP SJC
7 613 199 0517 COMPL PWB,PW-1
8 411 003 4207 SCR PAN 4X8
9 613 053 8048 FIXER
10 613 198 3397 COMPL PWB,CP-1-A
11 613 198 3793 COMPL PWB,VD-1
12 613 175 7646 COVER BOTTOM
13 613 198 3250 COMPL PWB,TB-4
14 613 082 5223 HOLDER
15 613 194 0420 COMPL PWB,TM-1
16 613 198 3861 DOOR CASSETTE
17 613 153 0478 SPRING
18 613 198 3809 ASSY,CABINET FRONT SJC
19 613 198 3991 COMPL,DOOR SJC
20 613 178 0125 TERMINAL (N.S.P.)
21 411 021 4005 SCR S-TPG BIN 3X12
22 613 048 2884 LOCK
24 411 021 5705 SCR S-TPG BIN 3X6
(Included in COMPL PWB,PW-1)
25 613 198 3236 COMPL PWB,TB-2
26 613 175 7653 HOLDER, TB-2 (Included in COMPL PWB,TB-2)
27 411 085 3709 WASHER OUT TW 4
28 613 198 3908 DEC BACK
29 412 057 1303 SPECIAL WASHER 3X0.5
30 613 179 0537 STAND,TERMINAL
31 613 198 8941 TERMINAL
32 613 198 3229 COMPL PWB,TB-1
33 613 121 1001 STAND,FELT
34 613 175 8001 DEC WINDOW

15
Note:
1. Materials of Capacitors and Resistors are abbreviated as follows ;
Resistors Capacitors
MT-FILM Metallized Film Resistor MT-POLYEST Metallized Polyester Capacitor
MT-GLAZE Metallized Glaze Resistor MT-COMPO Metallized Composite Capacitor
OXIDE-MT Oxide Metallized Film Resistor TA-SOLID Tantalum Solid Capacitor
AL-SOLID Aluminum Solid Capacitor
NP-ELECT Non-Polarized Electrolytic Capacitor
OS-SOLID Aluminum Solid Capacitors with Organic
Semiconductive Electrolytic Capacitor
DL-ELECT Double Layered Electrolytic Capacitor
2. Tolerance of Capacitor (10pF over) and Resistor are noted with follow symboles.
F ............1% G ............2% J ............5% K ............10%
M ..........20% N ..........30% Z ..........+80% ~ -20%
3. Capacitors
U :
µ FP:pF
4. Inductors
UH :
µ H MH : mH
5. N.S.P. : Not available as service parts.
LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION
ELECTRICAL PARTS
COMPL PWB,CP-1-A
613 198 3397
(VARISTERS)
VA541 408 023 9701 VARISTER ENC471D-05AS6
VA542 408 023 9701 VARISTER ENC471D-05AS6
(SEMICONDUCTORS)
Q1001 405 015 9701 TR 2SC2814-F4
OR 405 015 9909 TR 2SC2814-F5
OR 405 035 6100 TR 2SC2413K-Q
Q1003 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1004 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1005 405 015 9701 TR 2SC2814-F4
OR 405 015 9909 TR 2SC2814-F5
OR 405 035 6100 TR 2SC2413K-Q
Q1081 405 015 9701 TR 2SC2814-F4
OR 405 015 9909 TR 2SC2814-F5
OR 405 035 6100 TR 2SC2413K-Q
Q1088 405 141 0603 TR 2SA1037AK-R
OR 405 002 0209 TR 2SA1037K-Q
OR 405 002 0308 TR 2SA1037K-R
OR 405 002 0407 TR 2SA1037K-S
Q1089 405 138 6700 TR DTC144EKA
Q1102 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1103 405 138 6700 TR DTC144EKA
Q1104 405 138 6700 TR DTC144EKA
Q1111 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1112 405 141 0603 TR 2SA1037AK-R
OR 405 002 0209 TR 2SA1037K-Q
OR 405 002 0308 TR 2SA1037K-R
OR 405 002 0407 TR 2SA1037K-S
Q1121 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1122 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1123 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1124 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1201 405 141 0603 TR 2SA1037AK-R
OR 405 002 0209 TR 2SA1037K-Q
Q1201 405 002 0308 TR 2SA1037K-R
OR 405 002 0407 TR 2SA1037K-S
Q1205 405 141 0603 TR 2SA1037AK-R
OR 405 002 0209 TR 2SA1037K-Q
OR 405 002 0308 TR 2SA1037K-R
OR 405 002 0407 TR 2SA1037K-S
Q1206 405 138 6700 TR DTC144EKA
Q1207 405 138 6700 TR DTC144EKA
Q1210 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1211 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1212 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1213 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1214 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1241 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1242 405 141 0603 TR 2SA1037AK-R
OR 405 002 0209 TR 2SA1037K-Q
OR 405 002 0308 TR 2SA1037K-R
OR 405 002 0407 TR 2SA1037K-S
Q1243 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1251 405 089 2103 TR 2SC4483-S
OR 405 089 2202 TR 2SC4483-T
Q1252 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1253 405 141 0603 TR 2SA1037AK-R
OR 405 002 0209 TR 2SA1037K-Q
OR 405 002 0308 TR 2SA1037K-R
OR 405 002 0407 TR 2SA1037K-S
Q1801 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q1851 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q2040 405 138 6700 TR DTC144EKA
Q2041 405 138 6700 TR DTC144EKA
Q2043 405 138 6700 TR DTC144EKA
Q2045 405 138 6700 TR DTC144EKA
Q2046 405 138 6700 TR DTC144EKA
Q2047 405 083 5209 TR DTC343TK

16
LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION
D3004 407 078 2705 DIODE 1SS244
D3005 407 012 4406 DIODE 1SS133
D3008 407 063 8903 ZENER DIODE MTZJ5.6C
D3009 407 063 8903 ZENER DIODE MTZJ5.6C
D3010 407 012 4406 DIODE 1SS133
D3011 407 012 4406 DIODE 1SS133
D3012 407 012 4406 DIODE 1SS133
D3013 407 012 4406 DIODE 1SS133
D3014 407 099 6003 ZENER DIODE MTZJ9.1B
D3015 407 063 8903 ZENER DIODE MTZJ5.6C
D3016 407 012 4406 DIODE 1SS133
D3020 407 078 2705 DIODE 1SS244
D3021 407 078 2705 DIODE 1SS244
D3022 407 012 4406 DIODE 1SS133
D3023 407 012 4406 DIODE 1SS133
D3030 407 012 4406 DIODE 1SS133
D3031 407 012 4406 DIODE 1SS133
D3032 407 012 4406 DIODE 1SS133
D3033 407 012 4406 DIODE 1SS133
D3034 407 012 4406 DIODE 1SS133
D3098 407 150 7703 DIODE RB441Q
D5410 407 091 6902 DIODE ERA38-04
OR 407 100 6909 DIODE AG01
D7401 407 078 2705 DIODE 1SS244
D7434 407 012 4406 DIODE 1SS133
OR 407 007 9904 DIODE GMA01
D7437 407 012 4406 DIODE 1SS133
OR 407 007 9904 DIODE GMA01
D7442 407 012 4406 DIODE 1SS133
OR 407 007 9904 DIODE GMA01
D7445 407 012 4406 DIODE 1SS133
OR 407 007 9904 DIODE GMA01
(PHOTO COUPLERS)
PC301 407 222 4609 PHOTO COUPLE GP1S094HCZ
PC302 407 222 4609 PHOTO COUPLE GP1S094HCZ
PC303 407 222 4609 PHOTO COUPLE GP1S094HCZ
(OSCILLATORS)
X1001 645 005 1180 OSC,CRYSTAL 3.579545MHZ
OR 645 014 8224 OSC,CRYSTAL 3.579545MHZ
X1201 613 122 9020 OSC,CRYSTAL 7.16MHZ
OR 613 135 2766 OSC,CRYSTAL 7.16MHZ
OR 645 000 4636 OSC,CRYSTAL 7159.090KHZ
OR 645 001 7155 OSC,CRYSTAL 7.15909MHZ
X3001 613 109 0972 OSC,CRYSTAL 32KHZ
X3002 645 013 5507 OSC,CRYSTAL 8MHZ
OR 645 013 8102 OSC,CRYSTAL 8MHZ
X7401 645 006 3435 OSC,CERAMIC 4.000MHZ
(VARIABLE RESISTORS)
VR111 645 003 5524 VR,SEMI,1K N
OR 645 003 5494 VR,SEMI,1K N
(INDUCTORS)
L1001 645 002 1510 INDUCTOR,68U J
OR 645 003 8228 INDUCTOR,68U J
L1002 645 002 1497 INDUCTOR,56U J
OR 645 003 8181 INDUCTOR,56U J
L1005 645 003 6934 INDUCTOR,100U J
OR 645 003 7634 INDUCTOR,100U J
L1103 645 001 5533 INDUCTOR,82U J
OR 645 003 7610 INDUCTOR,82U J
L1111 645 002 1497 INDUCTOR,56U J
OR 645 003 8181 INDUCTOR,56U J
L1121 645 002 1497 INDUCTOR,56U J
OR 645 003 8181 INDUCTOR,56U J
L1122 645 001 5496 INDUCTOR,39U J
OR 645 003 8129 INDUCTOR,39U J
L1201 645 006 3602 INDUCTOR,1.1UH
L1221 645 001 5472 INDUCTOR,33U J
OR 645 003 8105 INDUCTOR,33U J
L1230 645 006 3886 INDUCTOR,1U K
OR 645 005 3856 INDUCTOR,1U M
L1231 645 002 1497 INDUCTOR,56U J
OR 645 003 8181 INDUCTOR,56U J
L1253 645 002 1497 INDUCTOR,56U J
OR 645 003 8181 INDUCTOR,56U J
L1801 645 006 3602 INDUCTOR,1.1UH
L2071 645 003 6934 INDUCTOR,100U J
OR 645 003 7634 INDUCTOR,100U J
Q2048 405 138 6700 TR DTC144EKA
Q2071 405 003 5609 TR 2SA1318-S
OR 405 003 5708 TR 2SA1318-T
OR 405 003 5807 TR 2SA1318-U
Q2072 405 024 9709 TR 2SD734-E
OR 405 024 9907 TR 2SD734-F
Q2073 405 018 0002 TR 2SC3331-S
OR 405 018 0101 TR 2SC3331-T
OR 405 018 0200 TR 2SC3331-U
Q2074 405 018 0002 TR 2SC3331-S
OR 405 018 0101 TR 2SC3331-T
OR 405 018 0200 TR 2SC3331-U
Q2075 405 003 5609 TR 2SA1318-S
OR 405 003 5708 TR 2SA1318-T
OR 405 003 5807 TR 2SA1318-U
Q2204 405 000 5305 TR DTC143TK
OR 405 045 2208 TR 2SC3900
Q3001 405 089 2103 TR 2SC4483-S
OR 405 089 2202 TR 2SC4483-T
Q3002 405 089 2103 TR 2SC4483-S
OR 405 089 2202 TR 2SC4483-T
Q3005 405 089 2103 TR 2SC4483-S
OR 405 089 2202 TR 2SC4483-T
Q3012 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q3013 405 141 0603 TR 2SA1037AK-R
OR 405 002 0209 TR 2SA1037K-Q
OR 405 002 0308 TR 2SA1037K-R
OR 405 002 0407 TR 2SA1037K-S
Q3014 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q3015 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q3016 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q3017 405 141 0603 TR 2SA1037AK-R
OR 405 002 0209 TR 2SA1037K-Q
OR 405 002 0308 TR 2SA1037K-R
OR 405 002 0407 TR 2SA1037K-S
Q3018 405 141 0603 TR 2SA1037AK-R
OR 405 002 0209 TR 2SA1037K-Q
OR 405 002 0308 TR 2SA1037K-R
OR 405 002 0407 TR 2SA1037K-S
Q3019 405 014 4400 TR 2SC2412K-Q
OR 405 014 4509 TR 2SC2412K-R
OR 405 014 4608 TR 2SC2412K-S
Q3020 405 141 0603 TR 2SA1037AK-R
OR 405 002 0209 TR 2SA1037K-Q
OR 405 002 0308 TR 2SA1037K-R
OR 405 002 0407 TR 2SA1037K-S
(INTEGRATED CIRCUITS)
IC101 409 480 5701 IC LA71582M-MPB
IC111 409 306 1009 IC MM1031XM
IC121 409 515 1807 IC LC74781-9832
IC301 410 458 6606 IC UPD78F4928GF-P33-3BA
IC302 409 407 0703 IC PST9128NR
IC303 409 440 4508 IC LB1643L
OR 409 314 2005 IC LB1643
IC304 409 144 7102 IC LA7116-S
IC305 409 482 5006 IC BR24C08
OR 409 455 0106 IC 24LC08B/P
OR 409 372 1002 IC AT24C08-10PC
IC306 409 313 1009 IC MN1381-R
IC308 409 155 7603 IC TC4S30F
IC309 409 137 9007 IC TC4S81F
IC541 409 225 2309 IC PQ12RF11
IC741 409 424 6900 IC MN12510F
(DIODES)
D1002 407 012 4406 DIODE 1SS133
D1251 407 063 8903 ZENER DIODE MTZJ5.6C
D2047 407 012 4406 DIODE 1SS133
D2201 407 012 4406 DIODE 1SS133
D3002 407 120 5807 DIODE AK04
OR 407 160 9100 DIODE ERA83-004

17
LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION
(TRANSFORMER)
T2001 645 018 3515 TRANS,OSC,70KHZ
(CAPACITORS)
C1001 403 191 8709 ELECT 1U M 50V
C1002 403 163 7907 ELECT 47U M 6.3V
C1003 403 191 8709 ELECT 1U M 50V
C1004 403 189 2405 ELECT 10U M 16V
C1005 403 167 6500 ELECT 33U M 6.3V
C1006 403 193 8608 ELECT 0.47U M 50V
C1008 403 191 8709 ELECT 1U M 50V
C1009 403 189 2405 ELECT 10U M 16V
C1010 403 191 8709 ELECT 1U M 50V
C1011 403 164 0204 CERAMIC 0.1U Z 25V
C1012 403 193 9001 ELECT 3.3U M 50V
C1013 403 193 9001 ELECT 3.3U M 50V
C1014 403 191 8709 ELECT 1U M 50V
C1015 403 163 7907 ELECT 47U M 6.3V
C1031 403 298 9609 CERAMIC 0.1U K 16V
C1032 403 308 2101 CERAMIC 0.056U K 16V
C1033 403 164 0204 CERAMIC 0.1U Z 25V
C1034 403 215 2201 CERAMIC 0.01U K 50V
C1035 403 157 2505 CERAMIC 27P J 50V
C1036 403 266 0102 CERAMIC 4.7P C 50V
C1037 403 215 0900 CERAMIC 390P J 50V
C1038 403 155 1500 CERAMIC 180P J 50V
C1039 403 157 2505 CERAMIC 27P J 50V
C1041 403 215 2201 CERAMIC 0.01U K 50V
C1042 403 298 9609 CERAMIC 0.1U K 16V
C1043 403 215 2201 CERAMIC 0.01U K 50V
C1045 403 163 7907 ELECT 47U M 6.3V
C1046 403 215 2201 CERAMIC 0.01U K 50V
C1047 403 215 2201 CERAMIC 0.01U K 50V
C1048 403 215 2904 CERAMIC 0.022U K 25V
C1049 403 215 2904 CERAMIC 0.022U K 25V
C1050 403 205 2808 CERAMIC 0.047U K 25V
C1051 403 215 2904 CERAMIC 0.022U K 25V
C1052 403 298 9609 CERAMIC 0.1U K 16V
C1061 403 155 1609 CERAMIC 33P J 50V
C1062 403 139 7306 CERAMIC 18P J 50V
C1063 403 145 9905 CERAMIC 22P J 50V
C1067 403 298 9609 CERAMIC 0.1U K 16V
C1075 403 139 7504 CERAMIC 39P J 50V
C1081 403 215 2201 CERAMIC 0.01U K 50V
C1101 403 163 7907 ELECT 47U M 6.3V
C1110 403 164 0204 CERAMIC 0.1U Z 25V
C1111 403 145 9905 CERAMIC 22P J 50V
C1112 403 191 8709 ELECT 1U M 50V
C1113 403 155 4204 CERAMIC 15P J 50V
C1114 403 191 8709 ELECT 1U M 50V
C1121 403 157 2505 CERAMIC 27P J 50V
C1122 403 157 1904 CERAMIC 10P D 50V
C1123 403 145 9905 CERAMIC 22P J 50V
C1151 403 215 2201 CERAMIC 0.01U K 50V
C1152 403 215 2201 CERAMIC 0.01U K 50V
C1153 403 215 2201 CERAMIC 0.01U K 50V
C1154 403 070 2606 CERAMIC 0.1U Z 50V
C1155 403 164 0204 CERAMIC 0.1U Z 25V
C1156 403 155 1609 CERAMIC 33P J 50V
C1201 403 164 0204 CERAMIC 0.1U Z 25V
C1202 403 218 3106 ELECT 1000U M 16V
C1210 403 284 9408 OS-SOLID 3.3U M 16V
C1211 403 189 2405 ELECT 10U M 16V
C1213 403 215 2201 CERAMIC 0.01U K 50V
C1221 403 139 7306 CERAMIC 18P J 50V
C1222 403 139 7306 CERAMIC 18P J 50V
C1223 403 139 7306 CERAMIC 18P J 50V
C1224 403 145 9905 CERAMIC 22P J 50V
C1225 403 139 7108 CERAMIC 12P J 50V
C1226 403 139 7108 CERAMIC 12P J 50V
C1227 403 139 7108 CERAMIC 12P J 50V
C1228 403 163 7907 ELECT 47U M 6.3V
C1229 403 215 2201 CERAMIC 0.01U K 50V
C1230 403 161 6902 NP-ELECT 2.2U M 50V
C1231 403 215 2201 CERAMIC 0.01U K 50V
C1233 403 191 8709 ELECT 1U M 50V
C1234 403 215 2201 CERAMIC 0.01U K 50V
C1235 403 163 7907 ELECT 47U M 6.3V
C1236 403 157 7005 CERAMIC 1800P K 50V
C1238 403 298 9609 CERAMIC 0.1U K 16V
C1241 403 167 7002 ELECT 4.7U M 50V
C1242 403 215 2201 CERAMIC 0.01U K 50V
C1250 403 135 3500 ELECT 220U M 6.3V
C1251 403 164 0204 CERAMIC 0.1U Z 25V
C1253 403 155 2200 CERAMIC 3300P K 50V
C1254 403 191 8709 ELECT 1U M 50V
C1255 403 205 2808 CERAMIC 0.047U K 25V
C1256 403 157 3106 CERAMIC 56P J 50V
C1257 403 164 0204 CERAMIC 0.1U Z 25V
C1801 403 284 9408 OS-SOLID 3.3U M 16V
C1802 403 215 2201 CERAMIC 0.01U K 50V
C1851 403 164 0204 CERAMIC 0.1U Z 25V
C1852 403 157 2505 CERAMIC 27P J 50V
C1853 403 157 2505 CERAMIC 27P J 50V
C1855 403 164 0204 CERAMIC 0.1U Z 25V
C1856 403 215 2201 CERAMIC 0.01U K 50V
C1857 403 215 2201 CERAMIC 0.01U K 50V
C1871 403 157 2505 CERAMIC 27P J 50V
C1872 403 157 2505 CERAMIC 27P J 50V
C1873 403 205 2808 CERAMIC 0.047U K 25V
C1874 403 215 2201 CERAMIC 0.01U K 50V
C1875 403 215 2201 CERAMIC 0.01U K 50V
C1876 403 164 0204 CERAMIC 0.1U Z 25V
C2001 403 193 7502 ELECT 22U M 6.3V
C2002 403 189 2405 ELECT 10U M 16V
C2003 403 193 8202 ELECT 0.1U M 50V
C2004 403 167 7002 ELECT 4.7U M 50V
C2005 403 167 6500 ELECT 33U M 6.3V
C2006 403 189 2405 ELECT 10U M 16V
C2007 403 163 7907 ELECT 47U M 6.3V
C2031 403 157 7104 CERAMIC 2700P K 50V
C2032 403 215 2904 CERAMIC 0.022U K 25V
C2033 403 215 2201 CERAMIC 0.01U K 50V
C2034 403 146 0505 CERAMIC 1200P K 50V
C2035 403 164 0204 CERAMIC 0.1U Z 25V
C2036 403 155 2408 CERAMIC 5600P K 50V
C2037 403 164 0204 CERAMIC 0.1U Z 25V
C2038 403 164 0204 CERAMIC 0.1U Z 25V
C2040 403 164 0204 CERAMIC 0.1U Z 25V
C2041 403 281 5007 CERAMIC 0.033U K 25V
C2043 403 191 8709 ELECT 1U M 50V
C2049 403 164 0204 CERAMIC 0.1U Z 25V
C2071 403 163 7907 ELECT 47U M 6.3V
C2072 403 163 7907 ELECT 47U M 6.3V
C2073 403 081 3302 POLYPRO 0.022U J 100V
C2081 403 215 2201 CERAMIC 0.01U K 50V
C2082 403 281 5007 CERAMIC 0.033U K 25V
C3001 403 145 9905 CERAMIC 22P J 50V
C3002 403 157 2307 CERAMIC 20P J 50V
C3003 403 145 9905 CERAMIC 22P J 50V
C3004 403 145 9905 CERAMIC 22P J 50V
C3005 403 163 7907 ELECT 47U M 6.3V
C3006 403 215 2201 CERAMIC 0.01U K 50V
C3007 403 157 4202 CERAMIC 220P J 50V
C3008 403 215 2201 CERAMIC 0.01U K 50V
C3009 403 215 2201 CERAMIC 0.01U K 50V
C3011 403 113 3805 CERAMIC 1000P K 50V
C3012 403 191 8600 ELECT 4.7U M 25V
C3013 403 157 2901 CERAMIC 47P J 50V
C3014 403 163 7907 ELECT 47U M 6.3V
C3015 403 135 4002 ELECT 47U M 6.3V
C3016 403 164 0204 CERAMIC 0.1U Z 25V
C3018 403 215 2201 CERAMIC 0.01U K 50V
C3020 403 086 2805 NP-ELECT 1U M 50V
C3021 403 158 5604 NP-ELECT 0.47U M 50V
C3022 403 086 2805 NP-ELECT 1U M 50V
C3023 403 086 2805 NP-ELECT 1U M 50V
C3024 403 215 2201 CERAMIC 0.01U K 50V
C3025 403 113 3805 CERAMIC 1000P K 50V
C3026 403 215 2201 CERAMIC 0.01U K 50V
C3028 403 215 2201 CERAMIC 0.01U K 50V
C3029 403 164 0006 CERAMIC 0.068U Z 25V
C3031 403 164 0006 CERAMIC 0.068U Z 25V
C3032 403 155 1609 CERAMIC 33P J 50V
C3033 403 155 1609 CERAMIC 33P J 50V
C3034 403 155 1609 CERAMIC 33P J 50V
C3035 403 157 3106 CERAMIC 56P J 50V

18
LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION
C3036 403 157 3106 CERAMIC 56P J 50V
C3037 403 157 3106 CERAMIC 56P J 50V
C3038 403 135 3302 ELECT 1000U M 6.3V
C3039 403 150 6500 ELECT 22U M 16V
C3040 403 193 7601 ELECT 220U M 6.3V
C3041 403 150 6500 ELECT 22U M 16V
C3043 403 164 0204 CERAMIC 0.1U Z 25V
C3044 403 164 0204 CERAMIC 0.1U Z 25V
C3045 403 189 2405 ELECT 10U M 16V
C3048 403 164 0204 CERAMIC 0.1U Z 25V
C3050 403 164 0204 CERAMIC 0.1U Z 25V
C3054 403 215 2201 CERAMIC 0.01U K 50V
C3057 403 113 3805 CERAMIC 1000P K 50V
C3058 403 191 8709 ELECT 1U M 50V
C3059 403 113 3805 CERAMIC 1000P K 50V
C3060 403 191 8709 ELECT 1U M 50V
C3061 403 139 1007 ELECT 47U M 6.3V
C3062 403 155 4204 CERAMIC 15P J 50V
C3063 403 155 4204 CERAMIC 15P J 50V
C3064 403 150 6500 ELECT 22U M 16V
C3065 403 150 6500 ELECT 22U M 16V
C3066 403 193 7601 ELECT 220U M 6.3V
C3067 403 164 0204 CERAMIC 0.1U Z 25V
C3069 403 164 0204 CERAMIC 0.1U Z 25V
C3070 403 189 2405 ELECT 10U M 16V
C3075 403 164 0204 CERAMIC 0.1U Z 25V
C3076 403 164 0204 CERAMIC 0.1U Z 25V
C3078 403 215 2201 CERAMIC 0.01U K 50V
C3090 403 135 4101 ELECT 470U M 6.3V
C3101 403 164 0204 CERAMIC 0.1U Z 25V
C3102 403 191 8808 ELECT 2.2U M 50V
C3103 403 113 3805 CERAMIC 1000P K 50V
C3104 403 113 3805 CERAMIC 1000P K 50V
C3105 403 113 3805 CERAMIC 1000P K 50V
C3106 403 113 3805 CERAMIC 1000P K 50V
C3110 403 164 0204 CERAMIC 0.1U Z 25V
C3121 403 164 0204 CERAMIC 0.1U Z 25V
C3123 403 157 4202 CERAMIC 220P J 50V
C3130 403 113 3805 CERAMIC 1000P K 50V
C3132 403 164 0204 CERAMIC 0.1U Z 25V
C3133 403 164 0204 CERAMIC 0.1U Z 25V
C3134 403 150 6500 ELECT 22U M 16V
C3139 403 164 0204 CERAMIC 0.1U Z 25V
C3145 403 164 0204 CERAMIC 0.1U Z 25V
C3148 403 113 3805 CERAMIC 1000P K 50V
C3150 403 164 0204 CERAMIC 0.1U Z 25V
C5410 403 304 9203 ELECT 220U M 16V
C5411 403 121 9509 CERAMIC 0.1U Z 50V
C7403 403 139 1809 ELECT 47U M 16V
C7404 403 215 2201 CERAMIC 0.01U K 50V
C7405 403 215 2201 CERAMIC 0.01U K 50V
C7406 403 164 0204 CERAMIC 0.1U Z 25V
C7408 403 157 3601 CERAMIC 100P J 50V
C7411 403 256 5001 CERAMIC 560P J 50V
C7412 403 256 5001 CERAMIC 560P J 50V
C7413 403 256 5001 CERAMIC 560P J 50V
C7414 403 256 5001 CERAMIC 560P J 50V
(RESISTORS)
R1002 401 105 1600 MT-GLAZE 15K JA 1/16W
R1003 401 105 6605 MT-GLAZE 6.8K JA 1/16W
R1004 401 105 0603 MT-GLAZE 10K JA 1/16W
R1005 401 105 4007 MT-GLAZE 330 JA 1/16W
R1006 401 105 1006 MT-GLAZE 1.2K JA 1/16W
R1007 401 105 4007 MT-GLAZE 330 JA 1/16W
R1008 401 105 0405 MT-GLAZE 100 JA 1/16W
R1009 401 105 3307 MT-GLAZE 2.7K JA 1/16W
R1010 401 105 6506 MT-GLAZE 680 JA 1/16W
R1012 401 105 5301 MT-GLAZE 4.7K JA 1/16W
R1013 401 105 2003 MT-GLAZE 1.8K JA 1/16W
R1014 401 105 1501 MT-GLAZE 1.5K JA 1/16W
R1015 401 105 6001 MT-GLAZE 5.6K JA 1/16W
R1017 401 105 0504 MT-GLAZE 1K JA 1/16W
R1018 401 105 4601 MT-GLAZE 3.9K JA 1/16W
R1019 401 113 5904 MT-GLAZE 1.3K JA 1/16W
R1020 401 105 2003 MT-GLAZE 1.8K JA 1/16W
R1021 401 105 0504 MT-GLAZE 1K JA 1/16W
R1022 401 105 7404 MT-GLAZE 8.2K JA 1/16W
R1024 401 105 0504 MT-GLAZE 1K JA 1/16W
R1026 401 105 2904 MT-GLAZE 22K JA 1/16W
R1045 401 105 0504 MT-GLAZE 1K JA 1/16W
R1051 401 105 2102 MT-GLAZE 18K JA 1/16W
R1062 401 105 8005 MT-GLAZE 1M JA 1/16W
R1081 401 105 0504 MT-GLAZE 1K JA 1/16W
R1082 401 105 4007 MT-GLAZE 330 JA 1/16W
R1083 401 105 5400 MT-GLAZE 47K JA 1/16W
R1084 401 105 5400 MT-GLAZE 47K JA 1/16W
R1085 401 105 8203 MT-GLAZE 68K JA 1/16W
R1086 401 105 4007 MT-GLAZE 330 JA 1/16W
R1088 401 105 0504 MT-GLAZE 1K JA 1/16W
R1103 401 105 0504 MT-GLAZE 1K JA 1/16W
R1104 401 105 0603 MT-GLAZE 10K JA 1/16W
R1111 401 105 0504 MT-GLAZE 1K JA 1/16W
R1112 401 105 0504 MT-GLAZE 1K JA 1/16W
R1113 401 105 5400 MT-GLAZE 47K JA 1/16W
R1114 401 105 5400 MT-GLAZE 47K JA 1/16W
R1116 401 105 5202 MT-GLAZE 470 JA 1/16W
R1117 401 105 5202 MT-GLAZE 470 JA 1/16W
R1118 401 105 0504 MT-GLAZE 1K JA 1/16W
R1120 401 105 5905 MT-GLAZE 560 JA 1/16W
R1121 401 105 5905 MT-GLAZE 560 JA 1/16W
R1122 401 105 2003 MT-GLAZE 1.8K JA 1/16W
R1123 401 105 5905 MT-GLAZE 560 JA 1/16W
R1124 401 105 2904 MT-GLAZE 22K JA 1/16W
R1125 401 105 1105 MT-GLAZE 12K JA 1/16W
R1126 401 105 6605 MT-GLAZE 6.8K JA 1/16W
R1127 401 105 4007 MT-GLAZE 330 JA 1/16W
R1128 401 105 5905 MT-GLAZE 560 JA 1/16W
R1129 401 105 0504 MT-GLAZE 1K JA 1/16W
R1201 401 113 4402 MT-GLAZE 75 JA 1/16W
R1202 401 021 1807 CARBON 560 JA 1/4W
R1203 401 021 1807 CARBON 560 JA 1/4W
R1205 401 105 0504 MT-GLAZE 1K JA 1/16W
R1206 401 105 0603 MT-GLAZE 10K JA 1/16W
R1210 401 105 8203 MT-GLAZE 68K JA 1/16W
R1211 401 113 4402 MT-GLAZE 75 JA 1/16W
R1212 401 105 8104 MT-GLAZE 56K JA 1/16W
R1213 401 105 7404 MT-GLAZE 8.2K JA 1/16W
R1214 401 105 6506 MT-GLAZE 680 JA 1/16W
R1215 401 105 3307 MT-GLAZE 2.7K JA 1/16W
R1216 401 105 7404 MT-GLAZE 8.2K JA 1/16W
R1217 401 105 3307 MT-GLAZE 2.7K JA 1/16W
R1218 401 105 2805 MT-GLAZE 2.2K JA 1/16W
R1219 401 037 5400 MT-GLAZE 1K JA 1/10W
R1220 401 037 5400 MT-GLAZE 1K JA 1/10W
R1221 401 105 5400 MT-GLAZE 47K JA 1/16W
R1222 401 105 5400 MT-GLAZE 47K JA 1/16W
R1223 401 105 5400 MT-GLAZE 47K JA 1/16W
R1231 401 105 2706 MT-GLAZE 220 JA 1/16W
R1232 401 105 7602 MT-GLAZE 820K JA 1/16W
R1233 401 105 0702 MT-GLAZE 100K JA 1/16W
R1234 401 105 2904 MT-GLAZE 22K JA 1/16W
R1241 401 105 4106 MT-GLAZE 3.3K JA 1/16W
R1242 401 105 1006 MT-GLAZE 1.2K JA 1/16W
R1243 401 105 0702 MT-GLAZE 100K JA 1/16W
R1244 401 105 0504 MT-GLAZE 1K JA 1/16W
R1245 401 105 0504 MT-GLAZE 1K JA 1/16W
R1246 401 105 0504 MT-GLAZE 1K JA 1/16W
R1251 401 022 1806 CARBON 680 JA 1/4W
R1252 401 105 0504 MT-GLAZE 1K JA 1/16W
R1253 401 105 2706 MT-GLAZE 220 JA 1/16W
R1254 401 105 3000 MT-GLAZE 220K JA 1/16W
R1255 401 105 5509 MT-GLAZE 470K JA 1/16W
R1256 401 105 0702 MT-GLAZE 100K JA 1/16W
R1257 401 105 5301 MT-GLAZE 4.7K JA 1/16W
R1258 401 105 0504 MT-GLAZE 1K JA 1/16W
R1802 401 105 4601 MT-GLAZE 3.9K JA 1/16W
R1804 401 105 3307 MT-GLAZE 2.7K JA 1/16W
R1851 401 105 1907 MT-GLAZE 180 JA 1/16W
R1852 401 105 1105 MT-GLAZE 12K JA 1/16W
R1853 401 105 0603 MT-GLAZE 10K JA 1/16W
R1854 401 105 1907 MT-GLAZE 180 JA 1/16W
R1856 401 105 3307 MT-GLAZE 2.7K JA 1/16W
R2001 401 113 5904 MT-GLAZE 1.3K JA 1/16W
R2002 401 105 3406 MT-GLAZE 27K JA 1/16W
R2003 401 105 4304 MT-GLAZE 330K JA 1/16W
R2004 401 105 2706 MT-GLAZE 220 JA 1/16W

19
LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION
R2005 401 105 1105 MT-GLAZE 12K JA 1/16W
R2006 401 105 5301 MT-GLAZE 4.7K JA 1/16W
R2007 401 105 1105 MT-GLAZE 12K JA 1/16W
R2010 401 105 4106 MT-GLAZE 3.3K JA 1/16W
R2011 401 105 5301 MT-GLAZE 4.7K JA 1/16W
R2012 401 105 4601 MT-GLAZE 3.9K JA 1/16W
R2013 401 114 0700 MT-GLAZE 2.7M JA 1/16W
R2014 401 105 3307 MT-GLAZE 2.7K JA 1/16W
R2015 401 105 4205 MT-GLAZE 33K JA 1/16W
R2040 401 105 0504 MT-GLAZE 1K JA 1/16W
R2043 401 105 2706 MT-GLAZE 220 JA 1/16W
R2045 401 105 2805 MT-GLAZE 2.2K JA 1/16W
R2046 401 105 6605 MT-GLAZE 6.8K JA 1/16W
R2048 401 105 4106 MT-GLAZE 3.3K JA 1/16W
R2071 401 105 2904 MT-GLAZE 22K JA 1/16W
R2072 401 011 8809 CARBON 1 JA 1/4W
R2073 401 105 3307 MT-GLAZE 2.7K JA 1/16W
R2074 401 019 9501 CARBON 47 JA 1/4W
R2075 401 105 5905 MT-GLAZE 560 JA 1/16W
R2076 401 105 2805 MT-GLAZE 2.2K JA 1/16W
R2077 401 105 0504 MT-GLAZE 1K JA 1/16W
R2078 401 105 0603 MT-GLAZE 10K JA 1/16W
R2079 401 105 2904 MT-GLAZE 22K JA 1/16W
R2201 401 105 3208 MT-GLAZE 270 JA 1/16W
R2202 401 105 4205 MT-GLAZE 33K JA 1/16W
R2203 401 105 4007 MT-GLAZE 330 JA 1/16W
R2204 401 105 1204 MT-GLAZE 120K JA 1/16W
R3001 401 105 4304 MT-GLAZE 330K JA 1/16W
R3002 401 300 9104 MT-GLAZE 820K FA 1/16W
R3004 401 226 8908 MT-GLAZE 68K FA 1/16W
R3005 401 226 8908 MT-GLAZE 68K FA 1/16W
R3006 401 105 5400 MT-GLAZE 47K JA 1/16W
R3007 401 105 5400 MT-GLAZE 47K JA 1/16W
R3008 401 105 5400 MT-GLAZE 47K JA 1/16W
R3009 401 105 5400 MT-GLAZE 47K JA 1/16W
R3010 401 105 5301 MT-GLAZE 4.7K JA 1/16W
R3011 401 105 0504 MT-GLAZE 1K JA 1/16W
R3012 401 105 5905 MT-GLAZE 560 JA 1/16W
R3013 401 105 5905 MT-GLAZE 560 JA 1/16W
R3014 401 105 5905 MT-GLAZE 560 JA 1/16W
R3016 401 012 5609 CARBON 1K JA 1/4W
R3017 401 113 7007 MT-GLAZE 16K JA 1/16W
R3018 401 113 7007 MT-GLAZE 16K JA 1/16W
R3020 401 105 0504 MT-GLAZE 1K JA 1/16W
R3021 401 105 0504 MT-GLAZE 1K JA 1/16W
R3023 401 105 6506 MT-GLAZE 680 JA 1/16W
R3024 401 105 6506 MT-GLAZE 680 JA 1/16W
R3026 401 012 5609 CARBON 1K JA 1/4W
R3027 401 105 5400 MT-GLAZE 47K JA 1/16W
R3028 401 105 0504 MT-GLAZE 1K JA 1/16W
R3029 401 105 2805 MT-GLAZE 2.2K JA 1/16W
R3031 401 105 0603 MT-GLAZE 10K JA 1/16W
R3033 401 105 4205 MT-GLAZE 33K JA 1/16W
R3034 401 105 0603 MT-GLAZE 10K JA 1/16W
R3036 401 105 4205 MT-GLAZE 33K JA 1/16W
R3037 401 105 0603 MT-GLAZE 10K JA 1/16W
R3038 401 105 0504 MT-GLAZE 1K JA 1/16W
R3039 401 105 0504 MT-GLAZE 1K JA 1/16W
R3040 401 105 0504 MT-GLAZE 1K JA 1/16W
R3041 401 105 0504 MT-GLAZE 1K JA 1/16W
R3042 401 105 0504 MT-GLAZE 1K JA 1/16W
R3043 401 105 1501 MT-GLAZE 1.5K JA 1/16W
R3044 401 022 1806 CARBON 680 JA 1/4W
R3045 401 022 1806 CARBON 680 JA 1/4W
R3046 401 105 4304 MT-GLAZE 330K JA 1/16W
R3053 401 105 2003 MT-GLAZE 1.8K JA 1/16W
R3055 401 105 0504 MT-GLAZE 1K JA 1/16W
R3056 401 105 0504 MT-GLAZE 1K JA 1/16W
R3061 401 105 0504 MT-GLAZE 1K JA 1/16W
R3062 401 012 5609 CARBON 1K JA 1/4W
R3063 401 105 0504 MT-GLAZE 1K JA 1/16W
R3064 401 105 0504 MT-GLAZE 1K JA 1/16W
R3065 401 105 0603 MT-GLAZE 10K JA 1/16W
R3066 401 105 3000 MT-GLAZE 220K JA 1/16W
R3067 401 105 0603 MT-GLAZE 10K JA 1/16W
R3068 401 105 3000 MT-GLAZE 220K JA 1/16W
R3069 401 020 0702 CARBON 470 JA 1/4W
R3070 401 022 1806 CARBON 680 JA 1/4W
R3071 401 105 0504 MT-GLAZE 1K JA 1/16W
R3073 401 105 2201 MT-GLAZE 180K JA 1/16W
R3075 401 105 0504 MT-GLAZE 1K JA 1/16W
R3078 401 105 0603 MT-GLAZE 10K JA 1/16W
R3079 401 105 5301 MT-GLAZE 4.7K JA 1/16W
R3080 401 105 1501 MT-GLAZE 1.5K JA 1/16W
R3081 401 105 0603 MT-GLAZE 10K JA 1/16W
R3082 401 105 4205 MT-GLAZE 33K JA 1/16W
R3083 401 105 4106 MT-GLAZE 3.3K JA 1/16W
R3084 401 105 3307 MT-GLAZE 2.7K JA 1/16W
R3085 401 105 5301 MT-GLAZE 4.7K JA 1/16W
R3086 401 105 5301 MT-GLAZE 4.7K JA 1/16W
R3087 401 105 5301 MT-GLAZE 4.7K JA 1/16W
R3093 401 105 5301 MT-GLAZE 4.7K JA 1/16W
R3094 401 105 0504 MT-GLAZE 1K JA 1/16W
R3095 401 113 6307 MT-GLAZE 4.3K JA 1/16W
R3096 401 113 6307 MT-GLAZE 4.3K JA 1/16W
R3097 401 113 6307 MT-GLAZE 4.3K JA 1/16W
R3101 401 105 2805 MT-GLAZE 2.2K JA 1/16W
R3102 401 105 1006 MT-GLAZE 1.2K JA 1/16W
R3103 401 105 3307 MT-GLAZE 2.7K JA 1/16W
R3104 402 067 7402 FUSIBLE RES 3.3 JA 1/2W
R3105 401 105 2904 MT-GLAZE 22K JA 1/16W
R3106 401 105 2904 MT-GLAZE 22K JA 1/16W
R3111 401 105 0603 MT-GLAZE 10K JA 1/16W
R3112 401 105 0603 MT-GLAZE 10K JA 1/16W
R3113 401 105 5301 MT-GLAZE 4.7K JA 1/16W
R3114 401 105 0603 MT-GLAZE 10K JA 1/16W
R3115 401 105 0603 MT-GLAZE 10K JA 1/16W
R3116 401 105 0603 MT-GLAZE 10K JA 1/16W
R3117 401 105 0603 MT-GLAZE 10K JA 1/16W
R3118 401 105 0603 MT-GLAZE 10K JA 1/16W
R3119 401 105 0603 MT-GLAZE 10K JA 1/16W
R3120 401 105 5301 MT-GLAZE 4.7K JA 1/16W
R3121 401 105 0603 MT-GLAZE 10K JA 1/16W
R3122 401 105 0603 MT-GLAZE 10K JA 1/16W
R3126 401 018 2701 CARBON 330 JA 1/4W
R3127 401 019 9501 CARBON 47 JA 1/4W
R3128 401 019 9501 CARBON 47 JA 1/4W
R3130 401 105 0504 MT-GLAZE 1K JA 1/16W
R3131 401 105 5301 MT-GLAZE 4.7K JA 1/16W
R3133 401 105 0603 MT-GLAZE 10K JA 1/16W
R3134 401 105 0603 MT-GLAZE 10K JA 1/16W
R3135 401 105 0603 MT-GLAZE 10K JA 1/16W
R3136 401 105 0603 MT-GLAZE 10K JA 1/16W
R3137 401 105 0603 MT-GLAZE 10K JA 1/16W
R3138 401 105 0603 MT-GLAZE 10K JA 1/16W
R3139 401 105 5301 MT-GLAZE 4.7K JA 1/16W
R3140 401 105 0603 MT-GLAZE 10K JA 1/16W
R3141 401 105 0603 MT-GLAZE 10K JA 1/16W
R3144 401 105 7909 MT-GLAZE 0.000 ZA 1/16W
R3145 401 105 0603 MT-GLAZE 10K JA 1/16W
R3148 401 012 5609 CARBON 1K JA 1/4W
R3153 401 105 5301 MT-GLAZE 4.7K JA 1/16W
R3162 401 105 5301 MT-GLAZE 4.7K JA 1/16W
R3163 401 105 5905 MT-GLAZE 560 JA 1/16W
R3164 401 105 5905 MT-GLAZE 560 JA 1/16W
R3165 401 105 5905 MT-GLAZE 560 JA 1/16W
R3166 401 105 5301 MT-GLAZE 4.7K JA 1/16W
R3168 401 105 0504 MT-GLAZE 1K JA 1/16W
R3169 401 105 2904 MT-GLAZE 22K JA 1/16W
R3171 401 113 6604 MT-GLAZE 7.5K JA 1/16W
R3179 401 105 0504 MT-GLAZE 1K JA 1/16W
R3180 401 105 0504 MT-GLAZE 1K JA 1/16W
R3181 401 105 0504 MT-GLAZE 1K JA 1/16W
R3182 401 105 0504 MT-GLAZE 1K JA 1/16W
R5401 402 069 0401 SOLID 2.7M KA 1/2W
R5410 401 012 6903 CARBON 10K JA 1/4W
R7402 401 105 5905 MT-GLAZE 560 JA 1/16W
R7403 401 105 5905 MT-GLAZE 560 JA 1/16W
R7404 401 105 5905 MT-GLAZE 560 JA 1/16W
R7405 401 105 5905 MT-GLAZE 560 JA 1/16W
R7406 401 105 8203 MT-GLAZE 68K JA 1/16W
R7407 401 105 8203 MT-GLAZE 68K JA 1/16W
R7408 401 105 8203 MT-GLAZE 68K JA 1/16W
R7409 401 105 8203 MT-GLAZE 68K JA 1/16W
R7417 401 105 8203 MT-GLAZE 68K JA 1/16W
R7418 401 105 8203 MT-GLAZE 68K JA 1/16W
