Congratulations on the purchase of your Mobile Cleaning Unit. This instruction manual is a guide for operating and
servicing your equipment. Read this manual completely before installing or operating this unit.
Proper operation and service are necessary to ensure the outstanding performance of this unit. When properly
maintained, your truck-mount will have a long and trouble-free life.
The service methods outlined in this manual are detailed in a manner that operation and servicing may be performed
properly and safely. Because service levels vary due to the skill of the mechanic, tools and parts availability, ensure that
prior to attempting any maintenance or repair, you are familiar with the equipment and have all the proper tools to
complete the task. Please call a Legend Brands service or customer care representative at 866-445-3030 for help with
maintenance, repair, warranty and parts related questions.
THIS UNIT MUST BE INSTALLED BY THE DEALER THAT YOU PURCHASED IT FROM IN ACCORDANCE WITH THE
PRESCRIBED INSTALLATION PROCEDURES.
Spare Parts and Reference documents are no longer included in this manual. Current parts diagrams can be found at
https://www.legendbrands.com/products/370-truckmount/ search under documents for manuals specific to your model
based on serial number.
Information in this document is subject to change without notice and does not represent a commitment on the part of
Legend Brands.
WARRANTY REGISTRATION
Thank you for purchasing a Legend Brands product. Warranty registration is quick and easy. Your registration will allow
us to serve you better over the lifetime of the product.
To register your product go to:
https://www.legendbrands.com/resources/warranty-registration/
For customer assistance:
866-445-3030

Page | II
118189/49-038 Rev L LEGEND BRANDS MODEL 370
LEGEND BRANDS LIMITED WARRANTY
Legend Brands Model 370 SS
What Does This Warranty Cover?
This warranty covers the Legend Brands Model 370 SS and is provided to the original purchaser only.
How Long Does This Warranty Last?
This warranty runs for:
Two (2) years from the date of installation on parts and labor (Excluding normal maintenance items.) Factory installed original belts
are covered for 500 hours. Water box, recovery tank and frame are covered for five years. All other components including seals, o-
rings and electrical components are covered for the entire two year warranty period.
What Legend Brands Will Do:
If a defect in materials or workmanship occurs within the warranty period, Legend Brands at its election will repair or replace the
defective part at no charge.
What This Warranty Does Not Cover:
This warranty does not cover or apply to defects due directly or indirectly to misuse, abuse, disassembly, alteration, corrosive
chemicals, improper voltage, improper fuel, fire, flood, negligence, accident, improperly or incorrectly performed maintenance or
repair, or failure to perform necessary or recommended maintenance or repair (See your Owner’s Manual) or if the use of this
product is not in compliance with the instructions and specifications for its use. This warranty does not cover normal maintenance
items such as air and oil filters, lubricants and tune up parts. Paint is not covered. Water box, recovery tank and frame are covered
for five years. All other components including seals, o-rings and electrical components are covered for the entire two year warranty
period. We limit all implied warranties to:
Two (2) years from the installation date on parts and labor. It is strongly recommended that this truck mount be used with, and only
with, Legend Brands recommended chemicals and as directed by label instructions on chemical bottles.
OTHER THAN THE WARRANTIES PROVIDED HEREIN, LEGEND BRANDS MAKES NO EXPRESS OR IMPLIED, ORAL OR WRITTEN
WARRANTIES WITH RESPECT TO THIS PRODUCT OR WORKMANSHIP AND ALL WARRANTIES IMPLIED BY LAW INCLUDING ANY
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED TO THE DURATION OF THIS WARRANTY.
Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you. WE
SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY OR FOR INCIDENTAL, CONTINGENT, SPECIAL OR
CONSEQUENTIAL DAMAGES ARISING FROM USE OF OUR PRODUCTS. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation or exclusion may not apply to you.
How Do I Get Service?
In order to be eligible for service under this warranty you MUST do the following: (a) fill out the warranty registration card on-line
within thirty (30) days of the installation of our product; (b) write or call a service representative at Legend Brands for a return
material authorization (RMA); and (c) have the serial number available. Proof of proper maintenance may be required before
warranty is granted.
Contact us at:
Legend Brands
2604 Liberator, Prescott, AZ 86301
Phone: [phone]
If Legend Brands uncovers a defect we will repair or replace the product, at our election. Ground shipping and transportation costs
will be covered by the manufacturer. Returning defective parts to the manufacturer, if required, shall be the responsibility of the
purchaser. Warranty may be denied if defective parts are not returned within 90 days. If it is determined that there is no defect in
the product, or that the defect resulted from causes not within the scope of our warranty, then the product will be repaired or
replaced only at your request and at your expense and you must bear all shipping costs.
How Does State Law Apply?
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Page | III
118189/49-038 Rev L LEGEND BRANDS MODEL 370
TABLE OF CONTENTS
SECTION ONE: GENERAL INFORMATION 1
HOW TO USE THIS MANUAL.......................................................................1
SAFETY WARNINGS AND CAUTIONS ...........................................................2
SPECIFICATIONS.........................................................................................6
OVERALL DIMENSIONS...............................................................................7
FUEL REQUIREMENTS.................................................................................10
ENGINE REQUIREMENTS ............................................................................10
CHEMICAL REQUIREMENTS ........................................................................10
WATER REQUIREMENTS.............................................................................10
RECEIVING YOUR TRUCKMOUNT................................................................11
SECTION TWO: INSTALLATION 13
INSTALLATION ...........................................................................................13
INSTALLATION OF FUEL LINES.....................................................................16
CONSOLE TO WASTE TANK CONNECTIONS..................................................21
BATTERY CONNECTION ..............................................................................22
FIRE EXTINGUISHER....................................................................................22
SECTION THREE: OPERATION 23
UNDERSTANDING THE SYSTEMS.................................................................23
PREPARATION AND OPERATION.................................................................27
FREEZE PROTECTION..................................................................................36
SECTION FOUR: SERVICE AND MAINTENANCE 39
MAINTENANCE CHART ...............................................................................39
SERVICE INTERVALS CHART ........................................................................40
MAINTENANCE AND SERVICE ADJUSTMENTS..............................................41
TROUBLESHOOTING...................................................................................52
SECTION FIVE: REFERENCE DIAGRAMS 58
WIRING DIAGRAM .....................................................................................94
HOSE ROUTING AND FLOW DIAGRAM........................................................95

SECTION ONE: GENERAL INFORMATION
P a g e | 1
118189/49-038 Rev L LEGEND BRANDS MODEL 370
HOW TO USE THIS MANUAL
This manual contains the following sections:
•How to Use This Manual
•Safety
•Installation
•Operation
•Maintenance & Service
•Reference Diagrams
The HOW TO USE THIS MANUAL section will tell you
how to find important information for ordering correct
repair parts.
Spare Parts and Reference documents are no longer
included in this manual. Current parts diagrams can be
found at:
https://www.legendbrands.com/products/370-
truckmount/
Search under documents for manuals specific to your
model based on serial number
Parts may be ordered from authorized dealers. When
placing an order for parts, the machine model and
machine serial number are important. Refer to the
MACHINE DATA box which is filled out during the
installation of your machine. The MACHINE DATA box is
located on the inside of the front cover of this manual.
The model and serial number of your unit is located on
the front left side of the frame as shown here:
The SAFETY section contains important information
regarding hazardous or unsafe practices for this
machine. Levels of hazards are identified that could
result in product damage, personal injury, or severe
injury resulting in death.
The INSTALLATION section contains information on
how to properly install the unit in your vehicle.
The OPERATION section is to familiarize the operator
with the operation and function of the machine.
The MAINTENANCE section contains preventive
maintenance to keep the machine and its components
in good working condition.
The PARTS LISTING & DIAGRAMS section contains
assembled parts illustrations and corresponding parts
list. The parts lists include a number of columns of
information:
NOTE: If a service or option kit is installed on your
machine, be sure to keep the KIT INSTRUCTIONS which
came with the kit. It contains replacement parts
numbers needed for ordering future parts.

SECTION ONE: GENERAL INFORMATION
P a g e | 2
118189/49-038 Rev L LEGEND BRANDS MODEL 370
SAFETY
The following warning labels are on your mobile cleaning unit. These labels point out important WARNINGS and
CAUTIONS, which must be followed at ALL times. Failure to follow these warnings could result in injury or fatality to
yourself and/or others or property damage. Please follow these instructions carefully! DO NOT remove these decals.
This WARNING symbol is used throughout the manual to warn of the possibility of physical injury or fatality. Please read
all warnings carefully before operating the equipment.
This CAUTION symbol is used throughout the manual to warn of the possibility of damage to equipment or personal
property.

SECTION ONE: GENERAL INFORMATION
P a g e | 3
118189/49-038 Rev L LEGEND BRANDS MODEL 370
Read the operator’s manual before starting this unit.
Failure to adhere to instructions could result in severe personal injury or could be fatal.
Operate your vehicle and equipment in a well-ventilated area.
Exhaust fumes contain carbon monoxide, which is an odorless and deadly poison that can cause severe injury or death.
DO NOT run the vehicle in an enclosed area. DO NOT operate this unit where the vehicle exhaust may enter a building
doorway, window, vent or other opening.
This unit must be operated with the vehicle doors open in order to ensure adequate ventilation to the engine..
Gasoline is extremely flammable and its vapors can explode if ignited. Store gasoline only in approved containers, in
well-ventilated, unoccupied buildings and away from sparks or flames. Never carry gasoline or any flammable materials
in the vehicle. Fumes could accumulate inside of the vehicle and ignite, causing an explosion.
DO NOT operate unit if gasoline is spilled. Do not turn ignition switch until the gasoline has been cleaned up. Never use
gasoline for cleaning purposes.
DO NOT place hands, feet, hair, clothing or any body parts near rotating or moving parts. Rotating machinery can cause
severe injury or death.
NEVER operate this unit without belt and safety guards. High speed moving parts, such as belts and pulleys should be
avoided while the unit is running. Severe injury, fatality and/or damage may result.
NEVER service a unit while it is running. High speed mechanical parts as well as high temperature components and
fluids may result in severe injury or fatality.
Engine, vacuum pump and heat exchanger components, hoses and fittings will be extremely hot from operation. To
prevent severe burns, DO NOT touch these areas while the unit is running, or shortly after the unit is shut off.
DO NOT touch any part of the exhaust system while the system is running or for 20 minutes after the unit is shut off.
Severe burns could result.
Water under pressure can cause severe personal injury or fatality. Shut down unit, allow to cool down, and relieve
system of all pressure before removing caps, valves, plugs, fittings, filters or hardware.
NEVER leave the vehicle engine running while the unit is in operation.
Battery acid contains sulfuric acid. To prevent acid burns, avoid contact with skin, eyes and clothing. Batteries also
produce explosive hydrogen gases while charging. To prevent fire or explosion, charge batteries only in a well ventilated
area. Keep sparks, open flames, as well as other sources of ignition away from battery at all times. Remove all jewelry
prior to servicing batteries. Keep batteries out of the reach of children.
Before disconnecting the negative (−) ground cable, ensure that all switches are in the off position. If on, a spark could
occur at the ground connection terminal which could cause an explosion if hydrogen gas or gasoline vapors are present.
ALWAYS disconnect the negative (−) terminal first

SECTION ONE: GENERAL INFORMATION
P a g e | 4
118189/49-038 Rev L LEGEND BRANDS MODEL 370
DO NOT smoke around the vehicle. Gas fumes could accumulate and ignite. Battery gasses are extremely flammable.
This will prevent possible explosions.
NEVER cut or splice any of the vehicle fuel lines during fuel line installation. This will result in fuel leaks and potentially
dangerous conditions. Use only the provided fuel hose for fuel lines. When going through the vehicle floor with fuel
lines, always utilize bulkhead adaptors. This will prevent fuel leaks and ensure that hoses are not punctured by vehicle
vibration abrasion.
All high-pressure hoses must be rated at 250° F and 3000 PSI. Severe injuries may result from improper hoses.
The Occupational and Health Administration (OSHA) recommends the use of hearing protection when a technician is
exposed to an average of 85 decibels (this is an average of exposure over an 8 hour period). This equipment can
produce 85 decibels at a distance of 10 feet. Please check with your local state agencies to see if OSHA standards apply
to your application.
This unit produces high solution pressure. Improper use could result in injury.
California Proposition 65 Warning: Engine exhaust from this product contains chemicals known by the State of California
to cause cancer, birth defects, or other reproductive harm.
The following label (Legend Brands part number 114168) has been included with your cleaning unit installation kit. In
the state of California, this label must be installed on the vehicle or trailer where the unit is installed in an area that is
clearly visible while the unit is operating.

SECTION ONE: GENERAL INFORMATION
P a g e | 5
118189/49-038 Rev L LEGEND BRANDS MODEL 370
DO NOT damage the vehicle in any way during the installation. Avoid component or hose contact with moving parts,
hot surfaces, brake lines, fuel lines, catalytic converters, exhaust pipes, mufflers, rotating parts or sharp objects.
DO NOT exceed the vehicle’s payload capacity. This will prevent unsafe or hazardous driving conditions. Before
installing any components into the vehicle, check with the vehicle manufacturer for the Gross Vehicle Weight Rating
(GVWR). GVWR is the maximum allowable combined weight of the vehicle, including all passengers, fuel, fluids, tools
and cargo.
Example: If the GVWR for a vehicle is 9600 lbs. and the vehicle has a base curb weight of 6406 lbs., this leaves a payload
capacity of 3194 lbs. (GVWR - Curb Weight = Payload Capacity).
Always keep your vehicle clean and orderly. Tools and accessories must be securely stowed while driving the vehicle.
Ensure that you have received proper training and are familiar with the start-up and shut-down procedures prior to
operation.
DO NOT alter or modify your unit in any way. Use only replacement parts authorized by Legend Brands. Modifications
or use of unapproved parts could create a hazard and will void your warranty. This includes the use of any open ended
hoses.
Failure to apply preventative measures towards freezing can result in system failure and loss of warranty on affected
parts. Water freezes at 32° F and 0° C.
READ AND SAVE THESE INSTRUCTIONS

SECTION ONE: GENERAL INFORMATION
P a g e | 6
118189/49-038 Rev L LEGEND BRANDS MODEL 370
SPECIFICATIONS
Engine Speed
3000 RPM (High Speed/No Load)
1550 RPM (Idle/No Load)
Water Pump RPM
1579 RPM (High Speed/No Load)
Water Pump Flow Rate
3.5 GPM (Maximum)
Solution Pump Pressure
1500 PSI (Maximum)
Vacuum Pump
3000 RPM (High Speed/No Load)
Vacuum Relief Valve
13 in. Hg
Waste Tank Capacity at Shut-Off
90 gallons / 120 gallons (optional high-capacity tank)
Console Weight
644 lbs. (dry)
Standard Install Package Weight
916 lbs. w/90 gal. waste tank (dry)
926 lbs. w/120 gal. waste tank (dry)
Operating Weight (full water)
1580 lbs. w/90 gal. waste tank (full water)
1934 lbs. w/120 gal. waste tank (full water)
*Weights are approximate and do not include optional accessory items
TORQUE VALUES
Engine Crankshaft / Blower Pulley
122 in-lbs
Engine Front / Water Pump Pulley
122 in-lbs
JET SIZING
Legend Brands recommends that the total floor tool tip size be #6

SECTION ONE: GENERAL INFORMATION
P a g e | 7
118189/49-038 Rev L LEGEND BRANDS MODEL 370

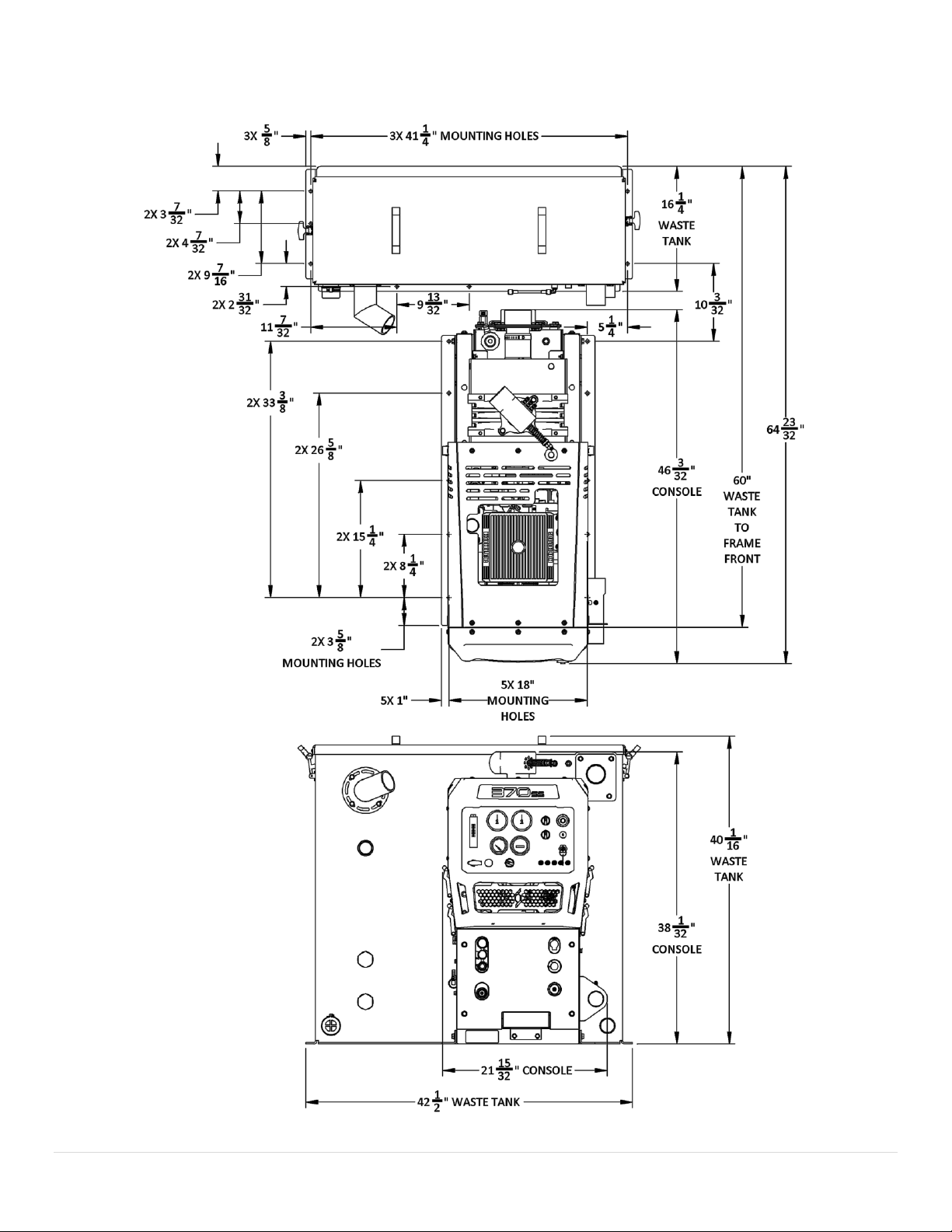

LAYOUT WITH 90 GALLON WASTE TANK

SECTION ONE: GENERAL INFORMATION
P a g e | 8
118189/49-038 Rev L LEGEND BRANDS MODEL 370
LAYOUT WITH 120 GALLON WASTE TANK

SECTION ONE: GENERAL INFORMATION
P a g e | 9
118189/49-038 Rev L LEGEND BRANDS MODEL 370

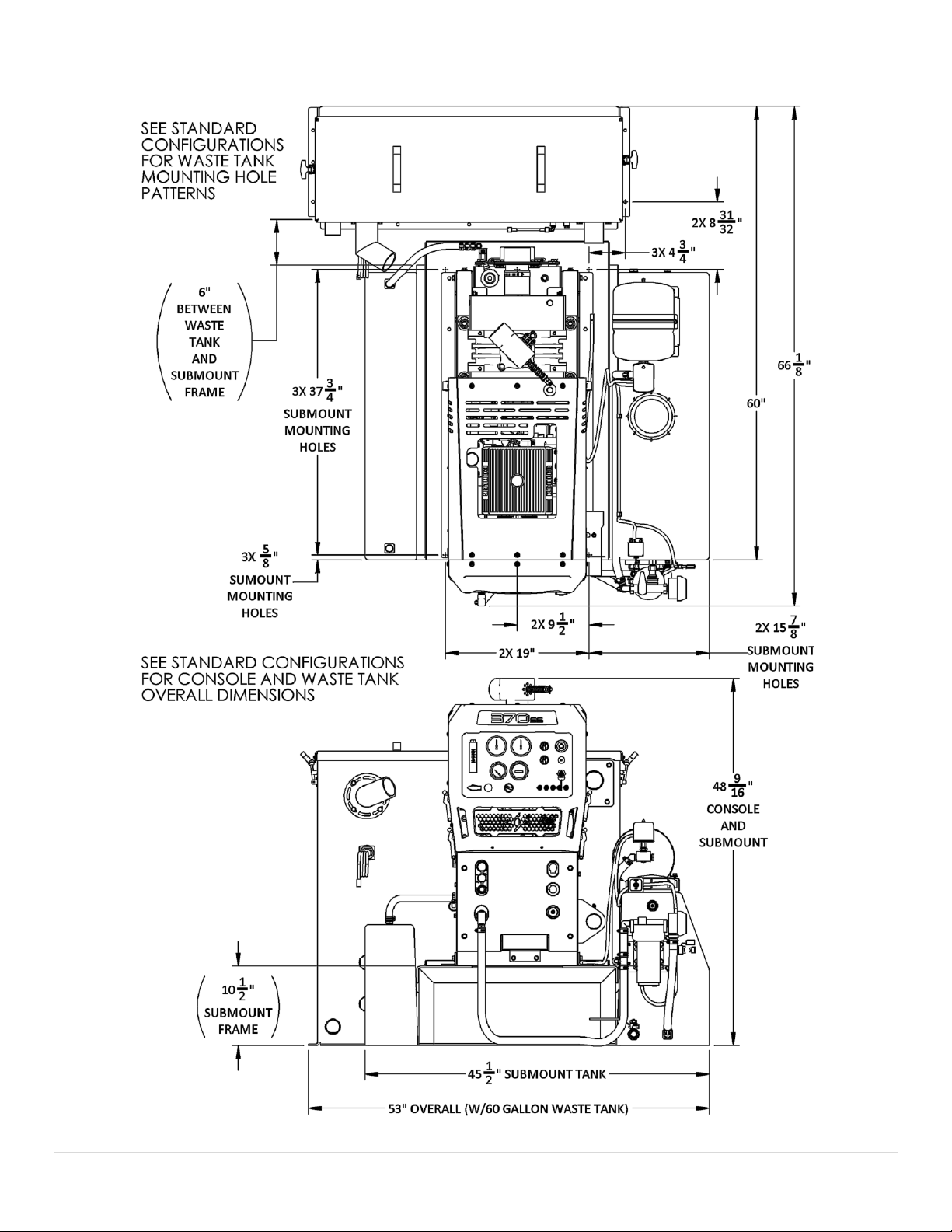

LAYOUT WITH OPTIONAL SUBMOUNT WATER TANK

SECTION ONE: GENERAL INFORMATION
P a g e | 10
118189/49-038 Rev L LEGEND BRANDS MODEL 370
FUEL REQUIREMENTS
Use unleaded fuel ONLY. Use only fresh, clean unleaded gasoline with a minimum octane rating of 87. Do Not use high
octane gasoline. Gasoline with up to, not exceeding, 10% ethanol is acceptable.
NOTE: Using other gasoline/alcohol blends including E20 and E85 will cause damage to engine components and will void
warranty.
ENGINE OIL REQUIREMENTS
Use high-quality oil of at least API (American Petroleum Institute) service class SG or higher. Do not use additives. High
quality 10W-30 or 10W-40 oil is recommended. It is never recommended to extend oil change intervals past 200 hours.
See the maintenance section in this manual, or the engine owner’s manual for more information.
Engine Oil Capacity
1.4 L (1.5 US qt.) when oil filter is not removed
1.6 L (1.7 US qt.) when oil filter is removed
NOTE: Using lower service class oil or extending oil change intervals longer than recommended can cause engine
damage.
CHEMICAL REQUIREMENTS
This unit’s unique last step chemical injection system can be used with a wide variety of water diluted
chemical compounds, either acidic or alkaline, depending on the work to be performed. We recommend using
only Legend Brands chemistry.

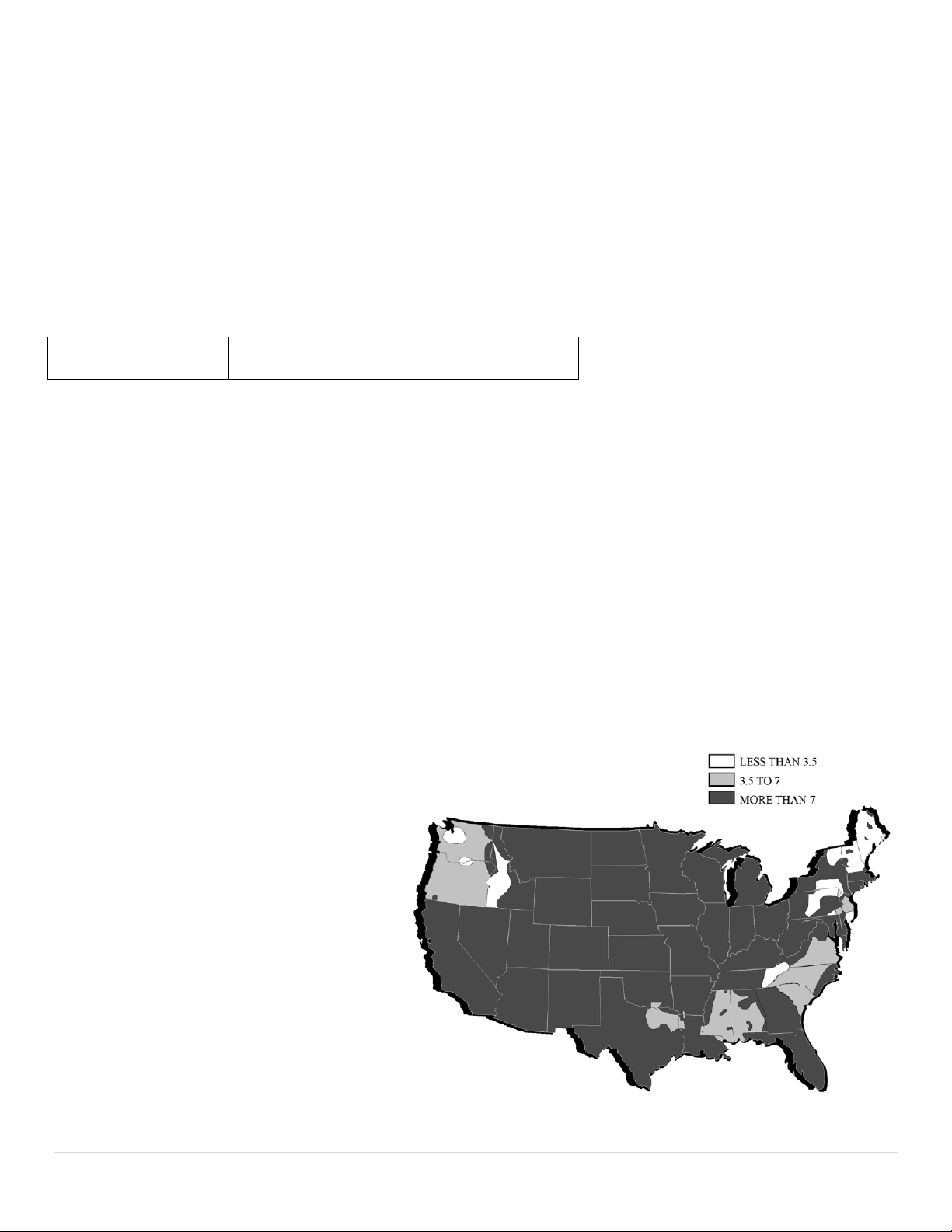

WATER REQUIREMENTS
Hard water deposits will damage the plumbing and heat exchange systems on this unit. The map below will give you an
idea of where areas of high water hardness may occur. However, any water supply obtained from a well is almost
always hard water.
It is highly recommended that a high quality water softener be used in areas where the water hardness exceeds 3½
grains. If a water softener is used, it must have a flow capacity of at least five (5) GPM or greater, without any hose
constrictions.
The use of a water softening system will reduce
maintenance and reduce down time caused by
hard water scaling. It will also enhance the
performance of cleaning chemicals, which will
result in greater efficiency in lower
concentrations.
If you require a water softener, your dealer has
a model to meet your needs. Please contact
your nearest distributor for information, price
and availability.

SECTION ONE: GENERAL INFORMATION
P a g e | 11
118189/49-038 Rev L LEGEND BRANDS MODEL 370
RECEIVING YOUR TRUCK-MOUNT UNIT
DEALER RESPONSIBILITIES
The Legend Brands authorized dealer that you purchased this unit from is responsible for:
1. Correctly installing and properly securing equipment with proper hardware and underside mounting plates.
2. Checking the components and oil levels prior to starting the unit.
3. Checking that all components are operating at the factory specification.
4. Checking all hoses and accessories for correct operation.
5. Checking all tools/wands for correct operation.
6. Training you in the operation, maintenance and safety precautions of your unit.
It is the purchaser’s responsibility to become familiar with the entire Owner’s Manual, most importantly all Warnings,
Cautions and Notices.
ACCEPTANCE OF SHIPMENT
Your unit was thoroughly tested, checked and inspected in its entirety prior to leaving our manufacturing facility. When
receiving your unit, please make the following acceptance check:
1. The unit should not show any signs of damage. If there is damage, notify the deliverer immediately.
2. Carefully check your equipment against the packing slip to make sure everything you ordered has arrived.
STANDARD EQUIPMENT LISTING
•Console
•Waste tank with shut-off switch
•100 ft. of 2 in. vacuum hose
•1 2-inch vacuum hose connector
•100 ft. of 1/4 in. high pressure solution
hose with quick disconnect fittings
•50 ft. water supply hose with quick
connect
•12-inch low-profile wand
•Waste tank mesh filter
•Waste tank strainer basket
•Fuel pump and filter assemblies
•Installation mounting plates and
hardware
•Operation and Service Manual
OPTIONAL EQUIPMENT
•Automatic waste pump kit
Part No. 124982
•Demand pump system
Part No. 107273
•50 ft. 2-inch vacuum hose
Part No. 106318
•50 ft. 2-1/2-inch vacuum hose
Part No. 117418
•2-inch vacuum hose coupler
Part No. 105289
•50 ft. high-pressure solution hose with qd
fittings (no valve)
Part No. 117482
•100 ft. high-pressure solution hose w/valve
and qd fittings
Part No. 117480
•50 ft. water hose w/qd fitting
Part No. 106322

SECTION ONE: GENERAL INFORMATION
P a g e | 12
118189/49-038 Rev L LEGEND BRANDS MODEL 370
FUEL HOOK-UP KITS BY VEHICLE
•Chevy 2004+ Hook-Up Kit ..........107439
•Chevy Box Truck 2004+..............117802
•Ford 2011+.................................108605
•Ford Transit 2014+.....................107279
•Nissan NV...................................107363
•Dodge ProMaster.......................108708

SECTION TWO: INSTALLATION
P a g e | 13
118189/49-038 Rev L LEGEND BRANDS MODEL 370
SECTION TWO: INSTALLATION
!!!
This unit must be installed in the vehicle by an authorized Legend Brands distributor.
Prior to beginning the installation, read the ENTIRE Installation section of this manual.
VEHICLE REQUIREMENTS
Because of the overall weight of the console and tanks, this unit should NOT be installed in any motor vehicle rated less
than 3/4 ton capacity.
!
DO NOT exceed the vehicle’s payload capacity. This will prevent unsafe or hazardous driving conditions. Before
installing any components into the vehicle, check with the vehicle manufacturer for the Gross Vehicle Weight Rating
(GVWR). GVWR is the maximum allowable combined weight of the vehicle, including all passengers, fuel, fluids, tools
and cargo.
1. If installing the unit in an enclosed utility trailer, the trailer must have dual axles, 2800 lb. load capacity and
electric trailer brakes. Fuel tanks cannot be mounted in an enclosed space. Strict compliance with all State and
Federal laws must be maintained.
2. If mounting in a trailer, the console must be positioned so that it balances properly with respect to the trailer
axle. Ten percent (10%) of the unit’s total overall weight (w/o accessories or water) should be on the tongue.
This unit has an air cooled engine, and adequate ventilation must be provided to prevent overheating.
3. At the time of publication, Legend Brands does not recommend or approve of installation of this unit in electric
vehicles/vans as there is currently no approved fuel storage tank available for EV applications.
4. Legend Brands does not recommend using any type of flooring materials that absorb water. This condition will
result in rust and corrosion of the vehicle floor.
5. Insulation under rubber mats should be removed prior to installation of the unit.
LIFTING THE UNIT INTO THE VEHICLE
Because of the weight of the console, a forklift is necessary to place the unit into the vehicle. Position forks under the
unit from the front. Once the console is positioned on the forks, use two “C” clamps to secure it before transporting.
Carefully move the unit into the desired position.

SECTION TWO: INSTALLATION
P a g e | 14
118189/49-038 Rev L LEGEND BRANDS MODEL 370
POSITIONING THE UNIT INTO THE VEHICLE
Vehicles vary in size and openings. Owners have different preferences on where in the vehicle they want their units
positioned. Legend Brands strongly recommends a side door installation. We DO NOT recommend a rear door
installation.
1. Ensure that enough space is provided to assure adequate engine ventilation as well as room for service and
maintenance.
2. Operating weight of the complete installation (which includes water weight) with waste tank and ALL
accessories MUST NOT exceed the vehicle’s axle weight limit. Please refer to SPECIFICATIONS in Section One for
standard unit and waste tank operating weight.
3. Be aware of heat generated by components of the unit. On vehicles without a solid bulkhead, DO NOT position
the console frame closer than twelve inches from the bottom of the driver and passenger seats.
4. Consider all accessories, the required space, hose and electrical routing prior to positioning the console and
waste tank.
NOTE: Please refer to the dimensional data illustrations provided in Section One of this manual for console and tank
dimensions.

SECTION TWO: INSTALLATION
P a g e | 15
118189/49-038 Rev L LEGEND BRANDS MODEL 370
FASTENING DOWN THE UNIT AND WASTE TANK
Prior to drilling any holes in the vehicle floor, ensure that while drilling, you will not damage the fuel tank, fuel lines, or
any other vital components which could affect the safety or operation of the vehicle.
A. The console and waste tank mounting holes will serve as a template. Drill six (6) 13/32-inch diameter holes for the
console and six (6) to eight (8) 13/32-inch diameter holes for the waste tank.
B. Using the provided mounting hardware kit:
Insert 3/8-16 × 2-inch hex head cap screws with flat washers through the console and waste tank mounting holes. The
two 5/16-18 x 6-inch hex head cap screws are provided for the two front waste tank holes if the unit is being installed
into a Ford Transit. Bolts that lie over or near a fuel tank or any other sensitive areas must be installed from the
underbody with the threads facing up into the vehicle interior.

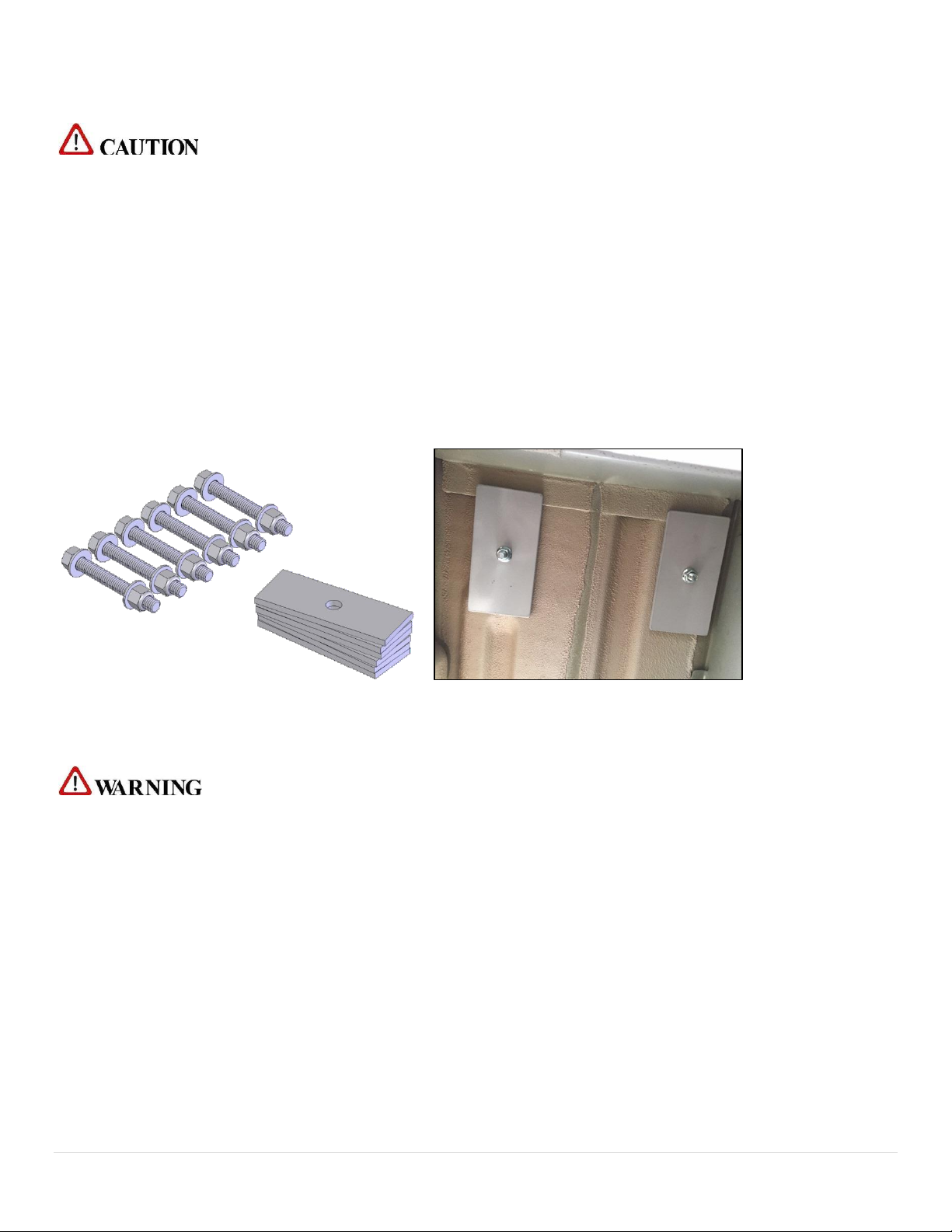

Install the provided mounting plates underneath the vehicle floor. Use the larger plates where space is available.
Screw the provided 3/8-16 hex head lock nuts on to the mounting bolts and tighten until the console and waste tank are
firmly attached to the vehicle floor.
!Do not alter or modify your unit in any way. Use only replacement parts authorized by Legend
Brands.Modifications or use of unapproved parts could create a hazard and will void your warranty. Contact your
authorized Legend Brands dealer for assistance.
