x 2
Specifications:
Max = 60 lbs/27kg
Guide
Fit
Max = 120 lbs/54kg (Max = 60 lbs/27kg per bike)
Class II or higher receiver required when carrying more than two bikes.
1
BIKE
2
BIKE
Items Included:
4031/4032
4031 x 1
4032 x 2
28572A_MTR Instruction Manual.indd 4 2/19/2019 10:21:30 AM

For relevant patents, see www.saris.com/patents
Para las patentes pertinentes, consulte www.saris.com/patents
Pour les brevets concernés, consultez www.saris.com/patents
View our installation video at
http://www.saris.com/en/instructional-videos-1.html
Vea nuestro vídeo de instalación en
http://www.saris.com/en/instructional-videos-1.html
Visionnez notre vidéo d’installation à l’adresse
http://www.saris.com/en/instructional-videos-1.html
1
FOLD DOWN AND OPEN RACK | DOBLAR HACIA ABAJO Y ABRIR LA REJILLA | PLIER ET OUVRIR LE RACK
Pull lever at end of rack to unfold from storage position.
EN
A
B
C
28572A_MTR Instruction Manual.indd 5 2/19/2019 10:21:32 AM

Insert receiver tube into hitch as shown. For 1.25” receiver,remove (3) -
5mm bolts to disconnect 2” adapter (1-bike model only). Line up hole in
receiver tube with holes in hitch. Install lock washer on hitch pin. Insert hitch
pin on right passenger side of receiver. Thread pin by hand until tight. Slide
hole finder collar up against receiver and clamp lever down. Install lock head.
*Toensure properly tightened, lift front handle of rack and tighten pin until all
play has been removed. Periodically check pin tightness on long trips. A 1/2”
wrench may be used to make installation or removal easier.
EN
2
2”
A
1-1/4”
B
28572A_MTR Instruction Manual.indd 6 2/19/2019 10:21:34 AM

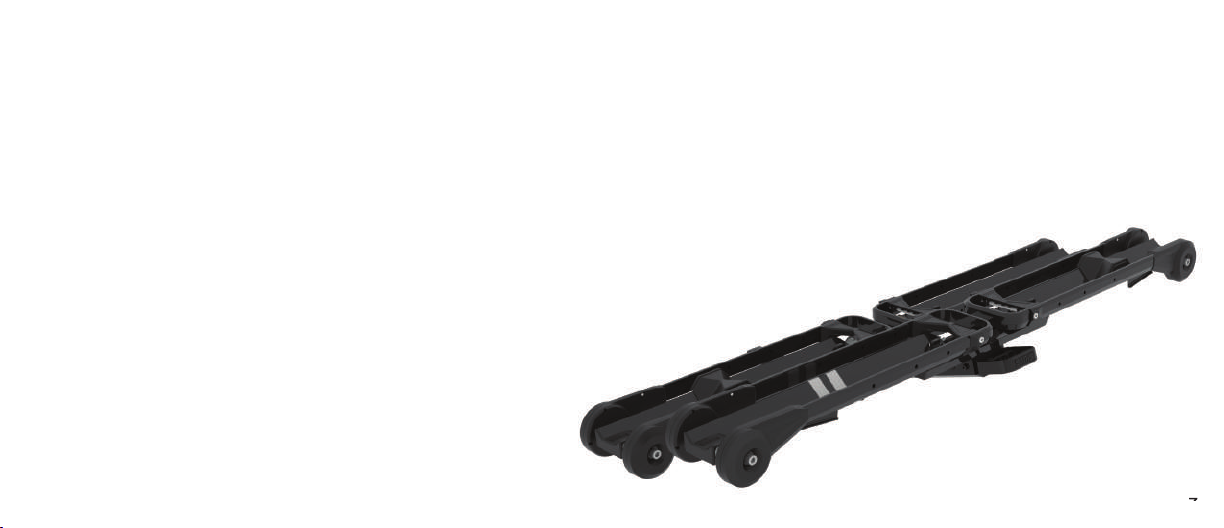

Pull lever at end of rack to lower rack to transport position.
3EN
A
B
28572A_MTR Instruction Manual.indd 8 2/19/2019 10:21:37 AM

Copy here...
EN
2

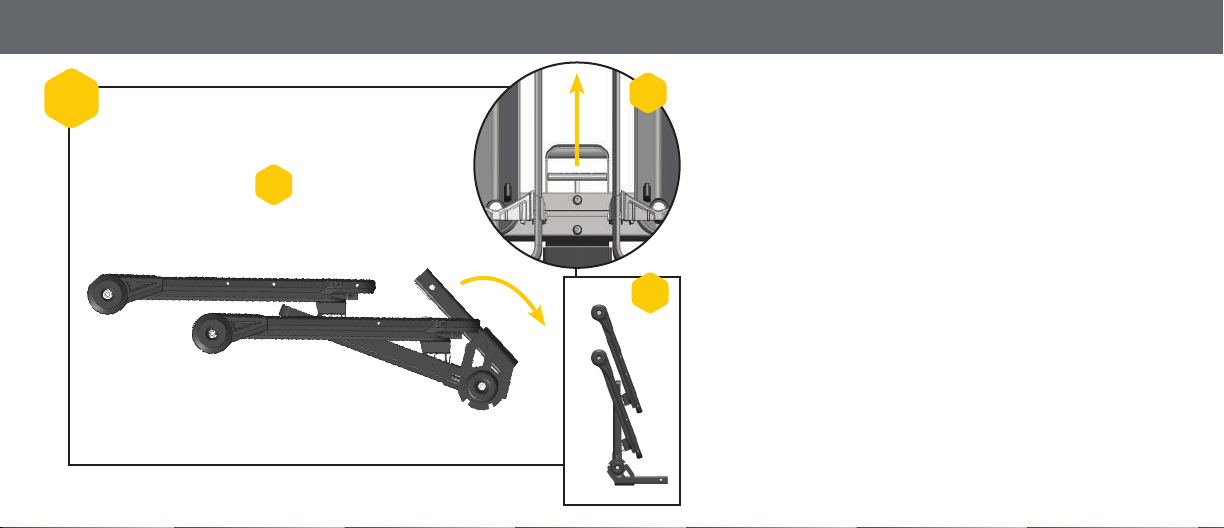

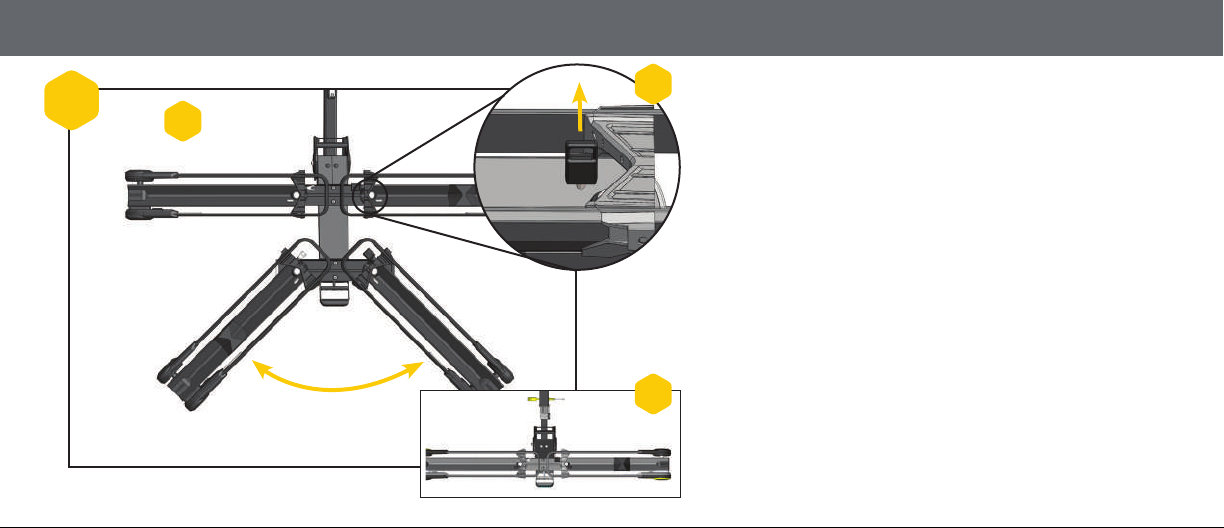

Pull up on silver pin on inner side of trays and pivot trays toward vehicle.
Trays closest to vehicle must be pivoted first (if opening a 2 or more bike
configuration).
4
OPEN TRAYS /
EN
A
B
C
28572A_MTR Instruction Manual.indd 9 2/19/2019 10:21:39 AM

1
COPY HERE
EN
5Pull and hold silver trigger to open arms.
OPEN RA
CK ARMS
28572A_MTR Instruction Manual.indd 10 2/19/2019 10:21:40 AM

1EN
COPY HERE
OPEN RACK ARMS / ABRIR BRAZOS DEL PORTABICICLETAS / OUVERTURE DES BRAS DU PORTE-VÉLO
Copy here...Use hex key located at the backside of the center beam to
adjust wheel block position. The four holes have been optimized for
fitting the front wheel. The chart reflects position of upper wheel holder
on front wheel. The rear wheel holder should be placed in the highest
location possible without going over center on the rear wheel. Due to
various bike sizes, this may not always correspond to the front wheel
holder position.
Forbikes with rear rack or fender, position 3 or 4 should be used to
secure rear wheel. Note: Wheel block should not touch fenders.
EN

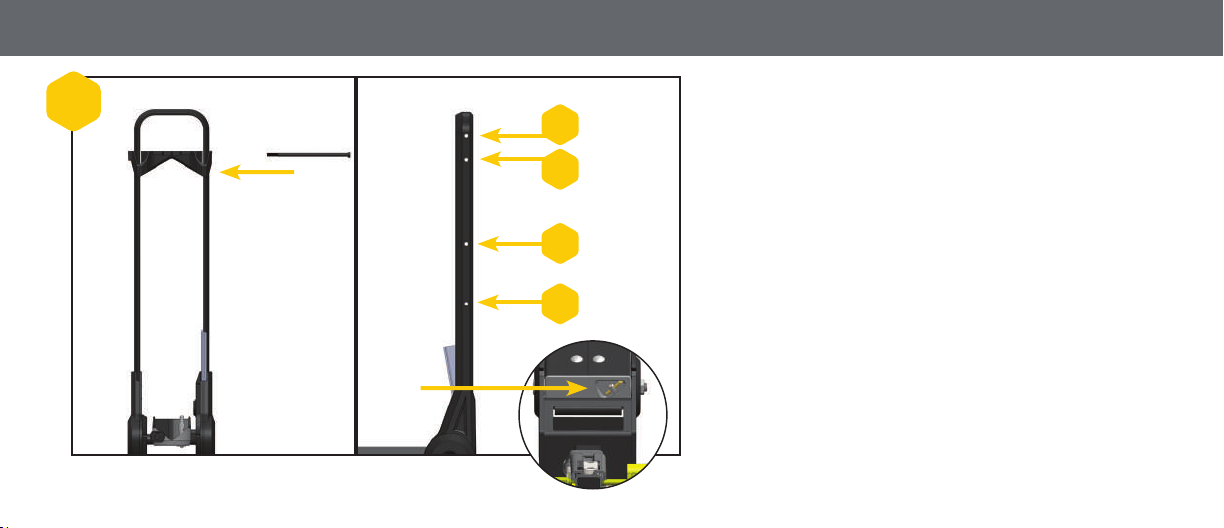

6
WHEEL BLOCK POSITIONING
1
2
3
4
>26”
26”
24”
20” &
Rear Fender
28572A_MTR Instruction Manual.indd 11 2/19/2019 10:21:42 AM

6
WHEEL BLOCK POSITIONING
1
2
3
4
>26”
26”
24”
20” &
Rear Fender
28572A_MTR Instruction Manual.indd 12 2/19/2019 10:21:43 AM

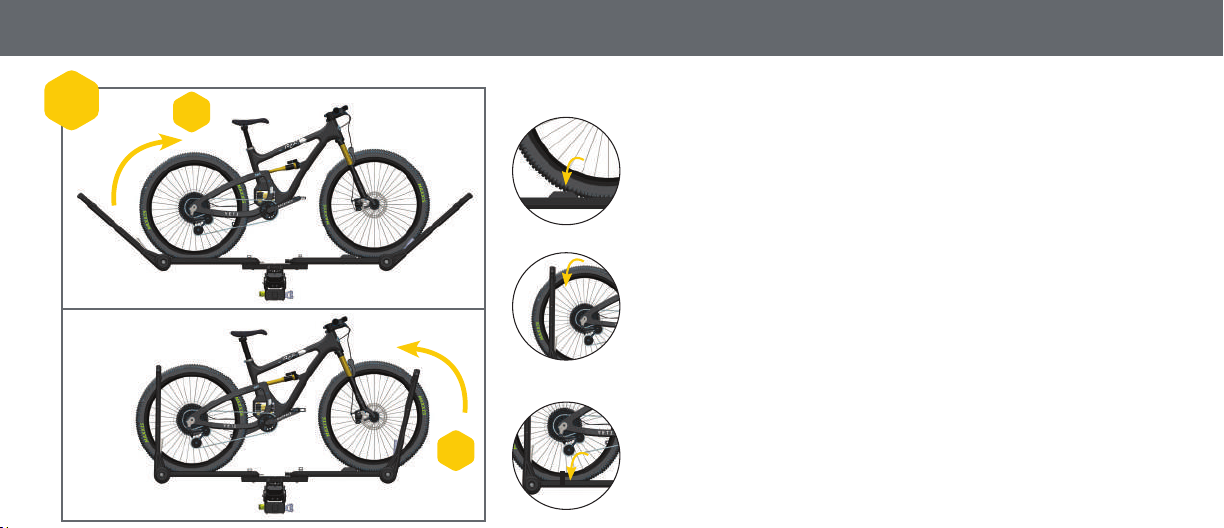

7EN Place front wheel over front wheel block on tray. Secure rear wheel
arm against rear wheel. Secure front wheel arm to front wheel.
Pushfront wheel arm until front wheel contacts lower wheel block.
Install rear wheel strap. Note: Load the heaviest bike on tray closest
to vehicle. Load closest bike to vehicle first.
LOAD BIKES
A
B
FRONT WHEEL PLACEMENT
REAR WHEEL PLACEMENT
REAR WHEEL STRAP
À l’aide de la clé hexagonale située à l’arrière de la barre centrale, réglez
la position du bloc de roue. Les quatre orifices ont été optimisés pour
l’installation de la roue avant. Le schéma indique la position du support
de roue supérieur sur la roue avant. Le support de roue arrière doit être
placé le plus haut possible, sans dépasser lecentre de la roue arrière.
En raison des différentes tailles de vélo, la position peut ne pas toujours
correspondre à celle du support de la roue avant. Pour les vélos avec
porte-bagages ou garde-boue arrière, utilisez les positions 3 ou 4 pour
fixer la roue arrière. Remarque: Lebloc de roue ne doit pas toucher le
garde-boue.
WHEEL BLOCK POSITIONING / COLOCACIÓN DE BLOQUEO DE RUEDAS / POSITIONNEMENT DU BLOC DE ROUE
28572A_MTR Instruction Manual.indd 13 2/19/2019 10:21:46 AM

EN

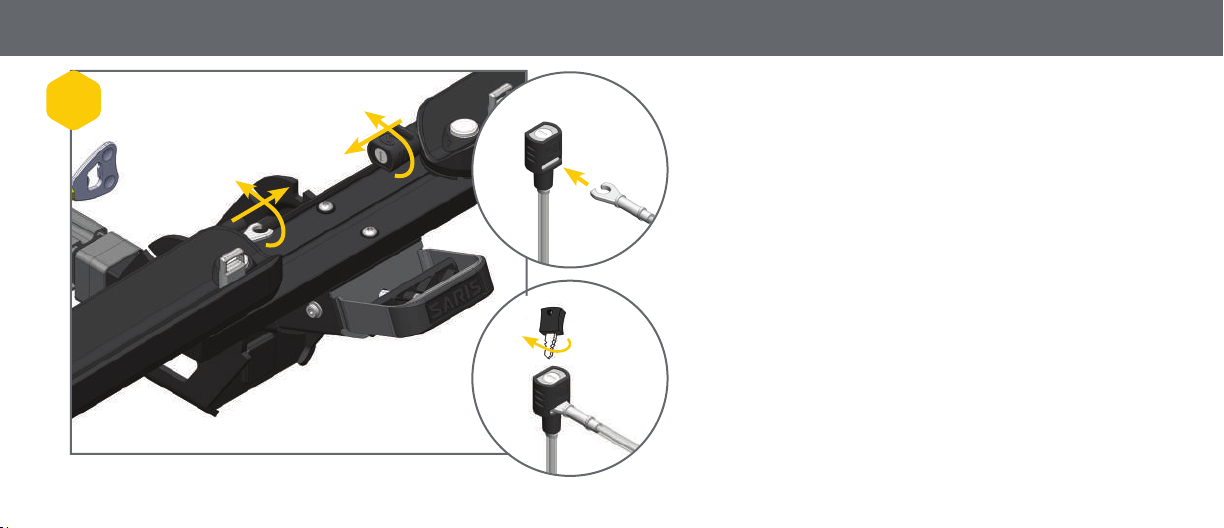

8Turn lock head 90 degrees and pull cable out of tray. Turn lock
fork 90 degrees and pull cable out of tray. Connect lock fork to
lock as shown. Turn key to lock.
LOCK BIKES
28572A_MTR Instruction Manual.indd 14 2/19/2019 10:21:51 AM

EN
9Pull lever handle at end of rack and fold rack down. Bring rack back to
transport position by lifting up on outer handle until an audible click is
heard. Note: Be sure to support the weight of the racks and bike when
tilting away.
HATCH ACCESS
LOCK BIKES / BLOQUEAR BICICLETAS / VERROUILLER DES VÉLOS
A
B
28572A_MTR Instruction Manual.indd 15 2/19/2019 10:21:52 AM

UNLOADING BIKES

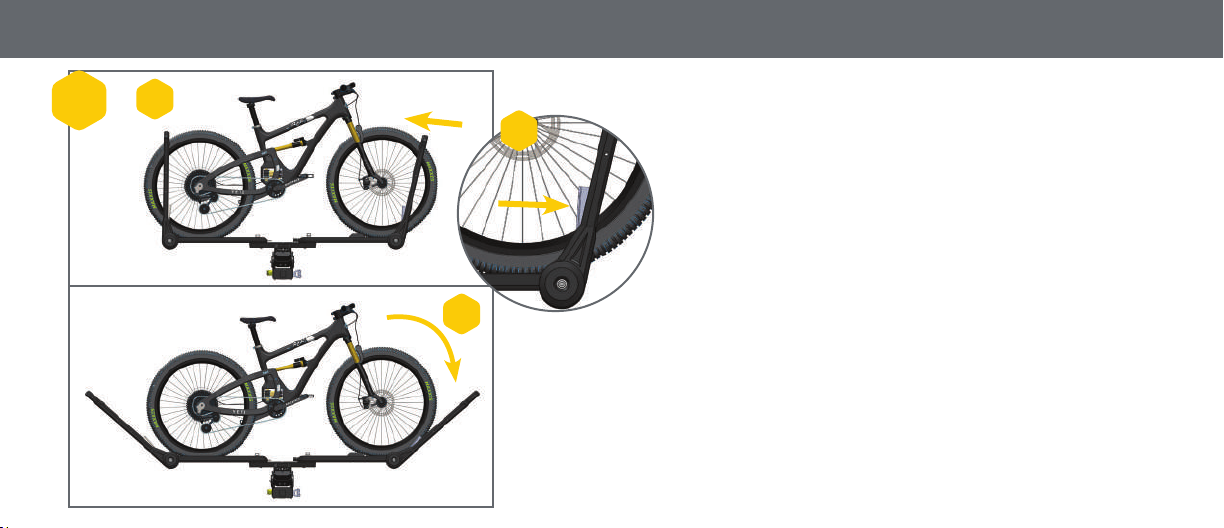

10 EN Push arm into front wheel while pulling the lever as shown.
Holdlever and fold arm away from bike. Repeat steps for rear
wheeland remove bike.
A
B
C
28572A_MTR Instruction Manual.indd 16 2/19/2019 10:21:54 AM

EN

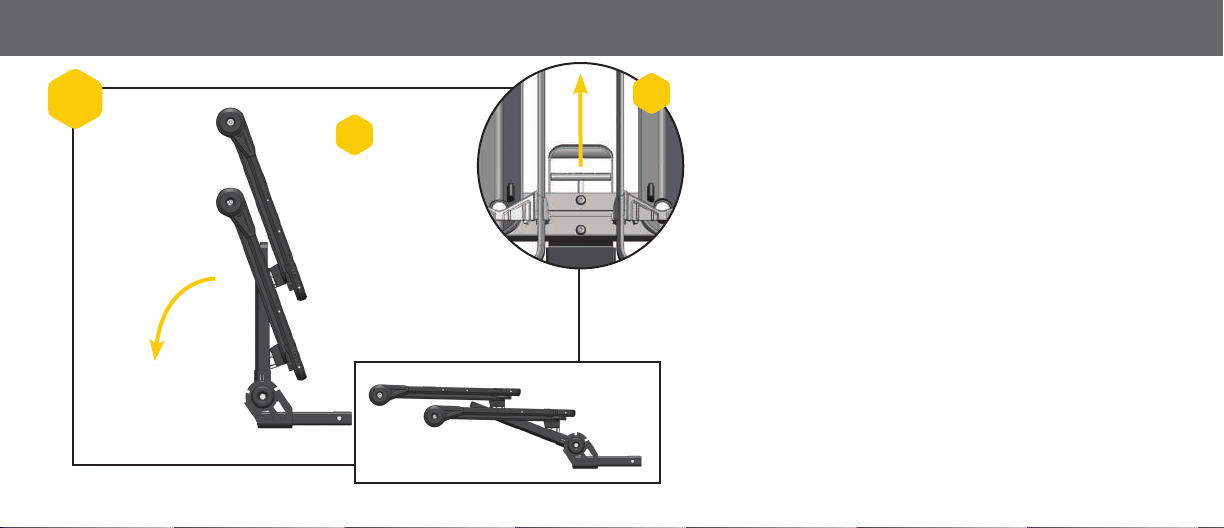

11 Pull pin and pivot trays outward. Pull handle at end of rack and
fold up. Note: Trays furthest from vehicle must be pivoted first.
UNLOADING BIKES / DESCARGA DE LAS BICICLETAS / DÉCHARGEMENT DES VÉLOS
B
C D
A
E
STORAGE
28572A_MTR Instruction Manual.indd 17 2/19/2019 10:21:57 AM

CAUTIONS:
• All requirements for compatability/fit as stated in the current Saris vehicle/carrier compatability guide must be followed (available at any Saris dealer). If your vehicle is
not listed or you have any questions, please call our customer service.
• Read and follow instructions carefully. Save owner’s manual for future reference or parts information. Ensure that any other users of the bicycle carrier are familiar with
its content.
• Before transport be sure your bicycle tires are properly inflated.
• Allow a minimum distance of 12” between the ground and the bottom of lowest wheel tray.
• Drive slowly over speed bumps, 5 to 10 mph max speed.
• It’s the end user’s responsibility to ensure that use of this product meets all local and state laws.
• When cleaning vehicle and rack, use only water soluble cleaners. Do not take rack through car wash.
• Make sure bike tires are not directly behind exhaust pipe.
• Rack must be installed directly into vehicle hitch receiver. Do not modify the hitch receiver or use hitch extenders.
• Do not mount to any type of trailer or RV including Class B vehicles.
• Prior to usage on the road, remove all loose parts from bicycle, including (but not limited to) child seat, basket, lock, light, pump, etc.
• This carrier is not recommended for off-road use or for use at speed exceeding 70 mph (113 km/h).
• The handling characteristics of a vehicle will change when a rear bicycle carrier is fitted and especially when it is loaded (in particular, crosswind sensitivity, handling on
bends and braking). Driving techniques should be altered to allow for these changes: reduce speed, especially on bends and allow for longer braking distances.
• The vehicle’s total length increases when the bike carrier is attached. The bikes themselves may increase the vehicle’s total width and height. Take care when reversing
and/or entering garages or ferries, etc.
EN Technical Specifications
1 Bike carrier weight: 39lb/17kg
Permitted load capacity: 60lb/ 27kg
Max bike weight: 60lb/27kg
Technical Specifications
2 Bike carrier weight: 59lb/ 27kg
Permitted load capacity: 120lb/ 54kg
Max bike weight: 60lb/27kg
28572A_MTR Instruction Manual.indd 18 2/19/2019 10:21:57 AM

• Remove carrier from vehicle when not in use.
• This carrier is constructed to carry standard bike frames. It is not intended for use with tandem or recumbent bicycles.
• Vehicle should be in good condition in the area at which the hitch is located.
• Do not exceed maximum load capacity of carrier! Secure properly and adjust for even load distribution, loading the heaviest/biggest bike first and closest to the vehicle.
• Saris absolves itself of responsibility for any personal injuries or consequential damage to property or wealth caused by incorrect fitting or use.
Warning and Disclaimer:
This carrier has been designed to carry bicycles on specific vehicles. Before installation, user must read and follow current Saris Fit Guide (available through Saris dealer) recommen-
dations and enclosed instructions. Fit recommendations are based on vehicle’s standard features; optional features may affect the fit recommendations. User must attach carrier
correctly to the vehicle, check its attachment before each use, and inspect carrier parts for wear. Carrier’s attachment to the vehicle is critical and beyond the control of the manufac-
turer. Manufacturer and seller expressly disclaim any and all liability for personal injury, property damage or loss, whether direct, indirect, or incidental, resulting from the incorrect
attachment, improper use, inadequate maintenance, or neglect of this carrier.
28572A_MTR Instruction Manual.indd 19 2/19/2019 10:21:57 AM
LIMITATIONS
The foregoing warranties are in lieu of and exclude all other warranties not expressly set forth herein, whether expressed or implied by operation of law or otherwise. Other than as set
forth above, SCG makes no warranty, whether express, implied or statutory, with respect to any product, including, but not limited to, warranties of reliability, merchantability fitness
for a particular purpose, or those arising from any course of performance, dealing, usage or trade. SCG shall not be liable for incidental or consequential losses, damages or expenses
in connection with its products. SCG’s liability hereunder is expressly limited to the replacement of goods not complying with this warranty or, at SCG’s election, to the repayment of
an amount of the purchase price of the product in question. Some states do not permit the exclusion or limitation of implied warranties or incidental or consequential damages, so the
preceding limitations and exclusions may not apply to you.

EN
EXCLUSIONS
· If consumer does not heed cautions listed in Instruction Manual, damage is not covered under warranty
· Impact/collision damage is not covered under warranty
· Cradles and strap damage due to improper arm placement are not covered under warranty
· Carrying anything other than a bicycle is not covered under warranty
· Rust is wear and tear and is preventable with rack maintenance
· Weather impact (UV, salt air/water)
RECOMMENDED RACK MAINTENANCE
Each use:
· Check bike cradles and wheel scoops
28572A_MTR Instruction Manual.indd 20 2/19/2019 10:21:57 AM
· Check for loose bolts
Every 90 days actions
· Clean with water and mild soap
· Lubricate locks if applicable (use wet, oil based lubricant; NO WD-40)
· Grease hitch bolt threads
· Check for scratches in paint
