Saris SuperClamp EX User manual

SuperClamp EX - 2 Bike
Assembly Instructions 4025F, 4025HD
25547E_SuperClamp EX.indd 1 1/13/2020 2:14:01 PM

25547E_SuperClamp EX.indd 2 1/13/2020 2:14:04 PM

LONG FOR THE RIDE
Just as no garage is complete without a bicycle, at Saris, we believe no car is
complete withouta bike rack.
Since setting off on this journey nearly 30 years ago, Saris racks have freed
millions of bike-lovers to explore new territory and terrain, take part in group
rides, bike pool to races, and commute to and from work.
And we continue to do so in style.
As the all-time #1 best-selling bike rack, Saris Bones® continues to set the
standard for excellence in design. Today all Saris bicycle racks are intuitive to
load and secure, and guaranteed for life.
Built by cyclists for cyclists in Madison, Wisconsin, we strive to create the
world’s best bike racks.
Because cycling is what we live for.
25547E_SuperClamp EX.indd 3 1/13/2020 2:14:08 PM

Specifications: 4025F SuperClamp EX
1-1/4” or 2” Compatible, Not approved for RV use.
Max = 60 lbs/kg 27
Máx.= 27 kg/60 libras
Max = 60lb/27kg
Fit
Guide
Max = 120 lbs/54kg (Max = 60 lbs/27kg per bike)
Máx.= 54 kg/120 libras (Máx. = 27 kg /60 libras por bicicleta)
Max = 120lb/54kg (Max = 60lb/27kg par vélo)
25547E_SuperClamp EX.indd 4 1/13/2020 2:14:09 PM

Specifications: 4025HD SuperClamp HD
2” Compatible, Approved for RV use.
RV compatibility (Class A, B and C) and (not approved
for use on tow-behind RVs or Trailers)
Fit
Guide
Max = 60 lbs/kg 27
Máx.= 27 kg/60 libras
Max = 60lb/27kg
Max = 120 lbs/54kg (Max = 60 lbs/27kg per bike)
Máx.= 54 kg/120 libras (Máx. = 27 kg /60 libras por bicicleta)
Max = 120lb/54kg (Max = 60lb/27kg par vélo)
25547E_SuperClamp EX.indd 5 1/13/2020 2:14:09 PM

Tools Needed: Items Included:
x 1
8mm
x 2
M10 x 60
x 2
M10 For 4.5”-5” tires
Adjustable or 19mm and 17mm
#4419 Fat Tire Wheel Trays
x 2
Optional Accessories:
25547E_SuperClamp EX.indd 6 1/13/2020 2:14:09 PM

Copy here...
N
2Install receiver and secure with pin and lock, as shown.
Note: If your receiver is 1.25” remove the adapter block as shown (4025F
Only).Tools Required: 19mm(3/4’’) Wrench, 5mm Hex Key(to remove adapter
block).
Insert hitchtite and line up holes. Install receiver and secure with pin and lock,
as shown (4025HD). Tools Required: 19mm(3/4’’) Wrench.
1
INSTALL RACK
2”
1.25”
2”
25547E_SuperClamp EX.indd 7 1/13/2020 2:14:10 PM

1Lay horizontal bar on to receiver plate, lining up front plate with bar and
receiver. Secure with bolts & nuts, using 17mm(9/16”) wrench and 8mm hex
key.
NOTE : Remove rubber tips
Tools Required: 17mm Wrench, 8mm Hex Key
2
25547E_SuperClamp EX.indd 8 1/13/2020 2:14:10 PM

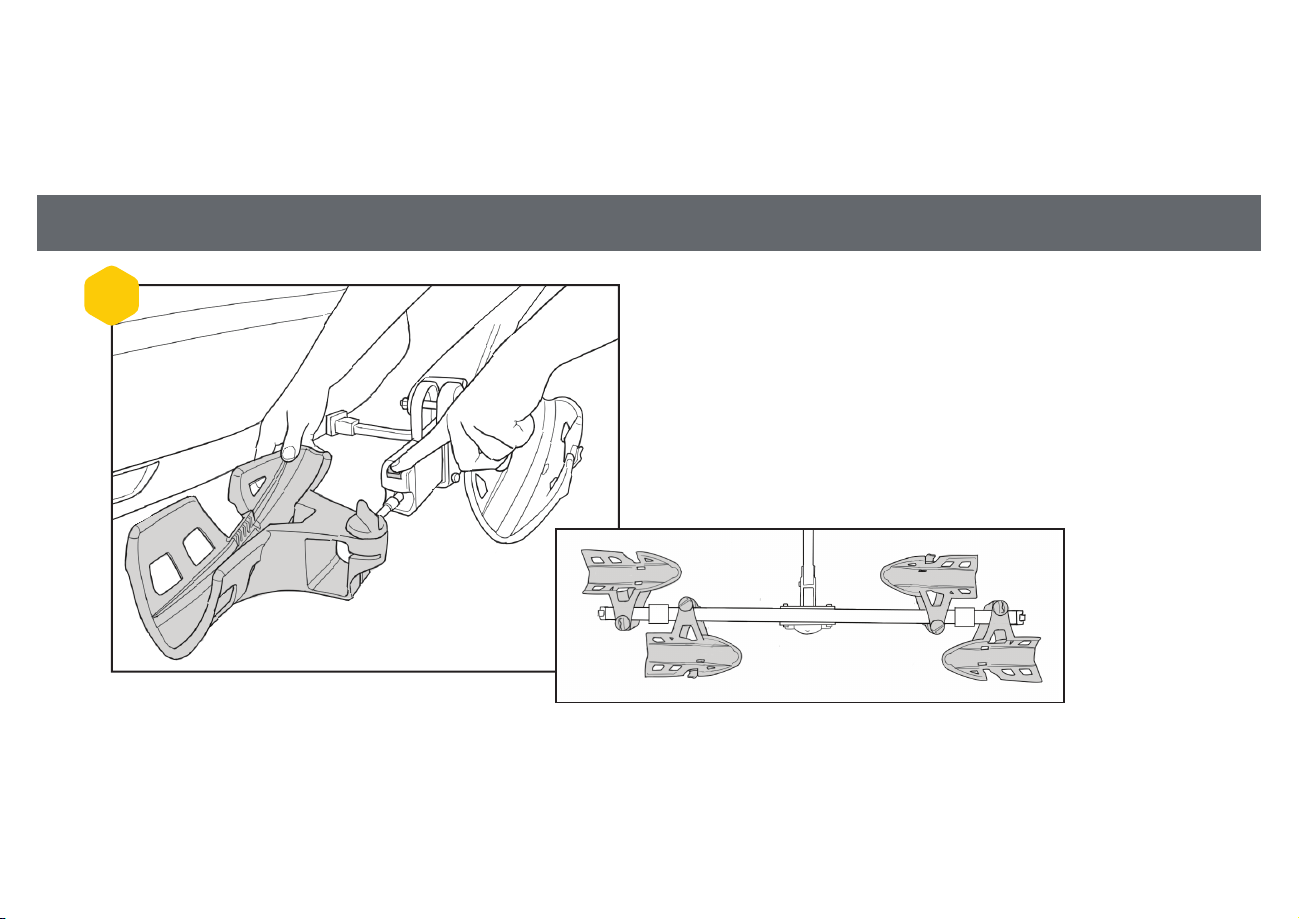

1Slide on outer wheel trays to complete rack assembly. (Wheel tray with
white refl ectors installed on passenger side of vehicle facing away from
the vehicle.)
3
A
A
B
B
BB
A
A
25547E_SuperClamp EX.indd 9 1/13/2020 2:14:11 PM

Push and hold button on top of arm to open arm. Push and hold
button on top of hook to slide hook up.
1
LOAD BIKES
25547E_SuperClamp EX.indd 10 1/13/2020 2:14:11 PM

Load bikes. Heaviest bike closest to car. Adjust wheel tray if necessary.
Tighten wheeltray knob.
NOTE: Position arms at ‘‘10:00’’ and ‘‘2:00’’ without contacting bike frame
components.
2
25547E_SuperClamp EX.indd 11 1/13/2020 2:14:12 PM

Press hooks down onto tires. Once the hook contacts the tire, firmly press
the hook down until you hear 1 additional click. Ensure the tires are properly
infl ated and in good condition.
3
25547E_SuperClamp EX.indd 12 1/13/2020 2:14:12 PM

To lock bikes press and hold button, pull out lock cable. Insert cables
ends into lock shank as shown. Turn the key to the lock position to lock
the cables. To return cable press and hold button.
4
25547E_SuperClamp EX.indd 13 1/13/2020 2:14:12 PM

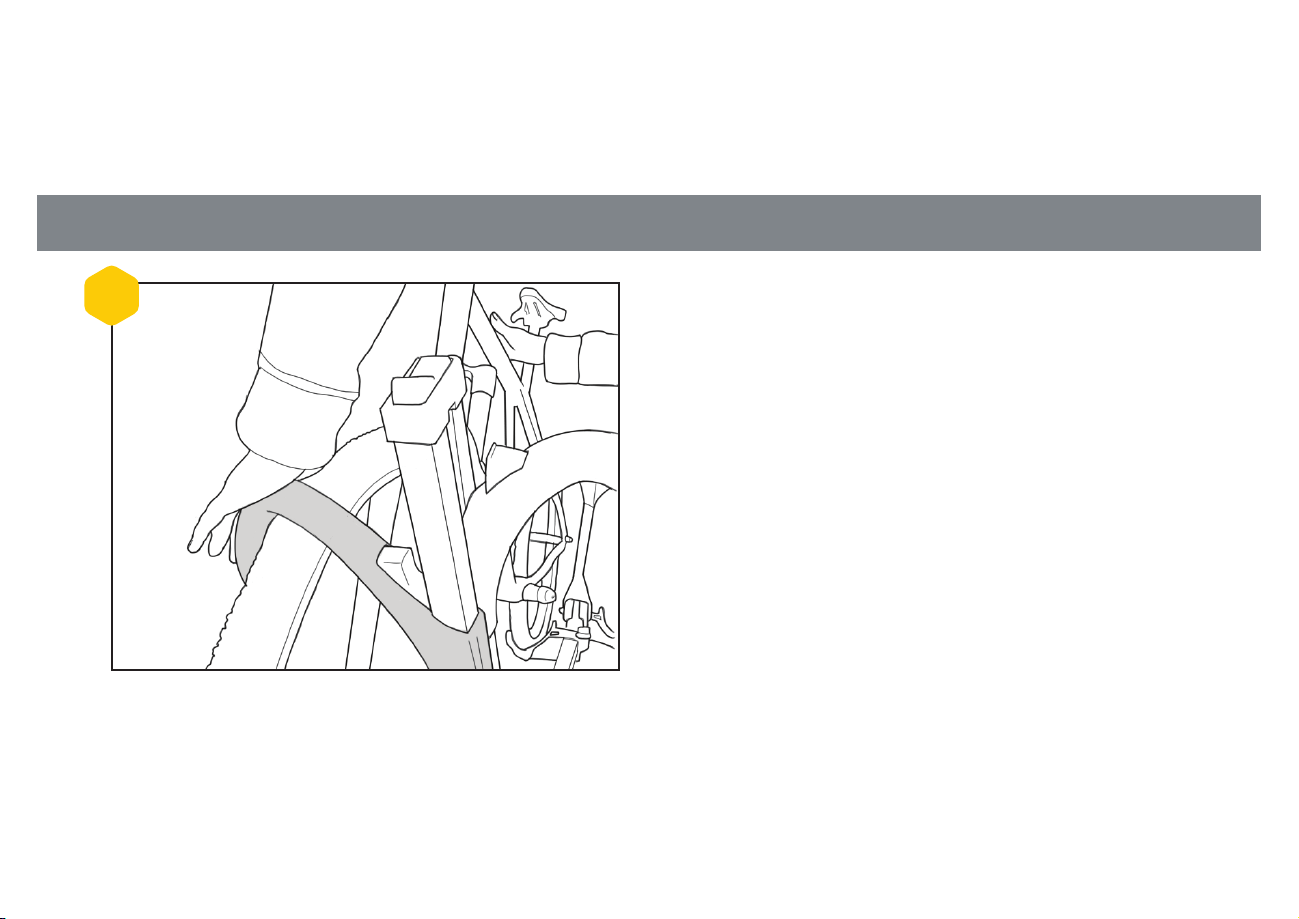

Use straps to secure front and rear wheels to trays.
5
25547E_SuperClamp EX.indd 14 1/13/2020 2:14:13 PM

2
1
HATCH ACCESS
Pull handle, tilt rack away from vehicle.
Caution: hold bikes with available hand.
4025HD Only: Remove pin with lanyard at base of rack, push handle,
tilt rack away from vehicle. Caution: hold bikes with available hand.
2”
25547E_SuperClamp EX.indd 15 1/13/2020 2:14:14 PM

1Access Hatch. 2
25547E_SuperClamp EX.indd 16 1/13/2020 2:14:15 PM

Copy here...
1Push rack into place, you will hear audible “click” when in place.
3
25547E_SuperClamp EX.indd 17 1/13/2020 2:14:16 PM

Pull hande, Fold up rack toward vehicle
1
RACK STORAGE
25547E_SuperClamp EX.indd 18 1/13/2020 2:14:18 PM

Technical Specifications
Bike carrier weight: 35lb/ 15.8kg
Permitted load capacity: 120lb/ 54.4kg
Max bike weight: 60 lb/27.2 kg
CAUTIONS:
• All requirements for compatability/fit as stated in the current Saris vehicle/carrier compatability guide must be followed.
• Read and follow instructions carefully. Save owner’s manual for future reference or parts information. Ensure that any other users of the bicycle carrier are familiar with
their content.
• Drive slowly over speed bumps, 5 to 10 mph max speed.
• It’s the end users responsibility to ensure that use of this product meets all local and state laws.
• When cleaning vehicle and rack, use only water soluble cleaners. Do not take rack through car wash.
• Make sure bike tires are not directly behind exhaust pipe.
• Rack must be installed directly into vehicle hitch receiver. Do not modify the hitch receiver or use hitch extenders.
• 4025F - Do not mount to any type of trailer or RV including Class B vehicles
• 4025HD is RV compatibible (Class A, B and C) and (not approved for use on tow-behind RVs or Trailers)
• Prior to usage on the road, remove all loose parts from bicycle, including (but not limited to) child seat, basket, lock, light, pump, etc.
• This carrier is not recommended for off-road use or for use at speed exceeding 70 mph (113 km/h).
• The handling characteristics of a vehicle will change when a rear bicycles carrier is fitted and especially when it is loaded (in particular crosswind sensitivity, handling on
bends and braking). Driving techniques should be altered to allow for these changes, reduce speed, especially on bends and allowing for longer braking distances.
• The vehicle’s total length increases when the bike carrier is attached. The bikes themselves may increase the vehicle’s total width and height. Take care when reversing
and/or entering garages or ferries, etc.
• Remove carrier from vehicle when not in use.
• This carrier is constructed to carry standard-bike-frames. It is not intended for use with tandem or recumbent bicycles.
25547E_SuperClamp EX.indd 19 1/13/2020 2:14:18 PM

• Replace any mounting strap at the first sign of wear.
• Tighten straps regularly during the journey.
• Vehicle should be in good condition in the area at which the hitch is located.
• Do not exceed maximum load capacity of carrier (120 lbs max or 60 lbs max per bike!) Secure properly and adjust for even load distribution, loading the heaviest/
biggest bike first and closest to the vehicle.
• Saris absolves itself of responsibility for any personal injuries or consequential damage to property or wealth caused by incorrect fitting or use.
Warning and Disclaimer:
This carrier has been designed to carry bicycles on specific vehicles. Before installation, user must read and follow current Saris Fit Guide (available through Saris dealer)
recommen-dations and enclosed instructions. Fit recommendations are based on vehicle’s standard features; optional features may affect the fit recommendations. User must
attach carrier correctly to the vehicle, check its attachment before each use, and inspect carrier parts for wear. Carrier’s attachment to the vehicle is critical and beyond the control
of the manufac-turer. Manufacturer and seller expressly disclaim any and all liability for personal injury, property damage or loss, whether direct, indirect, or incidental, resulting
from the incorrect attachment, improper use, inadequate maintenance, or neglect of this carrier.
25547E_SuperClamp EX.indd 20 1/13/2020 2:14:18 PM
