Sartorius arium bagtank 50 User manual

1000025386
Installation Instructions|Installationsanleitung
arium®bagtank
bagtanks

2
Installation Instructions arium®bagtank
English – page 3
In cases involving questions of interpretation,
the German-language version shall prevail.
Deutsch – page 19
Im Auslegungsfall ist die deutsche Sprache maßgeblich.

3
Installation Instructions arium®bagtank
Contents
Contents
1 Product Description ............................................................... 4
1.1 Application Options ..........................................................4
1.2 Intended Use..................................................................4
1.3 Connections on the arium®bagtank 20 ...................................... 5
1.4 Connections on the arium®bagtank 50 and 100.............................5
2 Installation.........................................................................6
2.1 Scope of Delivery, arium®bagtank ...........................................6
2.2 Setting Up the arium®bagtank 20 ...........................................6
2.3 Setting Up arium®bagtank 50 and 100 ......................................8
2.4 Installation of arium®bagtank ...............................................9
2.5 Connecting the arium®bagtank to the arium®system .....................11
2.6 Replacing the Plastic Bag....................................................11
2.7 Dispensing Water Directly from the arium®bagtank........................13
3 Technical Specifications..........................................................14

4
Installation Instructions arium®bagtank
Product Description
1 Product Description
1.1 Application Options
arium®bagtank can be used with the following Sartorius water purification systems:
– arium®comfort I, comfort II
– arium®advance
1.2 Intended Use
The pure water produced by the arium®comfort and advance systems is stored in the
arium®bagtank. The tank systems listed in the following are available.

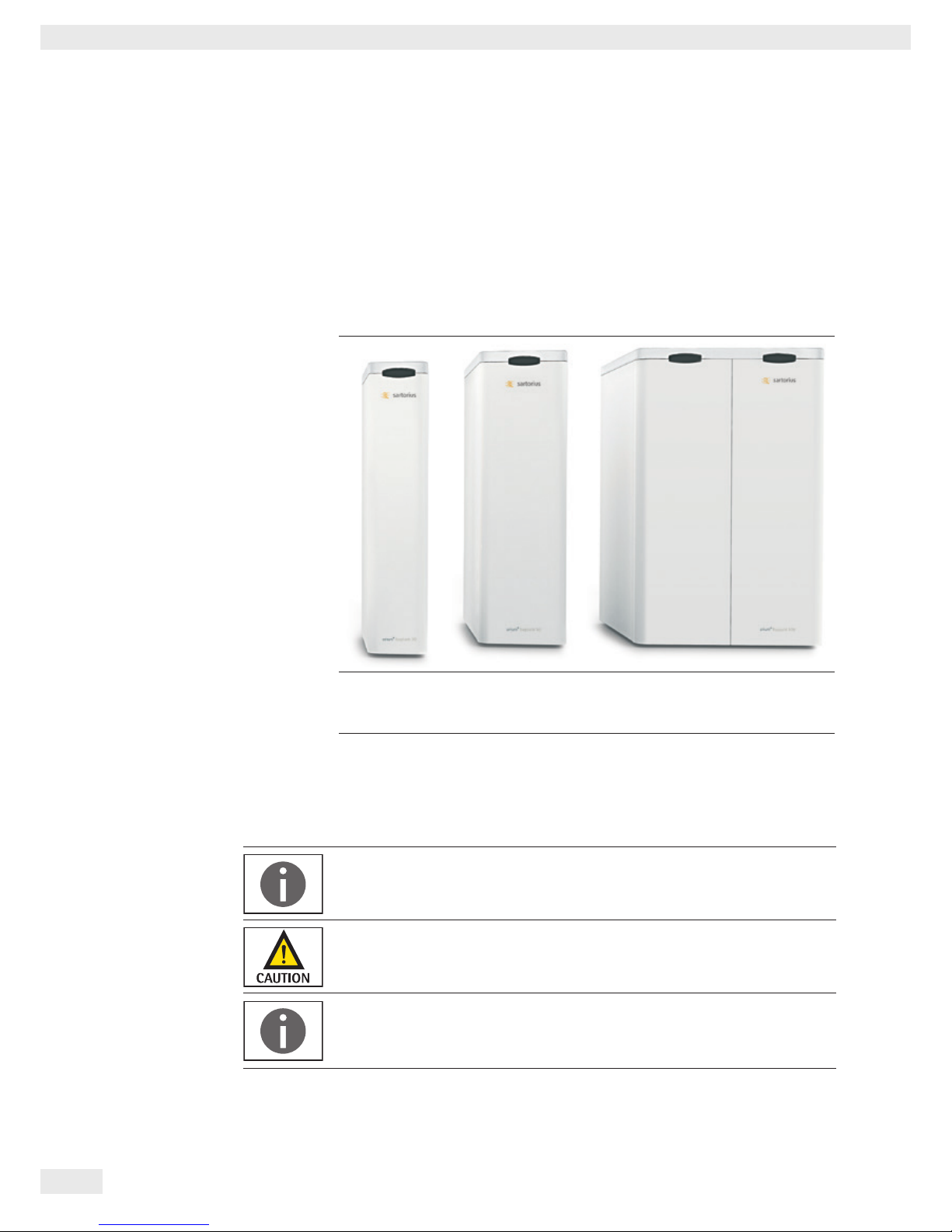

arium®bagtank 20 arium®bagtank 50 arium®bagtank 100
Stores product
water in a 20 liter
plastic bag
Stores product water
in a 50 liter plastic bag
Stores product water in
two 50 liter plastic bags
Without pressure
booster pump
With built-in pressure
booster pump or without
pressure booster pump
With built-in pressure booster
pump or without pressure
booster pump
For additional data on the arium®bagtanks see page 14
arium®bagtanks must be installed and connected before starting up the arium®
system.
arium®bagtanks must be set up in a suitable location, i.e., a flat surface with enough
space that can accommodate the weight of the operational bagtank.
Make sure that the setup location also has nearby access to a 100–240 V electrical
outlet (arium®bagtank 50 and 100 with built-in pump) and an atmospherically
vented drain.

5
Installation Instructions arium®bagtank
Product Description
1.3 Connections on the arium®bagtank 20
1. Out (connection for product water dispensing from the bagtank or connection
for recirculating the pre-treated water to the arium®comfort)
2. In (connection for the pre-treated water from the arium®system)
3. Sensor cable for connection to the arium®system
1.4 Connections on the arium®bagtank 50 and 100
Connections on the arium®bagtank 50 and 100
1. Out (connection for product water dispensing from the bagtank and connection
for recirculating the pre-treated water to the arium®comfort)
2. In (connection for the pre-treated water from the arium®device)
3. Sensor cable for connection to the arium®device
4. Power switch with power connection (only for the version with the built-in
pump)
1 2 3
1 2 3 4

6
Installation Instructions arium®bagtank
Installation
2 Installation
We recommend that you have the set-up and initial startup of your arium®bagtank
system performed by a qualified Sartorius service technician.
2.1 Scope of Delivery, arium®bagtank
The equipment supplied with arium®bagtanks includes connection hoses and
additional accessories as described in the following.
Part Description Quantity
Tank Kit 1 (IN)
Tubing, PE, 4” outer diameter, length 2.4 m (“Tank Outlet” tubing) 1
Tubing, PE, 4” outer diameter, length 0.1 m 1
Shut-off valve 4”1
Tubing plug-in nipple 4”1
Tank Kit 2 (OUT)
Tubing, PE, a” outer diameter, length 2.4 m 1
Tubing, PE, a” outer diameter, length 0.1 m 1
Tubing plug-in nipple a”1
Shut-off valve a”1
Connector, straight, a” - 4”1
T-connector a”1
Operating Instructions 1
Power cable (bagtank 50 and 100 with built-in pump only) 1
Rollers for bagtank 50 and 100 (optional) 4
Pressure booster pump for bagtank 20, 50, 100 without built-in pump
(optional)
1
Wall mounting bracket for bagtank 20 (optional) 1
Bags are not included in the arium®bagtank equipment supplied and must be
ordered separately.
2.2 Setting Up the arium®bagtank 20
If used without the optional pressure booster pump, the arium® bagtank 20 has to
be set up at the same level or higher than the feed device.
The arium®bagtank 20 can be purchased with an optional pressure booster pump
and an optional wall mounting bracket irrespective of the arium® system in use.
Please observe the specifications for the required input pressure on the downstream
devices. An arium®bagtank 50 or 100 with a built-in pump generates an outlet
pressure of 3 bar.
Connection to tank (IN)
Connection to arium®(tank outlet)
Connection to tank (OUT)
Ball cock for
water dispensing
T piece a”
to connect
an additional
supply
Connector a”
4” to connect the
sterile final filter

7
Installation Instructions arium®bagtank
Installation
When selecting the installation location, make sure that an atmospherically vented
drain is nearby.
Also take into account the door hinge for the arium®bagtank (direction it opens)
when selecting the installation location. If the door hinge needs to be retrofitted
because of the installation location, this can be performed by Sartorius Service.
Wall Mounting Bracket for arium®bagtank 20
An optional wall mounting bracket (H2O-ATB) is available for arium®bagtank 20
system installation.
The wall mounting bracket for the bagtank 20 can only be used for mounting and
attaching the arium®bagtank 20. Do not add additional load to the bracket. When
mounting the unit on a wall, make sure that the mounting surface and fasteners
selected are capable of supporting a minimum of 100 kg (220 lbs). Inadequate
support and/or fasteners may result in injury to the operator and damage to the
equipment.

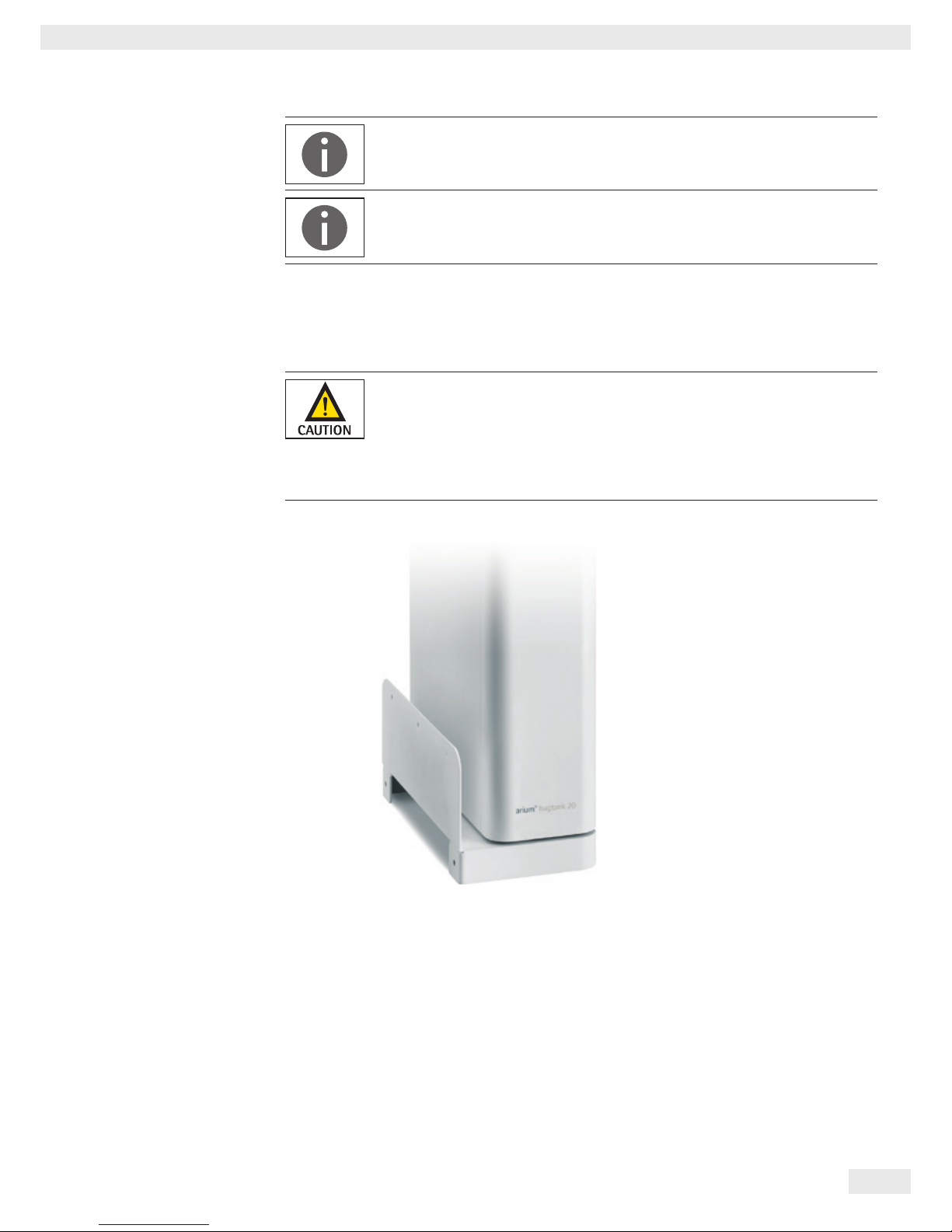

The figure shows the wall mounting bracket with an attached arium®bagtank 20
Wall installation:
− Use the pre-drilled slotted holes in the wall mounting bracket to mount the
bracket to the wall.
− Fasten the wall mounting bracket to the wall using suitable screws and dowels
(ensure that it is horizontally aligned).
− Position the arium®bagtank 20 on the wall mounting bracket attached to the
wall. The device feet on the bagtank can be used for proper alignment of the
bagtank on the wall mounting bracket. They must fit into the holes on the wall
mounting bracket without being jammed or wedged.
− Secure the arium®bagtank to the wall mounting bracket. Use the screws
provided for this.

8
Installation Instructions arium®bagtank
Installation
arium®bagtanks are heavy!
Two people should be used to lift and mount the arium®bagtank onto the wall
mounting bracket.
2.3 Setting Up arium®bagtank 50 and 100
arium®bagtank 50 and bagtank 100 are only designed for floor installations.
Integration into laboratory furniture may be possible if it has sufficient weight-
bearing capacity.
The arium®bagtank 50 and 100 without in-built pump are not compatible with
arium®pro and comfort systems.
If you wish to do so, you will need a distribution pump for this.
The setup location must also have access to a 100–240 V electrical outlet (arium®
bagtank 50 and 100 with built-in pump) and an atmospherically
vented drain.

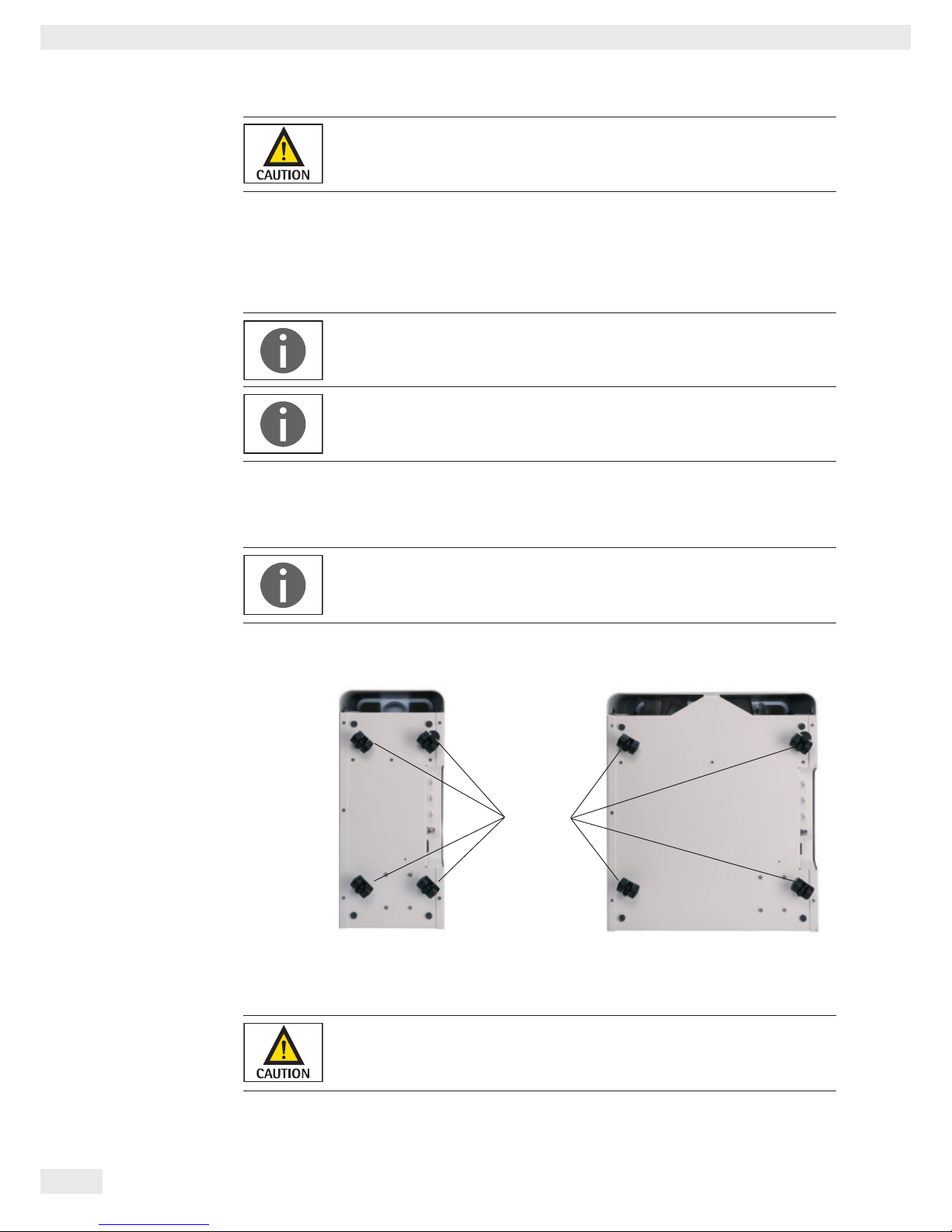

Rollers (optional for bagtank 50 and bagtank 100)
Optional rollers are available for arium®bagtank floor installations.
The rollers should be mounted before the initial startup of the arium®bagtank.
Mounting the rollers to the bottom:
Rollers
This figure shows the
arium®bagtank 50
with mounted rollers
This figure shows the arium®
bagtank100 with mounted rollers
arium®bagtanks are heavy!
Two people should be used to lift and carry the bagtank.

9
Installation Instructions arium®bagtank
Installation
2.4 Installation of arium®bagtank
Install the bag into the frame as described in the following and connect the arium®
bagtank to your arium®device.
t Remove the proper bag for your arium®bagtank out of the packaging.
Only use the bag that is suitable for your arium®bagtank.
t Remove the plugs from the bag.
t Slide the bag - with the carrying handle facing upwards and the vent filter (2)
pointing forward - into the arium®bagtank via the top guide rail (3).
Do not force the bag on to the guide rail as this could damage it.

10
Installation Instructions arium®bagtank
Installation

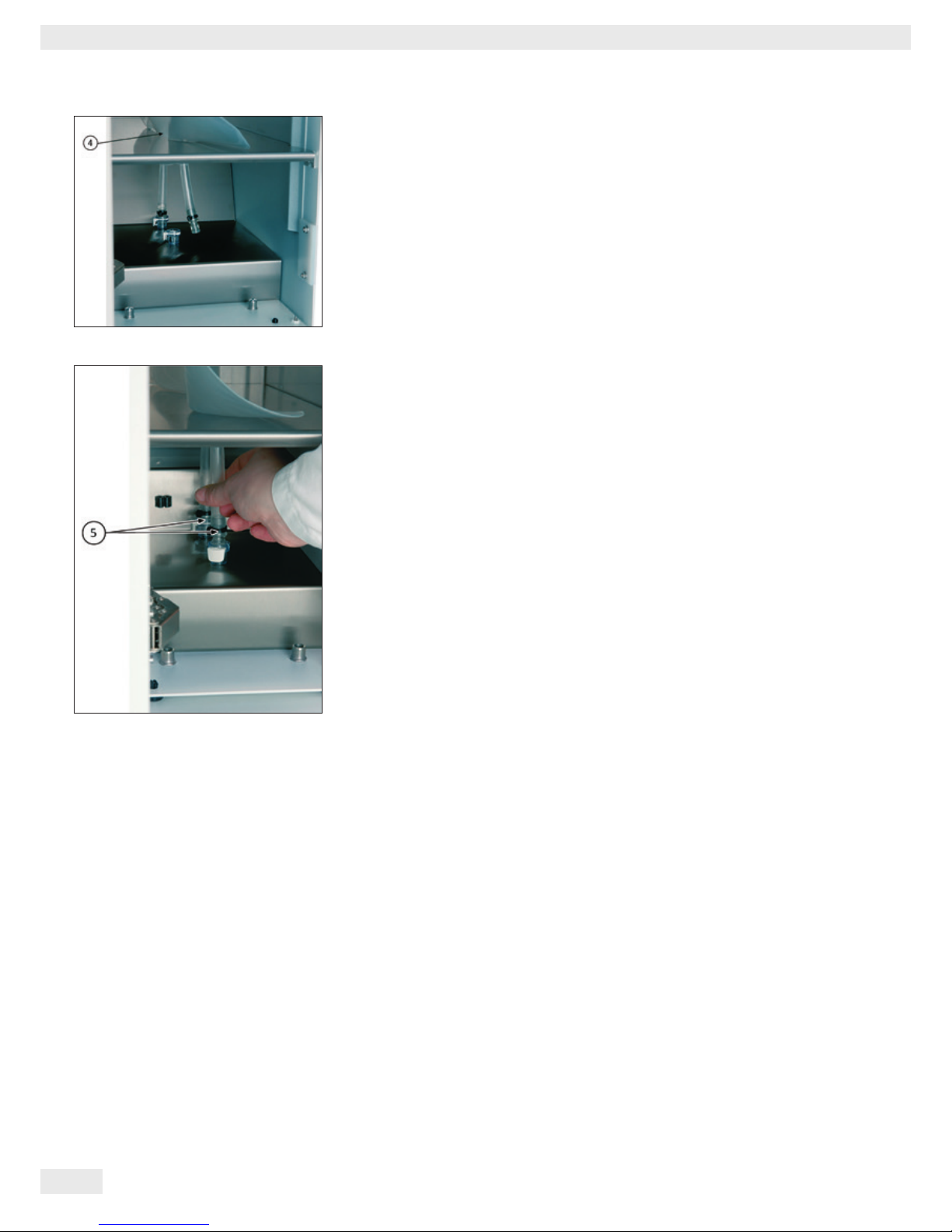

t Guide both bag connection tubes through the lower opening in the arium®
bagtank. (4).
t Connect the front and back connection tubing of the bag to the connectors at
the base of the arium®bagtank (5).

11
Installation Instructions arium®bagtank
Installation
2.5 Connecting the arium®bagtank to the arium®system
Do not perform this step if you are installing the arium®bagtank for the initial
startup of your arium®system. Connecting the arium®bagtank within the scope
of initial startup is described in the operating instructions of the arium®system.
Connect the arium®bagtank to the arium®system as follows:
t Connect the arium®bagtank sensor cable to the arium®system.
The power to the arium®system must be switched off before connecting the arium®
bagtank (sensor cable pos. 3) to the arium®system.
t Connect the “IN” connection of the arium®bagtank to the “Tank Outlet”
connection of your arium®system (pure water outlet). Use the “Tank Outlet”
pre-assembled tubing from Tank Kit 1 for this purpose.
t Connect the “OUT” connection of the arium®bagtank to the “Tank Inlet”
connection of your arium®system (pure water inlet). Use the “Tank Inlet”
pre-assembled tubing from the accessory kit of your arium®comfort system.
(Only applies when using the arium®bagtank in combination with an arium®
comfort system.)
t When connecting to an arium comfort, you should also connect the arium®
bagtank power cord to the power supply. Then turn on the arium®bagtank via
the power switch. (Only required for arium®bagtank 50 and 100, each with a
built-in pump.)
2.6 Replacing the Plastic Bag
You must run “Start bag replacement” in the Care menu of your arium®system to
replace the plastic bag. Follow the instructions regarding this in your arium®system
operating instructions.
When your arium®system requests that you replace the plastic bag, perform the
following steps:
t Turn off the arium®bagtank via its power switch (only arium®bagtank 50 and
100 with built-in pump).
The bag must be emptied completely before removal.

12
Installation Instructions arium®bagtank
Installation

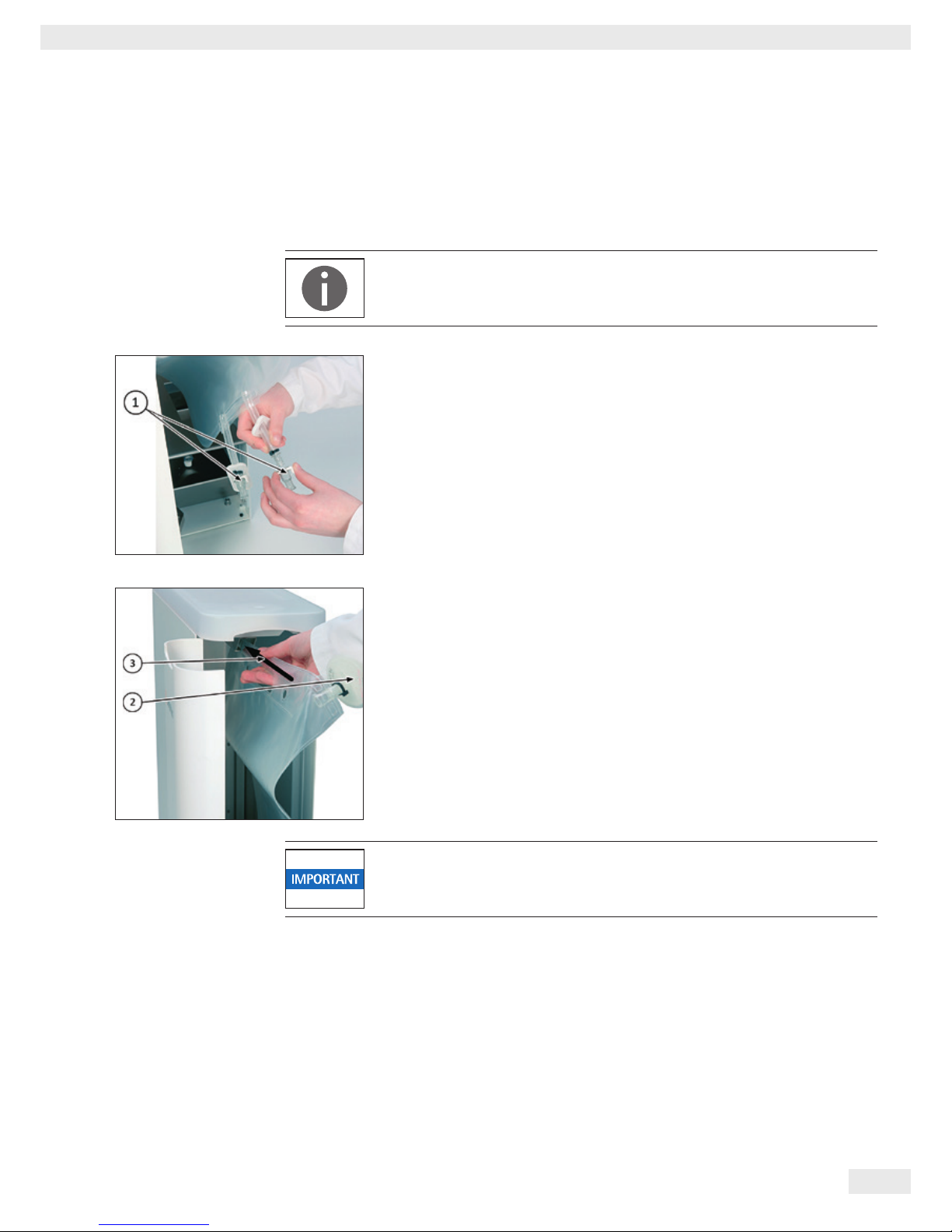

Disconnect the front and back connection tube of the bag (1) from the tubing
couplings on the base of the bagtank.
t Pull both connection tubes upward through the lower opening in the arium®
bagtank (2).
Carefully pull the bag forward out of the guide rail (3).
Install the new plastic bag into the arium®bagtank as per section 2.4 “Installation of
arium®bagtank”.
The bag replacement is complete.

13
Installation Instructions arium®bagtank
Installation
2.7 Dispensing Water Directly from the arium®bagtank
Water can be dispensed directly from the arium®bagtank using Tank Kit 2 (OUT).
Tank Kit 2 can also be used to empty the arium®bagtank for bag replacement.
If you are operating an arium comfort system in combination with an arium bagtank
20, please contact Sartorius Service for direct water dispensing from the tank.
Proceed as follows for direct water dispensing:
t Close the ball cock of Tank Kit 2.
t Connect Tank Kit 2 to the “Out” connection on the arium®bagtank.
Please note that an arium bagtank 20 has one “Out” connection, and arium
bagtank 50 and 100 both have two “Out” connections.
An arium bagtank 20 has one “Out” connection, arium bagtank 50 and 100 both
have two “Out” connections. If all “Out” connections are occupied, then remove one
of the tubes as required. If you are operating an arium comfort system in
combination with an arium bagtank, the connection tube to the arium comfort
system may not be disconnected from the “Out” connection of the tank.
Guide the free end of the tube of Tank Kit 2 to your desired dispensing location and/
or to the drain for tank emptying.
t Open the ball cock on the tank for water dispensing.
If you no longer wish to dispense water directly from the arium bagtank, Tank Kit 2
can be easily removed by removing the tube coupling on the arium®bagtank.
You can also dispense water directly from the arium® bagtank via the optionally-
available dispense gun.

14
Installation Instructions arium®bagtank
Technical Specifications
3 Technical Specifications
arium®bagtank 201) arium®bagtank 50
without built-in pump1)
arium®bagtank 50
arium®bagtank 50 US arium®bagtank 100
without built-in pump1)
arium®bagtank 100 arium®bagtank 100 US
Dimensions (without accessories)
Height 808 mm 852 mm 852 mm
852 mm 852 mm 852 mm 852 mm
Width 166 mm 254 mm 254 mm
254 mm 514 mm 514 mm 514 mm
Depth 437 mm 587 mm 587 mm
587 mm 587 mm 587 mm 587 mm
Empty weight (without bag) 19 kg 33 kg 33 kg
33 kg 47 kg 47 kg 47 kg
Operating weight (with filled bag) 40 kg 84 kg 84 kg
84 kg 148 kg 148 kg 148 kg
Typical filling volume 22 liters 48 liters 48 liters
48 liters 94 Liter 94 liters 94 liters
bagtank exterior material Stainless steel | plastic Stainless steel | plastic Stainless steel | plastic
Stainless steel | plastic Stainless steel | plastic Stainless steel | plastic Stainless steel | plastic
Bag material S71 film S71 film S71 film
S71 film S71 film S71 film S71 film
Number of bags per tank 1+20 liters 1 +50 liters 1+50 liters
1+50 liters 2 +50 liters 2+50 liters 2+50 liters
Temperature 2–30 °C 2–30 °C 2–30 °C
2–30 °C 2–30 °C 2–30 °C 2–30 °C
Power supply 240 VAC (± 10%),
50 Hz, 120 VA (max.)
115 VAC (± 10 %),
60 Hz, 170 VA (max.)
240 VAC (± 10%),
50 Hz, 120 VA (max.)
115 VAC (± 10%),
60 Hz, 170 VA (max.)
Ambient conditions
Operation 2–35 °C at max. 80%
rel. humidity
2 to 35 °C at max. 80%
rel. humidity
2–35 °C at max. 80%
rel. humidity
2–35 °C at max. 80%
rel. humidity
2 to 35 °C at max. 80%
rel. humidity
2–35 °C at max. 80%
rel. humidity
2–35 °C at max. 80%
rel. humidity
Storage 5–45 °C at max. 80%
rel. humidity
5 to 45 °C at max. 80%
rel. humidity
5–45 °C at max. 80%
rel. humidity
5–45 °C at max. 80%
rel. humidity
5 to 45 °C at max. 80%
rel. humidity
5–45 °C at max. 80%
rel. humidity
5–45 °C at max. 80%
rel. humidity
Dispensing Flow Rates
With pump up to 3.0 l/min
up to 3.0 l/min up to 3.0 l/min up to 3.0 l/min
Without pump2) up to 1.5 l/min up to 1.5 l/min
With pump and dispense gun incl. final filter up to 2.0 l/min
up to 2.0 l/min up to 2.0 l/min up to 2.0 l/min
With pump and dispense gun without final filter up to 2.5 l/min
up to 2.5 l/min up to 2.5 l/min up to 2.5 l/min
Pump pressure 3 bar
3 bar 3 bar 3 bar
Connections (Water)
Inlet 1+a” PLC quick coupling 1+a” PLC quick coupling 1+a” PLC quick coupling
1+a” PLC quick coupling 1+a” PLC quick coupling 1+a” PLC quick coupling 1+a” PLC quick coupling
Outlet 1+a” PLC quick coupling 2+a” PLC quick coupling 2+a” PLC quick coupling
2+a” PLC quick coupling 2+a” PLC quick coupling 2+a” PLC quick coupling 2+a” PLC quick coupling
1) Not suitable in combination with a dispense gun or glassware machines
2) Dispensing location is at the same level as or lower than the tank outlet

15
Installation Instructions arium®bagtank
Technical Specifications
3 Technical Specifications
arium®bagtank 201) arium®bagtank 50
without built-in pump1)
arium®bagtank 50
arium®bagtank 50 US arium®bagtank 100
without built-in pump1)
arium®bagtank 100 arium®bagtank 100 US
Dimensions (without accessories)
Height 808 mm 852 mm 852 mm
852 mm 852 mm 852 mm 852 mm
Width 166 mm 254 mm 254 mm
254 mm 514 mm 514 mm 514 mm
Depth 437 mm 587 mm 587 mm
587 mm 587 mm 587 mm 587 mm
Empty weight (without bag) 19 kg 33 kg 33 kg
33 kg 47 kg 47 kg 47 kg
Operating weight (with filled bag) 40 kg 84 kg 84 kg
84 kg 148 kg 148 kg 148 kg
Typical filling volume 22 liters 48 liters 48 liters
48 liters 94 Liter 94 liters 94 liters
bagtank exterior material Stainless steel | plastic Stainless steel | plastic Stainless steel | plastic
Stainless steel | plastic Stainless steel | plastic Stainless steel | plastic Stainless steel | plastic
Bag material S71 film S71 film S71 film
S71 film S71 film S71 film S71 film
Number of bags per tank 1+20 liters 1 +50 liters 1+50 liters
1+50 liters 2 +50 liters 2+50 liters 2+50 liters
Temperature 2–30 °C 2–30 °C 2–30 °C
2–30 °C 2–30 °C 2–30 °C 2–30 °C
Power supply 240 VAC (± 10%),
50 Hz, 120 VA (max.)
115 VAC (± 10 %),
60 Hz, 170 VA (max.)
240 VAC (± 10%),
50 Hz, 120 VA (max.)
115 VAC (± 10%),
60 Hz, 170 VA (max.)
Ambient conditions
Operation 2–35 °C at max. 80%
rel. humidity
2 to 35 °C at max. 80%
rel. humidity
2–35 °C at max. 80%
rel. humidity
2–35 °C at max. 80%
rel. humidity
2 to 35 °C at max. 80%
rel. humidity
2–35 °C at max. 80%
rel. humidity
2–35 °C at max. 80%
rel. humidity
Storage 5–45 °C at max. 80%
rel. humidity
5 to 45 °C at max. 80%
rel. humidity
5–45 °C at max. 80%
rel. humidity
5–45 °C at max. 80%
rel. humidity
5 to 45 °C at max. 80%
rel. humidity
5–45 °C at max. 80%
rel. humidity
5–45 °C at max. 80%
rel. humidity
Dispensing Flow Rates
With pump up to 3.0 l/min
up to 3.0 l/min up to 3.0 l/min up to 3.0 l/min
Without pump2) up to 1.5 l/min up to 1.5 l/min
With pump and dispense gun incl. final filter up to 2.0 l/min
up to 2.0 l/min up to 2.0 l/min up to 2.0 l/min
With pump and dispense gun without final filter up to 2.5 l/min
up to 2.5 l/min up to 2.5 l/min up to 2.5 l/min
Pump pressure 3 bar
3 bar 3 bar 3 bar
Connections (Water)
Inlet 1+a” PLC quick coupling 1+a” PLC quick coupling 1+a” PLC quick coupling
1+a” PLC quick coupling 1+a” PLC quick coupling 1+a” PLC quick coupling 1+a” PLC quick coupling
Outlet 1+a” PLC quick coupling 2+a” PLC quick coupling 2+a” PLC quick coupling
2+a” PLC quick coupling 2+a” PLC quick coupling 2+a” PLC quick coupling 2+a” PLC quick coupling
1) Not suitable in combination with a dispense gun or glassware machines
2) Dispensing location is at the same level as or lower than the tank outlet

16
Installation Instructions arium®bagtank
Technical Specifications
Certificate of Compliance
Certificate: 2520902 Master Contract: 167555
Project: 2573698 Date Issued: November 2, 2012
DQD 507 Rev. 2012-05-22 Page: 1
Issued to: Sartorius Weighing Technology GmbH
Weender Landstrasse 94-108
Goettingen, 37075
Germany
Attention: Dr. Dieter Klausgrete
The products listed below are eligible to bear the CSA
Mark shown with adjacent indicators 'C' and 'US' for
Canada and US or with adjacent indicator 'US' for
US only or without either indicator for Canada only.
Timothy Stafrace
Issued by: Timothy Stafrace, C.E.T
PRODUCTS
CLASS 8721 85 - ELECTRICAL EQUIPMENT FOR LABORATORY USE - Certified to US
Standards
CLASS 8721 05 - LABORATORY EQUIPMENT - Electrical
• Pure water tank, arium Bagtank 20, 50, 100 (H2O-AOV-x, H2O-AOV-x-US, Where: x = 20, 50 or 100 litres
of water storage). Rated 100 – 120 Vac, 60 Hz, 170 VA (US), 200-240 Vac, 50 Hz, 120 VA (EU).
• Distribution pump, models H2O-ADP-20, rated 230 Vac, 50 Hz, 0.79 A, 40 PSI and H2O-ADP-20-US rated
115 Vac, 60 Hz, 0.79 A, 40 PSI.
Installation Category II, Pollution Degree 2, Continuous operation, Class I equipment.
Note: Distribution pumps (H2O-ADP-20, H2O-ADP-20-US) are Certified as a component (CSA/UL 61010-1)
where the suitability of the combination is to be determined.
APPLICABLE REQUIREMENTS
CAN/CSA-C22.2 No. 61010-1-04 - Safety Requirements for Electrical Equipment for Measurement,
Control, and Laboratory Use, Part 1: General Requirements

17
Installation Instructions arium®bagtank
Technical Specifications
Supplement to Certificate of Compliance
Certificate: 2520902 Master Contract: 167555
DQD 507 Rev. 2012-05-22 Page: 1
The products listed, including the latest revision described below, are
eligible to be marked in accordance with the referenced Certificate.
Product Certification History
Project Date Description
2573698 November 2, 2012 Update to cover Arium distribution pump, models H2O-ADP-20 and H2O-
ADP-20-US.
2520902 July 27, 2012 CSA Certification of Pure water tank, arium Bagtank 20, 50, 100 (H2O-AOV-x,
H2O-AOV-x-US, Where: x = 20, 50 or 100 litres of water storage).

18
Installation Instructions arium®bagtank

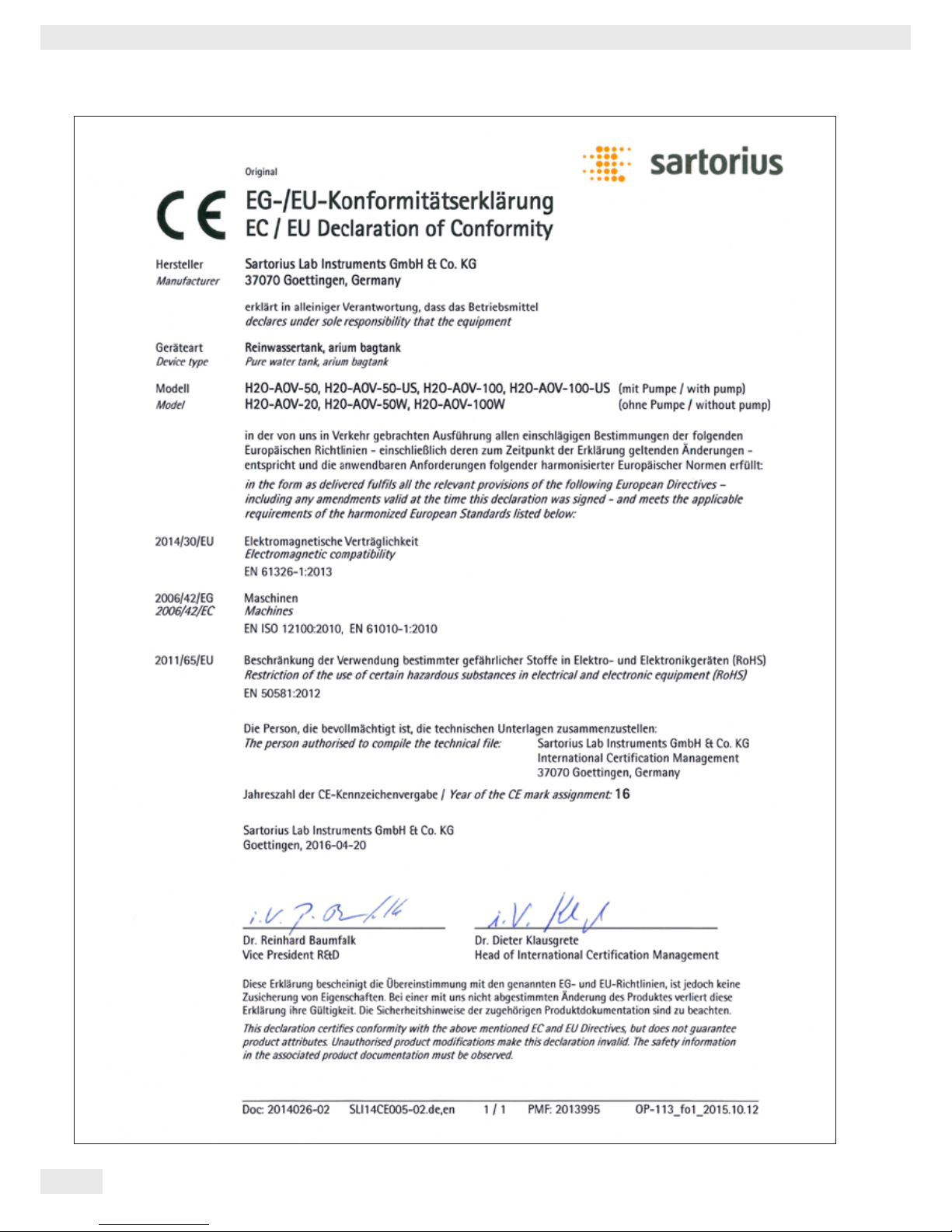

Konformitätserklärung

19
Installationsanleitung arium®bagtank
Inhalt
Inhalt
1 Produktbeschreibung.............................................................20
1.1 Einsatzmöglichkeit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
1.2 Verwendungszweck..........................................................20
1.3 Anschlüsse am arium®bagtank 20 ..........................................21
1.4 Anschlüsse arium®bagtank 50 und 100.....................................21
2 Installation........................................................................22
2.1 Lieferumfang arium®bagtank: ..............................................22
2.2 Aufstellung arium®bagtank 20..............................................22
2.3 Aufstellung arium®bagtank 50 und 100 ....................................24
2.4 Einbau des Kunststoff Bags. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
2.5 Anschluss des arium®bagtank am arium®System ..........................27
2.6 Wechsel des Kunststoff bags ................................................27
2.7 Direkte Wasserentnahme aus dem arium®bagtank .........................29
3 Technische Daten.................................................................30

20
Installationsanleitung arium®bagtank
Produktbeschreibung
1 Produktbeschreibung
1.1 Einsatzmöglichkeit
Die arium®bagtanks können mit folgenden Sartorius Wasseraufbereitungssystemen
betrieben werden:
– arium®comfort I, comfort II
– arium®advance RO, advance EDI
1.2 Verwendungszweck
Das produzierte Reinwasser der arium®comfort und advance System wird im arium®
bagtank gespeichert. Es stehen die nachfolgend aufgeführten Tanksysteme zur
Verfügung.

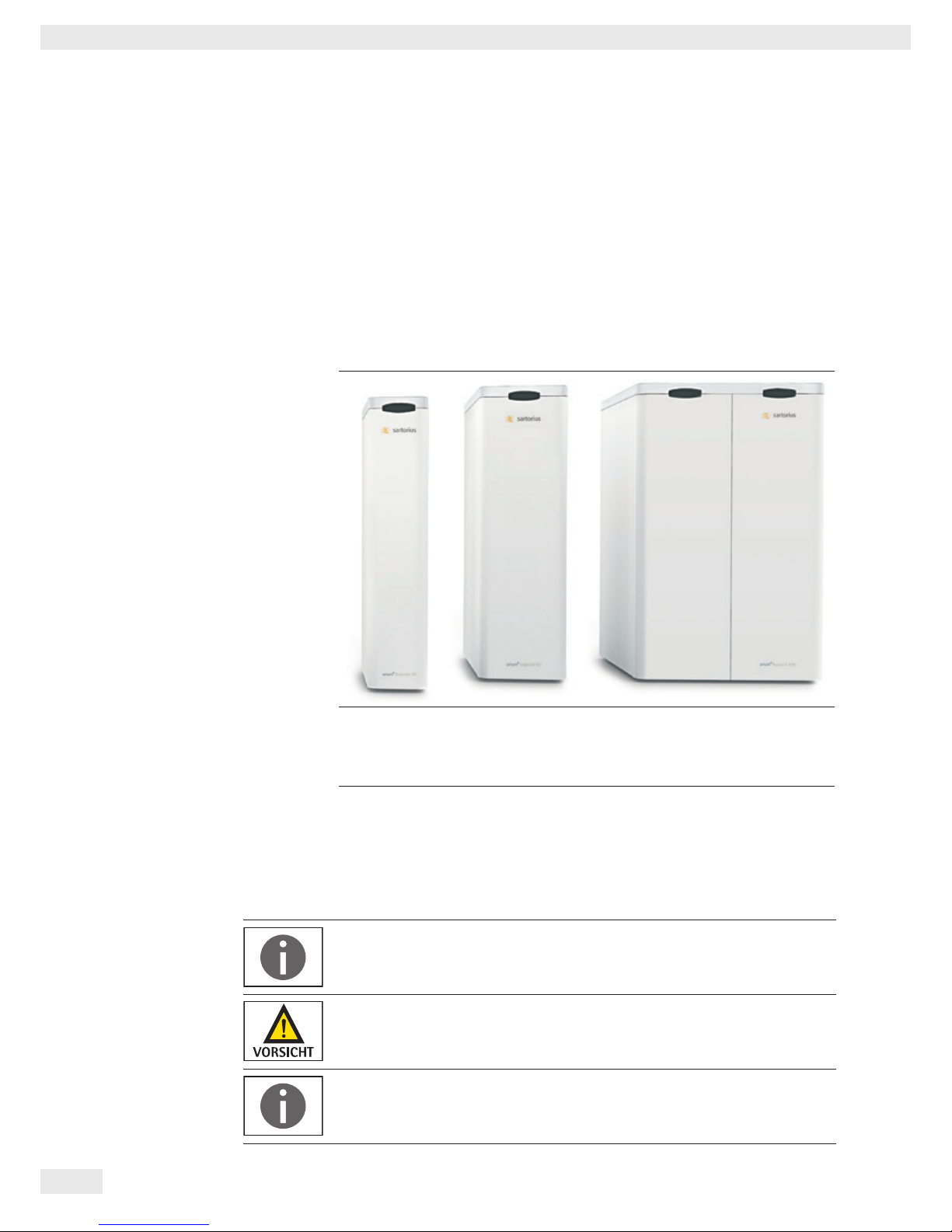

arium®bagtank 20 arium®bagtank 50 arium®bagtank 100
Speicherung des
Produktwassers in
einem 20 Liter
Kunstoff-bag
Speicherung des
Produktwassers in einem
50 Liter Kunstoff-bag
Speicherung des Produktwassers
in zwei
50 Liter Kunstoff-bags
ohne Druck-
erhöhungspumpe
Mit integrierter
Druckerhöhungspumpe
oder ohne
Druckerhöhungspumpe
Mit integrierter
Druckerhöhungspumpe
oder ohne
Druckerhöhungspumpe
Weitere technische Daten zu den arium®bagtank Systemen siehe Seite 30.
Installation und Anschluss der arium®bagtanks erfolgen im Rahmen der
Erstinbetriebnahme des arium®Systems.
Der Aufstellort muss für die arium®bagtanks geeignet sein, d.h., die Aufstellfläche
muss eben sein, genügend Platz bieten und das Gewicht des betriebsbereiten
bagtanks aufnehmen können.
Achten Sie weiterhin bei der Auswahl des Aufstellortes darauf, dass sich eine
100–240 V Steckdose (arium®bagtank 50 und 100 mit integrierter Pumpe) und sich
ein druckloser Ablauf in erreichbarer Nähe befinden.
