SATO M-8460Se Series User manual

Page 1-1
M-8460Se Printer
Standard Unit
Parts List
P/N 9001090
Rev. B
®

Rev.B
Page 2
SATO M-8460Se Printer Parts List
SATO Industrial Bar Code Printers
Table of Contents
M-8460Se Page
Spare Parts List
Frame Assembly........................................................................................................3
Print Head Assembly ................................................................................................8
Ribbon Assembly ....................................................................................................11
Platen Frame Assembly..........................................................................................14
Cover Assembly ......................................................................................................21
Cont PCB Assembly................................................................................................24
Check PCB Assembly .............................................................................................25
Interface Option.......................................................................................................26
Memory Option ........................................................................................................27

Rev.BPage 3
SATO Industrial Bar Code Printers
SATO M-8460Se Printer Parts List
Frame Assembly

Rev.B
Page 4
SATO M-8460Se Printer Parts List
SATO Industrial Bar Code Printers

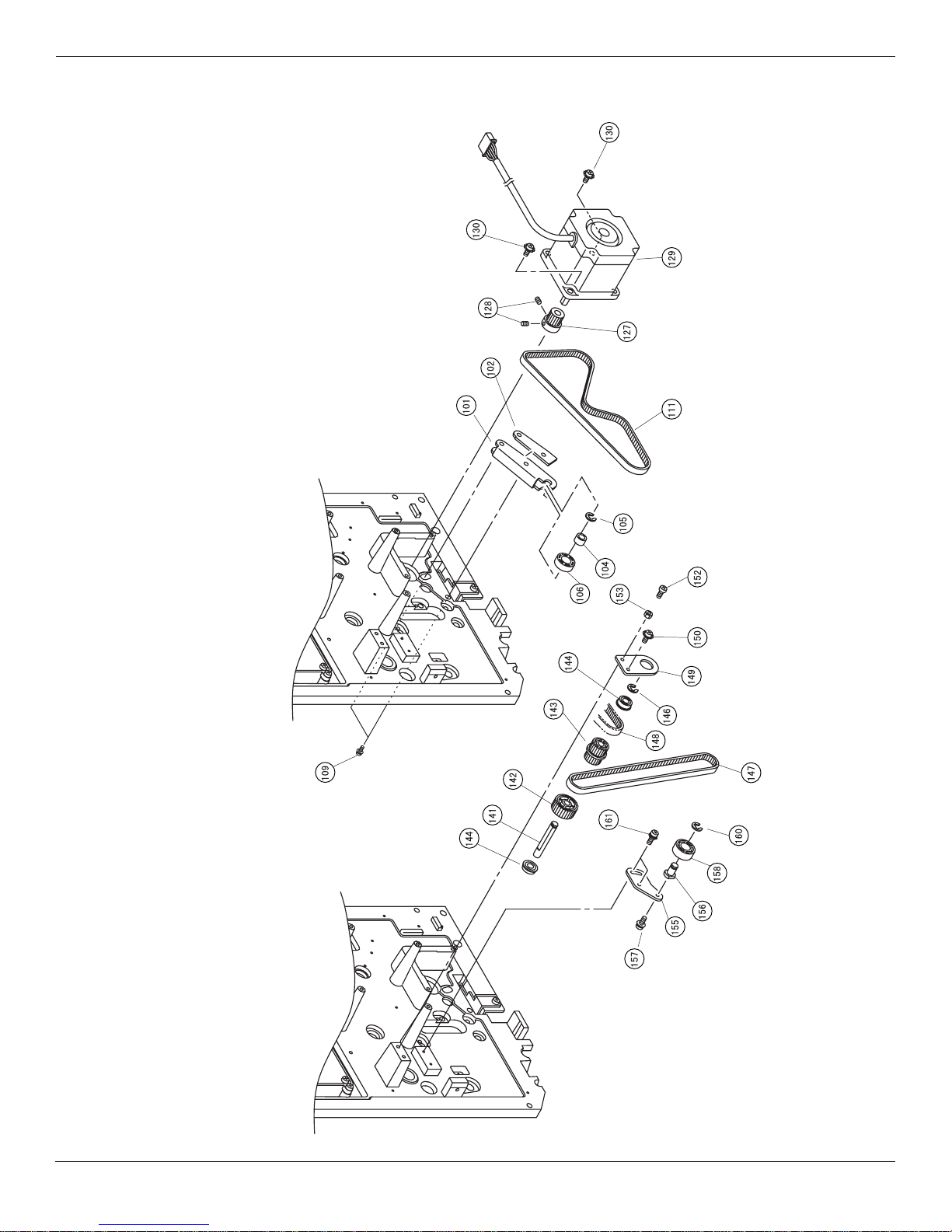

Frame Assembly

Rev.BPage 5
SATO Industrial Bar Code Printers
SATO M-8460Se Printer Parts List
Frame Assembly

Rev.B
Page 6
SATO M-8460Se Printer Parts List
SATO Industrial Bar Code Printers
Frame Assembly
5 PL1733500 ENGINE FRAME 1
10 MT1300522 HEX NUT 1
13 PB0734200 GUIDE POST 1
14 MC0401022 PAN HEAD SCREW 1
18 PR1733600 STAY 1
22 MN0401224 HEX SOCKET BOLT 2
23 PA3737200 GUIDE PLATE (HEAD BR) 1
25 PA3732500 SPRING BRACKET 1
27 MC0301022 PAN HEAD SCREW 1
29 PC0730200 SPRING (OPEN) 1
33 PB0734300 SHAFT(SUPPORT) 1
35 MN0401024 HEX SOCKET BOLT 2
37 PB0734400 SHAFT (RIBBON ADJUST) 1
40 PR1733900 ROLLER 1
41 PR0731600 FEED ROLLER 1
42 PA3736200 DISPENSE BAR BRACKET 1
44 MN0300824 HEX SOCKET BOLT 1
48 PT1112060 BALL SUPPORTER 1
49 PT1109050 BALL SUPPORTER 1
50 PE8730100 GEAR 1
51 ND0040030 E-RING 1
101 PA3734800 PULLEY BRACKET 1
102 PA2730700 PLATE NUT 1
104 PB0731600 SHAFT (ROLLER) 1
105 ND0040030 E-RING 1
106 PR1732600 TENSION ROLLER 1
109 MD4402022 PAN HEAD SCREW 2
111 PT8190064 TIMING BELT 1
127 PL1720100 MOTOR PULLEY 1
128 MJ1400524 HEX SOCKET SET SCREW 2
129 RH1730600 STEPPER MOTOR ASSY 1
130 MC0401222 PAN HEAD SCREW 2
141 PB0731701 SHAFT (IDLE) 1
NO. CODE DESCRIPTION QTY

Rev.BPage 7
SATO Industrial Bar Code Printers
SATO M-8460Se Printer Parts List
Frame Assembly
142 PE8730100 GEAR 1
143 PE8730300 PULLEY 1
144 PT1112060 BALL SUPPORTER 2
146 ND0040030 E-RING 1
147 PT8150064 TIMING BELT 1
148 PT8085048 TIMING BELT 1
149 PA1730500 SHAFT BRACKET 1
150 MC0401022 PAN HEAD SCREW 2
152 MA0401622 PAN HEAD SCREW 1
153 MT1400722 HEX NUT 1
155 PA1730700 TENSION BRACKET 1
156 PB0730600 POST (TENSION) 1
157 MD4400822 PAN HEAD SCREW 1
158 PR1730600 TENSION ROLLER 1
160 ND0040030 E-RING 1
161 MD4300822 PAN HEAD SCREW 2
164 PR4730501 KEYBOARD COVER 1
165 MD4301222 PAN HEAD SCREW 4
166 RJ2730200 KEY PCB SET 1
168 MH0300821 PAN HEAD P TITE SCREW 4
170 RH1731300 PSW CABLE 1
171 PA3739900 CONNECTOR LOCK 1
172 RJ2730100 DSW PCB SET 1
173 MD3300822 PAN HEAD SCREW 2
174 PH0730200 DIP SWITCH COVER 1
175 RH1731600 DSW CABLE SET 1
NO. CODE DESCRIPTION QTY

Rev.B
Page 8
SATO M-8460Se Printer Parts List
SATO Industrial Bar Code Printers

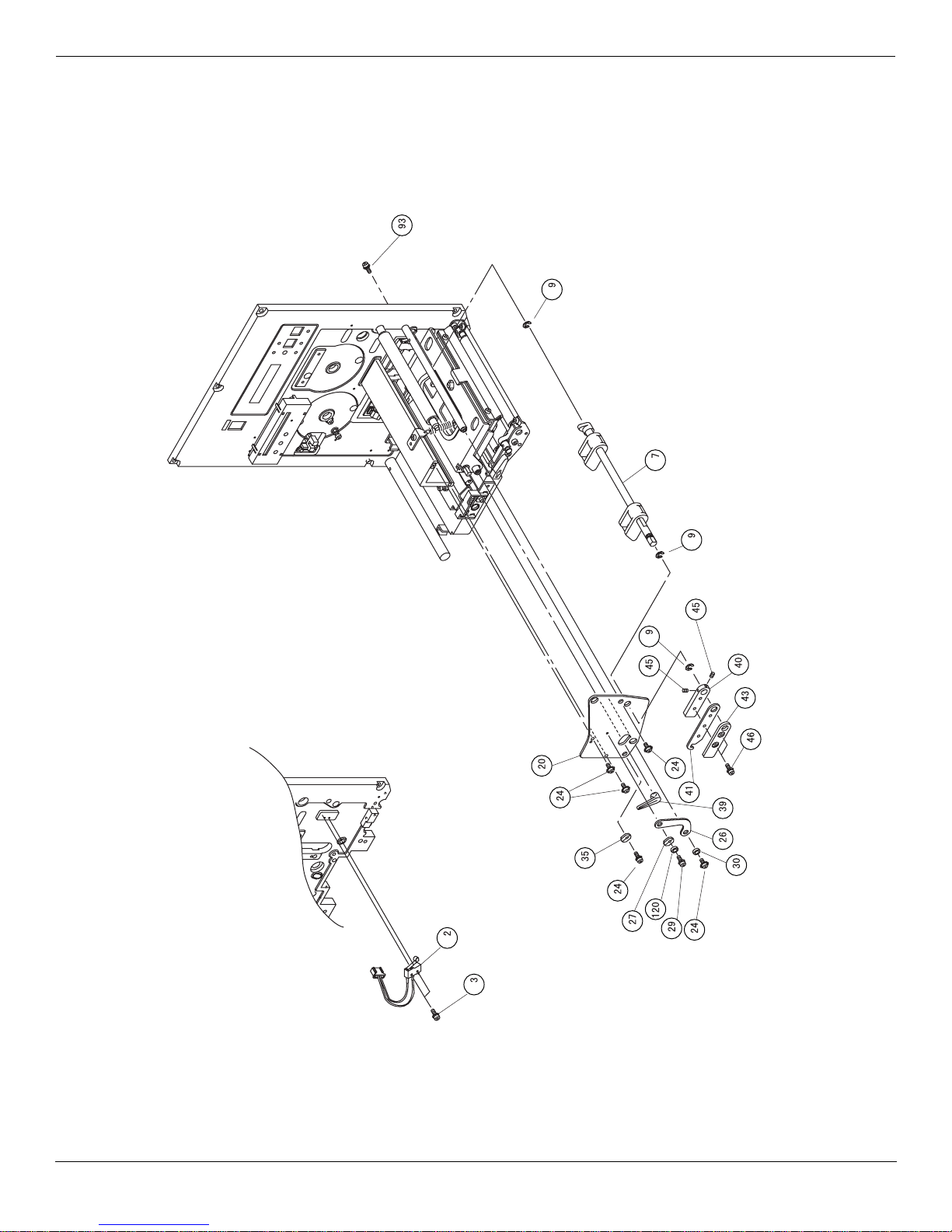

Print Head Assembly

Rev.BPage 9
SATO Industrial Bar Code Printers
SATO M-8460Se Printer Parts List
Print Head Assembly

Rev.B
Page 10
SATO M-8460Se Printer Parts List
SATO Industrial Bar Code Printers
2 RH1731100 SEN5 CABLE 1
3 MD3201221 PAN HEAD SCREW 2
7 PR1733700 PRESSURE CAM 1
9 ND0060030 E-RING 3
20 PA2730800 HEAD FRAME 1
24 MN0401024 HEX SOCKET BOLT 5
26 PA1730300 PLATE (ADJUST) 1
27 PL2720100 ADJUST COLLAR 1
29 MN0400824 HEX SOCKET BOLT 1
30 NA0040022 PLAIN WASHER 1
35 PL2730100 ADJUST COLLAR 1
39 PE1730400 HANDLE (B) 1
40 PD1730600 HANDLE (A) 1
41 PA2730600 LATCH HANDLE (C) 1
43 PE1730800 HANDLE (B) 1
45 MJ1300424 HEX SOCKET SET SCREW 2
46 MN0301024 HEX SOCKET BOLT 2
56 PA3737300 HEAD BRACKET (TOP) 1
59 PV9730200 BUSHING 1
66 PB0734900 SHAFT (ADJUST CAM) 1
69 PE1730300 ADJUST CAM 2
70 ND0050030 E-RING 2
71 PC1730200 SPRING (HEAD) 2
77 PA3737400 HEAD BRACKET (BOTTOM) 1
84 PR1733800 ADJUST PLATE 1
85 MD4300622 PAN HEAD SCREW 2
90 PB0734800 SHAFT (HEAD BRACKET) 1
93 MN0401024 HEX SOCKET BOLT 1
94 ND0070030 E-RING 2
97 PA3737600 RIBBON PLATE 1
98 MD3250522 PAN HEAD SCREW 2
99 PA4730401 PLATE SPRING (HEAD CAM) 1
100 PC0730200 SPRING (HEAD OPEN) 1
105 GH000661A PRINT HEAD 1
107 RH1731200 HDS CABLE 1
108 RH1727100 POWER & HEAD CORD SET 1
117 PB5730400 SCREW (HEAD) 2
NO. CODE DESCRIPTION QTY
Print Head Assembly

Rev.BPage 11
SATO Industrial Bar Code Printers
SATO M-8460Se Printer Parts List
Ribbon Assembly

Rev.B
Page 12
SATO M-8460Se Printer Parts List
SATO Industrial Bar Code Printers
Ribbon Assembly
2 RH1730400 SEN4 CABLE 1
3 MA0300622 PAN HEAD SCREW 2
4 PA3730200 SENSOR BRACKET(RIBBON) 1
5 MC0301022 PAN HEAD SCREW 1
7 PE6720100 DISK PLATE COVER 1
9 MD4300622 PAN HEAD SCREW 3
11 MD3300822 PAN HEAD SCREW 1
12 MA0301022 PAN HEAD SCREW 1
13 MT1300522 HEX NUT 1
20 RC2730500 RIBBON SUB(UNWIND) 1
21 RC2730600 RIBBON SUB(REWIND) 1
23 PT1112080 BALL SUPPORTER 4
25 PR1730800 PULLEY 1
27 ND0060030 E-RING 1
33 PA1730601 RIBBON FRAME 1
35 MC0401022 PAN HEAD SCREW 4
37 PV9730100 BUSH 1
38 PA1731000 ADJUST PLATE 2
39 MD4300622 PAN HEAD SCREW 4
40 MD4400822 PAN HEAD SCREW 2
43 PB0734100 SHAFT RIBBON 2
44 PE4720200 PLATE HOLDER BOSS 2
45 PA0730100 GUIDE PLATE 2
47 MH1250621 FLAT HEAD P TITE SCREW 4
48 MT1300522 HEX NUT 1
49 MA0302522 PAN HEAD SCREW 1
51 PC0730100 SPRING (BACK) 1
52 MA0301821 PAN HEAD SCREW 1
53 PA0730200 HOLD PLATE 2
54 PA0680300 FRICTION WASHER 2
55 PE7720100 DISK PLATE(A) 1
56 PR1720300 RIBBON BOSS 2
57 PE1681100 GUIDE PLATE(B) 1
59 PA4690900 SPRING 8
60 MH0300521 PAN HEAD P TITE SCREW 8
62 PT2301020 OIL LESS METAL WASHER 2
NO. CODE DESCRIPTION QTY

Rev.BPage 13
SATO Industrial Bar Code Printers
SATO M-8460Se Printer Parts List
Ribbon Assembly
63 PA0680400 DISK 2
64 PC1730100 SPRING 2
67 PE2730100 STOPPER COLLAR 2
68 PB5730100 ADJUST SCREW 2
69 MA0302522 PAN HEAD SCREW 2
72 PR1734000 PULLEY 1
74 PC0740200 SPRING (BACK) 1
76 MH0300821 PAN HEAD P TITE SCREW 1
NO. CODE DESCRIPTION QTY

Rev.B
Page 14
SATO M-8460Se Printer Parts List
SATO Industrial Bar Code Printers

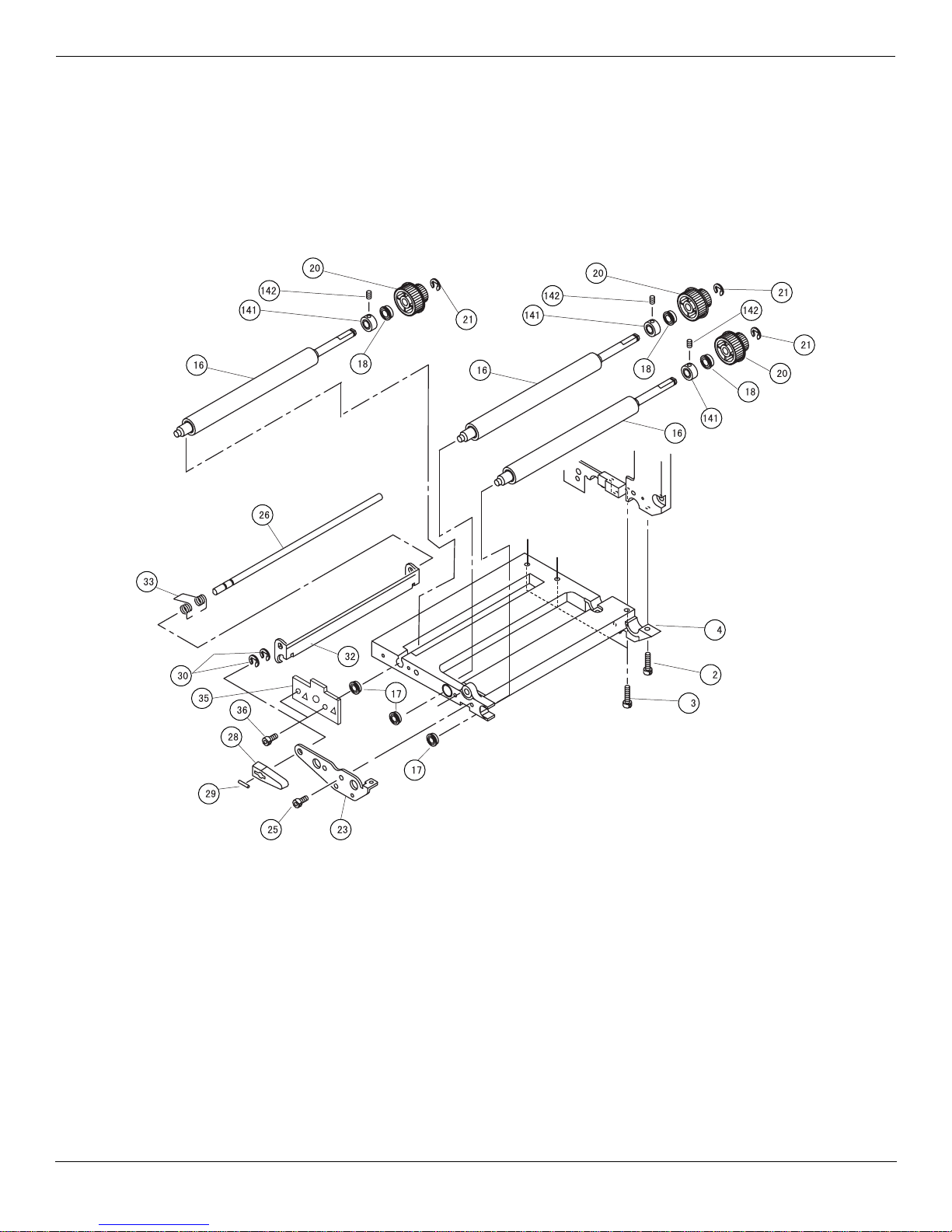

Platen Frame Assembly

Rev.BPage 15
SATO Industrial Bar Code Printers
SATO M-8460Se Printer Parts List
Platen Frame Assembly

Rev.B
Page 16
SATO M-8460Se Printer Parts List
SATO Industrial Bar Code Printers
Platen Frame Assembly

Rev.BPage 17
SATO Industrial Bar Code Printers
SATO M-8460Se Printer Parts List
Platen Frame Assembly

Rev.B
Page 18
SATO M-8460Se Printer Parts List
SATO Industrial Bar Code Printers

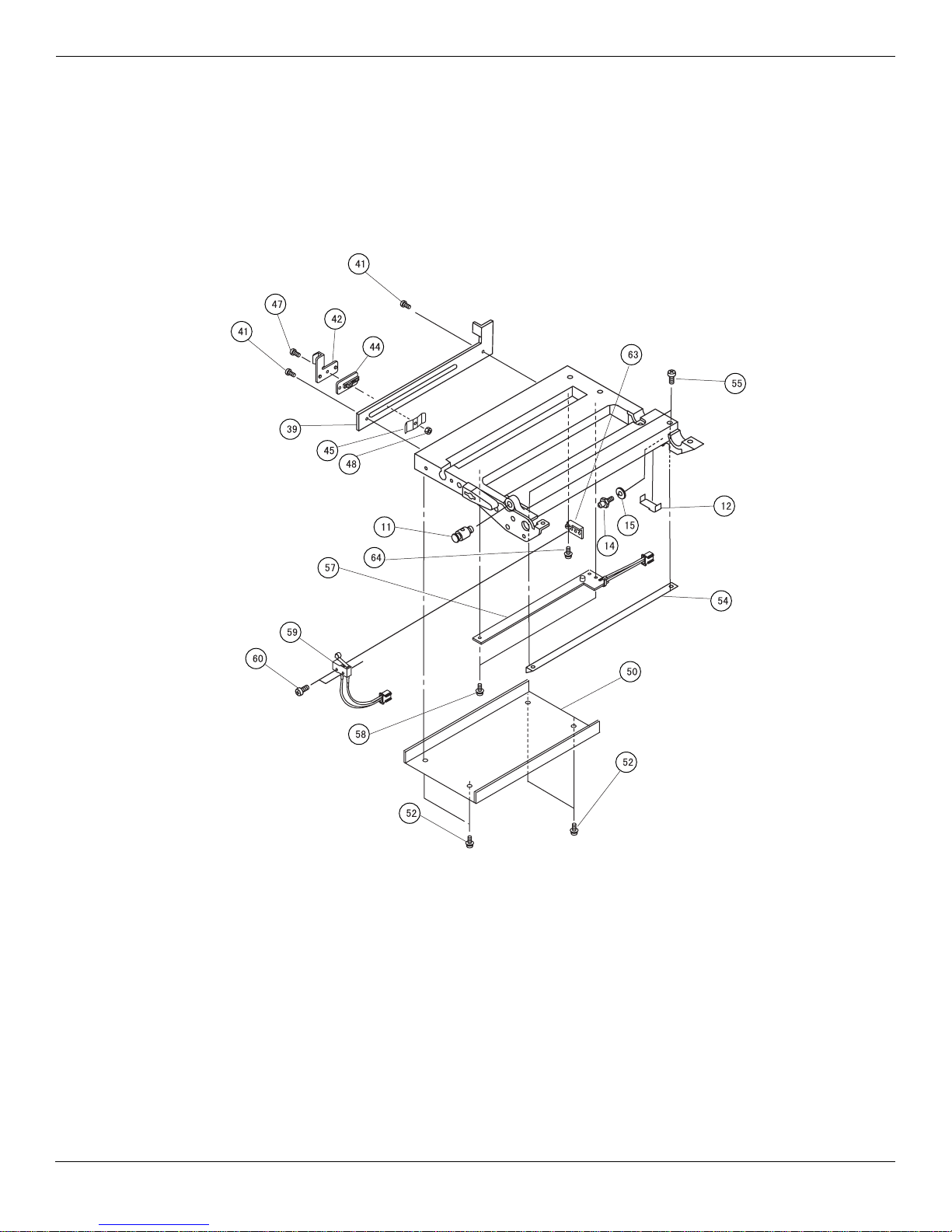

Platen Frame Assembly
2 MN0401024 HEX SOCKET BOLT 1
3 MN0402024 HEX SOCKET BOLT 3
4 PR4731601 PLATEN FRAME 1
11 PB0730500 POST (LATCH) 1
12 PA4730500 PLATE SPRING 1
14 PB0733500 SHAFT (HOLDER) 1
15 NB0040022 SPRING WASHER 1
16 PR0730300 PLATEN ROLLER 3
17 PT1109050 BALL SUPPORTER 3
18 PT1112060 BALL SUPPORTER 3
20 PE8730200 PULLEY 3
21 ND0040030 E-RING 3
23 PA3736301 SUPPORTER CLAMP (A) 1
25 MN0400824 HEX SOCKET BOLT 2
26 PB0735000 SHAFT (LATCH HANDLE) C 1
28 PE1730700 HANDLE (C) 1
29 NG2201030 PARALLEL PIN 1
30 ND0030030 E-RING 2
32 PA3737700 LATCH HANDLE (HOLDER) 1
33 PC3730101 SPRING (LATCH HANDLE) 1
35 PA1732000 SUPPORTER CLAMP (B) 1
36 MN1400824 HEX SOCKET BOLT 2
39 PA3737800 PAPER GUIDE (LH) 1
41 MN1400824 HEX SOCKET BOLT 2
42 PA3737900 SLIDE GUIDE 1
44 PE1730200 SLIDER 1
45 PA4730100 SLIDE SPRING 1
47 MA0301022 PAN HEAD SCREW 1
48 MT1300522 HEX NUT 1
50 PA6730100 COVER (SEN1) 1
52 MA0300522 PAN HEAD SCREW 4
54 PD1731600 DISPENSE BAR 1
55 MN0300624 HEX SOCKET BOLT 2
57 RH1732400 SEN1 CABLE 1
58 MD4300622 PAN HEAD SCREW 2
59 RH1734100 SEN7 CABLE 1
60 MA0200821 PAN HEAD SCREW 2
63 PA3738000 MICRO SWITCH BRACKET 1
NO. CODE DESCRIPTION QTY

Rev.BPage 19
SATO Industrial Bar Code Printers
SATO M-8460Se Printer Parts List
Platen Frame Assembly
64 MC0300622 PAN HEAD SCREW 2
66 MN0300624 HEX SOCKET BOLT 3
67 PL1731300 PAPER LID BRACKET 1
69 PB0735100 SHAFT (RIBBON) 1
70 ND0020030 E-RING 2
72 PC2730200 SPRING (OPEN) 1
73 PA3738100 PAPER LID (BOTTOM) 1
76 PA3731700 LATCH HANDLE 1
77 PB0730900 SHAFT (LATCH) 1
78 PC2730100 SPRING (LATCH) 1
80 ND0020030 E-RING 2
82 PA3731200 SENSOR BRACKET (PITCH) 1
84 MD4300622 PAN HEAD SCREW 1
85 RH1731000 SEN2 CABLE 1
86 MJ9300622 THIN HEAD SCREW 2
88 PA3738200 PAPER LID (TOP) 1
90 MC0300622 PAN HEAD SCREW 2
92 MA0301022 PAN HEAD SCREW 2
93 MT1300522 HEX NUT 2
97 PE2730300 STOPPER COLLAR 2
98 PC1730300 SPRING (PRESSURE) 2
100 PA3738300 ROLLER BRACKET 1
102 PL2730100 ADJUST COLLAR 1
103 PA0730400 WASHER 1
105 MN0400624 HEX SOCKET BOLT 2
106 NB0040022 SPRING WASHER 1
107 NA0040022 FLAT WASHER 1
109 PB0735200 SHAFT (PRESSURE ROLLER) 1
111 PE3720200 ROLLER 5
112 PE3720500 ROLLER 5
114 PA4730600 PAPER GUIDE (LID) 1
116 MC0300622 PAN HEAD SCREW 1
122 PL1731400 ROLLER HOLDER (PRESS) 1
124 PB0735300 PRESSURE ROLLER 1
125 PT1108040 BALL SUPPORTER 2
128 PA4730300 PLATE SPRING 4
129 MJ9300622 THIN HEAD SCREW 4
NO. CODE DESCRIPTION QTY

Rev.B
Page 20
SATO M-8460Se Printer Parts List
SATO Industrial Bar Code Printers
Platen Frame Assembly
132 PR1732800 PLATE (HOLDER) (F) 1
133 PR1732900 PLATE (HOLDER) (R) 1
135 MA1300822 FLAT HEAD SCREW 4
138 PB0733601 SCREW (HOLDER) 1
139 PE2730600 COLLAR 1
141 PB2730100 COLLAR 3
142 MJ1300324 HEX SOCKET BOLT 3
NO. CODE DESCRIPTION QTY
