Savaria M-1504 User manual

OWNER’S MANUAL
(To Be Retained by Owner After Installation
by Authorized Savaria Dealer)
Part No. 001051
02-m10-2018
M-1504
Material Lift

2
M-1504 Owner’s Manual Part No. 001051, 02-m10-2018
IMPORTANT
Ensure that only an authorized Savaria Dealer installs and services the M-1504
Material Lift. Under no circumstances is anyone other than a dealer with Savaria
training and authorization to install, adjust, service or modify any mechanical
or electrical device on this equipment. Failure to follow this warning can result
in safety system compromises or defeat; this can result in serious injury or
death. Savaria accepts no liability for property damage, warranty claims or
personal injury, including death, in this circumstance.
Passenger safety is the result of countless details in the equipment’s design,
manufacture, and installation. After installation, reliable operation and
continual safe operation requires regular service and inspection at least twice
per year, or more frequently where usage, environment, or local jurisdiction
requires. As the Owner, you are responsible for ensuring that regular service
and inspections occur in a timely manner.
Refer to this manual for specifications, operating instructions and maintenance
of the M-1504 Material Lift.
Upon completion of installation, the dealer must provide you with the
following information and ensure it is recorded in this manual. In addition,
either the dealer or you must keep any service and/or maintenance records in
the Maintenance Record section of this manual.
WARRANTY
Ensure your Savaria Dealer provides you with a copy of the manufacturer’s
limited parts warranty and documentation relating to any Dealer labour
warranty.
-------------------------------------------------------------------------------------------------
FOR OWNER’S RECORDS
Customer Name: _________________________________________
Installing Dealer: _________________________________________
Dealer’s Telephone Number: _______________________________
Date Installed: ___________________________________________
Serial/Job Number: _______________________________________

3
Part No. 001051, 02-m10-2018 M-1504 Owner’s Manual
Table of Contents
TO ENSURE SAFE OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
1. DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
2. GENERAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
3. OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
4. SAFETY FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Optional Scissor Gate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Door Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Safety Brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Manual Lowering and Battery Lowering System . . . . . . . . . . . . . . . . . .13
5. MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Maintenance Record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Operator Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

4
M-1504 Owner’s Manual Part No. 001051, 02-m10-2018
TO ENSURE SAFE OPERATION
To ensure safe operation of this equipment, pay careful attention to the
important notes below.
• Read this manual carefully before using the equipment.
• To prevent accidents, adhere strictly to the instructions and keep clear
of moving parts at all times.
• Follow instructions on all equipment labels at all times. Replace any
damaged labels immediately.
• Ensure that only qualified personnel perform maintenance and service
on the unit.
• When replacing parts, be sure that only genuine Savaria parts are used.
• This unit is intended for use by a mature person who understands its
proper operation as set out in this manual.
• Prior to operation, make sure that:
• All doors and gates are locked and secure.
• All areas in and around the lift are clear of any obstructions.
• All lights are functioning properly.
• Test your keys and emergency stop button every month.
• This lift is for material transport ONLY; personnel should NEVER ride on
this lift.
FOR MATERIAL TRANSPORT ONLY
This lift is for material transport ONLY and is NOT
for use by personnel. Personnel should NEVER
ride this lift.
WARNING

5
Part No. 001051, 02-m10-2018 M-1504 Owner’s Manual
1. DESCRIPTION
Figure 1 shows the exterior components of a M-1504 (with a Type 1 cab and
without an enclosure).
Figure 1
Tower service panels
Type 1 cab
Platform
Car operating panel (COP)
Manual
lowering
device
Safety underpan
Tower cap
Tower
Pit swtich
Base support legs

6
M-1504 Owner’s Manual Part No. 001051, 02-m10-2018
2. GENERAL SPECIFICATIONS
M-1504 Specifications
Load capacity 1000 lb (455 kg)
Maximum travel 23 ft (7 m)
Nominal speed 18 ft/min (0.09 m/s)
Levels serviced 2 (standard), 3, 4
Daily cycle
Normal: 30
Heavy: 75
Excessive: 100
Maximum starts in 1 hour on standard installation: 12
Cab sizes
36” x 54” (914 mm x 1371 mm)
42” x 60” (1219 mm x 1524 mm)
48” x 60” (1067 mm x 1524 mm)
Cab walls (height) Standard 60” (1524 mm)
Optional 80” (2031 mm)
Cab access
Enter/exit same side (platform Type 1L and 1R)
Front/rear access (platform Type 2)
90 degree access (platform Type 3 and 4)
Power supply 120 VAC, 20 A, 60 Hz, single phase
Control system Electronic-free relay logic controller
Motor/drive 2:1 chain hydraulic, 3 HP, gear-type motor for 110V
Tower Modular 8 ft (2.4 m) base guide rail assembly
Roller guide support
Pit depth requirement 3” (76.2 mm)
8” (203.2 mm) with habitable space underneath
Finish Grey electrostatic power coat paint on frame
Stainless steel on walls

7
Part No. 001051, 02-m10-2018 M-1504 Owner’s Manual
M-1504 Specifications (continued)
Standard features
115 VAC operation (115 VAC up direction; 24VDC
battery down direction)
Call/send stations at landings
Continuous-pressure type buttons
Operating control buttons on platform
Automatic battery recharging system (115 VAC)
Remote manual lowering device
Low-voltage controls
Limit switches
Stainless steel checkered platform surface
No machine room required
Emergency stop button
Safety features
Bottom and top landing door
Door lock
Safety brake
Emergency stop buttons
Manual lowering and battery lowering system
Options
Fire-rated, flush-mounted landing entrances
Custom color
Fixed access ramp
Outdoor package
24V battery backup
Remote controller/pump box

8
M-1504 Owner’s Manual Part No. 001051, 02-m10-2018
3. OPERATION
Figure 2 shows the different types of landing stations (hall calls).
Figure 2
Figure 3 shows the car operating panel (COP).
Figure 3
Surface Mount
Flush Mount
In Frame
Key switch
Landing
buttons
Emergency Stop Button
Door Open Button
Emergency Light

9
Part No. 001051, 02-m10-2018 M-1504 Owner’s Manual
To operate the M-1504 from the landing (call/send) station controls:
1Insert the key into the key switch (if equipped) and turn it to the ON position
to activate the operating buttons.
2Press the appropriate button to move the lift in the required direction. Note
that the M-1504 will not move if one of the doors is open.
3When the lift reaches the landing, the door will unlock automatically.
4To prevent unauthorized use of the lift, take the key out when the unit is not
in operation.
If you are inside the lift placing a load on the platform and the
door closes, press the Door Open button to open the door.
There is also an Emergency Stop button on the COP that when
presssd will stop the lift immediately and activate the Emergency
Light. Pull the Emergency Stop button out to return the lift to
normal operation.
NOTE

10
M-1504 Owner’s Manual Part No. 001051, 02-m10-2018
4. SAFETY FEATURES
Optional Scissor Gate

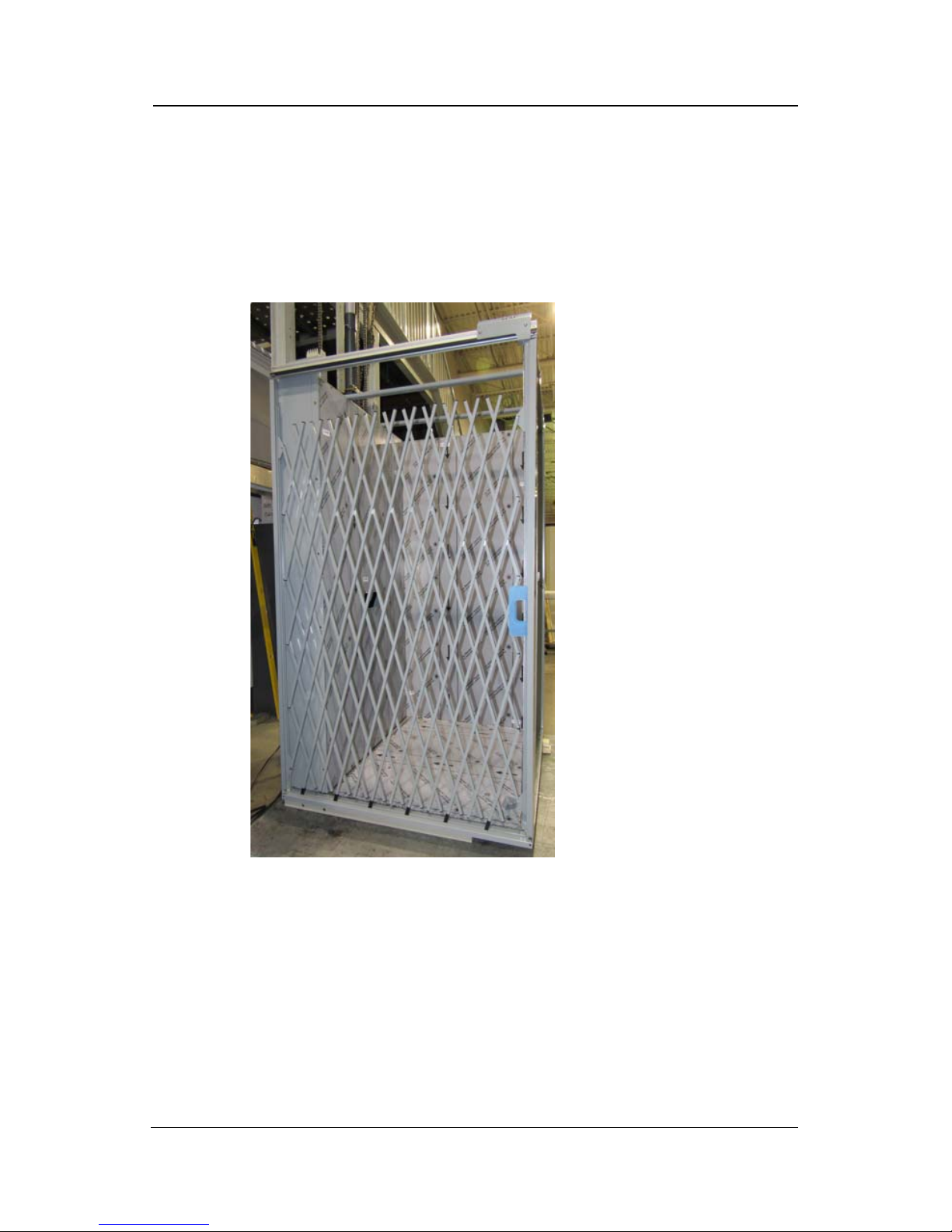

The scissor gate (shown in Figure 4) prevents the load from falling off the
platform. This is an optional feature if required by code.
Figure 4

11
Part No. 001051, 02-m10-2018 M-1504 Owner’s Manual
Door Lock
The GAL door lock keeps the door locked when the platform is moving and not
at a landing.
Keys are for emergency use only and should always be kept in a safe
place for use by trained personnel only.
Emergency Door Opening

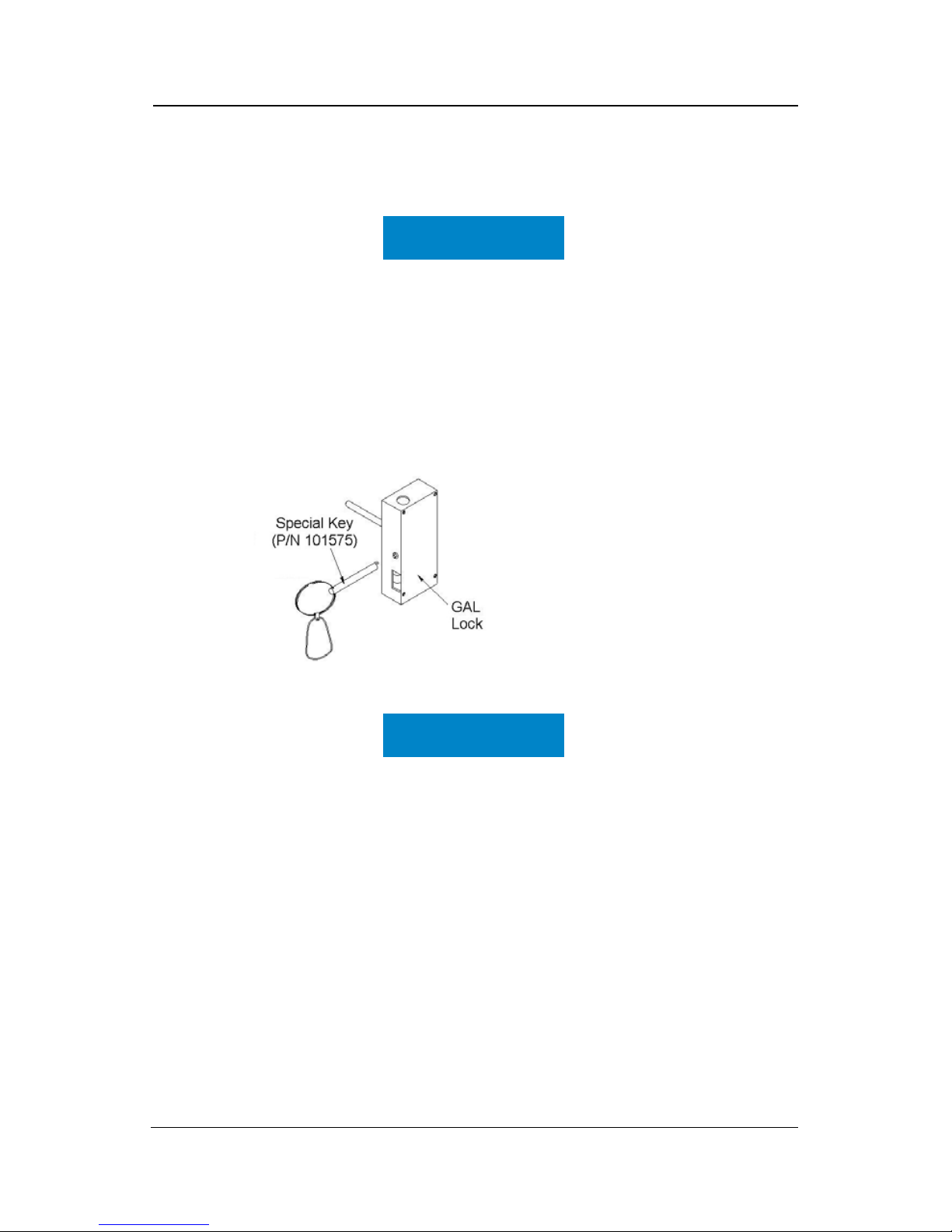

The door can be opened manually using a special key inserted into the round
pin on the front of the lock (Figure 5).
Figure 5
After use of any emergency function (access key or manual lowering
device), ensure that all doors/gates are secure and locked. While the
emergency function is in use, DO NOT leave the area unattended.
NOTE
NOTE

12
M-1504 Owner’s Manual Part No. 001051, 02-m10-2018
Safety Brake
The safety brake stops the platform in the event of chain failure.
When the platform is in operation, the chain tension keeps the brake
mechanism up (Figure 6) so that the brake’s cam doesn’t interfere with the
tower track.
If a chain failure occurs, the brake mechanism comes down (Figure 6) and the
brake cam stops the platform.
Figure 6
Safety brake in operating position Safety brake in down position
Safety brake mechanism
Brake cam
Safety brake
mechanism
Tower track
Right roller
guide shoe

13
Part No. 001051, 02-m10-2018 M-1504 Owner’s Manual
Manual Lowering and Battery Lowering System
If a power failure occurs, a battery lowering system will bring the lift to the
bottom level. If the battery fails while operating, there is also a manual lowering
device that will bring the lift to the lower level.

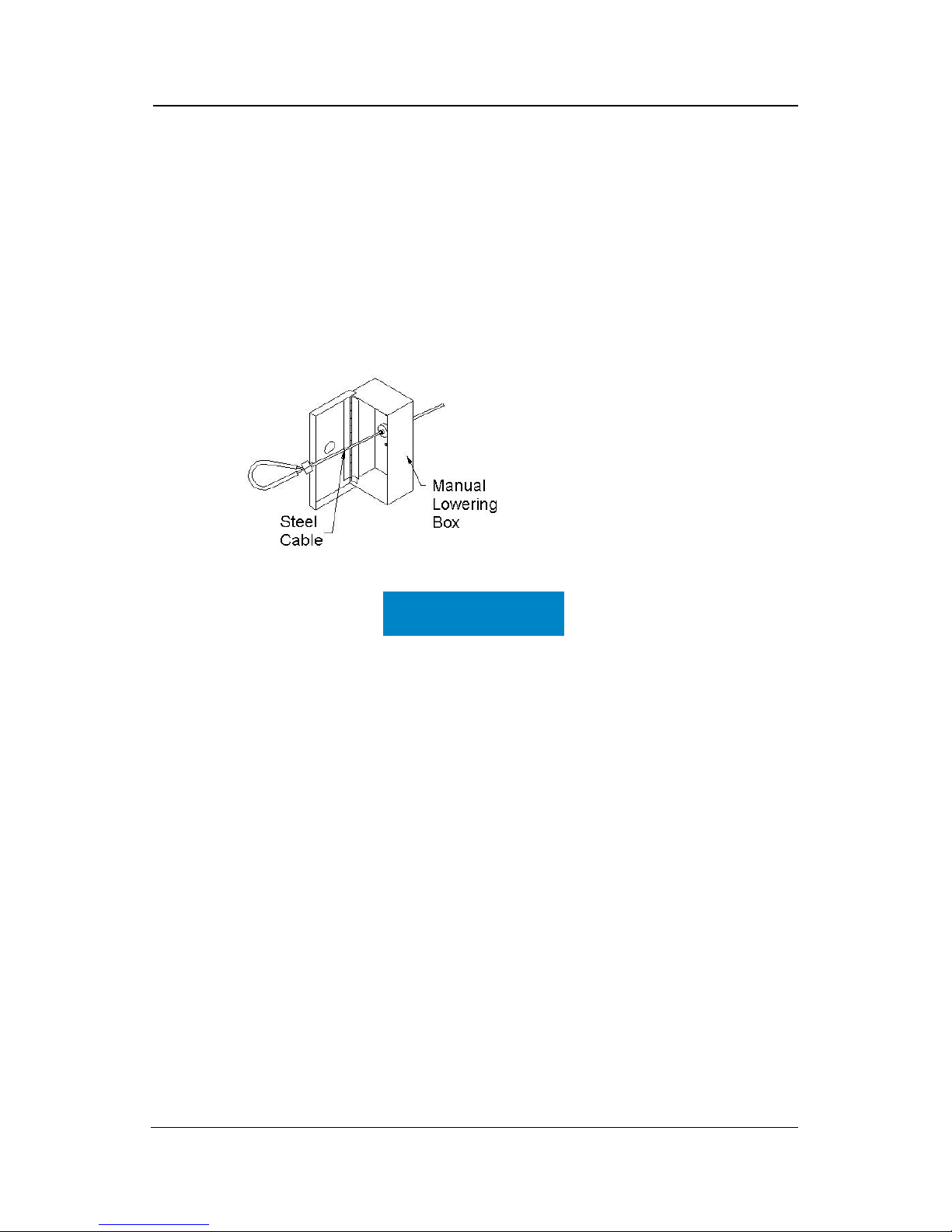

For units with a 120 VAC pump, the manual lowering box (Figure 7) is located
on the side of the M-1504. When you pull on the steel cable located inside the
manual lowering box, the platform descends to ground level.
Figure 7
This mechanism is for emergency use only. After use of any emergency
function (access key or manual lowering device), ensure that all
doors/gates are secure and locked. While the emergency function is in
use, DO NOT leave the area unattended.
NOTE

14
M-1504 Owner’s Manual Part No. 001051, 02-m10-2018
5. MAINTENANCE
The owner can perform the 2-month inspections, but the 6-month
inspections must be performed by a Qualified Technician. Contact your
Authorized Dealer.
Units installed in adverse environments will require additional
maintenance on a monthly basis.
Figure 8
Always use the shoring pins when working under the lift. For lower
travel heights, insert the pins into the lower holes (at 600 mm).
NOTE
DANGER
Shoring pin
Shoring pin hole

15
Part No. 001051, 02-m10-2018 M-1504 Owner’s Manual
Maintenance Schedule
Verification by owner Frequency
The lift should not move if any door is not closed.
The lift should not move beyond the door zone (usually less
than four inches away from the landing in either direction) if
the door is not locked.
Every 2 months
Verification by technician ONLY Frequency
Check the suspension system:
•Chains
•Connectinglinks
• Chain pulleys and shafts
• Parts holding the chains on the roller supports
• Chain tensioners on the rail (they should be tight)
• Cylinder head (cotter pins, cracks, welds)
• Up relays - if you have two up relays (solenoids or
contactors), make sure one of them is not stuck in the
activated position. Use a multimeter to verify that every
N.O. contact is open when the relays are not being
activated.
Every 6 months
Check the safety brake. Every 6 months
Check for oil leaks. Every 6 months
Check the rollers. Every 6 months

16
M-1504 Owner’s Manual Part No. 001051, 02-m10-2018
Maintenance Record
Date Time Reason for Call Comments Dealer

17
Part No. 001051, 02-m10-2018 M-1504 Owner’s Manual
Operator Troubleshooting
The following table lists potential problems and their possible solutions.
If the problem persists, contact your Authorized Dealer.
Potential Problem Possible Solution
Lift does not move
Check the power supply (breaker, cord, battery,
etc.).
Check that the key is ON (if applicable).
Check that the doors are closed.
Check to see if the Emergency Stop is pushed in;
it should be pulled out for normal operation.

M-1504 Material Lift
OWNER’S MANUAL
Part No. 001051
Copyright 2018
Savaria Concord Lifts, Inc.
2 Walker Drive
Brampton, Ontario, L6T 5E1, Canada
www.savaria.com
For service or questions about this product, please contact your installing dealer.
DEALER NAME: _________________________________________________
DEALER PHONE: _________________________________________________
Authorized Savaria Dealer
