Savch S2800 Series User manual

Manual Service
For S2800 Series Inverters
All Rights Reserved. Subject to
change without notice.

Contents
Preface…………………………………………………………………..………………………..
1
1. Safety instructions.……………………………………………..…………………...........
2
1.1 NOTES FOR OPERATION………………………………………..……………………...
2
1.2 NOTES FOR OPERATION ENVIRONMENT………...………..………………………..
4
2. DESCRIPTIONS FOR SANCH AND INSTALLATION………………..……….………..
5
2.1 OPERATION ENVIRONMENT……………………………………………………………
5
2.2 MODEL DESCRIPTION……………………………………………………………………
6
2.3 PRODUCT SPECIFICATION……………………………………………………………...
7
2.4 WIRING……………………………………………………………………………………...
15

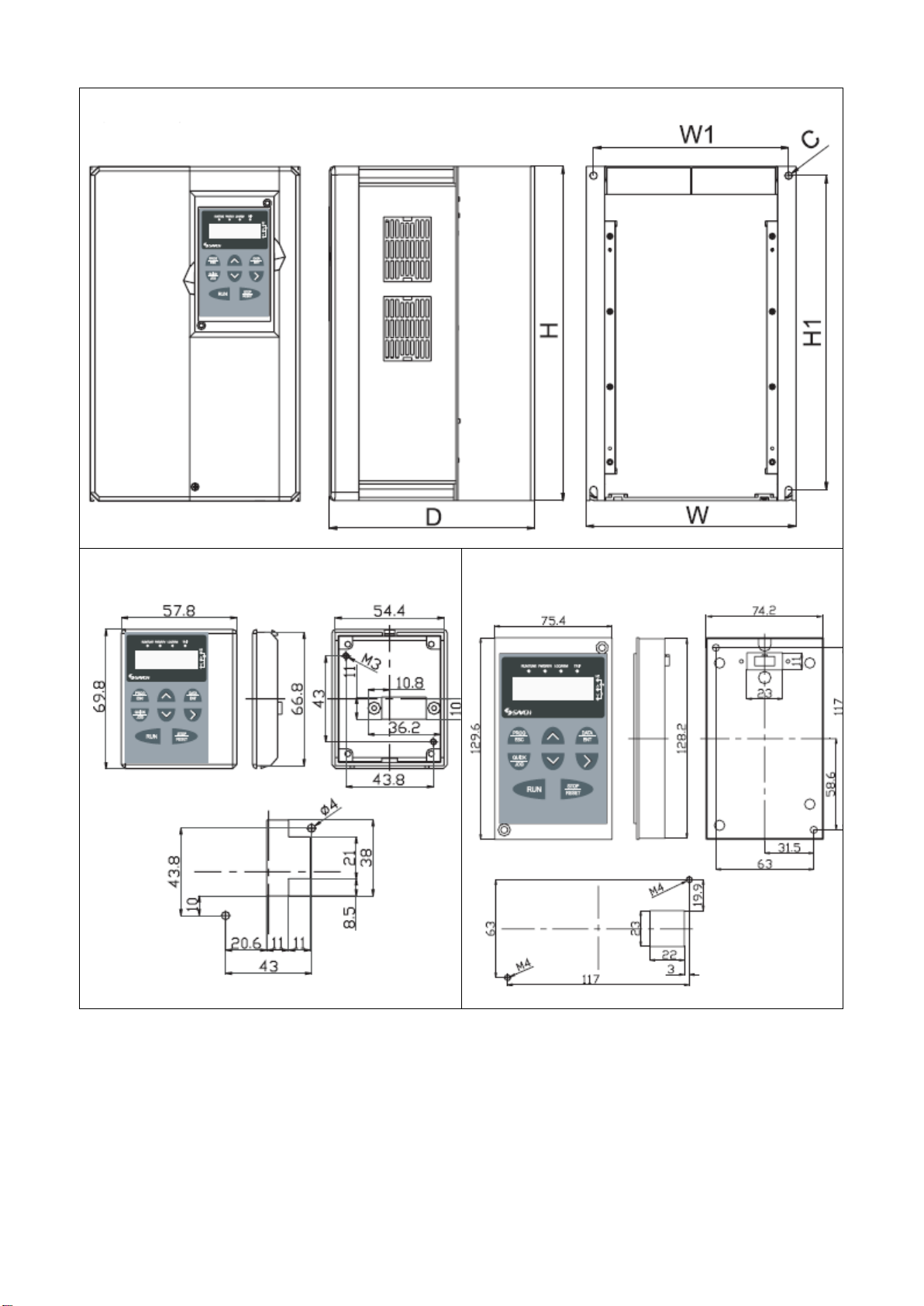

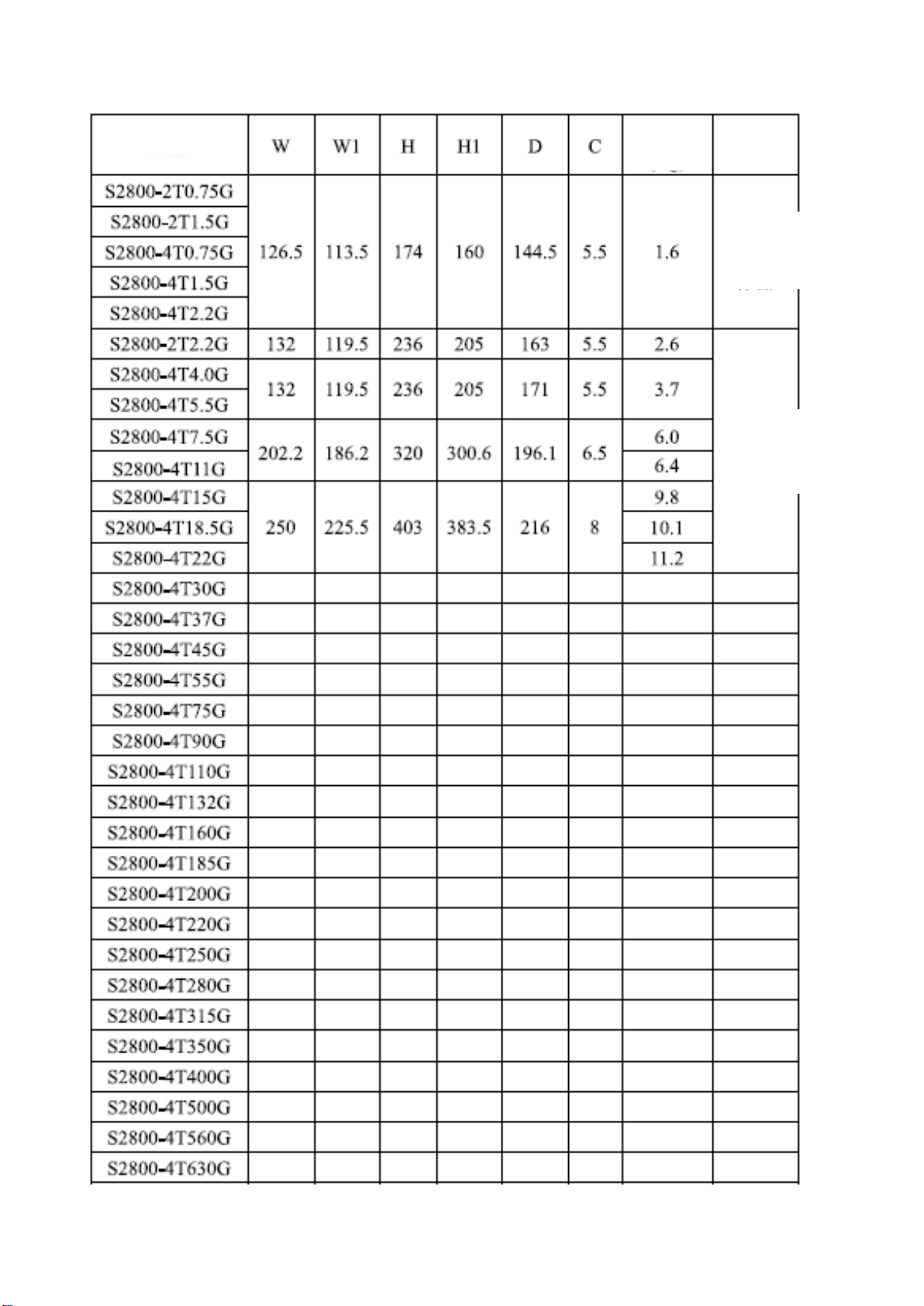

2.5 OUTLINE SIZE……………………………………………………………………………..
16
3. DESCRIPTION OF OPERATORS…………………………………………………………
19
3.1 KEYBOARD DESCRIPTION FOR IP03/IP05 DIGITAL OPERATOR…………………
19
3.2 DESCRIPTION OF KEYBOARD OPERATION………………………………………....
21
3.3 PRELIMINARY OPERATION-NOT CONNECTING WITH MOTOR………………….
25
4. LIST OF DESCRIPTIONS FOR FUNCTIONAL PARAMETERS………………………
27
5. DESCRIPTION OF FUNCTIONAL PARAMETERS……………………………………..
38
0: USER’S PARAMETERS…………………………………………………………………….
38
1: Motor Control Parameters…………………..………………………………………………
43
2: Vector Control Parameter…………………………………………………….. ……………
45
3: V/F Control Parameters……………………………………………………………………..
46
4: Input Terminal Parameters………………………………………………………. ………...
48
5: Multi-velocity Control Parameters………………………………………………………….
54
6: Output Terminal Parameters…………………………………………………………….. ...
55
7: Start-stop Control Parameters……………………………………………………………...
57
8: Man-machine Interface Parameters……………………………………………….. ……..
60
9: Enhanced Function Parameters…………………………………………………………....
65
10: PID Control Parameters……………………………………………... ……... ……... …..
71
11: Protection Parameters……………………………………………... ……... ……... …….
74
12 : Serial Communication Parameters……………………………………………... ……...
77
6. TROUBLE SHOOTING………………………………………………………………….....
92
6.1 Failures &Failure Elimination………………………………..……………………………
92
6.2 Troubleshooting for faults in general…………………….……..………………………..
95
7. MAINTENANCE AND AMBIENT ELEMENTS………………….……………………….
96
Interleaf of Taking the Top Cabinet of S2800-4T7.5G/4T11G…………………………….
99

1
Preface
This instruction manual, which includes operation descriptions and notes for maintenance, shall be
delivered to the end-user.
For safety running and effective operation, this instruction manual shall be read thoroughly prior to use,
which shall also be preserved for later use. Provided problems occur and solution is not provided in this
instruction manual, contact your SANCH ELECTRIC representative or contact with our company directly.
Our professional technicians will serve for you actively. And please continue to adopt products of
SANCH, give valuable opinion and advice.
1. Reading Instructions
symbols of” DANGER” and” ATTENTION” in the manual indicates that, for safety running or
maintenance of inverters or other electrical products, attention shall be attached during delivering,
installation, operation and checks for the inverter. And these notes shall be applied for a better and safer
operation.
DANGER
indicates a potentially hazardous situation visiting. If not used correctly, personnel
damage even death may be caused.
CAUTION
indicates a potentially hazardous situation visiting. If not used correctly, serious
damage to inverter or machine may be resulted.
ATTENTION

Do not perform a withstand voltage test for components of inverter, it can cause
semi-conductor components to be damaged by high voltage.
Never connect the output terminals U, V, W to AC power supply.
IC of C
MOS on control circuit of the inverter shall be damaged by electrostatic
influence. Do not touch main circuit board.
2. Products receiving
All products have been performed with strict test and inspection. After receiving the inverters, the
following checks shall be performed.
To check that SANCH inverter, an instruction manual and a cover is inside of the package
To check whether model number correspond with model and capacity your purchase order.
To check whether there are damaged parts during transportation and delievering. If there are,
do not connect with power supply.
If any of the above checkpoints are not satisfactory, contact your SANCH ELECTRIC representative
for a quick resolution.
DANGER
Never connect wires while power on. Do not check components or signal for
circuit board during operation.
Do not dismantle or change inner wire, circuit or components unnecessarily.
Make sure grounding terminals are correctly grounded. 220V level: Grounding
Ⅲ; 200V level: Special Grounding

2
CAUTION
1 SAFETY INSTRUCTIONS
1.1 NOTES FOR OPERATION
Before wiring
Specification of applying power supply shall correspond to input voltage of the inverter.
DANGER
Main circuit terminals must be correct, R/L1, S/L2 and T/L3 is input terminals and it’s
forbidden to use mixing with U/T1, V/T2 and W/T3. Failure to observe this may cause the
inverter damaged.
CAUTION
●
When delivering the inverter, do not take the cover directly. Take the air fan seat to
prevent the cover got off. Inverters getting off which may cause damage to personal
or machine shall be avoided.
●Install the inverter on metal or other non-
inflammable materials. Do not fix it on
inflammable materials which may cause a fire hazard.
●
In case of several inverters are installed together in one control panel, a fan shall be
prepared to make sure temperature lower than 40℃, thus over -
heating or a fire
hazard shall be avoided.
●
Operator shall be dismantled or refitted after power supply is off. Fixed operator shall
be processed as diagram shows to prevent operator fault or no display.
●Make sure applied p
ower supply comply with label showed on the right of the
machine. Failure to observe this may cause action failure.
During operation DANGER
●Never put in or take off the motor during operation, otherwise over-current even over
burning the main circuit of the inverter may happen.
●Do not remove the cover while current is flowing. Failure to observe this may result in
electrical shock to personnel.
●When auto-restart function is set, do not approach the machine since motor can be
reset suddenly after being stopped.
●
Since STOP button can be selected by function set, which is different from usage of
emergency stop/on switch, attention shall be given to the usage.

3
CAUTION
●Never touch heatsink or discharging resistor since temperature may be very high.
●Since it is easy to change running speed from low to a high speed, verify safe working
range of motor and machine before running.
●Pay attention to relative settings before using the brake.
●Do not check signals during running.
●All parameters of the invert
er have been preset at the factory according to line
frequency. Do not change the settings unnecessarily.
●
Do not perform dismantling or checks while power supply and charging indicator”
CHARGE” are still on.
During check and maintenance CAUTION
●Ambient temperature for operating the inverter shall be -10℃to + 40℃and 90%RH
non moistring condensation.
●After removing the dust-cover, ambient temperature for operating the inverter shall be
-10℃to + 50℃
and 95%RH non moistring condensation. However under this
condition, the ambient environment must be without drips of water or metal dust. If
there are, the dust cover shall be refitted and check whether ambient temperature is
within -10℃to + 40℃simultaneously.
During rejection CAUTION
●Explosion may occur when burning the electrolytic capacitor of the main circuit and
printing plate. Toxic gas may be generated when burning control panel and other
plastic fittings.
It shall be treated as Industrial waste.

4
1.2 NOTES FOR OPERATION ENVIRONMENT
Make sure the inverter is protected from the following during operation:
Direct Sunlight.
Corrosive gas
or
fluids Oil l
Salt or saline Rain, moisture Iron chips and dust
Large impelling
Extreme low
temperatures
Extreme high ambient
temperatures (Above 40℃)
Electromagnetic waves and
ultra high-
angle rays (For
example: locations of
welding machines and etc.)
Radioactive materials
Locations of inflammable
materials

5
2 DESCRIPTIONS FOR SANCH AND INSTALLATION
2.1 OPERATION ENVIRONMENT
Since operation environment can directly influence functions and operation life, to ensure proper
performance and long operation, follow the recommendations below when choosing allocation for
installing the inverter. Make sure it is protected from the following:
Extreme cold and heat.
Use only with the ambient temperature range: -10℃to + 40℃; -10℃to + 50℃applicable when dust
cover is removed.
Rain, moisture
Direct sunlight.(Avoid using outdoors)
Corrosion of oil sprays or salt
Corrosive fluid and methane
Dust or metallic particles in the air.
Radioactive materials and inflammable materials
Electromagnetic interference (Avoid using together with welding machine or dynamic machines.)
Vibration.
(If inverter must be used in this environment, an anti vibration pad is necessary).
Attention shall be attached to clearance of inverters allocated closely. A fan shall be installed to
make sure temperature is lower than 40℃
correct configuration

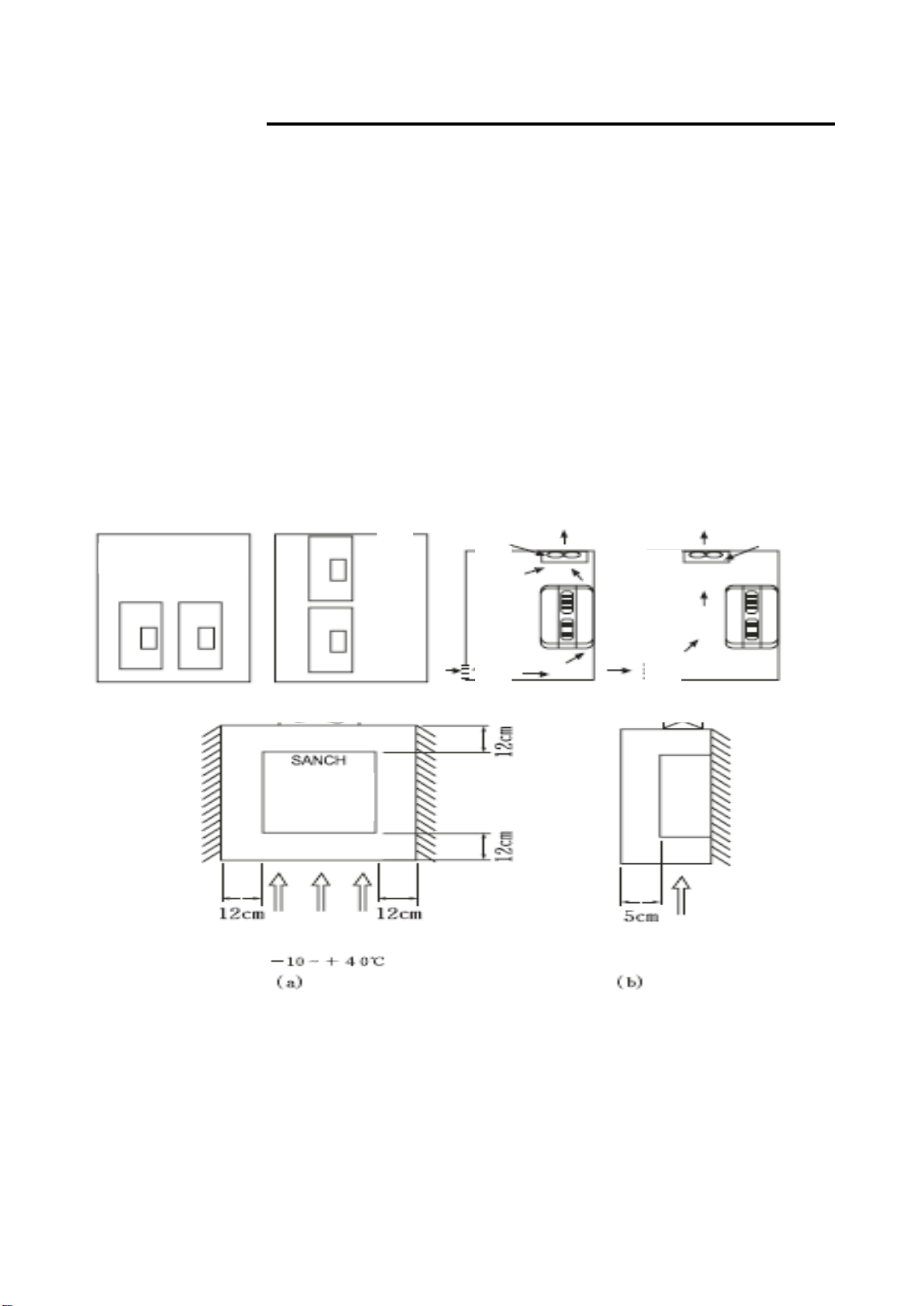

For cooling off, face shall be toward front and upper parts shall be upwards.
Clearance shall meet the following specifications: (If the inverter is installed inside the cabinet or
environment is allowable, dust cover shall be available to be removed for ventilating.)
AIR EXCHANGE FAN AIR EXCHANGE FAN
DIRECTION OF
INSTALLATION
VENTILATION
FRONT SIDE
INSIDE THE CABINET
INSIDE THE CABINET
INSIDE THE CABINET
INSIDE THE CABINET
correct configuration wrong configuration correct configuration wrong

6
2.2 MODEL DESCRIPTION
THREE PHASE
Model
Input power supply Specification
Output power supply Specification
Output frequency
PRODUCT
SERIES
SINGLE PHASE/
THREE PHASE
G: CONSTANT TORQUE
LOAD
P: Variable torque
load

7
2.3 PRODUCT SPECIFICATION Individual Specification
■220V Signal phase/ Three phase Series
Model number S2800-2T□□□G 0.75 1.5 2.2
Output
Max applicable motor output
power(kW)
0.75 1.5 2.2
Max applicable motor output
power(HP)
1 2 3
Output rated capacity(kVA) 1.9 2.5 4.2
Output rated current (A) 5.0 6.5 11
Output frequency range 0.1~600Hz
Over load capacity
150% of rated output current and run for 65sec.
Max output voltage
Correspond to input power supply
Input
Phase number. Voltage. Frequency
Signal phase/ Three phase. 200 to 240V. 50/60Hz
Allowable variation range for Voltage.
Frequency
Voltage: ±15%, Frequency: ±5%
Input current (A) 11/7.4
15/10 27/15
Cooling System Forced air cooling
■440V Three phase Series
Model number
S2800-4T
□□□
G
0.75 1.5 2.2 4.0 5.5 7.5 11 15 18.5 22 30 37 45 55 75
Output
Max applicable
motor output
power(kW)
0.75 1.52 2.2 4.0 5.5 7.5 11 15 18.5 22 30 37 45 55 75
Max applicable
motor output
power(HP)
1 2.8 3 6.9 7.5 10 15 20 25 30 40 50 60 74 100
Output rated
capacity(kVA)
1.9 3.7 3.8 6.3 9.9 13 19.1 24.4 28.2 34.3 45.7 57.1 68.6 83.8
114.3
Output rated
current (A)
2.5 3.7 5 9.7 13 17 25 32 37 45 60 75 90 110 150
Output
frequency
range
0.01~600Hz
Over load
capacity
150% of rated output current and run for 65sec.
Max output
voltage
Correspond to input power supply
Input
Phase number.
Voltage.
Frequency
Three phase. 380 to 460V. 50/60Hz
Allowable
variation range
for Voltage.
Frequency
Voltage: ±15%, Frequency: ±5%
Input current
(A)
3.4 5.0 5.8 11.2 15 20 26 35 38 46 62 76 90 105 140
Cooling System
Forced air cooling

8
Model number
S2800-4T
□□□
G
90 110 132 160 185 200 220 250 280 315 350 400 500 560 630
Output
Max applicable
motor output
power(kW)
90 110 132 160 185 200 220 250 280 315 350 400 500 560 630
Max applicable
motor output
power(HP)
120 147 176 214 247 267 294 334 374 420 534 467 667 747 840
Output rated
capacity(kVA)
134 160 191 229 259 290 316 358 358 457 526 488 656 724 838
Output rated
current (A)
176 210 250 300 340 380 415 470 520 600 640 690 860 950 1100
Output
frequency
range
0.01~600Hz
Over load
capacity
150% of rated output current and run for 65sec.
Max output
voltage
Correspond to input power supply
Input
Phase number.
Voltage.
Frequency
Three phase. 380 to 460V. 50/60Hz
Allowable
variation range
for Voltage.
Frequency
Voltage: ±15%, Frequency: ±5%
Input current
(A)
160 210 250 290 330 410 500 580 620 670 835 920
1050
Cooling System
Forced air cooling

9
Individual Specification
■Standard Specification
Controlling Characteristics
Control mode
V/F control,without PG vector control
Output frequency range
0.01~600.0Hz
Frequency setting analyzing
degree
0.01Hz
Output frequency analyzing
degree
0.01Hz
PWM load wave frequency
Available to modulate from 0.5 to 15kHz.
Torque increase
without PG vector control 0.5Hz/150%(SVC)
Jog frequency
3 points can be set from 0.01 to 600.0Hz
Acceleration/deceleration
time
0.01 to 600.0seconds. (2 steps of accel/decel time can be set
separately.)
Stall Prevention Level
According to the load characteristics of motor, it’s available to be set
as 50 to 200% of rated current of the drive
DC braking
Stopping function can be performed from 0.01~60Hz. Stopping
current is 0~100% of rated current.
Starting time is 0-60.0s, stopping time is 0-60.0s.
Braking torque
20%(125% shall be available if connected with purchased braking
resistor externally) (for 1 to 25HP, equipped within the electric
crystals, for 30HP, braking unit module shall be connected externally.)
speed regulation ratio
without PG vector control 1:100
Operation Characteristics
Frequency
setting signal
Digital
Operator
Set by UP and DOWN
External
terminals 0-10VDC, 4-20Madc, Serial Communication Board(RS-485)
Running
operating
signal
Digital
Operator
Available to be operated by RUN, STOP and JOG keys.
External
terminals
2 wire style (Fwd/Stop, Rev/Stop, Run/Stop and Fwd/Rev)/ 3 wire
operation, JOG running, Serial Communication Board(RS-485)
Intelligent Input Terminal
Switching of 16 step pre-set available speed; Switching of
First/Second acceleration/deceleration time; prohibiting
acceleration/deceleration and external interrupt input; Jog running
UP/DOWN frequency terminal setting; Count terminals
Intelligent Output Terminal
During running, frequency agreement output, non-zero count
agreement output, over torque output, external interrupt reference,
low voltage detection, operation mode reference, fault output and
external fault interruption.
Analog signal output
Correspond to actual output frequency or output current.
Fault signal contact
Contact of ON atAC motor drive fault (Relay with one C contact
or two open collector output.)
Built-in Function
Setting max/min output frequency; momentary power off restarting;
fault restarting; setting of S curve acceleration/deceleration time;
auto-voltage stabilizing output modulation; digital frequency output
signal; fault records; parameters locking; reset to factory setting;
inhibiting reverse run; over current stalling prevention, over voltage
stalling prevention, electrical thermal relay.
Protection Function
converting unit phase protection, to accelerate and decelerate the
over current and over voltage and keep the over current and over
voltage in constant rate, UV failure of busbar, motor overload, inverter
overload, input side phase failure, output side phase failure, rectifier
module overheating, converting module overheating failure, external
failure, communication failure, current sense failure, motor
self-taughtfailure, EEPROM operation failure, PID feedback
disconnection failure, stopping unit faiure
Digital operator
Consisting of 8 functional keys, 7 step LED in 5 digits; 5 status LED
indicators. Available to set frequency, display actual output frequency,
output current, self-determined unit parameter overview of users,
modify settings and for parameter locking, fault displaying. Available
to perform running, stop, reset, fwd/rev run and jog run.
environment
Operational Environment
temperature
-10
℃
to +50
℃
(+40
℃
to +50
℃
available when the dust cover is
removed.)
Storing temperature
-20
℃
to +60
℃
Operational Environment
dampness Below 90%RH without moister
Installation height
Lower than 1000m, without corrosive gas, fluid and dust.
Vibration
Below 20Hz 9.80665m/s2(1g),20~50Hz 5.88m/s2(0.6g)
Protection degrees
IP20(Determined by the installation environment of the end-users.)

10
Applicable electromagnetic contactor and wiring specifications
Non-fuse breaker/Magnetic contactor
SANCH ELECTRIC shall not be responsible for faults due to the following:
(1) Absence or inapplicable or over large non fuse breakers was put between the power supply and the
inverter, which results in the inverter fault.
(2) Magnetic contactors or advance capacitor or Surge Absorber were connected in series between the
inverter and motor.
Athree phase Squirrel-cage induction motor which corresponds with the capacity of the inverter
shall be adopted.
If more than one motors were driven simultaneously by one inverter, the current of these motors
when running shall below capacity of the inverter. And each motor shall be prepared with a
thermal relay in appropriate capacity.
Phase advance capacitors and other capacity elements such as LC or RC shall not be fixed
between the inverter and motor.
List of applicable non-fuse switches for S2800 series
220V Series
S2800-SERIES
MODEL Rated Input Current(A) Rated Output Current(A) Motor Output(kW) Non-fuse Switch Rated
Current(A)
S2800-2T0.75G 11 5.0 0.75 20
S2800-2T1.5G 15 6.5 1.5 30
S2800-2T2.2G 27 11 2.2 40

11
440V Series
S2800-SERIES
MODEL Rated Input Current(A) Rated Output Current(A) Motor Output(kW) Non-fuse Switch Rated
Current(A)
S2800-4T0.75G 3.4 2.5 0.75 5
S2800-4T1.5G 5.0 3.7 1.5 10
S2800-4T2.2G 5.8 5.0 2.2 15
S2800-4T4.0G 11.2 9.7 4.0 20
S2800-4T5.5G 15 13 5.5 20
S2800-4T7.5G 20 17 7.5 30
S2800-4T11G 26 25 11 50
S2800-4T15G 35 32 15 60
S2800-4T18.5G 38 37 18.5 75
S2800-4T22G 46 45 22 100
S2800-4T30G 62 60 30 100
S2800-4T37G 76 75 37 100
S2800-4T45G 90 90 45 125
S2800-4T55G 105 110 55 160
S2800-4T75G 140 150 75 200
S2800-4T90G 160 176 90 250
S2800-4T110G 210 210 110 330
S2800-4T132G 240 250 132 330
S2800-4T160G 290 300 160 400
S2800-4T185G 330 340 185 500
S2800-4T200G 370 380 200 500
S2800-4T220G 410 415 220 630
S2800-4T250G 460 470 250 700
S2800-4T280G 500 520 280 780
S2800-4T315G 580 600 315 900
S2800-4T350G 620 640 350 960
S2800-4T400G 670 690 400 1035
S2800-4T500G 835 860 500 1290
S2800-4T560G 920 950 560 1425
S2800-4T630G 1050 1100 630 1635

12
Application and description for ambient equipments
Power supply:
Power supply:
Make sure voltage class is correct, otherwise inverter may
be damaged.

A no fuse breaker (air circuit breaker) shall be provided
between AC supply and inverter.
No fuse Breaker
No fuse Breaker:

Circuit breaker which complies with rated voltage and
current of inverter shall be applied as ON/OFF control for
inverter. And it shall also be protective to the inverter.

Never use circuit breaker as ON/OFF switch for inverter.
Magnetic Contactor
Leakage Breaker

A leakage breaker shall be installed to prevent
mal-
functioning and to ensure the safety of operators; To
prevent the mal functions, those of which the sensitivity
current above 200mA and action time above 0.1 sec shall
be applied.
Power Improving AC
Electric Reactor
Magnetic Contactor
Inverters can be used without a magnetic contactor (MC)
installed at the power supply side. However, when used
for external control or automatically restart after power off,
or when braking control i
s used, a magnetic contactor
shall be applied.
Do not use the magnetic contactor as RUN/STOP switch
for inverter.
Input side Noise Filter
Power ImprovingAC Electric Reactor
If power supply of large capacity (Above 600k VA) is used,
an AC reactor can be added to inverters which is below
220/440V 15Kw, thus the power of power supply shall be
improved.
S2800 Inverter
Input side Noise Filter
The Input side Noise Filter must be applied if inverter has
electronic induction load around.
Zero Phase Noise
Filter
Inverter
Input Power supply terminals R/L1, S/L2 and T/L3 can be
connected without phase sequence.

Connect output terminals U/T1, V/T2 and W/T3 to U/T1,
V/T2 and W/T3.of motors, if the inverter is in forward run
reference, while motor reverse runs, change any two of
U/T1, V/T2 or W/T3

Never connect U, V, W to AC Power supply otherwise
inverter may be damaged.

Grounding terminals shall be grounded correctly.
Category Ⅲ G rounding: below 100Ω
Special grounding: below 10Ω.
Three Phase Squirrel
Cage Motor
Zero Phase Noise Filter

If specialized noise filters are fit at inverter output side,
radiation interference and induction noise shall be
decreased.

13
Wiring shall be checked whether correct or not. Peripheral wiring shall fulfill the following requirements.
(Do not use a buzzer of control circuit to check wiring)
(A) Wiring for control circuit Power supply must be isolated or far from other high voltage
wirings or high current power lines, thus electromagnetic interference can be avoided. See
diagrams below:
Individual power supply bridge for inverter

Good effect may not be received if general
use noise filters are applied

If inverter power supply circuit is used
commonly with other machines,
inverter-specialized noise filter or isolating
transformer shall be added.
Interference during transmission can be prohibited by adding an inverter-specialized noise filter at
main circuit output side. For preventing electromagnetic radiation, a metal tube shall be installed,
and distance from signal wiring of other control machines shall be 30cm at least.
杂讯滤波器 Noise filter 信号线 Signal wire 控制机器 Control device
30cm 以上 30cm above
Power supply
Power supply
Power supply
Noise
filter
Isolated transformer
Machine
Machine
Power supply
Power supply
Noise
filter in
general
use
Noise
filter in
general
use
Machine
Machine
power supply Iron box
Power supply
Power supply

14
Voltage drop of wiring shall be considered providing that inverter and motor are with an excessive
distance. Voltage drop (V) =31/2× wiring resistance (Ω/km) × wire length (m) × current(A) × 10-3, load
wave frequency shall be modified according to wiring prepared.
Distance between
inverter and motor
wiring Below 50M Below 100M Above 100M
Allowable load wave no. Below 12kHz Below 9kHz Below 6kHz
Set value for parameter
2-09 12 9 6

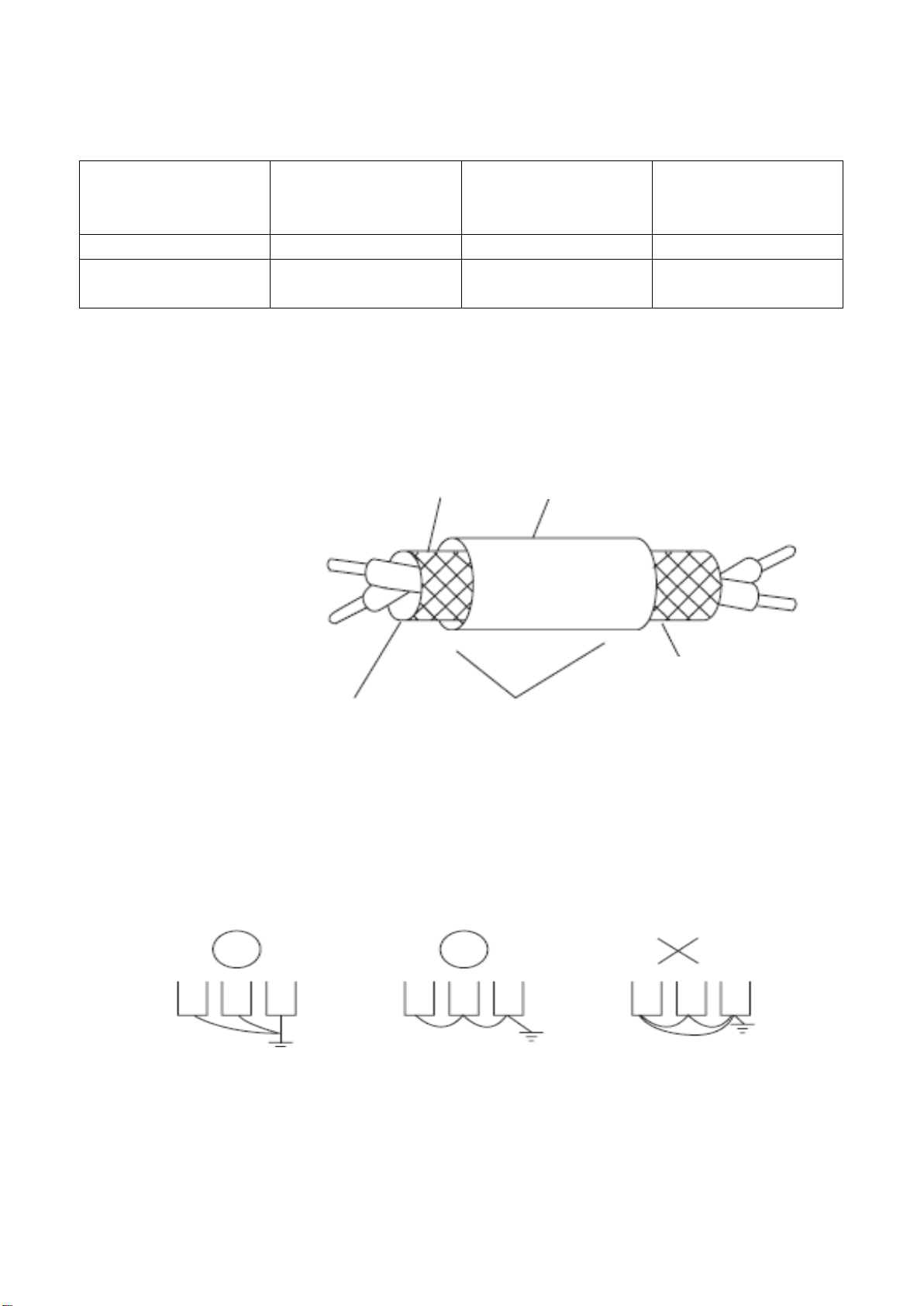

(B) Wiring for control circuit shall be isolated or far from main circuit wiring or other high
voltage/current power lines, thus electromagnetic interference shall be avoided.
For preventing electromagnetic interference and false sequence, shielding wiring shall be used for
control circuit. Shielding wiring shall connect grounding terminals.
Distance for wiring shall be 50m or less.
(C) Grounding terminal for inverters shall be grounded properly. Below 100Ω: Category
Ⅲ;
Below 10Ω: Special
AWG shall be taken as standard for ground wire. Ground wire shall be as short as possible.
Never ground simultaneously for Inverter ground wire with other large current load (such as welding
machine or large Power motors). They shall be grounded separately.
Ground circuit shall be avoided when several inverters are grounded simultaneously.
(a) CORRECT (b) CORRECT (c) FAULSE
(D) Cable line width for main circuit and control circuit shall be selected according to power line
standard.
(E) After completing of grounding and wiring, check for the following items: wiring is proper;
wire is not broken and screws are securely tightened.
Shielded Armor
To inverter shielded sheath
terminal 1
Insulate these parts
with insulation tape
Never connect

15
2.4 WIRRING
Basic Wiring Diagram
Wiring ofAC motor drive can be divided into two parts, the main circuit and control circuit.After removing
the cover of inverter, terminals of main circuit and control circuit shall be discovered. Users must connect
terminals as diagram shows.
Below is a standard wiring diagram for S2800 series AC motor drive. If only digital control panel was
used, only main circuit terminal wiring applicable.
以上图片翻译为,中英文对照:
( 左侧: )
多功能输入选择一:Multi-input option 1
多功能输入选择二:Multi-input option 2
多功能输入选择三:Multi-input option 3
多功能输入选择四:Multi-input option 4
数位信号公共端:Digital signal Common terminal
出厂为 SINK 模式:SINK mode as preset at factory
类比电压频率指定:Analog voltage frequency reference
类比电流频率制定:Analog current frequency reference
类比信号公共端:Analog signal terminal common
(中间)
直流电抗器:DC reactor
制动电阻(选用):Braking resistor(optional)
短路片:Short circuit pad
主回路端子:Main circuit terminal
控制回路端子:Control circuit terminal
(右侧)
感应电动机:Induction motor
220V 系列第三种接地电阻 100Ω以下
220V Series the third grounding resistance of 220V Series is less than
100Ω
440V 系列接地电阻 10V 以下:
Grounding resistance shall below 10Ω for 440V series
类比频率/电流机:Analog frequency/ flow meter
多功能指示输出接点:Multi-functional reference output contactor
AC250V 2A 以下:AC 250v below 2A
DC30V 2A 以下:DC 30v below 2A
多功能集电极开路输出端子 48V50MA 以下:
Multi-functional open-collector output terminal 48v50mA below
信号＋端:Signal + terminal
信号－端:Signal – terminal
电脑:Computer
RS-485 串联通讯介面:RS-485 serial connected communication board
NOTES:
1. The external terminal has two ways of AVI input, one of which is shared with ACI and can be
switched.
2. Analog current frequency referenceACI: Switching of 4-20mAor 0-+10V as input signal according to
J3 shall be available.
3. The external terminal has four multi-functional input terminals, which can choose configuration input.
4. The external terminal has one open collector output.
5. The external terminal has one relay output.

16
2.5 OUTLINE SIZE
Main circuit terminal descriptions Description for S2800 Series inverter terminals
Terminal symbols Function
L1/R,L2/S,L3/T Main circuit AC power supply input
(For single phase input, connect to R and T.)
U/T,V/T2,W/T3 Connect to motor
P/B1,B2 Braking resistor(optional) connecting terminal
P/B1,N Connecting to braking module
For grounding
(High voltage wave impact and noise interference shall be avoided.)
Terminal Symbol Description
Terminal symbols Function of Terminal Specification
RA-RC Multifunctional reference signal output
contactor See Description 06-01
for RELAY
CONTACTOR OUTPUT
RB-RC Multifunctional reference signal output
contactor
MI1-DCM Multifunctional input option 1
See Description from 04-00 to 04-03
MI2-DCM Multifunctional input option 2
MI3-DCM Multifunctional input option 3
MI4-DCM Multifunctional input option 4
MO1-DCM Multifunctional output terminal 1 See description 06-00
(Open collector
output)
+10V-ACM Power supply for speed setting Speed reference power supply (+10V)
AVI1-ACM Analog voltage frequency reference 0 to +10V/Max output frequency
AVI2-ACM Analog voltage frequency reference 0 to +10V/Max output frequency
ACI-ACM Analog current frequency reference 4 to +20mA/Max output frequency
AFM-ACM Analog frequency/ current meter 0 to +10V/Max output frequency
485+ -485-
Serial connected communication
board RS-485 Serial connected communication
connector
24-DCM Assisted control power supply DC 20V-24V (50Ma Max)
Pay attention to insulate the control signal wire with insulation tape.
Only use double Null Modem for communication cable of RS-485.

17
Overview Outline Diagram
Specification Quantity
(kg) remarks
use IP03
exerciser
use IP05
exerciser

18
DIAGRAM FOR PRODUCT OUTLINE

Outline of small power operator (IP03) and
size for installation aperture

Outline of large power operator (IP05) and
size for installation aperture
