Saxby Lighting 48742 Manual

• Thissystemcontainsnon-replaceablepartsand
cannotbeserviced.Ifdamageoccursthepartshould
bescrapped.

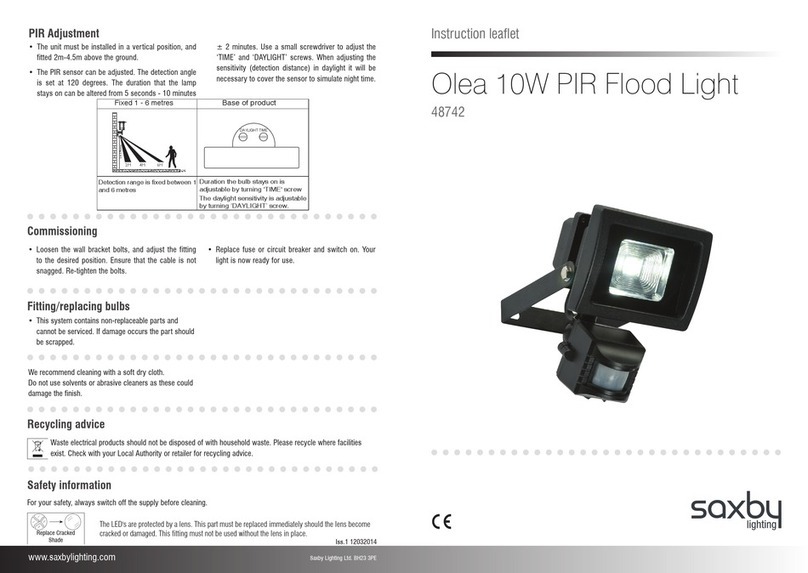

Instructionleaflet
Olea PIR Flood Light
48742,48746
www.saxbylighting.com
Foryoursafety,alwaysswitchoffthesupplybeforecleaning.
Wasteelectricalproductsshouldnotbedisposedofwithhouseholdwaste.Pleaserecyclewherefacilities
exist.CheckwithyourLocalAuthorityorretailerforrecyclingadvice.
Recycling advice
Safety information
SaxbyLightingLtd.BH233PE
Werecommendcleaningwithasoftdrycloth.
Donotusesolventsorabrasivecleanersasthesecould
damagethefinish.
The LED's are protected by a lens. This part must be replaced immediately should the lens become
cracked or damaged. This fitting must not be used without the lens in place.
Fitting/replacing bulbs
Iss.319082015
• Loosenthe wallbracket bolts,and adjustthe fitting
tothe desiredposition. Ensurethat thecable isnot
snagged.Re-tightenthebolts.
• Replacefuse orcircuit breakerandswitchon.Your
lightisnowreadyforuse.
Commissioning
PIR Adjustment
• Theunitmustbeinstalledinaverticalposition,2m–
4.5mabovetheground
• By altering the “DAYLIGHT” control you can choose
whether movement during daylight or darkness will
switchthelighton.
• Thedetectionangleissetat120degrees.
• Thedurationthelampstaysonforcanalsobealtered
from 10 seconds to 10 minutes by adjusting the
“TIME”control.
Duration the bulb stays on is
adjustable by turning 'TIME' screw
Base of product
DAYLIGHT TIME

Thankyouforpurchasingthislightfitting.Pleasereadtheinstructionscarefullybeforeusetoensuresafeand
satisfactoryoperationofthisproduct.Pleaseretaintheseinstructionsforfuturereference.
Warning
This is a Class 1 product and must be earthed.
Pleasereadtheseinstructionscarefullybefore
commencinganywork.
Thisunitmustbefittedbyacompetentandqualified
electrician.
InstallinaccordancewithIEEWiringregulationsand
currentBuildingRegulations.
Topreventelectrocutionswitchoffatmainssupply
beforeinstallingormaintainingthisfitting.Ensure
otherpersonscannotrestoretheelectricalsupply
withoutyourknowledge.Ifyouareinanydoubt,
pleaseconsultaqualifiedelectrician.
Thislightfittingshouldbeconnectedtoacircuitwitha
30mARCDfitted.
Ifreplacinganexistingfitting,makeacarefulnoteof
theconnections.
Theunitcannotbedimmed.
Thissystemcontainsnon-replaceablepartsand
cannotbeserviced.Ifdamageoccursthepartshould
bescrapped.
Wasteelectricalproductsshouldnotbedisposedof
withhouseholdwaste.Pleaserecyclewherefacilities
exist.Checkwithyourlocalauthorityorretailerfor
recyclingadvice.
ThisproductisratedatIP65.
Thisproductisnotsuitableforlocationinorneara
marineenvironment.
Theentireunitgetshotwhilstonforaperiodoftime.
Specification
Voltage: 240V~50Hz
Lamp: 487421x10WLEDCOB,48746:1x30WLEDCOB,
IPrating: 65
Layout
• Planthedesiredlayoutofthisfittingcarefully,
ensuringthecablehasenoughflextoallowfor
futuretiltadjustmentsifnecessary.
• Avoidlocatinganycablesinpositionsthatwould
causeahazard.Positioncablesandoutdoorrated
junctionboxes(notsupplied)awayfromareas
wheretheymaybeatriskfrombeingcut,trappedor
damaged.
• Thisisafloodlightproduct,andthereforeshouldbe
positionedwhereitwillnotcauseaglarehazard.
• WerecommendthatyouuseH05RN-Fspecification
cable(notsupplied)whichisanoutdoorgrade,
rubbersheathedcable.Themainssupplycablemust
haveaminimumcrosssectionalareaof1.0mm²
Cablesmustbeprotectedusingsuitableconduitor
plastictrunking.
• Avoidmountingonsurfacessubjecttovibration,as
thismayaffectthePIRsensor.
• Toavoiddamagetotheunit,donotaimthesensor
towardsthesunorareasofstrongelectro-magnetic
disturbances.
• Toavoidnuisancetriggering,thesensorshouldbe
aimedawayfromheatsources,suchasBBQ’s,
Air-Conditioners,otheroutsidelighting,movingcars
andflueventsorreflectivesurfacessuchassmooth
whitewallsorswimmingpools.
• Whenselectinglocation,itisadvisabletonotethat
movementacrossthesensorsfieldismoreeffective
thantowards/awayfromit.
Existingfittingsmustbecompletelyremovedbefore
installationofanewproduct.Beforeremovingthe
existingfitting,carefully note the position of each set
of wires.
• Decideontheoptimumlocationfortheproduct.
• Removethefixingbracketfromtheproductby
removingtheboltsandspringwashers.Keepsafe
forrefittinglater.
• Holdthebracketinpositionandmarkthelocation
ofthefixingholes.Aminimumoftwofixingpoints
mustbeused.
• Drillandplugthewallatthemarkedpositions.
• Fixthebrackettothewallusingthescrewsand
plugs.Ensurethewalliscapableofholdingthe
weightoftheproduct.Takecaretoavoiddamaging
anyconcealedwiringandpipes.Thecorrectfixings
shouldbeusedforbrickorcavitywalls.
• UndoscrewsholdingtheJunctionBoxCoverand
remove.
• LoosenGlandtoallowcabletopassthrough.Feed
cablethrough,allowingenoughlengthtoconnectto
terminalblock.
• Wireasdetailedbelow.
• Re-fitJunctionBoxCover,ensuringexcesscable
slackispulledthrough,andsealiscorrectlyseated..
• Fitproducttowallbracket,ensuringboltsare
tightenedfully.
• Refitproducttobracketensuringspringwashers
arefittedontotheboltsandthattheboltsarefully
tightened.
Installation
Connectthesupplycabletotheterminalsasindicated
below.Theonlyterminalsthatwillneedtobeconnected
arethesupplylive,supplyneutralandsupplyearth
terminals.
Wiring
Check that...
• Youhavecorrectlyidentifiedthewires.
• Theconnectionsaretight.
• Noloosestrandshavebeenleftoutoftheconnection
block.
Internal
earth
Supply
neutral
(N-Blue)
Supply
earth
(Yellow/
Green)
Supply
live
(L-Brown)
Sensor
neutral
Sensor
Return
live
Sensor
Supply
live
LED-
LED+
