Scarab M25H User manual

SCARAB M25H ROAD SWEEPER - Abbreviated Operating Instructions
Normal drive mode
No unauthorised or untrained personnel to operate this sweeper.
1. Select Neutral (Yellow Control Lever). Handbrake ON. Sweep Mode
switch OFF. Multi-function lever OFF. Start Engine.
2. Select Forward or Reverse (Yellow Control Lever).
3. Release handbrake, press accelerator pedal to move the vehicle.
Sweep mode
4. Stop vehicle. Handbrake ON.
5. Sweep Mode switch ON. Engine RPM changes to pre-set level.
6. Select the desired sweeping equipment. Switch on Suction Fan.
Suction Fan speed (2000 RPM). Use Engine speed controls to change RPM if required.
7. Multi-function lever ON, beacons ON.
8. Select FORWARD (Yellow Control Lever). Handbrake OFF, depress accelerator pedal to move
vehicle.
All sweeping equipment will stop and raise when REVERSE is selected, and re-engage in
FORWARD.
Cruise control (only in sweep mode)
9. With vehicle at the desired speed, select Cruise Control. Can be over-ridden by the
accelerator pedal, and is cancelled by using the foot brake or by pressing the switch.
When sweeping with a full load or up-hill, engine RPM may need to be increased.
Vehicle movement is controlled, by means of the accelerator and brake pedal, similar to a
vehicle fitted with automatic transmission.
Never press brake and accelerator pedals at the same time.
This document is designed as a quick reference guide, to allow the operator to drive the vehicle
in Normal or Sweep Mode and operate the basic controls. It does not constitute the full
operating instructions.
Forward
Reverse Neutral
!
F1
F1 F2 F2
F3
F3
1267
12:34

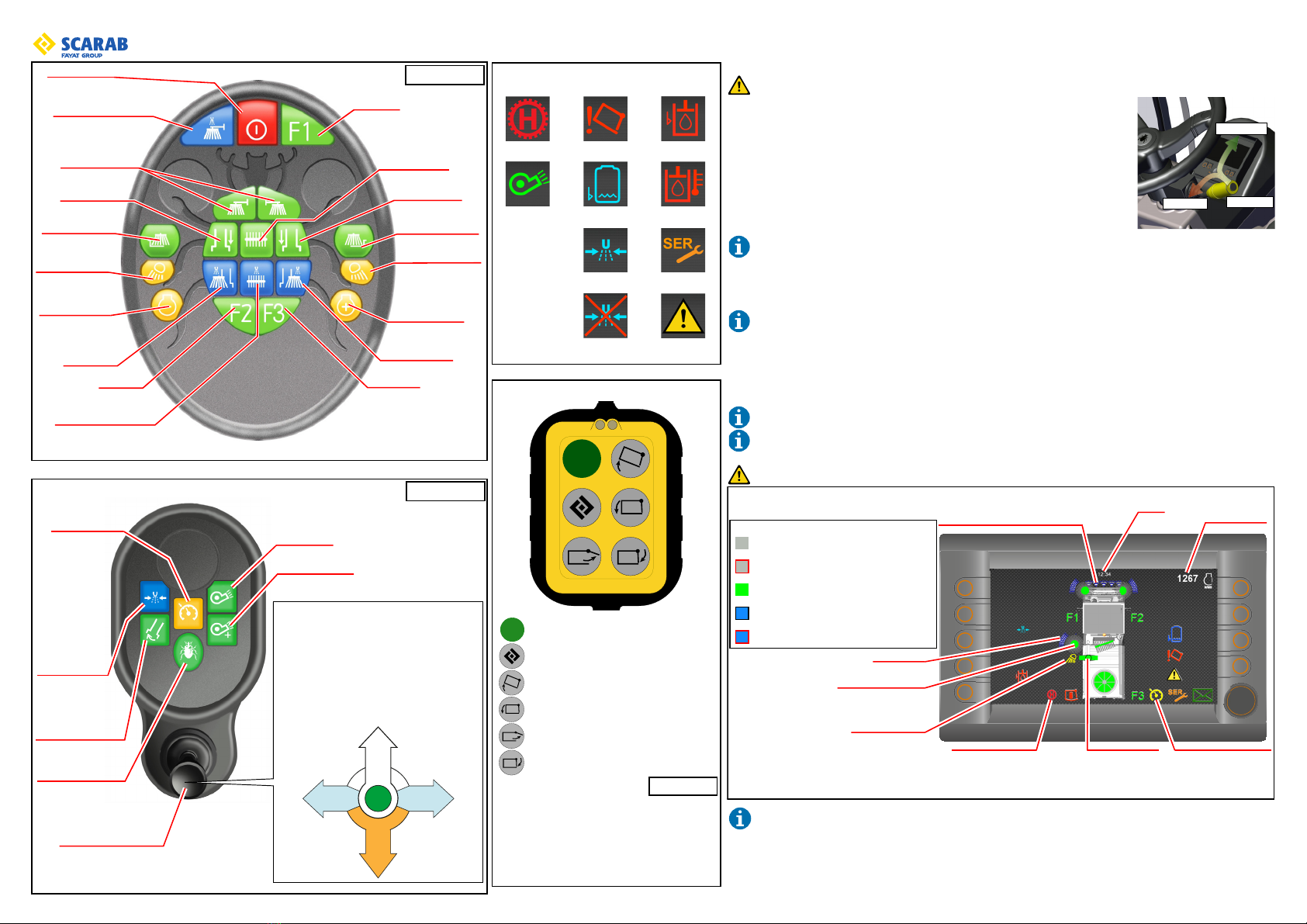

LCD Screen
Cruise control ON
Work light ON
Sweep mode ON Suction active
Side brush active
Water ON
Engine RPM
TimeCentral brush (wide sweep)
water ON
Main equipment colour codes
Equipment not selected
Equipment pre-selected
Equipment operating (active)
Water pre-selected
Equipment and water pre-selected
NOTE: LCD screen is shown with the majority of icons shown to give a representation
of what could be visible and is not what would be visible in normal use.
Main Control Panel
!
Sweep mode
ON
Suction fan
ON
Hopper
not down
H-P water pump
Water tank
level low
H-P water pump
no water
Hydraulic oil
low
Hydraulic oil
temperature
Service
reminder
Active fault
present
Press and hold down the Safety Interlock and the
appropriate control switch.
For safety reasons only operate the Remote
Control from outside the vehicle, from a vantage
point that affords a good view of the sweeper and
its surroundings.
LEVER UP (OFF), Stop and raise all sweeping
equipment.
LEVER MIDDLE (ON), Deploy all selected
sweeping equipment.
LEVER RIGHT, right front brush OUT/IN.
LEVER LEFT, left front brush OUT/IN.
LEVER DOWN (NOZZLE TILT)
For a temporary nozzle tilt pull lever back and
hold to OPEN.
Release the lever to CLOSE.
Main on-screen information
and warning symbols
Auxiliary Control Panel
Remote Control
= Option*
= Raise hopper
= Lower hopper
= Open rear door*
= Close rear door*
= Safety interlock
Sweep mode
Front brush water*
Front brush*
Left suction
Left side brush
Left work light
Engine speed - Engine speed +
Left water
Option* Option*
Central brush
(wide sweep) water
Right water
Right work light
Right side brush
Suction fan
Option*
Central brush
(wide sweep)
* = Option
* = Option
* = Option
Not applicable
Multi-function lever
Favourite setting
Nozzle tilt locked
High pressure
water pump
Cruise control
OFF
ON
Left
front
brush
Right
front
brush
Nozzle
tilt
Right suction
Please refer to reverse for health and safety advice

Health and Safety
• Only trained operatives should be allowed to drive or work on this machine.
• Never work under a raised hopper, rear door or cab without the appropriate safety prop in position.
• Do not drive the vehicle with the hopper raised. The red warning symbol on the LCD monitor remains illuminated until the hopper is fully down.
• Before working on the vehicle ensure that it is on firm, level ground, apply the hand brake, stop the engine and remove the ignition key.
• Before raising the hopper or opening the rear door, ensure that there is sufficient clearance and it is safe to do so.
• Before starting the engine, ensure that all controls are switched off and the vehicle’s gearbox and hydrostatic drive are in neutral.
• Before driving the vehicle, ensure that all vehicle checks have been carried out and that all equipment is stowed and the brushes are raised.
• Do not overload the hopper.
• High pressure water can be dangerous, always wear suitable eye protection when using the hand lance. Do not direct the water jet at other
persons.
• Beware of electrical fittings on public buildings, lamp post etc. Misuse can result in serious injury.
• The suction fan is an extremely heavy rotating mass. Vibrations emanating from the suction fan must be investigated, the cause determined and
rectified immediately.
• When working on the suction fan. Never attempt to slow or stop the fan by using your hands or by inserting any item into the fan chamber, even
at low speeds. Failure to comply can result in serious injury.
• When operating the machine in any mode always be aware of objects and people in the immediate vicinity, especially at the rear of the machine
when reversing.
• Whatever the situation, remember that the rules of traffic and road safety must be observed.
• While operating this machine the safety and well being of other people are the sole responsibility of the operator.
Cautions
If the suction fan vibrates, it should be cleaned immediately (refer to the operating instructions). Prolonged vibration will result in damage to the
fan, bearings and, in extreme cases, the hopper.
In the event of a hydraulic oil leak, stop the engine and investigate.
The high and low pressure water pumps must never be permitted to run dry or the piston seals will be damaged.
Do not direct the high pressure water jet directly at paintwork or electrical connections on the vehicle.
Routine daily maintenance
1. Check vehicle’s general condition (including: tyres, light and all fluid levels) in accordance with chassis manufactures’ recommendations.
2. Check hydraulic oil level. If the hydraulic oil level is not maintained, the sweeping panel will automatically shut down until the oil level is correct.
3. Check condition of brushes and remove any items such as string that may be entangled.
4. Check ground clearance of suction box rubber flaps suction power can be lost if clearances are incorrect but it is possible to slightly vary these settings
to better suit specific sweeping conditions according to operator’s experience.
5. Check water spray jets for blockages.
6. Clean the oil cooler and check that the cooling fan functions. Note: If fitted, red light and buzzer operate when maximum temperature is reached.
7. Wash the vehicle, ensuring that the suction fan and hopper screen are cleaned.
8. Lubricate pivot points and wide sweep bearings.
9. Remove and clean the water strainer elements.
10. Always leave the vehicle with the rear door slightly open to allow water drain out.
11. In frosty weather, drain pumps and tank, remove water strainer elements, switch on all water sprays and run low pressure pump until dry.
Hydraulic oil: HPL 32 or an equivalent.
Engine oil: 10w - 40
Coolant: Ethylene Glycol (Eskimo long life)
Brake fluid: DOT 4

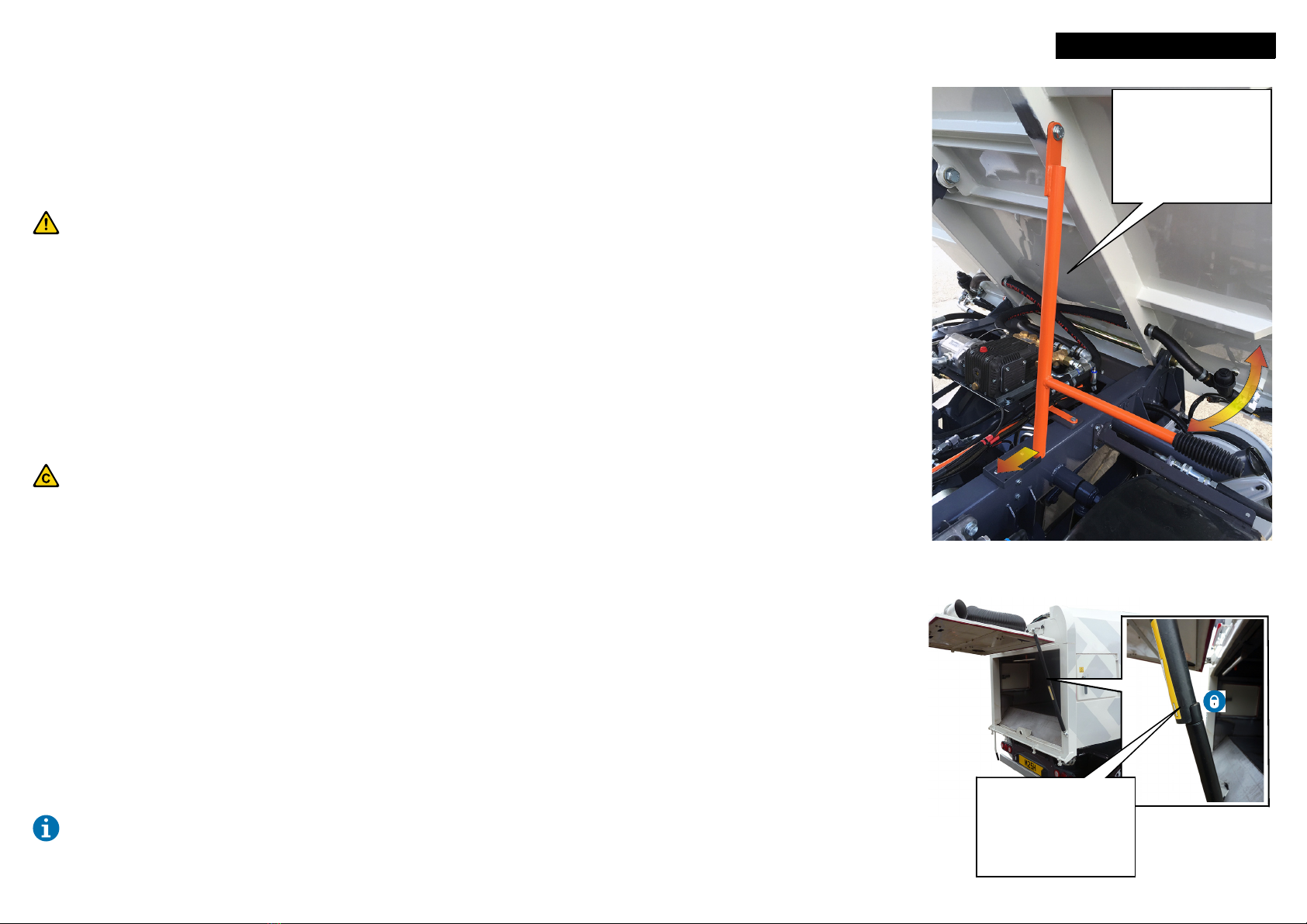

Ensure that the gas safety
strut has locked into
position when the rear
door is open.
Only on manual operated
doors.
Ensure that the hopper safety
prop is deployed into it
locating cup when the hopper
has been raised.
Never work under a partially
raised hopper or if the hopper
prop is not fully deployed.
Z043459 - Version 1.1.2 - English
Rear door safety prop
Hopper safety prop
