Scarab M65T User manual

Scarab M65T - Abbreviated Operating Instructions
To enter sweep mode
Vehicle engine running. Air tanks full.
1. Press the Start Switch on the main panel to start the auxiliary engine and enter sweep mode.
2. Preselect the required sweeping combination. As each item is selected the corresponding symbol
on the LCD monitor will change as illustrated below. Start the suction fan.
3. Engage a suitable gear ratio and release the clutch to commence sweeping.
When reversing
1. When reverse gear is selected, all sweeping gear will automatically stop and retract.
2. When reverse is deselected, all active sweeping equipment will redeploy.
Leaving sweep mode
1. Move the multi-function switch forward to the OFF position to stop and retract all active
sweeping equipment.
2. Switch off the suction fan.
Rear door and hopper remote controls
The hopper safety prop must always be deployed when working beneath a raised hopper. Rear
door safety prop must be deployed and when working beneath open rear door.
Discharging the payload (tipping)
1. Simultaneously press the safety interlock and door open switch, until the door is fully open.
2. Simultaneously press the safety interlock and hopper raise switch, until the hopper is fully raised.
Before lowering the hopper, ensure that the area below it is clear. Stow the hopper prop.
3. Simultaneously press the safety interlock and hopper down switch, until the hopper is fully down.
Before closing the rear door, ensure all personnel are clear of the immediate area and that the
door seal and seal-mating face are clean. Stow the rear door prop.
4. Simultaneously press the safety interlock and door close switch, until the door is fully closed.
Before stopping the auxiliary engine, allow it to idle for at least 2 minutes to allow the turbo-
charger to cool down.
This document is designed as a quick reference guide, to allow the operator to drive the vehicle in
Sweep Mode and operate the basic controls. It does not constitute the full operating instructions.
Central brush (wide sweep) water active Side brush active
Water active
Nozzle tilt indicator
Suction nozzle active
Work light on
Hopper raise/lower and rear
door open/close warning
buzzer press to disable
Main equipment colour codes
Equipment not selected
Equipment pre-selected
Equipment operating (active)
Water pre-selected
Equipment and water pre-selected
+
!
Suction fan ON
Suction fan
boost
Hopper not
down
H-P water pump
Water tank low
H-P water pump
no water
Hydraulic oil
low
Hydraulic oil
temperature
Active fault
present
Service
reminder
On right hand drive vehicles
Move the switch to the right to swing the
side brush(es) OUT.
Move the switch to the left to swing the side
brush(es) IN.
Opposite for left hand drive.
Nozzle tilt function
Move the switch back to momentarily tilt
the suction nozzle or to close it from LOCKED
OPEN.
Press and hold down the Safety Interlock and
the appropriate control switch.
For safety reasons only operate the
Remote Control controls from outside
the vehicle, from a vantage point that
affords a good view of the sweeper and
its surroundings.
Before closing the rear door, ensure
adequate clearance and seal
cleanliness.
= Safety interlock
= Option
= Raise hopper
= Lower hopper
= Open rear door
= Close rear door
Remote control
Multi-function lever
Major on-screen information
and warning symbols
Auxiliary control panel
Main control panel * = Option
* = Option
Auxiliary engine
Start/stop and sweep mode
Option*
Option*
Brush speed
Left suction
Left side brush
Left work light
Engine speed
Left water
Left additional water*
Central brush (wide sweep) water
Right additional water*
Right water
Engine speed
Right work light
Right side brush
Right suction
Central brush
(wide sweep)
Not applicable
High pressure
water pump*
Nozzle tilt
Favourite setting
Suction fan
Suction fan boost
Multi-function lever
OFF
ON
Side
brush
Side
brush
Nozzle
tilt
Please refer to reverse for health and safety advice

Health and Safety
• Only trained operatives should be allowed to drive or work on this machine.
• Never work under a raised hopper or rear door without the appropriate safety prop in position.
• Do not drive the vehicle with the hopper raised. The red warning symbol on the LCD monitor remains illuminated until the hopper is fully
down.
• Before working on the vehicle ensure that it is on firm, level ground, apply the hand brake, stop the engine and remove the ignition key.
• Before raising the hopper or opening the rear door, ensure that there is sufficient clearance and it is safe to do so.
• Before starting the auxiliary engine, ensure that all controls are switched off and the vehicle’s gearbox is in neutral.
• Before driving the vehicle, ensure that all vehicle checks have been carried out and that all equipment is stowed and that the brush(es)
are raised.
• Do not overload the hopper.
• High pressure water can be dangerous, always wear suitable eye protection when operating the high pressure water pump and when
using the lance. Do not direct the water jet at other persons. Beware of electrical installations on public buildings and lamp posts etc. and
always exercise extreme caution in public places.
• The suction fan is an extremely heavy rotating mass. Vibrations coming from the suction fan must be investigated, the cause determined
and rectified immediately.
• When working on the suction fan. Never attempt to slow or stop the fan by using the hands or by inserting any item into the fan chamber,
even at low speed. Failure to comply can result in serious injury.
• When operating the machine in any mode, always be aware of objects and people in the immediate vicinity, especially the rear of the
machine when reversing.
• Whatever the situation, remember that the rules of traffic and road safety must be observed.
• While operating this machine the safety and well being of other people are the sole responsibility of the operator.
Cautions
If the suction fan vibrates, it should be cleaned immediately (Refer to the Operating Manual). Prolonged vibration will result in damage to the
fan, bearings and, in extreme cases, the hopper.
In the event of a hydraulic leak, stop the auxiliary engine and investigate.
The high and low pressure water pumps must never be permitted to run dry otherwise the seals in the pump will be damaged.
Do not direct the high pressure jet at paintwork or electrical connections on the vehicle.
Routine Daily Maintenance
1. Check the vehicle’s general condition (Including:- Tyres, lights and all fluid levels) in accordance with the chassis manufacturers’
recommendations.
2. Check hydraulic oil level. (Note:- If the oil level is not maintained, the sweeping panel will automatically shut down until the oil level is correct.)
3. Check the condition of the brushes and remove any items such as string that maybe entangled.
4. Check ground clearance of suction rubber flaps, 20mm front / 15mm rear and side are suitable clearances, suction power can be lost if clearance
are incorrect but it is possible to slightly vary these settings to better suit specific sweeping conditions according to the operator’s experience.
5. Check water spray jets for blockages.
6. Clean the oil cooler and check that cooling fan functions (Note:- If fitted, red warning light and buzzer will operate when the maximum
temperature is reached).
7. Wash vehicle, ensuring that the suction fan and hopper filter screen are cleaned.
8. Lubricate brush links, pivot points and wide sweep bearings.
9. Remove and clean water strainer elements.
10. Always leave the vehicle with rear door slightly open to allow water to drain out.
11. In frosty weather, drain pumps and tanks, remove water strainer elements, turn on all water sprays.
Hydraulic oil: Fuchs Renolin B10 VG 32 or an equivalent.
Coolant: 50/50 mix Ethylene Glycol (Eskimo long life).
Engine oil: SAE 15W-40

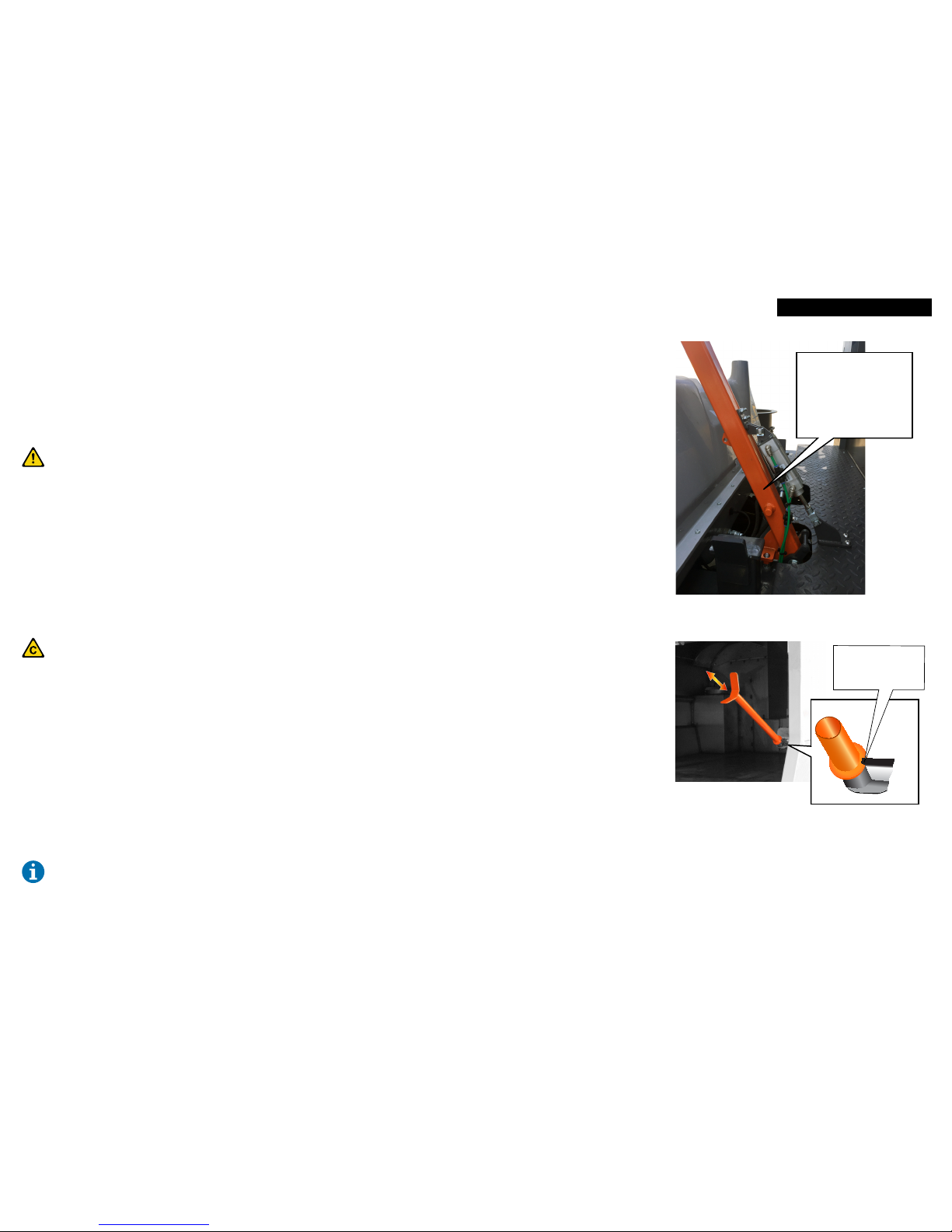

When inserting the
door prop, ensure it is
correctly positioned in
the locating slot
Ensure the hopper safety
prop has completely de-
ployed when hopper is in the
raised position.
Never work under a partially
raised hopper or if the hop-
per safety prop is not fully
deployed.
Rear door safety prop
Hopper safety prop
Z043467 Version 1.2.1 - English
