schmersal BN 85 User manual

Technical data
Standards: IEC 60947-5-1
Enclosure: glass-fibre reinforced thermoplastic
Operating principle: magnetic
Protection class: IP40 to IEC 60529
Ambient temperature: 0°C … +75°C
Connection type:
- Base: 2 single wires LiY 0.75 mm2, 1 m long
Sheathed cable LiYY 2 x 0.25 mm² (spec -1824-3)
- Plug-in switching element
Mechanical life: min 109operations
Electrical life: 5 x 108operations
depending on load
Bounce duration max. 0.2 ms
Switching time “Close“: max. 2 ms
Switching time “Open”: max. 0.07 ms
Switching voltage: max. 60 VAC/DC
Switching current: max. 1 A
Switching capacity: max. 30 VA/W
Withstand voltage: 400 VDC
Resistance to vibration: 60 g on sine wave oscillation
Further technical information can be found in the Schmersal
catalogues or in the online catalogue on the Internet:
www.schmersal.net.
The currently valid declaration of conformity can be
downloaded from the internet at www.schmersal.net.

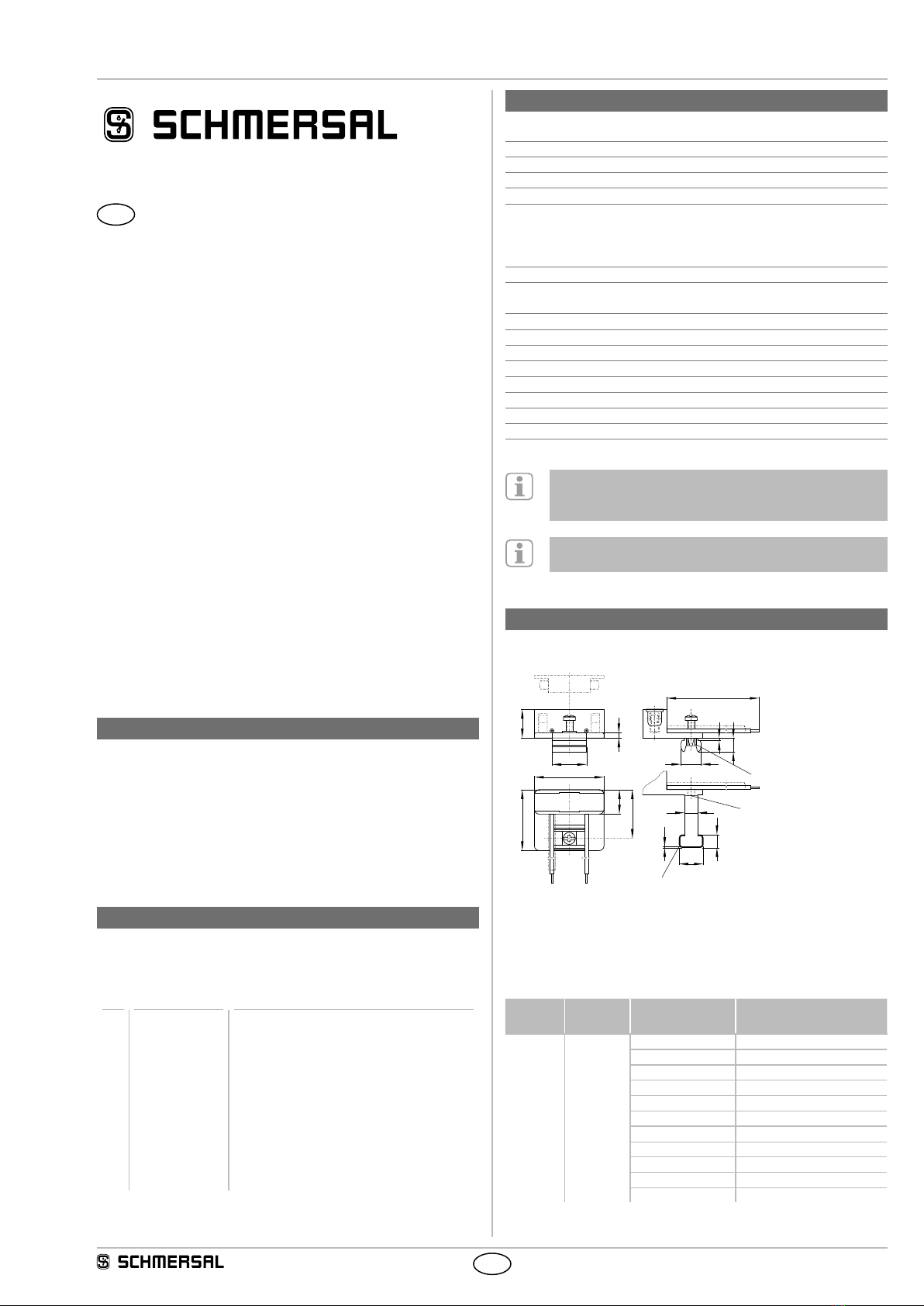

Mounting
Dimensions (All measurements in mm.)
16,535
28
14 3
7,5
14
20
40
12
1000
7,5
0,7
8
1,5
Terminal block
C rail not included in delivery
Clamping foot
- Plug-in reed contact insert, on-site assembly
- Adjustable by releasing the central mounting screw
- Actuating distance up to 40 mm depending on version and actuating
magnet
Contact Type Actuating
magnet
Switching distance
(mm)
1
bistable
contact
BN 85-R
BP 6S 2…12
BP 8S 2…10
BP 10S 5…20
2 x BP 10S 6…27
BP 15S 5…22
2 x BP 15S 7…28
BP 34S 10…40
BP 20S 3…28
BP 31S 4…30
BP 11S 4…23
BP 12S 4…27
Product description
Plug-in, latching magnetic reed switch for applications that need to be
adjusted at the place of installation. The base is clipped into a C rail.
The shock-sensitive switching element is then plugged in on site and
the switch adjusted.
The NC or NO function depends on the actuating direction and the
polarity of the actuating magnet. The actuators for the magnetic safety
sensors must be ordered separately.
Ordering code
This operating instructions manual applies to the following types:
BN 85-➀-➁
No. Option Description
➀
R 1 bistable contact
➁
Mounting with clamping foot and
2 single wires
1831-1 Mounting to C profile rails and
2 single wires without screws
1831-2 As before with screws
1824-1 Mounting to C profile rails and
sheathed cable without screws
1824-2 As before with screws
1824-3 Mounting with clamping foot and
sheathed cable
Operating instructions
Magnetic reed switches BN 85
1
EN
x.000 / 11.2018 / v.A. - 103028091-EN / A / 2018-11-20 / AE-Nr. -
EN Operating instructions. . . . . . . . . . . . .pages 1 to 2
Original

2
Operating instructions
Magnetic reed switches BN 85
EN
1 bistable contact BN 85-RZ with S actuating magnet BP 10S
The electrical connection may only be carried out by
authorised personnel in a de-energised condition.
The user must observe the country-specific installation
standards as well as all prevailing safety regulations and
accident prevention rules.
Switching capacity
1,0
A
0,9
0,8
0,7
0,6
0,5
0,4
0,3
0,2
0,1
0
12 24 30 40 50 60 V
Disassembly and disposal
Disassembly
The switch must be disassembled in a de-energised condition only.
Disposal
The switch must be disposed of in an appropriate manner in
accordance with the national prescriptions and legislations.
