Owner’s Manual
420 Elliptical Trainer
001-7232-060208B

Introduction
Thank you for making the Schwinn®elliptical trainer a part of your exercise and fitness activities. For years to come,
you’ll be able to rely on Schwinn®craftsmanship and durability as you pursue your personal fitness goals.
The Schwinn®elliptical should enable you to shape and monitor your workouts to:
Increase your energy level
Increase cardiovascular and aerobic fitness
Increase lower body muscle strength
Decrease your overall percentage of body fat
Whether you are just getting started in an exercise program or are already in good shape, the Schwinn®elliptical
is designed to be an efficient, easy and fun way to achieve an enhanced level of fitness. You can pedal your way to
a slimmer and healthier body. The on-board digital computer enables you to accurately monitor your progress by
tracking time, speed, distance and approximate Calories burned. This Owner’s Manual contains all the information
you need to operate and enjoy your Schwinn®elliptical trainer. Please read this Owner’s Manual in its entirety before
getting onto the elliptical and working out. So let’s get started.
Take your time and have fun!
Owner’s Manual
2

Table of Contents
Product Specifications ...................................................................................................................................... 4
Safety Warnings ................................................................................................................................................. 5
Safety Warning Labels ........................................................................................................................... 6
Features ................................................................................................................................................................ 7
Operations
Operation .................................................................................................................................................. 8
The Schwinn®420 Console ................................................................................................................... 10
Programs and Instructions ................................................................................................................... 13
Maintenance........................................................................................................................................................ 19
Leveling the Elliptical Trainer ............................................................................................................... 19
Moving the Elliptical Trainer ................................................................................................................. 19
Troubleshooting .................................................................................................................................................. 20
Contacts .............................................................................................................................................................. 23
Owner’s Manual
3

Assembled Dimensions: 62" L x 26" W x 66" H (158.1 cm x 65.7 cm x 170.4 cm)
Assembled Unit Weight: 154 lbs (70 kg)
Packaged Shipping Weight: 165 lbs (75 kg)
Workout Area: 101" L x 66" W (257 cm x 168 cm)
Power Adaptor Ratings:
USA & Canada, 120V 60 Hz input, 6V DC 0.5 A output UL listed / CSA Certified Class-2 Power Supply
Max user weight: 300 lbs (136 kg)
Product Specifications
Owner’s Manual
4

Safety Warnings
This icon means a potentially hazardous situation which, if not avoided, could result in death or serious injury.
Before using this equipment, obey the following warnings:
Read and understand the complete Owner's Manual.
Read and understand all Warnings on this machine.
Keep children away from this machine. Watch them closely when near the machine. Moving parts thats
appear dangerous to adults may not appear so to children.
Consult a physician before starting an exercise program. Stop exercising if you feel pain or tightness in yours
chest, become short of breath, or feel faint. Contact your doctor before using the machine again.
Examine this machine for loose parts or signs of wear. Contact Nautilus Customer Service for repairs
information. Use only genuine Schwinn®replacement parts supplied by Nautilus.
This exercise machine is for consumer users only.s
Set up and operate this exercise machine on a solid level surface.s
Do not wear loose clothing or jewelry. This machine contains moving parts.s
Maximum user weight limit: 300 lb. (136 kg). Do not use if you are over this weights
Stabilize the pedals before stepping on them and use caution when stepping off the machine.s
Keep at least 19.7 inches (0.5 m) on each side of the machine clear. This is the recommended safe distances
for access and passage around and emergency dismounts from the machine.
Warn bystanders to keep a safe distance, at least 3 feet (1 m). Do not allow anyone to touch the operators
while the machine is in motion.
Keep the foot pedals clean and dry.s
Do not overexert yourself during exercise. Operate the machine in the manner described in this manuals .
Owner’s Manual
5

Safety Warning Labels
BEFORE USING YOUR PRODUCT: Find and read all warning labels. If any warning label is damaged, illegible or missing, call
1-800-864-1270 for a replacement.
A: General warning label.
(Location: on the console mast just below the computer.)
B: Serial number.
(Location: on the bottom of the main frame.)
B
A
Owner’s Manual
6

Features
s "IOMECHANICALLYDESIGNEDLINKAGESGIVEACOMFORTABLEARTICULATINGMOVEMENTOFTHEFOOTDURINGTHEELLIPTICALMOTION
s -ULTIPROGRAMCOMPUTERWITHLEVELSOFRESISTANCEKEEPSYOUMOTIVATEDANDHELPSYOUACHIEVEYOURlTNESSGOALS
s (ANDLEBARHEARTRATESENSORMONITORSYOURWORKOUTS
s 3MALLFOOTPRINTlTSMACHINEEASILYINTOMOSTSPACESOFYOURHOME
s 4RANSPORTWHEELSPROVIDEVERSATILITYTOMOVEYOURWORKOUTSTOANOTHERLOCATION
Features
A. Swingarm handlebars
B. Console
C. Magazine/MP3 holder
D. Contact heart rate (CHR) sensors
E. Static handelbar
F. Water bottle holder
G. Foot pedals
H. Rails
I. Stabilizer bars
J. AC adaptor and plug
K. Transport wheels
A
B
C
D
J
K
I
H
G
E
F
Owner’s Manual
7

Operation
Quick Start Steps
1. Connect the AC Adapter to the bottom front of the machine. The Console beeps and "WELCOME" appears on the
Display. Default mode sets to Manual.
2. Stand on the foot pedals. Keep the front of your shoes close to the top edge of the platform.
3. Position your hands at a comfortable location on the upper body Handlebars.
4. Push the START/STOP button.
5. Start walking. Let your feet follow the machine’s natural path.
Stopping Any Exercise Program
1. Push the START/STOP button to stop your workout. STOP mode shows on the Display.
2. Push the MEMORY button. The Display shows your workout results and ends the program.
Changing Directions
The Elliptical Trainer lets you move forward and back. To change directions, simply slow the pedals down until they stop,
then switch directions.
Changing Levels and Resistance in a Program
Push the UP or DOWN buttons to increase or decrease resistance levels at any time in the current program.
Pausing an Exercise Program
1. Push the START/STOP button to stop your workout. STOP mode shows on the Display.
2. Push START/STOP again to resume the program where you left off.
Powering Down the Elliptical Trainer
Your Elliptical Trainer Console has an automatic shut-down (sleep mode) feature. It shuts down when not in use for
approximately 4 minutes.
Using the Heart Rate (HR) Sensors
Locate the stainless steel HR sensors on the handlebars. Place your hands comfortably around the handles so that your
hands touch both the top and the bottom of the sensors. Do not grip them too tightly or loosely. Both hands must make
contact with these sensors for the computer to detect a pulse. Your pulse rate shows up on the Display after the computer
senses four stable pulse signals. The rate updates after receiving every two signals. The computer uses your heart rate
information in many of the software features.
Note: If your heart rate goes above 199, the "1" starts to flash. For example, a heart rate of 224 shows as 124—with a
flashing 1.
After the initial contact HR (CHR) signal is detected, the computer begins a validation phase, which requires a good
heartbeat signal within 10 to 15 seconds. Do not move or shift your hands during this time, or the validation phase will take
longer. Several factors influence the computer’s ability to detect your HR signal:
s -OVEMENTOFTHEMUSCLESOFTHEUPPERBODYINCLUDINGTHEARMSPRODUCESANELECTRICALSIGNALMUSCLEARTIFACTTHAT
interferes with the detection of the HR signal by the sensors. Movement of the hands while they are in contact with
the sensors also produces interference. CHR detection may be limited to walking or slow jogging due to the extreme
muscle artifacts and hand motion generated by a comfortable running style.
Owner’s Manual
8

s #ALLUSESANDHANDLOTIONMAYACTASANINSULATINGLAYERTOREDUCETHESIGNALSTRENGTH
s 4HE%+'SIGNALGENERATEDBYSOMEINDIVIDUALSISNOTSTRONGENOUGHTOBEDETECTEDBYTHESENSORS
If the HR shown on the Display is erratic during exercise, it may be helpful to remove your hands from the handles, wipe
them and place them back on the handles.
For information regarding fitness and workout plans, please refer to the Nautilus Institute®fitness manual at:
www.schwinnfitness.com
Operation
Owner’s Manual
9

The Schwinn®420 Console
Console Buttons and Functions
COOL DOWN
Measures and gets your heart rate recovery score. For details, see the "Recovery Test" section.
USER DATA
Enters the USER DATA mode. This machine allows you to store up to 4 user profiles (U1- U4) and up to 10 memorized
workouts.
START/STOP
s 3TARTSANDPAUSESTHEWORKOUT0USHINGTHISBUTTONDURINGANACTIVEPROGRAMPAUSESTHEWORKOUT0USHTHIS
button again to restart the clock and the program where you left off.
s 1UICKLYSTARTSTHE-ANUAL0ROGRAMWITHOUTUSERVARIABLEINPUT4HEWORKOUTENDSONCEYOUPUSHTHISBUTTONAGAIN
You cannot go back and resume your workout where you left off. See Start and Pause sections for information on
pausing and resuming workouts.
DOWN
Decreases resistance level. Push this button during the setting mode to decrease the value of Time, Distance, Calories, or
Age.
UP
Increases resistance level. Push this button during the setting mode to increase the value of Time, Distance, Calories, or
Age.
Owner’s Manual
10

The Schwinn®420 Console
ENTER/RESET
s 0USHTHE%.4%22%3%4BUTTONTORECORDUSERINPUTINFORMATIONDURINGSETTINGMODE
s (OLDTHEBUTTONDOWNINTHEUSERDATASETTINGMODEFORSECONDSTOEXITTOTHE%.4%202/'2!-SCREEN
s 0USHTHEBUTTONDURING3TARTMODETOCHANGEFROMAUTOSCANDISPLAYTOMANUALSCANDISPLAY
s (OLDTHEBUTTONDOWNIN3TOPMODEFORSECONDSTOCLEARTHECONSOLEANDSTARTTHE0OWER5PSTEP
MEMORY
Saves the exercise data after workout. "DATA SAVED" shows on the Display after the computer records the information.
KM/M Switch
The KM/MILE Switch on the back of the Console lets you change between English or Metric units. Power off the machine
before you change units. Move the switch to MILE to show English units on the LCD Display, or to KM to show Metric
units.
LCD Display Features
The LCD Display is in the center of the Console and gives alphanumeric information including:
s 7ORKOUT0ROGRAM3ETUP)NSTRUCTIONSAND1UESTIONS
s 7ORKOUTINFORMATIONINCLUDING02/'2!-2%3)34!.#%,%6%,4/4!,4)-%).4%26!,4)-%20-AND
WATTS, DISTANCE, and HEART (PULSE) RATE, CALORIES, DISTANCE (in either English or Metric mode), and
SPEED.
s 7ORKOUT0ROGRESS"ARS2ECTANGULARBARSTHATSTACKUPANDVISUALLYINFORMYOUOFTHEPROGRAMCOURSEPROFILEOR
resistance levels. When in one of the many programs, these bars scroll as the program continues.
LCD Contrast
Adjusting the LCD Contrast:
1. Push and hold the DOWN and ENTER/RESET buttons for 3 seconds at the same time.
2. Push the UP button to increase contrast or push the DOWN button to decrease contrast.
3. Push ENTER to select the setting.
LCD Display Descriptions
TIME
Shows the elapsed time on your workout. Your computer automatically counts up from 0:00 to 99:59 in one second
intervals. You can program your computer to count down from a set up value with the UP and DOWN buttons. If you
continue exercising once the time has reached 0:00, the computer will beep. Push any button to stop the beeping.
Re-starting the computer also re-sets the TIME count to count up.
ENGLISH measurement sets units to:
s -ILES
s -ILESHOUR
s 0OUNDS
s )NCHES
METRIC measurement sets units to:
s +ILOMETERS
s +ILOMETERSHOUR
s +ILOGRAMS
s #ENTIMETERS
Owner’s Manual
11

INTERVAL TIME
Counts down the time remaining in the current program interval. When this reaches zero, the program moves to the next
column.
SCAN
Shows your current TIME, DISTANCE, SPEED, WATT, PULSE, CALORIES and RPM per each for 6 seconds. Push the
ENTER button to exit the auto-scan function. This allows you to manually scan the variables. Push ENTER to exit the
manual mode. "SCAN" appears for 2 seconds on the Display and then switches back to auto-scan function.
AGE
Shows the user-input age between 10-99. Default is set to age 35.
RPM
Shows the current pedal RPM (revolutions per minute).
WATTS
Shows the current power you make at a given resistance level. One horsepower equals 746 Watts.
DISTANCE
Shows the distance traveled (Miles or Kilometers) up to a maximum of 99.9.
PULSE
Shows the current heart rate BPM (beats per minute).
Hold the Heart Rate sensors firmly in your hands for the computer to sense your heart rate. The heart rate continues to
update as long as your hands touch the sensors. We supply this information for your convenience only. Do not use this as
a source for medically accurate heart rate readings.
TARGET HEART RATE (TARGET PULSE)
Shows the heart rate to maintain during your exercise in BPM.
SPEED
Shows the current speed (MPH/KMH).
CALORIES
Shows the current energy (calories) burned.
The Schwinn®420 Console
Owner’s Manual
12

Programs and Instructions
MANUAL Program
Use this program when you want to manually adjust the resistance level during your workout to make the program easier
or harder.
Using the Manual Program:
1. Step on the machine.
2. Push the START/STOP button.
3. Use the UP and DOWN buttons to manually adjust the resistance.
Pre-programmed Workouts
The Elliptical Trainer comes with many types of pre-programmed training workouts.
PROFILE Programs
These programs automate different resistances and levels of the Elliptical Trainer during a workout.

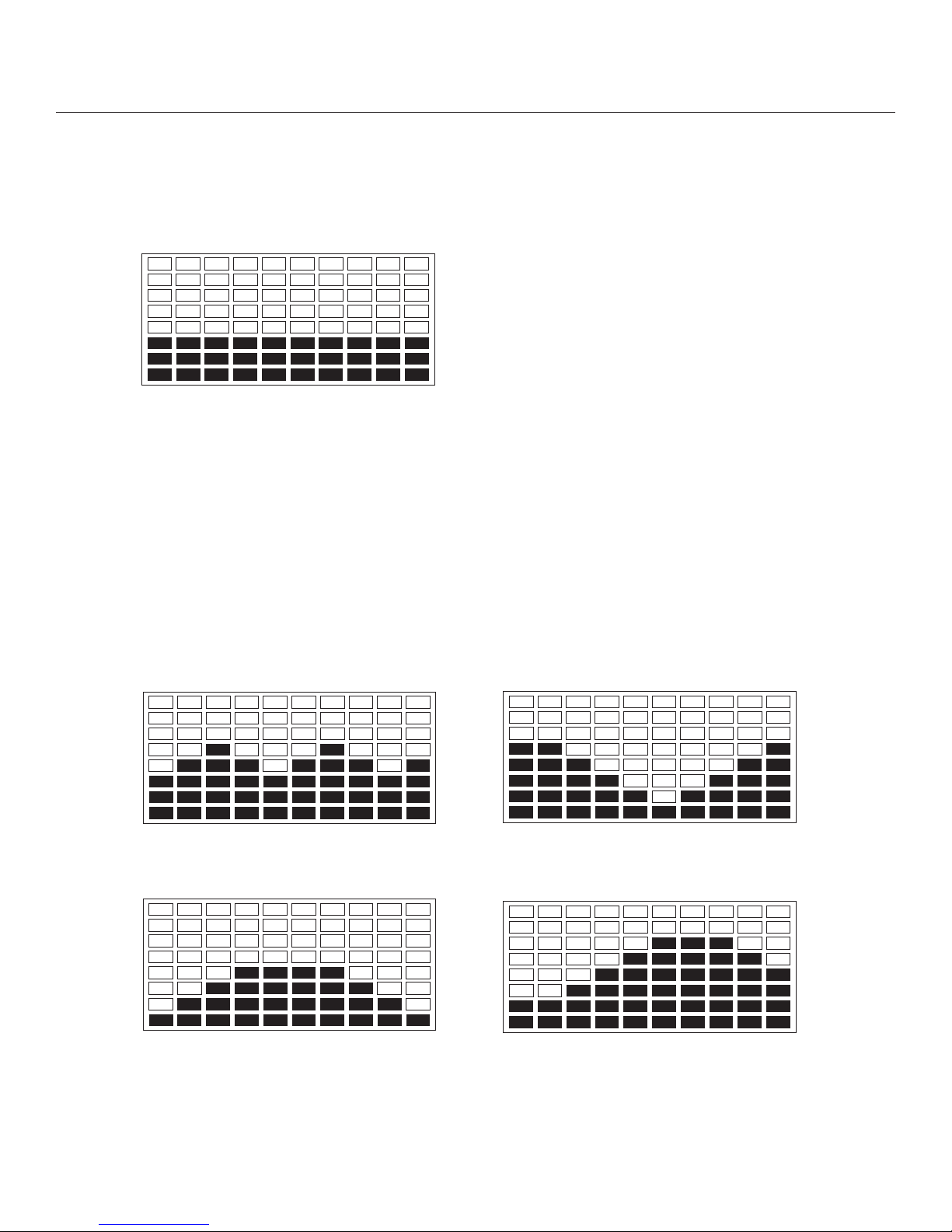

Program 1: Manual
Profile Program 2:Rolling Profile Program 3: Valley
Profile Program 4: Fat Burn Profile Program 5: Ramp
Owner’s Manual
13

Programs and Instructions
Profile Program 6: Mountain
Profile Program 8: Random Profile Program 9: Plateau
Profile Program 7: Intervals
Starting a Profile Program:
1. Step on the machine.
2. Use the UP or DOWN buttons to set one of the above programs. Push ENTER to record selection.
3. Use the UP and DOWN buttons to answer the on-screen questions. Push ENTER to record each selection.
4. Push the START/STOP button when complete. The program starts.
HEART RATE Program
The Heart Rate Program helps you find different Heart Rate goals. Each program calculates a different percentage (55%- 85%,
incrementing by 10%) and tells you what your target heart rate should be for that range. The machine adjusts the resistance level
for your workout so that you can get the goal. "SLOW DOWN" shows on the Display if your heart rate shows higher than calculated.
"HURRY UP" shows on the Display if your heart rate shows lower. "KEEP GOING" shows on the Display if your heart rate matches a
range of 5 within the target heart rate.
Heart Rate Program During Exercise
Heart Rate Program at Start
Owner’s Manual
14

Programs and Instructions
Starting the Heart Rate Program:
1. Step on the machine.
2. Use the UP and DOWN buttons to set one of the heart rate control programs (P10-P14). Push the ENTER button
to record selection.
3. Use the UP and DOWN buttons to answer the on-screen questions. Push the ENTER button to record each
selection.
4. Push the START/STOP button to start workout.
USER SETTING Program
The User Setting program lets you create and save a workout program of your own. Use this program to create custom
values for TIME, DISTANCE, CALORIES and the resistance level in 10 columns. The Console saves and keeps these values
in the Memory after setup.
Creating Your Own Program:
1. Use UP/DOWN button to start the User Profile program (P15). Push the ENTER button to record selection.
2. Push the ENTER button to make your workout program.
3. Use the UP and DOWN buttons to set your user profile. This saves your workout to one of the four user profiles.
Push ENTER to record selection. The first column starts to flash.
4. Use the UP/DOWN buttons to set your personal exercise profile. Push ENTER to record your selection for the first
column. The default level is Load 1 (L1).
5. Repeat Step 4 to complete the remaining columns for your profile.
6. Use the UP and DOWN buttons to set TIME. Push the ENTER button to record selection.
7. Use the UP and DOWN buttons to set DISTANCE. Push the ENTER button to record selection.
8. Use the UP and DOWN buttons to set CALORIES/JOULES. Push the ENTER button to record selection.
9. Push the START/STOP button to save your program and start workout.
Starting the User Setting Program:
1. Step on the machine.
2. Use the UP and DOWN buttons to start the User Profile program (P15). Push the ENTER button to record
selection.
User Setting Program
Owner’s Manual
15

3. Use the UP and DOWN buttons to find the saved user profile.
4. Push the START/STOP button to start workout.
BODY FAT Program
The Body Fat Test Program program calculates your body fat ratio and offers a specific workout profile based on those
results. The Display shows the test results of: FAT PERCENT, BMI, and BMR (Base Metabolic Rate). Please note that this
measurement may not be exact. Consult your Physician for more information about body fat ratio.
Starting the Body Fat Test Program:
1. Step on the machine.
2. Use the UP and DOWN buttons to start the BODY FAT TEST program (P16). Push the ENTER button to record
selection.
3. Use the UP and DOWN buttons to answer the on-screen questions. Push the ENTER button to record each
selection.
4. Make sure both hands firmly hold the heart rate sensors.
5. The computer calculates the fat measurement. The Display shows HOLD SENSOR to remind you to keep both
hands on the sensors.
6. "RESULTS" shows on the Display for 2 seconds when the calculation ends. Then "FAT PERCENT" shows on the
Display.
7. Use the UP or DOWN buttons to see results for: FAT PERCENT, BMI, and BMR. The Console also suggests an
exercise program based off the results.
8. Push the START/ STOP button to start workout with the suggested program.
Note: The Body Fat program is a special program that needs special input. The following buttons only work during the
set-up phase of the program: ENTER, UP and DOWN, COOL DOWN. They do not operate after the program starts.
Programs and Instructions
Body Fat Program at Stop
Body Fat Program at Start
Body Fat Program 2: 40 minutes
Body Fat Program 1: 40 minutes
Owner’s Manual
16

RECOVERY TEST Program
The Recovery Test shows how quickly your heart returns from an exercise state to a more restful state. The Recovery
Score equals your heart rate at the beginning of the test minus your heart rate at the end of the test. The higher the
Recovery Test score value, the faster your heart rate returns to a restful state. You must hold the heart rate sensors during
the test. You cannot use the Recovery program during the BMI program.
Note: If the computer does not sense a pulse signal, "NO PULSE" shows in the Display. If "DETECTED FAIL" shows on the
Display, push the COOL DOWN button again. Make sure your hands firmly hold the heart rate sensors, or correctly
attach the Chest Transmitter.
Starting the Recovery Test:
1. Push the COOL DOWN button while your heart rate shows on the Display. The Display shows "HOLD SENSOR".
2. Continue holding the heart rate sensors. Stop exercising. The Display shows 01:00.
3. Time counts down to 00:00 on the Display. Your heart rate and any changes also show on the Display for the
entire minute.
4. When the clock reaches 00:00, the computer shows your Recovery score and a grade from F1.0 to F6.0.
Helpful Tip: Wait until you see your heart rate on the Display before pushing COOL DOWN to begin the test. Keep your
heart rate steady for 3 minutes before pushing the COOL DOWN button.
Programs and Instructions
Body Fat Program 4: 40 minutesBody Fat Program 3: 20 minutes
Body Fat Program 6: 20 minutes
Body Fat Program 5: 40 minutes
F1.0 = Outstanding
F1.1 - F2.0 = Excellent
F2.1 - F2.9 = Good
F3.0 - F3.9 = Fair
F4.0 - F5.9 = Below Average
F6.0 = Poor
Owner’s Manual
17

User Data and Memory Functionality
Your Elliptical Trainer can store up to 4 users and 10 workouts in the Console Memory.
Setting up a User Profile:
1. Push the USER DATA button to start User Profile mode.
2. Use the UP and DOWN buttons to set user from USER 1 to USER 4 (U1 to U4). Push the ENTER button to record
selection. The Display flashes "GENDER".
3. Use the UP and DOWN buttons to set your GENDER. The Console default equals MAN. Push the ENTER button to
record selection. The Display flashes "35".
4. Use the UP and DOWN buttons to set your AGE. The Console default equals 35. Push the ENTER button to record
selection. The Display flashes "5’07 (170)" and "HEIGHT".
5. Use the UP and DOWN buttons to set your HEIGHT. The Console default equals 5’07" (170cm). Push the ENTER
button to record selection. The Display flashes 155.0 (70.0) and "WEIGHT".
6. Use the UP and DOWN buttons to set your WEIGHT. The Console default equals 155.0 lbs (70 kg). Push the ENTER
button to record selection. The first segment on the Display flashes.
7. To input your name, use the UP and DOWN buttons to select a letter and push ENTER to set the letter. Your name
can take up to 14 segments total. Push ENTER for 2 seconds to record your name and exit the USER DATA mode.
If you do not want your name saved, hold the ENTER button for 2 seconds to exit the USER DATA mode and erase
all data.
Saving Your Exercise Data:
1. Push the MEMORY button after workout to save exercise data.
2. The Display shows "DATA SAVED". The computer saves the data to MEMORY 1 for that User Profile.
Note: The newest data always saves to the MEMORY 1 spot. MEMORY 10 keeps oldest exercise data.
3. Push USER DATA to exit MEMORY mode.
4. Push USER DATA again to exit USER DATA mode to the Program screen.
Reviewing Your Exercise Data:
1. Push the USER DATA button, and then push the MEMORY button.
2. Use the UP or DOWN buttons to review the data from MEMORY 1 to MEMORY 10.
3. Push USER DATA to exit MEMORY mode.
4. Push USER DATA again to exit USER DATA mode to the Program screen.
Programs and Instructions
Owner’s Manual
18

Maintenance
The safety and performance of this product can be maintained only when examined regularly for damage and wear.
Disconnect power supply before servicing or performing maintenance on the Elliptical Trainer. Examine the
Elliptical Trainer regularly for damage and wear. Replace broken components immediately or put the
equipment out of use until repaired.
Daily/Before Each Use: Examine machine. Make sure it looks in good condition and operates smoothly. If you find
damage, DO NOT USE. Contact your authorized Schwinn®Fitness Dealer for servicing.
Daily/After Each Use: Clean machine with a clean, dry cloth. Use a damp cloth to clean your Elliptical Trainer and
Console. Use a mild detergent or spray cleaner on upholstery. Do not use cleansers containing enzymes.
Weekly: Examine the machine for smooth rear roller operation. Clean all surfaces.
Monthly: Examine all bolts and screws. Tighten as necessary.
IMPORTANT: Do not use a petroleum-based solvent when cleaning. It causes damage to the finish on the Elliptical
Trainer and Console. Avoid getting unwanted moisture on the Console.
If you have any questions on the correct use or maintenance of this equipment, call your authorized distributor or Nautilus
Customer Service at 1-800-NAUTILUS (628-8458). Only Nautilus-trained or Nautilus-authorized personnel should make
extensions, readjustments, modifications, or repairs.
Leveling the Elliptical Trainer
You can level the machine to adjust for uneven surfaces. To make the machine level, turn the two leveling bolts located on
the bottom of the rear stabilizer to lift or lower the machine until it is level with the surface.
Moving the Elliptical Trainer
Carefully, but firmly lift the rear end of the Elliptical
Trainer. Slowly steer the Elliptical Trainer to the new
location. Be careful while moving the unit. A sharp,
direct or indirect, hit to the machine can affect
computer operation.
Owner’s Manual
19

Troubleshooting
Basic Post Assembly Troubleshooting
Problem
No display/partial display/elliptical will not turn on.
Solutions
a. Make sure the Elliptical is plugged into a functioning wall outlet. Plug another appliance (like a lamp) into the outlet
to test it for proper functionality.
b. Examine the power connection at the front of the unit. The connection should look attached and have no damage.
Contact Customer Service if you find visible signs of damage.
c. Examine console mast wire for damage. All wires should be intact. If any are damaged contact Customer Service for
assistance.
d. Examine the console mast wire connections at console and at base of console mast. Make sure connectors click
tightly together.
e. Examine the console Display screen for damage. Contact Customer Service if you find visible signs of damage.
f. Contact Customer Service if problems continue.
Problem
Unit operates but Contact Heart Rate (HR) is not displayed.
Solutions
Refer to the "Using the Heart Rate (HR) Sensors" section in this manual.
Note: Sensors may have difficulties with dried out or calloused hands. Use a heart rate monitor conductive cream, such
as Buh-Bump™ cream to help the contact between your hands and the Sensors. Conductive cream is available at
large fitness stores, medical stores, or online.
a. Keep hands centered on the HR Sensors. Your hands must be kept still while keeping equal pressure to each Sensor.
b. Check the HR wire plug on the back of the console. Plug should be fully connected.
c. Contact Customer Service if problems continue.
Problem
Unit wobbles and/or does not sit level.
Solutions
a. Examine the Leveler Bolts at the front of unit. You can turn the Leveler Bolts in or out to make the machine level.
b. Tighten the locknut on the Leveler Bolts when you finish making adjustments. This prevents the bolts from becoming
loose again.
c. Examine the surface below the machine if you cannot adjust the Leveler Bolts. Adjustment may not be possible for
extremely uneven surfaces. Move unit to a level area.
Problem
You hear a "clunk" sound during operation, or unit is difficult to pedal.
Solutions
a. Examine all pivot point connections. Make sure all hardware is fully tightened and there are no cross-threaded
connections.
b. Contact Customer Service if problems continue.
Owner’s Manual
20
