Scosche BASELYNX 2.0 KIT User manual

Modular Charging Station
with MagSafe®
ELEMENTS
Protective End Cap
with Integrated AC Power Cord
Vertical Multi-Device Charging Station
• Vertically stores iPads and other devices during charging
• 60W power, shared between 3 USB-C ports
2-in-1 Charging Stand with MagSafe®
• Display and charge iPhone 12 & later
• Adjustable viewing angle
• Simultaneously charge AirPods Charging Case
Protective End Cap
USB-C to Lightning Cable (1 ft.)
(2) USB-C to USB-C Cables (1 ft.)
SETUP
Starting with the power cord end cap , connect the (2) charging
modules together in either order, with the other end cap at the end
of the assembly . Plug the power cord into a wall socket .
Place tablets, phones, small laptops, or other devices in the padded
bars on the 3-port charging station. Connect using an appropriate
USB cable .
60W power shared between all ports. Output depends on
number of ports used (see insets).
Place iPhone on MagSafe magnetic charging stand and adjust to
desired viewing angle . Both phone and case must be
MagSafe compatible.
Place AirPods on recessed area below MagSafe head .
AirPods case must be compatible with wireless charging.
port =
ports = each port
ports = each port
BASELYNX™2.0 KIT
Modular Charging Station
with MagSafe®
INCLUDED ELEMENTS
A. Protective End Cap
with Integrated AC Power Cord
B. Vertical Multi-Device Charging Station
• Vertically stores iPads and other devices during charging
• 60W power, shared between 3 USB-C ports
C. 2-in-1 Charging Stand with MagSafe®
• Display and charge iPhone 12 & later
• Adjustable viewing angle
• Simultaneously charge AirPods Charging Case
D. Protective End Cap
ABC
E
D
E. USB-C to Lightning Cable (1 ft.)
F. (2) USB-C to USB-C Cables (1 ft.) F
DEVICE SETUP
Starting with the power cord end cap (A), connect the (2) charging
modules together in either order, with the other end cap at the end
of the assembly (B). Plug the power cord into a wall socket (C).
Place tablets, phones, small laptops, or other devices in the padded
bars on the 3-port charging station. Connect using an appropriate
USB cable (D).
Note: 60W power shared between all ports. Output depends on
number of ports used (see insets).
Place iPhone on MagSafe magnetic charging stand and adjust to
desired viewing angle (E). Note: Both phone and case must be
MagSafe compatible.
Place AirPods on recessed area below MagSafe head (F).
Note: AirPods case must be compatible with wireless charging.
A
1port = 60W
2ports = 30W each port
D
B
E
C
F
3ports = 20W each port

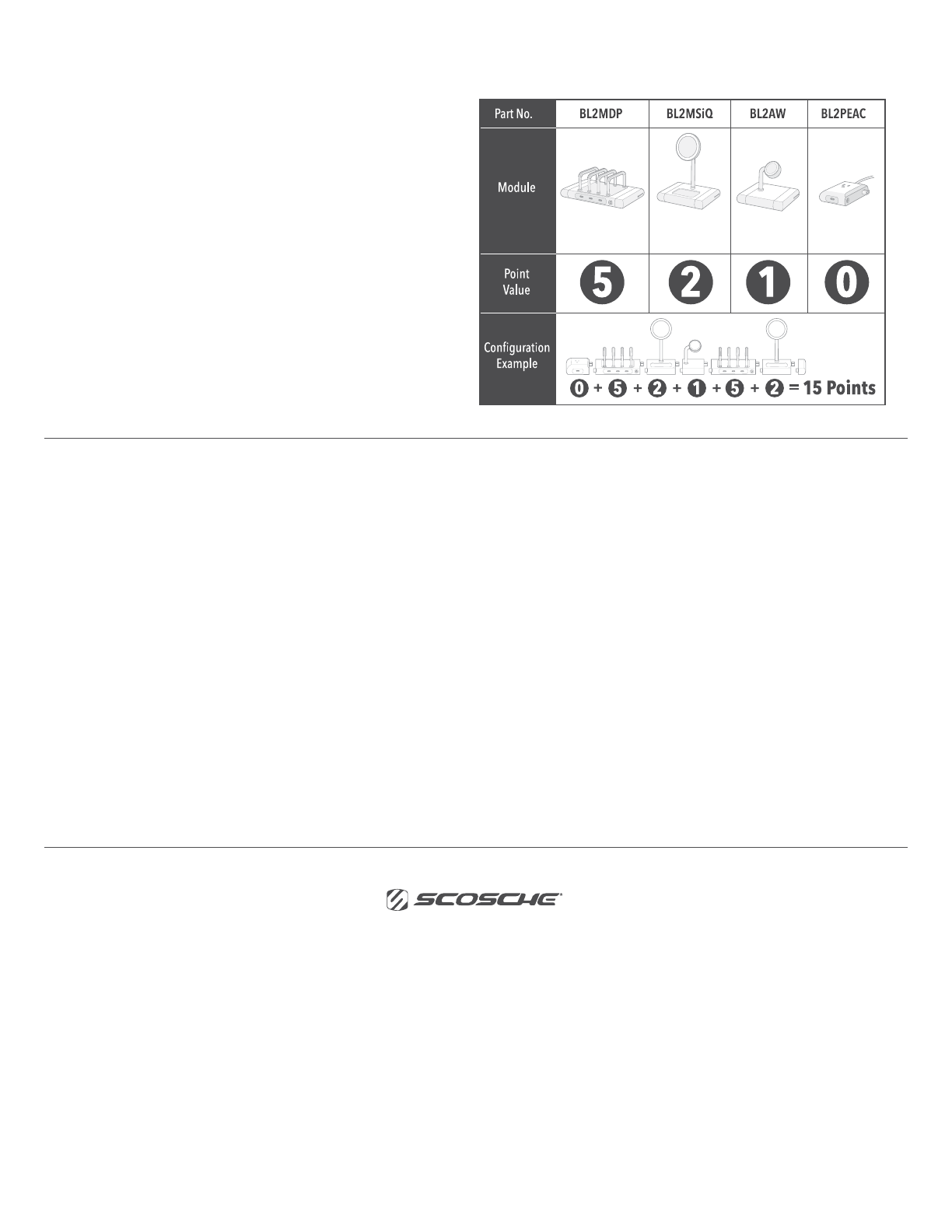

BASELYNX POINT SYSTEM
If you decide to expand your charging station
with more BaseLynx 2.0 modules just follow the
simple point system to safely build your ultimate charging station.
Each BaseLynx module has a predetermined point value as shown
in the chart below. To ensure safe and dependable operation do
not exceed 15 points.
(Note: The BaseLynx 2.0 Kit is 7 points)
For questions regarding different conguration options and other
product support, contact Scosche Customer Service at
[phone] ext. 1 or [email protected].
BaseLynx 2.0
Vert
BaseLynx 2.0
2-in-1 Stand
BaseLynx 2.0
Watch
BaseLynx 2.0
End Cap
LYNX POINT SYSTEM
If you decide to expand your charging station
with more BaseLynx 2.0 modules just follow the
simple point system to safely build your ultimate charging station.
Each BaseLynx module has a predetermined point value as shown
in the chart below. To ensure safe and dependable operation do
not exceed 15 points.
( The BaseLynx 2.0 Kit is 7 points)
For questions regarding different conguration options and other
product support, contact Scosche Customer Service at
or .
• If the device’s battery is fully discharged it may take a few minutes for it to show that it is charging.
• Devices and BaseLynx 2.0 modules may get warm during charging. This is completely normal, and they will gradually cool down after they are fully charged.
• Charging time may vary based on the device’s battery capacity, charge level, the condition of the battery and the temperature in the surrounding area.
• To clean your BaseLynx, disconnect it from power and wipe with a slightly damp cloth.
• For indoor use in dry locations only.
• Children should be supervised when using this product.
• Do not operate if any part of product appears to be damaged.
• Do not attempt to service. Opening housings will expose you to dangerous voltage and risk of electrical shock.
AC Input: 100-240V~50/60Hz, 7A
AC Output: 100-240V~50/60Hz, 1.5A, 875W
Refer to individual modules for charging output ratings
Scosche Industries
1550 Pacic Avenue
Oxnard, California 93033
Phone: [phone] x1 / 805-486-4450 x1
©2023 Scosche Industries
Scosche & BaseLynx are trademarks of Scosche Industries.
Other marks or brands are the property of their respective owners.
Devices and or appearance may vary.
SI 11/23
NOTES
• If the device’s battery is fully discharged it may take a few minutes for it to show that it is charging.
• Devices and BaseLynx 2.0 modules may get warm during charging. This is completely normal, and they will gradually cool down after they are fully charged.
• Charging time may vary based on the device’s battery capacity, charge level, the condition of the battery and the temperature in the surrounding area.
• To clean your BaseLynx, disconnect it from power and wipe with a slightly damp cloth.
WARNINGS
• For indoor use in dry locations only.
• Children should be supervised when using this product.
• Do not operate if any part of product appears to be damaged.
• Do not attempt to service. Opening housings will expose you to dangerous voltage and risk of electrical shock.
SPECIFICATIONS
AC Input: 100-240V~50/60Hz, 7A
AC Output: 100-240V~50/60Hz, 1.5A, 875W
Refer to individual modules for charging output ratings
Scosche Industries
1550 Pacic Avenue
Oxnard, California 93033
Phone: [phone] x1 / 805-486-4450 x1
www.scosche.com
©2023 Scosche Industries
Scosche & BaseLynx are trademarks of Scosche Industries.
Other marks or brands are the property of their respective owners.
Devices and or appearance may vary.
Designed in Oxnard, California
SI BL2KIT1UKW-AP0 11/23
