Scott Safety TORNADO T/POWER SPF Manual

T/POWER
Single Particulate Filter
TORNADO T/POWER SPF
Western Europe
2033327 A
01.2019

GB Operating and Maintenance Instructions 2
DE Gebrauchs- und Wartungsanleitung 8
RF Instructions d'utilisation et d'entretien 14
NL Gebruiks- en onderhoudsaanwijzingen 20
ES Instrucciones de Funcionamiento y Mantenimiento 26
PT Instruções Operacionais e de Manutenção 32
IT Istruzioni d’uso e manutenzione 38
GR Οδηγίες λειτουργίας και συντήρηση 44
TR Kullanım ve Bakım Talimatları 50

Tornado T/Power SPF Iss A
3
Fig 2.
Fig 4.A
Fig 5.Fig 4.B
1
2
Fig 1.BFig 1.A
Fig 3.

4
Tornado T/Power SPF Iss A
 
Important: Please Read Carefully and Fully Understand
Keep Instructions For Future Reference
Improper use of this equipment may result in Personal Injury or Death. Improper use includes, but is
not limited to, use without adequate training, disregard of the warnings and instructions contained
herein, and failure to inspect and maintain this Respiratory Protective Equipment. Read and
understand all instructions before attempting to operate or service this equipment.
This equipment is intended to be used only in conjunction with an organised Respiratory Protection
program.
Before using this equipment, read the contents of EN529:2005 and familiarise yourself with the
requirements for Respiratory Protective Equipment and their potential effects on the wearer.
PAPR system users must be familiar with workplace hazards prior to using the equipment and must be
fully trained in the use of the apparatus.
In the ‘power off’ state, little or no respiratory protection is to be expected. This is regarded as an
abnormal condition. In the ‘power off’ state, a rapid build-up of carbon dioxide and a depletion of
oxygen within the hood or helmet may occur.
Scott Safety blowers must be used with a Scott Safety headtop, unless otherwise directed. Read this
manual, the headtop manual and Scott Safety Filter manuals, prior to using this equipment.
The blower must be fitted with the correct range of filters which are appropriate for the workplace
hazard.
This product must only be used with filters manufactured by Scott Safety. The use of any other filters
will negate the approval and will be likely to reduce the level of protection provided.
Do NOT confuse EN 12941:1998+A2:2008 and EN 12942:1998+A2:2008 filter markings with filter
markings relating to other EN standards.
Do NOT use a PAPR in confined spaces, oxygen deficient atmospheres (<19%), oxygen enriched
atmospheres (>23%), or where there is an immediate hazard to life or health. Local regulations may
apply.
Do NOT use if the ambient temperature is outside of the range -10°C to +40°C. Humidity levels up to
95% RH do not present any operational problems.
Do NOT use if the apparatus is damaged. The headtop and air hose must be inspected on every
occasion before use to ensure that no damage of any kind is evident which could cause leakage or
reduced levels of protection. A monthly inspection of the apparatus is a mandatory requirement in
the UK under COSHH regulations and inspection on a monthly basis is strongly recommended for all
other countries.
Ensure that the air hose is free of loops when donning. When donned, the air hose should be
positioned to reduce the chance of it becoming caught up in your surroundings.
Protection will only be obtained if the equipment is fitted correctly.
Protection levels may be reduced if wind speed exceeds 2 meters per second.
In the unlikely event that the PAPR fails while in a hazardous area, there may be an increase of carbon
dioxide and contamination within the headtop. Leave the area immediately.
At very high work-rates, pressure in the apparatus may become negative at peak inhalation flow.
Filters must not be fitted directly to the headtop.

Tornado T/Power SPF Iss A
5
OVERVIEW
These products meet the requirements of European Regulation (EU) 2016/425 and applicable local legislation.
The applicable European/local legislation and Notified Body can be determined by reviewing the Certificate(s)
and Declaration(s) of Conformity at www.3m.com/Respiratory/certs
Tornado T/Power SPF (Single Particulate Filter) is an intelligent, powered air purifying respirator (PAPR). This
document also refers to the device as a blower.
Tornado T/Power SPF is designed to be used only in a complete PAPR system, and must be combined with
appropriate filter, hose, battery pack and headtop.
Tornado T/Power SPF includes the following features;
• Is approved to EN 12941:1998+A2:2008 / EN 12942:1998+A2:2008.
• Is a highly durable, impact resistant PAPR, manufactured from Polypropylene with a shower proof construction.
• Has LED icons to provide information on the current state of the PAPR.
• Includes a fully adjustable waist belt to fit waist sizes up to 130 cm.
• Protects against the inhalation of harmful dusts, mists, fumes, vapours, or gases especially where protection is
required for long periods and is of particular benefit in hot or humid environments.
• Is designed to be used alongside a rechargeable battery pack which has a 7.5 hour life.
• In use, filtered air from the blower is delivered via a hose to the headtop and exits through the face-seal or
exhalation valve.
A replaceable filter is fitted on the blower, which is powered by a fitted rechargeable battery pack.
The correct headtop together with the correct filter should be chosen, after considering the intended application,
the hazards likely to be present and the preferences of the wearer.
Note Full details of protection rates for Tornado PAPR systems can be obtained within the relevant headtop user
manual.

You must fully read these instructions before using this equipment
Storage information

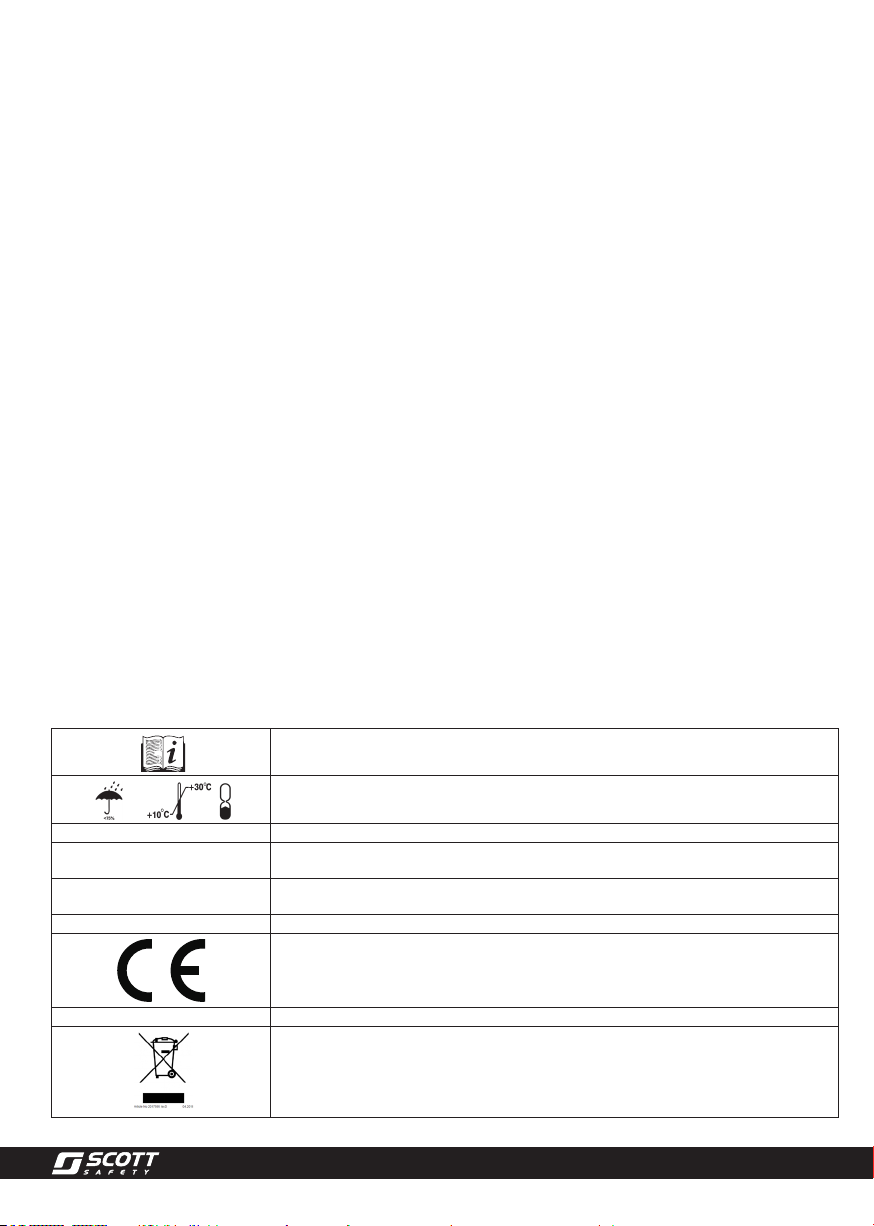

Humidity, temperature, end of shelf life
WARNING DO NOT REMOVE You must not attempt to remove this panel from the device
EN 12942:1998+A2:2008 Respiratory protective devices. Power assisted filtering devices incorporating full face masks,
half masks or quarter masks. Requirements, testing, marking. UI, Section 9
EN 12941:1998+A2:2008 Respiratory protective devices. Powered filtering devices incorporating a helmet or a hood.
Requirements, testing, marking. UI, Section 9
TM2 (EU) Classification and protection factor
CE: European conformity – These products are type approved and annually audited by either BSI Group, The
Netherlands B.V. Say Building, John M. Keynesplein 9, 1066 EP Amsterdam, The Netherlands, Notified Body
No. 2797 and / or BSI Assurance UK Ltd, Kitemark Court, Davy Avenue, Knowlhill, Milton Keynes MK5 8PP,
UK, Notified Body No. 0086.
PPE Regulation (EU) 2016/425
The product is subject to European Community Directive 2002/96/EC on correct
handling of Waste Electrical and Electronic Equipment (WEEE).

6
Tornado T/Power SPF Iss A
T/POWER
TORNADO POWERED RESPIRATOR
Scott Safety Ltd
Pimbo Road, West Pimbo, Skelmersdale, Lancashire
WN8 9RA. Tel: ++(44) 1695 711 711
2797
USE ONLY WITH BATTERY
TOR/BATT/H
TOR/BATT/M
TOR/BATT/LITE
EN 12941:1998 +A2:2008
EN 12942:1998 +A2:2008
MADE IN UK
(SINGLE PARTICULATE
FILTER) NON-EX
A B
CD
E
F
G

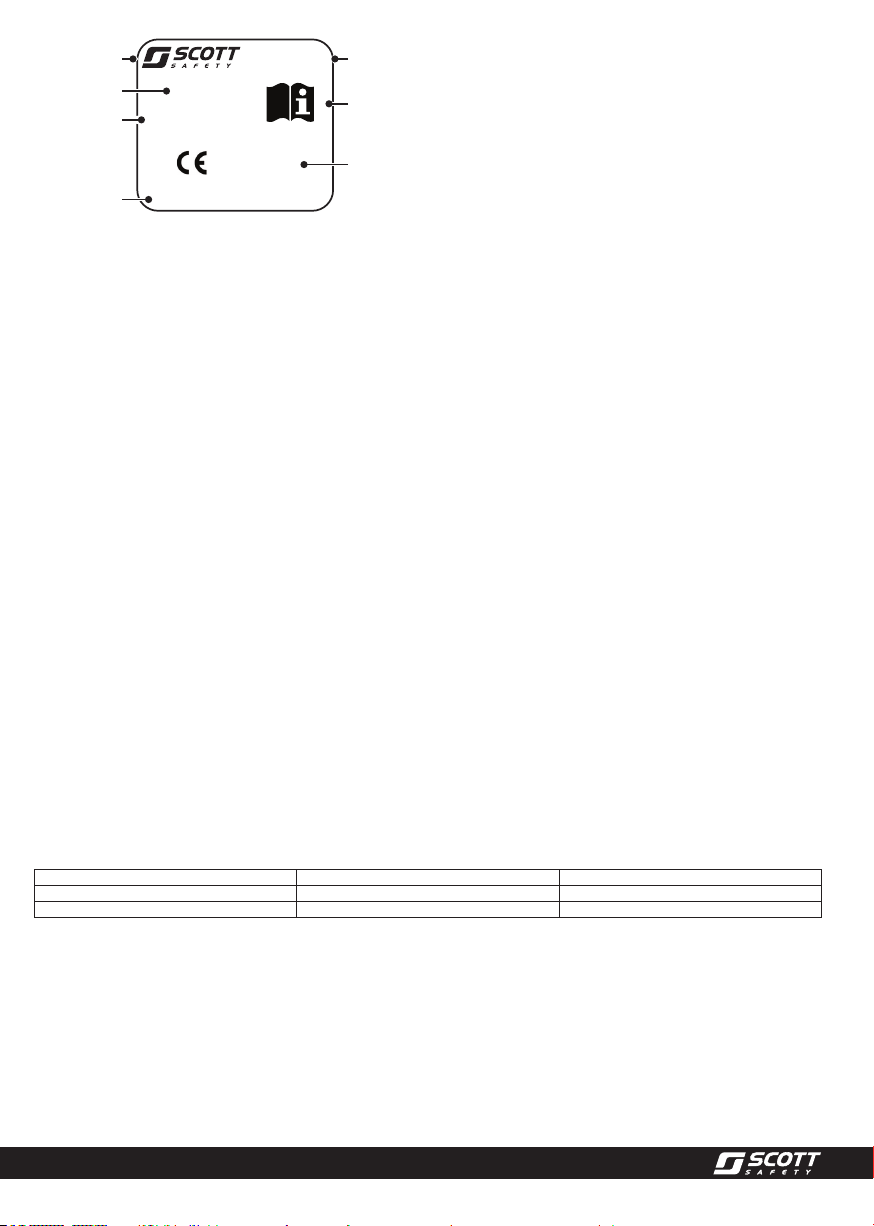

Key Meaning
A Company brand name
B Product brand name
C Battery compatibility
D Symbol - refer to User Instructions
E Standards to which apparatus is certified
F Number of Approval Body
G Contact details of manufacturer
In addition, the blower and battery are marked with the month and year of construction.

Tornado T/Power SPF uses a removable, rechargable battery
Warning It is the users responsibility to ensure that they select the correct equipment configuration for the
required task. This must be in accordance with a workplace risk assessment.
Warning Ensure powered air system components are stored appropriately to avoid confusion.
Fully charge battery before use. Optimum performance with new battery packs is achieved only after they have
completed 3 charge-cycles.
A full charge takes up to 8 hours. The battery pack may be left connected to the charger after full charge is
reached.
Note A new battery or a battery stored for a longer period may not function stably, which will terminate the
recharging prematurely. Monitor the signal lights during the first few recharge cycles and initiate the recharging
several times if needed.
Ensure that you charge the battery within the specified temperature / humidity range.
Never recharge in a potentially explosive environment!
When not in use, prevent over-discharge of battery by keeping the blower device always on recharge.
Overcharging of battery is automatically prevented.

These instructions must be used alongside the Operating and Maintenance Instructions for the chosen Headtop,
and Filter.
Charge battery.
Select the appropriate filter and headtop for the hazard you will be working within and tasks being completed.
Ensure PAPR, belt, hose and mask have been cleaned / decontaminated.
Check PAPR for damage; paying attention to the hose fitting, and filter fitting.

The minimum battery run time is 7:30 hours for all headtops:
Headtop Type MMDF Min Battery Run Time
Open Headtop 140 l/m 7:30 hours
Closed Headtop 110 l/m 7:30 hours

Switch on Tornado T/Power SPF with the flow-tester correctly fitted. The unit should bleep once.
Check that the float rises completely above the TM line. (See Page 2 - Fig 5.)

Tornado T/Power SPF should be fitted with filter appropriate to the application, selected by a competent person
with a full knowledge of respiratory hazards, and their concentrations in the workplace. To ensure adequate
protection in afforded, it is essential that Tornado is correctly configured.
Please consult the headtop User Instructions for classification of the device.

Tornado T/Power SPF Iss A
7

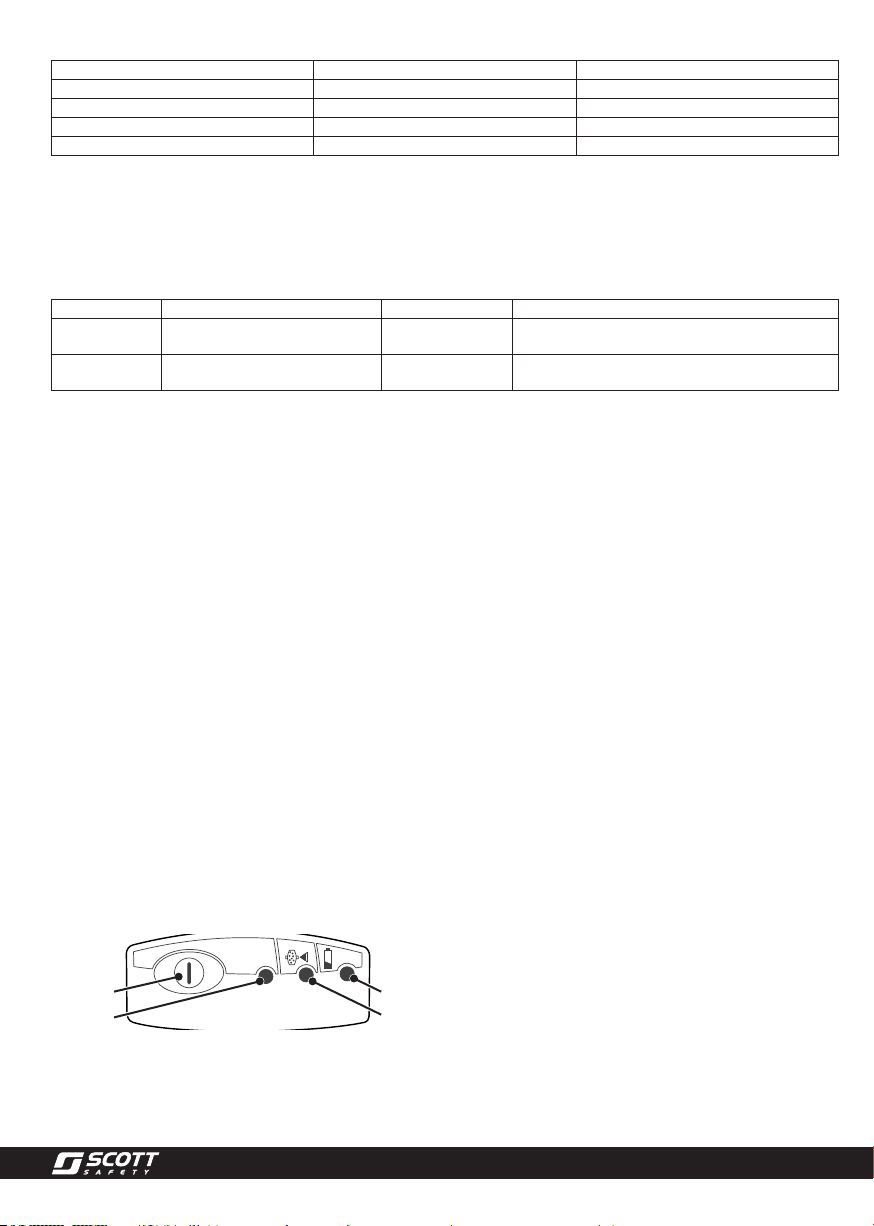

The table below shows Device Cassification and Protection Factor
European Device Classification Assigned* Protection Factor Nominal Protection Factor
TH2 20 50
TH3 40 500
TM2 20 200
TM3 40 2000
* According to EN 529 : 2005
Note P R SL filters are suitable for all types of particulate hazards including dust, mist and fume of all types,
radioactive dusts, bacteria and viruses.
Please contact Customer Services at Scott Safety for more detailed information on filter selection, appropriate
maximum use concentration levels and relevant local legislation.
The following filters are available for use with Tornado T/Power SPF :
Code Filter Type Colour Code Application
PF251/2 TH1/TH2/TH3/TM2/TM3 P R SL
(Particulate) White Solid and liquid particulates, including: dusts, mist, fumes, fibres, bacteria and virus
PF251/SUPER TH1/TH2/TH3/TM2/TM3 P R SL
(Particulate) White As PF251/2. Longer lasting, high capacity particulate filter

Filters must be disposed of in accordance with local waste treatment regulations. Particulate filters constitute
normal waste (can be, for example, incinerated). But they are considered hazardous waste if hazardous
substances have been filtered through them.

Filter to PAPR

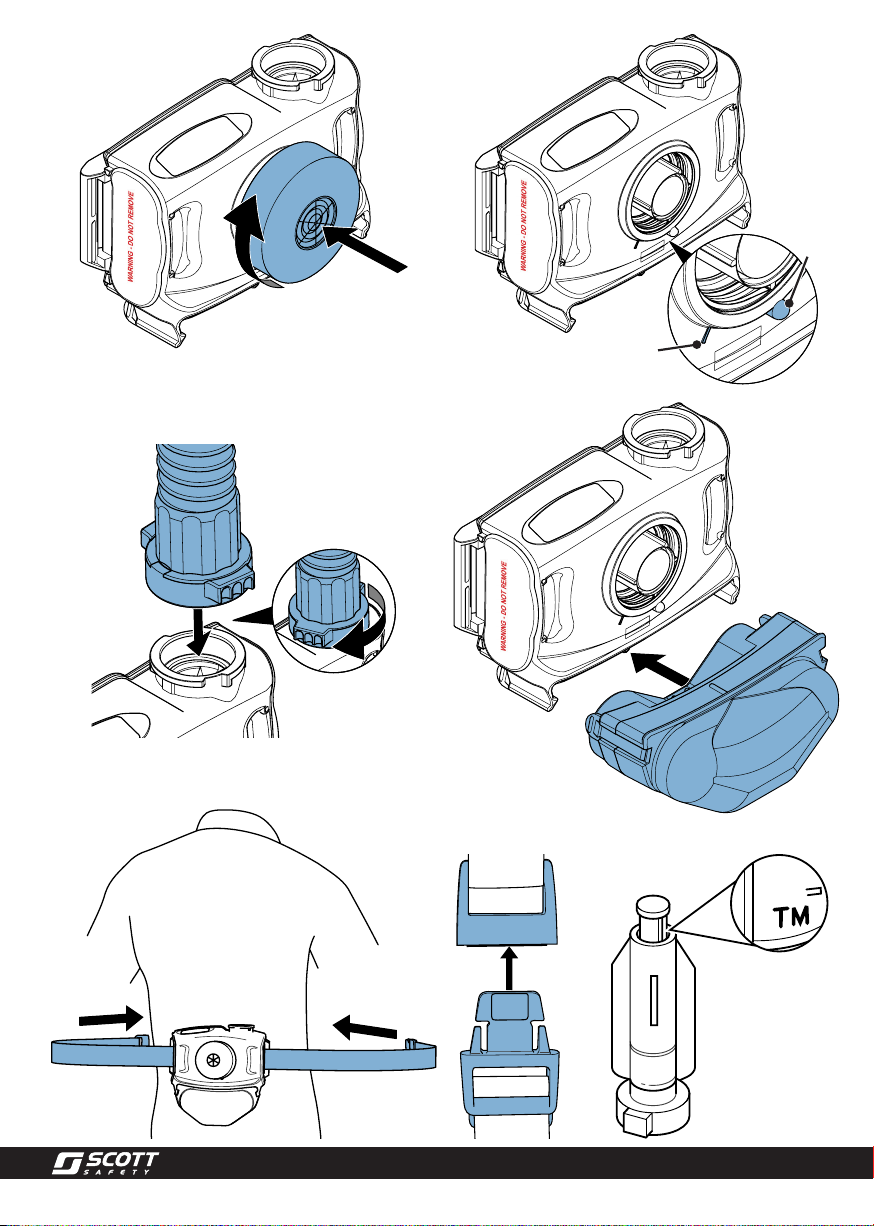

See Page 2 - Fig 1.A / 1.B.
Screw the filter firmly home until the tab on the base of the filter passes over the protrusion or 1st Mark on the
blower body or filter adaptor (shown as 1 in Fig 1.B). Continue until the filter is finger tight. DO NOT OVER-
TIGHTEN. DO NOT allow the tab to pass the 2nd Mark (shown as 2 in Fig 1.B).

See Page 2 - Fig 2.

See Page 2 - Fig 3.

See Page 2 - Fig 4.A / 4.B.
For headtop donning instructions see headtop user manual.
IN USE

With the unit mounted on your waist you can pull the unit around to your side to view the display, the view you

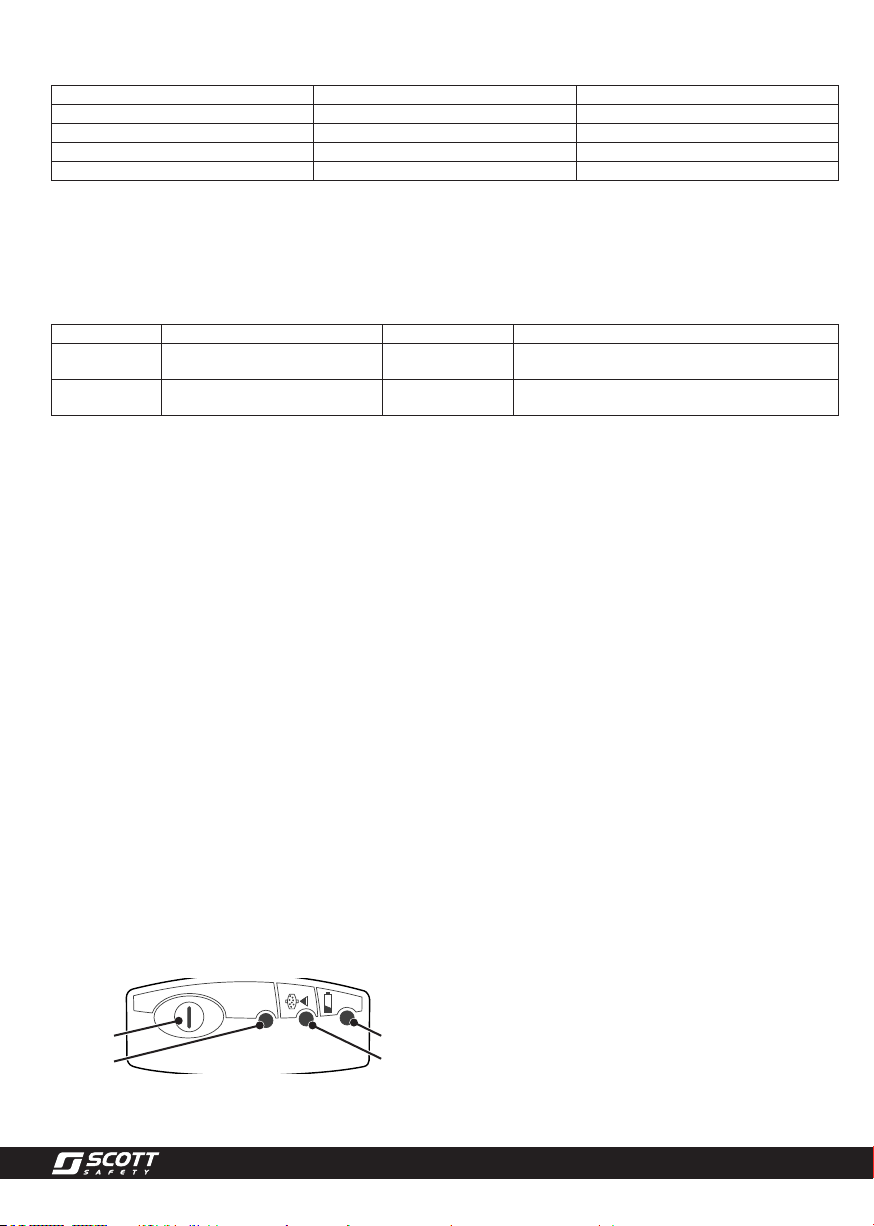

get is shown below:
A
B
C
D
Key Meaning
A Power button
B Power icon
C Low flow rate LED
D Low battery LED
Power On
Before switching on ensure:
Ensure battery is not damaged, and has been fully charged.
Battery Pack is fitted and secure.

8
Tornado T/Power SPF Iss A
Filter is fitted in place.
Ensure filters are not beyond their serviceable life.
Headtop hose is connected and locked.
Visually inspect the whole set of equipment including the hose and headtop for damage.
Switch on Tornado T/Power SPF and check that the unit beeps: once for a closed face-piece, twice for an open
face-piece.
Proceed to work area.
Power Off
Hold the Power button for 3 seconds.

Audible Alarms
The audible alarm is designed to travel through the hose and into the headtop area, the audible alarm is an
evacuate alarm.
On face masks -where the hose does not feed directly into the area surrounding the ears the hose sits on your
shoulder and the alarm can be heard from the hose.

Battery Pack capacity alarm is as follows:
Conditions Limits Visual Alarm Audible Alarm
Time Remaining ~5 minutes Red low battery LED flashing Intermittent beep alarm
Alarm will continue until either:
User switches off whole unit.
Higher charge battery installed.
Flowrate Alarm
Flowrate alarm is as follows:
Conditions Visual Alarm Audible Alarm
Low Flowrate Yellow low flow rate LED flashing Intermittent beep alarm
Alarm will continue until either:
User switches off whole unit.
Airflow issue resolved.

CAUTION do not remove the headtop until you are in
a safe and hazard free zone.
Where the equipment must be cleaned and
decontaminated when leaving the work area, a ‘dirty‘
area, remote from the hazardous environment, should
be set aside for this.
Remove any protective clothing with the Tornado T/
Power SPF still running.
Remove any loose contamination from the outside of
the unit with a brush or cloth.
Remove the headtop in accordance with the Operating
and Maintenance instructions.
Switch the Tornado T/Power SPF off, undo the
belt and cap the filters. Put the unit to one side and
complete any personal hygiene.
Proceed with after use cleaning and storage.
AFTER USE CARE
Note If during use the equipment may have
become contaminated by hazardous substances,
the contamination must be identified and properly
removed or the contaminated components must be
replaced before next use.
Disposal of the contaminated components must
be carried out in accordance with local regulatory
requirements.
Inspect worn, or damaged components.
Caution Do not immerse any part of the equipment
during the cleaning procedure.
Carefully wash or wipe clean the headtop and wipe
clean the blower with a damp cloth and warm water
solution containing a mild detergent.
Care must be taken that no harmful dusts can be
inhaled or ingested while this work is completed.

Tornado T/Power SPF Iss A
9
Ensure that no contaminant falls into the blower inlet
fan housing whilst the filter is being removed.
Once clean all components must be left to dry
naturally.
Recharge the battery.
MAINTENANCE
Regular and scheduled maintenance is essential for the
integrity of the equipment.
As well as the pre-use and storage checks the
apparatus must be checked on a monthly basis, a
service should be performed annually by a qualified
service and maintenance operative.
A regular monthly maintenance schedule is performed
as per the pre-use checks which includes a thorough
visual of all components.
Carry out a thorough inspection of all component parts
before and after each occasion of use.

Device must be protected from damage during
transportation.
When not in use the equipment should be stored in a
clean, dry environment, away from direct heat sources
between -10°C and +30°C, at a humidity of less than
75% RH.

Record test and maintenance details on the inspection
sheet provided at the rear of this manual.
Information recorded usually includes:
Name of employer responsible for the apparatus.
Make, model number or identification mark of
the apparatus, together with a description of any
distinguishing features.
Date of inspection/maintenance together with name,
signature or unique identification mark of the examiner.
Condition of the apparatus, details of any defects found
and any remedial action taken.

Disposal of the components must be carried out in
accordance with local regulatory requirements.
This product must not be disposed of in general
municipal waste.
The product may contain substances which could
harm the environment or human health if disposed of
incorrectly.
The crossed-out wheeled bin symbol shown on this
product, packaging or instructions indicates the
product is subject to European Community Directive
2002/96/EC on correct handling of Waste Electrical
and Electronic Equipment (WEEE).
WEEE cannot be disposed of as municipal waste
and must be collected and disposed of separately.
Appropriate waste collection systems defined by
national regulations should be used.
For more information, please contact the company
where you purchased this product or visit www.
scottsafety.com

Expiry date is shown on product marking and
packaging.

10
Tornado T/Power SPF Iss A
 


Die unsachgemäße Verwendung dieses Gerätes kann in Personenschäden oder Todesfolge resultieren. Die
unsachgemäße Verwendung umfasst - ist jedoch nicht beschränkt auf - den Einsatz ohne entsprechende
Schulung, eine Missachtung der in diesem Dokument enthaltenen Warnhinweise und Anweisungen sowie
unterlassene Inspektion und Wartung dieses Atemschutzgerätes. Bitte lesen Sie alle Anweisungen gründlich,
bevor Sie versuchen, das Gerät zu betreiben oder zu warten.
Dieses Gerät ist ausschließlich zum Einsatz im Rahmen eines organisierten Atemschutzprogramms
konzipiert.
Lesen Sie vor Gebrauch dieses Gerätes den Inhalt der Norm EN529:2005, und machen Sie sich mit den
Anforderungen an Atemschutzgeräte sowie ihren potenziellen Auswirkungen auf den Träger vertraut.
Benutzer von PAPR-Systemen müssen vor Gebrauch des Gerätes mit den am Arbeitsplatz vorherrschenden
Gefahren vertraut sein und eine gründliche Schulung zum Einsatz des Gerätes absolviert haben.
Im abgeschalteten Zustand kann nur wenig bzw. gar kein Atenmschutz erwartet werden. Dies wird als
abnormaler Zustand betrachtet. Im abgeschalteten Zustand kann es zu einer schnellen Ansammlung von
Kohlendioxid und einer Verringerung des Sauerstoffgehalts in der Maske oder im Helm kommen. Falls
ein Gebläse unvorhergesehener Weise defekt werden sollte, muß der Träger den Gefahrenbereich sofort
verlassen und danach das Gerät abnehmen.
Wenn nicht anders angegeben, müssen Scott Safety Gebläse zusammen mit einem Scott Safety Kopfteil
verwendet werden. Lesen Sie vor Gebrauch dieses Gerätes dieses Handbuch, das Handbuch zum
jeweiligen Kopfteil sowie die Scott Safety Filterhandbücher.
Das Gebläse muss mit dem korrekten Filtersortiment ausgestattet sein, das für die am Arbeitsplatz
vorherrschenden Gefahren geeignet ist.
Dieses Produkt darf nur mit Filtern, die von Scott Safety hergestellt wurden, verwendet werden. Die
Verwendung anderer Filter macht die Gerätezulassung ungültig und beeinträchtigt sehr wahrscheinlich den
vom Gerät gelieferten Schutzgrad.
Verwechseln Sie Filtermarkierungen gemäß EN 12941:1998+A2:2008 und EN 12942:1998+A2:2008 NICHT
mit Filtermarkierungen, die sich auf andere EN-Normen beziehen.
PAPR-Systeme NICHT in engen Räumen, sauerstoffarmer Umgebung (<19%), mit Sauerstoff angereicherter
Umgebung (>23%) oder an Orten verwenden, wo eine unmittelbare Gefahr für Leben oder Gesundheit
besteht. Es gelten u.U. lokale Vorschriften.
Gerät NICHT benutzen, wenn sich die Umgebungstemperatur außerhalb des Bereichs von -10°C bis +40°C
befi ndet. Eine relative Luftfeuchte von bis zu 95% beeinträchtigt die Gerätefunktion nicht.
KEINE beschädigten Geräte verwenden. Kopfteil und Luftschlauch sind stets vor dem Einsatz zu
untersuchen, um sicher zu stellen, dass sie keine Beschädigungen aufweisen, die ansonsten Leckagen
bedingen oder die Schutzfunktion beeinträchtigten könnten. Die monatliche Inspektion des Gerätes ist eine
gemäß COSHH-Vorschriften (Vorschriften zur Überwachung von gesundheitsgefährdenden Stoffen) vom
britischen Gesetzgeber erhobene Anforderung. Für alle anderen Länder wird eine monatliche Inspektion
ebenfalls strengstens empfohlen.
Achten Sie darauf, dass der Luftschlauch beim Anlegen keine Schlaufen aufweist. Luftschlauch so anlegen,
dass er sich nicht an in Ihrer Umgebung befindlichen Gegenständen verfangen kann.
Der Schutzgrad wird nur dann erreicht, wenn das Gerät korrekt angelegt wird.
Windgeschwindigkeiten von mehr als 2m pro Sekunde können einen verringerten Schutzgrad bedingen.
Für den unwahrscheinlichen Fall, dass das PAPR-System in einem Gefahrenbereich versagt, kann es im
Kopfteil zu einer erhöhten Ansammlung von Kohlendioxid und Kontaminationsstoffen kommen. DEN
GEFAHRENBEREICH SOFORT VERLASSEN.
Bei sehr hoher Arbeitsbelastung kann bei maximaler Einatemfrequenz innerhalb des Gerätes ein Unterdruck
entstehen.
Filter dürfen nicht direkt am Kopfteil befestigt werden.
